Downloaded from www.Manualslib.com manuals search engine Engine Coolant Temperature Gage
This gage shows the engine
coolant temperature. If the
gage pointer moves into
the red area, your engine
is approaching an
overheating condition.
If you have been operating your vehicle under normal
driving conditions, you should pull
off the road, stop
your vehicle and turn off the engine as soon as possible.
In “Problems on the Road” this section shows what to
do. See “Engine Overheating,’’
in the Index.
Low Coolant Light ( 5.7L V8 Engine)
This warning light should
come on briefly while you
are starting your engine. If
the light doesn’t come on,
have it remired. Your
vehicle is equipped with
a low coolant indicator
that
is designed to detect when the coolant level drops
below the set limit.
If the low coolant level sensor (on
the radiator) detects that the level drops while the engine
is running, the low coolant indicator will light and
remain lit for five minutes or until the ignition switch
is turned to
OFF. Check the coolant level and add
coolant as needed.
The low coolant light might stay on after filling the
radiator. Turn the ignition switch to the
OW position,
then restart the engine to verify that the low coolant
light goes out. See “Engine Coolant” in the Index.
NOTICE:
Driving with the low coolant light on could
cause your vehicle to overheat. See “Engine Overheating’’ in the Index. Your vehicle could
be damaged, and it wouldn’t be covered by
your warranty.
I . 2-80

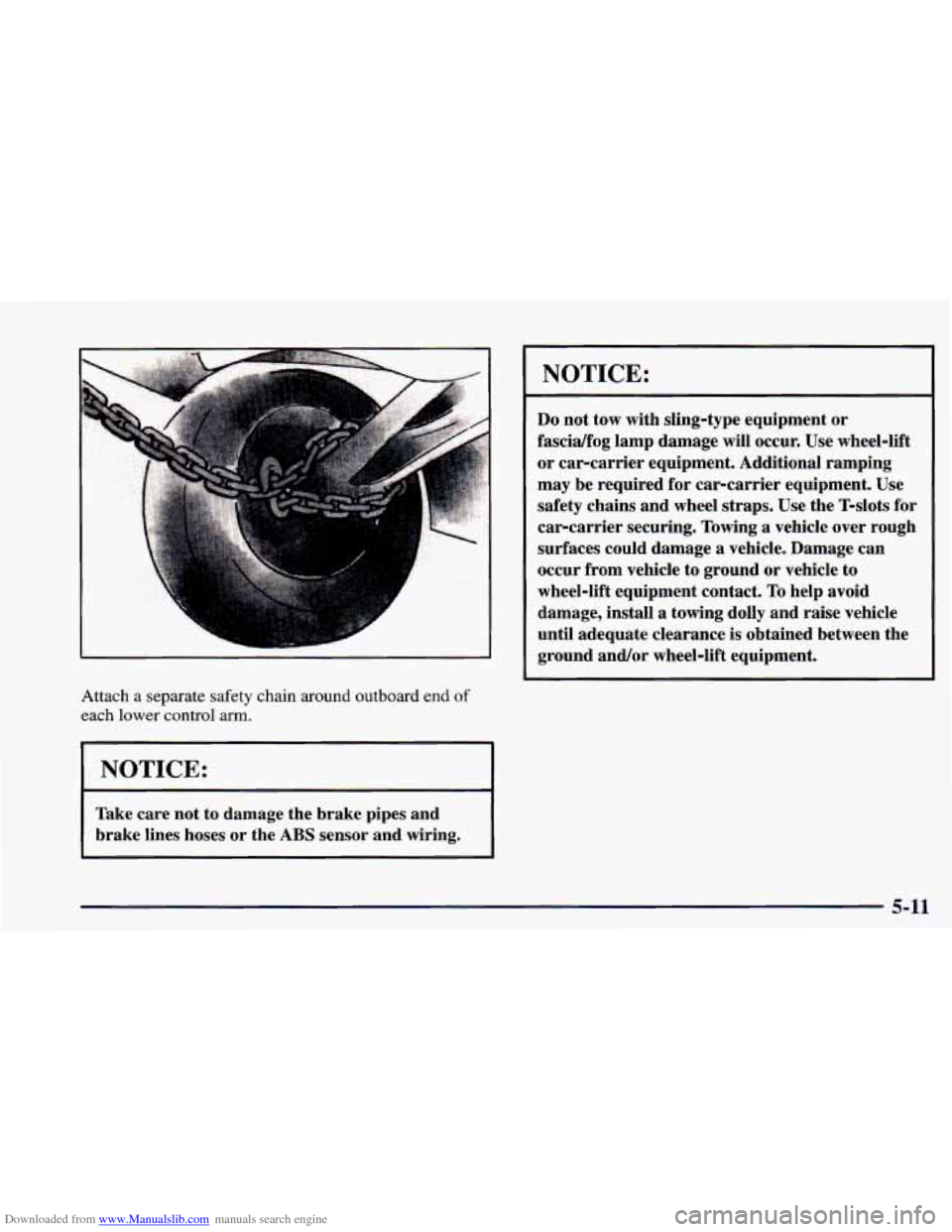

Downloaded from www.Manualslib.com manuals search engine Attach a separate safety chain around outboard end of
each lower control arm.
I NOTICE: I
Take care not to damage the brake pipes and
brake lines hoses or the
ABS sensor and wiring. 1
NOTICE:
Do not tow with sling-type equipment or
fascidfog lamp damage will occur. Use wheel-lift
or car-carrier equipment. Additional ramping
may be required for car-carrier equipment. Use
safety chains and wheel straps. Use the T-slots for
car-carrier securing. Towing a vehicle over rough
surfaces could damage
a vehicle. Damage can
occur from vehicle
to ground or vehicle to
wheel-lift equipment contact.
To help avoid
damage, install
a towing dolly and raise vehicle
until adequate clearance is obtained between the
ground and/or wheel-lift equipment.

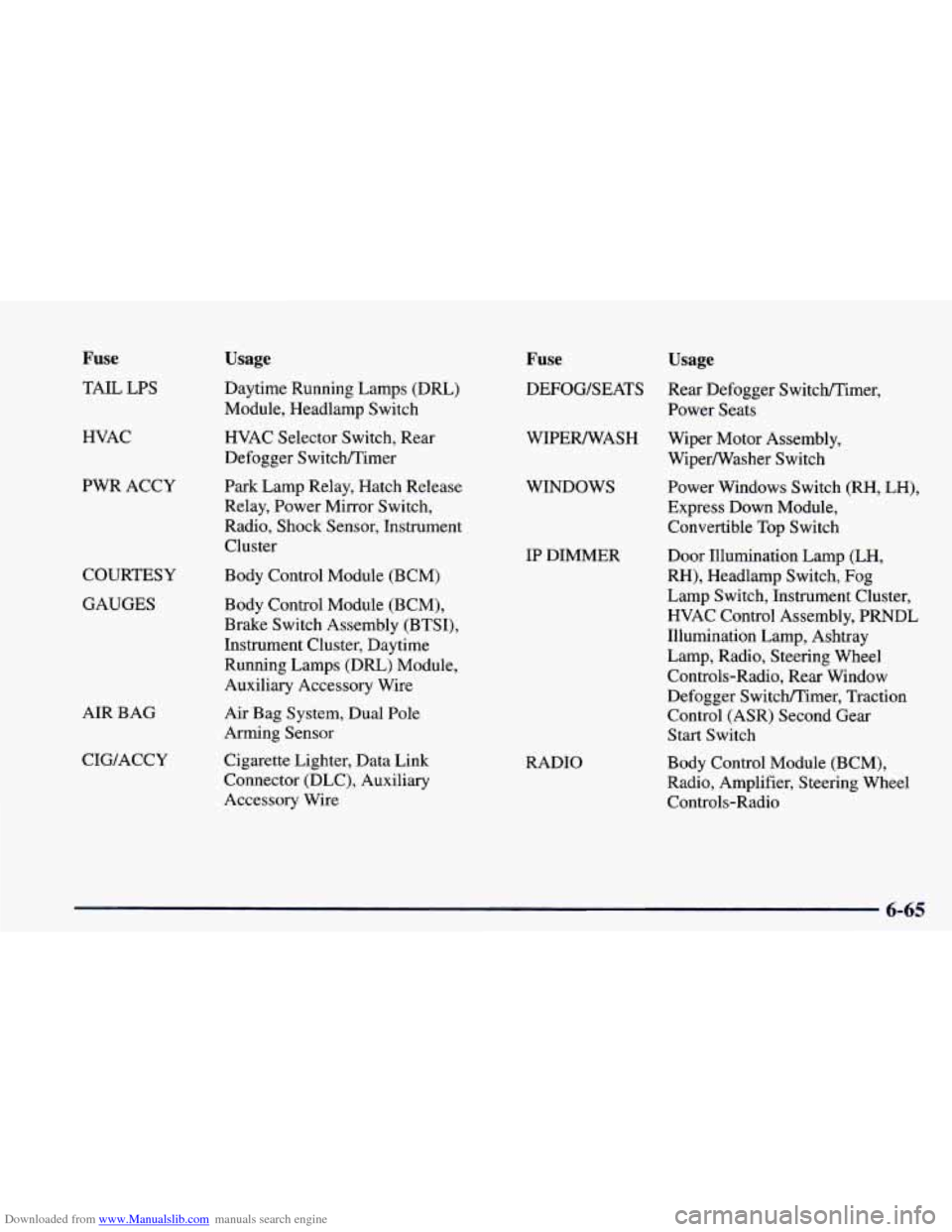

Downloaded from www.Manualslib.com manuals search engine Fuse
TAIL LPS
HVAC
PWR ACCY
COURTESY GAUGES
AIR BAG
CIG/ACCY
Usage
Daytime Running Lamps (DRL)
Module, Headlamp Switch
HVAC Selector Switch, Rear
Defogger SwitcWTimer
Park Lamp Relay, Hatch Release
Relay, Power Mirror Switch,
Radio, Shock Sensor, Instrument
Cluster
Body Control Module (BCM)
Body Control Module (BCM),
Brake Switch Assembly (BTSI),
Instrument Cluster, Daytime
Running Lamps (DRL) Module,
Auxiliary Accessory Wire
Air Bag System, Dual
Pole
Arming Sensor
Cigarette Lighter, Data Link
Connector (DLC), Auxiliary
Accessory Wire
Fuse
DEFOGEEATS
WIPEWASH
WINDOWS
IP DIMMER
RADIO
Usage
Rear Defogger Switch/Timer,
Power Seats
Wiper Motor Assembly,
Wipermasher Switch
Power Windows Switch (RH, LH),
Express Down Module,
Convertible Top Switch
Door Illumination Lamp
(LH,
RH), Headlamp Switch, Fog
Lamp Switch, Instrument Cluster,
HVAC Control Assembly, PRNDL
Illumination Lamp, Ashtray
Lamp, Radio, Steering Wheel
Controls-Radio, Rear Window
Defogger Switch/Timer, Traction
Control (ASR) Second Gear Start Switch
Body Control Module (BCM),
Radio, Amplifier, Steering Wheel
Controls-Radio
6-65

Downloaded from www.Manualslib.com manuals search engine Fuse
ENG SEN
STRTR
ABS IGN PCM IGN
ENG CTRL
Usage
Mass Air Flow, Heated Oxygen
Sensor, Skip Shift Solenoid
(V8
Only), Reverse Lockout Solenoid,
Brake Switch
Powertrain Control Module and
Clutch Pedal Switch
Anti-Lock Brake System Module
Powertrain Control Module
Ignition Module (V6 Only),
Automatic Transmission and
Charcoal Canister Purge Solenoid
A/C CRUISE Air Conditioning Compressor Relay,
Cruise Control Switches and Module
ENG CTRL Engine Controls, Fuel Pump, PCM,
A.I.R. and Cooling Fans
Fuse
I/P- 1
IGN
UP- 2
Relay
AIR SOL
AIR PUMP
A/C COMP
FUEL PUMP STARTER
IGN
Usage
HVAC Blower Control and Relay
Ignition Switch, Relay and Starter
Enable Relay
Instrument Panel Fuse Center
6-68

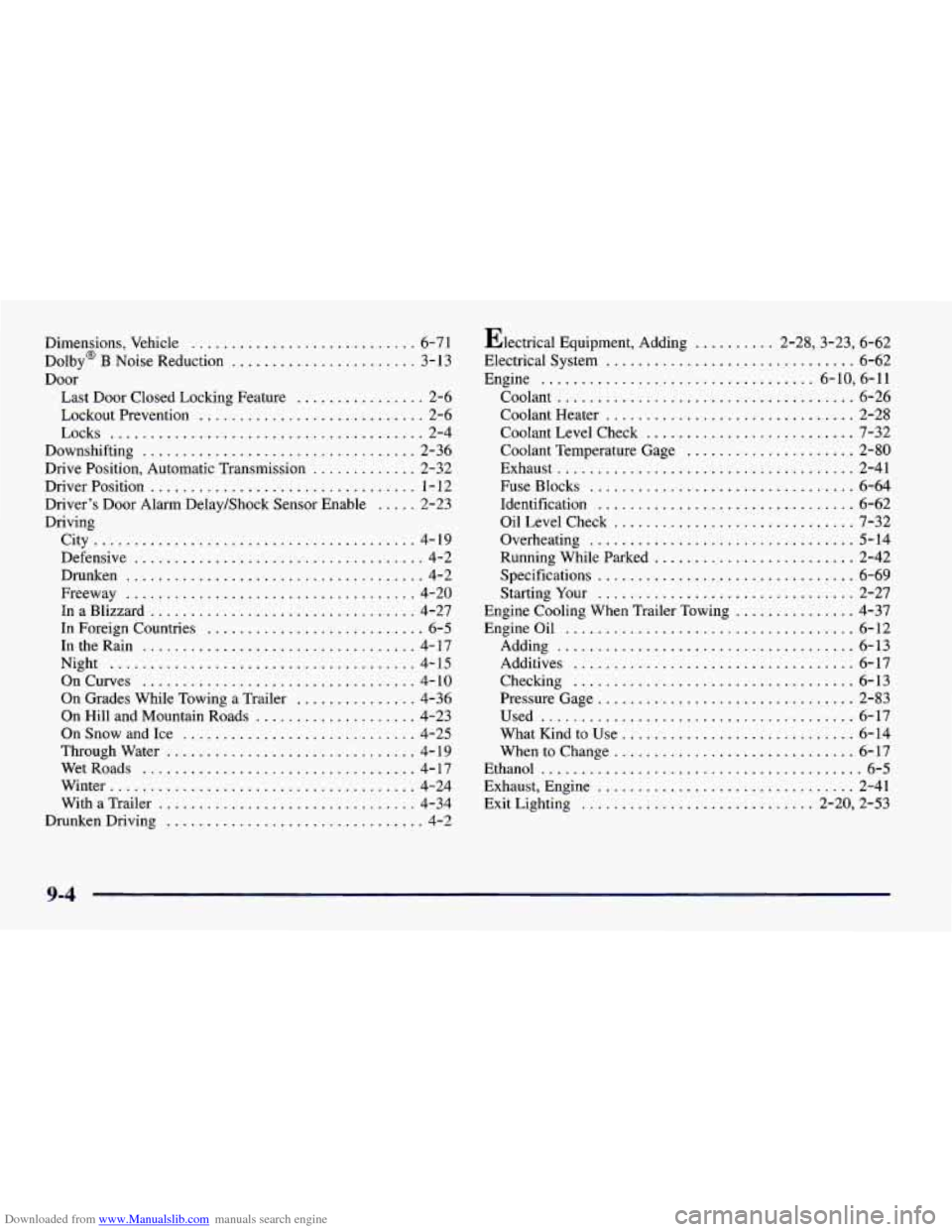

Downloaded from www.Manualslib.com manuals search engine Dimensions. Vehicle ............................ 6-7 1
Dolby
B Noise Reduction 3-13
Door Last Door Closed Locking Feature
................ 2-6
Lockout Prevention
............................ 2-6
Locks
....................................... 2-4
Drive Position. Automatic Transmission
............. 2-32
Driver Position
................................. 1 - 12
Driver’s Door Alarm Delay/Shock Sensor Enable
..... 2-23
Driving City
........................................ 4-19
Defensive
.................................... 4-2
Drunken
..................................... 4-2
Freeway
.................................... 4-20
InaBlizzard
................................. 4-27
In Foreign Countries
........................... 6-5
IntheRain
.................................. 4-17
Night
...................................... 4-15
OnCurves
.................................. 4-10
On Grades While Towing a Trailer
............... 4-36
On Hill and Mountain Roads
.................... 4-23
OnSnowandIce
............................. 4-25
WetRoads
.................................. 4-17
Winter
...................................... 4-24
With a Trailer
................................ 4-34
8 .......................
Downshifting .................................. 2-36
Throughwater
............................... 4-19
DrunkenDriving
................................ 4-2 Electrical
Equipment. Adding
.......... 2.28.3.23. 6.62
Electrical System
............................... 6-62
Engine
.................................. 6-10’6-11
Coolant ..................................... 6-26
Coolant Heater
............................... 2-28
Coolant Level Check
.......................... 7-32
Coolant Temperature Gage
..................... 2-80
Exhaust
..................................... 2-41
FuseBlocks
................................. 6-64
Identification
................................ 6-62
OilLevelCheck
.............................. 7-32
Overheating
................................. 5-14
Running While Parked
......................... 2-42
Specifications
................................ 6-69
Starting Your
................................ 2-27
Engine Cooling When Trailer Towing
............... 4-37
Engineoil
.................................... 6-12
Adding
..................................... 6-13
Additives
................................... 6-17
Checking
................................... 6-13
Pressure Gage
................................ 2-83
Used
....................................... 6-17
What Kind to Use
............................. 6-14
Whentochange
.............................. 6-17
Ethanol
........................................ 6-5
Exhaust’Engine
................................ 2-41
Exit Lighting
............................. 2-20. 2-53
9-4

Downloaded from www.Manualslib.com manuals search engine Fabric Cleaning ............................... 6-53
Fabric Protection
............................... 6-54
Fancontrol
.................................... 3-2
Feature Customization
........................... 2- 19
Driver’s Door Alarm Delay/Shock Sensor Enable
... 2-23
Exit Lightingmelayed Illumination
............... 2-20
Keyless Entry Verification
...................... 2-21
Last Door Closed LockingLockout Prevention
..... 2-21
Theft-Deterrent Arming Method
................. 2-22
Theft-Deterrent Arming Verification
.............. 2-23
Fifth Gear. Manual Transmission
.............. 2.34. 2.35
Filling a Portable Fuel Container
.................... 6-8
Filter. Air
..................................... 6- 19
Filter. Engine Oil
............................... 6- 17
Finish Care .................................... 6-57
Finish Damage
................................. 6-59
First Gear. Automatic Transmission
................ 2-33
First Gear. Manual Transmission
.............. 2.34. 2.35
Fixed Antenna Mast Care
........................ 3-25
Flashers. Hazard Warning
......................... 5-2
Flat Tire. Changing ............................. 5-27
Floor Mats
.................................... 2-59
Fluids and Lubricants
............................ 7-37
FogLamps
.................................... 2-51
Folding Rear Seatback
............................ 1-6
Foreign Countries. Fuel ........................... 6-5
Fourth Gear. Manual Transmission
............ 2.34. 2.35
Four-Way Manual Seat
........................... 1-3
FillingYourTank
................................ 6-6
French
LanguageManual
11
FrontConsole .................................. 2-56
FrontTowing
................................... 5-9
Front Turn Signal Bulb Replacement
................ 6-39
Fuel
.......................................... 6-3
Filling Your Tank
.............................. 6-6
Gage
....................................... 2-85
In Foreign Countries
........................... 6-5
Fuses and Circuit Breakers ....................... 6-63
.. ...........................
Gages Engine Coolant Temperature
.................... 2-80
Engine Oil Pressure ........................... 2-83
Fuel
....................................... 2-85
GAWR ....................................... 4-29
Gear Positions. Automatic Transmission
............. 2-30
Gear Positions. Manual Transmission
.......... 2-34. 2-35
GloveBox
.................................... 2-55
Gross Axle Weight Rating
........................ 4-29
Gross Vehicle Weight Rating
...................... 4-29
Guide en FranGais 11
GVWR ....................................... 4-29
.. .................................
Halogen Bulbs ................................ 6-37
Hatch
........................................ 2-12
Hatch Release
.................................. 2-12
Hatch Release. Remote
.......................... 2-13
Hazard Warning Flashers .......................... 5-2
9-5
