CHEVROLET CAMARO 1998 4.G Owners Manual

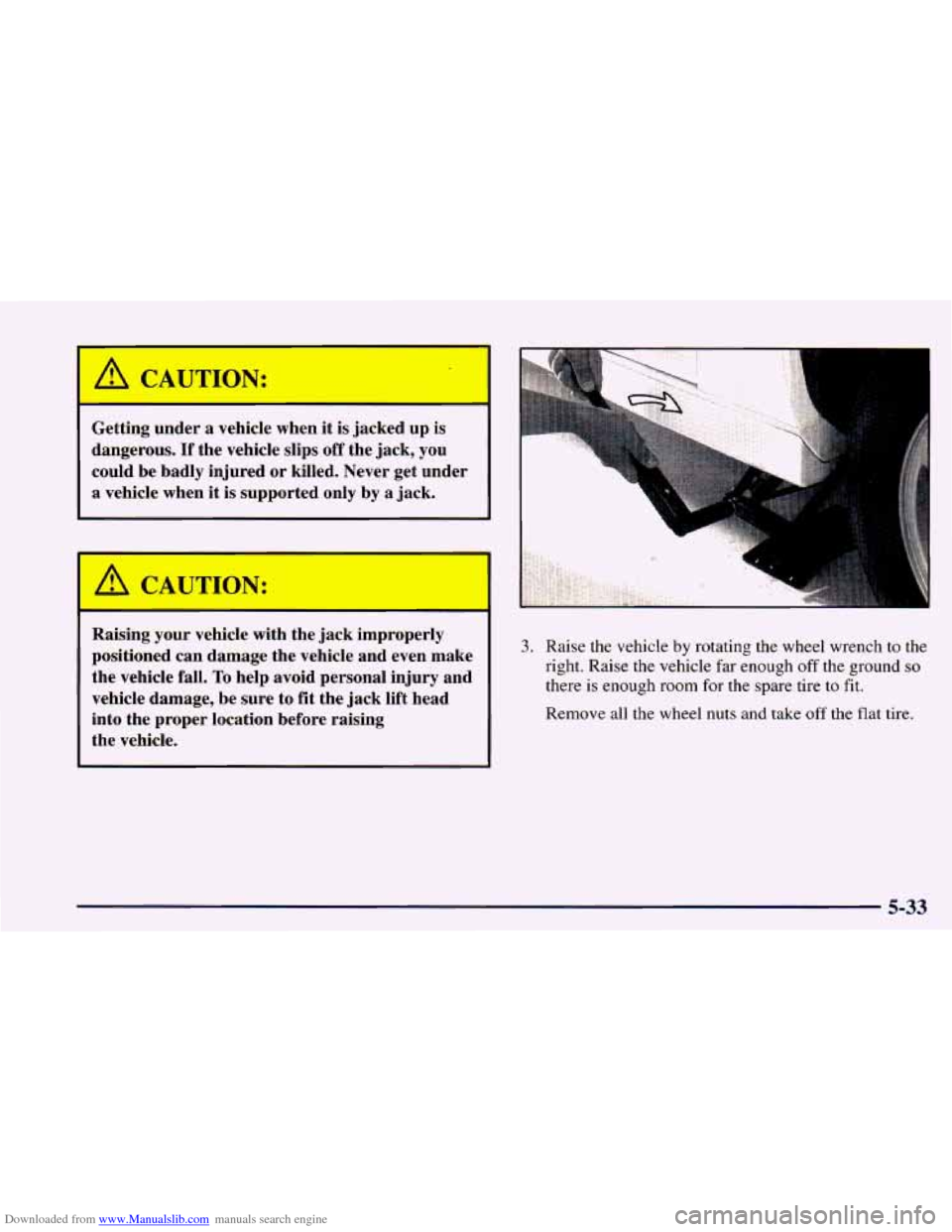

Downloaded from www.Manualslib.com manuals search engine /rl CAUTION:
Getting under a vehicle when it is jacked up is
dangerous.
If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
A CA TION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall.
To help avoid personal injury and
vehicle damage, be sure to
fit the jack lift head
into the proper location before raising
the vehicle.
3. Raise the vehicle by rotating the wheel wrench to the
right. Raise the vehicle
far enough off the ground so
there is enough room for the spare tire to fit.
Remove all the wheel nuts and take
off the flat tire.

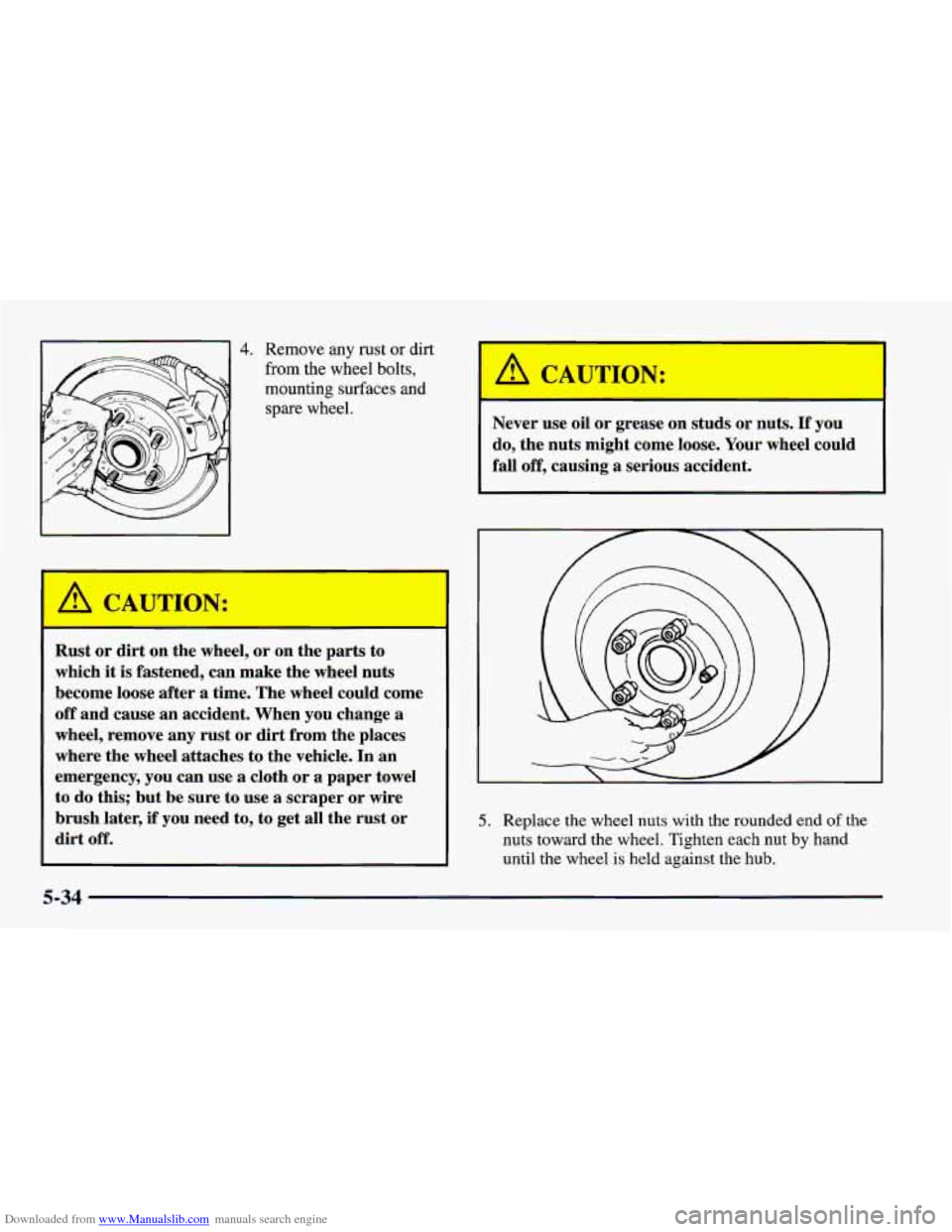

Downloaded from www.Manualslib.com manuals search engine 4. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.
v-
1 CAUTION:
I
Rust or dirt on the wheel, or on the parts to
which
it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle.
In an
emergency, you can use a cloth or
a paper towel
to
do this; but be sure to use a scraper or wire
brush later, if you need to, to get all the rust or
dirt
off.
5. Replace the wheel nuts with the rounded end of the
nuts toward the wheel. Tighten each nut by hand
until the wheel
is held against the hub.
5-34

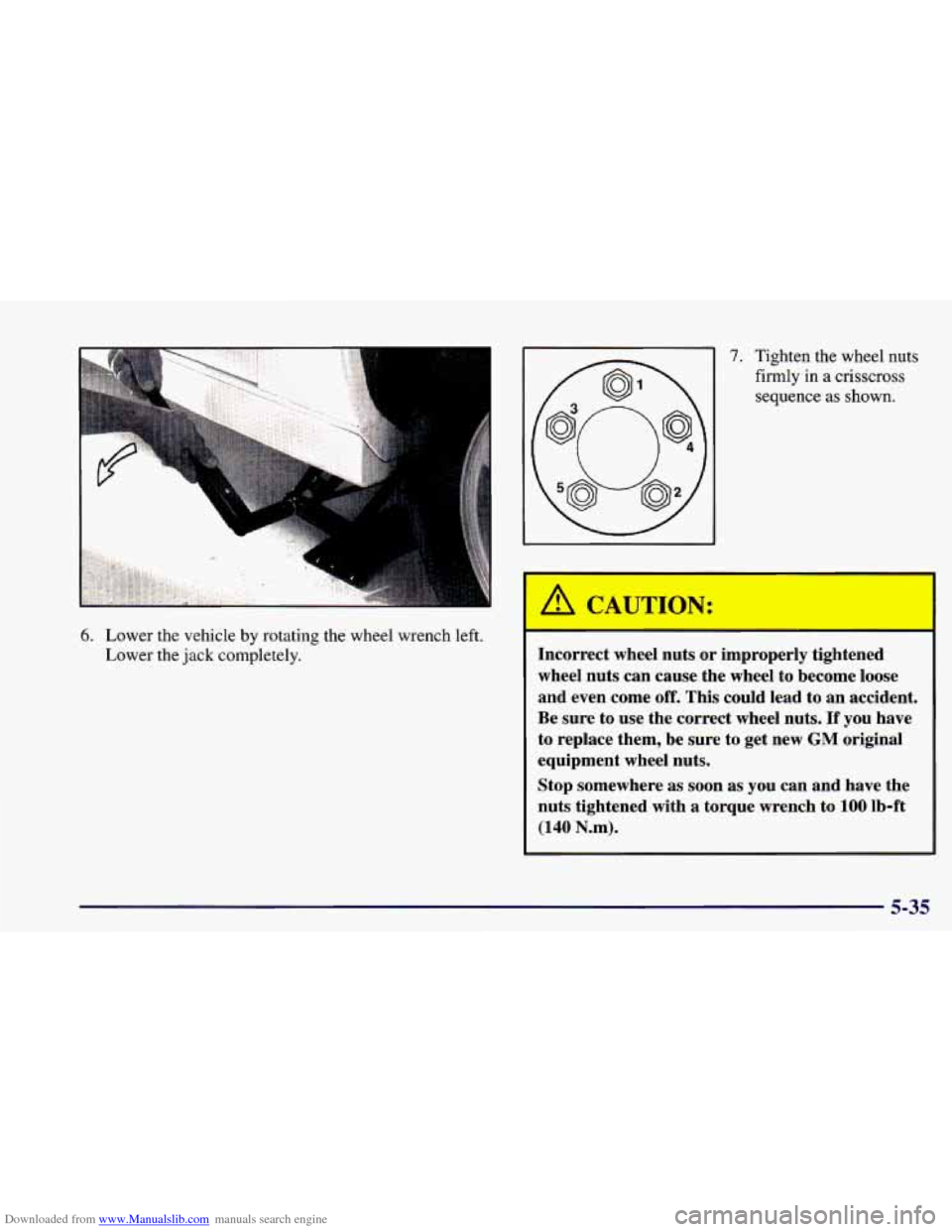

Downloaded from www.Manualslib.com manuals search engine 7. Tighten the wheel nuts
firmly
in a crisscross
sequence as shown.
6. Lower the vehicle by rotating the wheel wrench left.
Lower the jack completely.
-
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come
off. This could lead to an accident.
Be sure to use the correct wheel nuts.
If you have
to replace them, be sure
to get new GM original
equipment wheel nuts.
Stop somewhere
as soon as you can and have the
nuts tightened with a torque wrench
to 100 lb-ft
(140 N.m).
5-35

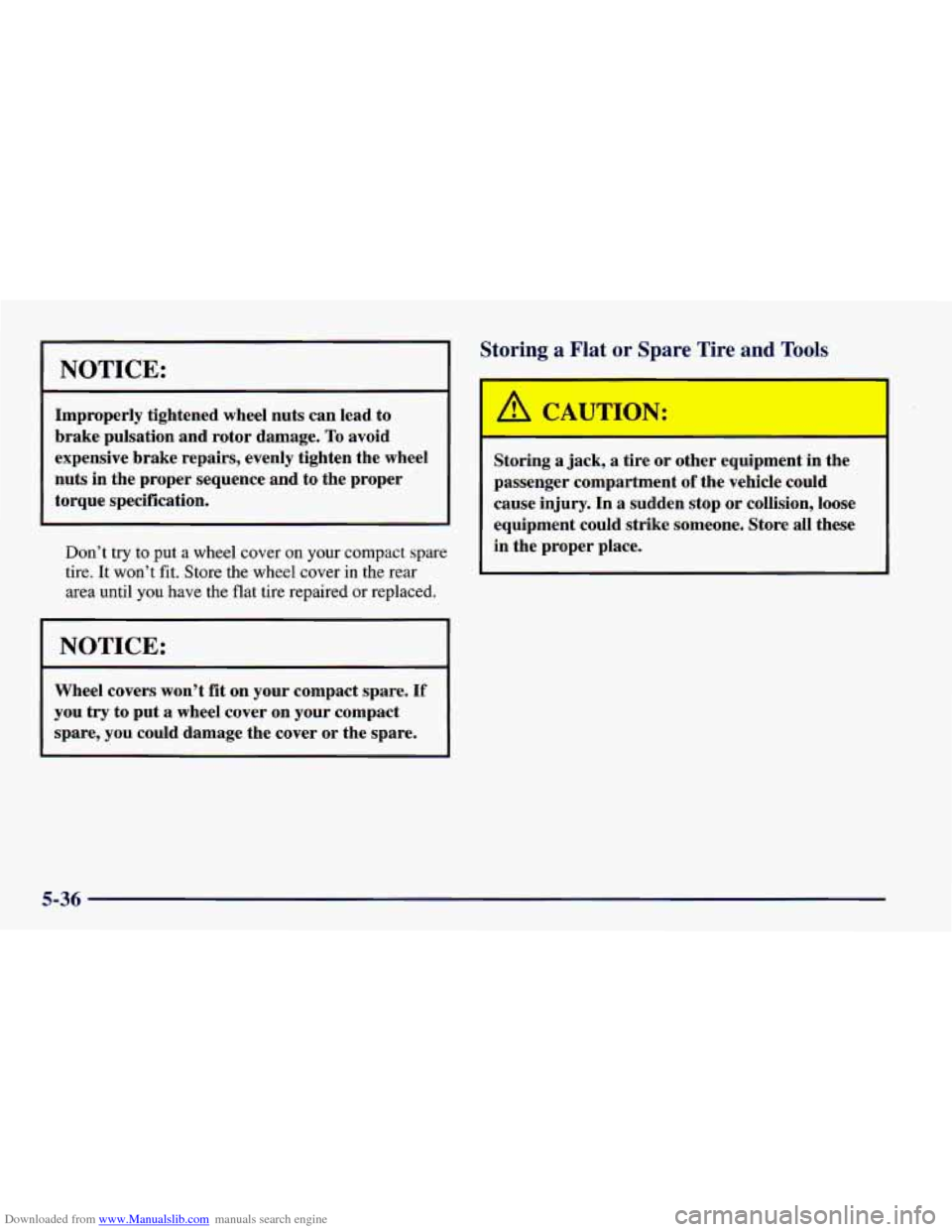

Downloaded from www.Manualslib.com manuals search engine I
NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage.
To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and
to the proper
torque specification.
Don’t try to put a wheel cover on your compact spare
tire. It won’t fit. Store the wheel cover in the rear
area until you have
the flat tire repaired or replaced.
I NOTICE:
Wheel covers won’t fit on your compact spare. If
you try to put a wheel cover on your compact
spare, you could damage the cover or the spare.
S+-ri~- - a F1 ’ or Spare Tire and Tools
Storing a jack, a tire or other t ~ lipment in the
passenger compartment
of the vehicle could
cause injury.
In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
5-36

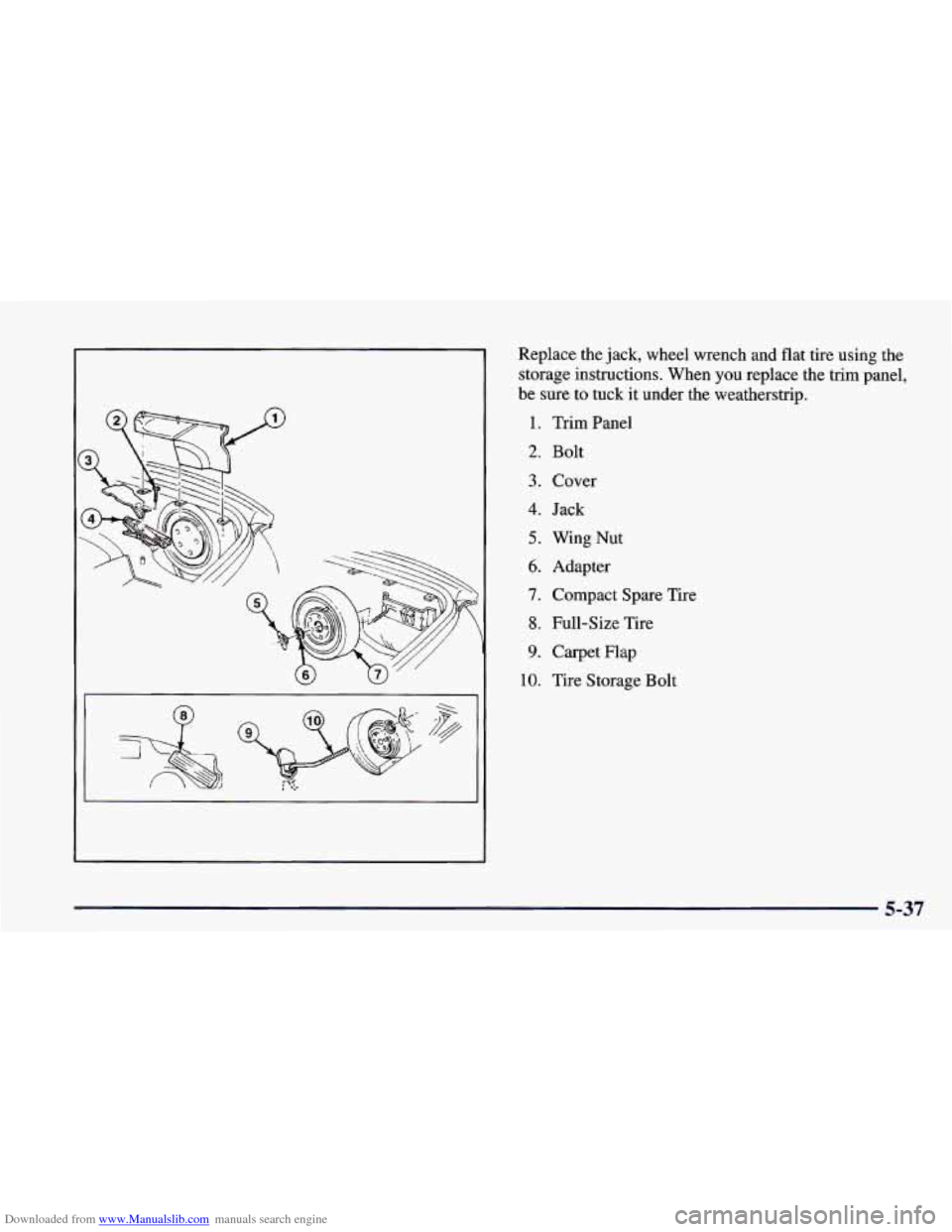

Downloaded from www.Manualslib.com manuals search engine Replace the jack, wheel wrench and flat tire using the
storage instructions. When you replace the trim panel,
be
sure to tuck it under the weatherstrip.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Trim Panel
Bolt
Cover
Jack
Wing Nut Adapter
Compact Spare Tire
Full-Size Tire
Carpet Flap
Tire Storage Bolt

Downloaded from www.Manualslib.com manuals search engine Compact Spare Tire
Although the compact spare tire was fully inflated when
your vehicle was new,
it can lose air after a time. Check
the inflation pressure regularly. It should be
60 psi
(420 Wa).
After installing the compact spare on your vehicle, you
should stop as
soon as possible and make sure your spare
tire is correctly inflated. The compact spare is made to
perform well at speeds up to
65 mph (105 km/h) for
distances up to
3,000 miles (5 OOO km), so you can finish
your trip and have your full-size tire repaired or replaced
where you want. (When the compact spare is used on the
rear axle, see Notice following.)
Of course, it’s best to
replace your spare with a full-size tire
as soon as you can.
Your spare will last longer and be in good shape
in case
you need it again.
NOTICE:
If the compact spare is used as a rear tire, do not
drive faster than
50 mph (80 km/h). Damage to
the rear axle may occur
if the compact spare is
driven faster than 50 mph (80 km/h).
i
I NOTICE:
When the compact spare is installed, don’t take
your vehicle through an automatic car wash with
guide rails. The compact spare can get caught on
the rails. That can damage the tire and wheel,
and maybe other parts of your vehicle.
Don’t use your compact spare on other vehicles.
And don’t mix your compact spare tire or wheel with
other wheels
or tires. They won’t fit. Keep your spare
tire and its wheel together.
I NOTICE:
Tire chains won’t fit your compact spare. Using
them can damage your vehicle and can damage
the chains too. Don’t use tire chains
on your
compact spare.
5-3s

Downloaded from www.Manualslib.com manuals search engine If You’re Stuck: In Sand, Mud,
Ice or Snow
What you don’t want to do when your vehicle is stuck is
to spin your wheels too fast. The method known as
“rocking” can help you get out when you’re stuck, but
you must use caution.
I
I /i CAUTION:
If you let your tires spin at high speed, they can
explode, and you
or others could be injured. And,
the transmission or other parts
of the vehicle can
overheat. That could cause an engine
compartment fire
or other damage. When you’re
stuck, spin the wheels as little as possible. Don’t
spin the wheels above
35 mph (55 km/h) as shown
on the speedometer.
NOTICE:
Spinning your wheels can destroy parts of your
vehicle
as well as the tires. If you spin the wheels
too fast while shifting your transmission back
and forth, you can destroy your transmission.
For information about using tire chains on your vehicle,
see “Tire Chains” in the Index.
Rocking Your Vehicle To Get It Out
First, turn your steering wheel left and right. That will
clear the area around your front wheels. If
your vehicle has
ASR, you should
turn the system off. (See “ASR System”
in the Index.) Then shift back and forth between REVERSE
(R) and a forward gear (or with a manual
transmission, between
FIRST (1) or SECOND (2) and
REVERSE (R), spinning the wheels as little as possible.
Release the accelerator pedal while
you shift, and press
lightly on the accelerator pedal when
the transmission is in
gear. If that doesn’t get you out after a few tries, you may
need to be towed out.
If you do need to be towed out, see
“Towing Your Vehicle” in the Index.
5-39

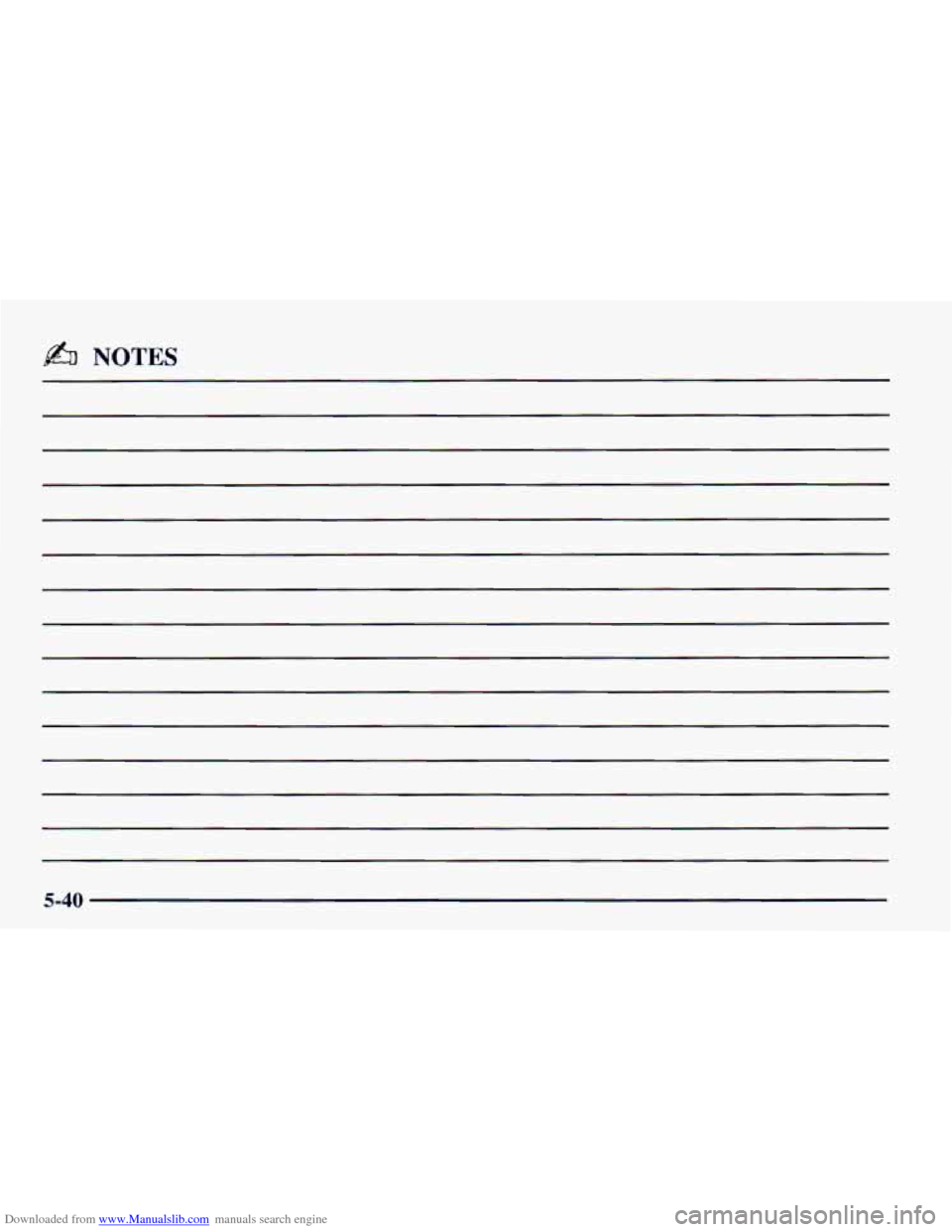

Downloaded from www.Manualslib.com manuals search engine &I NOTES
5-40

Downloaded from www.Manualslib.com manuals search engine Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and
a part devoted to its appearance care.
6-2
6-3 6-5
6-6 6-8
6-8
6- 12
6-18
6-20
6-24
6-26
6-30
6-3
1
6-33
6-37 Service
Fuel
Fuels in Foreign Countries
Filling Your Tank
Filling
a Portable Fuel Container
Checking Things Under the Hood
Engine Oil
Air Cleaner
Automatic Transmission Fluid
Manual Transmission Fluid
Engine Coolant
Power Steering Fluid
Windshield Washer Fluid
Brakes
Battery 6-37
6-43
6-52
6-53
6-55
6-57 6-5 8
6-60
6-6
1
6-62
6-62
6-69
6-69 Bulb Replacement
Tires
Appearance Care Cleaning the Inside
of Your Vehicle
Care of Safety Belts
Cleaning the Outside of Your Vehicle
Cleaning Aluminum or Chrome Wheels
(If Equipped)
Underbody Maintenance
Appearance Care Materials
Chart
Vehicle Identification Number (VIN)
Electrical System Replacement Bulbs
Capacities and Specifications
6-1

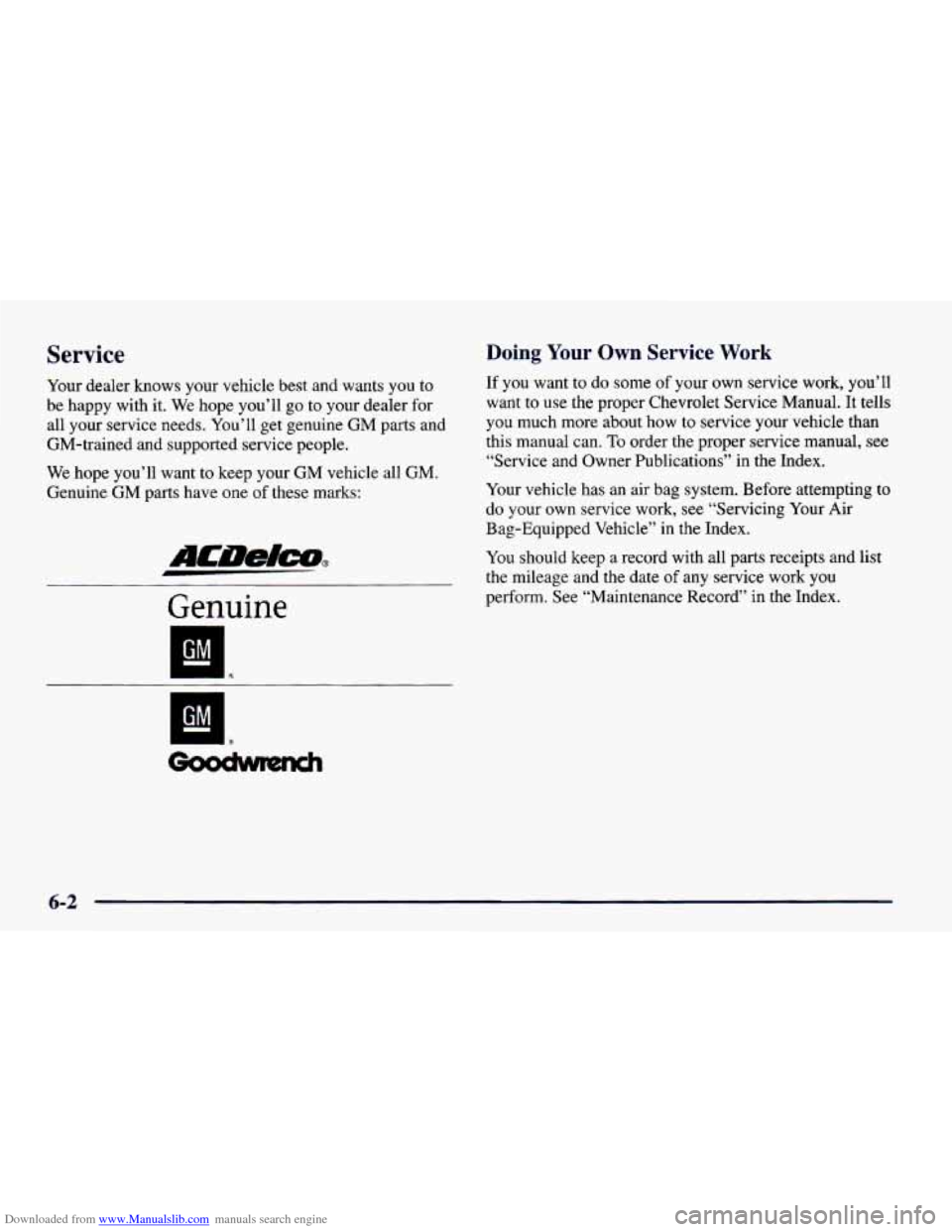

Downloaded from www.Manualslib.com manuals search engine Service
Your dealer knows your vehicle best and wants you to
be happy with
it. We hope you’ll go to your dealer for
all your service needs. You’ll get genuine
GM parts and
GM-trained and supported service people.
We hope you’ll want to keep your GM vehicle all GM.
Genuine
GM parts have one of these marks:
Doing Your Own Service Work
If you want to do some of your own service work, you’ll
want
to use the proper Chevrolet Service Manual. It tells
you much more about how to service your vehicle than
this manual can.
To order the proper service manual, see
“Service and Owner Publications” in the Index.
Your vehicle has an air bag system. Before attempting to
do your own service work, see “Servicing Your Air
Bag-Equipped Vehicle’’ in the Index.
the mileage and the date of any service work you
perform. See “Maintenance Record”
in the Index.
7haa - You should keep a record with all parts receipts and list
Genuine
6-2
