CHEVROLET CAMARO 1999 4.G Owners Manual

yellowblue
2-55
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Glove Box
To open the glove box, lift up on the lever. Use your
door key to lock and unlock it.
Front Console
To use the storage area, push the button in and pull up
on the console cover. It will open to the right.
Cassette and Compact Disc Storage
You have a storage area for cassette tapes and compact
discs in your console.
Cargo Cover
The cargo cover can be closed for hidden storage in the
rear area of your vehicle. It can also help reduce noise in
the vehicle when placed in the upright position, closing
out the rear
-end area.

yellowblue
2-56
Removing the Cargo Cover
1. Close the cover. If the cargo cover is not closed and
resting on the trim panel, it cannot be removed.
2. Pull the cover toward you to unsnap it. Then slide
the cargo cover along the groove in the trim panel.
Reverse the steps to install the cover.When carrying large or heavy items, it is a good idea to
open the cover and place the items in the rear area.
CAUTION:
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store it
outside your vehicle. When you put it back,
always be sure that it is securely reattached.
Ashtray and Cigarette Lighter
Lift up the cover to open the ashtray. To remove it, lift
up on the right side of the ashtray. If you have an
automatic transmission, the ashtray is near the front of
your console. If you have a manual transmission, the
ashtray is near your cupholder.

yellowblue
2-57
NOTICE:
Don't put papers and other things that burn into
your ashtrays. If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
To use the lighter, push it in all the way and let go.
When it's ready, it will pop back by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overheat, damaging the
lighter and the heating element.
If you plug accessories into your cigarette lighter, such
as heating devices or air compressors, these accessories
should have a rated current of less than 15 amps.
Exceeding this limit will result in a blown fuse.
Sun Visors
To block out glare, you can swing down the visors. You
can also swing them to the side.
Visor Vanity Mirror
Pull down the sun visor and lift the cover to expose the
vanity mirror.
Accessory Plug
This plug is located behind a closed lid in front of the
parking brake on the console. The plug can be used to
connect electrical equipment such as a cellular phone or
CB radio. Be sure to follow the installation instructions
included with the equipment.

yellowblue
2-58
NOTICE:
When using the accessory plug:

The maximum load of any electrical
equipment should not exceed three amps.

Be sure to turn off any electrical equipment
when not in use. Leaving electrical
equipment on for extended periods can
drain your battery.
We recommend that you see a qualified technician or your
dealer for the proper installation of your equipment.
Floor Mats
Your vehicle's floor mats are custom-fitted to the floor
wells. Be sure the driver's floor mat is in place. If it
isn't, it could interfere with the accelerator pedal, brake
pedal or with the clutch pedal on manual transmissions.
Twin Lift-Off Roof Panels (Option)
If you have this option, you can remove one or both
lift
-off roof panels.
Removing the Twin-Lift Off Roof Panels
CAUTION:
Don't try to remove the T-top panels while the
vehicle is moving. Trying to remove the sunroof a
T
-top panel while the vehicle is moving could
cause an accident. The panel could fall into the
vehicle and cause you to lose control, or it could
fly off and strike another vehicle. You or others
could be injured. Remove the T
-top panel only
when the vehicle is parked.

yellowblue
2-59
1. The door key unlocks the panels. The lock is over
the door window. Turn the key counterclockwise to
unlock the panel.2. Then pull on the release handle to unlatch the panel.
Lift the outer edge of the panel and pull it toward
you. Then carry the panel to the rear of the vehicle
for storage.

yellowblue
2-60 Storing the Twin Lift-Off Roof Panels
CAUTION:
If the T-top panel is not stored properly, it could
be thrown about the vehicle in a crash or sudden
maneuver. People in the vehicle could be injured.
Whenever you store the T
-top panel in the
vehicle, always be sure that it is stored securely in
the proper storage slot at the rear of the vehicle.
1. Open the cargo cover completely. Place the panel in
the correct slot (DRIVER or PASSENGER) in the
rear area of your vehicle. Make sure the handle is
open and facing you when you put it in the
storage slot.

yellowblue
2-61
2. Push the handle closed to secure the panel in the
slot. To lock each panel in the storage area, use your
door key.
Installing the Twin Lift-Off Roof Panels
CAUTION:
An improperly attached roof panel may fall into
or fly off the vehicle. You or others could be
injured. After installing the roof panel, always
check that it is firmly attached by pushing up on
the underside of the panel. Check now and then
to be sure the roof panel is firmly in place.

yellowblue
2-62
1. When installing the panels to the roof, keep the
outboard edge of the panel raised about three inches
(8 cm) above the roof while placing the inboard edge
of the panel under the center roof.2. After the inboard edge of the panel is in position
under the center roof rail, lower the outboard edge of
the panel into position, close the latch and lock
the T
-top.

yellowblue
2-63

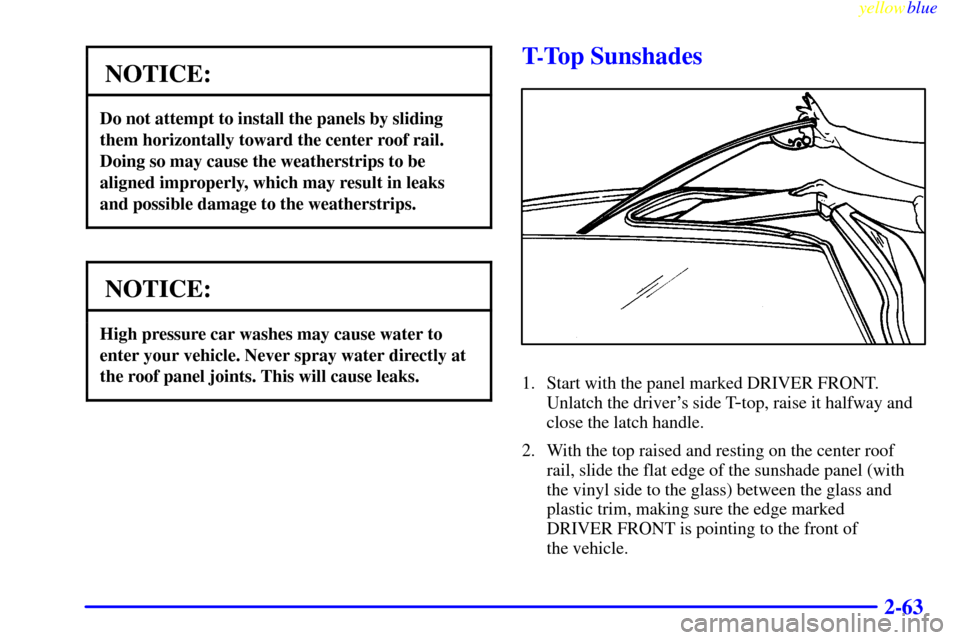

NOTICE:
Do not attempt to install the panels by sliding
them horizontally toward the center roof rail.
Doing so may cause the weatherstrips to be
aligned improperly, which may result in leaks
and possible damage to the weatherstrips.
NOTICE:
High pressure car washes may cause water to
enter your vehicle. Never spray water directly at
the roof panel joints. This will cause leaks.
T-Top Sunshades
1. Start with the panel marked DRIVER FRONT.
Unlatch the driver's side T
-top, raise it halfway and
close the latch handle.
2. With the top raised and resting on the center roof
rail, slide the flat edge of the sunshade panel (with
the vinyl side to the glass) between the glass and
plastic trim, making sure the edge marked
DRIVER FRONT is pointing to the front of
the vehicle.

yellowblue
2-64
3. Open the latch and close the T-top. Check to see if
there are any gaps showing. Unlatch the T
-top and
adjust the sunshade as required.
4. Once the sunshade is installed properly, you can
stick the Velcro

buttons on the glass for a proper fit
every time you install the sunshades. To do this, first
remove the T
-top with the sunshade installed and
place it upside down on a table or bench. Take care
not to scratch the glass.
5. Pull the sunshade back a little and remove the
backing paper from the velcro buttons. Push the
sunshade back into place, sticking the velcro to
the glass.
6. Install the T
-top, close the latch and lock the
T
-top. Repeat the above steps for the passenger
side sunshade.
