CHEVROLET CAMARO 2010 5.G Owners Manual

Black plate (11,1)Chevrolet Camaro Owner Manual - 2010
Service and Maintenance 10-11

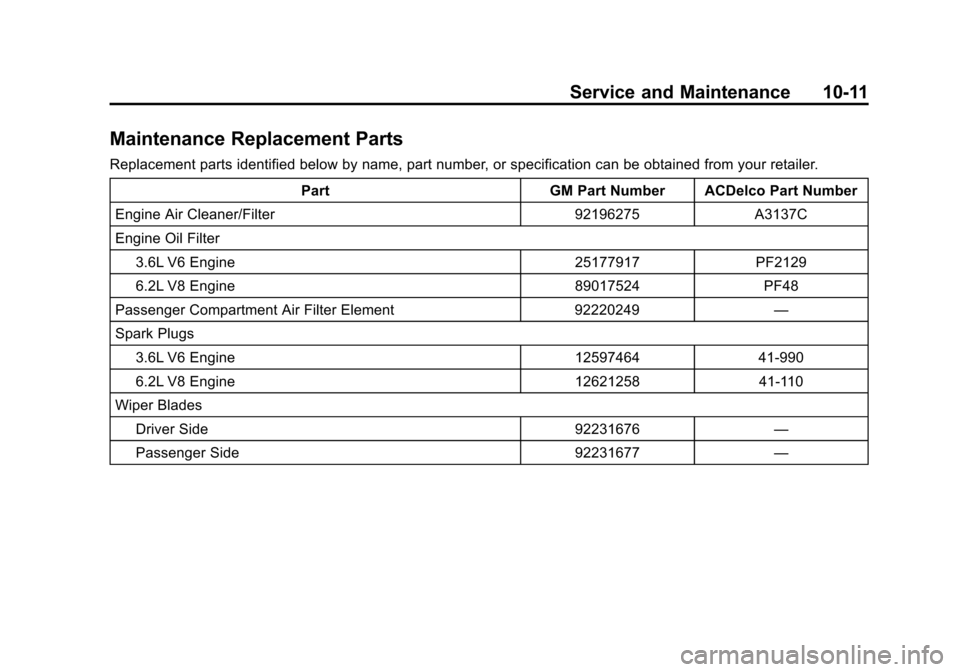

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your retailer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 92196275 A3137C
Engine Oil Filter
3.6L V6 Engine 25177917 PF2129
6.2L V8 Engine 89017524 PF48
Passenger Compartment Air Filter Element 92220249 —
Spark Plugs 3.6L V6 Engine 12597464 41-990
6.2L V8 Engine 12621258 41-110
Wiper Blades
Driver Side 92231676 —
Passenger Side 92231677 —

Black plate (12,1)Chevrolet Camaro Owner Manual - 2010
10-12 Service and Maintenance

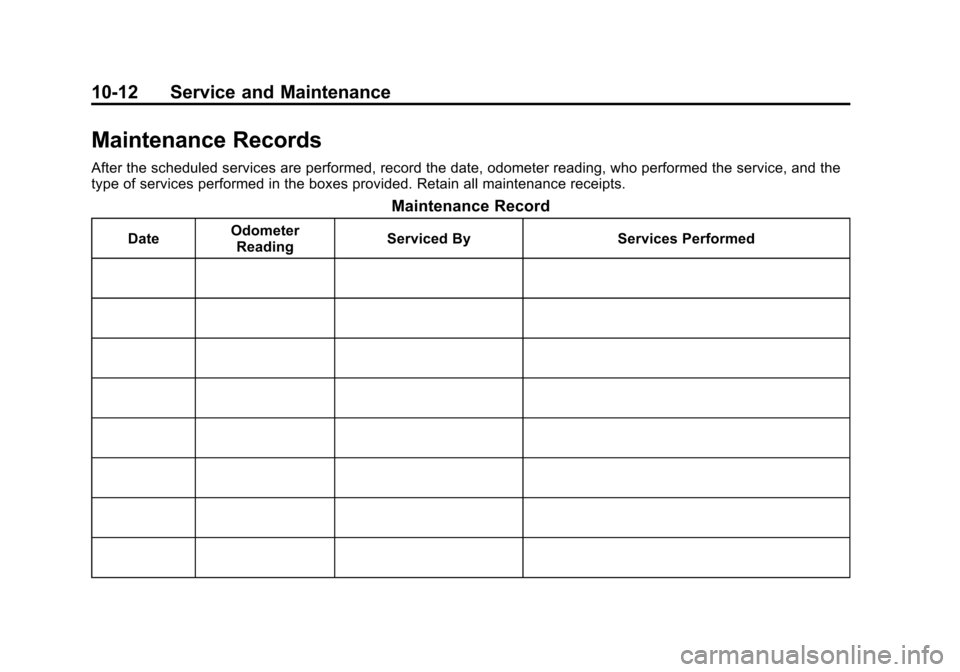

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By Services Performed

Black plate (13,1)Chevrolet Camaro Owner Manual - 2010
Service and Maintenance 10-13

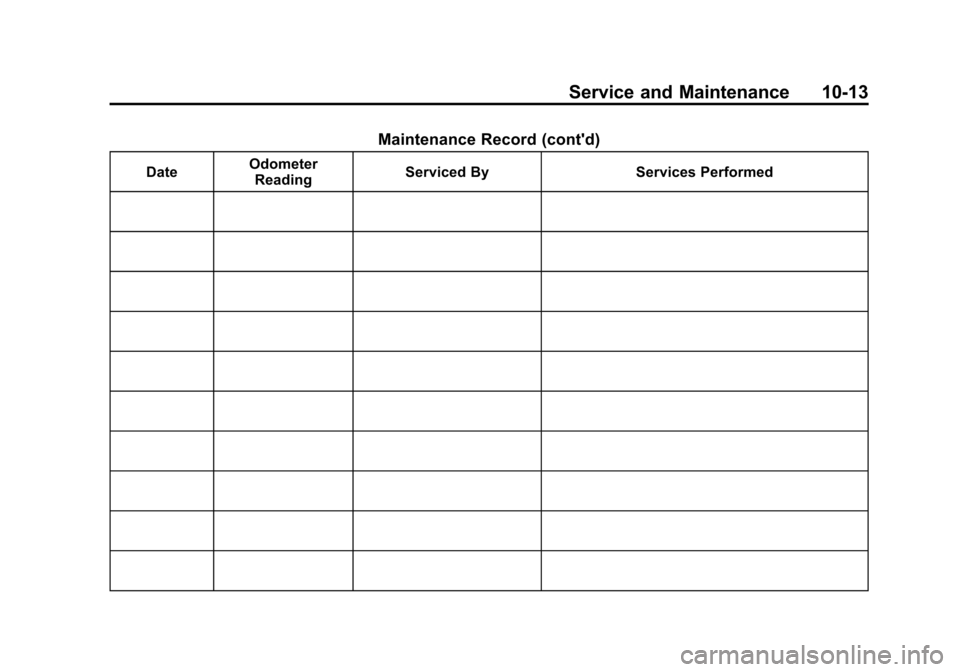

Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Black plate (14,1)Chevrolet Camaro Owner Manual - 2010
10-14 Service and Maintenance
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed

Black plate (1,1)Chevrolet Camaro Owner Manual - 2010
Technical Data 11-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 11-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 11-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 11-2
Engine Drive Belt Routing . . . . 11-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN
is the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 11‑2for the vehicle's
engine code.
Service Parts
Identification Label
This label, in the trunk, has the
following information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options and special
equipment
Do not remove this label from the
vehicle.

Black plate (2,1)Chevrolet Camaro Owner Manual - 2010
11-2 Technical Data

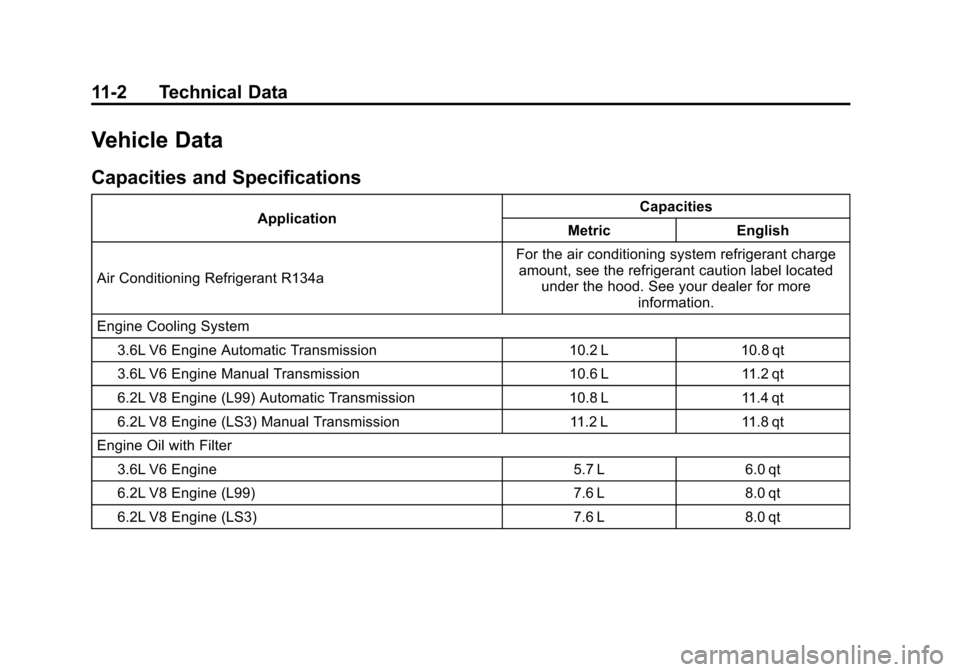

Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located under the hood. See your dealer for more
information.
Engine Cooling System 3.6L V6 Engine Automatic Transmission 10.2 L 10.8 qt
3.6L V6 Engine Manual Transmission 10.6 L 11.2 qt
6.2L V8 Engine (L99) Automatic Transmission 10.8 L 11.4 qt
6.2L V8 Engine (LS3) Manual Transmission 11.2 L 11.8 qt
Engine Oil with Filter
3.6L V6 Engine 5.7 L 6.0 qt
6.2L V8 Engine (L99) 7.6 L 8.0 qt
6.2L V8 Engine (LS3) 7.6 L 8.0 qt

Black plate (3,1)Chevrolet Camaro Owner Manual - 2010
Technical Data 11-3
ApplicationCapacities
Metric English
Fuel Tank 71.0 L 18.8 gal
Rear Axle Fluid
V6 Engine 6–Speed Automatic 0.9 L 1.0 qt
V6 Engine 6–Speed Manual* 0.9 L 1.0 qt
V8 Engine* 0.9 L 1.0 qt
Transmission Fluid (Pan Removal and Filter Replacement) V6 Engine 6–Speed Automatic** 6.3 L 6.7 qt
V8 Engine 6–Speed Automatic** 6.3 L 6.7 qt
V6 Engine 6–Speed Manual 1.8 L 1.9 qt
V8 Engine 6–Speed Manual 3.9 L 4.2 qt
Wheel Nut Torque 190 Y140 ft lb
*Add 2.5 oz. (75 mL) of friction modifier to the specified quantity of axle lubricant.
**See Automatic Transmission Fluid
on page 9‑14for information on checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

Black plate (4,1)Chevrolet Camaro Owner Manual - 2010
11-4 Technical Data

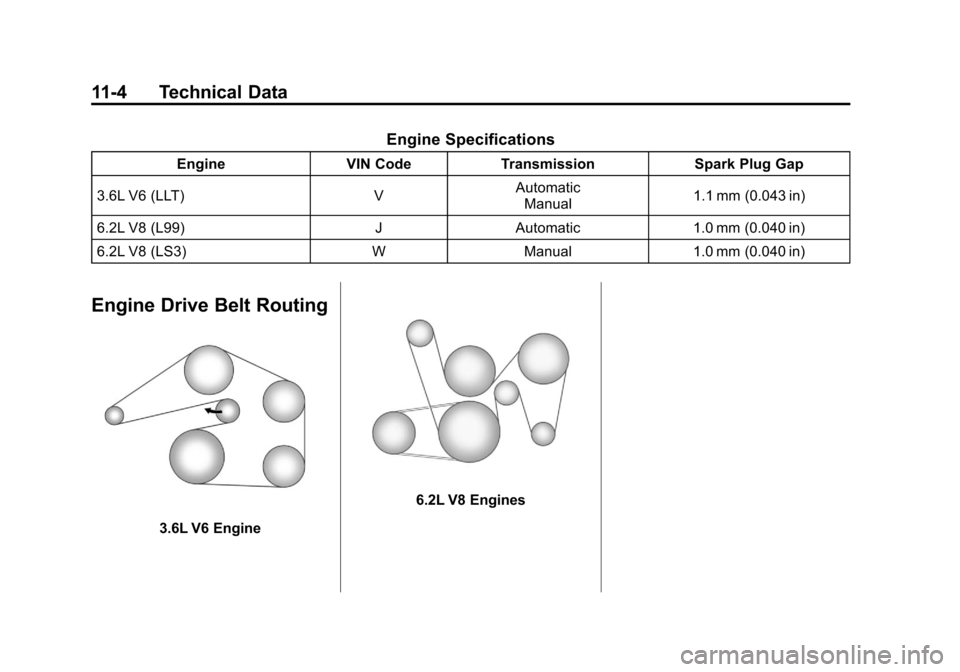

Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
3.6L V6 (LLT) VAutomatic
Manual 1.1 mm (0.043 in)
6.2L V8 (L99) JAutomatic 1.0 mm (0.040 in)
6.2L V8 (LS3) WManual 1.0 mm (0.040 in)
Engine Drive Belt Routing
3.6L V6 Engine
6.2L V8 Engines

Black plate (1,1)Chevrolet Camaro Owner Manual - 2010
Customer Information 12-1
Customer
Information
Customer Information
Customer SatisfactionProcedure . . . . . . . . . . . . . . . . . . 12-1
Customer Assistance Offices . . . . . . . . . . . . . . . . . . . . . 12-3
Customer Assistance for Text Telephone (TTY) Users . . . . . 12-4
Online Owner Center . . . . . . . . 12-5
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . 12-6
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . 12-6
Scheduling Service Appointments . . . . . . . . . . . . . . 12-8
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . 12-8
Collision Damage Repair . . . 12-10
Service Publications Ordering Information . . . . . . 12-13
Reporting Safety Defects
Reporting Safety Defects tothe United States
Government . . . . . . . . . . . . . . . 12-14
Reporting Safety Defects to the Canadian
Government . . . . . . . . . . . . . . . 12-14
Reporting Safety Defects to General Motors . . . . . . . . . . . 12-15
Vehicle Data Recording and
Privacy
Vehicle Data Recording andPrivacy . . . . . . . . . . . . . . . . . . . . 12-15
Event Data Recorders . . . . . . 12-15
OnStar
®. . . . . . . . . . . . . . . . . . . . 12-16
Radio Frequency Identification (RFID) . . . . . . . 12-17
Radio Frequency Statement . . . . . . . . . . . . . . . . . 12-17
Customer Information
Customer Satisfaction
Procedure
Your satisfaction and goodwill are
important to your dealer and to
Chevrolet. Normally, any concerns
with the sales transaction or the
operation of the vehicle will be
resolved by the dealer's sales or
service departments. Sometimes,
however, despite the best intentions
of all concerned, misunderstandings
can occur. If your concern has not
been resolved to your satisfaction,
the following steps should be taken:
STEP ONE: Discuss your concern
with a member of dealership
management. Normally, concerns
can be quickly resolved at that level.
If the matter has already been
reviewed with the sales, service,
or parts manager, contact the owner
of the dealership or the general
manager.

Black plate (2,1)Chevrolet Camaro Owner Manual - 2010
12-2 Customer Information
STEP TWO :If after contacting a
member of dealership management,
it appears your concern cannot be
resolved by the dealership without
further help, in the U.S., call the
Chevrolet Customer Assistance
Center at 1-800-222-1020. In
Canada, call General Motors of
Canada Customer Communication
Centre at 1-800-263-3777 (English),
or 1-800-263-7854 (French).
We encourage you to call the
toll-free number in order to give your
inquiry prompt attention. Have the
following information available to
give the Customer Assistance
Representative:
.Vehicle Identification Number
(VIN). This is available from
the vehicle registration or title,
or the plate at the top left of the
instrument panel and visible
through the windshield.
.Dealership name and location.
.Vehicle delivery date and
present mileage. When contacting Chevrolet,
remember that your concern will
likely be resolved at a dealer's
facility. That is why we suggest
following Step One first.
STEP THREE
—U.S. Owners:
Both General Motors and your
dealer are committed to making
sure you are completely satisfied
with your new vehicle. However,
if you continue to remain unsatisfied
after following the procedure
outlined in Steps One and Two,
you can file with the Better Business
Bureau (BBB) Auto Line
®Program
to enforce your rights.
The BBB Auto Line Program is an
out of court program administered
by the Council of Better Business
Bureaus to settle automotive
disputes regarding vehicle repairs
or the interpretation of the New
Vehicle Limited Warranty. Although
you may be required to resort to
this informal dispute resolution
program prior to filing a court action,
use of the program is free of charge
and your case will generally be heard within 40 days. If you do not
agree with the decision given in
your case, you may reject it and
proceed with any other venue for
relief available to you.
You may contact the BBB Auto
Line Program using the toll-free
telephone number or write them
at the following address:
BBB Auto Line Program
Council of Better Business
Bureaus, Inc.
4200 Wilson Boulevard
Suite 800
Arlington, VA 22203-1838
Telephone: 1-800-955-5100
www.dr.bbb.org/goauto
This program is available in all
50 states and the District of
Columbia. Eligibility is limited by
vehicle age, mileage, and other
factors. General Motors reserves
the right to change eligibility
limitations and/or discontinue its
participation in this program.
