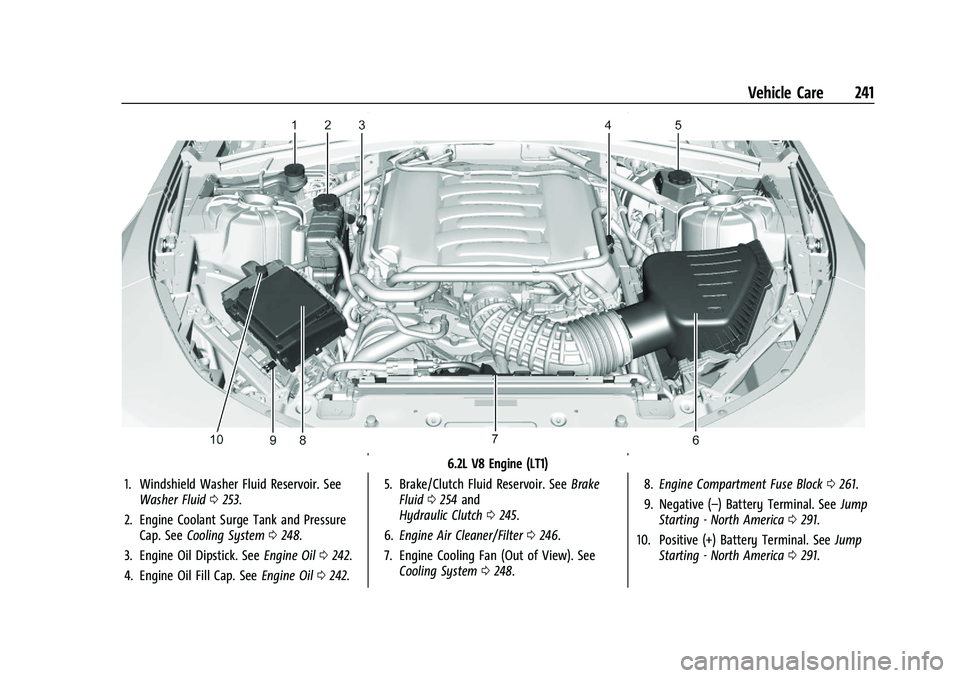

6.2L V8 Engine (LT1)
1. Windshield Washer Fluid Reservoir. See Washer Fluid 0253.
2. Engine Coolant Surge Tank and Pressure Cap. See Cooling System 0248.
3. Engine Oil Dipstick. See Engine Oil0242.
4. Engine Oil Fill Cap. See Engine Oil0242. 5. Brake/Clutch Fluid Reservoir. See
Brake
Fluid 0254 and
Hydraulic Clutch 0245.
6. Engine Air Cleaner/Filter 0246.
7. Engine Cooling Fan (Out of View). See Cooling System 0248. 8.
Engine Compartment Fuse Block 0261.
9. Negative (–) Battery Terminal. See Jump
Starting - North America 0291.
10. Positive (+) Battery Terminal. See Jump
Starting - North America 0291.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
260 Vehicle Care
3. Turn the bulb socket counterclockwise toremove it.
4. Pull the old bulb straight out of the bulb socket.
5. Push the new bulb straight into the bulb socket until it clicks.
6. Turn the bulb socket clockwise to reinstall.
7. Install the three pushpin fasteners and cover.
License Plate Lamp
To replace one of these bulbs:
1. Unclip the license plate lamp from thefascia opening. 2. Pull the license plate lamp down through
the fascia opening.
3. Turn the bulb socket counterclockwise and pull the bulb straight out of the
lamp socket.
4. Install the new bulb.
5. Push the bulb straight into the socket and turn clockwise to reinstall.
6. Reinstall the license plate lamp by lifting it through the fascia opening until the
clip is in place.
Electrical System
Electrical System Overload
The vehicle has fuses and circuit breakers to
protect against an electrical system
overload.
When the current electrical load is too
heavy, the circuit breaker opens and closes,
protecting the circuit until the current load
returns to normal or the problem is fixed.
This greatly reduces the chance of circuit
overload and fire caused by electrical
problems.
Fuses and circuit breakers protect power
devices in the vehicle. Replace a bad fuse with a new one of the
identical size and rating.
If there is a problem on the road and a fuse
needs to be replaced, the same amperage
fuse can be borrowed. Choose some feature
of the vehicle that is not needed to use and
replace it as soon as possible.
Headlamp Wiring
An electrical overload may cause the lamps
to go on and off, or in some cases to
remain off. Have the headlamp wiring
checked right away if the lamps go on and
off or remain off.
Windshield Wipers
If the wiper motor overheats due to heavy
snow or ice, the windshield wipers will stop
until the motor cools and will then restart.
Although the circuit is protected from
electrical overload, overload due to heavy
snow or ice may cause wiper linkage
damage. Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an electrical
problem and not snow or ice, be sure to get
it fixed.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
Vehicle Care 261
Fuses and Circuit Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit breakers.
This greatly reduces the chance of damage
caused by electrical problems.
{Danger
Fuses and circuit breakers are marked
with their ampere rating. Do not exceed
the specified amperage rating when
replacing fuses and circuit breakers. Use
of an oversized fuse or circuit breaker can
result in a vehicle fire. You and others
could be seriously injured or killed.
{Warning
Installation or use of fuses that do not
meet GM’s original fuse specifications is
dangerous. The fuses could fail, and result(Continued)
Warning (Continued)
in a fire. You or others could be injured
or killed, and the vehicle could be
damaged.
See Accessories and Modifications 0236 and
General Information 0235.
To check a fuse, look at the silver-colored
band inside the fuse. If the band is broken
or melted, replace the fuse. Be sure to
replace a bad fuse with a new one of the
identical size and rating.
Fuses of the same amperage can be
temporarily borrowed from another fuse
location, if a fuse goes out. Replace the fuse
as soon as possible.
To identify and check fuses, circuit breakers,
and relays, see Engine Compartment Fuse
Block 0261 and
Rear Compartment Fuse Block 0265.
Engine Compartment Fuse Block
To remove the hinged fuse block cover,
press the clip at the front of the cover, and
swing it up.
Caution
Do not pull the engine compartment fuse
block lever, since it is intended only for
service purposes. If pulled, vehicle
malfunction may occur.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
262 Vehicle Care
Caution
Spilling liquid on any electrical
component on the vehicle may damage
it. Always keep the covers on any
electrical component.
The vehicle may not be equipped with all of
the fuses, relays, and features shown.Fuses Usage
F1 ABS pump Fuses Usage
F2 –
F3 Driver power seat

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
Vehicle Care 263
Fuses UsageF4 Cooling fanF5 Passenger power seat
F6 –
F7 –
F8 –
F9 –
F10 –
F11 AUX DRL
F12 Front wiper
F13 Starter
F14 Brake vacuum pump
F15 Automatic headlamp leveling
module
F16 Front heated seat F17 Passenger window
F18 Body control module 4
F19 SDM/AOS Fuses Usage
F20 OnStar/NavigationF21 Body control module 6
F22 ABS valve
F23 –
F24 –
F25 Electric steering column lock
F26 Body control module 2
F27 –
F28 Body control module 3
F29 Body control module 8
F30 Windshield wiper F31 Right HID headlamp
F32 Left HID headlamp
F33 –
F34 Horn Fuses Usage
F35 Automatic headlamp leveling
motor
F36 Left high-beam headlamp
F37 Right high-beam headlamp
F38 –
F39 –
F40 Rear electrical center/Ignition
F41 Malfunction indicator lamp/
Ignition
F42 HVAC/ISRVM/ OSRVM
F43 Front exhaust valve active fuel
management
F44 –
F45 Sunroof
F46 Body control module 7

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
264 Vehicle Care
Fuses UsageF47 CGM
F48 A/C clutch
F49 Heated steering wheel
F50 Fuel system control module/
Ignition
F51 Rear exhaust valve PTSQ
F52 –
F53 –
F54 Engine coolant pump
F55 Fuel prime
F56 –
F57 Engine control module/Ignition
F58 Transmission control module/
Ignition
F59 – Fuses Usage
F60 Transmission control module
battery
F61 Non-walk/Vehicle
F62 Ignition coils –odd
F63 Non-walk/O2 sensor
F64 Ignition coils –even
F65 –
F66 Engine control module 1
F67 Engine control module 2
F68 Spare
F69 Spare F70 Spare F71 Spare
F72 Spare
F73 Spare
F74 Spare Fuses Usage
F75 Spare
F76 Spare F77 Spare
Relays Usage K1 –
K2 Run/Crank
K3 –
K4 Vacuum pump K5 A/C control
K6 Coolant pump K7 Engine control module
K8 Fuel prime
K9 –
K10 Starter

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
Vehicle Care 265
Rear Compartment Fuse Block
The rear compartment fuse block is on the
right side under the trunk load floor.
The vehicle may not be equipped with all of
the fuses, relays, and features shown.Fuses Usage
F1 Rear window defogger

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
266 Vehicle Care
Fuses UsageF2 Front blower
F3 Electric parking brake
F4 –
F5 –
F6 Rear drive control module
F7 Right window
F8 –
F9 Left window
F10 Heated mirror F11 –
F12 Heated steering wheel
F13 –
F14 HVAC control F15 Spare
F16 Display F17 Spare
F18 – Fuses Usage
F19 Front ventilated seat
F20 Spare F21 –
F22 –
F23 Body control module
F24 –
F25 –
F26 –
F27 RGB lights
F28 Passive entry/ Passive start
battery
F29 Data link connector
F30 Canister vent F31 Power fold top
F32 Memory seat module
F33 Wireless charger Fuses Usage
F34 Engine control module battery
F35 Fuel system control module V6
F36 –
F37 Electric steering column lock
F38 Outside rear view mirror/Power
window
F39 Rear closure
F40 –
F41 Battery regulated voltage control
F42 SADS
F43 Rear drive control module/ICCM
F44 Folding top solenoid
F45 Amplifier
F46 Fuel system control module V8
F47 Shunt

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
Vehicle Care 267
Fuses UsageF48 –
F49 Steering wheel F50 Front camera module
F51 Camera module
F52 Ultrasonic park aid
F53 –
F54 Side blind zone alert
F55 Radio
F56 –
F57 –
Relays Usage K1 Rear window defogger
K2 Fuel system control module
Circuit
Breakers Usage
CB1 – Circuit
Breakers Usage
CB2 Retained accessory power
CB3 –
Wheels and Tires
Tires
Every new GM vehicle has high-quality
tires made by a leading tire
manufacturer. See the warranty manual
for information regarding the tire
warranty and where to get service. For
additional information refer to the tire
manufacturer.
{Warning
.Poorly maintained and improperly
used tires are dangerous.
.Overloading the tires can cause
overheating as a result of too
much flexing. There could be a
blowout and a serious crash. See
Vehicle Load Limits 0196.
(Continued)
Warning (Continued)
.Underinflated tires pose the same
danger as overloaded tires. The
resulting crash could cause serious
injury. Check all tires frequently to
maintain the recommended
pressure. Tire pressure should be
checked when the tires are cold.
.Overinflated tires are more likely
to be cut, punctured, or broken by
a sudden impact —such as when
hitting a pothole. Keep tires at the
recommended pressure.
.Worn or old tires can cause a
crash. If the tread is badly worn,
replace them.
.Replace any tires that have been
damaged by impacts with
potholes, curbs, etc.
.Improperly repaired tires can cause
a crash. Only the dealer or an
authorized tire service center
should repair, replace, dismount,
and mount the tires.
(Continued)

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 10/1/20
344 Index
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Competitive Driving Mode . . . . . . . . . . . . . . . 219
Compressor Kit, Tire Sealant . . . . . . . . . . . . . 286
Connected ServicesConnections . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Connections Connected Services . . . . . . . . . . . . . . . . . . . . 340
Control Traction and Electronic Stability . . . . . . . 214
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . .183
Controls Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 117
Convenience Net . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Convertible Top . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Coolant Engine Temperature Gauge . . . . . . . . . . . . . 88
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173, 176
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Courtesy Transportation Program . . . . . . . . 328
Coverage Explanations . . . . . . . . . . . . . . . . . . . 140
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 220 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Customer Assistance . . . . . . . . . . . . . . . . . . . . . 325 Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Text Telephone (TTY) Users . . . . . . . . . . . . 325 Customer Information
Publications Ordering Information . . . . . 330
Customer Satisfaction Procedure . . . . . . . . . 323
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
D
Damage Repair, Collision . . . . . . . . . . . . . . . . . 329
Danger, Warning, and Caution . . . . . . . . . . . . . .2
Data Collection Infotainment System . . . . . . . . . . . . . . . . . . 333
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Data Recorder
Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Data Recorders, Event . . . . . . . . . . . . . . . . . . . 333
Database Coverage Explanations . . . . . . . . . 140
Daytime Running Lamps (DRL) . . . . . . . . . . . 109
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . .182
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Diagnostics Connected Services . . . . . . . . . . . . . . . . . . . . 341
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . .182
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 17
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Drive Belt Routing, Engine . . . . . . . . . . . . . . . 322 Driver
Teen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Driver Assistance Systems . . . . . . . . . . . . . . . 223
Driver Information Center (DIC) . . . . . . . . . . . 97
Driver Mode Control . . . . . . . . . . . . . . . . . . . . . 216
Driving Better Fuel Economy . . . . . . . . . . . . . . . . . . . 182
Competitive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Hill and Mountain Roads . . . . . . . . . . . . . . 194
If the Vehicle is Stuck . . . . . . . . . . . . . . . . . 195
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . 184
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 184
Track Events and Competitive . . . . . . . . . . 185
Vehicle Load Limits . . . . . . . . . . . . . . . . . . . . 196
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
E
Electric Parking Brake . . . . . . . . . . . . . . . . . . . . . 213
Electric Parking Brake Light . . . . . . . . . . . . . . . 93
Electrical Equipment, Add-On . . . . . . . . . . . . 233
Electrical SystemEngine Compartment Fuse Block . . . . . . . 261
Fuses and Circuit Breakers . . . . . . . . . . . . . 261
