check engine light CHEVROLET CAMARO 2022 User Guide

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20

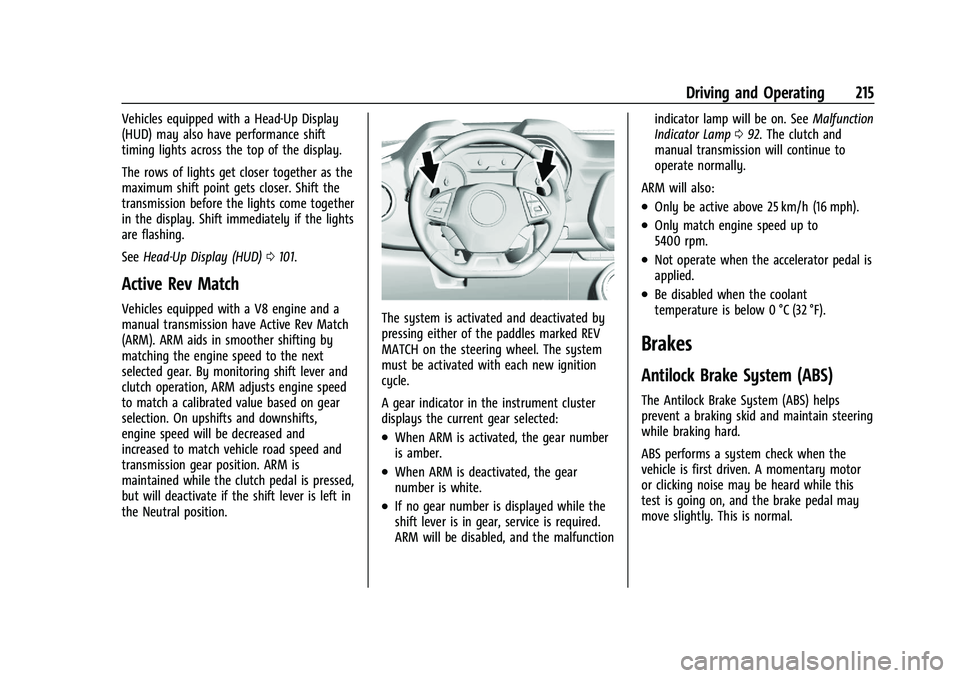

Driving and Operating 215
Vehicles equipped with a Head-Up Display
(HUD) may also have performance shift
timing lights across the top of the display.
The rows of lights get closer together as the
maximum shift point gets closer. Shift the
transmission before the lights come together
in the display. Shift immediately if the lights
are flashing.
SeeHead-Up Display (HUD) 0101.
Active Rev Match
Vehicles equipped with a V8 engine and a
manual transmission have Active Rev Match
(ARM). ARM aids in smoother shifting by
matching the engine speed to the next
selected gear. By monitoring shift lever and
clutch operation, ARM adjusts engine speed
to match a calibrated value based on gear
selection. On upshifts and downshifts,
engine speed will be decreased and
increased to match vehicle road speed and
transmission gear position. ARM is
maintained while the clutch pedal is pressed,
but will deactivate if the shift lever is left in
the Neutral position.The system is activated and deactivated by
pressing either of the paddles marked REV
MATCH on the steering wheel. The system
must be activated with each new ignition
cycle.
A gear indicator in the instrument cluster
displays the current gear selected:
.When ARM is activated, the gear number
is amber.
.When ARM is deactivated, the gear
number is white.
.If no gear number is displayed while the
shift lever is in gear, service is required.
ARM will be disabled, and the malfunction indicator lamp will be on. See
Malfunction
Indicator Lamp 092. The clutch and
manual transmission will continue to
operate normally.
ARM will also:
.Only be active above 25 km/h (16 mph).
.Only match engine speed up to
5400 rpm.
.Not operate when the accelerator pedal is
applied.
.Be disabled when the coolant
temperature is below 0 °C (32 °F).
Brakes
Antilock Brake System (ABS)
The Antilock Brake System (ABS) helps
prevent a braking skid and maintain steering
while braking hard.
ABS performs a system check when the
vehicle is first driven. A momentary motor
or clicking noise may be heard while this
test is going on, and the brake pedal may
move slightly. This is normal.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20

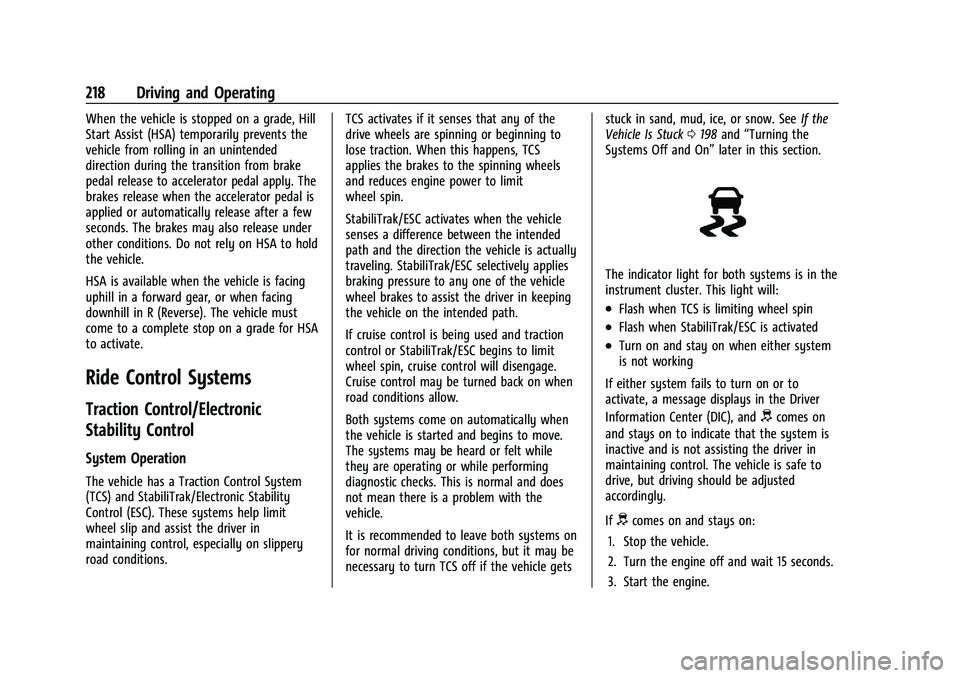

218 Driving and Operating
When the vehicle is stopped on a grade, Hill
Start Assist (HSA) temporarily prevents the
vehicle from rolling in an unintended
direction during the transition from brake
pedal release to accelerator pedal apply. The
brakes release when the accelerator pedal is
applied or automatically release after a few
seconds. The brakes may also release under
other conditions. Do not rely on HSA to hold
the vehicle.
HSA is available when the vehicle is facing
uphill in a forward gear, or when facing
downhill in R (Reverse). The vehicle must
come to a complete stop on a grade for HSA
to activate.
Ride Control Systems
Traction Control/Electronic
Stability Control
System Operation
The vehicle has a Traction Control System
(TCS) and StabiliTrak/Electronic Stability
Control (ESC). These systems help limit
wheel slip and assist the driver in
maintaining control, especially on slippery
road conditions.TCS activates if it senses that any of the
drive wheels are spinning or beginning to
lose traction. When this happens, TCS
applies the brakes to the spinning wheels
and reduces engine power to limit
wheel spin.
StabiliTrak/ESC activates when the vehicle
senses a difference between the intended
path and the direction the vehicle is actually
traveling. StabiliTrak/ESC selectively applies
braking pressure to any one of the vehicle
wheel brakes to assist the driver in keeping
the vehicle on the intended path.
If cruise control is being used and traction
control or StabiliTrak/ESC begins to limit
wheel spin, cruise control will disengage.
Cruise control may be turned back on when
road conditions allow.
Both systems come on automatically when
the vehicle is started and begins to move.
The systems may be heard or felt while
they are operating or while performing
diagnostic checks. This is normal and does
not mean there is a problem with the
vehicle.
It is recommended to leave both systems on
for normal driving conditions, but it may be
necessary to turn TCS off if the vehicle getsstuck in sand, mud, ice, or snow. See
If the
Vehicle Is Stuck 0198 and “Turning the
Systems Off and On” later in this section.
The indicator light for both systems is in the
instrument cluster. This light will:
.Flash when TCS is limiting wheel spin
.Flash when StabiliTrak/ESC is activated
.Turn on and stay on when either system
is not working
If either system fails to turn on or to
activate, a message displays in the Driver
Information Center (DIC), and
dcomes on
and stays on to indicate that the system is
inactive and is not assisting the driver in
maintaining control. The vehicle is safe to
drive, but driving should be adjusted
accordingly.
If
dcomes on and stays on:
1. Stop the vehicle.
2. Turn the engine off and wait 15 seconds.
3. Start the engine.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20
238 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . . . . . . . . . . 239
California Proposition 65 Warning . . . . . 239
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . . . . . . 239
Accessories and Modifications . . . . . . . . . 240
Vehicle Checks
Doing Your Own Service Work . . . . . . . . 240
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Engine Compartment Overview . . . . . . . . 242
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Engine Oil Life System . . . . . . . . . . . . . . . . 249
Automatic Transmission Fluid . . . . . . . . . 250
Manual Transmission Fluid . . . . . . . . . . . . 250
Hydraulic Clutch . . . . . . . . . . . . . . . . . . . . . . . 250
Engine Air Filter Life System (2.0L LTG and 3.6L LGX Engines Only) . . . . . . . . . . 251
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . 251
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 253
Engine Overheating . . . . . . . . . . . . . . . . . . . . 257
Washer Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 258 Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Battery - North America . . . . . . . . . . . . . . . 260
Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Automatic Transmission Shift Lock
Control Function Check . . . . . . . . . . . . . . 261
Park Brake and P (Park) Mechanism Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Wiper Blade Replacement . . . . . . . . . . . . . 262
Windshield Replacement . . . . . . . . . . . . . . 262
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Headlamp Aiming
Front Headlamp Aiming . . . . . . . . . . . . . . . 264
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . 264
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 264
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Back-Up Lamps . . . . . . . . . . . . . . . . . . . . . . . . 264
License Plate Lamp . . . . . . . . . . . . . . . . . . . . 265
Electrical System
Electrical System Overload . . . . . . . . . . . . 265
Fuses and Circuit Breakers . . . . . . . . . . . . 266
Engine Compartment Fuse Block . . . . . . 266
Rear Compartment Fuse Block . . . . . . . . . 270
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . 273
Winter Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Run-Flat Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Low-Profile Tires . . . . . . . . . . . . . . . . . . . . . . . 274
Summer Tires . . . . . . . . . . . . . . . . . . . . . . . . . 274
Tire Sidewall Labeling . . . . . . . . . . . . . . . . . 275
Tire Designations . . . . . . . . . . . . . . . . . . . . . . 276
Tire Terminology and Definitions . . . . . . 276
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Tire Pressure Monitor System . . . . . . . . . 280
Tire Pressure Monitor Operation . . . . . . . 281
Tire Inspection . . . . . . . . . . . . . . . . . . . . . . . . 284
Tire Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . 284
When It Is Time for New Tires . . . . . . . . 285
Buying New Tires . . . . . . . . . . . . . . . . . . . . . 286
Different Size Tires and Wheels . . . . . . . 287
Uniform Tire Quality Grading . . . . . . . . . 288
Wheel Alignment and Tire Balance . . . . 289
Wheel Replacement . . . . . . . . . . . . . . . . . . . 289
Tire Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 290
Tire Sealant and Compressor Kit . . . . . . . 291
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . . . . . . . . 296

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20
298 Vehicle Care
1. Check the other vehicle. It must have a12-volt battery with a negative ground
system.
Caution
If the other vehicle does not have a
12-volt system with a negative ground,
both vehicles can be damaged. Only use
a vehicle that has a 12-volt system with a
negative ground for jump starting.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake firmly and put the shift lever in P (Park) with an automatic
transmission, or Neutral with a manual
transmission. See Shifting Into Park
0 207 with an automatic transmission,
or Parking (Manual Transmission) 0208
with a manual transmission.
Caution
If any accessories are left on or plugged
in during the jump starting procedure,
they could be damaged. The repairs
would not be covered by the vehicle
(Continued)
Caution (Continued)
warranty. Whenever possible, turn off or
unplug all accessories on either vehicle
when jump starting.
4. Turn the ignition off. Turn off all lights and accessories in both vehicles, except
the hazard warning flashers if needed.
{Warning
An electric fan can start up even when
the engine is not running and can injure
you. Keep hands, clothing, and tools
away from any underhood electric fan.
{Warning
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a flashlight if you need
more light.
Battery fluid contains acid that can burn
you. Do not get it on you. If you
accidentally get it in your eyes or on
your skin, flush the place with water and
get medical help immediately.
{Warning
Fans or other moving engine parts can
injure you badly. Keep your hands away
from moving parts once the engine is
running.
5. Connect one end of the red positive (+) cable to the underhood remote
positive (+) terminal on the discharged
battery.
6. Connect the other end of the red positive (+) cable to the positive (+)
terminal of the good battery.
7. Connect one end of the black negative (–) cable to the negative (–)
terminal of the good battery.
8. Connect the other end of the black negative (–) cable to the underhood
negative (–) grounding point for the
discharged battery.
9. Start the engine in the vehicle with the good battery and run the engine at idle
speed for at least four minutes.
10. Try to start the vehicle that had the dead battery. If it will not start after a
few tries, it probably needs service.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20
Service and Maintenance 317
.Trained dealer technicians have the
diagnostic equipment to test the battery
and ensure that the connections and
cables are corrosion-free.
Belts
.Belts may need replacing if they squeak
or show signs of cracking or splitting.
.Trained dealer technicians have access to
tools and equipment to inspect the belts
and recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are crucial to
safe driving.
.Signs of brake wear may include chirping,
grinding, or squealing noises, or difficulty
stopping.
.Trained dealer technicians have access to
tools and equipment to inspect the brakes
and recommend quality parts engineered
for the vehicle. Fluids
Proper fluid levels and approved fluids
protect the vehicle’s systems and
components. See
Recommended Fluids and
Lubricants 0318 for GM approved fluids.
.Engine oil and windshield washer fluid
levels should be checked at every fuel fill.
.Instrument cluster lights may come on to
indicate that fluids may be low and need
to be filled.
Hoses
Hoses transport fluids and should be
regularly inspected to ensure that there are
no cracks or leaks. With a multi-point
inspection, your dealer can inspect the hoses
and advise if replacement is needed.
Lamps
Properly working headlamps, taillamps, and
brake lamps are important to see and be
seen on the road.
.Signs that the headlamps need attention
include dimming, failure to light, cracking,
or damage. The brake lamps need to be
checked periodically to ensure that they
light when braking.
.With a multi-point inspection, your dealer
can check the lamps and note any
concerns.
Shocks and Struts
Shocks and struts help aid in control for a
smoother ride.
.Signs of wear may include steering wheel
vibration, bounce/sway while braking,
longer stopping distance, or uneven
tire wear.
.As part of the multi-point inspection,
trained dealer technicians can visually
inspect the shocks and struts for signs of
leaking, blown seals, or damage, and can
advise when service is needed.
Tires
Tires need to be properly inflated, rotated,
and balanced. Maintaining the tires can save
money and fuel, and can reduce the risk of
tire failure.
.Signs that the tires need to be replaced
include three or more visible treadwear
indicators; cord or fabric showing through
the rubber; cracks or cuts in the tread or
sidewall; or a bulge or split in the tire.

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20
Index 345
IndexA
Accessories and Modifications . . . . . . . . . . . 240
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . 207
Active Fuel Management . . . . . . . . . . . . . . . . 208
Active Rev Match . . . . . . . . . . . . . . . . . . . . . . . . . 215
Add-On Electrical Equipment . . . . . . . . . . . . . 237
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Additional Maintenance and Care . . . . . . . . 316
Agreements Trademarks and License . . . . . . . . . . . . . . . 167
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . . 251
Air Conditioning . . . . . . . . . . . . . . . . . . . . . 176, 179
Air Filter Life System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Air Filter, Passenger Compartment . . . . . . . .182
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
How Does an Airbag Restrain? . . . . . . . . . . 52
Passenger Sensing System . . . . . . . . . . . . . . 54
What Makes an Airbag Inflate? . . . . . . . . . 52
What Will You See after an AirbagInflates? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
When Should an Airbag Inflate? . . . . . . . . . 51
Where Are the Airbags? . . . . . . . . . . . . . . . . 50
Airbags Adding Equipment to the Vehicle . . . . . . . 58 Airbags (cont'd)
Passenger Status Indicator . . . . . . . . . . . . . . 91
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . 91
Servicing Airbag-Equipped Vehicles . . . . . . 57
System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Alarm Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . . 21
Alert Lane Change . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Side Blind Zone (SBZA) . . . . . . . . . . . . . . . . . 231
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 273
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Antilock Brake System (ABS) . . . . . . . . . . . . . . 215 Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Apple CarPlay and Android Auto . . . . . . . . . . 157
Assistance Program, Roadside . . . . . . . . . . . . 329
Assistance Systems for Parking and Backing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Automatic
Climate Control System . . . . . . . . . . . . . . . . 176
Dimming Mirrors . . . . . . . . . . . . . . . . . . . . . . . 24

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20
346 Index
Automatic (cont'd)Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Headlamp System . . . . . . . . . . . . . . . . . . . . . . 111
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . 250
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Shift Lock Control Function Check . . . . . . 261
Auxiliary Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Avoiding Untrusted Media Devices . . . . . . . 126
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
B
Battery Exterior Lighting Battery Saver . . . . . . . . . 115
Load Management . . . . . . . . . . . . . . . . . . . . . . 114
Power Protection . . . . . . . . . . . . . . . . . . . . . . . 115
Battery - North America . . . . . . . . . . . . 260, 297
Blade Replacement, Wiper . . . . . . . . . . . . . . . 262
Bluetooth Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 152, 153
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . 129
Boost Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Brake
Parking, Electric . . . . . . . . . . . . . . . . . . . . . . . . 216
System Warning Light . . . . . . . . . . . . . . . . . . 94
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 Brakes (cont'd)
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . 202
Bulb Replacement Back-up Lamps . . . . . . . . . . . . . . . . . . . . . . . . . 264
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 264
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . 264
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
High Intensity Discharge (HID)Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
License Plate Lamps . . . . . . . . . . . . . . . . . . . 265
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . 286
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . . . . . . 239
California Proposition 65 Warning . . . . . . . . . . . . . . . . . . 239, 260, 297
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . . 1
Capacities and Specifications . . . . . . . . . . . . . 323
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 209
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . 197 Caution, Danger, and Warning . . . . . . . . . . . . . .2
Center Console Storage . . . . . . . . . . . . . . . . . . . 76
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Charging
Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Charging System Light . . . . . . . . . . . . . . . . . . . . 92
Check Engine Light (Malfunction Indicator) . . . . 92
Child Restraints Infants and Young Children . . . . . . . . . . . . . 60
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71, 72
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Climate Control Systems Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Dual Automatic . . . . . . . . . . . . . . . . . . . . . . . . 179
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Cluster, Instrument . . . . . . . . . . . . . . . . . . . . . . . 83
Clutch, Hydraulic . . . . . . . . . . . . . . . . . . . . . . . . 250
Collision Damage Repair . . . . . . . . . . . . . . . . . 332
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20
348 Index
Electrical System (cont'd)Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Rear Compartment Fuse Block . . . . . . . . . 270
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . 251
Check Light (Malfunction Indicator) . . . . . 92
Compartment Overview . . . . . . . . . . . . . . . . 242
Coolant Temperature Gauge . . . . . . . . . . . . 89
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 253
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 325
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 249
Oil Pressure Gauge . . . . . . . . . . . . . . . . . . . . . 88
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . . 97
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Power Messages . . . . . . . . . . . . . . . . . . . . . . . 105
Running While Parked . . . . . . . . . . . . . . . . . 209
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Engine Air Filter Life System . . . . . . . . . . . . . . 251
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 336
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . 208
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . 47
Exterior Lamp Controls . . . . . . . . . . . . . . . . . . . .110 Exterior Lighting Battery Saver . . . . . . . . . . . 115
F
Filter,
Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . 251
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Flashers, Hazard Warning . . . . . . . . . . . . . . . . . 112
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Fluid Automatic Transmission . . . . . . . . . . . . . . . 250
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Forward Collision Alert (FCA) System . . . . 230
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Heated and Ventilated . . . . . . . . . . . . . . . . . . 40
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Economy, Driving for Better . . . . . . . . . . . 185
Filling a Portable Fuel Container . . . . . . . 237
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 235
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 235
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Low Fuel Warning Light . . . . . . . . . . . . . . . . 97
Management, Active . . . . . . . . . . . . . . . . . . . 208 Fuel (cont'd)
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 234
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 234
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Fuses Engine Compartment Fuse Block . . . . . . . 266
Fuses and Circuit Breakers . . . . . . . . . . . . . 266
Rear Compartment Fuse Block . . . . . . . . . 270
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
GaugesBoost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Engine Coolant Temperature . . . . . . . . . . . . 89
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 88
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Voltmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Warning Lights and Indicators . . . . . . . . . . 82
General Information Service and Maintenance . . . . . . . . . . . . . . 309
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Global Positioning System (GPS) . . . . . . . . . . 141
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20
Index 349
GM Mobility ReimbursementProgram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Guidance Problems with the Route . . . . . . . . . . . . . . . 141
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Hazard Warning Flashers . . . . . . . . . . . . . . . . . 112
HD Radio Technology . . . . . . . . . . . . . . . . . . . . .124
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Head-up Display . . . . . . . . . . . . . . . . . . . . . . . . . .101
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 264
Daytime Running Lamps (DRL) . . . . . . . . . . 111
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
High Intensity Discharge (HID)Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
High-Beam On Light . . . . . . . . . . . . . . . . . . . . 98
High/Low Beam Changer . . . . . . . . . . . . . . 110
Lamps On Reminder . . . . . . . . . . . . . . . . . . . . 98
Heated Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 78
Heated and Ventilated Front Seats . . . . . . . 40
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176, 179
High-Beam On Light . . . . . . . . . . . . . . . . . . . . . . 98
High-Speed Operation . . . . . . . . . . . . . . . . . . . 279
Hill and Mountain Roads . . . . . . . . . . . . . . . . 197
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . . 217
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
How to Wear Seat Belts Properly . . . . . . . . . 43
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176, 179
Hydraulic Clutch . . . . . . . . . . . . . . . . . . . . . . . . . 250
I
If the System Needs Service . . . . . . . . . . . . . .142
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . . . 203
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Indicator
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Infants and Young Children, Restraints . . . . 60
Information Publication Ordering . . . . . . . . . . . . . . . . . . . 333
Infotainment System . . . . . . . . . . . . . . . . . . . . 336
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . 83
Instrument Panel Overview . . . . . . . . . . . . . . . . 4
Interior Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . 24
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .1, 116
J
Jack
Auxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Jump Starting - North America . . . . . . . . . . . 297
K
Keyless Entry Remote (RKE) System . . . . . . . . . . . . . . . . . . . . 7
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . 275
Lamps Daytime Running (DRL) . . . . . . . . . . . . . . . . . 111
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . 110
Exterior Lighting Battery Saver . . . . . . . . . 115
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
License Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Malfunction Indicator (CheckEngine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Lane Change Alert (LCA) . . . . . . . . . . . . . . . . . 232
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . 45
LATCH System Replacing Parts after a Crash . . . . . . . . . . . 70
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Latches, Seatback . . . . . . . . . . . . . . . . . . . . . . . . . 40

Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20
350 Index
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
LightingEntry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Illumination Control . . . . . . . . . . . . . . . . . . . . 113
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Theater Dimming . . . . . . . . . . . . . . . . . . . . . . . 114
Lights Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . 91
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Brake System Warning . . . . . . . . . . . . . . . . . 94
Charging System . . . . . . . . . . . . . . . . . . . . . . . 92
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Electric Parking Brake . . . . . . . . . . . . . . . . . . . 94
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 97
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . . 98
High/Low Beam Changer . . . . . . . . . . . . . . 110
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . . 97
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 90
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Service Electric Parking Brake . . . . . . . . . . . 95
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 Lights (cont'd)
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . . 96
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Limited-Slip Rear Axle . . . . . . . . . . . . . . . . . . . . 224
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 17
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 18
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . .187
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . 97
Low-Profile Tires . . . . . . . . . . . . . . . . . . . . . . . . . 274
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . 65
M
Maintenance
Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 310 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 92
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Manual Transmission . . . . . . . . . . . . . . . . . . . . . 213 Manual Transmission (cont'd)
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Map Data Updates . . . . . . . . . . . . . . . . . . . . . . . .142
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Matching Active Rev . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Media
Avoiding Untrusted Devices . . . . . . . . . . . . 126
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Mirror Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Mirrors
Automatic Dimming . . . . . . . . . . . . . . . . . . . . 24
Automatic Dimming Rearview . . . . . . . . . . 24
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 24
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Mirrors, Interior Rearview . . . . . . . . . . . . . . . . . 24
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219 Driver Control . . . . . . . . . . . . . . . . . . . . . . . . . 219
Monitor System, Tire Pressure . . . . . . . . . . . 280
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . 126
