CHEVROLET CAPTIVA SPORT 2014 Infotainment System Guide

Black plate (81,1)Chevrolet Captiva Sport Infotainment System (GMNA-Localizing-US/Canada-
6225549) - 2014 - 2nd crc - 9/16/13

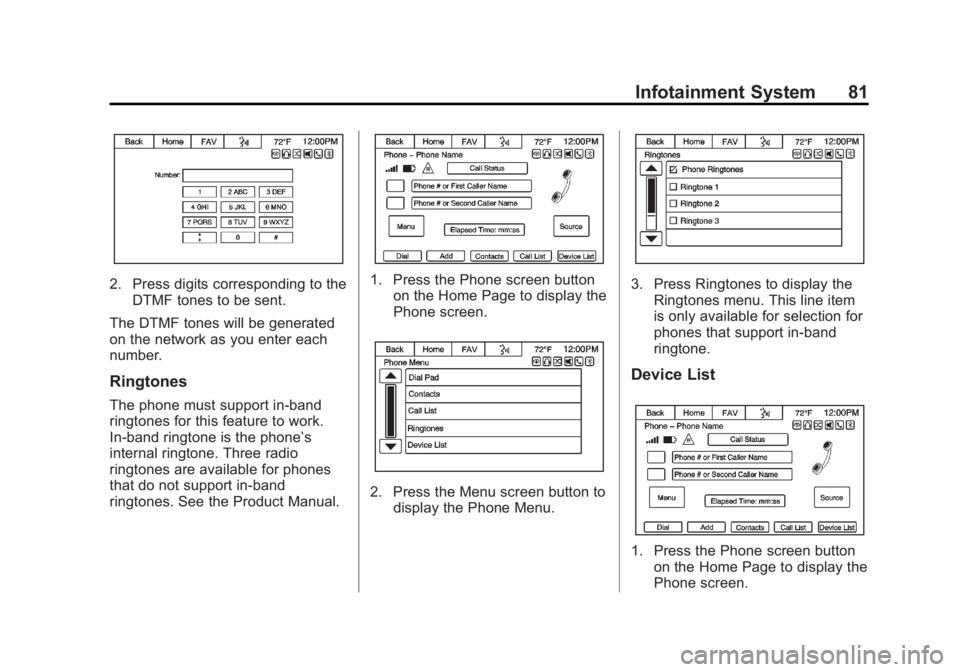

Infotainment System 81
2. Press digits corresponding to theDTMF tones to be sent.
The DTMF tones will be generated
on the network as you enter each
number.
Ringtones
The phone must support in-band
ringtones for this feature to work.
In-band ringtone is the phone’s
internal ringtone. Three radio
ringtones are available for phones
that do not support in-band
ringtones. See the Product Manual.
1. Press the Phone screen button on the Home Page to display the
Phone screen.
2. Press the Menu screen button todisplay the Phone Menu.
3. Press Ringtones to display the
Ringtones menu. This line item
is only available for selection for
phones that support in-band
ringtone.
Device List
1. Press the Phone screen buttonon the Home Page to display the
Phone screen.

Black plate (82,1)Chevrolet Captiva Sport Infotainment System (GMNA-Localizing-US/Canada-
6225549) - 2014 - 2nd crc - 9/16/13

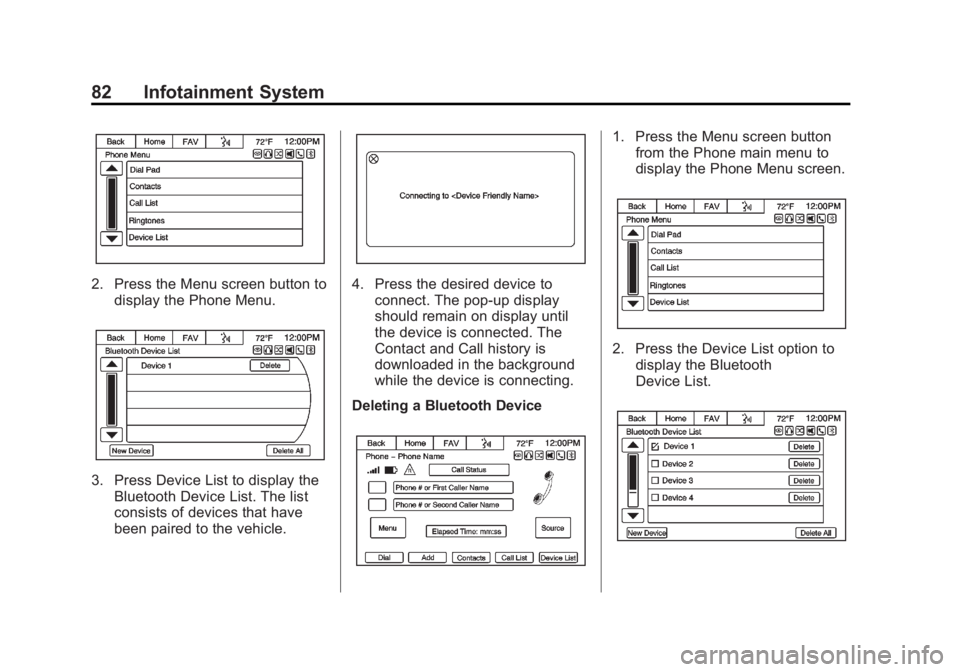

82 Infotainment System
2. Press the Menu screen button todisplay the Phone Menu.
3. Press Device List to display theBluetooth Device List. The list
consists of devices that have
been paired to the vehicle.
4. Press the desired device toconnect. The pop-up display
should remain on display until
the device is connected. The
Contact and Call history is
downloaded in the background
while the device is connecting.
Deleting a Bluetooth Device
1. Press the Menu screen button from the Phone main menu to
display the Phone Menu screen.
2. Press the Device List option to
display the Bluetooth
Device List.

Black plate (83,1)Chevrolet Captiva Sport Infotainment System (GMNA-Localizing-US/Canada-
6225549) - 2014 - 2nd crc - 9/16/13
Infotainment System 83
3. Select the device, and press theDelete screen button associated
with the selected device.
4. To Delete all devices, press the Delete All screen button at the
bottom of the display.
Text Messaging
For vehicles equipped with
Bluetooth capability, the system can
display text messages, play back a
message over the audio system,
and send a predefined message.
Not all phones support all functions
and work with Bluetooth. The radio
only supports the receipt of SMS
text messages. A request may need
to accepted on the phone or some
phone settings may need to be
changed to allow for text messaging
to function. See the cell phone
manufacturer ’s user guide. Text
messaging features can also be
initiated via Voice Recognition.
Users can play, reply, and forward a
message through Voice
Recognition. Using Text Messaging
1. Press the Text Messaging icon
on the Home Page or press the
Menu screen button on the
Phone main screen to go to the
Phone Menu and select Text
Messaging. The Text Messaging
icon on the Home Page and
Phone Menu item are grayed out
if not supported by the Bluetooth
connected device.
2. A pop-up message displays
stating, “Retrieving Messages.”
3. Once all messages are
retrieved, the Text
Messaging-Inbox displays.
Select a message for viewing or
press the speaker icon to the left
of the Name or Number to play
back the message through the

Black plate (84,1)Chevrolet Captiva Sport Infotainment System (GMNA-Localizing-US/Canada-
6225549) - 2014 - 2nd crc - 9/16/13

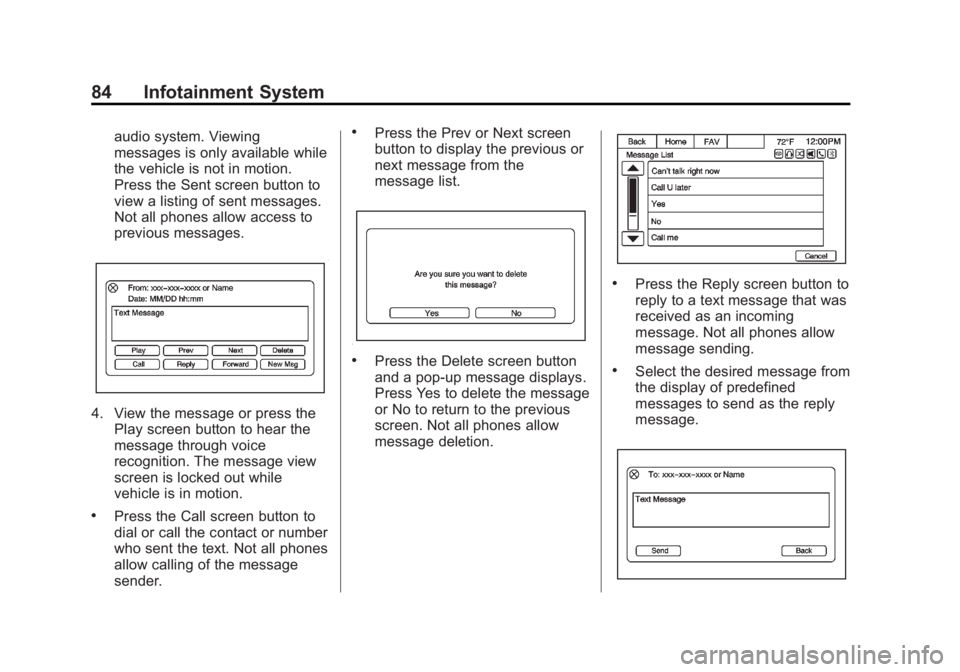

84 Infotainment System
audio system. Viewing
messages is only available while
the vehicle is not in motion.
Press the Sent screen button to
view a listing of sent messages.
Not all phones allow access to
previous messages.
4. View the message or press thePlay screen button to hear the
message through voice
recognition. The message view
screen is locked out while
vehicle is in motion.
.Press the Call screen button to
dial or call the contact or number
who sent the text. Not all phones
allow calling of the message
sender.
.Press the Prev or Next screen
button to display the previous or
next message from the
message list.
.Press the Delete screen button
and a pop-up message displays.
Press Yes to delete the message
or No to return to the previous
screen. Not all phones allow
message deletion.
.Press the Reply screen button to
reply to a text message that was
received as an incoming
message. Not all phones allow
message sending.
.Select the desired message from
the display of predefined
messages to send as the reply
message.

Black plate (85,1)Chevrolet Captiva Sport Infotainment System (GMNA-Localizing-US/Canada-
6225549) - 2014 - 2nd crc - 9/16/13

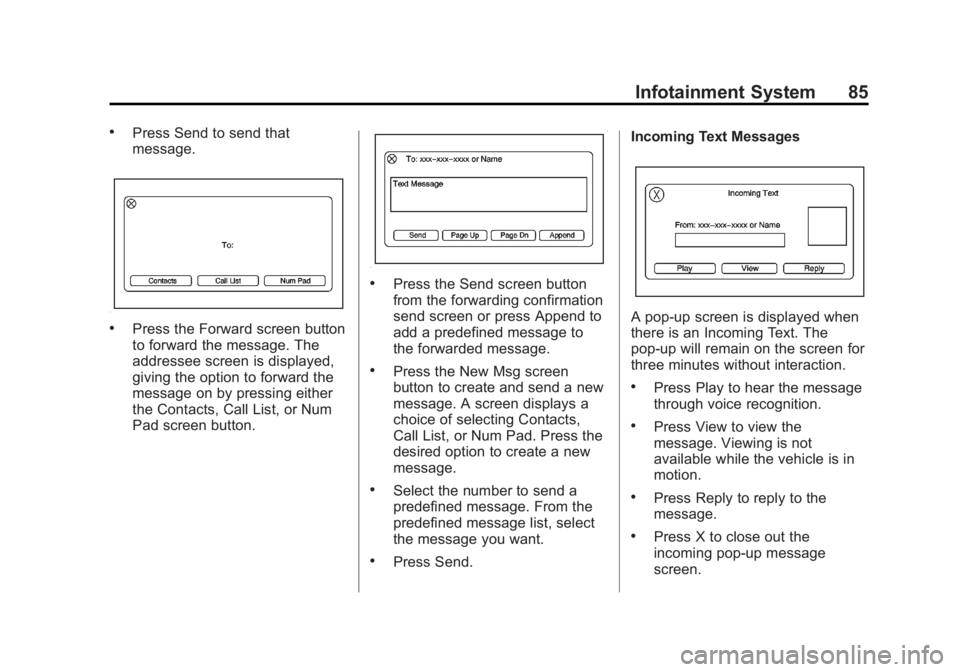

Infotainment System 85
.Press Send to send that
message.
.Press the Forward screen button
to forward the message. The
addressee screen is displayed,
giving the option to forward the
message on by pressing either
the Contacts, Call List, or Num
Pad screen button.
.Press the Send screen button
from the forwarding confirmation
send screen or press Append to
add a predefined message to
the forwarded message.
.Press the New Msg screen
button to create and send a new
message. A screen displays a
choice of selecting Contacts,
Call List, or Num Pad. Press the
desired option to create a new
message.
.Select the number to send a
predefined message. From the
predefined message list, select
the message you want.
.Press Send.Incoming Text Messages
A pop-up screen is displayed when
there is an Incoming Text. The
pop-up will remain on the screen for
three minutes without interaction.
.Press Play to hear the message
through voice recognition.
.Press View to view the
message. Viewing is not
available while the vehicle is in
motion.
.Press Reply to reply to the
message.
.Press X to close out the
incoming pop-up message
screen.

Black plate (86,1)Chevrolet Captiva Sport Infotainment System (GMNA-Localizing-US/Canada-
6225549) - 2014 - 2nd crc - 9/16/13

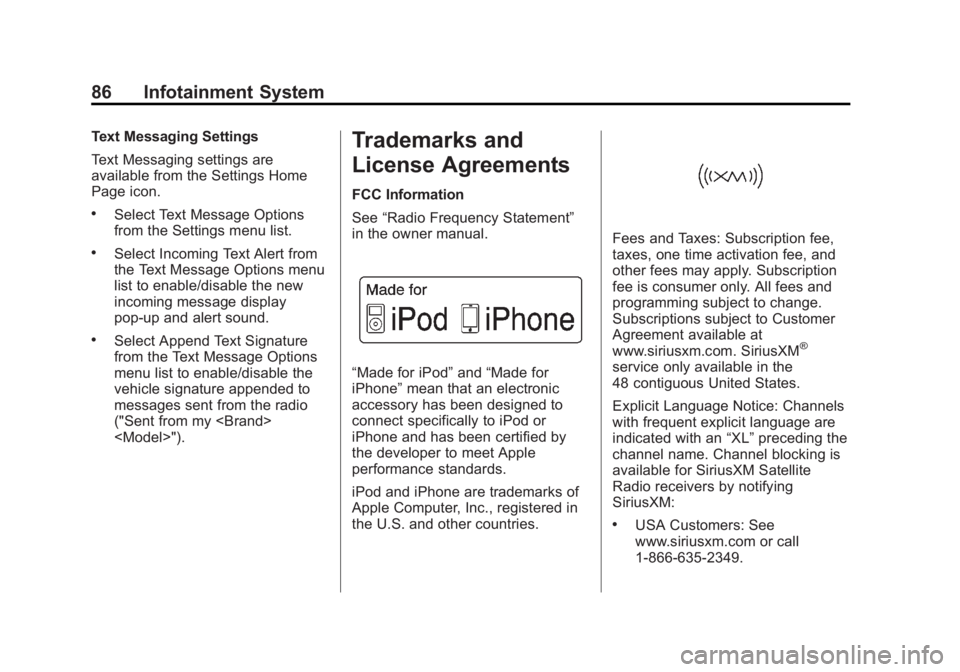

86 Infotainment System
Text Messaging Settings
Text Messaging settings are
available from the Settings Home
Page icon.
.Select Text Message Options
from the Settings menu list.
.Select Incoming Text Alert from
the Text Message Options menu
list to enable/disable the new
incoming message display
pop-up and alert sound.
.Select Append Text Signature
from the Text Message Options
menu list to enable/disable the
vehicle signature appended to
messages sent from the radio
("Sent from my
").
Trademarks and
License Agreements
FCC Information
See“Radio Frequency Statement”
in the owner manual.
“Made for iPod” and“Made for
iPhone” mean that an electronic
accessory has been designed to
connect specifically to iPod or
iPhone and has been certified by
the developer to meet Apple
performance standards.
iPod and iPhone are trademarks of
Apple Computer, Inc., registered in
the U.S. and other countries.
Fees and Taxes: Subscription fee,
taxes, one time activation fee, and
other fees may apply. Subscription
fee is consumer only. All fees and
programming subject to change.
Subscriptions subject to Customer
Agreement available at
www.siriusxm.com. SiriusXM
®
service only available in the
48 contiguous United States.
Explicit Language Notice: Channels
with frequent explicit language are
indicated with an “XL”preceding the
channel name. Channel blocking is
available for SiriusXM Satellite
Radio receivers by notifying
SiriusXM:
.USA Customers: See
www.siriusxm.com or call
1-866-635-2349.

Black plate (87,1)Chevrolet Captiva Sport Infotainment System (GMNA-Localizing-US/Canada-
6225549) - 2014 - 2nd crc - 9/16/13
Infotainment System 87
It is prohibited to copy, decompile,
disassemble, reverse engineer,
hack, manipulate, or otherwise
make available any technology or
software incorporated in receivers
compatible with the SiriusXM
Satellite Radio System or that
support the SiriusXM website, the
Online Service, or any of its content.
Furthermore, the AMBER voice
compression software included in
this product is protected by
intellectual property rights including
patent rights, copyrights, and trade
secrets of Digital Voice
Systems, Inc.
General Requirements:
.A License Agreement from
SiriusXM is required for any
product that incorporates
SiriusXM Technology and/or for
use of any of the SiriusXM
marks to be manufactured,
distributed, or marketed in the
SiriusXM Service Area.
Bluetooth
The Bluetooth®word mark and
logos are owned by the Bluetooth®
SIG, Inc. and any use of such marks
by General Motors is under license.
Other trademarks and trade names
are those of their respective owners.
Pandora (If Equipped)
Pandora is a registered trademark
of Pandora Media, Inc., used under
license.
Map End User License
Agreement
TERMS AND CONDITIONS
Please read the terms and
conditions at www.telenav.com
carefully before you use the
TeleNav Software (if equipped).
Your use of the TeleNav Software
indicates that you accept these
terms and conditions. In brief, you
use this service at your own choice
and risk. TeleNav and its suppliers
assume no responsibility for any
damage or loss to you or a third party resulting from such use.
Please drive responsibly, obey all
traffic laws, and enter destinations,
POIs or other data only while your
vehicle is parked.
Disclaimer of Warranty
TELENAV EXPRESSLY
DISCLAIMS AND EXCLUDES ALL
WARRANTIES IN CONNECTION
WITH THE TELENAV SOFTWARE,
WHETHER STATUTORY,
EXPRESS OR IMPLIED,
INCLUDING ALL WARRANTIES
WHICH MAY ARISE FROM
COURSE OF DEALING, CUSTOM
OR TRADE AND INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES OF
MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE
AND NON-INFRINGEMENT OF
THIRD PARTY RIGHTS WITH
RESPECT TO THE TELENAV
SOFTWARE.

Black plate (88,1)Chevrolet Captiva Sport Infotainment System (GMNA-Localizing-US/Canada-
6225549) - 2014 - 2nd crc - 9/16/13

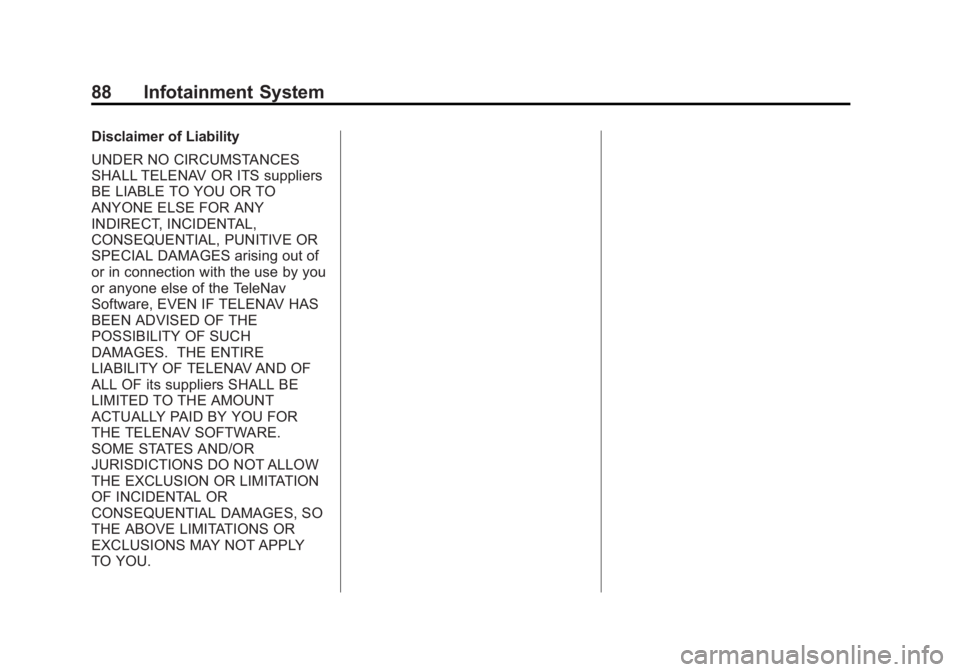

88 Infotainment System
Disclaimer of Liability
UNDER NO CIRCUMSTANCES
SHALL TELENAV OR ITS suppliers
BE LIABLE TO YOU OR TO
ANYONE ELSE FOR ANY
INDIRECT, INCIDENTAL,
CONSEQUENTIAL, PUNITIVE OR
SPECIAL DAMAGES arising out of
or in connection with the use by you
or anyone else of the TeleNav
Software, EVEN IF TELENAV HAS
BEEN ADVISED OF THE
POSSIBILITY OF SUCH
DAMAGES. THE ENTIRE
LIABILITY OF TELENAV AND OF
ALL OF its suppliers SHALL BE
LIMITED TO THE AMOUNT
ACTUALLY PAID BY YOU FOR
THE TELENAV SOFTWARE.
SOME STATES AND/OR
JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY
TO YOU.

Black plate (1,1)Chevrolet Captiva Sport Infotainment System (GMNA-Localizing-US/Canada-
6225549) - 2014 - 2nd crc - 9/16/13

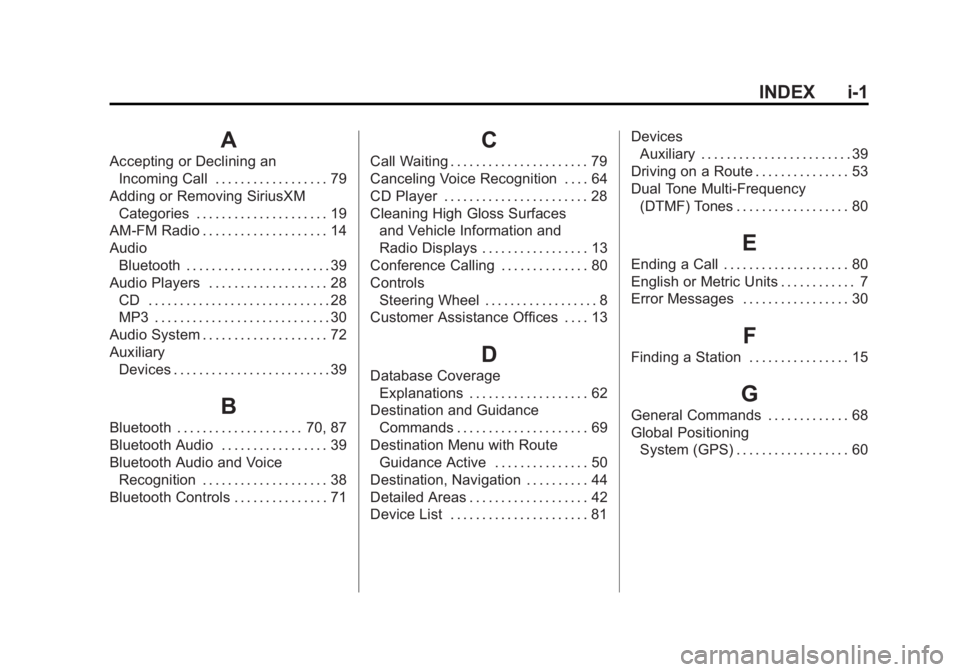

INDEX i-1
A
Accepting or Declining anIncoming Call . . . . . . . . . . . . . . . . . . 79
Adding or Removing SiriusXM Categories . . . . . . . . . . . . . . . . . . . . . 19
AM-FM Radio . . . . . . . . . . . . . . . . . . . . 14
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . 39
Audio Players . . . . . . . . . . . . . . . . . . . 28 CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Audio System . . . . . . . . . . . . . . . . . . . . 72
Auxiliary Devices . . . . . . . . . . . . . . . . . . . . . . . . . 39
B
Bluetooth . . . . . . . . . . . . . . . . . . . . 70, 87
Bluetooth Audio . . . . . . . . . . . . . . . . . 39
Bluetooth Audio and VoiceRecognition . . . . . . . . . . . . . . . . . . . . 38
Bluetooth Controls . . . . . . . . . . . . . . . 71
C
Call Waiting . . . . . . . . . . . . . . . . . . . . . . 79
Canceling Voice Recognition . . . . 64
CD Player . . . . . . . . . . . . . . . . . . . . . . . 28
Cleaning High Gloss Surfaces and Vehicle Information and
Radio Displays . . . . . . . . . . . . . . . . . 13
Conference Calling . . . . . . . . . . . . . . 80
Controls Steering Wheel . . . . . . . . . . . . . . . . . . 8
Customer Assistance Offices . . . . 13
D
Database Coverage
Explanations . . . . . . . . . . . . . . . . . . . 62
Destination and Guidance Commands . . . . . . . . . . . . . . . . . . . . . 69
Destination Menu with Route
Guidance Active . . . . . . . . . . . . . . . 50
Destination, Navigation . . . . . . . . . . 44
Detailed Areas . . . . . . . . . . . . . . . . . . . 42
Device List . . . . . . . . . . . . . . . . . . . . . . 81 Devices
Auxiliary . . . . . . . . . . . . . . . . . . . . . . . . 39
Driving on a Route . . . . . . . . . . . . . . . 53
Dual Tone Multi-Frequency (DTMF) Tones . . . . . . . . . . . . . . . . . . 80
E
Ending a Call . . . . . . . . . . . . . . . . . . . . 80
English or Metric Units . . . . . . . . . . . . 7
Error Messages . . . . . . . . . . . . . . . . . 30
F
Finding a Station . . . . . . . . . . . . . . . . 15
G
General Commands . . . . . . . . . . . . . 68
Global PositioningSystem (GPS) . . . . . . . . . . . . . . . . . . 60

Black plate (2,1)Chevrolet Captiva Sport Infotainment System (GMNA-Localizing-US/Canada-
6225549) - 2014 - 2nd crc - 9/16/13

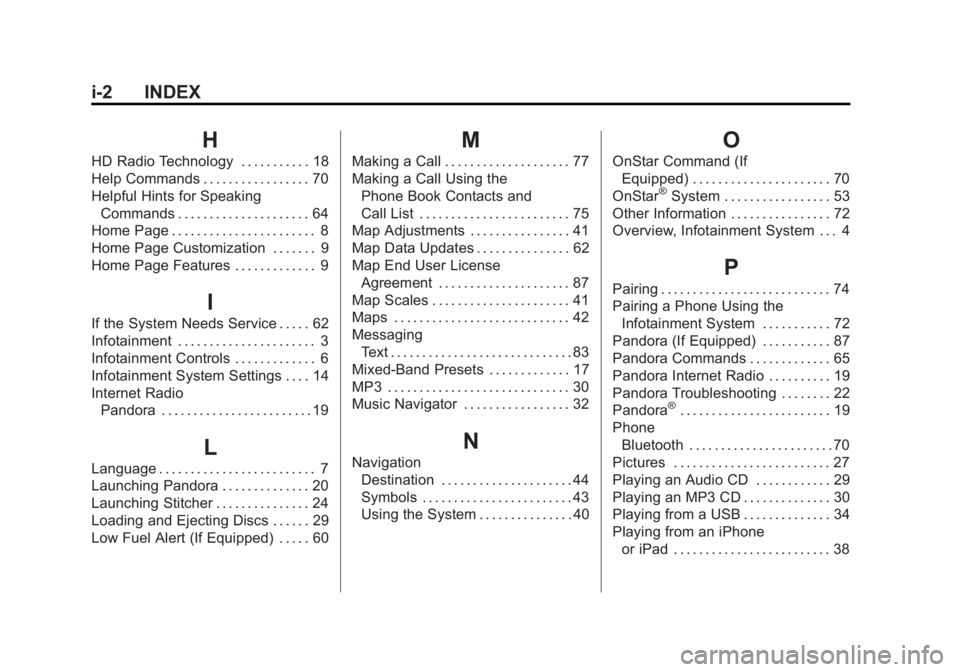

i-2 INDEX
H
HD Radio Technology . . . . . . . . . . . 18
Help Commands . . . . . . . . . . . . . . . . . 70
Helpful Hints for SpeakingCommands . . . . . . . . . . . . . . . . . . . . . 64
Home Page . . . . . . . . . . . . . . . . . . . . . . . 8
Home Page Customization . . . . . . . 9
Home Page Features . . . . . . . . . . . . . 9
I
If the System Needs Service . . . . . 62
Infotainment . . . . . . . . . . . . . . . . . . . . . . 3
Infotainment Controls . . . . . . . . . . . . . 6
Infotainment System Settings . . . . 14
Internet Radio Pandora . . . . . . . . . . . . . . . . . . . . . . . . 19
L
Language . . . . . . . . . . . . . . . . . . . . . . . . . 7
Launching Pandora . . . . . . . . . . . . . . 20
Launching Stitcher . . . . . . . . . . . . . . . 24
Loading and Ejecting Discs . . . . . . 29
Low Fuel Alert (If Equipped) . . . . . 60
M
Making a Call . . . . . . . . . . . . . . . . . . . . 77
Making a Call Using thePhone Book Contacts and
Call List . . . . . . . . . . . . . . . . . . . . . . . . 75
Map Adjustments . . . . . . . . . . . . . . . . 41
Map Data Updates . . . . . . . . . . . . . . . 62
Map End User License Agreement . . . . . . . . . . . . . . . . . . . . . 87
Map Scales . . . . . . . . . . . . . . . . . . . . . . 41
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Messaging Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Mixed-Band Presets . . . . . . . . . . . . . 17
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Music Navigator . . . . . . . . . . . . . . . . . 32
N
Navigation Destination . . . . . . . . . . . . . . . . . . . . . 44
Symbols . . . . . . . . . . . . . . . . . . . . . . . . 43
Using the System . . . . . . . . . . . . . . . 40
O
OnStar Command (IfEquipped) . . . . . . . . . . . . . . . . . . . . . . 70
OnStar
®System . . . . . . . . . . . . . . . . . 53
Other Information . . . . . . . . . . . . . . . . 72
Overview, Infotainment System . . . 4
P
Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Pairing a Phone Using the Infotainment System . . . . . . . . . . . 72
Pandora (If Equipped) . . . . . . . . . . . 87
Pandora Commands . . . . . . . . . . . . . 65
Pandora Internet Radio . . . . . . . . . . 19
Pandora Troubleshooting . . . . . . . . 22
Pandora
®. . . . . . . . . . . . . . . . . . . . . . . . 19
Phone Bluetooth . . . . . . . . . . . . . . . . . . . . . . . 70
Pictures . . . . . . . . . . . . . . . . . . . . . . . . . 27
Playing an Audio CD . . . . . . . . . . . . 29
Playing an MP3 CD . . . . . . . . . . . . . . 30
Playing from a USB . . . . . . . . . . . . . . 34
Playing from an iPhone or iPad . . . . . . . . . . . . . . . . . . . . . . . . . 38
