CHEVROLET CAVALIER 1997 3.G Owners Manual

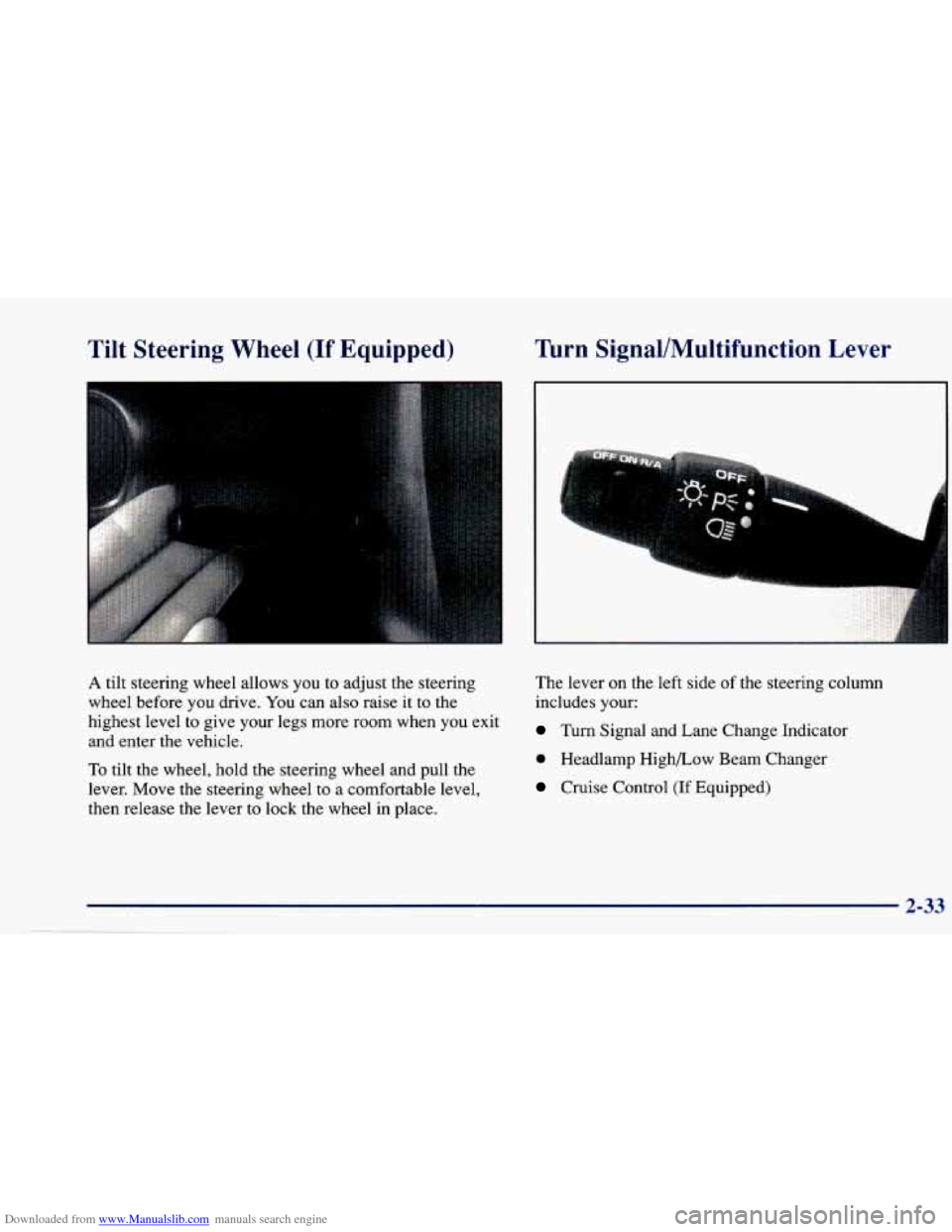

Downloaded from www.Manualslib.com manuals search engine Tilt Steering Wheel (If Equipped) Turn Signal/Multifunction Lever
A tilt steering wheel allows you to adjust the steering
wheel before you drive.
You can also raise it to the
highest level to give your legs more room when you exit
and enter the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever. Move the steering wheel to a comfortable level,
then release the lever to lock the wheel in place. The
lever on the left side
of the steering column
includes your:
Turn Signal and Lane Change Indicator
0 Headlamp Highbow Beam Changer
Cruise Control (If Equipped)
2-33

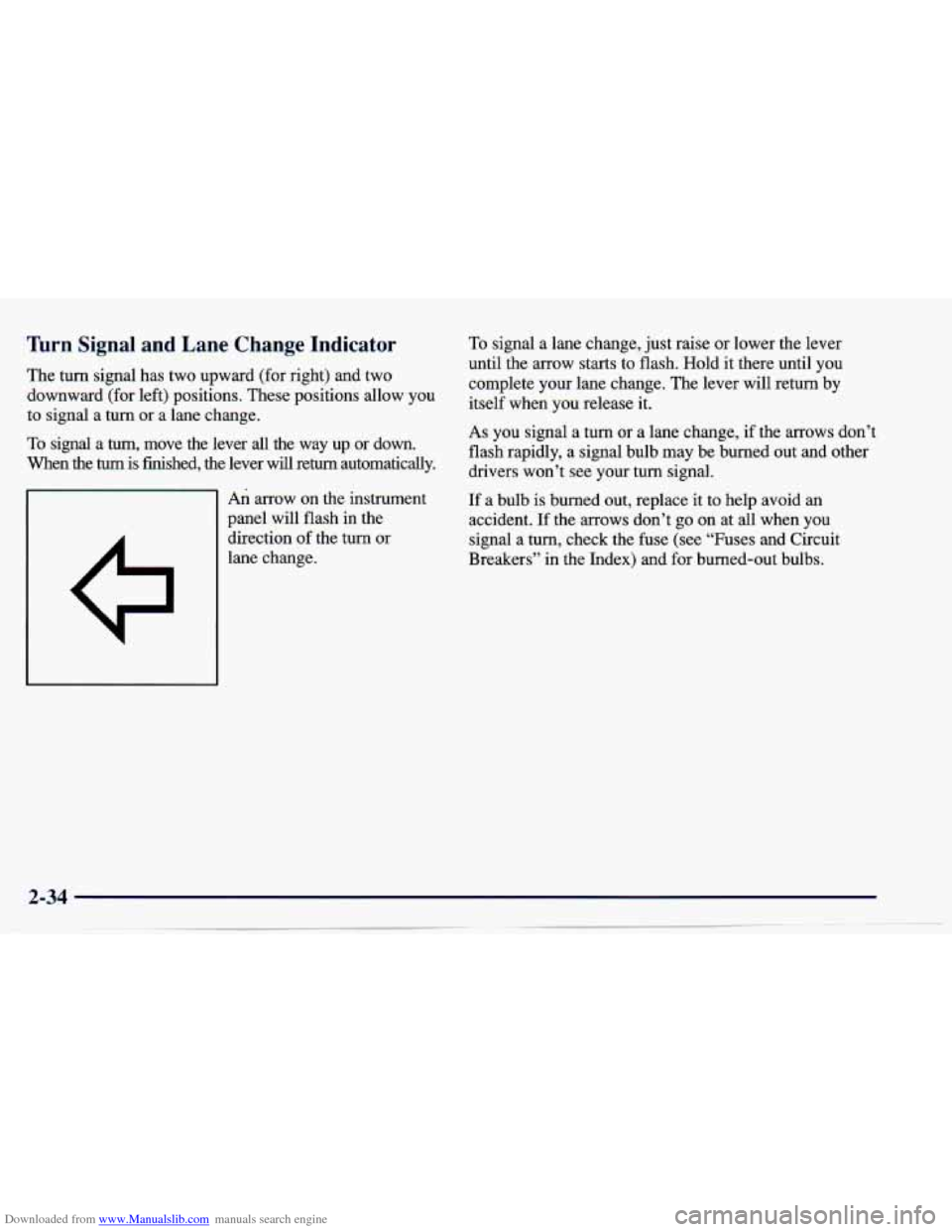

Downloaded from www.Manualslib.com manuals search engine lhrn Signal and Lane Change Indicator
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When
the turn is finished, the lever will return automatically.
An arrow on the instrument
panel will flash in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold
it there until you
complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don’t
flash rapidly, a signal bulb may be burned out and other drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident.
If the arrows don’t go on at all when you
signal a turn, check the fuse (see “Fuses and Circuit
Breakers” in the Index) and for burned-out bulbs.

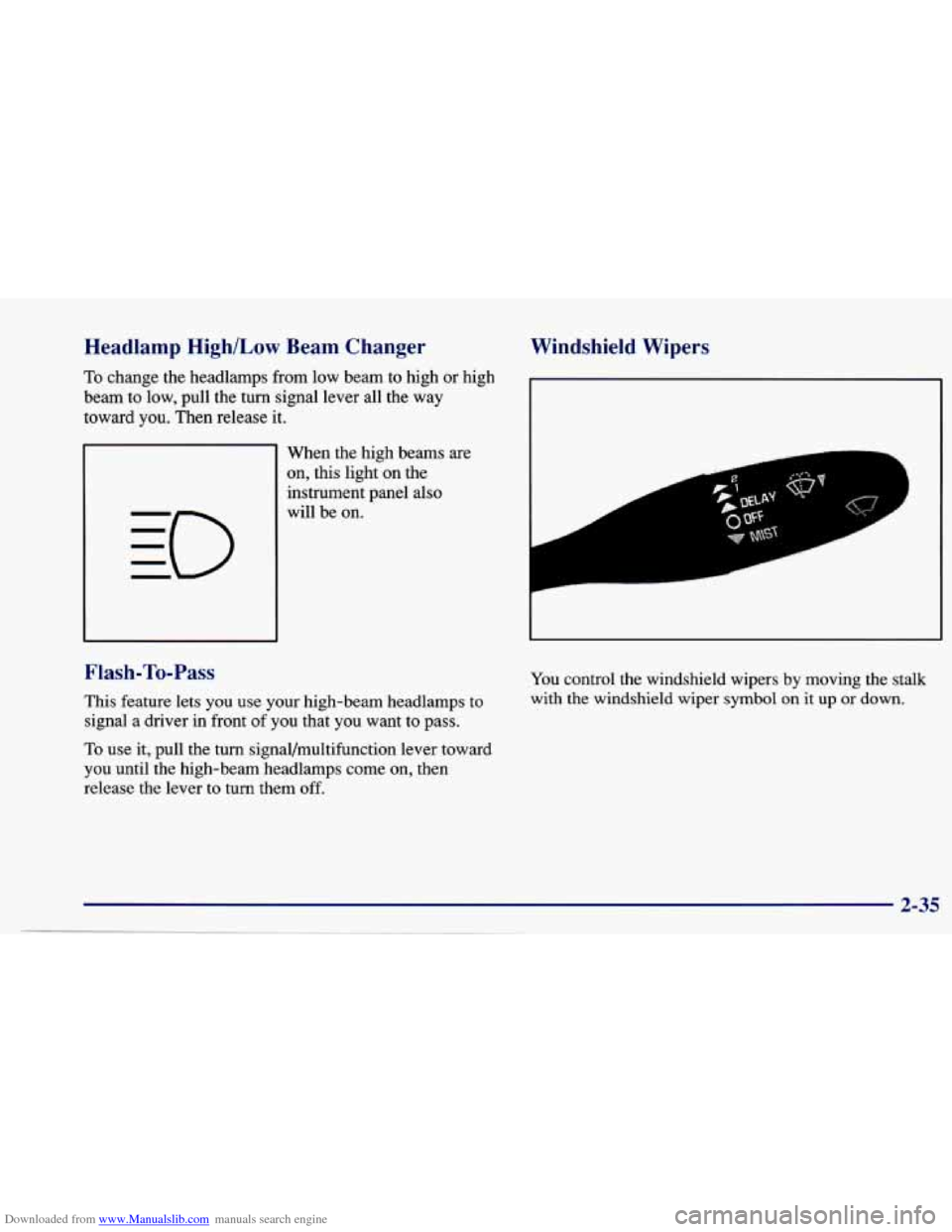

Downloaded from www.Manualslib.com manuals search engine Headlamp High/Low Beam Changer
To change the headlamps from low beam to high or high
beam to low, pull the
turn signal lever all the way
toward you. Then release it.
When the high beams are
on, this light on the
instrument panel also
will be on.
Flash-To-Pass
This feature lets you use your high-beam headlamps to
signal a driver in front
of you that you want to pass.
To use it, pull the turn signal/multifunction lever toward
you until the high-beam headlamps come on, then
release the lever to turn them off.
Windshield Wipers
You control the windshield wipers by moving the stalk
with the windshield wiper
symbol on it up or down.
2-35

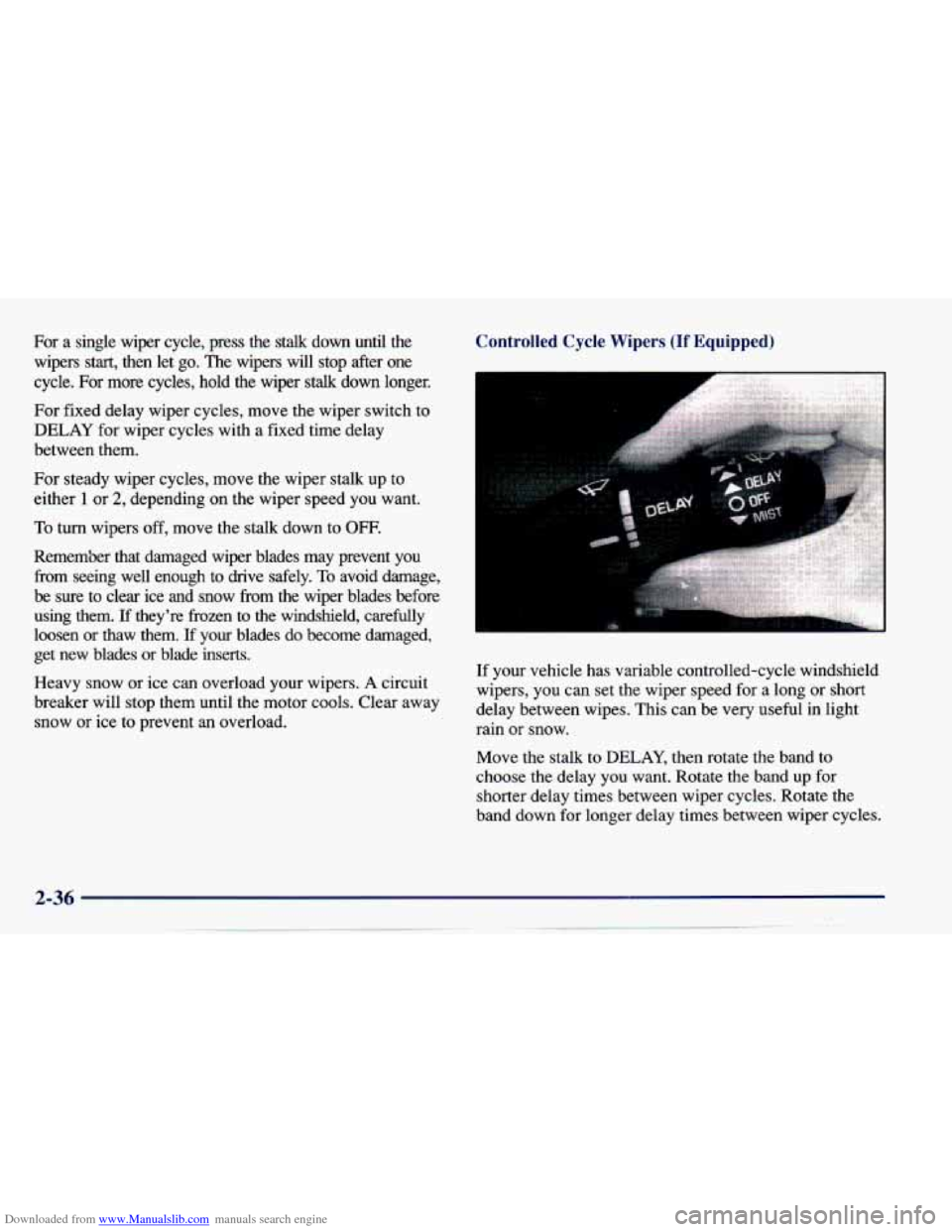

Downloaded from www.Manualslib.com manuals search engine For a single wiper cycle, press the stalk down until the
wipers
start, then let go. The wipers will stop after one
cycle. For more cycles, hold the wiper
stalk down longer.
For fixed delay wiper cycles, move the wiper switch to
DELAY for wiper cycles with a fixed time delay
between them.
For steady wiper cycles, move the wiper stalk up to
either
1 or 2, depending on the wiper speed you want.
To turn wipers off, move the stalk down to OFF.
Remember that damaged wiper blades may prevent you
from seeing well enough to drive safely.
To avoid damage,
be sure to clear ice and snow from the wiper blades before
using them. If they're frozen to the windshield, carefully
loosen or thaw them.
If your blades do become damaged,
get new blades or blade inserts.
Heavy snow or ice can overload your wipers.
A circuit
breaker will stop them until the motor cools. Clear away
snow or ice to prevent an overload.
Controlled Cycle Wipers (If Equipped)
If your vehicle has variable controlled-cycle windshield
wipers, you can set the wiper speed for a long or short
delay between wipes. This can be very useful in light
rain
or snow.
Move the stalk to
DELAY, then rotate the band to
choose the delay you want. Rotate the band up
for
shorter delay times between wiper cycles. Rotate the
band down for longer delay times between wiper cycles.
2-36

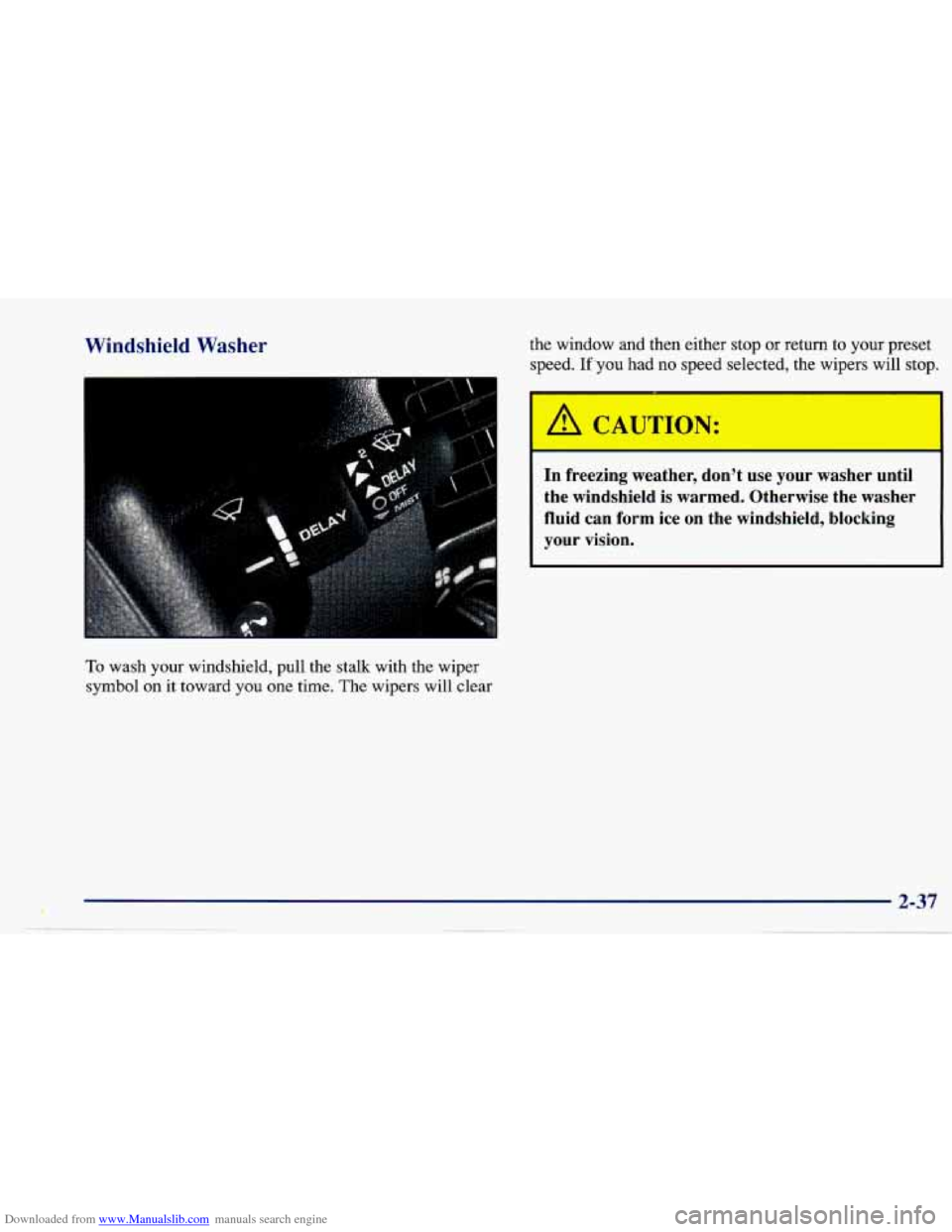

Downloaded from www.Manualslib.com manuals search engine Windshield Washer the window and then either stop or return to your preset
speed. If’you had no speed selected, the wipers will stop.
To wash your windshield, pull the stalk with the wiper
symbol on it toward you one time. The wipers will clear
I A CAUTION:
c
In freezing weather, don’t use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
4 2-37
. .. - . .. -._.

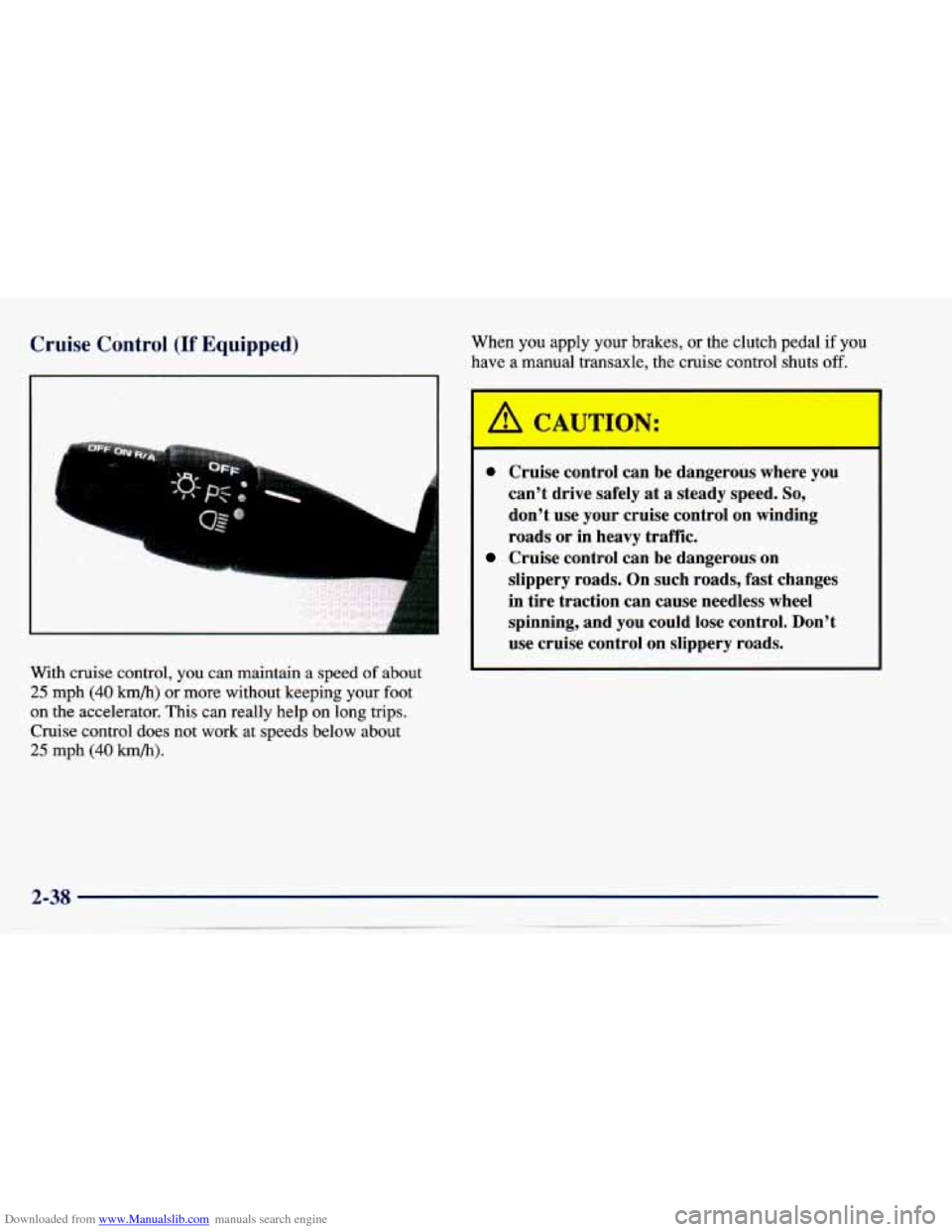

Downloaded from www.Manualslib.com manuals search engine Cruise Control (If Equipped) When you apply your brakes, or the clutch pedal if you
have a manual transaxle, the cruise control shuts off.
With cruise control, you can maintain a speed
of about
25 mph (40 kmh) or more without keeping your foot
on the accelerator. This can really help
on long trips.
Cruise control does not work at speeds below about
25 mph (40 km/h).
0 Cruise control can be dangerous where you
can’t drive safely at
a steady speed. So,
don’t use your cruise control on winding
roads or in heavy traffic.
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and you could lose control. Don’t
use cruise control
on slippery roads.
Cruise control can be dangerous on

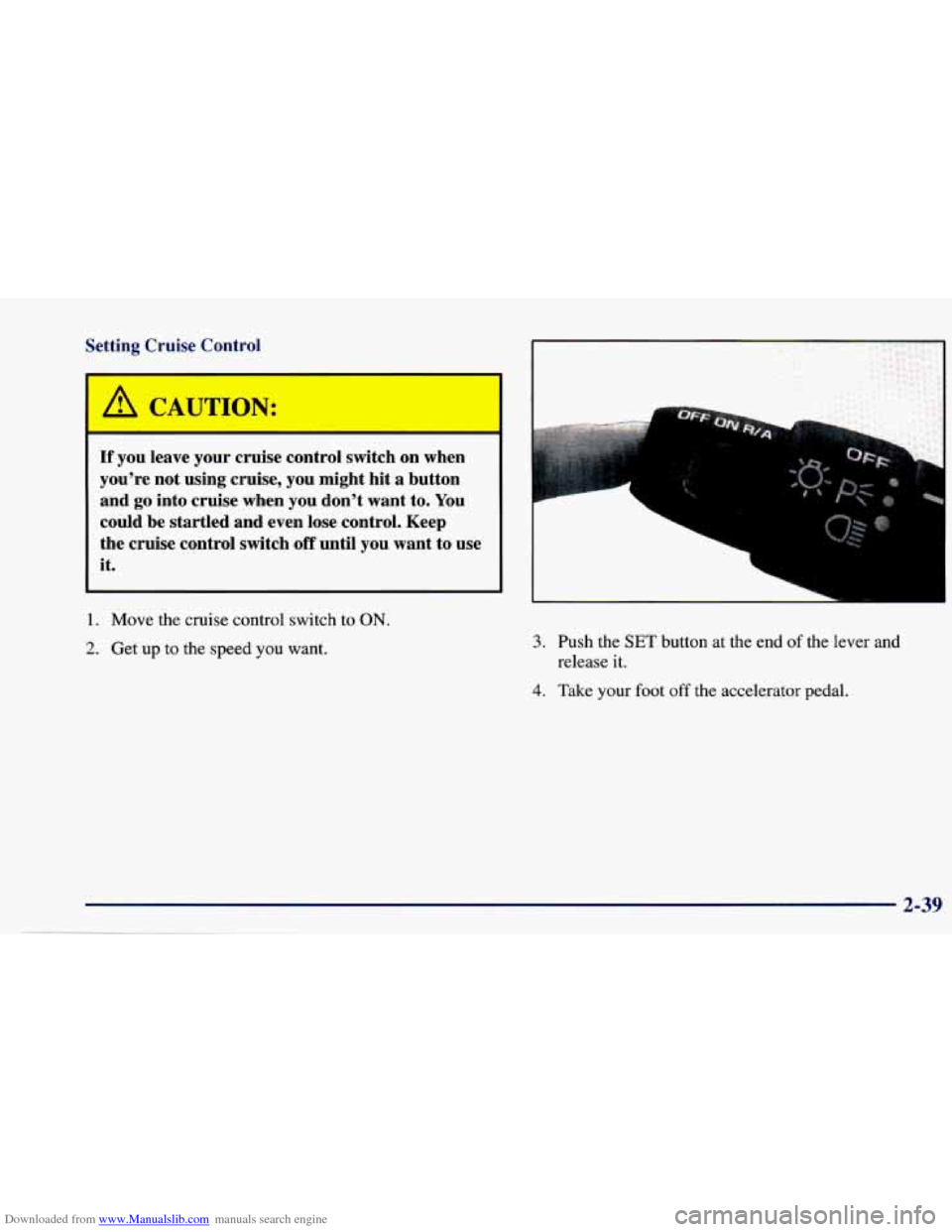

Downloaded from www.Manualslib.com manuals search engine Setting Cruise Control
3 CAUTION:
-
If you leave your cruise control switch on when
you’re not using cruise, you might hit a button and
go into cruise when you don’t want to. You
could be startled and even lose control. Keep
the cruise control switch
off until you want to use
it.
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
1
1
3. Push the SET button at the end of the lever and
release
it .
4. Take your foot off the accelerator pedal.

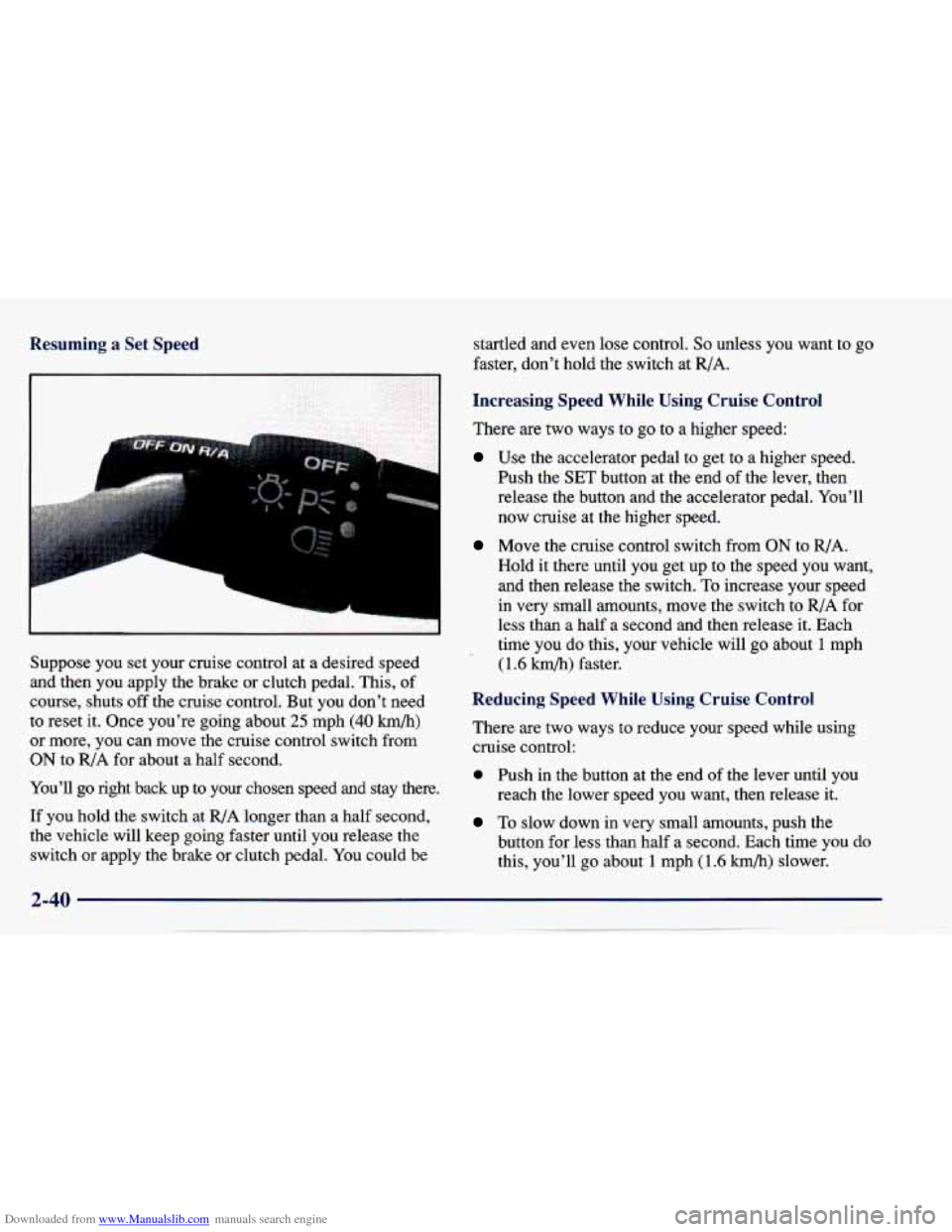

Downloaded from www.Manualslib.com manuals search engine Resuming a Set Speed
I
L
Suppose you set your cruise control at a desired speed
and then you apply the brake or clutch pedal. This, of
course, shuts
off the cruise control. But you don’t need
to reset it. Once you’re going about
25 mph (40 h/h)
or more, you can move the cruise control switch from
ON to RIA for about a half second.
You’ll
go right back up to your chosen speed and stay there.
If you hold the switch at
R/A longer than a half second,
the vehicle will keep going faster until you release the
switch or apply the brake or clutch pedal. You could be startled and
even lose control. So unless you want to go
faster,
don’t hold the switch at R/A.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed:
Use the accelerator pedal to get to a higher speed.
Push the SET button at the end
of the lever, then
release the button and the accelerator pedal. You’ll
now cruise
at the higher speed.
Move the cruise control switch from ON to R/A.
Hold it there until
you get up to the speed you want,
and then release the switch.
To increase your speed
in very small amounts, move the switch
to R/A for
less than a
half a second and then release it. Each
time you do this, your vehicle will go about
1 mph
(1.6 km/h) faster.
Reducing Speed While Using Cruise Control
There are two ways to reduce your speed while using
cruise control:
0 Push in the button at the end of the lever until you
reach
the lower speed you want, then release it.
To slow down in very small amounts, push the
button for less than half a second. Each time you do
this, you’ll
go about 1 mph (1.6 h/h) slower.

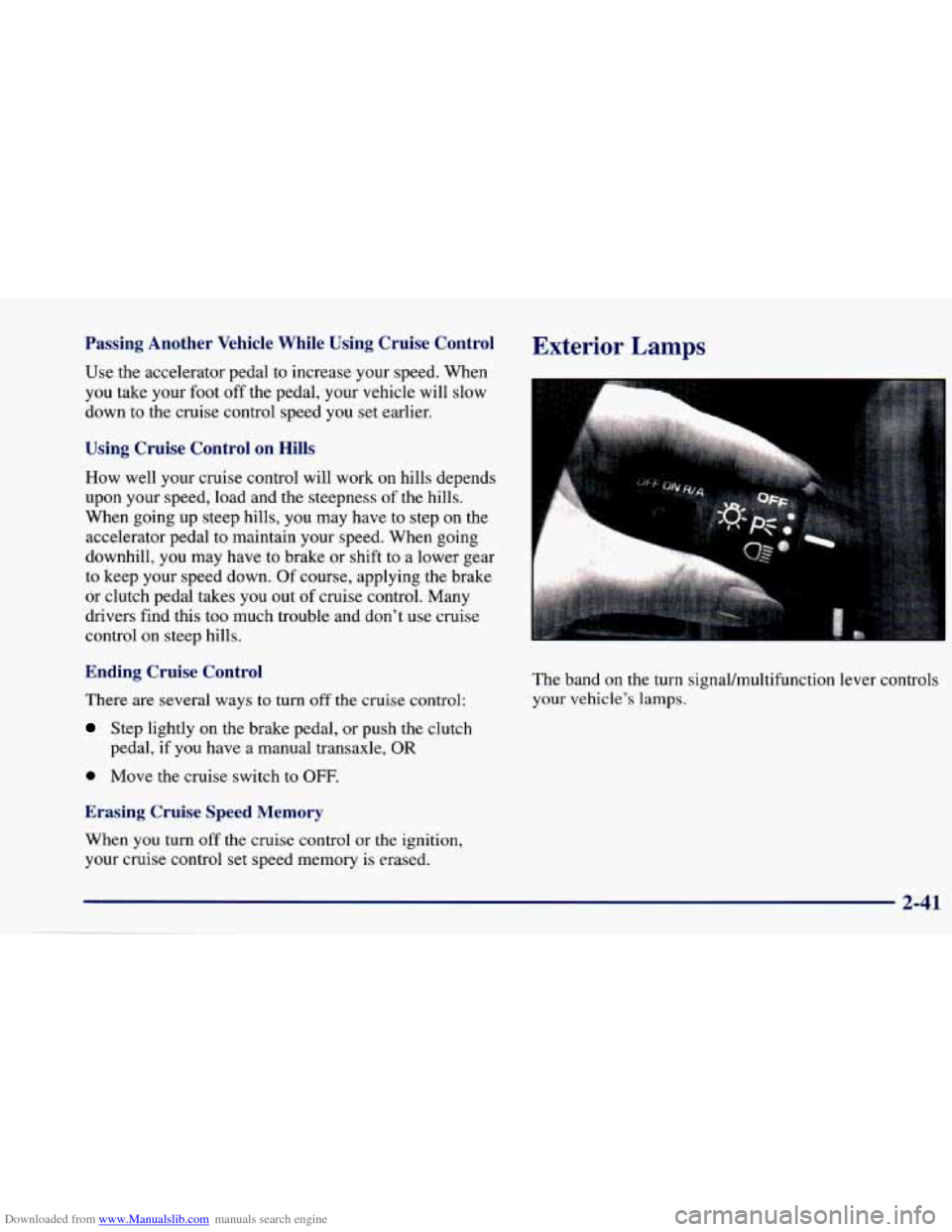

Downloaded from www.Manualslib.com manuals search engine Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness of the hills.
When going up steep hills, you may have to step
on the
accelerator pedal to maintain your speed. When going
downhill,
you may have to brake or shift to a lower gear
to keep your speed down. Of course, applying the brake
or clutch pedal takes you out
of cruise control. Many
drivers find this too much trouble and don’t use cruise
control on steep hills.
Ending Cruise Control
There are several ways to turn off the cruise control:
Step lightly on the brake pedal, or push the clutch
pedal, if you have a manual transaxle,
OR
0 Move the cruise switch to OFF.
Erasing Cruise Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory
is erased.
Exterior Lamps
The band on the turn signaVmultifunction lever controls
your vehicle’s lamps.
2-41

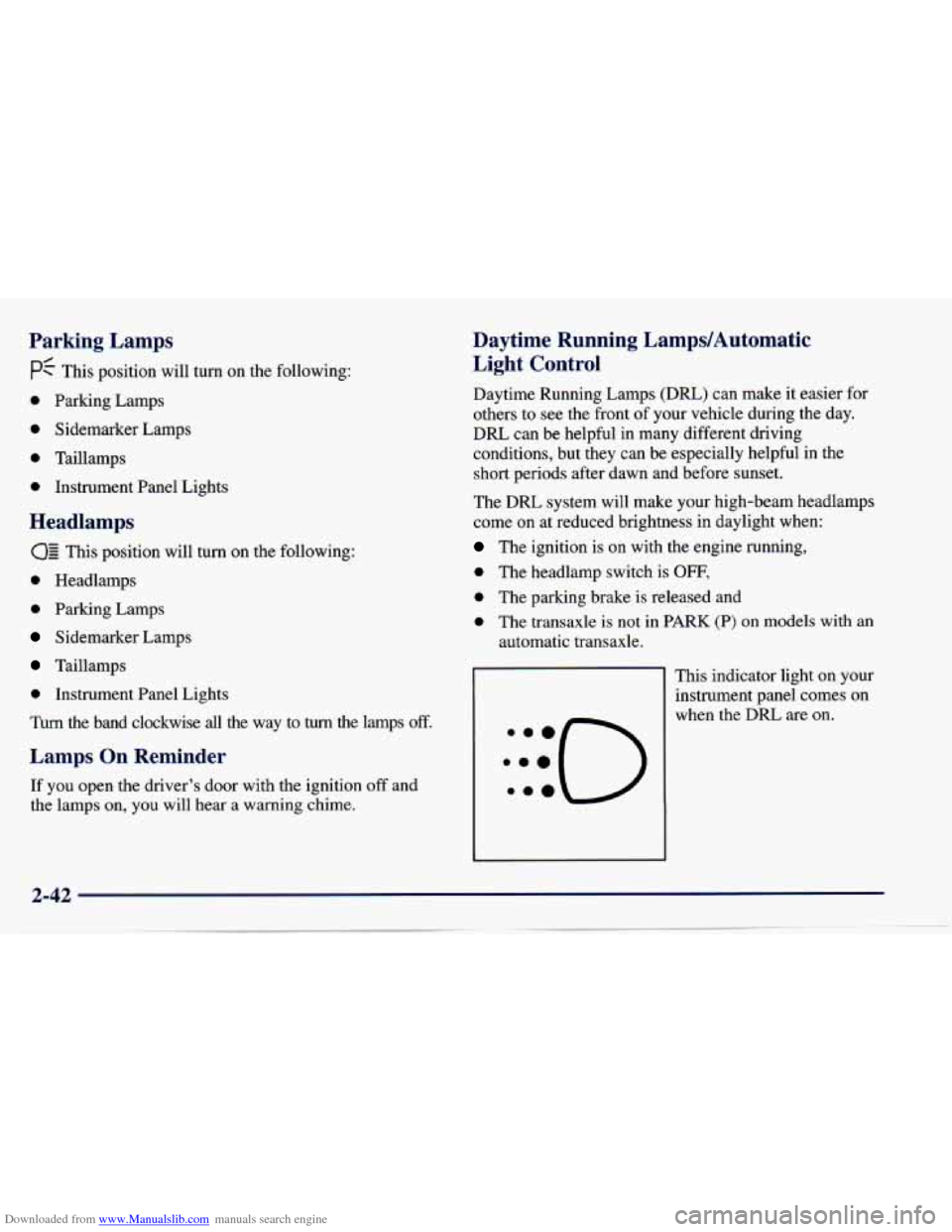

Downloaded from www.Manualslib.com manuals search engine Parking Lamps
PC This position will turn on the following:
0 Parking Lamps
0 Sidemarker Lamps
0 Taillamps
0 Instrument Panel Lights
Headlamps
0: This position will turn on the following:
0 Headlamps
0 Parking Lamps
Sidemarker Lamps
Taillamps
0 Instrument Panel Lights
Turn the band clockwise all the way to turn the lamps off.
Lamps On Reminder
If you open the driver’s door with the ignition off and
the lamps on, you will hear a warning chime.
Daytime Running Lamps/Automatic
Light Control
Daytime Running Lamps (DRL) can make it easier for
others to
see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
The DRL system will make your high-beam headlamps
come on at reduced brightness in daylight when:
The ignition is on with the engine running,
0 The headlamp switch is OFF,
0 The parking brake is released and
0 The transaxle is not in PARK (P) on models with an
automatic transaxle.
This indicator light on your
instrument panel comes on
when the DRL are on.
