Downloaded from www.Manualslib.com manuals search engine Turn the wing nut counterclockwise and
remove it. Then lift off the
adapter and remove the
spare tire.
A A
..,
Remove the jack and wheel wrench from the trunk. Your
vehicle's jack and wheel wrench are stored in a
foam
tray. Remove the band around the jack.
The tools you'll be
using include the jack (A) and wheel
wrench
(B).

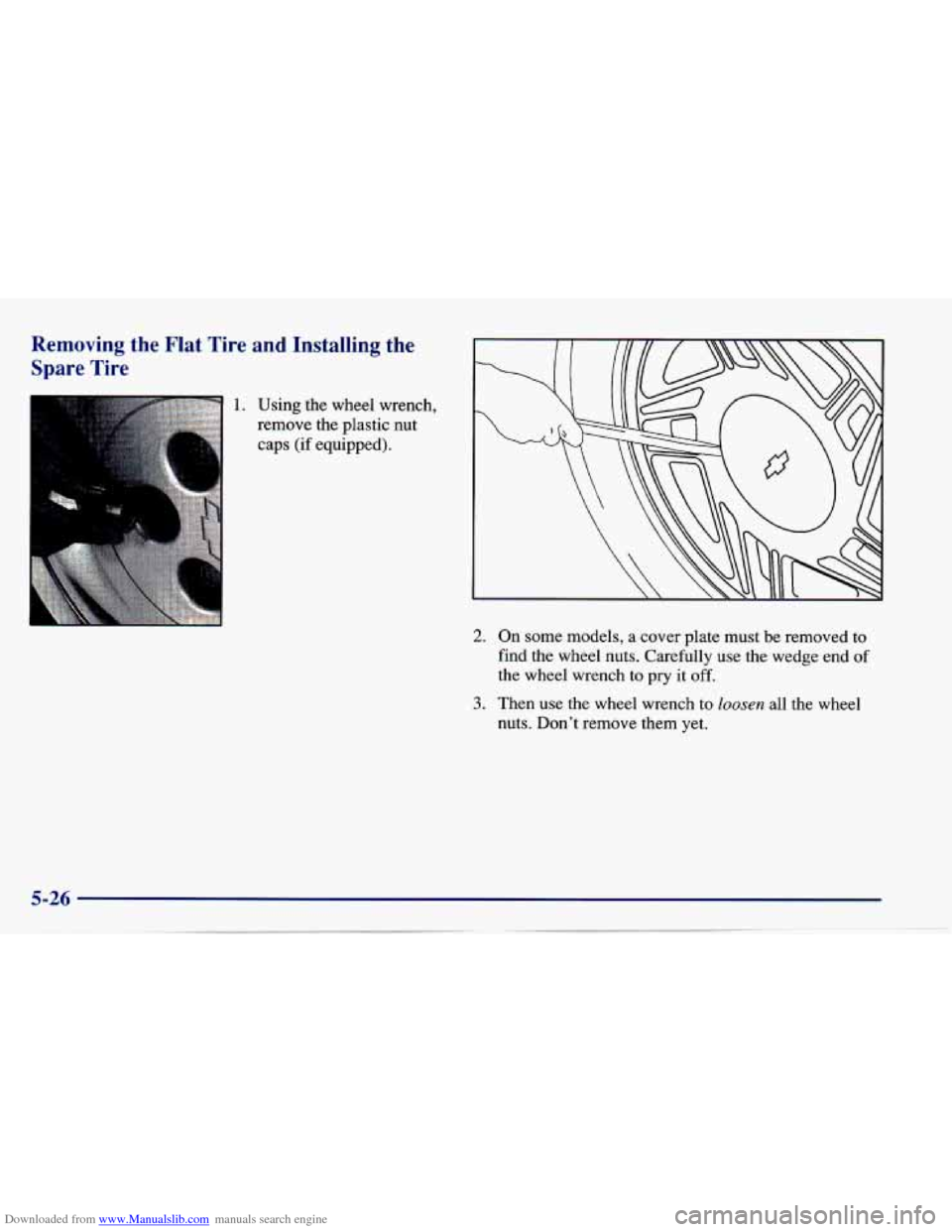

Downloaded from www.Manualslib.com manuals search engine Removing the Flat Tire and Installing the
Spare Tire
1. Using the wheel wrench,
remove the plastic nut
caps (if equipped).
2. On some models, a cover plate must be removed to
find the wheel nuts. Carefully use the wedge end of
the wheel wrench
to pry it off.
nuts. Don't remove them yet.
3. Then use the wheel wrench to loosen all the wheel

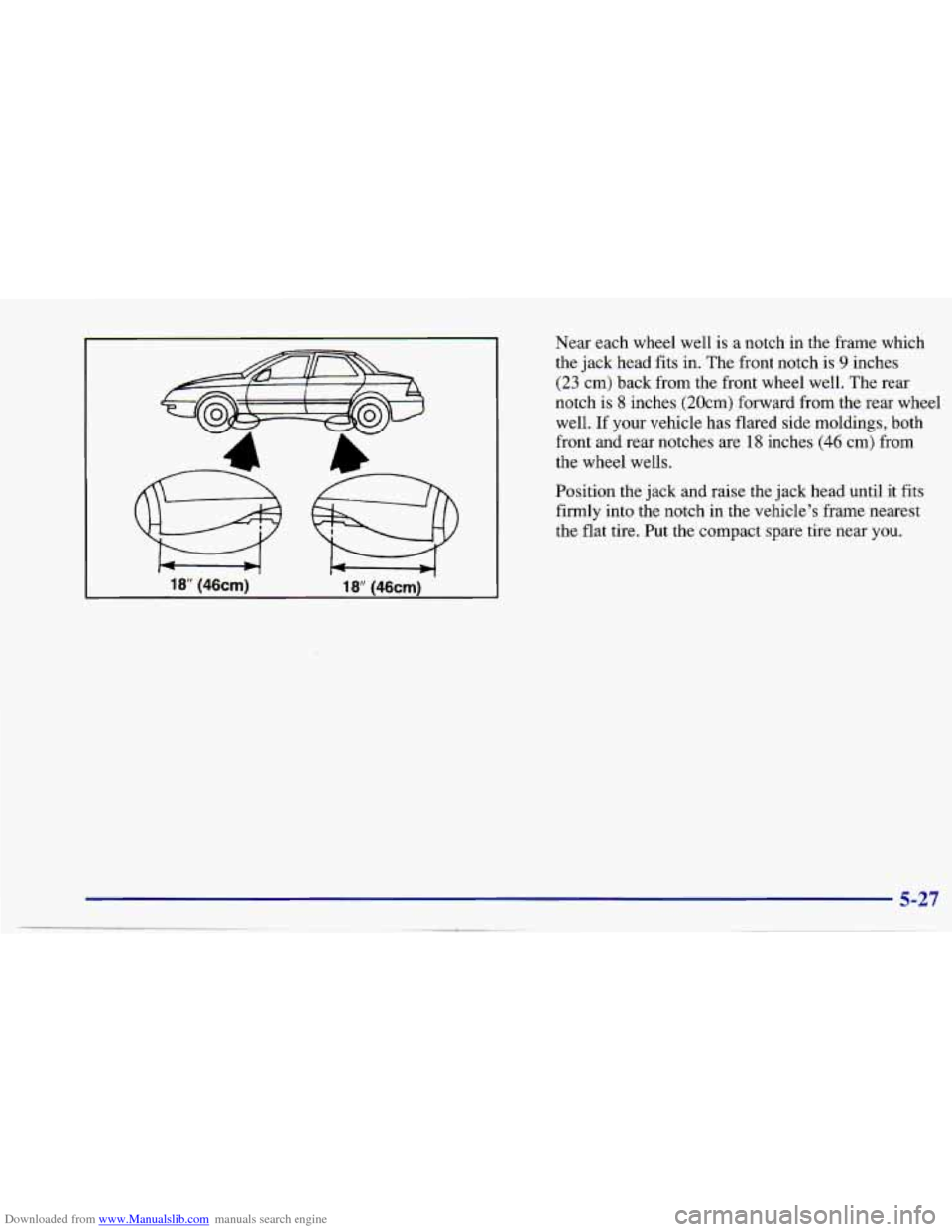

Downloaded from www.Manualslib.com manuals search engine 18 (46cm) 18 (46cm)
Near each wheel well is a notch in the frame which
the jack head fits in. The front notch is
9 inches
(23 cm) back from the front wheel well. The rear
notch is
8 inches (20cm) forward from the rear wheel
well.
If your vehicle has flared side moldings, both
front and rear notches are
18 inches (46 cm) from
the wheel wells.
Position the jack and raise the jack head until it fits
firmly into the notch in the vehicle’s frame nearest
the flat tire. Put the compact spare tire near
you.

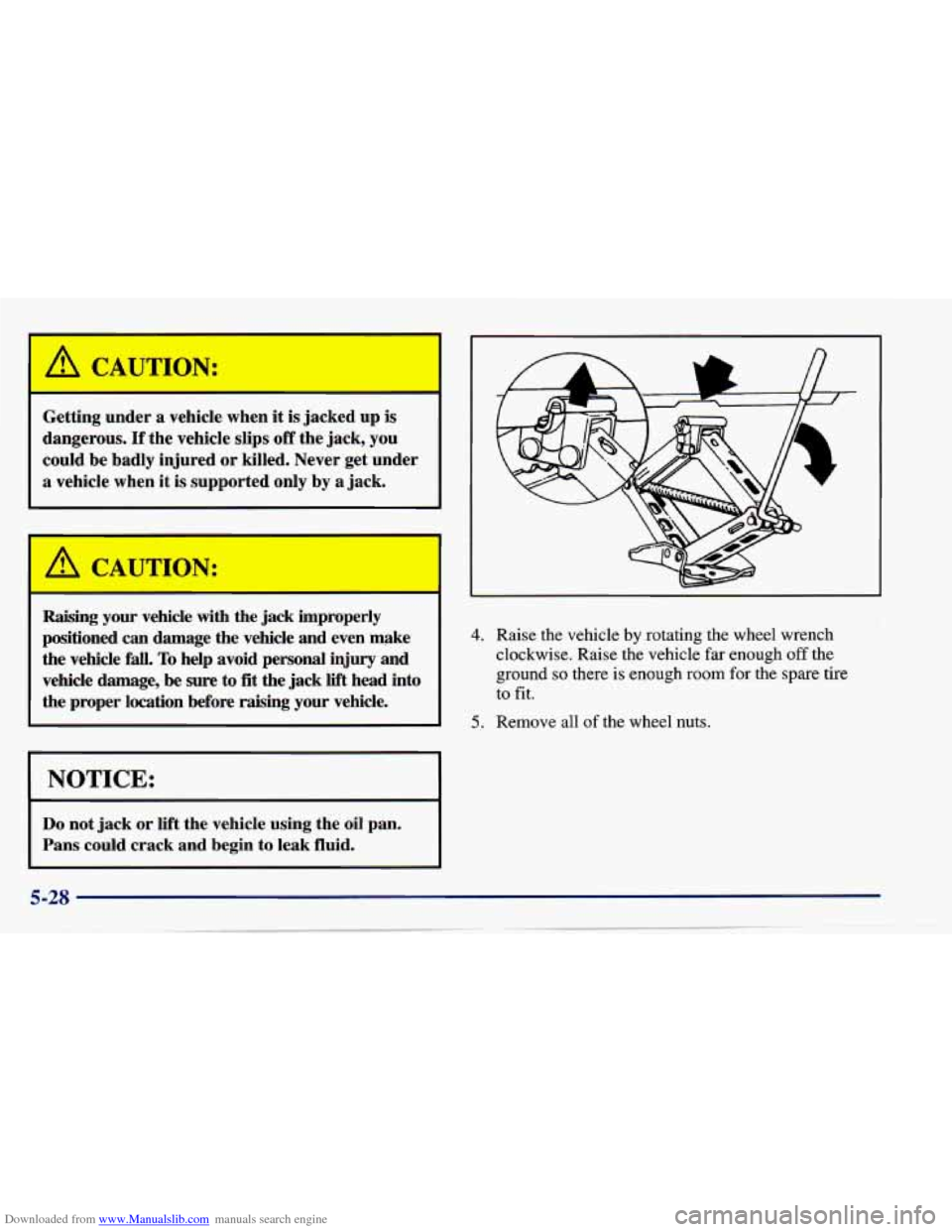

Downloaded from www.Manualslib.com manuals search engine Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured
or killed. Never get under
a vehicle when it is supported only by a jack.
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle
fall. To help avoid personal injury and
vehicle damage,
be sure to fit the jack lift head into
the proper location before raising your vehicle.
I NOTICE:
~~ ~~~ ~
Do not jack or lift the vehicle using the oil pan.
Pans could crack and begin to leak fluid.
4. Raise the vehicle by rotating the wheel wrench
clockwise. Raise the vehicle far enough off the
ground
so there is enough room for the spare tire
to fit.
5. Remove all of the wheel nuts.

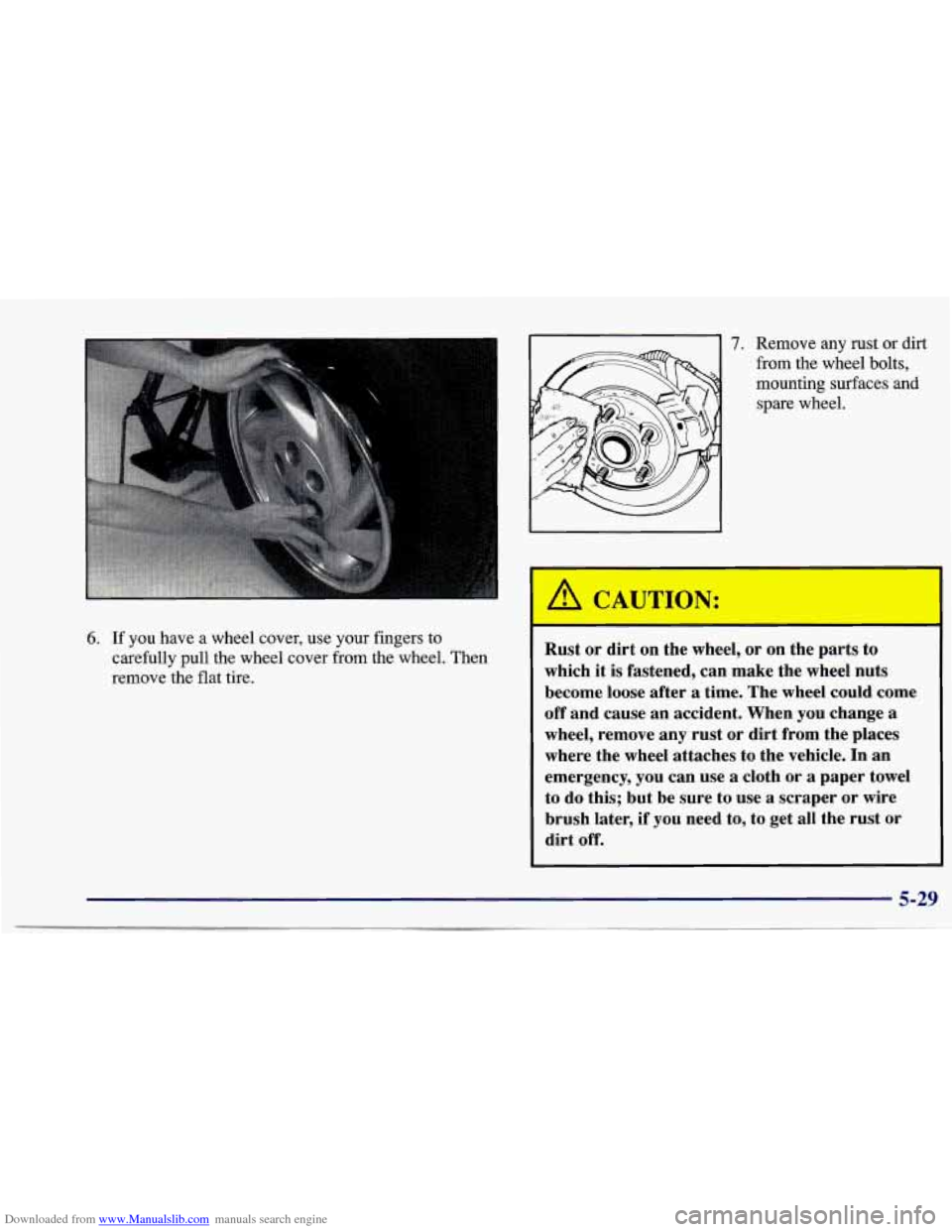

Downloaded from www.Manualslib.com manuals search engine 6. If you have a wheel cover, use your fingers to
carefully pull the wheel cover from the wheel. Then
remove the flat tire.
7. Remove any rust or dirt
from the wheel bolts,
mounting surfaces
and
spare wheel.
Rust or dirt on the wheel, or on the parts to
which it
is fastened, can make the wheel nuts
become loose after
a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use
a cloth or a paper towel
to do this; but be sure to use
a scraper or wire
brush later, if
you need to, to get all the rust or
dirt
off.
5-29

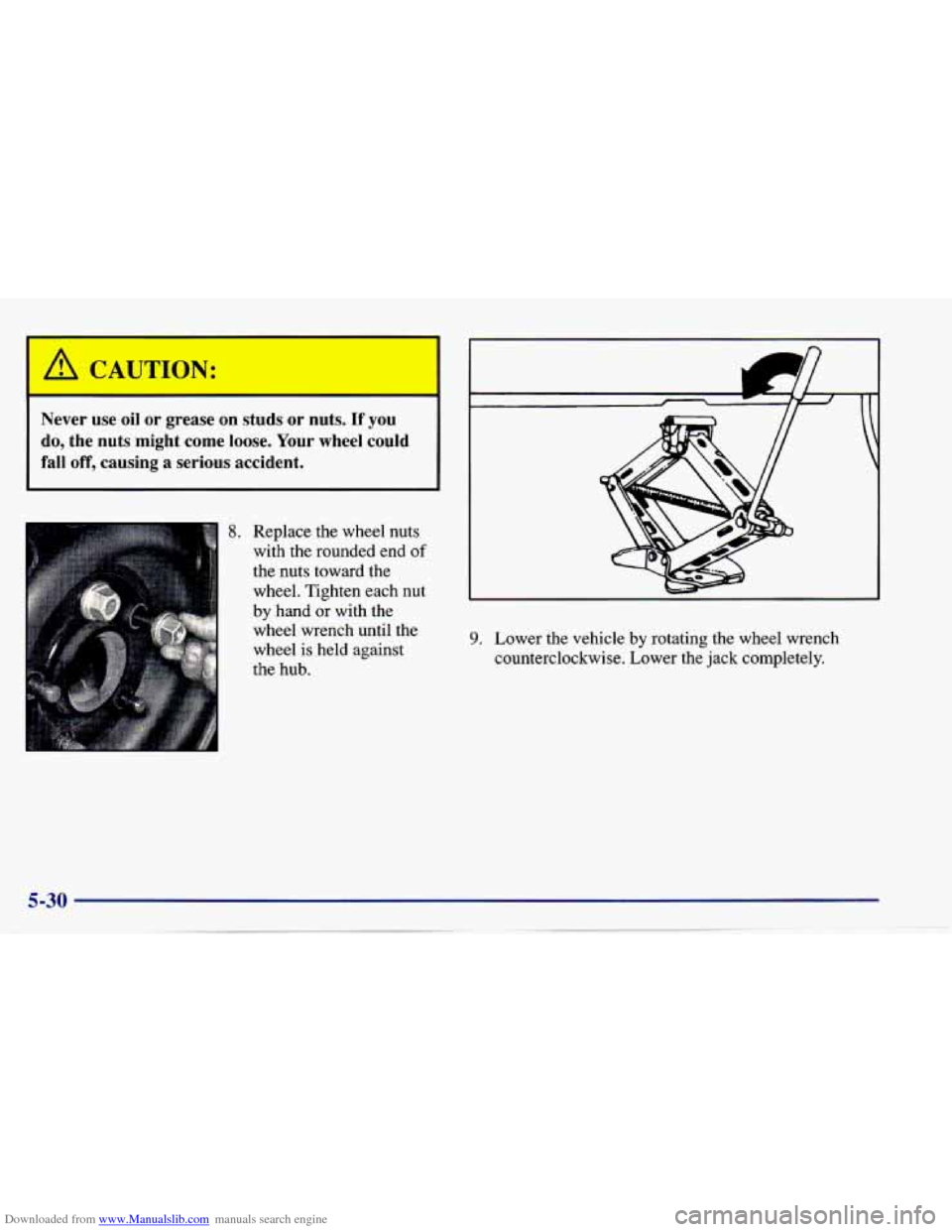

Downloaded from www.Manualslib.com manuals search engine A (I JTION: I
I
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.
8. Replace the wheel nuts with the rounded end
of
the nuts toward the
wheel. Tighten each nut
by hand or with the wheel wrench until the
wheel
is held against
the hub. 9.
Lower the vehicle by rotating the wheel wrench
counterclockwise. Lower the jack completely.

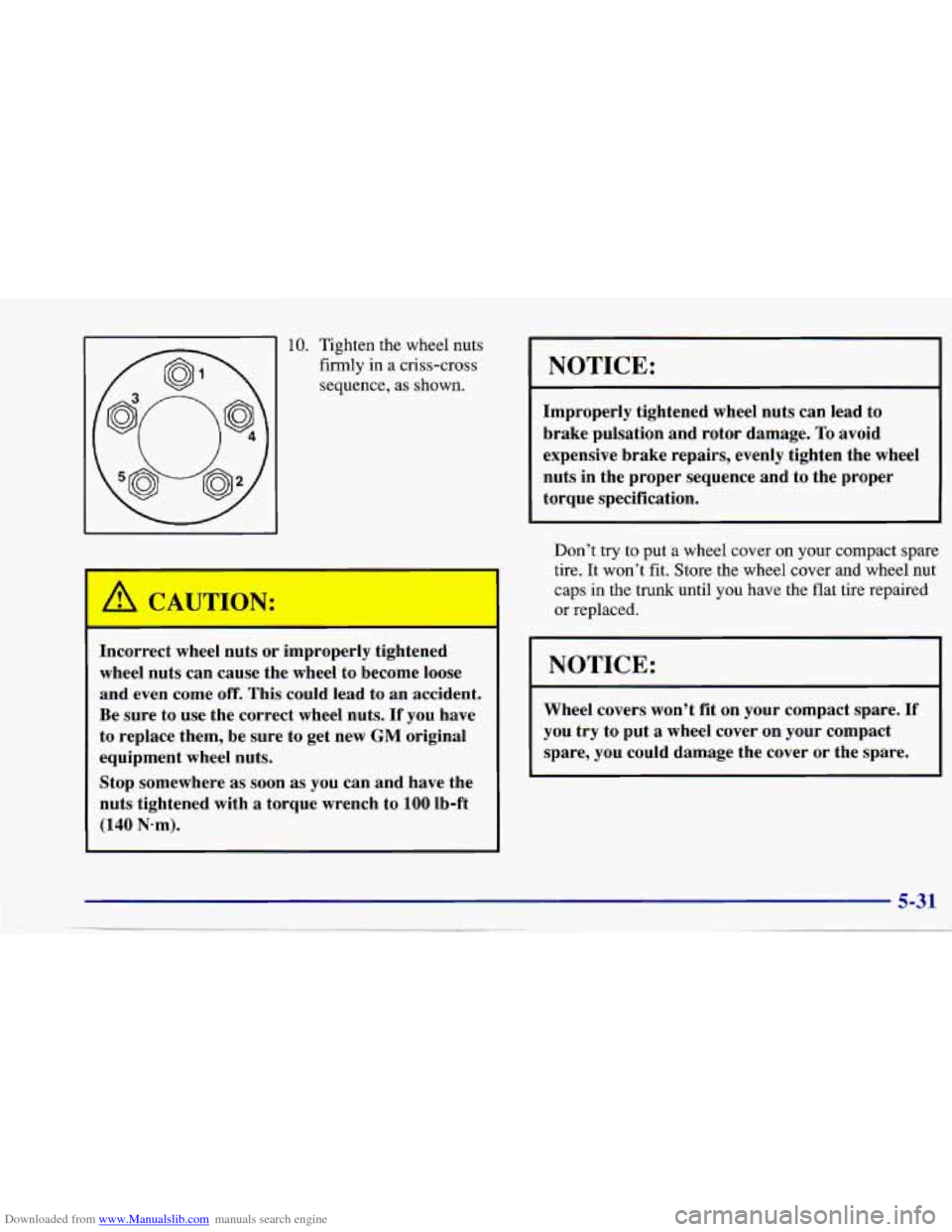

Downloaded from www.Manualslib.com manuals search engine 10. Tighten the wheel nuts
firmly in a criss-cross sequence, as shown.
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come
off. This could lead to an accident.
Be sure to use the correct wheel nuts.
If you have
to replace them, be sure to get new
GM original
equipment wheel nuts.
Stop somewhere
as soon as you can and have the
nuts tightened with
a torque wrench to 100 lb-ft
(140 N-m).
~~
NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
Don’t try to put
a wheel cover on your compact spare
tire.
It won’t fit. Store the wheel cover and wheel nut
caps in the trunk until you have the flat tire repaired or replaced.
NOTICE:
Wheel covers won’t fit on your compact spare. If
you try to put a wheel cover on your compact
spare,
you could damage the cover or the spare.

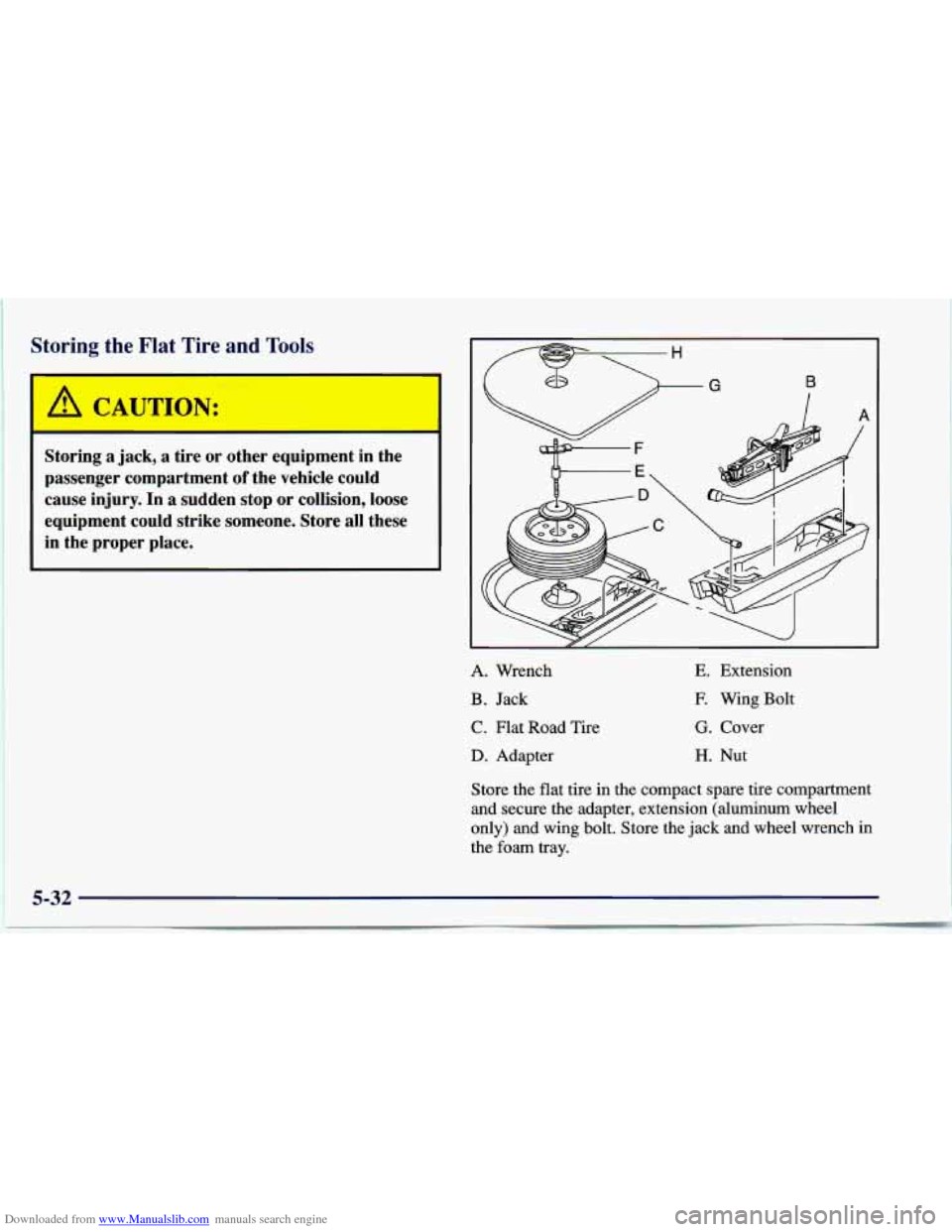

Downloaded from www.Manualslib.com manuals search engine Storing the Flat Tire and Tools
i
i Storing a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
I cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
I
I- H
L
A. Wrench
B. Jack C. Flat Road Tire
D. Adapter
E. Extension
F. Wing Bolt
G. Cover
H. Nut
Store the flat tire in the compact spare tire compartment
and secure the adapter, extension (aluminum wheel
only) and wing bolt. Store the jack and wheel wrench in
the foam tray.
5-32

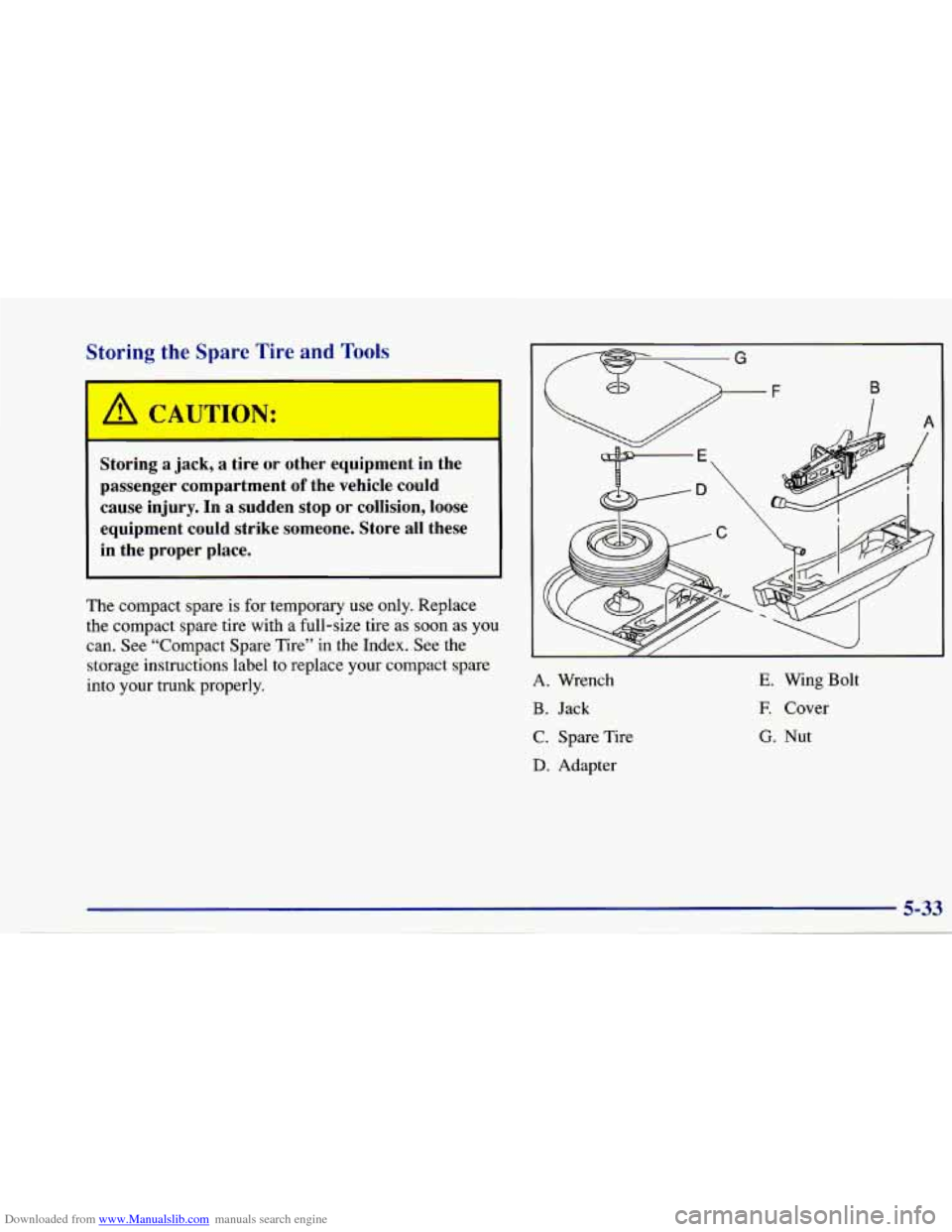

Downloaded from www.Manualslib.com manuals search engine Storing the Spare Tire and Tools
A CAUTIOI!. .
Storing a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
The compact spare is for temporary use only. Replace
the compact spare tire with a full-size tire as
soon as you
can. See “Compact Spare Tire” in the Index. See the
storage instructions label
to replace your compact spare
into your trunk properly.
B
I
A. Wrench
B. Jack
C. Spare Tire
D. Adapter
E. Wing Bolt
E Cover
G. Nut

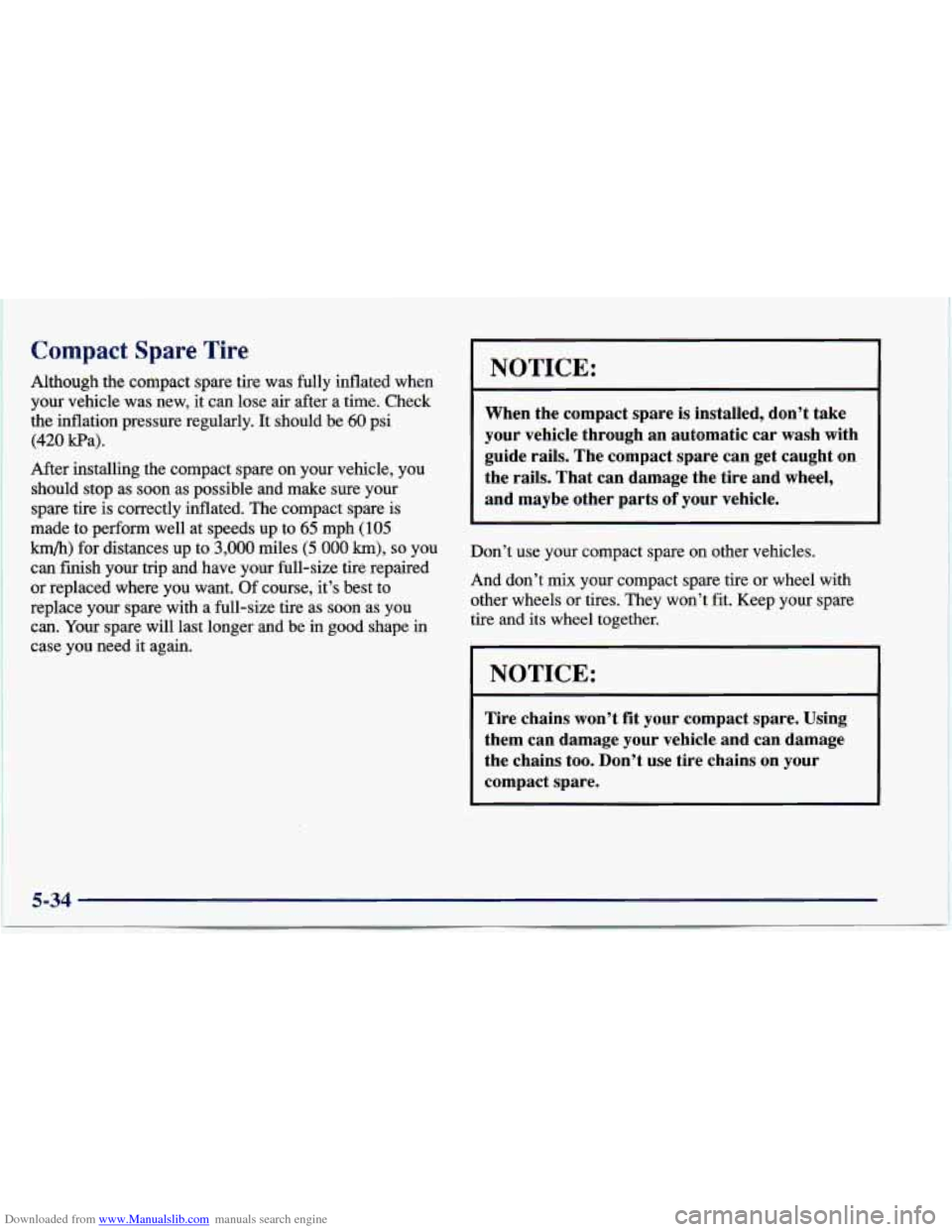

Downloaded from www.Manualslib.com manuals search engine Compact Spare Tire
Although the compact spare tire was fully inflated when
your vehicle was new, it can lose air after
a the. Check
the inflation pressure regularly. It should be
60 psi
(420 Pa).
After installing the compact spare on your vehicle, you
should stop as soon as possible and make sure your spare tire is correctly inflated. The compact spare is
made to perform well at speeds up to
65 mph (105
km/h) for distances up to 3,000 miles (5 000 km), so you
can
finish your trip and have your full-size tire repaired
or replaced where you want. Of course, it’s best to
replace your spare with a full-size tire as soon as
you
can. Your spare will last longer and be in good shape in
case you need it again.
NOTICE:
When the compact spare is installed, don’t take
your vehicle through an automatic car wash with
guide rails. The compact spare can get caught on
the rails. That can damage the tire and wheel,
and maybe other parts
of your vehicle.
Don’t use your compact spare on other vehicles.
And don’t mix your compact spare tire or wheel with
other wheels or tires. They won’t fit. Keep your spare
tire and its wheel together.
NOTICE:
Tire chains won’t fit your compact spare. Using
them can damage your vehicle and can damage
the chains too. Don’t use tire chains on your
compact spare.
5-34
