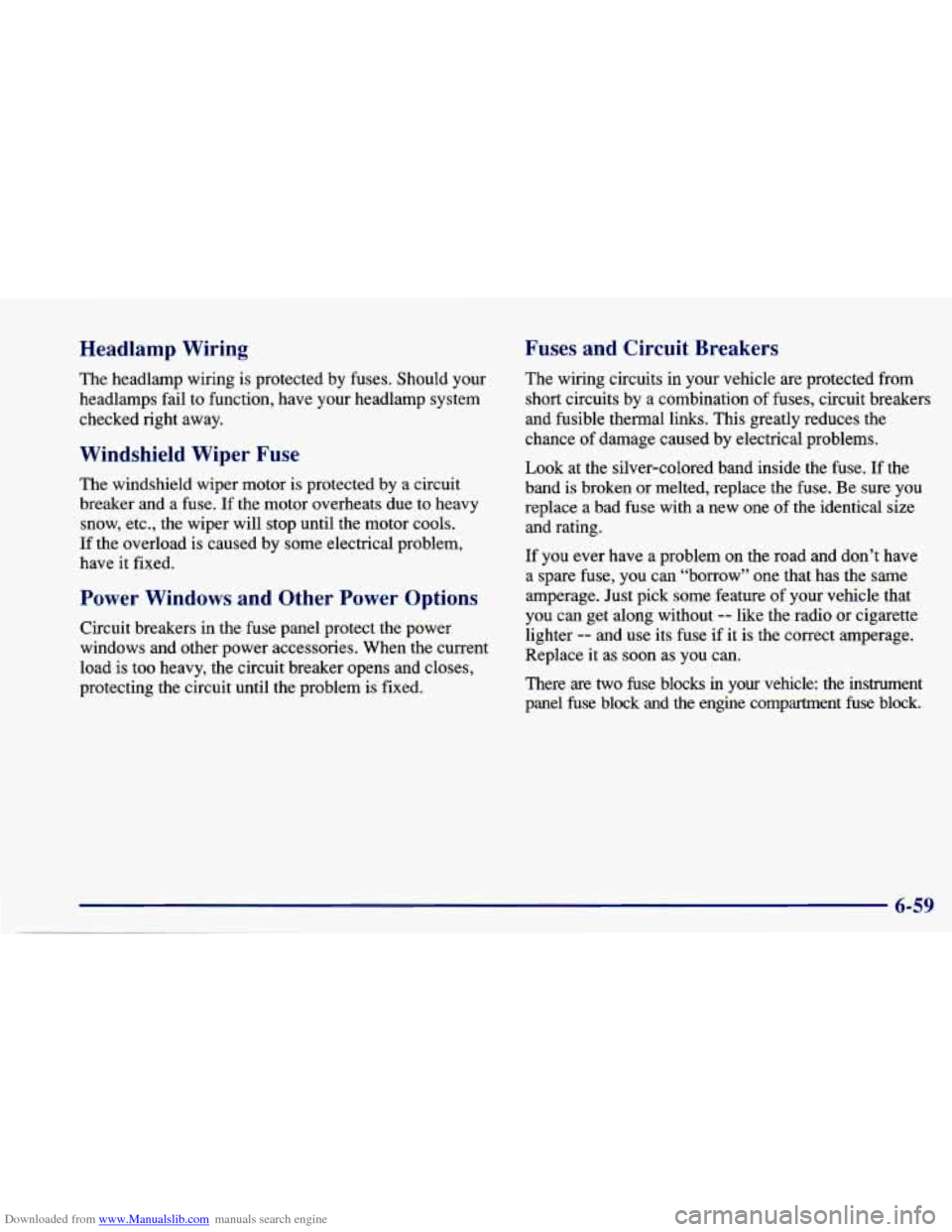

Downloaded from www.Manualslib.com manuals search engine Headlamp Wiring Fuses and Circuit Breakers
The
headlamp wiring is protected by fuses. Should your
headlamps fail to function, have your headlamp system
checked right away.
Windshield Wiper Fuse
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If the overload is caused by some electrical problem,
have it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load
is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed. The
wiring circuits in your vehicle
are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance of damage caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have
a problem on the road and don’t have
a spare fuse, you can “borrow” one that has the same
amperage. Just pick some feature of your vehicle that
you can get along without
-- like the radio or cigarette
lighter
-- and use its fuse if it is the correct amperage.
Replace it as
soon as you can.
There are
two fuse blocks in your vehicle: the instrument
panel fuse block and the engine compartment
fuse block.
6-59

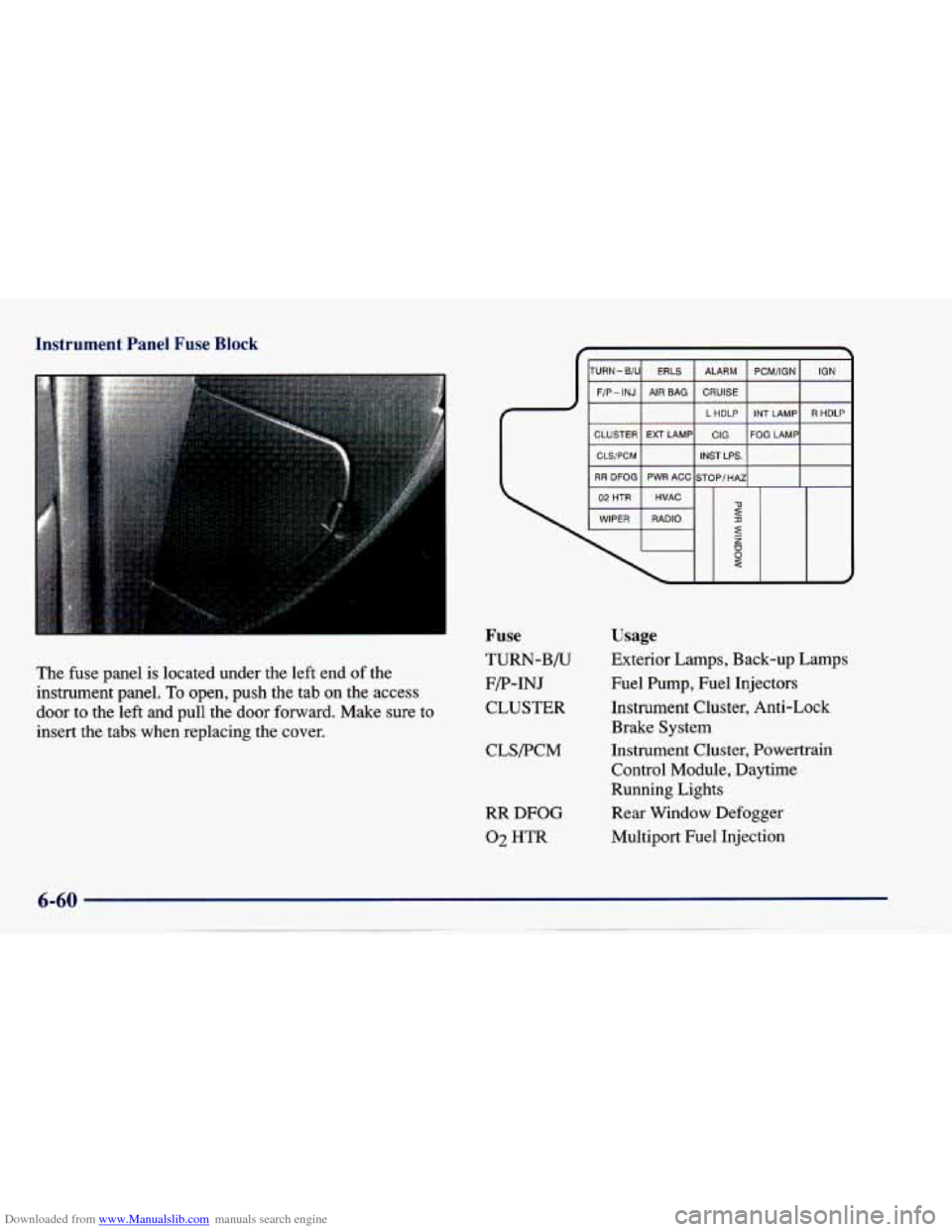

Downloaded from www.Manualslib.com manuals search engine Instrument Panel Fuse Block
The fuse panel is located under the left end of the
instrument panel.
To open, push the tab on the access
door to the left and pull the door forward. Make
sure to
insert the tabs when replacing the cover.
Fuse
TURN-B/U
F/P-INJ
CLUSTER
CLS/PCM
RR DFOG
02 HTR
Usage
Exterior Lamps, Back-up Lamps
Fuel Pump, Fuel Injectors
Instrument Cluster, Anti-Lock Brake System
Instrument Cluster, Powertrain Control Module, Daytime
Running Lights
Rear Window Defogger
Multiport Fuel Injection

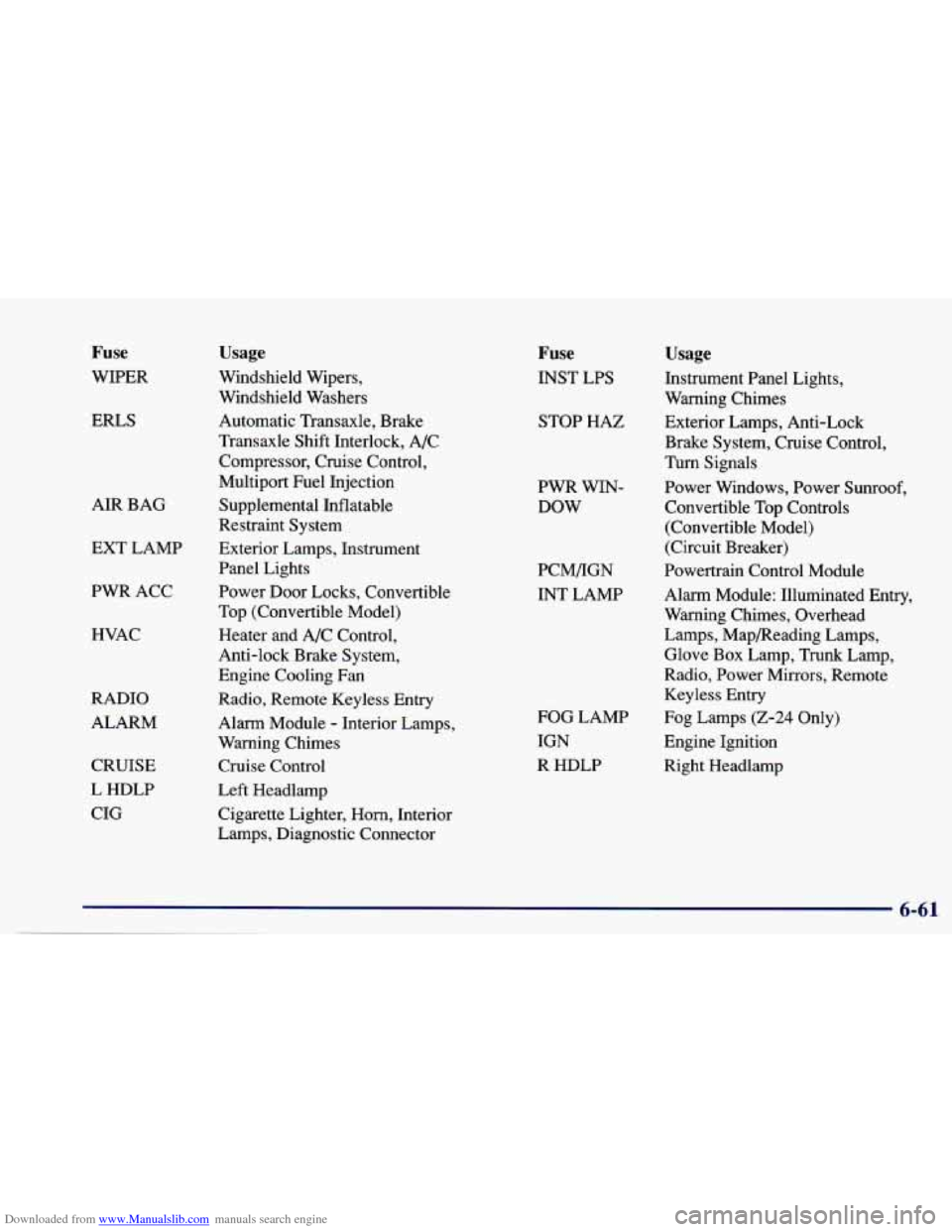

Downloaded from www.Manualslib.com manuals search engine Fuse
WIPER
ERLS
AIR BAG
EXT LAMP
PWR ACC
HVAC
RADIO
ALARM
CRUISE
L HDLP
CIG
Usage
Windshield Wipers,
Windshield Washers
Automatic Transaxle, Brake
Transaxle Shift Interlock, A/C
Compressor, Cruise Control,
Multiport Fuel Injection
Supplemental Inflatable
Restraint System
Exterior Lamps, Instrument
Panel Lights
Power Door Locks, Convertible
Top (Convertible Model)
Heater and A/C Control,
Anti-lock Brake System,
Engine Cooling Fan
Radio, Remote Keyless Entry
Alarm Module
- Interior Lamps,
Warning Chimes
Cruise Control
Left Headlamp Cigarette Lighter,
Horn, Interior
Lamps, Diagnostic Connector
Fuse
INST LPS
STOP HAZ
PWR WIN- DOW
PCM/IGN
INT LAMP
FOG LAMP
IGN
R HDLP
Usage
Instrument Panel Lights,
Warning Chimes
Exterior Lamps, Anti-Lock
Brake System, Cruise Control,
Turn Signals
Power Windows, Power Sunroof,
Convertible Top Controls
(Convertible Model)
(Circuit Breaker)
Powertrain Control Module
Alarm Module: Illuminated Entry,
Warning Chimes, Overhead
Lamps, Mapmeading Lamps,
Glove Box Lamp, Trunk Lamp,
Radio, Power Mirrors, Remote
Keyless Entry
Fog Lamps
(2-24 Only)
Engine Ignition
Right Headlamp
6-61

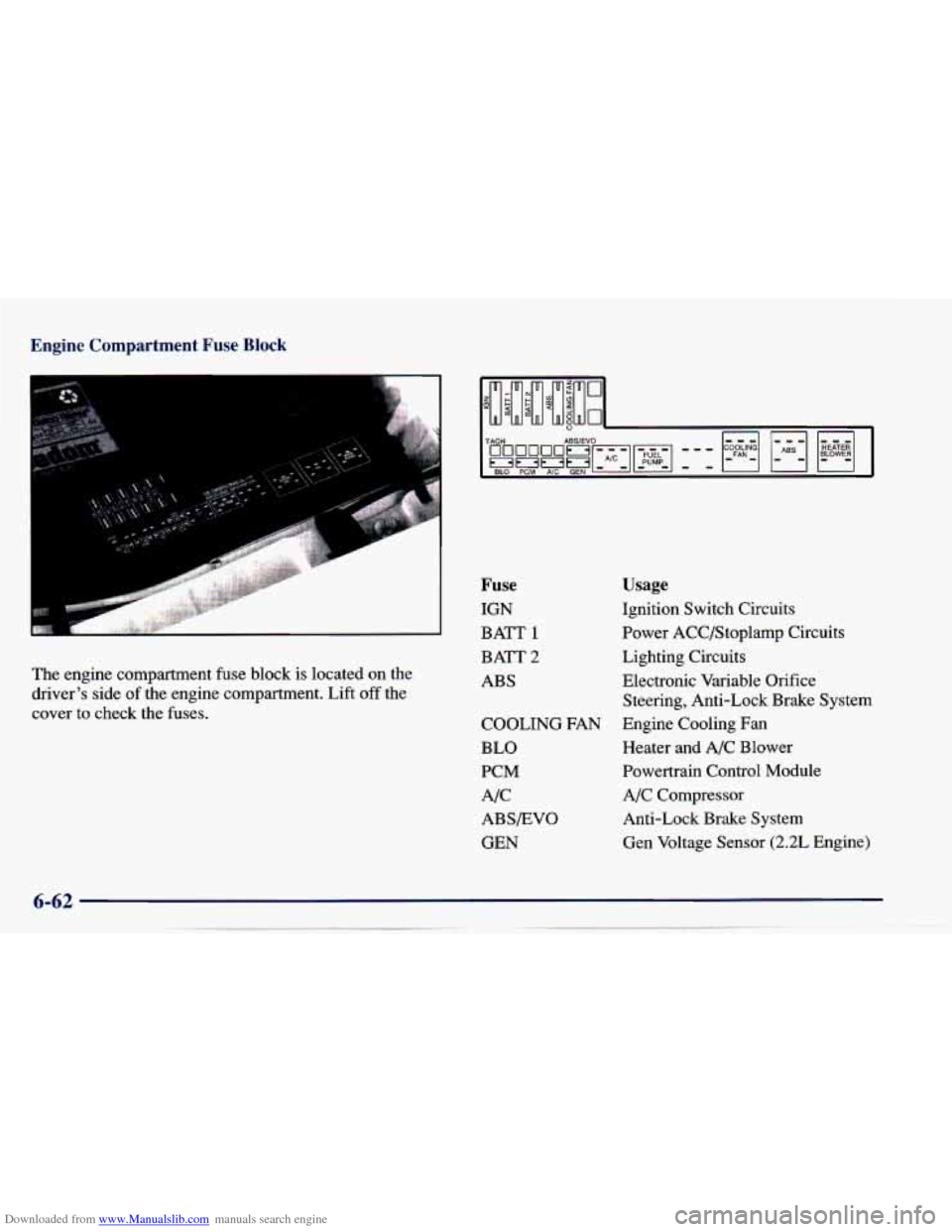

Downloaded from www.Manualslib.com manuals search engine Engine Compartment Fuse Block
P
The engine compment fuse block is located on the
driver’s side of the engine compartment. Lift off the
cover to check the fuses.
Fuse
IGN
BATT
1
BATT 2
ABS
Usage
Ignition Switch Circuits
Power ACC/Stoplamp Circuits
Lighting Circuits
Electronic Variable Orifice Steering, Anti-Lock Brake System
COOLING FAN Engine
Cooling Fan
BLO Heater and A/C Blower
PCM Powertrain Control Module
AIC A/C Compressor
ABS/EVO Anti-Lock Brake System
GEN Gen Voltage Sensor (2.2L Engine)

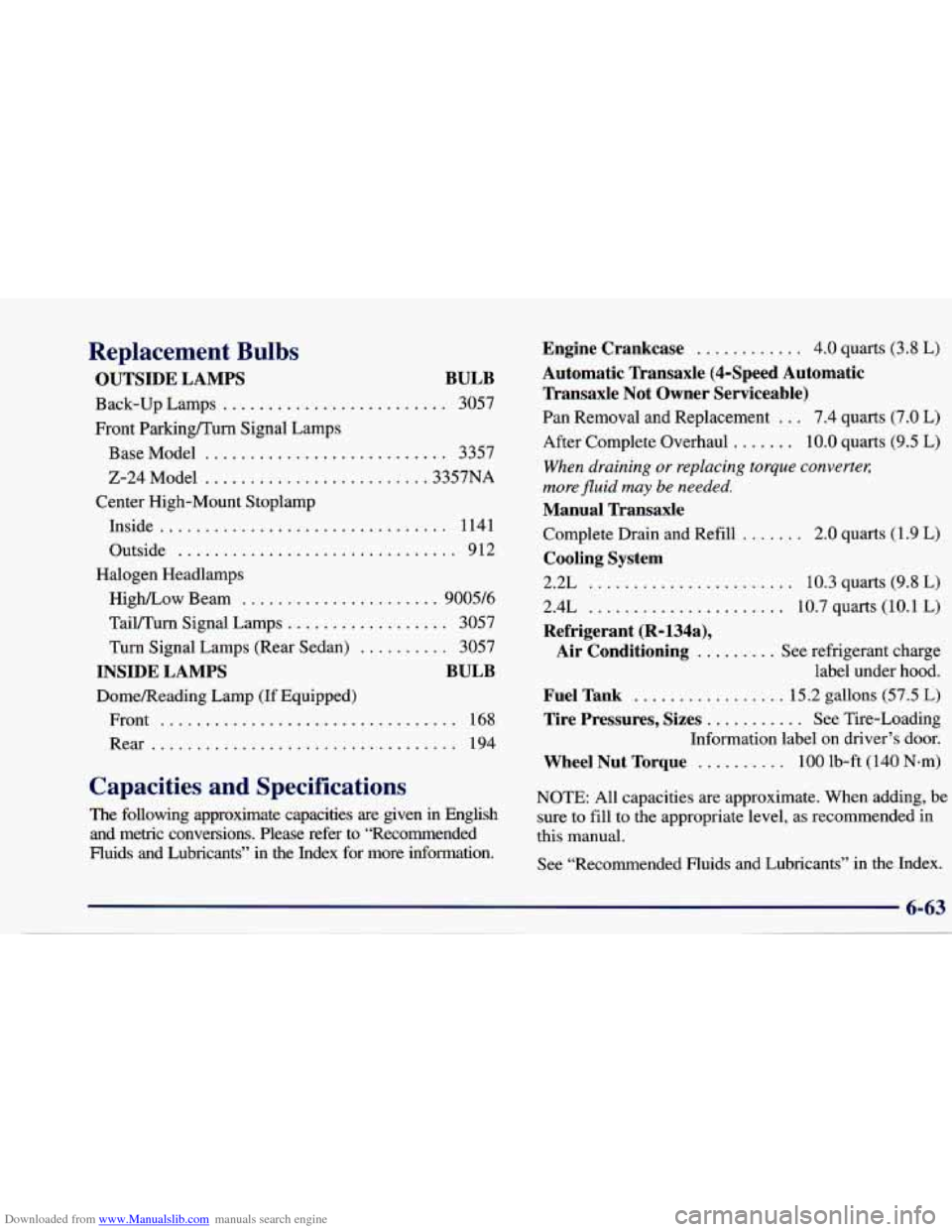

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
OUTSIDE LAMPS BULB
Back-up Lamps ......................... 3057
Front Parking/Turn Signal Lamps
BaseModel
........................... 3357
2-24Model
......................... 3357NA
Center High-Mount Stoplamp
Inside
................................ 1141
Outside
............................... 9 12
Halogen Headlamps High/Low Beam
...................... 9005/6
TaiVTurn Signal Lamps
.................. 3057
Turn Signal Lamps (Rear Sedan)
.......... 3057
INSIDE LAMPS BULB
Domemeading Lamp (If Equipped)
Front
................................. 168
Re x.................................. 194
Capacities and Specifications
The following approximate capacities are given in English
and metric conversions.
Please refer to “Recommended
Huids
and Lubricants” in the Index for more information.
Engine Crankcase ............ 4.0 quarts (3.8 L)
Automatic Transaxle (4-Speed Automatic
Transaxle Not Owner Serviceable)
Pan Removal and Replacement ... 7.4 quarts (7.0 L)
After Complete Overhaul ....... 10.0 quarts (9.5 L)
When draining or replacing torque converter;
more fluid may be needed.
Manual Transaxle
Complete Drain and Refill ....... 2.0 quarts (1.9 L)
Cooling System
2.2L ....................... 10.3 quarts (9.8 L)
2.4L
...................... 10.7 quarts (10.1 L)
Refrigerant (R=134a),
Air Conditioning
......... See refrigerant charge
label under hood.
Fuel Tank ................. 15.2 gallons (57.5 L)
Tire Pressures, Sizes ........... See Tire-Loading
Information label
on driver’s door.
Wheel Nut Torque .......... 100 lb-ft (140 Nem)
NOTE: All capacities are approximate. When adding, be
sure to fill to the appropriate level, as recommended in
this manual.
See “Recommended Fluids and Lubricants” in the Index.

Downloaded from www.Manualslib.com manuals search engine Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If the
air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If
you're not sure, ask your Chevrolet dealer.
Normal Maintenance
Replacement Parts
Air Cleaner Element
2.2L ....................... AC Type A- 11 72C
2.4L
....................... AC Type A-1172C
Engine Oil Filter
2.2L .......................... AC Type PF-47
2.4L
.......................... AC Type PF-44
Spark Plugs
2.2L ......................... AC Type 41-928
Gap: 1.52 mm
(0.060 inch)
2.4L
......................... AC Type 41-910
Gap: 1.52 mm (0.060 inch)
Windshield Wiper Blade (Sheppard's Hook Type)
Left Side ..................... 22 inches (56 cm)
Right Side. ................... 17 inches (43 cm)
2.2L Engine Specifications
VIN Engine Code ........................... 4
Type
.................................... L4
Horsepower ............................. 120
Firing Order
.......................... 1-3-4-2
Thermostat Temperature
........... 180" F (82°C)
2.4L Engine Specifications
Type .................................... L4
VIN Engine Code ........................... T
Horsepower ............................. 150
Firing Order
.......................... 1-3-4-2
Thermostat Temperature ........... 180 O F (82 O C)

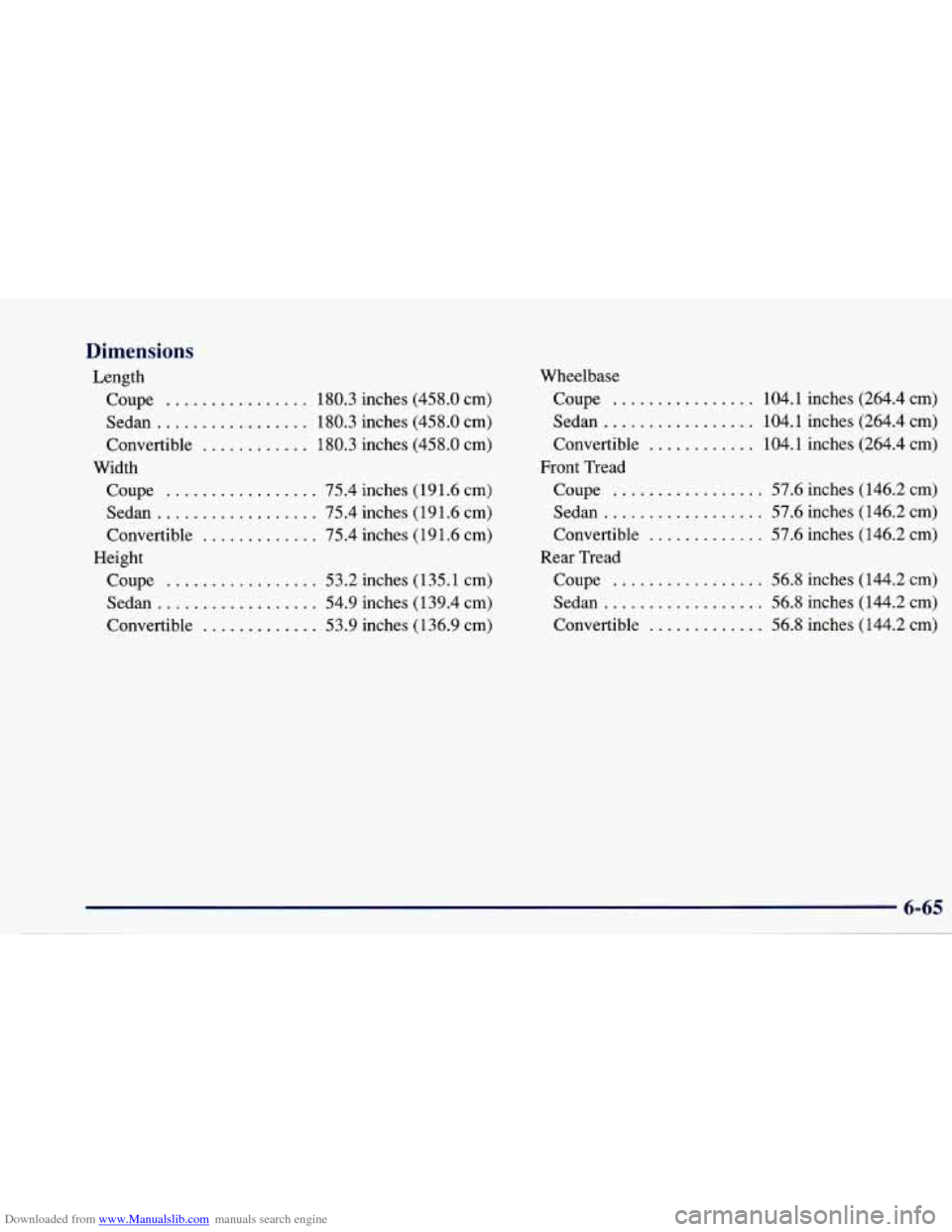

Downloaded from www.Manualslib.com manuals search engine Dimensj
Length Coupe
................ 180.3 inches (458.0 cm)
Sedan
................. 180.3 inches (458.0 cm)
Convertible
............ 180.3 inches (458.0 cm)
Coupe
................. 75.4 inches (191.6 cm)
Sedan
.................. 75.4 inches (1 9 1.6 cm)
Convertible
............. 75.4 inches (19 1.6 cm)
Coupe
................. 53.2 inches (1 35.1 cm)
Sedan
.................. 54.9 inches (1 39.4 cm)
Convertible
............. 53.9 inches (136.9 cm)
Width
Height Wheelbase
Coupe
................ 104.1 inches (264.4 cm)
Sedan
................. 104.1 inches (264.4 cm)
Convertible
............ 104.1 inches (264.4 cm)
Front Tread Coupe
................. 57.6 inches (146.2 cm)
Sedan
.................. 57.6 inches (146.2 cm)
Convertible
............. 57.6 inches (146.2 cm)
Coupe
................. 56.8 inches (144.2 cm)
Sedan
.................. 56.8 inches (144.2 cm)
Convertible
............. 56.8 inches (144.2 cm)
Rear Tread

Downloaded from www.Manualslib.com manuals search engine ,@% NOTES

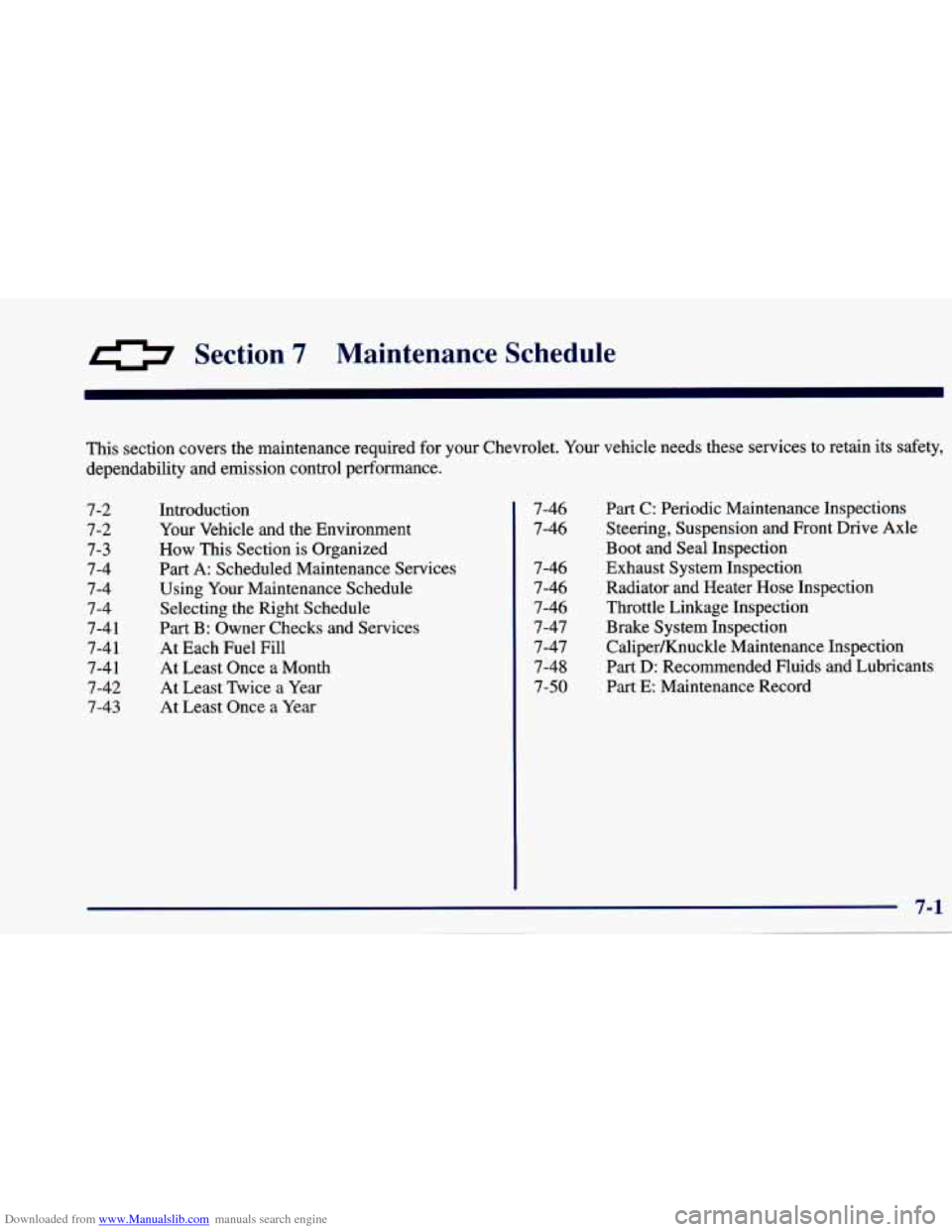

Downloaded from www.Manualslib.com manuals search engine 0 Section 7 Maintenance Schedule
This section covers the maintenance required for your Chevrolet. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7-2
7-2
7-3
7-4
7-4
7-4 7-4
1
7-4 1
7-4 1
7-42
7-43
Introduction Your Vehicle and the Environment
How This Section
is Organized
Part A: Scheduled Maintenance Services
Using Your Maintenance Schedule
Selecting the Right Schedule
Part B: Owner Checks and Services
At Each Fuel Fill
At Least Once
a Month
At Least Twice
a Year
At Least Once a Year
7-46
7-46
7-46
7-46
7-46
7-47
7-47
7-48
7-50 Part C: Periodic Maintenance Inspections
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Exhaust System Inspection
Radiator and Heater Hose Inspection
Throttle Linkage Inspection
Brake System Inspection
CaliperKnuckle Maintenance Inspection
Part
D: Recommended Fluids and Lubricants
Part E: Maintenance Record

Downloaded from www.Manualslib.com manuals search engine I
IMPORTANT-
KEEP ENGINE OIL
'AT THE PROPER
LEVEL AND CHANGE
RECOMMENDED AS
protection I
Plan

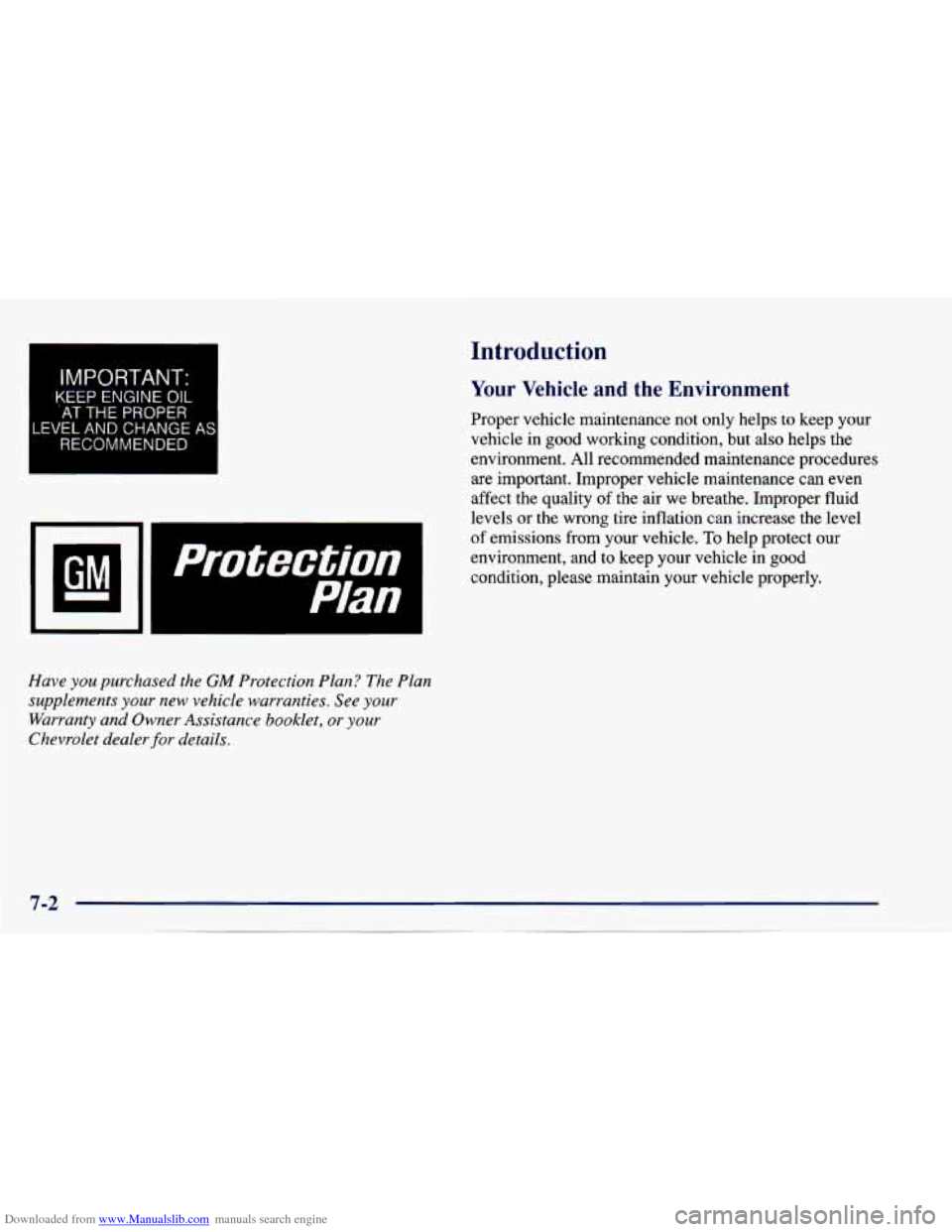

Introduction
