CHEVROLET CAVALIER 1998 3.G Owners Manual

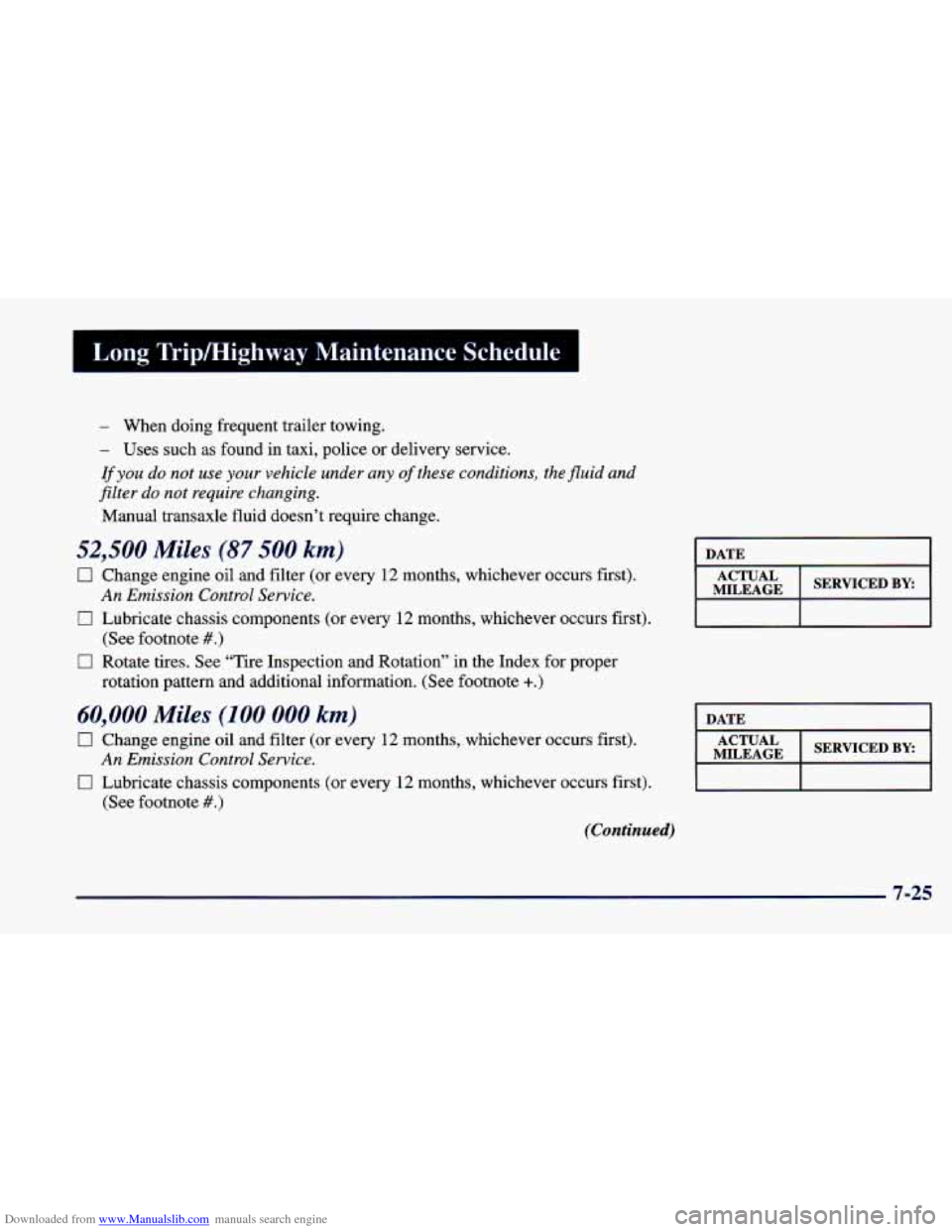

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
lf you do not use your vehicle under any of these conditions, the fluid and
filter do not require changing.
Manual transaxle fluid doesn’t require change.
52,500 Miles (87 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
0 Lubricate chassis components (or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the I\
ndex for proper
An Emission Control Service.
(See footnote #.)
rotation pattern and additional information. (See footnote +.)
60,000 Miles (100 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
0 Lubricate chassis components (or every 12 months, whichever occurs first).
An Emission Control Service.
(See footnote #.)
(Continued)
DATE
MILEAGE
ACTUAL I SERVICEDBY: I
DATE 1
MILEAGE
7-25

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule

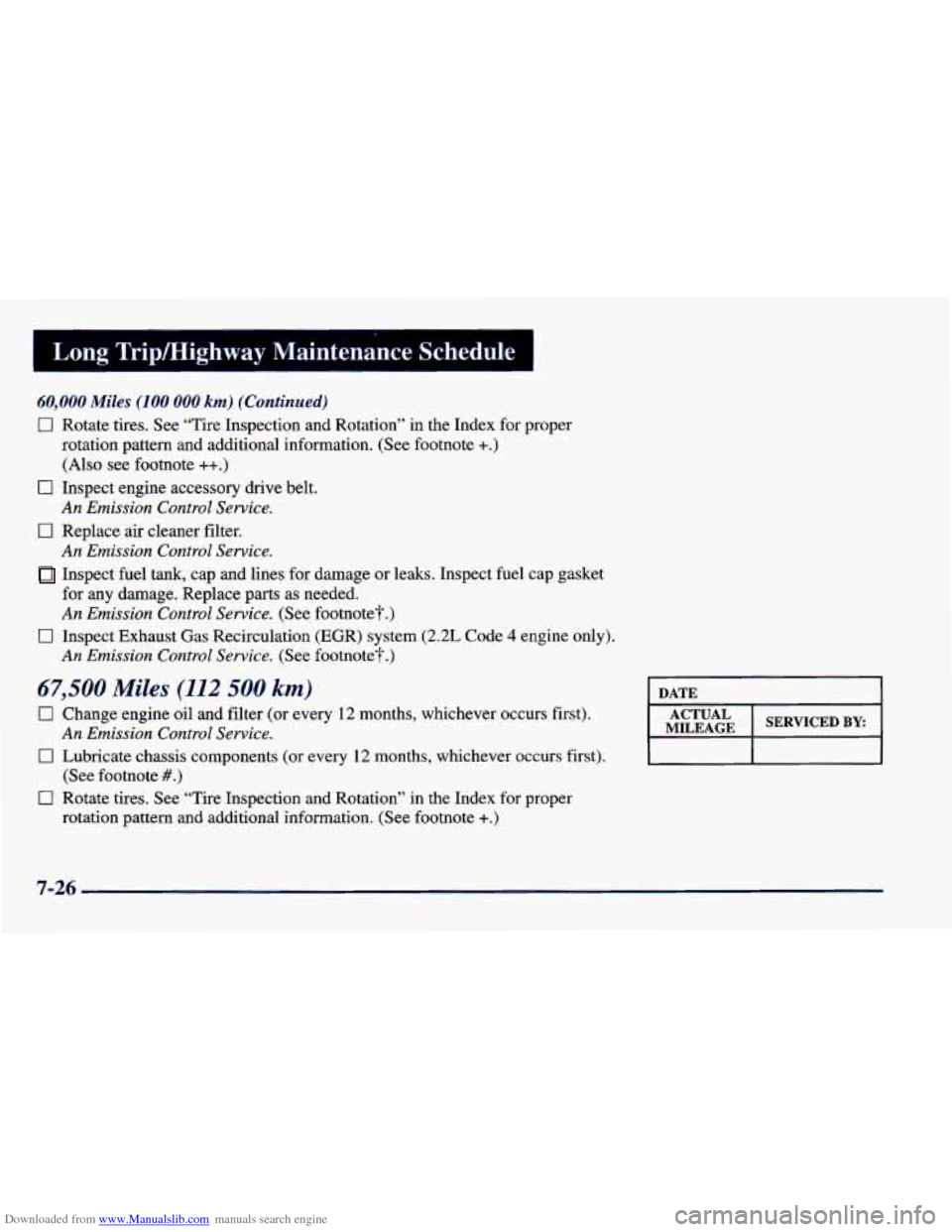

60,000 Miles (100 000 km) (Continued)
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
rotation pattern and additional information. (See footnote
+.)
(Also see footnote ++.)
An Emission Control Service.
An Emission Control Service.
for any damage. Replace parts as needed.
An Emission Control Service. (See footnote?.)
An Emission Control Service. (See footnote?.)
0 Inspect engine accessory drive belt.
0 Replace air cleaner filter.
Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap gasket
0 Inspect Exhaust Gas Recirculation (EGR) system (2.2L Code 4 engine only).
67,500 Miles (112 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
0 Lubricate chassis components (or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
(See footnote #.)
rotation pattern and additional information. (See footnote +.)
DATE
7-26

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule

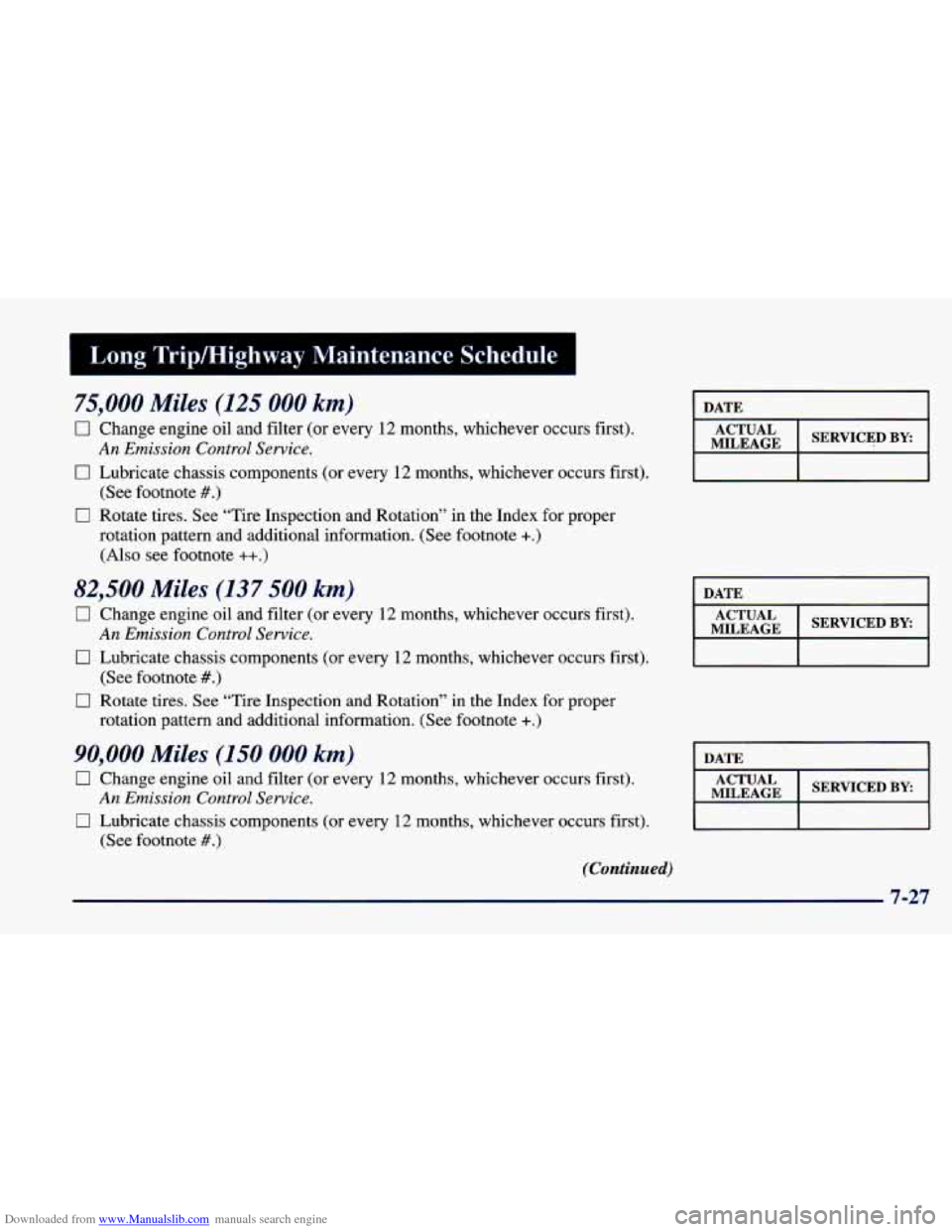

75,000 Miles (125 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
0 Lubricate chassis components (or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
(See footnote #.)
rotation pattern and additional information. (See footnote +.)
(Also see footnote ++.)
$2,500 Miles (137 500 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
0 Lubricate chassis components (or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
(See footnote #.)
rotation pattern and additional information. (See footnote +.)
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every 12 months, whichever occurs first).
0 Lubricate chassis components (or every 12 months, whichever occurs first).
An Emission Control Service.
(See footnote #.)
(Continued)
I DATE I
MILEAGE ACTUAL I SERVICED BY:
DATE
MILEAGE
ACTUAL SERVICED BY:
DATE I
MILEAGE ACTUAL I SERVICED BY:
7-27

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule

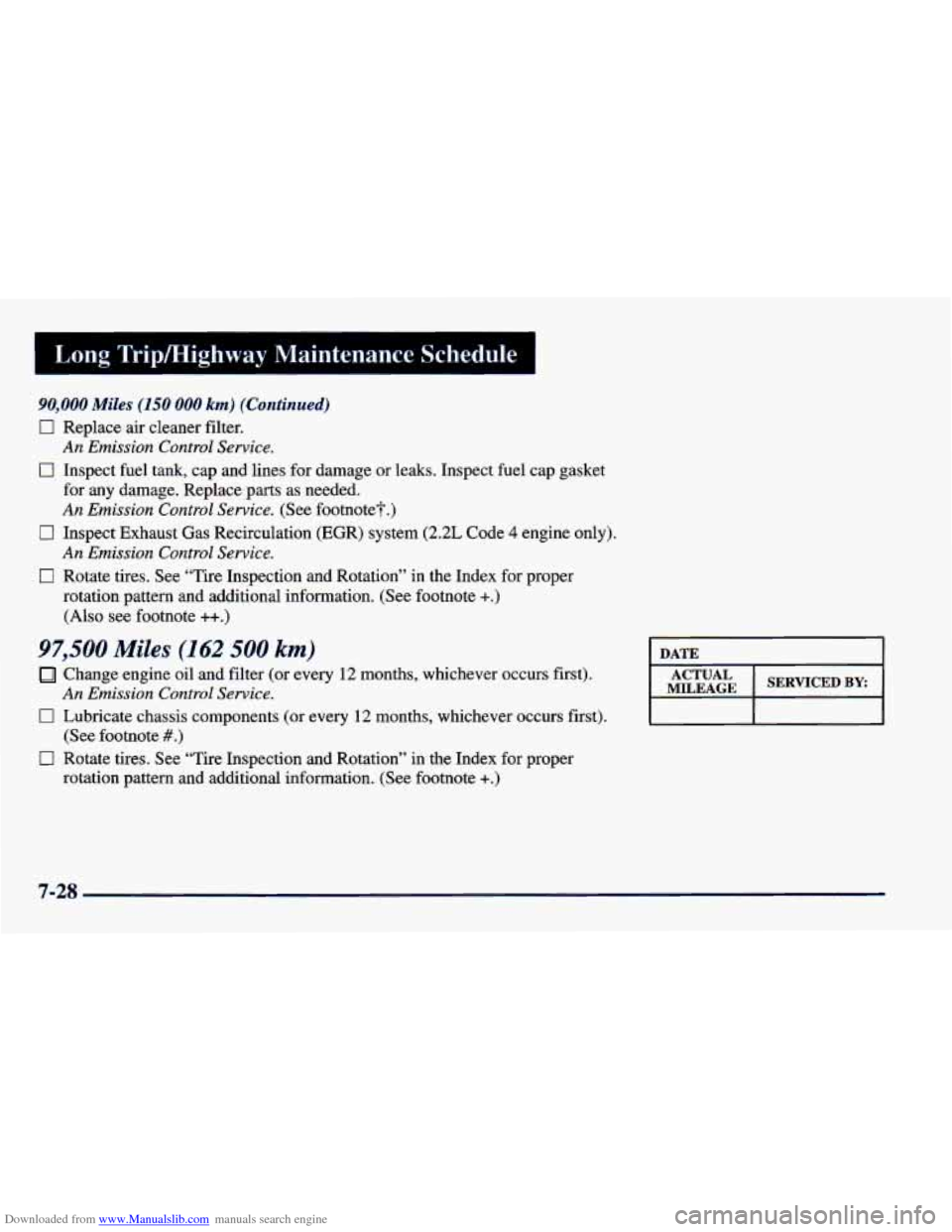

90,000 Miles (150 000 km) (Continued)
0 Replace air cleaner filter.
0 Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel cap gasket
An Emission Control Service.
for any damage. Replace parts as needed.
An Emission Control Service. (See footnote”f)
An Emission Control Service.
rotation pattern and additional information. (See footnote +.)
(Also see footnote ++.)
0 Inspect Exhaust Gas Recirculation (EGR) system (2.2L Code 4 engine only).
0 Rotate tires. See “Tire Inspection and Rotation” in the I\
ndex for @r6pir
97,500 Miles (162 500 km)
Change engine oil and filter (or every 12 months, whichever occurs first).
0 Lubricate chassis components (or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper
An Emission Control Service.
(See footnote #.)
rotation pattern and additional information. (See footnote +.)
I DATE I
MILEAGE ACTUAL I SERVICEDBY:
7-28

Downloaded from www.Manualslib.com manuals search engine Long Tripmighway Maintenance Schedule 1 I

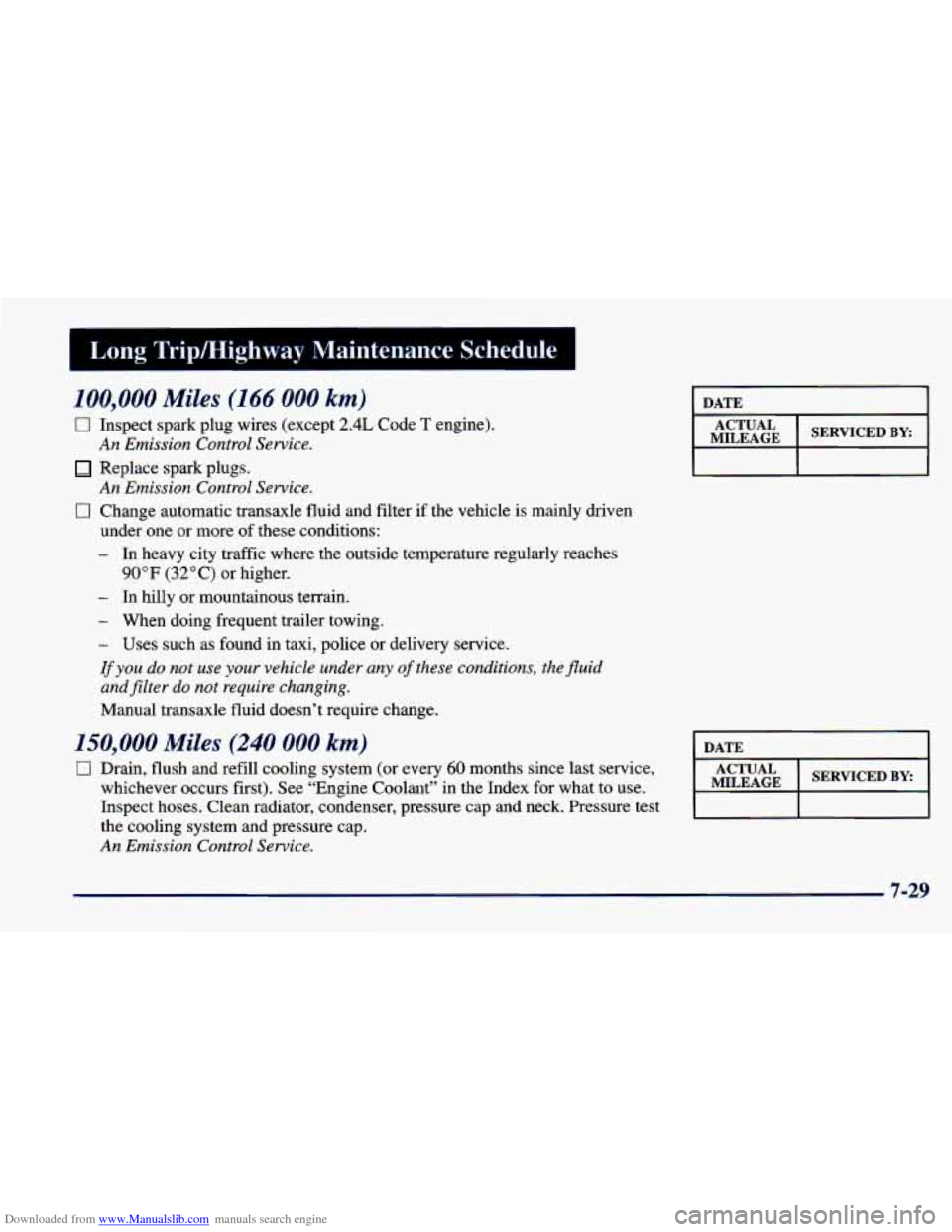

100,000 Miles (166 000 km)
0
0
Inspect spark plug wires (except 2.4L Code T engine).
An Emission Control Service.
Replace spark plugs.
An Emission Control Service.
Change automatic transaxle fluid and filter if the vehicle is mainly driven
under one or more of these conditions:
- In heavy city traffic where the outside temperature regularly reaches
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these conditions, the fluid
and filter
do not require changing.
Manual transaxle fluid doesn’t require change.
90°F (32°C) or higher.
150,000 Miles (240 000 km)
0 Drain, flush and refill cooling system (or every 60 months since last service,
whichever occurs first).
See “Engine Coolant” in the Index for what to use.
Inspect hoses. Clean radiator, condenser, pressure cap and neck. Pressure test
the cooling system and pressure cap.
An Emission Control Service.
DATE I
DATE I ~~~
I MILEAGE 1 SERVICEDBY: I
7-29

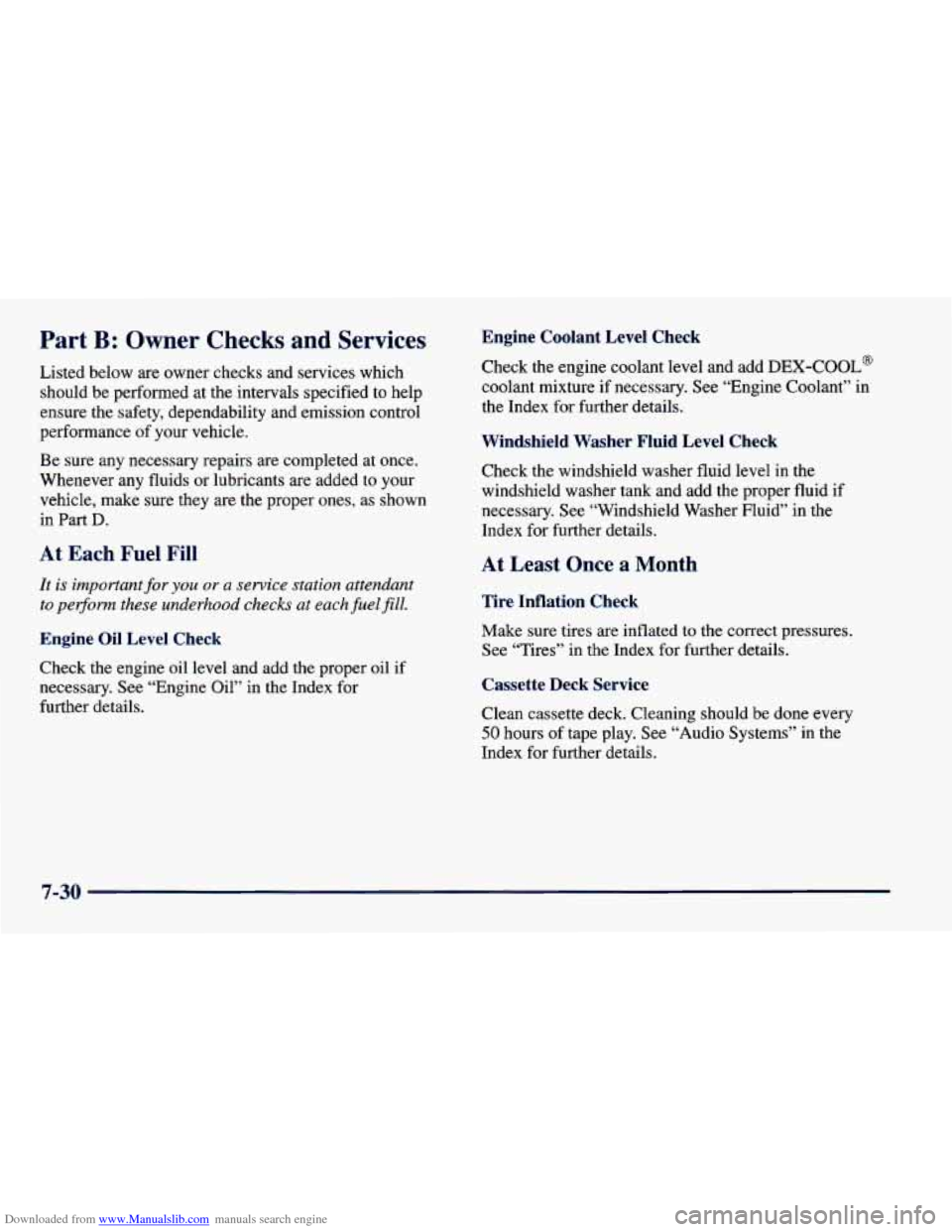

Downloaded from www.Manualslib.com manuals search engine Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids
or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part
D.
At Each Fuel Fill
It is important for you or a service station attendant
to petjiorrn these underhood checks at each fuel
fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for
further details.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL@
coolant mixture if necessary. See “Engine Coolant” in
the Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid if
necessary. See “Windshield Washer Fluid” in the
Index for further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures.
See “Tires” in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the
Index for further details.
7-30

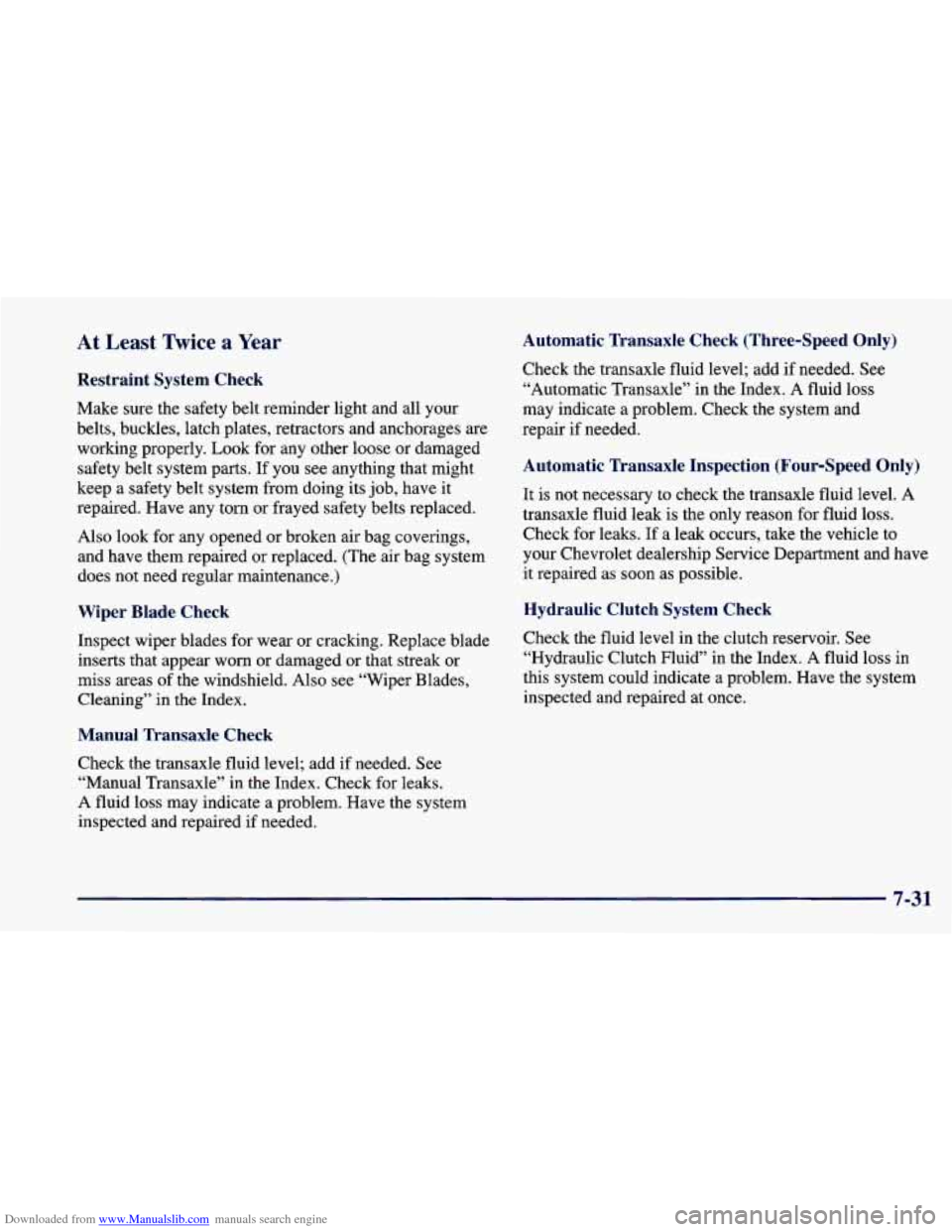

Downloaded from www.Manualslib.com manuals search engine At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn
or frayed safety belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas of the windshield. Also see “Wiper Blades,
Cleaning” in the Index.
Manual Transaxle Check
Check the transaxle fluid level; add if needed. See
“Manual Transaxle” in the Index. Check for leaks.
A fluid loss may indicate a problem. Have the system
inspected and repaired if needed.
Automatic Transaxle Check (Three-Speed Only)
Check the transaxle fluid level; add if needed. See
“Automatic Transaxle” in the Index.
A fluid loss
may indicate a problem. Check the system and
repair if needed.
Automatic Transaxle Inspection (Four-Speed Only)
It is not necessary to check the transaxle fluid level. A
transaxle fluid leak is the only reason for fluid loss.
Check for leaks. If a leak occurs, take the vehicle to
your Chevrolet dealership Service Department and have it repaired as soon as possible.
Hydraulic Clutch System Check
Check the fluid level in the clutch reservoir. See
“Hydraulic Clutch Fluid” in the Index. A fluid loss in
this system could indicate a problem. Have the system
inspected and repaired at once.
7-31

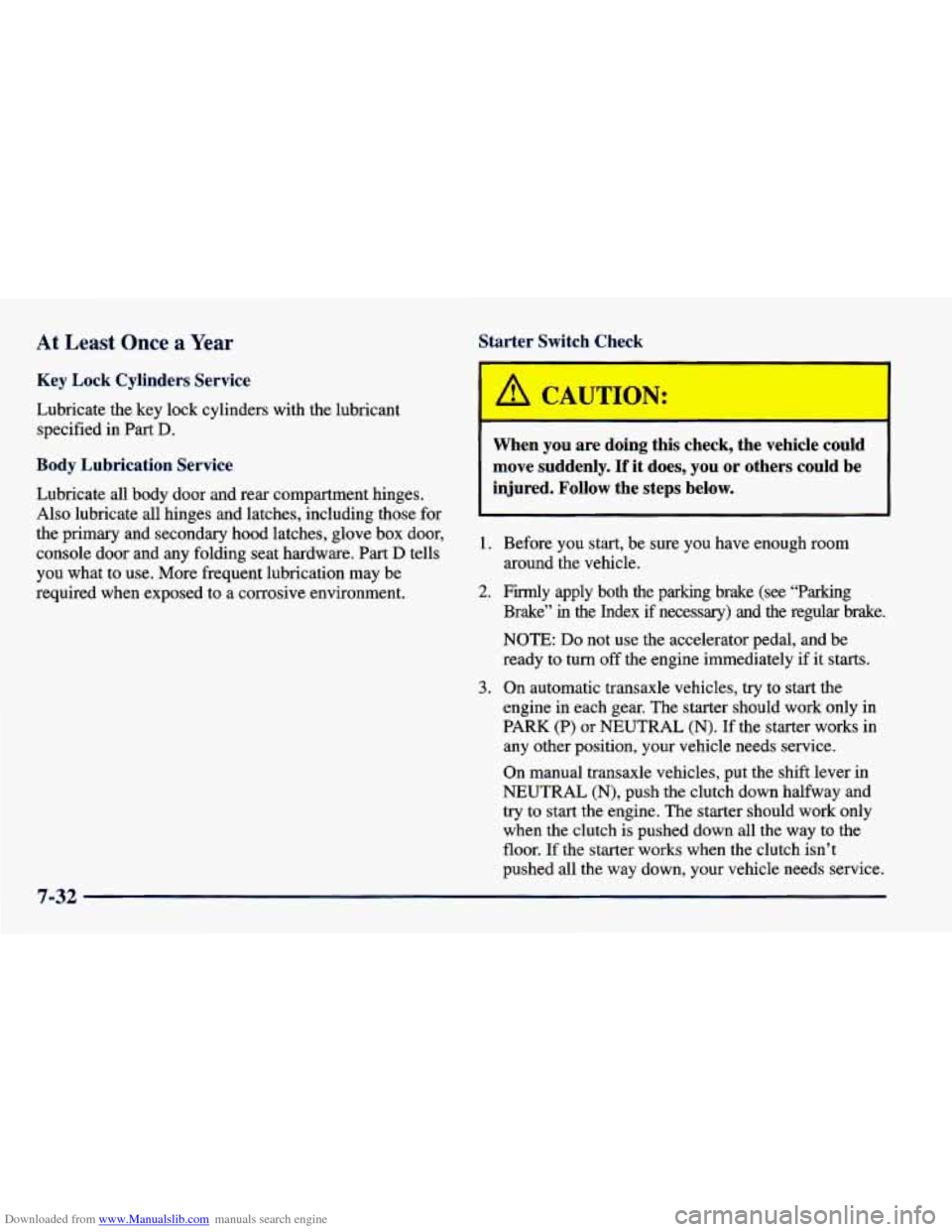

Downloaded from www.Manualslib.com manuals search engine At Least Once a Year Star1
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant specified in Part
D.
Body Lubrication Service
Lubricate all body door and rear compartment hinges.
Also lubricate all hinges and latches, including those for
the primary and secondary hood latches, glove box door,
console door and any folding seat hardware. Part
D tells
you what to use. More frequent lubrication may be
required when exposed to a corrosive environment.
. 5 Switch Check
-
When you are doing is check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough room around the vehicle.
Firmly apply both the parking brake (see “Parking
Brake”
in the Index if necessary) and the regular brake.
NOTE: Do not use the accelerator pedal, and be
ready to
turn off the engine immediately if it starts.
On automatic transaxle vehicles, try to start the
engine in each gear. The starter should work only in
PARK (P) or NEUTRAL
(N). If the starter works in
any other position,
your vehicle needs service.
On manual transaxle vehicles, put the shift lever in
NEUTRAL
(N), push the clutch down halfway and
try to start the engine. The starter should work only
when the clutch is pushed down all the way to the
floor.
If the starter works when the clutch isn’t
pushed all the way down, your vehicle needs service.
7-32

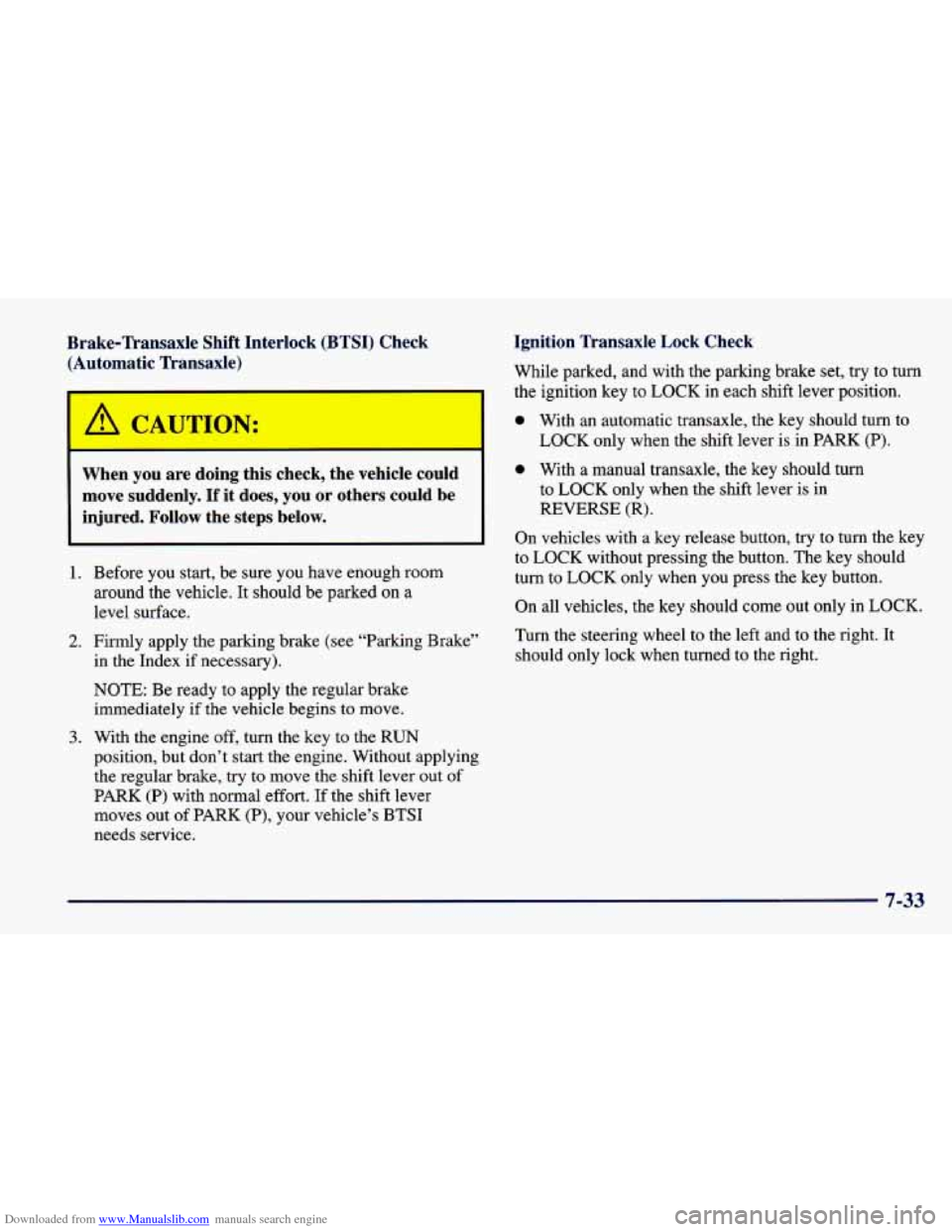

Downloaded from www.Manualslib.com manuals search engine Brake-Transaxle Shift Interlock (BTSI) Check (Automatic Transaxle)
r
A CAUTION:
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle.
It should be parked on a
level surface.
Firmly apply the parking brake (see “Parking Brake’’
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
With the engine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake, try to move the shift lever out of
PARK
(P) with normal effort. If the shift lever
moves out of PARK (P), your vehicle’s BTSI
needs service.
Ignition Transaxle Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to LOCK in each shift lever position.
0 With an automatic transaxle, the key should turn to
LOCK only when the shift lever
is in PARK (P).
0 With a manual transaxle, the key should turn
to
LOCK only when the shift lever is in
REVERSE (R).
On vehicles with a key release button, try to turn the key
to LOCK without pressing the button. The key should
turn to
LOCK only when you press the key button.
On all vehicles, the key should come out only in
LOCK.
Turn the steering wheel to the left and to the right. It
should only lock when turned to the right.
7-33

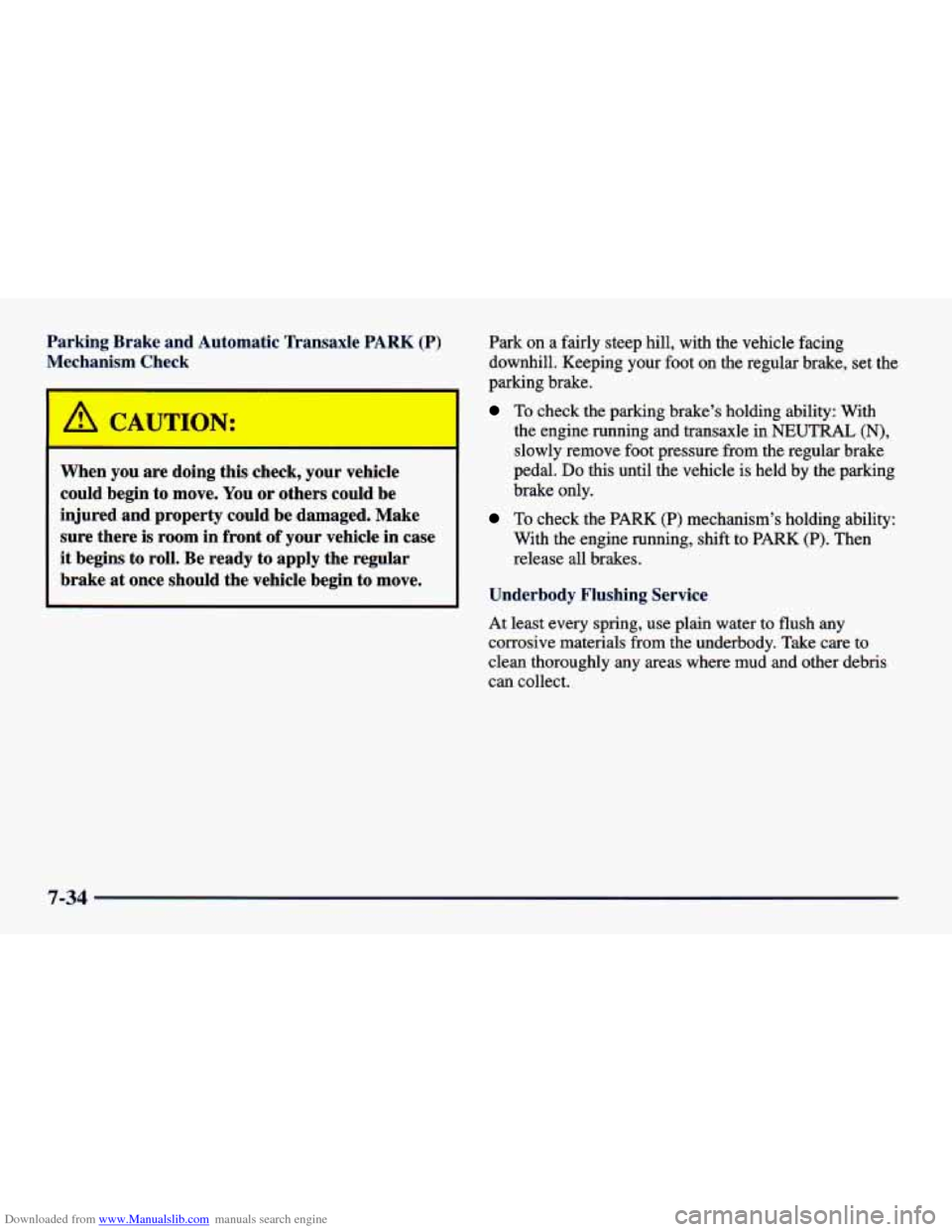

Downloaded from www.Manualslib.com manuals search engine Parking Brake and Automatic Wansaxle PARK (P)
Mechanism Check
' A CACmr3N:
When you are doing this cxk, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front
of your vehicle in case
it begins
to roll. Be ready to apply the regular
brake at once should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake's holding ability: With
the engine running and transaxle in
NEUTRAL, (N),
slowly remove foot pressure from the regular brake
pedal.
Do this until the vehicle is held by the parking
brake only.
To check the PARK (P) mechanism's holding ability:
With the engine running, shift to
PARK (P). Then
release all brakes.
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect
.
7-34
