CHEVROLET CAVALIER 1999 3.G Owners Manual

yellowblue
2-47
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Center Console Storage Area
To open the center console, pull the lift lever up and the
lid back.
To close the center console, push the lid down until
it clicks.
Center Console Cupholders
Open the center console lid all the way to uncover the
front and rear cupholders. There is also a cupholder at
the front of the console.
Convenience Net (If Equipped)
Your vehicle may have a convenience net. You'll see it
just inside the back wall of the trunk. Put small loads,
like grocery bags, behind the net. It can help keep them
from falling over during sharp turns or quick starts and
stops. Unclip a corner of the convenience net to fit
larger objects behind the net, then re
-clip it to secure
them in place.
The net isn't for larger, heavier loads. Store them in the
trunk as far forward as you can.
You can unhook the net so that it will lie flat when
you're not using it.
Ashtrays and Cigarette Lighter
(If Equipped)
To use the lighter, just push it in all the way and let go.
When it's ready, it will pop back out by itself.

yellowblue
2-48
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overheat, damaging the
lighter and the heating element.
To clean the center console ashtray, remove the entire
ashtray and empty it.
To clean the rear ashtray, open it, push down on the
snuffer, and pull it out.
NOTICE:
Don't put papers and other things that burn into
your ashtrays. If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
Sun Visors
To block out glare, you can swing down the visors.
You can also swing them to the side.
Accessory Power Outlet
(If Equipped)
The accessory power outlet is located on the instrument
panel to the right of the steering wheel. Just remove the
plug from the outlet and follow the proper installation
instructions that are included with any electrical
equipment you install.
These circuits are protected by a fuse and have
maximum current levels.

yellowblue
2-49
Sunroof (If Equipped)
Press and release the rear of
the switch and the glass
panel will open to the
vent position.
Open the sunshade by hand when using the
vent position.
Press and release the rear of the switch again to open the
glass panel and the sunshade. Press the front of the
switch to stop the panel in any position.
Press and hold the front of the switch to close the glass
panel. The sunshade can only be closed by hand.
The sunroof glass panel cannot be opened or closed if
your vehicle has an electrical failure.
Convertible Top (If Equipped)
The following steps explain the proper operation of your
convertible top.
NOTICE:

Remove any items from the convertible top
storage area before you lower the top. Even
small items in the storage area can damage
the top or other parts of the system.

Don't raise or lower the convertible
top when the temperature is below
20F (
-7C). The cold can cause cracks
and other damage to the top as it is being
lowered or raised.

Don't raise or lower the convertible top
while the vehicle is moving. The wind could
damage the top. Bring the vehicle to a
complete stop before attempting to raise or
lower the top. Always make sure that the
top is securely latched before driving
the vehicle.

yellowblue
2-50 Lowering Your Convertible Top
1. Set the parking brake and shift your automatic
transaxle to PARK (P) or your manual transaxle to
NEUTRAL (N).
2. Turn the ignition to RUN.
3. Lower the side door windows completely to avoid
wear to the weatherstrips.
4. Push the button in the latch handle and turn the
handle down to unhook the latch pins from the holes
over the windshield.
5. Pull the latch handle rearward away from the
windshield and hold it until the convertible top is
fully lowered.

yellowblue
2-51
6. Rotate the latch handle up to the locked position.
Installing the Boot
1. From inside the vehicle, pull the tab on the rear seat
to fold down the seat. See ªFold
-Down Rear Seatº in
the Index.
2. Open the trunk and remove both boot side covers.
Leave the trunk open.

yellowblue
2-52
3. Install the boot side cover by inserting the tab (A) on
the underside of the cover into the slot (B) at the top
of the quarter trim panel. Place the rear flap of the
boot side cover in the trunk lid opening, aligning the
eyelet (C) over the boot snap ball stud (D).4. Attach the two snaps on the inside flap of the side
cover to the top of the quarter trim panel. Attach the
front snap (E) first and then the rear snap (F). The
rear snap is adjustable for ease of installation.

yellowblue
2-53
5. Pull the boot center cover from behind the rear
seatback and place it over the inner sides of the boot
side covers and the lowered top.6. Go to the rear of the vehicle. Place the boot center
cover along the trunk lid opening. Align one snap on
the corner of the boot to the ball stud and push
forward. Repeat for other snap.
7. Close the trunk lid.
8. Raise the rear seatback to the up position. Push the
seat back to make sure it is latched.

yellowblue

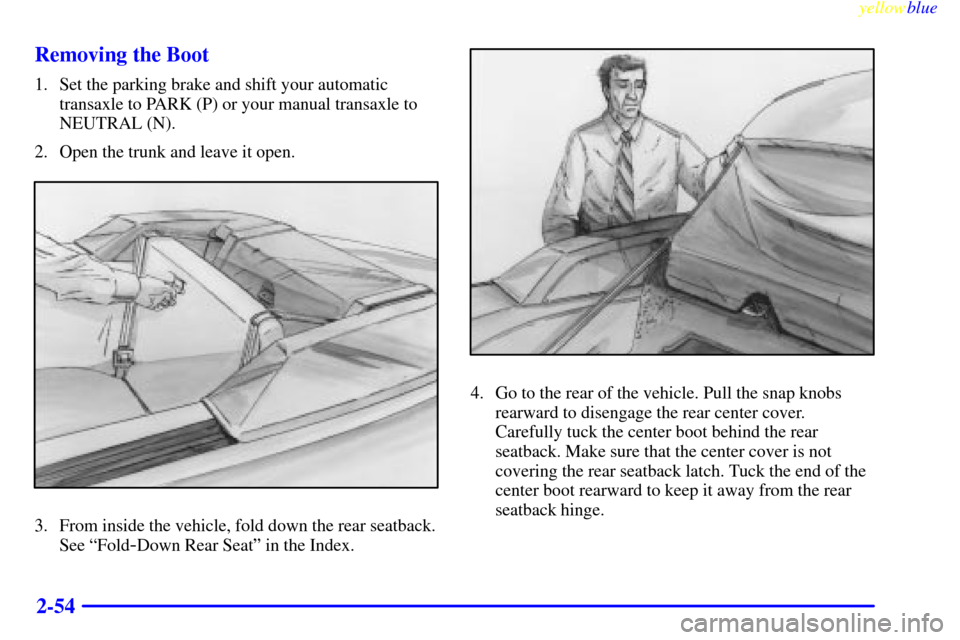

2-54 Removing the Boot
1. Set the parking brake and shift your automatic
transaxle to PARK (P) or your manual transaxle to
NEUTRAL (N).
2. Open the trunk and leave it open.
3. From inside the vehicle, fold down the rear seatback.
See ªFold
-Down Rear Seatº in the Index.
4. Go to the rear of the vehicle. Pull the snap knobs
rearward to disengage the rear center cover.
Carefully tuck the center boot behind the rear
seatback. Make sure that the center cover is not
covering the rear seatback latch. Tuck the end of the
center boot rearward to keep it away from the rear
seatback hinge.

yellowblue
2-55

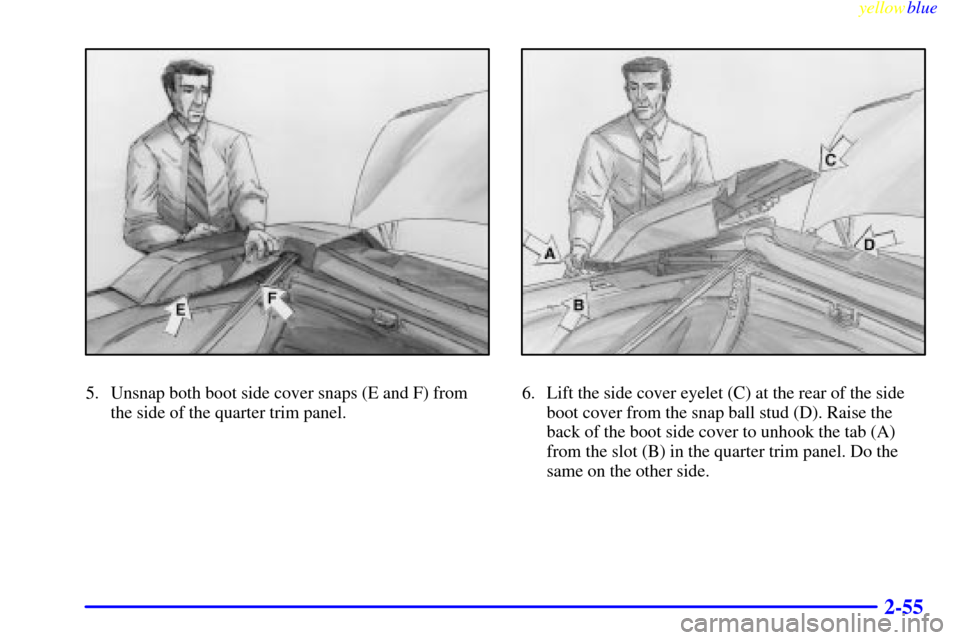

5. Unsnap both boot side cover snaps (E and F) from
the side of the quarter trim panel.6. Lift the side cover eyelet (C) at the rear of the side
boot cover from the snap ball stud (D). Raise the
back of the boot side cover to unhook the tab (A)
from the slot (B) in the quarter trim panel. Do the
same on the other side.

yellowblue
2-56
7. Store both boot side covers in the trunk.
8. Close the trunk.
9. Raise the rear seatback to the up position. Push the
seat back to make sure it is latched. Ensure that the
rear seatbelts do not become trapped behind the
rear seats.

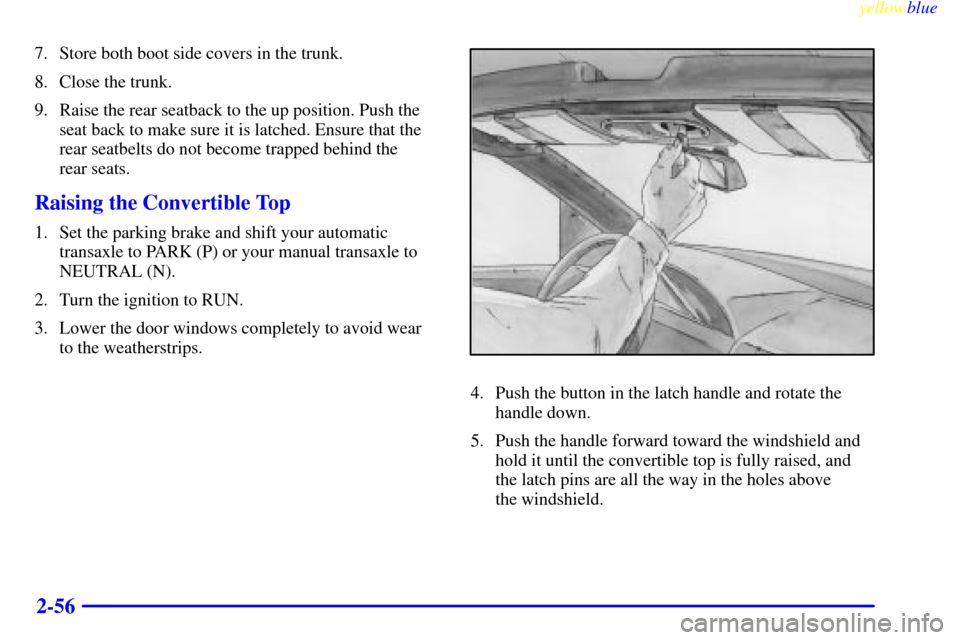

Raising the Convertible Top
1. Set the parking brake and shift your automatic
transaxle to PARK (P) or your manual transaxle to
NEUTRAL (N).
2. Turn the ignition to RUN.
3. Lower the door windows completely to avoid wear
to the weatherstrips.
4. Push the button in the latch handle and rotate the
handle down.
5. Push the handle forward toward the windshield and
hold it until the convertible top is fully raised, and
the latch pins are all the way in the holes above
the windshield.
