Page 231 of 364

CHEVROLET CAVALIER 2003 3.G Owners Manual When you put the fuel cap back on, turn it to the right
(clockwise) until you hear a clicking sound. Make sure
you fully install the cap. The diagnostic system can
determine if the fuel cap has been l

Page 232 of 364

CHEVROLET CAVALIER 2003 3.G Owners Manual Checking Things Under
the Hood
{CAUTION:
An electric fan under the hood can start up
and injure you even when the engine is not
running. Keep hands, clothing and tools away
from any underhood electric

Page 233 of 364

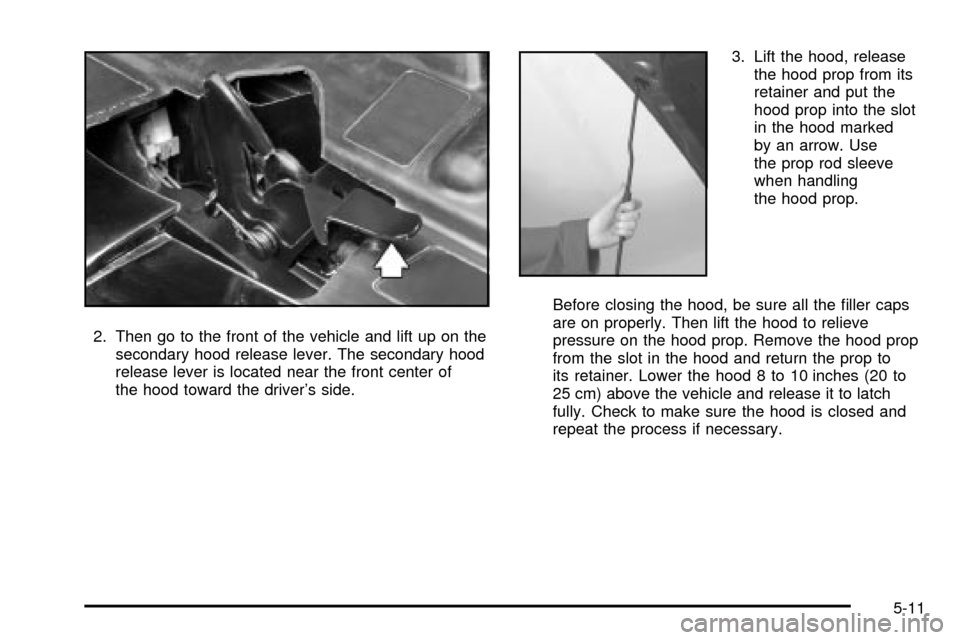

CHEVROLET CAVALIER 2003 3.G Owners Manual 2. Then go to the front of the vehicle and lift up on the
secondary hood release lever. The secondary hood
release lever is located near the front center of
the hood toward the drivers side.3. Lift t

Page 234 of 364

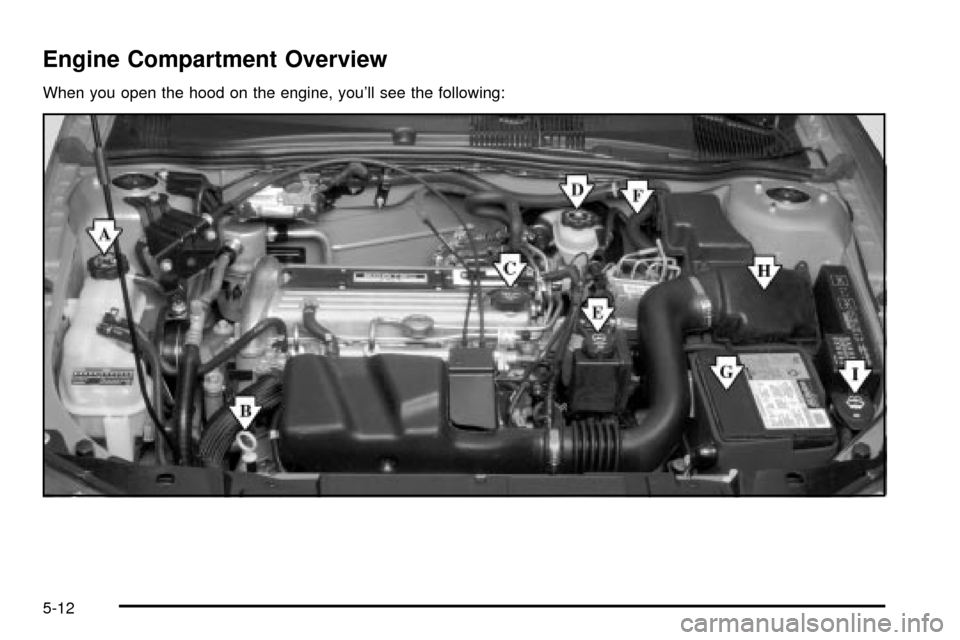

CHEVROLET CAVALIER 2003 3.G Owners Manual Engine Compartment Overview
When you open the hood on the engine, youll see the following:
5-12

Page 235 of 364

CHEVROLET CAVALIER 2003 3.G Owners Manual A. Coolant Surge Tank
B. Engine Oil Dipstick
C. Engine Oil Fill Cap
D. Brake Fluid Reservoir
E. Power Steering Fluid ReservoirF. Clutch Master Cylinder Reservoir
(If Equipped) (Not Shown)
G. Battery
H

Page 236 of 364

CHEVROLET CAVALIER 2003 3.G Owners Manual Engine Oil
If the oil pressure light
appears on the instrument
cluster, it means you
need to check your engine
oil level right away.
For more information, see
Oil Pressure Light on
page 3-33.
You shou

Page 237 of 364

CHEVROLET CAVALIER 2003 3.G Owners Manual When to Add Engine Oil
If the oil is at or below the MIN mark, then youll need to
add at least one quart of oil. But you must use the
right kind. This part explains what kind of oil to use. For
engin

Page 238 of 364

CHEVROLET CAVALIER 2003 3.G Owners Manual What Kind of Engine Oil to Use
Oils recommended for your vehicle can be identi®ed by
looking for the starburst symbol.
This symbol indicates that the oil has been certi®ed by
the American Petroleum

Page 239 of 364

CHEVROLET CAVALIER 2003 3.G Owners Manual As in the chart shown previously, SAE 5W-30 is the
only viscosity grade recommended for your vehicle. You
should look for and use only oils which have the API
Starburst symbol and which are also ident

Page 240 of 364

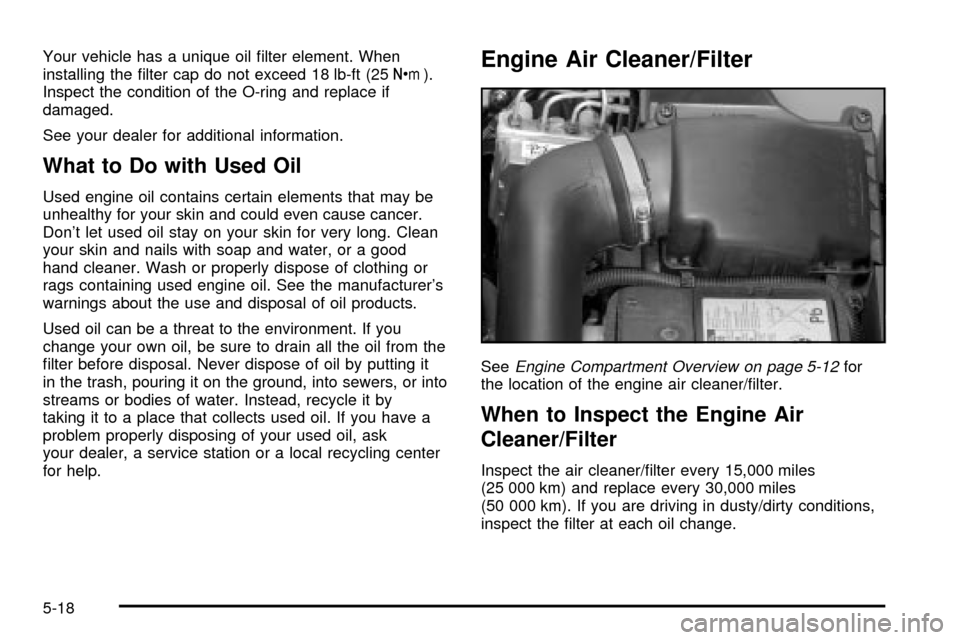

CHEVROLET CAVALIER 2003 3.G Owners Manual Your vehicle has a unique oil ®lter element. When
installing the ®lter cap do not exceed 18 lb-ft (25Y).
Inspect the condition of the O-ring and replace if
damaged.
See your dealer for additional in
