CHEVROLET COBALT 2006 1.G Owners Manual

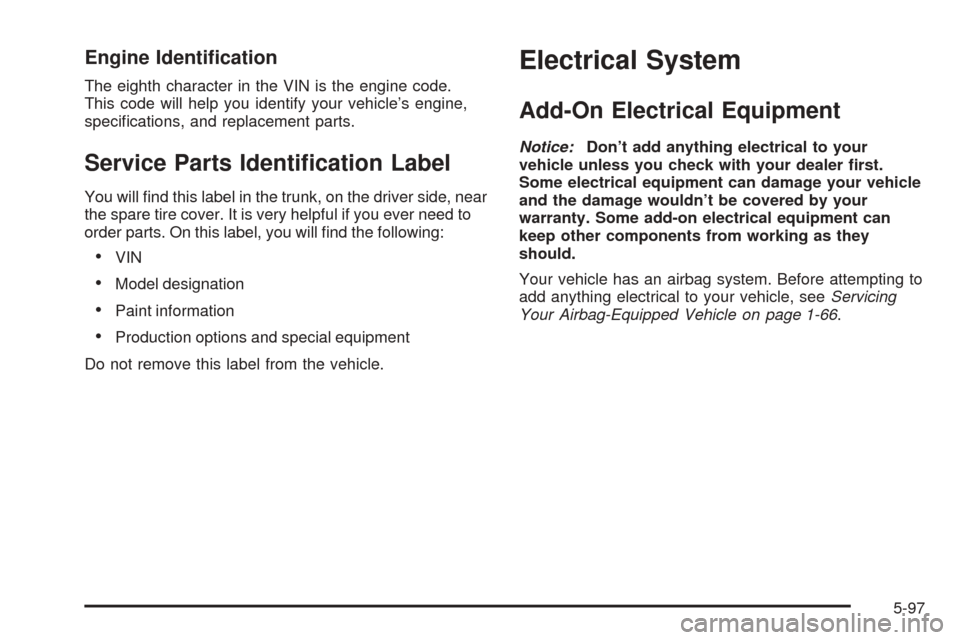

Engine Identication
The eighth character in the VIN is the engine code.
This code will help you identify your vehicle’s engine,
specications, and replacement parts.
Service Parts Identication Label
You will nd this label in the trunk, on the driver side, near
the spare tire cover. It is very helpful if you ever need to
order parts. On this label, you will nd the following:
VIN
Model designation
Paint information
Production options and special equipment
Do not remove this label from the vehicle.
Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your
vehicle unless you check with your dealer rst.
Some electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can
keep other components from working as they
should.
Your vehicle has an airbag system. Before attempting to
add anything electrical to your vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 1-66.
5-97

Headlamp Wiring
The headlamp wiring is protected by fuses. Should your
headlamps fail to function, have your headlamp
system checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow or ice, the wiper will stop until the motor cools.
If the overload is caused by some electrical problem,
have it xed.
Power Windows and Other
Power Options
Fuses in the fuse block protect the power windows.
When the current load is too heavy, the fuse opens
protecting the circuit until the problem is xed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance of damage caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating.
If you ever have a problem on the road and do not have
a spare fuse, you can “borrow” one that has the same
amperage. Just pick some feature of your vehicle
that you can get along without — like the radio or
cigarette lighter — and use its fuse if it is the correct
amperage. Replace it as soon as you can.
There are two fuse blocks in your vehicle: the oor
console fuse block and the engine compartment
fuse block.
5-98

Floor Console Fuse Block
The oor console fuse block is located on the
passenger’s side of the oor console under the
instrument panel. To access the fuse block, remove
the panel on the side of the console.
Fuses Usage
1 Fuse Puller
2 Spare
3 Spare
4 Spare
5 Spare
5-99

Fuses Usage
6 Amplier
7 Cluster
8 Ignition Switch, PASS-Key
®III+
9 Stoplamp
10Heating, Ventilation, Air
Conditioning, PASS-Key
®III+
11 Empty
12 Spare
13 Airbag
14 Spare
15 Windshield Wiper
16 Climate Control System, Cluster
17 Empty
18 Empty
19Electric Power Steering, Steering
Wheel Control
20 Sunroof
Fuses Usage
21 Spare
22 Empty
23 Audio System
24Sensing and Diagnostic Module
(Airbag)
25Engine Control Module,
Transmission Control Module
26 Door Locks
27 Interior Lights
28 Empty
29 Power Windows
Relays Usage
30 Climate Control System
31 Empty
32 Retained Accessory Power
5-100

Engine Compartment Fuse Block
The engine compartment fuse block is located on the driver’s side of the vehicle. Lift off the cover to check the
fuses. SeeEngine Compartment Overview on page 5-12for more information on location.
2.2L Engine (L61) and 2.4L Engine (LE5)
5-101

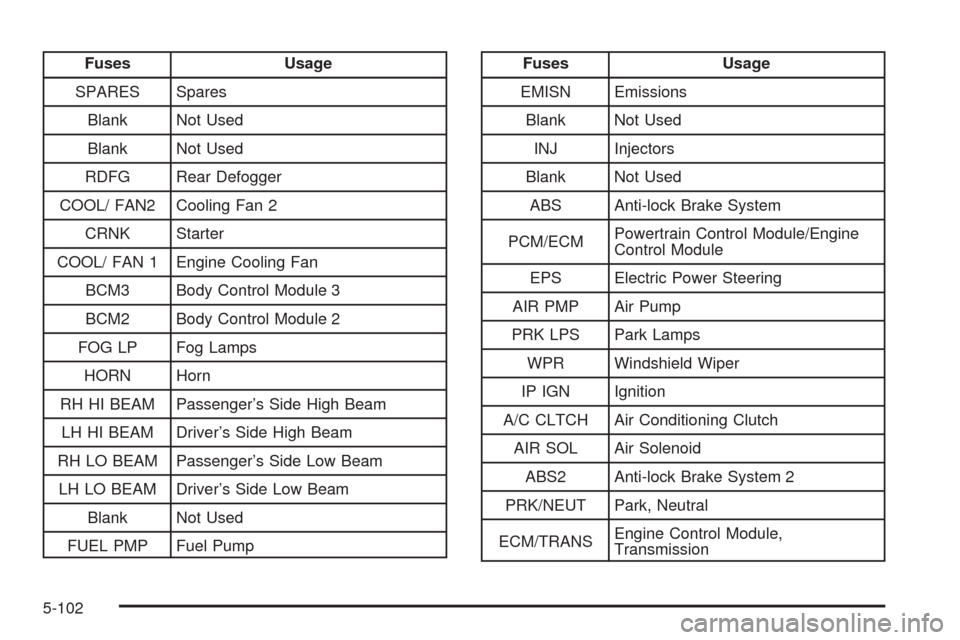

Fuses Usage
SPARES Spares
Blank Not Used
Blank Not Used
RDFG Rear Defogger
COOL/ FAN2 Cooling Fan 2
CRNK Starter
COOL/ FAN 1 Engine Cooling Fan
BCM3 Body Control Module 3
BCM2 Body Control Module 2
FOG LP Fog Lamps
HORN Horn
RH HI BEAM Passenger’s Side High Beam
LH HI BEAM Driver’s Side High Beam
RH LO BEAM Passenger’s Side Low Beam
LH LO BEAM Driver’s Side Low Beam
Blank Not Used
FUEL PMP Fuel PumpFuses Usage
EMISN Emissions
Blank Not Used
INJ Injectors
Blank Not Used
ABS Anti-lock Brake System
PCM/ECMPowertrain Control Module/Engine
Control Module
EPS Electric Power Steering
AIR PMP Air Pump
PRK LPS Park Lamps
WPR Windshield Wiper
IP IGN Ignition
A/C CLTCH Air Conditioning Clutch
AIR SOL Air Solenoid
ABS2 Anti-lock Brake System 2
PRK/NEUT Park, Neutral
ECM/TRANSEngine Control Module,
Transmission
5-102

Fuses Usage
BCK UP Back-Up Lamps
TRUNK/
OUTLETTrunk, Accessory Power Outlet
Blank Not Used
Blank Not Used
S BAND/
ONSTARAudio, OnStar
®
Blank Not Used
LTR Cigarette Lighter
MIR (S) Mirrors
HTD SEATS Heated Seats
CNSTR VENT Canister Vent
Relays Usage
RDFG Rear Defogger
COOL/ FAN2 Cooling Fan 2
WPR2 Windshield Wiper 2
CRNK Starter
COOL/ FAN1 Cooling Fan 1
FUEL PUMP Fuel Pump
WPR1 Windshield Wiper 1
PWR/TRN Powertrain
AIR PMP Air Pump
A/C CLTCH Air Conditioning Clutch
AIR SOL Air Solenoid
RUN/CRNK Run, Crank
5-103

Cobalt SS 2.0L L4 Supercharged Engine
5-104

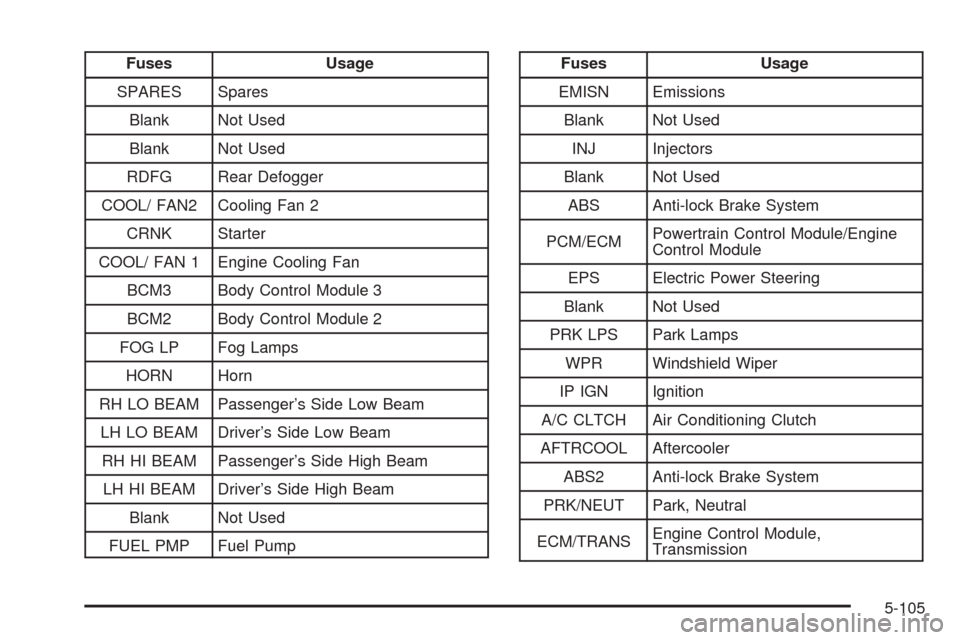

Fuses Usage
SPARES Spares
Blank Not Used
Blank Not Used
RDFG Rear Defogger
COOL/ FAN2 Cooling Fan 2
CRNK Starter
COOL/ FAN 1 Engine Cooling Fan
BCM3 Body Control Module 3
BCM2 Body Control Module 2
FOG LP Fog Lamps
HORN Horn
RH LO BEAM Passenger’s Side Low Beam
LH LO BEAM Driver’s Side Low Beam
RH HI BEAM Passenger’s Side High Beam
LH HI BEAM Driver’s Side High Beam
Blank Not Used
FUEL PMP Fuel PumpFuses Usage
EMISN Emissions
Blank Not Used
INJ Injectors
Blank Not Used
ABS Anti-lock Brake System
PCM/ECMPowertrain Control Module/Engine
Control Module
EPS Electric Power Steering
Blank Not Used
PRK LPS Park Lamps
WPR Windshield Wiper
IP IGN Ignition
A/C CLTCH Air Conditioning Clutch
AFTRCOOL Aftercooler
ABS2 Anti-lock Brake System
PRK/NEUT Park, Neutral
ECM/TRANSEngine Control Module,
Transmission
5-105

Fuses Usage
BCK UP Back-Up Lamps
TRUNK/
OUTLETTrunk, Accessory Power Outlet
Blank Not Used
Blank Not Used
S BAND/
ONSTARAudio, OnStar
®
Blank Not Used
LTR Cigarette Lighter
MIR (S) Mirrors
HTD SEATS Heated Seats
CNSTR VENT Canister Vent
Relays Usage
RDFG Rear Defogger
COOL/ FAN2 Cooling Fan 2
WPR2 Windshield Wiper 2
CRNK Starter
COOL/ FAN1 Cooling Fan 1
FUEL PUMP Fuel Pump
WPR1 Windshield Wiper 1
COOL
SER/PARSeries/Parallel Cooling Fan
PWR/TRN Powertrain
A/C CLTCH Air Conditioning Clutch
AFTRCOOL Aftercooler Pump
RUN/CRNK Run, Crank
5-106
