CHEVROLET COLORADO 2006 1.G User Guide

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.If your seats have manual reclining seatbacks, the lever
used to operate them is located on the outboard side
of the seat(s).
To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it
is locked.
1-5

To return the seatback to an upright position, do the
following:
1. Lift the lever fully without applying pressure to
the seatback and the seatback will return to the
upright position.
2. Push and pull on the seatback to make sure it
is locked.Power Reclining Seatbacks
If the seats have power
reclining seatbacks,
use the vertical power seat
control located on the
outboard side of the seat.
To recline the seatback, press the control toward
the rear of the vehicle.
To raise the seatback, press the control toward the
front of the vehicle.
1-6

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because
it will not be against your body. Instead, it will
be in front of you. In a crash, you could go
into it, receiving neck or other injuries.
The lap belt cannot do its job either. In a
crash, the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Do not have a seatback reclined if your vehicle is moving.
1-7

Head Restraints
Your front seats may have adjustable head restraints.
If your vehicle has rear seats, they may have adjustable
head restraints.
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chance of a neck injury
in a crash.Pull up on the head
restraint to raise it. To
lower the head restraint,
press the button located
on top of the seatback
and push down on
the head restraint.
1-8

Seatback Latches
Your vehicle may have front seatbacks that fold forward
for easy access to the rear seats or the storage area
behind the seats.
To fold the seatback
forward, push the lever
on the side of the
seat rearward and pull
the seatback forward.{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.
To return the seatback to the upright position,
push the seatback all the way back until it latches.
If the seatback was reclined before being folded
forward, it will return to the reclined position.
1-9

Rear Seats
Rear Seat Operation (Crew Cab)
The rear seatback(s) in the crew cab can be folded
forward.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.To fold the rear seatback(s) forward, do the following:
1. Disconnect the rear center safety belt latch from the
mini buckle by inserting the tip of the safety belt
tongue into the slot on the buckle. Let the belt retract.
1-10

2. Pull the loop, located
on the outboard side of
the seatback, forward
until you hear a click.
3. Fold the seatback(s) forward.
To return the seatback(s) to the upright position,
do the following:
1. Lift the seatback(s) and push it into place.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it
is locked.2. Make sure the seatback(s) is locked by pushing
and pulling on it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
3. Reconnect the center safety belt latch plate to
the mini buckle. Make sure the safety belt is not
twisted. Push and pull on the latch plate to be
sure it is secure.
When the seatback is not in use, it should be kept in
the upright, locked position.
1-11

Rear Seat Operation (Extended Cab)
If your vehicle has an
extended cab, there may
be forward folding seats
in the rear area.
To fold the rear seat cushion(s) from the stored position
to the sitting position, pull the front of the seat cushion
down completely.
The rear seat storage compartments must be closed
before folding the seat down. SeeRear Storage Area
on page 2-44.To store the seat, do the following:
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1. Secure the safety belt buckle to the inboard side
of the seat with the hook and loop fastener (A),
so that it does not move when not in use.
2. Push the entire seat up until it is ush with the
trim panel.
1-12

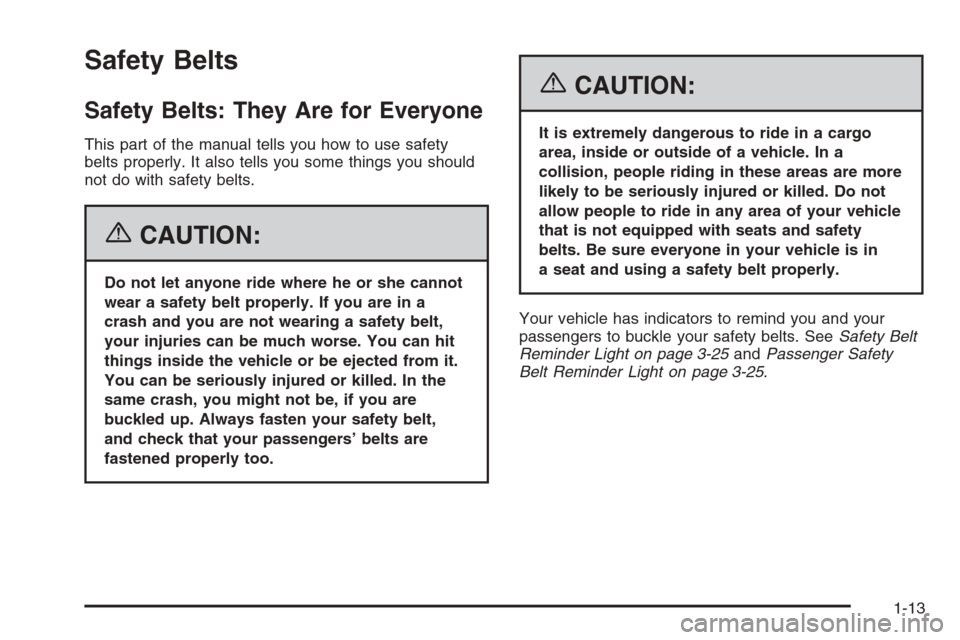

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in
a seat and using a safety belt properly.
Your vehicle has indicators to remind you and your
passengers to buckle your safety belts. SeeSafety Belt
Reminder Light on page 3-25andPassenger Safety
Belt Reminder Light on page 3-25.
1-13

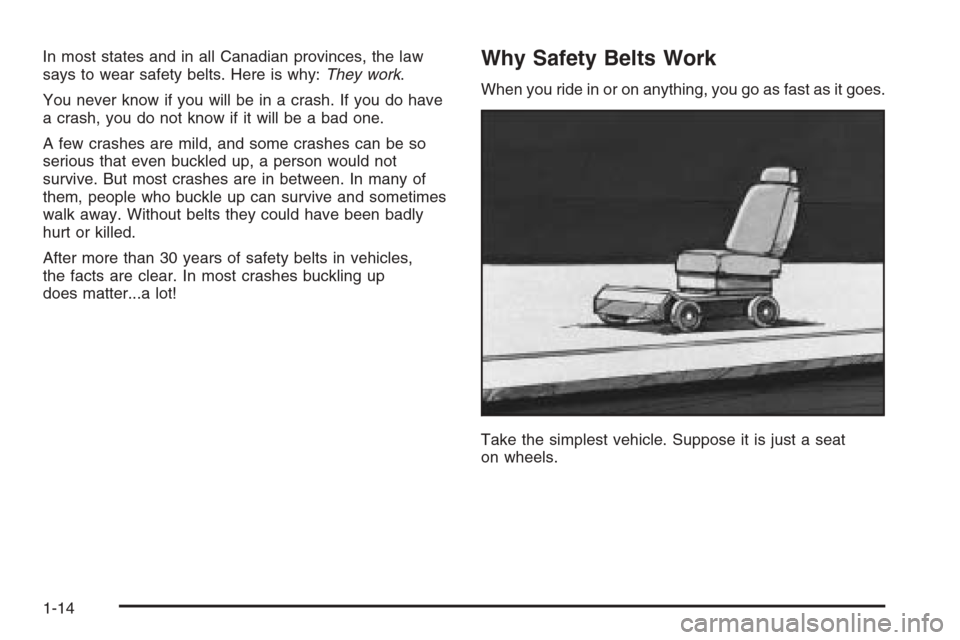

In most states and in all Canadian provinces, the law
says to wear safety belts. Here is why:They work.
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter...a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as it goes.
Take the simplest vehicle. Suppose it is just a seat
on wheels.
