CHEVROLET COLORADO 2007 1.G Owners Manual

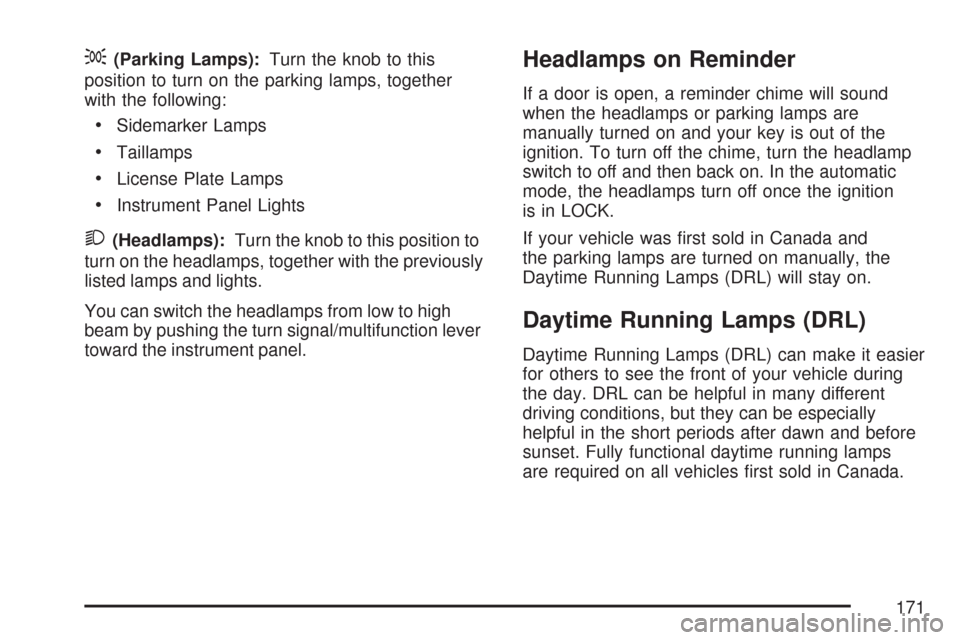

;(Parking Lamps):Turn the knob to this
position to turn on the parking lamps, together
with the following:
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
2(Headlamps):Turn the knob to this position to
turn on the headlamps, together with the previously
listed lamps and lights.
You can switch the headlamps from low to high
beam by pushing the turn signal/multifunction lever
toward the instrument panel.
Headlamps on Reminder
If a door is open, a reminder chime will sound
when the headlamps or parking lamps are
manually turned on and your key is out of the
ignition. To turn off the chime, turn the headlamp
switch to off and then back on. In the automatic
mode, the headlamps turn off once the ignition
is in LOCK.
If your vehicle was rst sold in Canada and
the parking lamps are turned on manually, the
Daytime Running Lamps (DRL) will stay on.
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different
driving conditions, but they can be especially
helpful in the short periods after dawn and before
sunset. Fully functional daytime running lamps
are required on all vehicles rst sold in Canada.
171

The DRL system will come on when the following
conditions are met:
The ignition is on.
The exterior lamps control is in AUTO.
The transmission is not in PARK (P) if you
have an automatic transmission.
The light sensor determines it is daytime.
Your vehicle will have either the parking lamps or
reduced intensity low beams used as the DRL.
When the DRL are on, only those lamps will be on.
The taillamps, sidemarkers, and other lamps will
not be on. The instrument panel will not be lit
up either.
When it begins to get dark, the headlamps will
automatically switch from DRL to the regular
headlamps.
As with any vehicle, you should turn on the
regular headlamp system when you need it.
Automatic Headlamp System
When it is dark enough outside, the automatic
headlamp system will turn on after the
transmission has been shifted from PARK (P) to
DRIVE (D). The headlamps, taillamps, sidemarker,
parking lamps, roof marker lamps, and the
instrument panel lights will turn on at normal
brightness. The radio lights will become more dim
when the headlights are off compared to when
the headlights are on.
Your vehicle has a light sensor located on the
top of the instrument panel. Be sure it is not
covered, or the system will be on whenever the
ignition is on.
The system may also turn on the headlamps when
driving through a parking garage, heavy overcast
weather, or a tunnel. This is normal.
172

There is a delay in the transition between
the daytime and nighttime operation of the
Daytime Running Lamps (DRL) and the automatic
headlamp system so that driving under bridges
or bright overhead street lights does not affect
the system. The DRL and automatic headlamp
system will only be affected when the light sensor
detects a change in lighting lasting longer than
the delay.
If you start your vehicle in a dark garage, the
automatic headlamp system will come on
immediately. Once you leave the garage, it will
take about one minute for the automatic headlamp
system to change to DRL if it is light outside.
During that delay, the instrument panel cluster
may not be as bright as usual. Make sure
the instrument panel brightness control is in
the full bright position. SeeInstrument Panel
Brightness on page 174.Fog Lamps
If your vehicle has fog lamps, you can use them
for better vision in foggy or misty conditions.
Your parking lamps and/or low-beam headlamps
must be on for your fog lamps to work.
The fog lamp button is
located near the exterior
lamps control.
Press the button to turn the fog lamps on while
the headlamps or parking lamps are on. Press the
button again to turn them off. An indicator light
will glow in the button when the fog lamps are on.
Remember, fog lamps alone will not give off as
much light as your headlamps. Never use your fog
lamps in the dark without turning on the headlamps.
The fog lamps will go off whenever your
high-beam headlamps come on. When the high
beams go off, the fog lamps will come on again.
Some localities have laws that require the
headlamps to be on along with the fog lamps.
173

Exterior Cargo Lamps
The cargo lamps can be used if more light is
needed in the cargo area of the vehicle or in the
top-box storage units.
Press this button,
located on the
driver side of the
instrument panel
near the exterior
lamp control, to
turn the cargo
lamps on and off.
The dome lamps must be on for the cargo lamps
to come on. SeeDome Lamp on page 174.
Interior Lamps
The thumbwheel for the interior lamps is located
next to the exterior lamps control. SeeExterior
Lamps on page 170for additional information
on location.
Instrument Panel Brightness
D(Instrument Panel Lights):Turn the
thumbwheel up or down to brighten or dim the
instrument panel lights and the radio display.
The instrument panel lights, cluster, and radio
display do not dim to complete darkness.
The instrument panel light brightness control
will only work if the headlamps or parking lamps
are on. SeeExterior Lamps on page 170.
Dome Lamp
The dome lamp will come on when a door is
opened. They will shut off several seconds after
all doors are closed.
You can also turn the dome lamp on manually
by turning the interior lamps thumbwheel all
the way up. In this position, the dome lamp will
remain on whether a door is opened or closed.
SeeInterior Lamps on page 174for additional
information on location.
174

Dome Lamp Override
E(Dome Override):Press this button, located
below the exterior lamp control, to turn the
dome lamp off even when a door is opened.
SeeExterior Lamps on page 170for more
information on location.
To return the lamp to automatic operation,
press the button again.
Exit Lighting
With exit lighting, the interior lamps will come
on when you remove the key from the ignition.
The lamps will not come on if the dome override
button is pressed in.
Electric Power Management
The vehicle has Electric Power Management (EPM)
that estimates the battery’s temperature and state
of charge. It then adjusts the voltage for best
performance and extended life of the battery.When the battery’s state of charge is low, the
voltage is raised slightly to quickly put the charge
back in. When the state of charge is high, the
voltage is lowered slightly to prevent overcharging.
If the vehicle has a voltmeter gage, you may
see the voltage move up or down. This is normal.
If there is a problem, an alert will be displayed.
The battery can be discharged at idle if the electrical
loads are very high. This is true for all vehicles.
This is because the generator (alternator) may not
be spinning fast enough at idle to produce all the
power that is needed for very high electrical loads.
A high electrical load occurs when several of the
following loads are on: headlamps, high beams,
fog lamps, rear window defogger, climate
control fan at high speed, heated seats, engine
cooling fans, trailer loads, and loads plugged
into accessory power outlets.Battery Run-Down Protection
This feature shuts off the dome lamp if it is left
on for more than 20 minutes when the ignition
is in LOCK. This will help prevent your battery
from running down.
175

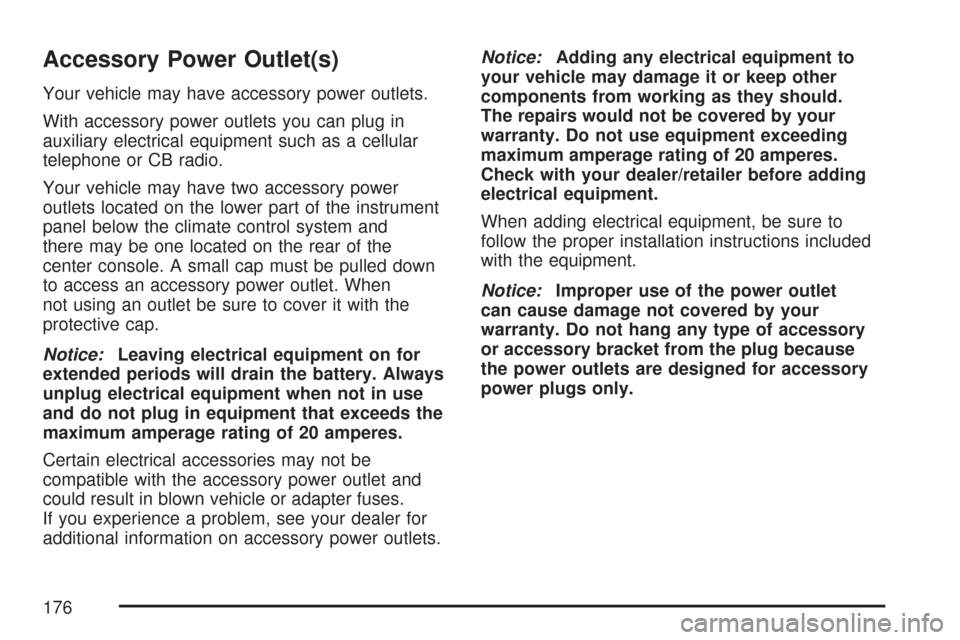

Accessory Power Outlet(s)
Your vehicle may have accessory power outlets.
With accessory power outlets you can plug in
auxiliary electrical equipment such as a cellular
telephone or CB radio.
Your vehicle may have two accessory power
outlets located on the lower part of the instrument
panel below the climate control system and
there may be one located on the rear of the
center console. A small cap must be pulled down
to access an accessory power outlet. When
not using an outlet be sure to cover it with the
protective cap.
Notice:Leaving electrical equipment on for
extended periods will drain the battery. Always
unplug electrical equipment when not in use
and do not plug in equipment that exceeds the
maximum amperage rating of 20 amperes.
Certain electrical accessories may not be
compatible with the accessory power outlet and
could result in blown vehicle or adapter fuses.
If you experience a problem, see your dealer for
additional information on accessory power outlets.Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should.
The repairs would not be covered by your
warranty. Do not use equipment exceeding
maximum amperage rating of 20 amperes.
Check with your dealer/retailer before adding
electrical equipment.
When adding electrical equipment, be sure to
follow the proper installation instructions included
with the equipment.
Notice:Improper use of the power outlet
can cause damage not covered by your
warranty. Do not hang any type of accessory
or accessory bracket from the plug because
the power outlets are designed for accessory
power plugs only.
176

Ashtray(s) and Cigarette Lighter
Your vehicle may have a removable ashtray
and cigarette lighter.
The ashtray is located in the center console
area. The ashtray can be removed for cleaning.
When the ashtray is removed, this area can
also be used as a cupholder.
Notice:If you put papers, pins, or other
ammable items in the ashtray, hot cigarettes
or other smoking materials could ignite
them and possibly damage your vehicle.
Never put ammable items in the ashtray.
To use the lighter, press it in all the way, and let
go. When it is ready, it will pop back out by itself.
Notice:Holding a cigarette lighter in while
it is heating does not let the lighter back
away from the heating element when it is hot.
Damage from overheating can occur to the
lighter or heating element, or a fuse could
be blown. Do not hold a cigarette lighter
in while it is heating.
Climate Controls
Climate Control System
With this system you can control the heating,
cooling, and ventilation for your vehicle.
177

Temperature Knob
The left knob on the control panel is used to
adjust the temperature of the air in the vehicle.
Turn the knob clockwise or counterclockwise
to increase or decrease the temperature.
Fan Knob
9
(Fan):The center knob on the control panel
is used to control the fan speed. Turn the knob
clockwise or counterclockwise to increase or
decrease the fan speed.
If the knob is set on “0” (zero), some outside air
will still enter the vehicle and will be directed
according to the position of the mode knob.
Mode Knob
The right knob on the control panel is used to
direct the airow inside your vehicle. Turn the
knob to select one of the following modes:
H(Vent):Select this mode to direct air to
the instrument panel outlets.
\(Bi-Level):Select this mode to direct
approximately half of the air to the instrument
panel outlets, and the remaining air to the
oor outlets and the defroster and side window
outlets. Cooler air is directed to the upper outlets
and warmer air to the oor outlets.
[(Floor):Select this mode to direct air to the
oor outlets. Recirculation is disabled in this mode
because interior window could fog under some
conditions. If this occurs, see “Defogging and
Defrosting” following.
Mode Buttons
@
(Recirculation):This mode recirculates air
inside the cabin, and prevents outside air from
coming in the vehicle. It can be used to prevent
outside odors from entering your vehicle and
cool the air inside your vehicle more quickly. Press
this button to turn the recirculation mode on or
off. An indicator light on the button will come on to
let you know the recirculation mode is activated.
178

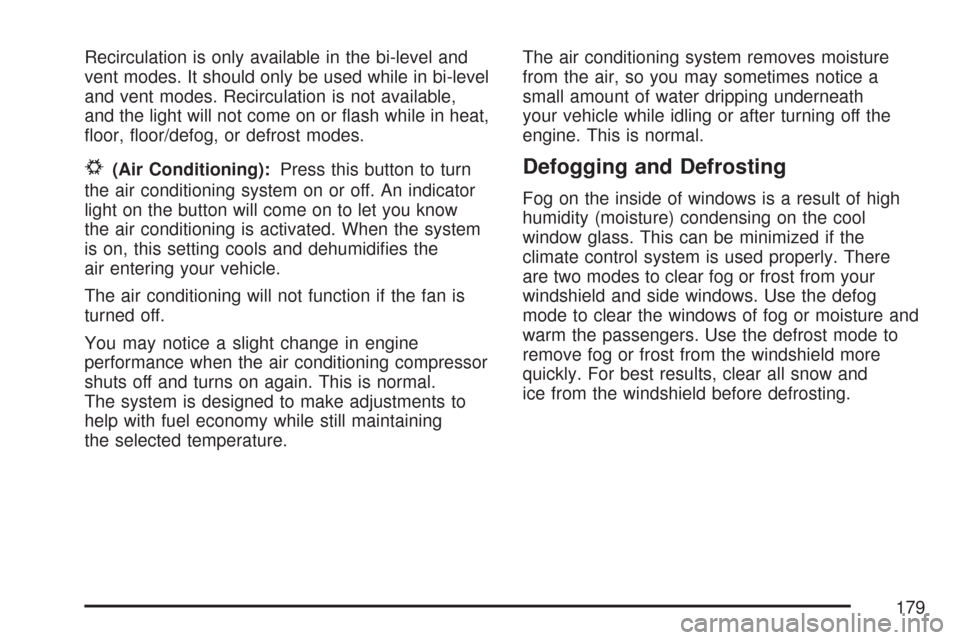

Recirculation is only available in the bi-level and
vent modes. It should only be used while in bi-level
and vent modes. Recirculation is not available,
and the light will not come on or ash while in heat,
oor, oor/defog, or defrost modes.
#(Air Conditioning):Press this button to turn
the air conditioning system on or off. An indicator
light on the button will come on to let you know
the air conditioning is activated. When the system
is on, this setting cools and dehumidies the
air entering your vehicle.
The air conditioning will not function if the fan is
turned off.
You may notice a slight change in engine
performance when the air conditioning compressor
shuts off and turns on again. This is normal.
The system is designed to make adjustments to
help with fuel economy while still maintaining
the selected temperature.The air conditioning system removes moisture
from the air, so you may sometimes notice a
small amount of water dripping underneath
your vehicle while idling or after turning off the
engine. This is normal.Defogging and Defrosting
Fog on the inside of windows is a result of high
humidity (moisture) condensing on the cool
window glass. This can be minimized if the
climate control system is used properly. There
are two modes to clear fog or frost from your
windshield and side windows. Use the defog
mode to clear the windows of fog or moisture and
warm the passengers. Use the defrost mode to
remove fog or frost from the windshield more
quickly. For best results, clear all snow and
ice from the windshield before defrosting.
179

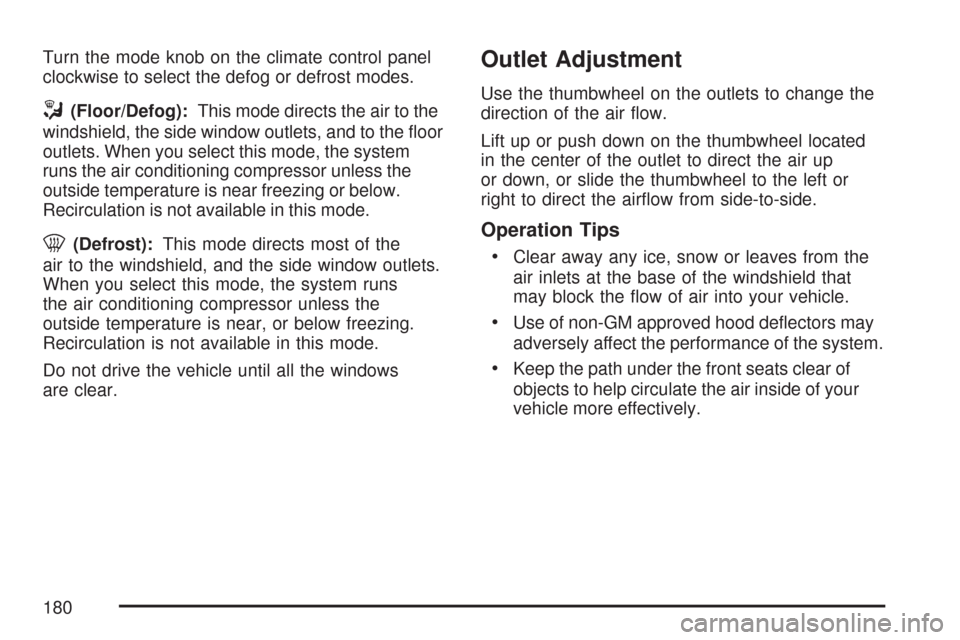

Turn the mode knob on the climate control panel
clockwise to select the defog or defrost modes.
/(Floor/Defog):This mode directs the air to the
windshield, the side window outlets, and to the oor
outlets. When you select this mode, the system
runs the air conditioning compressor unless the
outside temperature is near freezing or below.
Recirculation is not available in this mode.
0(Defrost):This mode directs most of the
air to the windshield, and the side window outlets.
When you select this mode, the system runs
the air conditioning compressor unless the
outside temperature is near, or below freezing.
Recirculation is not available in this mode.
Do not drive the vehicle until all the windows
are clear.
Outlet Adjustment
Use the thumbwheel on the outlets to change the
direction of the air ow.
Lift up or push down on the thumbwheel located
in the center of the outlet to direct the air up
or down, or slide the thumbwheel to the left or
right to direct the airow from side-to-side.
Operation Tips

Clear away any ice, snow or leaves from the
air inlets at the base of the windshield that
may block the ow of air into your vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the system.
Keep the path under the front seats clear of
objects to help circulate the air inside of your
vehicle more effectively.
180
