CHEVROLET COLORADO 2009 1.G Owners Manual

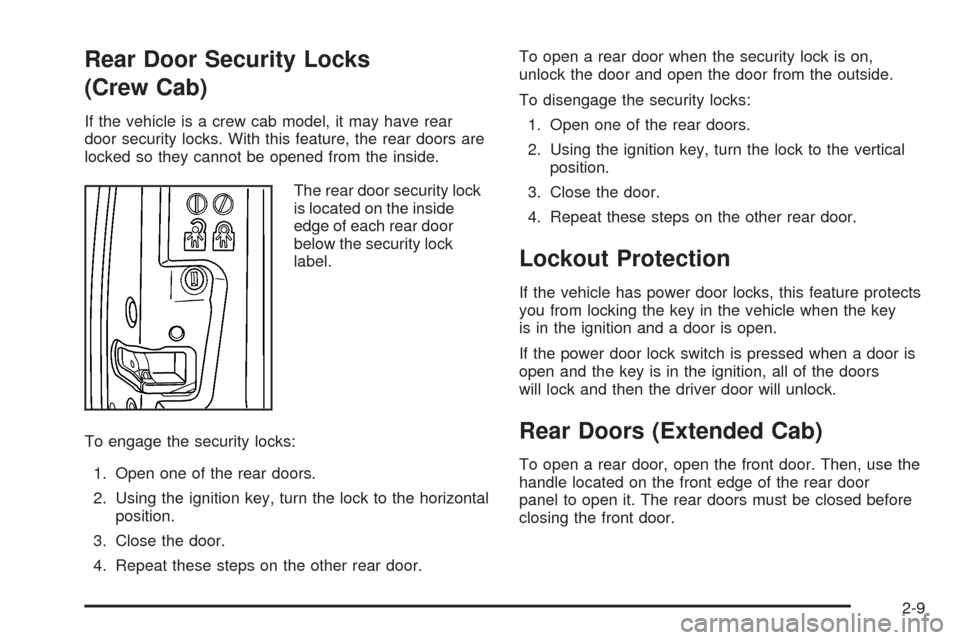

Rear Door Security Locks
(Crew Cab)
If the vehicle is a crew cab model, it may have rear
door security locks. With this feature, the rear doors are
locked so they cannot be opened from the inside.
The rear door security lock
is located on the inside
edge of each rear door
below the security lock
label.
To engage the security locks:
1. Open one of the rear doors.
2. Using the ignition key, turn the lock to the horizontal
position.
3. Close the door.
4. Repeat these steps on the other rear door.To open a rear door when the security lock is on,
unlock the door and open the door from the outside.
To disengage the security locks:
1. Open one of the rear doors.
2. Using the ignition key, turn the lock to the vertical
position.
3. Close the door.
4. Repeat these steps on the other rear door.
Lockout Protection
If the vehicle has power door locks, this feature protects
you from locking the key in the vehicle when the key
is in the ignition and a door is open.
If the power door lock switch is pressed when a door is
open and the key is in the ignition, all of the doors
will lock and then the driver door will unlock.
Rear Doors (Extended Cab)
To open a rear door, open the front door. Then, use the
handle located on the front edge of the rear door
panel to open it. The rear doors must be closed before
closing the front door.
2-9

Tailgate
{CAUTION:
It is extremely dangerous to ride on the tailgate,
even when the vehicle is operated at low speeds.
People riding on the tailgate can easily lose their
balance and fall in response to vehicle maneuvers.
Falling from a moving vehicle may result in serious
injuries or death. Do not allow people to ride on
the tailgate. Be sure everyone in your vehicle is in
a seat and using a safety belt properly.
Open the tailgate by pulling up on the outside handle
while pulling the tailgate down.
When the tailgate is shut, be sure it is latched securely.
On vehicles with a locking tailgate, use the ignition
key. Turn the key counterclockwise to lock the tailgate.
Turn the key clockwise to unlock the tailgate.
2-10

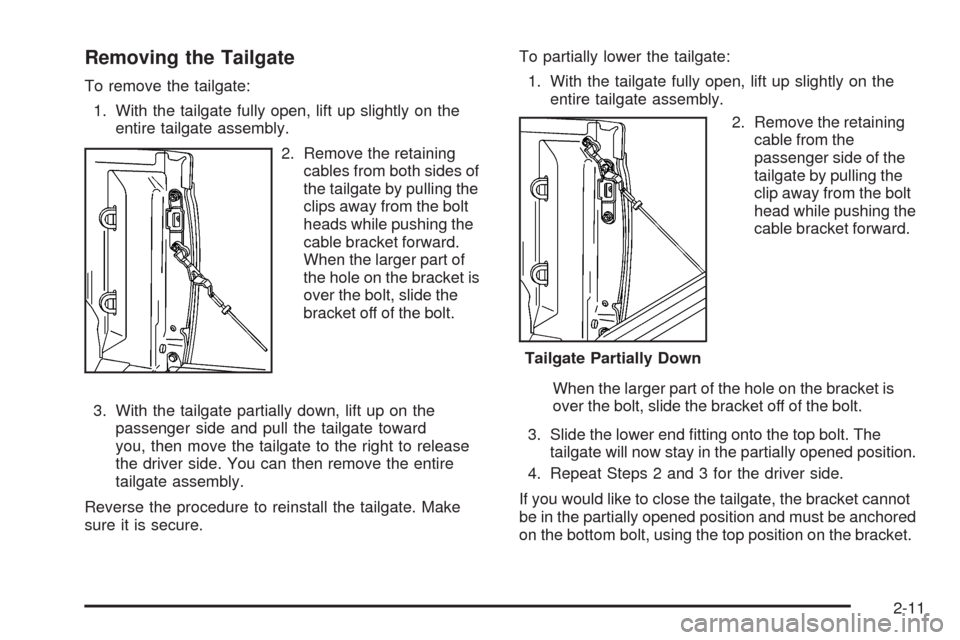

Removing the Tailgate
To remove the tailgate:
1. With the tailgate fully open, lift up slightly on the
entire tailgate assembly.
2. Remove the retaining
cables from both sides of
the tailgate by pulling the
clips away from the bolt
heads while pushing the
cable bracket forward.
When the larger part of
the hole on the bracket is
over the bolt, slide the
bracket off of the bolt.
3. With the tailgate partially down, lift up on the
passenger side and pull the tailgate toward
you, then move the tailgate to the right to release
the driver side. You can then remove the entire
tailgate assembly.
Reverse the procedure to reinstall the tailgate. Make
sure it is secure.To partially lower the tailgate:
1. With the tailgate fully open, lift up slightly on the
entire tailgate assembly.
2. Remove the retaining
cable from the
passenger side of the
tailgate by pulling the
clip away from the bolt
head while pushing the
cable bracket forward.
When the larger part of the hole on the bracket is
over the bolt, slide the bracket off of the bolt.
3. Slide the lower end tting onto the top bolt. The
tailgate will now stay in the partially opened position.
4. Repeat Steps 2 and 3 for the driver side.
If you would like to close the tailgate, the bracket cannot
be in the partially opened position and must be anchored
on the bottom bolt, using the top position on the bracket.
Tailgate Partially Down
2-11

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat and
suffer permanent injuries or even death from heat
stroke. Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the windows
closed in warm or hot weather.
2-12

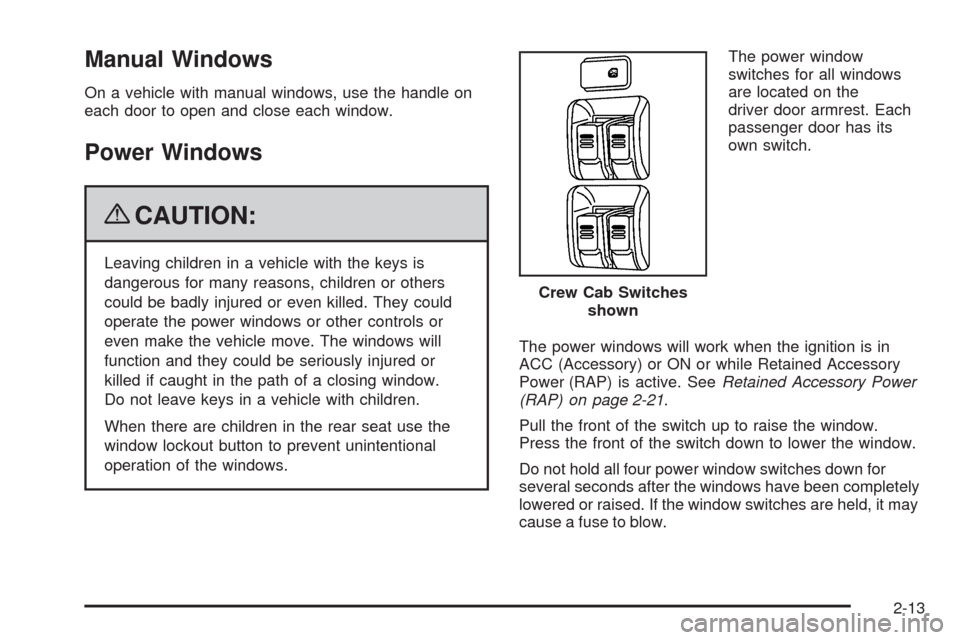

Manual Windows
On a vehicle with manual windows, use the handle on
each door to open and close each window.
Power Windows
{CAUTION:
Leaving children in a vehicle with the keys is
dangerous for many reasons, children or others
could be badly injured or even killed. They could
operate the power windows or other controls or
even make the vehicle move. The windows will
function and they could be seriously injured or
killed if caught in the path of a closing window.
Do not leave keys in a vehicle with children.
When there are children in the rear seat use the
window lockout button to prevent unintentional
operation of the windows.The power window
switches for all windows
are located on the
driver door armrest. Each
passenger door has its
own switch.
The power windows will work when the ignition is in
ACC (Accessory) or ON or while Retained Accessory
Power (RAP) is active. SeeRetained Accessory Power
(RAP) on page 2-21.
Pull the front of the switch up to raise the window.
Press the front of the switch down to lower the window.
Do not hold all four power window switches down for
several seconds after the windows have been completely
lowered or raised. If the window switches are held, it may
cause a fuse to blow.Crew Cab Switches
shown
2-13

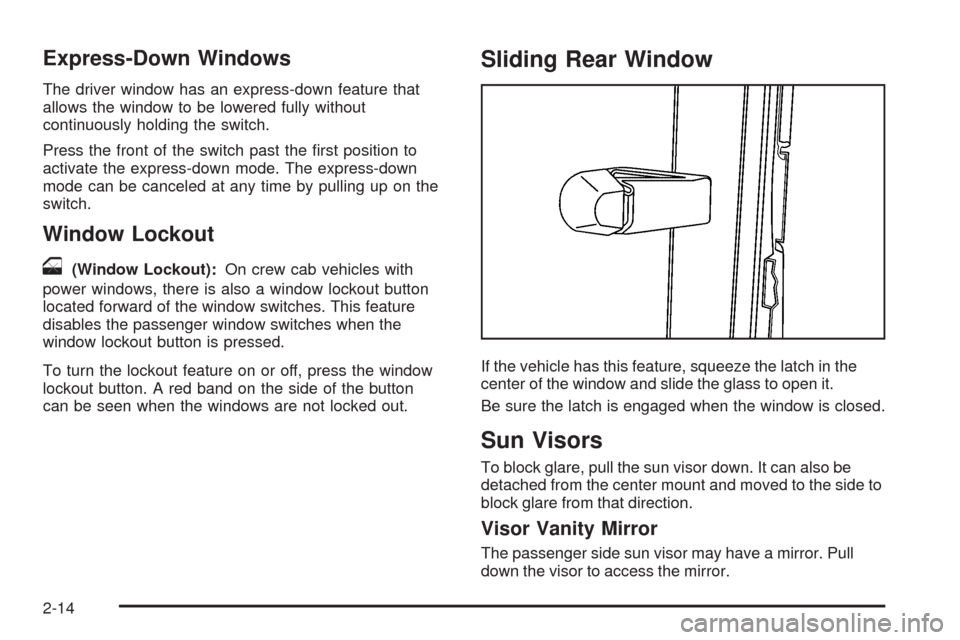

Express-Down Windows
The driver window has an express-down feature that
allows the window to be lowered fully without
continuously holding the switch.
Press the front of the switch past the rst position to
activate the express-down mode. The express-down
mode can be canceled at any time by pulling up on the
switch.
Window Lockout
o
(Window Lockout):On crew cab vehicles with
power windows, there is also a window lockout button
located forward of the window switches. This feature
disables the passenger window switches when the
window lockout button is pressed.
To turn the lockout feature on or off, press the window
lockout button. A red band on the side of the button
can be seen when the windows are not locked out.
Sliding Rear Window
If the vehicle has this feature, squeeze the latch in the
center of the window and slide the glass to open it.
Be sure the latch is engaged when the window is closed.
Sun Visors
To block glare, pull the sun visor down. It can also be
detached from the center mount and moved to the side to
block glare from that direction.
Visor Vanity Mirror
The passenger side sun visor may have a mirror. Pull
down the visor to access the mirror.
2-14

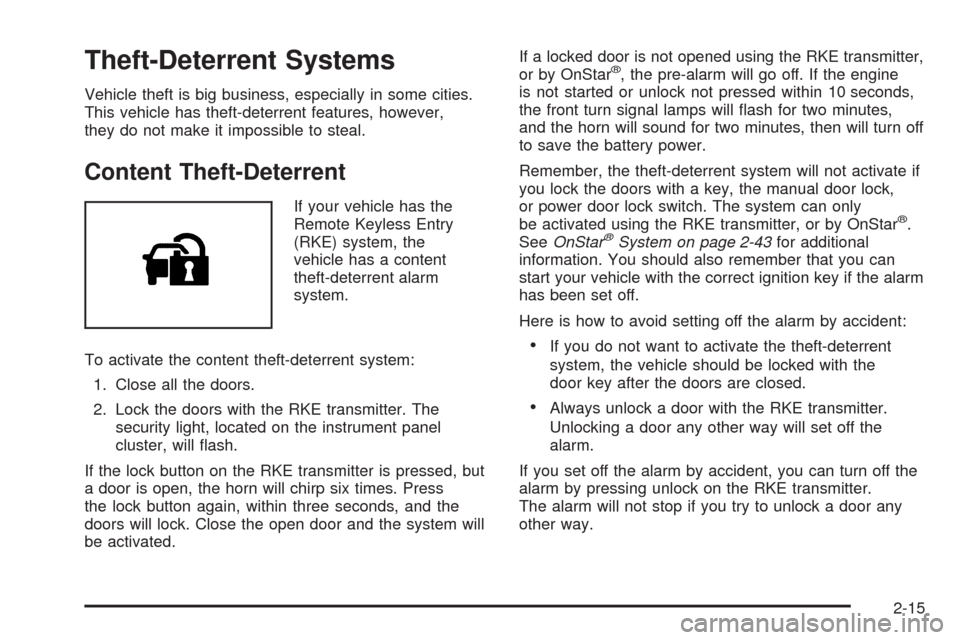

Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
This vehicle has theft-deterrent features, however,
they do not make it impossible to steal.
Content Theft-Deterrent
If your vehicle has the
Remote Keyless Entry
(RKE) system, the
vehicle has a content
theft-deterrent alarm
system.
To activate the content theft-deterrent system:
1. Close all the doors.
2. Lock the doors with the RKE transmitter. The
security light, located on the instrument panel
cluster, will ash.
If the lock button on the RKE transmitter is pressed, but
a door is open, the horn will chirp six times. Press
the lock button again, within three seconds, and the
doors will lock. Close the open door and the system will
be activated.If a locked door is not opened using the RKE transmitter,
or by OnStar
®, the pre-alarm will go off. If the engine
is not started or unlock not pressed within 10 seconds,
the front turn signal lamps will ash for two minutes,
and the horn will sound for two minutes, then will turn off
to save the battery power.
Remember, the theft-deterrent system will not activate if
you lock the doors with a key, the manual door lock,
or power door lock switch. The system can only
be activated using the RKE transmitter, or by OnStar
®.
SeeOnStar®System on page 2-43for additional
information. You should also remember that you can
start your vehicle with the correct ignition key if the alarm
has been set off.
Here is how to avoid setting off the alarm by accident:
If you do not want to activate the theft-deterrent
system, the vehicle should be locked with the
door key after the doors are closed.
Always unlock a door with the RKE transmitter.
Unlocking a door any other way will set off the
alarm.
If you set off the alarm by accident, you can turn off the
alarm by pressing unlock on the RKE transmitter.
The alarm will not stop if you try to unlock a door any
other way.
2-15

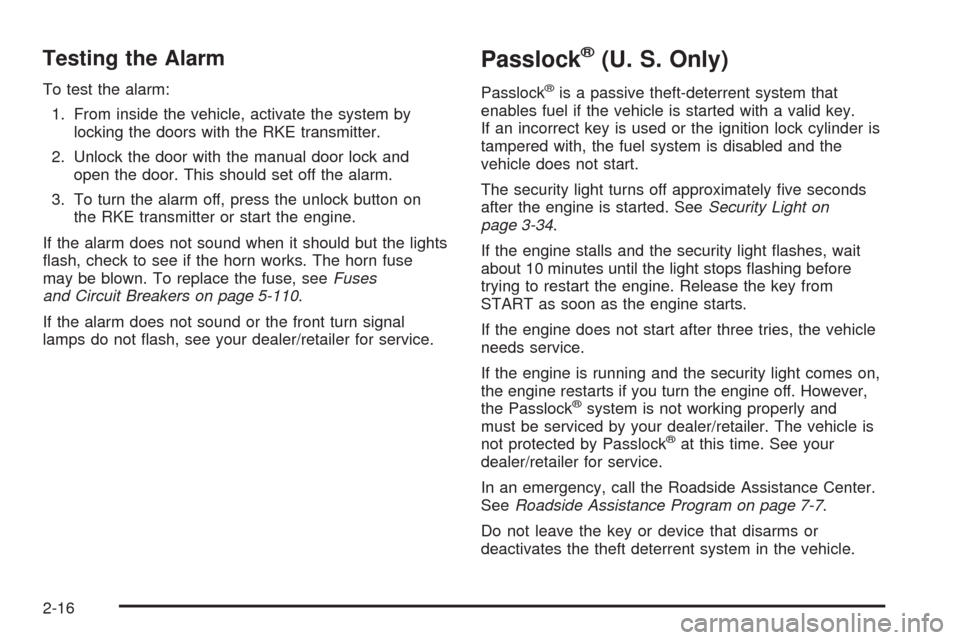

Testing the Alarm
To test the alarm:
1. From inside the vehicle, activate the system by
locking the doors with the RKE transmitter.
2. Unlock the door with the manual door lock and
open the door. This should set off the alarm.
3. To turn the alarm off, press the unlock button on
the RKE transmitter or start the engine.
If the alarm does not sound when it should but the lights
ash, check to see if the horn works. The horn fuse
may be blown. To replace the fuse, seeFuses
and Circuit Breakers on page 5-110.
If the alarm does not sound or the front turn signal
lamps do not ash, see your dealer/retailer for service.
Passlock®(U. S. Only)
Passlock®is a passive theft-deterrent system that
enables fuel if the vehicle is started with a valid key.
If an incorrect key is used or the ignition lock cylinder is
tampered with, the fuel system is disabled and the
vehicle does not start.
The security light turns off approximately ve seconds
after the engine is started. SeeSecurity Light on
page 3-34.
If the engine stalls and the security light ashes, wait
about 10 minutes until the light stops ashing before
trying to restart the engine. Release the key from
START as soon as the engine starts.
If the engine does not start after three tries, the vehicle
needs service.
If the engine is running and the security light comes on,
the engine restarts if you turn the engine off. However,
the Passlock
®system is not working properly and
must be serviced by your dealer/retailer. The vehicle is
not protected by Passlock
®at this time. See your
dealer/retailer for service.
In an emergency, call the Roadside Assistance Center.
SeeRoadside Assistance Program on page 7-7.
Do not leave the key or device that disarms or
deactivates the theft deterrent system in the vehicle.
2-16

PASS-Key®III+ Electronic
Immobilizer
The PASS-Key III+ system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
PASS-Key III+ uses a radio frequency transponder in
the key that matches a decoder in the vehicle.
PASS-Key®III+ Electronic
Immobilizer Operation
(Canada Only)
This vehicle has a passive theft-deterrent system.
The system is automatically armed when the key is
removed from the ignition.
The system is automatically disarmed when the key is
turned to ON/RUN.
You do not have to manually arm or disarm the system.
The security light comes on if there is a problem with
arming or disarming the theft-deterrent system.
The key uses a transponder that matches an immobilizer
control unit in the vehicle. Only the correct key starts
the vehicle. If the key is ever damaged, the vehicle may
not start.
When trying to start the vehicle, if the engine does not
start and the security light comes on, there may be
a problem with the theft-deterrent system. Turn
the ignition off and try again.
2-17

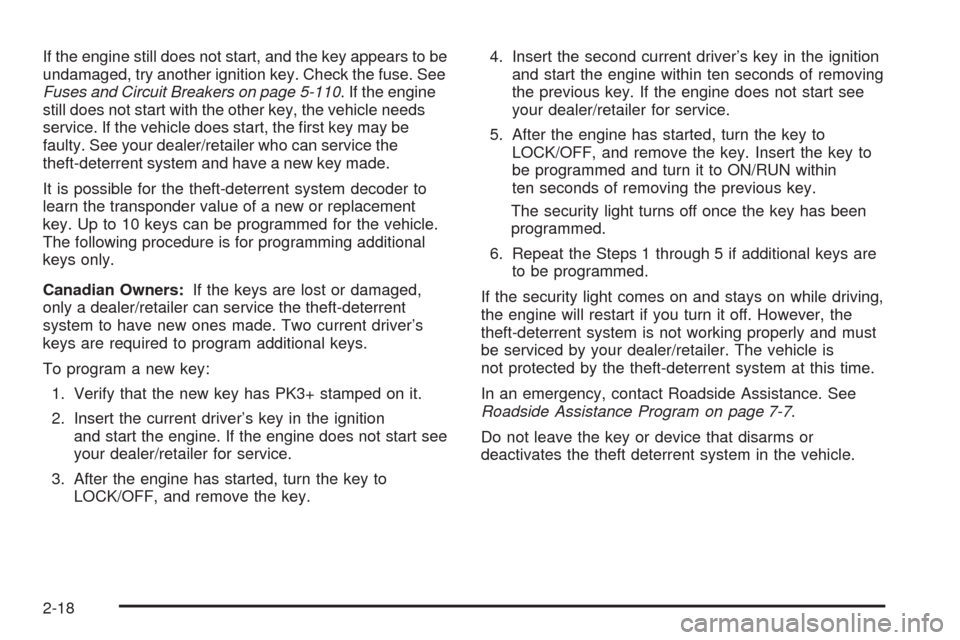

If the engine still does not start, and the key appears to be
undamaged, try another ignition key. Check the fuse. See
Fuses and Circuit Breakers on page 5-110. If the engine
still does not start with the other key, the vehicle needs
service. If the vehicle does start, the rst key may be
faulty. See your dealer/retailer who can service the
theft-deterrent system and have a new key made.
It is possible for the theft-deterrent system decoder to
learn the transponder value of a new or replacement
key. Up to 10 keys can be programmed for the vehicle.
The following procedure is for programming additional
keys only.
Canadian Owners:If the keys are lost or damaged,
only a dealer/retailer can service the theft-deterrent
system to have new ones made. Two current driver’s
keys are required to program additional keys.
To program a new key:
1. Verify that the new key has PK3+ stamped on it.
2. Insert the current driver’s key in the ignition
and start the engine. If the engine does not start see
your dealer/retailer for service.
3. After the engine has started, turn the key to
LOCK/OFF, and remove the key.4. Insert the second current driver’s key in the ignition
and start the engine within ten seconds of removing
the previous key. If the engine does not start see
your dealer/retailer for service.
5. After the engine has started, turn the key to
LOCK/OFF, and remove the key. Insert the key to
be programmed and turn it to ON/RUN within
ten seconds of removing the previous key.
The security light turns off once the key has been
programmed.
6. Repeat the Steps 1 through 5 if additional keys are
to be programmed.
If the security light comes on and stays on while driving,
the engine will restart if you turn it off. However, the
theft-deterrent system is not working properly and must
be serviced by your dealer/retailer. The vehicle is
not protected by the theft-deterrent system at this time.
In an emergency, contact Roadside Assistance. See
Roadside Assistance Program on page 7-7.
Do not leave the key or device that disarms or
deactivates the theft deterrent system in the vehicle.
2-18
