Sunroof
The vehicle may have a sunroof.
The sunroof control
buttons are located on the
headliner.
Q(Open/Vent):Press and hold this button to vent,
and open the sunroof. Release the button when
the desired position is reached.
R(Close):Press and hold this button to close the
sunroof. Continue to hold this button for approximately
two seconds after the sunroof is closed to ensure a
proper seal. Release the button when the desired
position is reached.
The sunshade must be opened manually.
2-49

✍NOTES
2-50

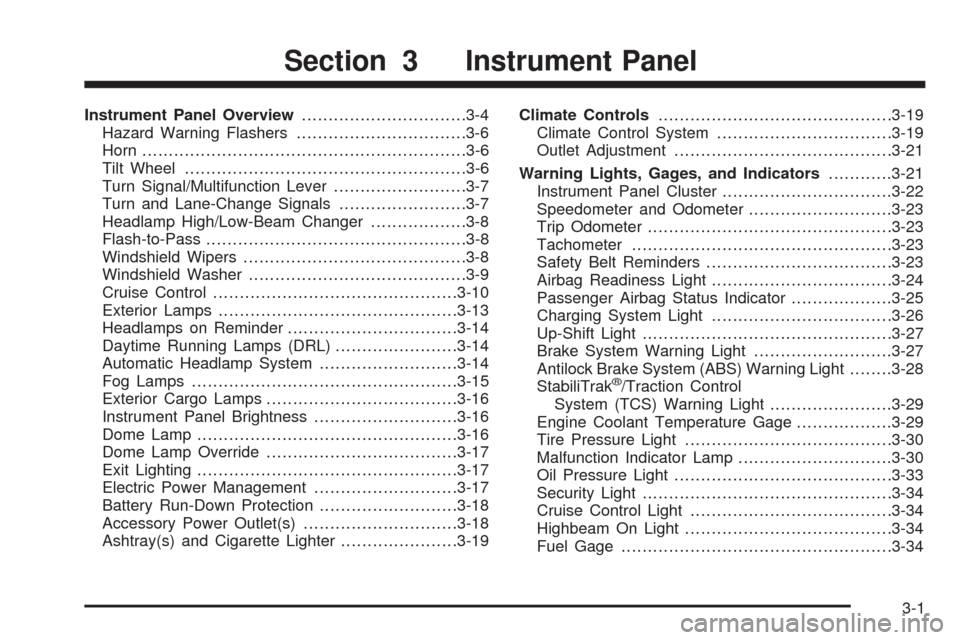

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Horn .............................................................3-6
Tilt Wheel.....................................................3-6
Turn Signal/Multifunction Lever.........................3-7
Turn and Lane-Change Signals........................3-7
Headlamp High/Low-Beam Changer..................3-8
Flash-to-Pass.................................................3-8
Windshield Wipers..........................................3-8
Windshield Washer.........................................3-9
Cruise Control..............................................3-10
Exterior Lamps.............................................3-13
Headlamps on Reminder................................3-14
Daytime Running Lamps (DRL).......................3-14
Automatic Headlamp System..........................3-14
Fog Lamps ..................................................3-15
Exterior Cargo Lamps....................................3-16
Instrument Panel Brightness...........................3-16
Dome Lamp .................................................3-16
Dome Lamp Override....................................3-17
Exit Lighting.................................................3-17
Electric Power Management...........................3-17
Battery Run-Down Protection..........................3-18
Accessory Power Outlet(s).............................3-18
Ashtray(s) and Cigarette Lighter......................3-19Climate Controls............................................3-19
Climate Control System.................................3-19
Outlet Adjustment.........................................3-21
Warning Lights, Gages, and Indicators............3-21
Instrument Panel Cluster................................3-22
Speedometer and Odometer...........................3-23
Trip Odometer..............................................3-23
Tachometer.................................................3-23
Safety Belt Reminders...................................3-23
Airbag Readiness Light.................................
.3-24
Passenger Airbag Status Indicator...................3-25
Charging System Light..................................3-26
Up-Shift Light...............................................3-27
Brake System Warning Light..........................3-27
Antilock Brake System (ABS) Warning Light........3-28
StabiliTrak
®/Traction Control
System (TCS) Warning Light.......................3-29
Engine Coolant Temperature Gage..................3-29
Tire Pressure Light.......................................3-30
Malfunction Indicator Lamp.............................3-30
Oil Pressure Light.........................................3-33
Security Light...............................................3-34
Cruise Control Light......................................3-34
Highbeam On Light.......................................3-34
Fuel Gage...................................................3-34
Section 3 Instrument Panel
3-1

Driver Information Center (DIC).......................3-35
DIC Operation and Displays...........................3-35
DIC Warnings and Messages.........................3-39
Audio System(s).............................................3-43
Setting the Clock..........................................3-44
Radio(s)......................................................3-44
Using an MP3..............................................3-55XM Radio Messages.....................................3-59
Theft-Deterrent Feature..................................3-60
Radio Reception...........................................3-61
Fixed Mast Antenna......................................3-62
XM™ Satellite Radio Antenna System.............3-62
Chime Level Adjustment................................3-62
Section 3 Instrument Panel
3-2

✍NOTES
3-3

Instrument Panel Overview
Manual Transmission shown, Automatic Transmission similar
3-4

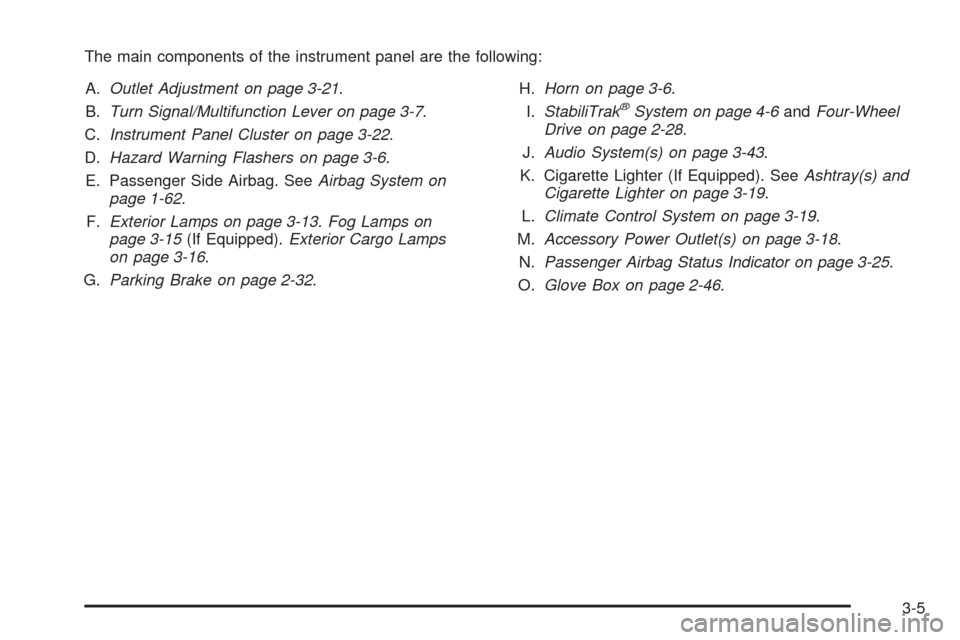

The main components of the instrument panel are the following:
A.Outlet Adjustment on page 3-21.
B.Turn Signal/Multifunction Lever on page 3-7.
C.Instrument Panel Cluster on page 3-22.
D.Hazard Warning Flashers on page 3-6.
E. Passenger Side Airbag. SeeAirbag System on
page 1-62.
F.Exterior Lamps on page 3-13.Fog Lamps on
page 3-15(If Equipped).Exterior Cargo Lamps
on page 3-16.
G.Parking Brake on page 2-32.H.Horn on page 3-6.
I.StabiliTrak
®System on page 4-6andFour-Wheel
Drive on page 2-28.
J.Audio System(s) on page 3-43.
K. Cigarette Lighter (If Equipped). SeeAshtray(s) and
Cigarette Lighter on page 3-19.
L.Climate Control System on page 3-19.
M.Accessory Power Outlet(s) on page 3-18.
N.Passenger Airbag Status Indicator on page 3-25.
O.Glove Box on page 2-46.
3-5

Hazard Warning Flashers
|(Hazard Warning Flasher):Press this button
located on the instrument panel, to make the front and
rear turn signal lamps ash on and off. This warns
others that you are having trouble.
Press
|again to turn the ashers off.
The turn signals do not work while the hazard warning
ashers are on.
Horn
To sound the horn, press the horn symbol on the
steering wheel pad.
Tilt Wheel
A tilt wheel lets the steering wheel be adjusted.
The tilt lever is located on the left side of the steering
column.
To tilt, hold the steering wheel and pull the tilt lever
toward you. Move the steering wheel up or down into
a comfortable position, then release the tilt lever to lock
the wheel in place.
Do not adjust the steering wheel while driving.
3-6

Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
G: Turn and Lane Change Signals
53: Headlamp High/Low-Beam Changer
N: Windshield Wipers
L: Windshield Washer
J: Cruise Control
Flash-to-Pass.
Information for these features is on the pages following.
Turn and Lane-Change Signals
An arrow on the instrument
panel cluster ashes in the
direction of the turn or
lane change.
Move the lever all the way up or down to signal a turn.
Raise or lower the lever until the arrow starts to ash
to signal a lane change. Hold it there until the lane
change is complete.
The lever returns to its starting position when it is
released.
If after signaling a turn or a lane change the arrows
ash rapidly or do not come on, a signal bulb may be
burned out.
Have the bulbs replaced. If the bulb is not burned out,
check the fuse. For bulb replacement, seeTaillamps,
Turn Signal, Stoplamps and Back-up Lamps on
page 5-52. For a blown fuse or circuit breaker,
seeFuses and Circuit Breakers on page 5-110.
3-7

Turn Signal On Chime
If a turn signal is left on for more than 3/4 of a mile
(1.2 km), a chime will sound at each ash of the turn
signal and the message TURN SIGNAL will also appear
in the DIC. To turn the chime and message off, move
the turn signal lever to the off position.
See “TURN SIGNAL” underDIC Warnings and
Messages on page 3-39for more information.
Headlamp High/Low-Beam Changer
23Headlamp High/Low Beam Changer:Push
the turn signal/multifunction lever away from you to turn
the high beams on.
Pull the lever towards you to return to low beams.
This indicator light turns on in the
instrument panel cluster when the
high beam headlamps are on.
Flash-to-Pass
This feature lets you use the high-beam headlamps to
signal a driver in front of you that you want to pass.
It works even if the headlamps are in the automatic
position.
To use it, pull the turn signal lever toward you, then
release it.
If the headlamps are in the automatic position or on low
beam, the high-beam headlamps will turn on. They will
stay on as long as the lever is held toward you. The
high-beam indicator on the instrument panel cluster will
come on. Release the lever to return to normal operation.
Windshield Wipers
The windshield wiper controls are located on the
multifunction lever. They are controlled by turning
the band with this
zsymbol.
The windshield wipers work in all ignition positions,
except off. This includes the Retained Access Power
mode. SeeRetained Accessory Power (RAP) on
page 2-21.
3-8
