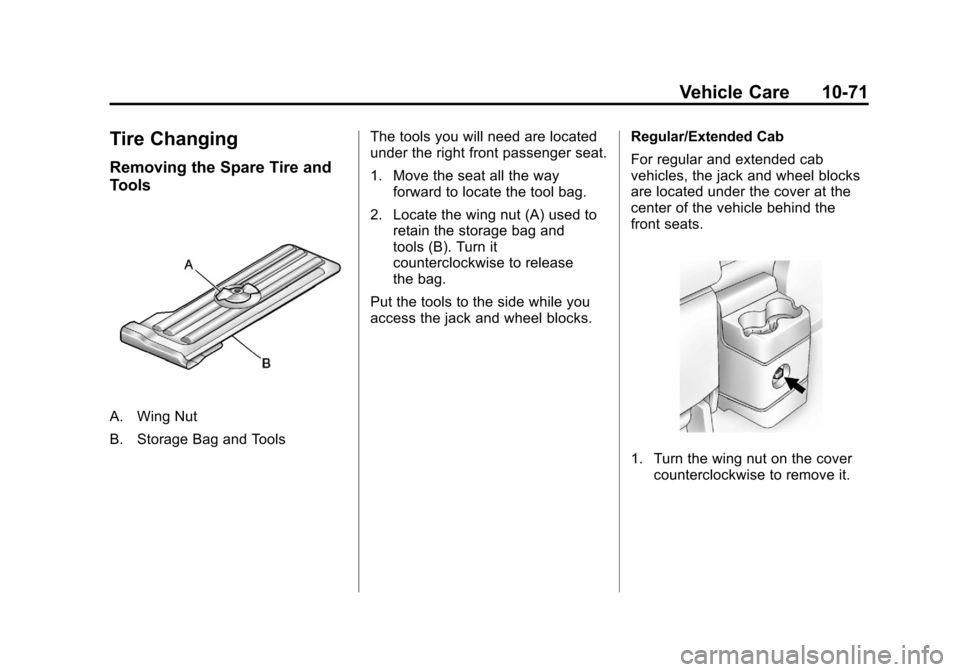

Tire Changing
Removing the Spare Tire and
Tools
A. Wing Nut
B. Storage Bag and ToolsThe tools you will need are located
under the right front passenger seat.
1. Move the seat all the way
forward to locate the tool bag.
2. Locate the wing nut (A) used to retain the storage bag and
tools (B). Turn it
counterclockwise to release
the bag.
Put the tools to the side while you
access the jack and wheel blocks. Regular/Extended Cab
For regular and extended cab
vehicles, the jack and wheel blocks
are located under the cover at the
center of the vehicle behind the
front seats.
1. Turn the wing nut on the cover
counterclockwise to remove it.

Black plate (72,1)Chevrolet Colorado Owner Manual - 2011
10-72 Vehicle Care
A. Jack
B. Wheel Blocks
C. Wing Nut
D. Jack Knob
2. Lower the jack (A) by turning the jack knob (D) counterclockwise
to release the jack from the
bracket.
3. Turn the wing nut (C) holding the wheel blocks (B) to the back of
the vehicle counterclockwise to

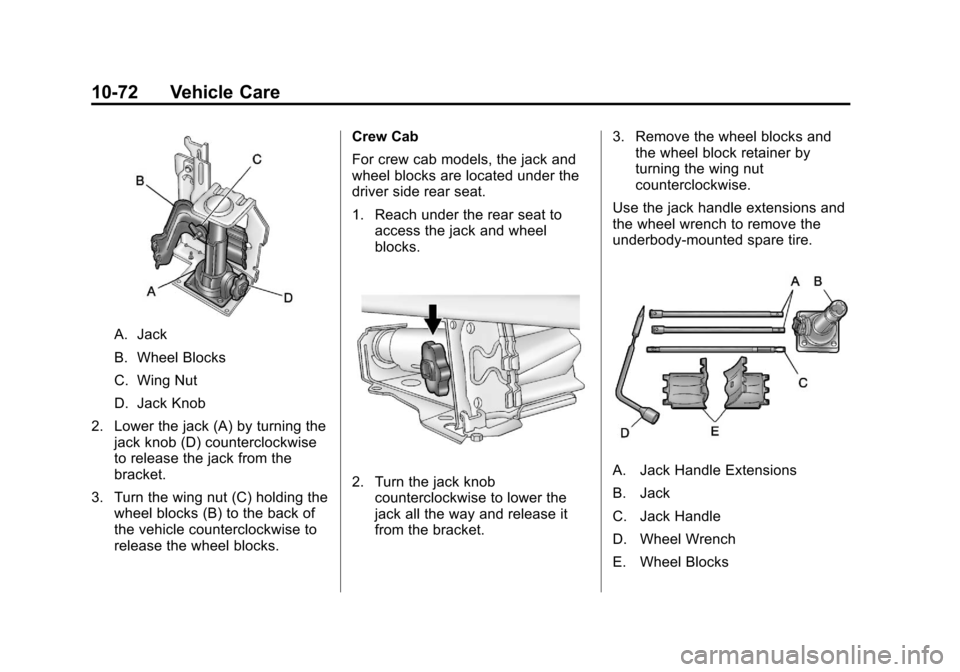

release the wheel blocks. Crew Cab
For crew cab models, the jack and
wheel blocks are located under the
driver side rear seat.
1. Reach under the rear seat to
access the jack and wheel
blocks.
2. Turn the jack knobcounterclockwise to lower the
jack all the way and release it
from the bracket. 3. Remove the wheel blocks and
the wheel block retainer by
turning the wing nut
counterclockwise.
Use the jack handle extensions and
the wheel wrench to remove the
underbody-mounted spare tire.A. Jack Handle Extensions
B. Jack
C. Jack Handle
D. Wheel Wrench
E. Wheel Blocks

Black plate (73,1)Chevrolet Colorado Owner Manual - 2011
Vehicle Care 10-73
1. Assemble the wheel wrench (D),the jack handle extensions (A)
and the jack handle (C) as
shown.2. Insert the chiseled end of thejack handle (C) at a slight angle
through the hole in the rear
bumper and into the
funnel-shaped guide.
3. Turn the wheel wrench (D) counterclockwise to lower the
spare tire to the ground.
Continue to turn the wheel
wrench until the spare tire can
be pulled out from under the
vehicle. If the spare tire does not lower to
the ground, the secondary latch
is engaged causing the tire not
to lower. See
Secondary Latch
System on page 10‑82.
4. Tilt the retainer when the tire has been lowered, and slide it up the
cable so it can be pulled up
through the wheel opening.
5. Put the spare tire near the flat tire.

Black plate (74,1)Chevrolet Colorado Owner Manual - 2011
10-74 Vehicle Care
Removing the Flat Tire and
Installing the Spare Tire
Use the following pictures and
instructions to remove the flat tire
and raise the vehicle.

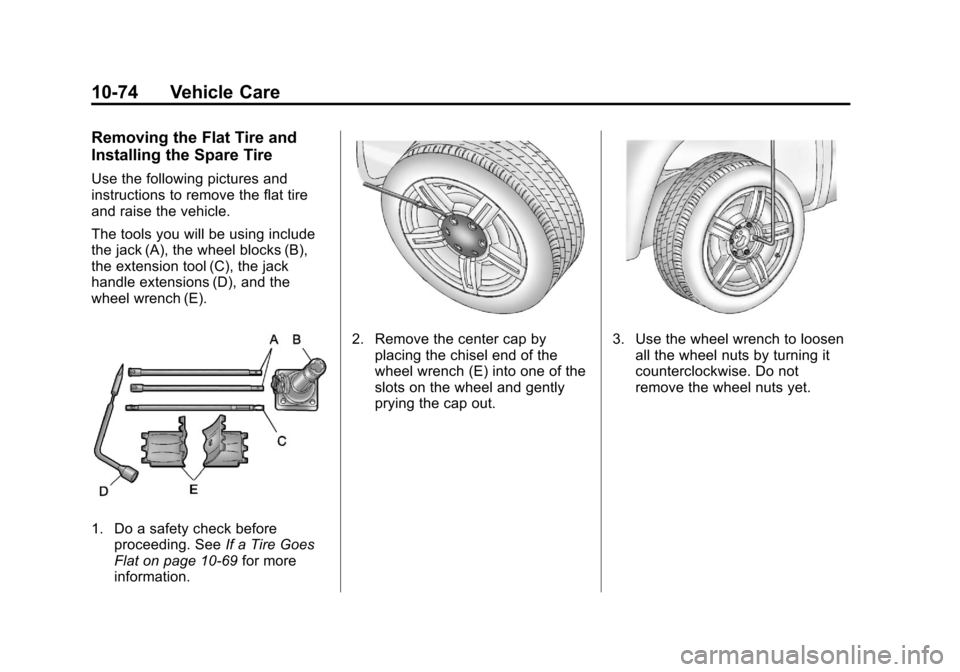

The tools you will be using include
the jack (A), the wheel blocks (B),
the extension tool (C), the jack
handle extensions (D), and the
wheel wrench (E).
1. Do a safety check beforeproceeding. See If a Tire Goes
Flat on page 10‑69 for more
information.
2. Remove the center cap by placing the chisel end of the
wheel wrench (E) into one of the
slots on the wheel and gently
prying the cap out.3. Use the wheel wrench to loosenall the wheel nuts by turning it
counterclockwise. Do not
remove the wheel nuts yet.

Black plate (75,1)Chevrolet Colorado Owner Manual - 2011
Vehicle Care 10-75
{WARNING
Getting under a vehicle when it is
jacked up is dangerous. If the
vehicle slips off the jack you could
be badly injured or killed. Never
get under a vehicle when it is
supported only by a jack.
{WARNING
Raising your vehicle with the jack
improperly positioned can
damage the vehicle and even
make the vehicle fall. To help
avoid personal injury and vehicle
damage, be sure to fit the jack lift
head into the proper location
before raising the vehicle.
Front Position

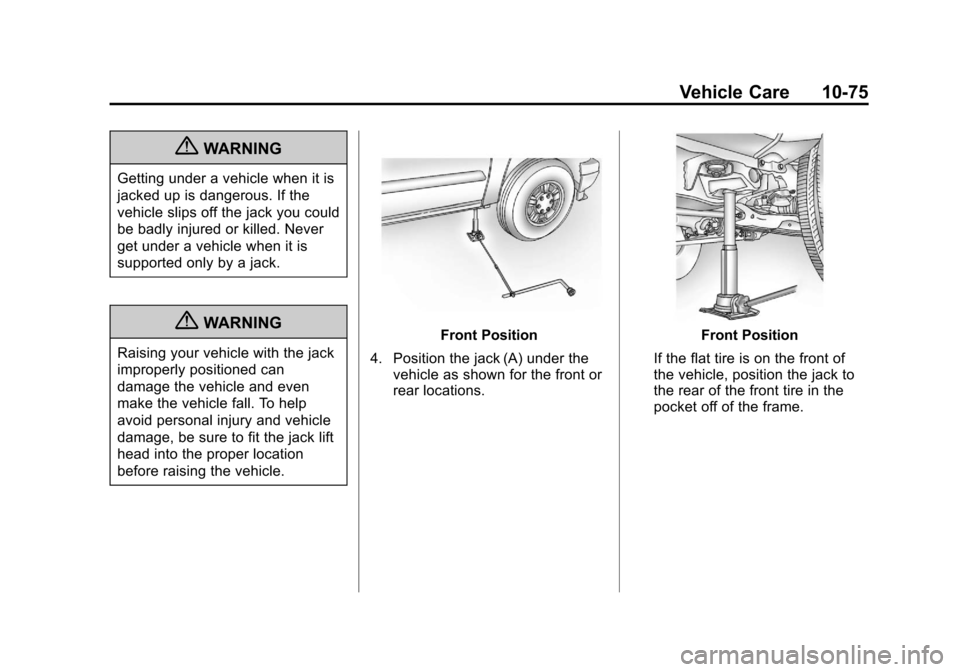

4. Position the jack (A) under the vehicle as shown for the front or
rear locations.Front Position
If the flat tire is on the front of
the vehicle, position the jack to
the rear of the front tire in the
pocket off of the frame.

Black plate (76,1)Chevrolet Colorado Owner Manual - 2011
10-76 Vehicle Care

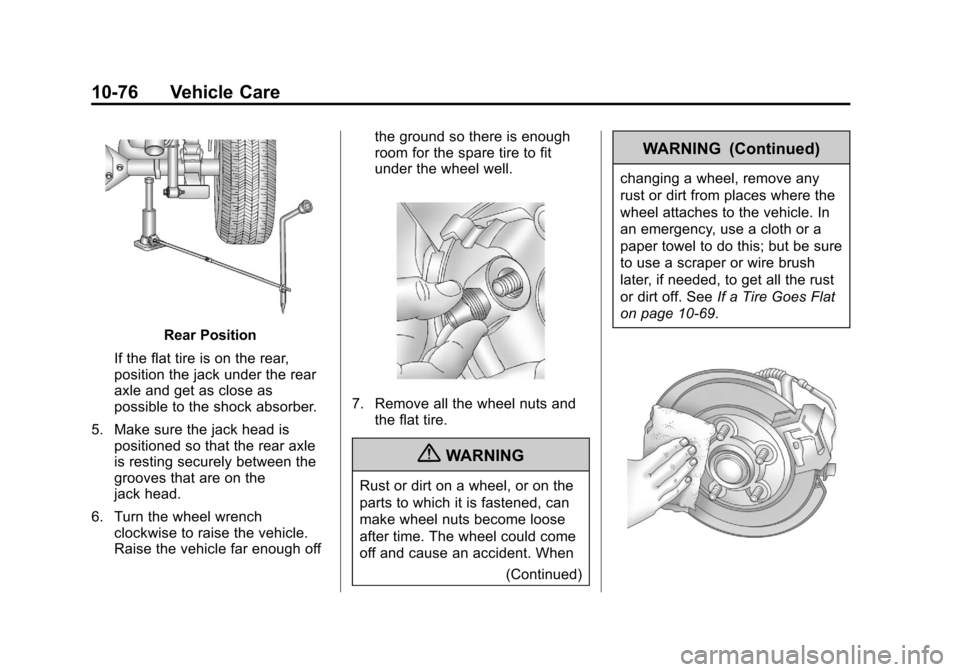

Rear Position
If the flat tire is on the rear,
position the jack under the rear
axle and get as close as
possible to the shock absorber.
5. Make sure the jack head is positioned so that the rear axle
is resting securely between the
grooves that are on the
jack head.
6. Turn the wheel wrench clockwise to raise the vehicle.
Raise the vehicle far enough off the ground so there is enough
room for the spare tire to fit
under the wheel well.
7. Remove all the wheel nuts and
the flat tire.
{WARNING
Rust or dirt on a wheel, or on the
parts to which it is fastened, can
make wheel nuts become loose
after time. The wheel could come
off and cause an accident. When
(Continued)
WARNING (Continued)
changing a wheel, remove any
rust or dirt from places where the
wheel attaches to the vehicle. In
an emergency, use a cloth or a
paper towel to do this; but be sure
to use a scraper or wire brush
later, if needed, to get all the rust
or dirt off. SeeIf a Tire Goes Flat
on page 10‑69.

Black plate (77,1)Chevrolet Colorado Owner Manual - 2011
Vehicle Care 10-77
8. Remove any rust or dirt from thewheel bolts, mounting surfaces
and spare wheel.
9. Install the spare tire.
{WARNING
Never use oil or grease on bolts
or nuts because the nuts might
come loose. The vehicle's wheel
could fall off, causing a crash.
10. Put the wheel nuts back on with the rounded end of the
nuts toward the wheel. Tighten
each wheel nut by hand. Then
use the wheel wrench to
tighten the nuts until the wheel
is held against the hub.
Front Position
Rear Position
11. Turn the wheel wrench counterclockwise to lower the
vehicle. Lower the jack
completely.

Black plate (78,1)Chevrolet Colorado Owner Manual - 2011
10-78 Vehicle Care
{WARNING
Wheel nuts that are improperly or
incorrectly tightened can cause
the wheels to become loose or
come off. The wheel nuts should
be tightened with a torque wrench
to the proper torque specification
after replacing. Follow the torque
specification supplied by the
aftermarket manufacturer when
using accessory locking wheel
nuts. SeeCapacities and
Specifications on page 12‑2 for
original equipment wheel nut
torque specifications.
Notice: Improperly tightened
wheel nuts can lead to brake
pulsation and rotor damage. To
avoid expensive brake repairs,
evenly tighten the wheel nuts in
the proper sequence and to the
proper torque specification. See
Capacities and Specifications on
page 12‑2 for the wheel nut
torque specification.

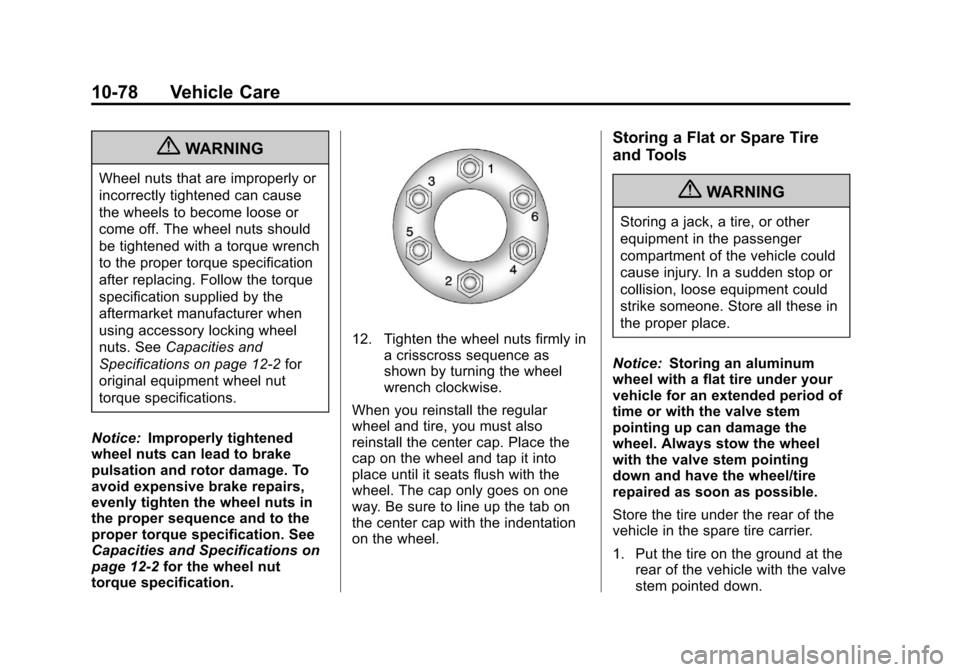

12. Tighten the wheel nuts firmly in a crisscross sequence as
shown by turning the wheel
wrench clockwise.
When you reinstall the regular
wheel and tire, you must also
reinstall the center cap. Place the
cap on the wheel and tap it into
place until it seats flush with the
wheel. The cap only goes on one
way. Be sure to line up the tab on
the center cap with the indentation
on the wheel.
Storing a Flat or Spare Tire
and Tools
{WARNING
Storing a jack, a tire, or other
equipment in the passenger
compartment of the vehicle could
cause injury. In a sudden stop or
collision, loose equipment could
strike someone. Store all these in
the proper place.
Notice: Storing an aluminum
wheel with a flat tire under your
vehicle for an extended period of
time or with the valve stem
pointing up can damage the
wheel. Always stow the wheel
with the valve stem pointing
down and have the wheel/tire
repaired as soon as possible.
Store the tire under the rear of the
vehicle in the spare tire carrier.
1. Put the tire on the ground at the rear of the vehicle with the valve
stem pointed down.

Black plate (79,1)Chevrolet Colorado Owner Manual - 2011
Vehicle Care 10-79
2. Tilt the retainer downward andthrough the center wheel
opening. Make sure the retainer
is fully seated across the

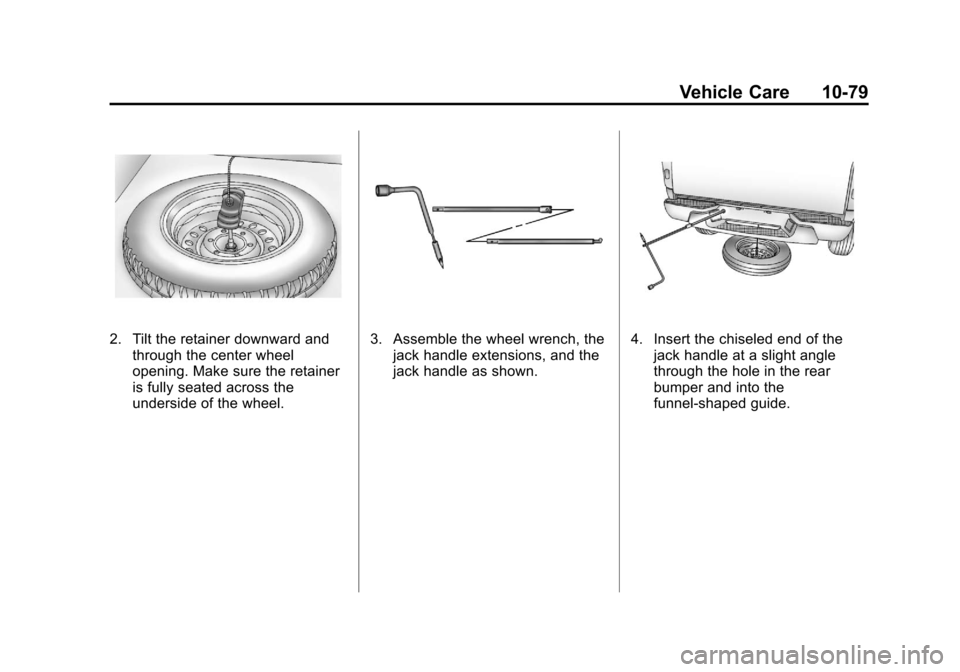

underside of the wheel.3. Assemble the wheel wrench, thejack handle extensions, and the
jack handle as shown.4. Insert the chiseled end of thejack handle at a slight angle
through the hole in the rear
bumper and into the
funnel-shaped guide.

Black plate (80,1)Chevrolet Colorado Owner Manual - 2011
10-80 Vehicle Care
5. Turn the wheel wrenchclockwise to raise the tire part
way up. Make sure the retainer
is seated in the wheel opening
and the valve stem is
pointed down.
Continue raising the tire, watch
to make sure it does not get
caught on anything on the
underbody. If the tire does get
caught, loosen two or three turns
and push and pull the tire and
then retighten.
Repeat this procedure as many
times as needed to ensure
proper stowage.
6. When the tire is properly seated to the underbody, continue
turning the wheel wrench
clockwise until you hear two
clicks or feel it skip twice. You
cannot overtighten the cable.

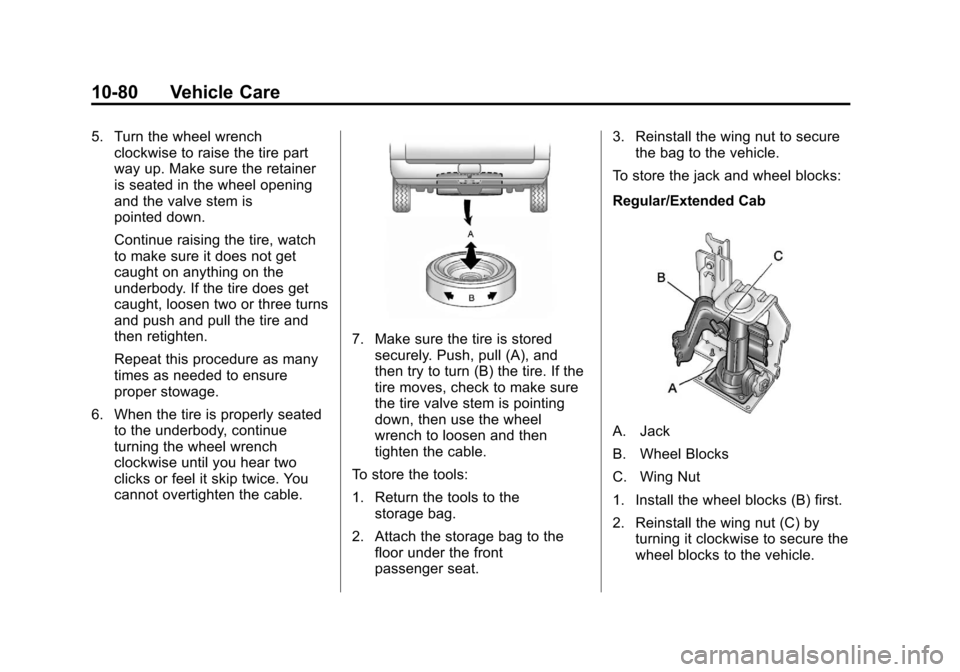

7. Make sure the tire is storedsecurely. Push, pull (A), and
then try to turn (B) the tire. If the
tire moves, check to make sure
the tire valve stem is pointing
down, then use the wheel
wrench to loosen and then
tighten the cable.
To store the tools:
1. Return the tools to the storage bag.
2. Attach the storage bag to the floor under the front
passenger seat. 3. Reinstall the wing nut to secure
the bag to the vehicle.
To store the jack and wheel blocks:
Regular/Extended Cab
A. Jack
B. Wheel Blocks
C. Wing Nut
1. Install the wheel blocks (B) first.
2. Reinstall the wing nut (C) by turning it clockwise to secure the
wheel blocks to the vehicle.
