CHEVROLET COLORADO 2012 1.G Owners Manual

Black plate (9,1)Chevrolet Colorado Owner Manual - 2012
Infotainment System 7-9
causes the radio features to work
improperly. If this happens, contact
the radio station.
While the radio is tuned to an RDS
station, the station name or call
letters display instead of the
frequency. RDS stations can also
provide the time of day, a program
type (PTY) for current programming,
and the name of the program being
broadcast.
RDS Messages
ALERT!:The Alert feature warns
of local or national emergencies.
When an alert announcement
comes on the current radio
station, ALERT! displays. The
announcement is heard, even
if the volume is low or a CD is
playing. If a CD is playing, play
stops during the announcement.
Alert announcements cannot be
turned off.
ALERT! is not affected by tests of
the emergency broadcast system.
This feature is not supported by all
RDS stations. INFO (Information):
If the
current station has a message,
the information symbol or INFO
displays. Press this button to see
the message. The message can
display the artist, song title, call in
phone numbers, etc.
If the entire message is not
displayed, parts of the message
display every three seconds. To
scroll through the message, press
and release the INFO button. A new
group of words displays after every
press of this button. Once the
complete message has displayed,
the information symbol or INFO
disappears from the display until
another new message is received.
The last message can be displayed
by pressing the INFO button. The
last message stays on the display
until a new message is received or
the radio is tuned to a different
station.
When a message is not available
from a station, NO INFO displays. TRAF (Traffic):
TRAF displays
when the station tuned to
broadcasts traffic announcements.
When a traffic announcement is
broadcast on this station you will
hear it.
If the station does not broadcast
traffic announcements, press the
TRAF button and the radio seeks
to a station that does. When a
station that broadcasts traffic
announcements is found, the radio
stops seeking and TRAF displays.
If no station is found that broadcasts
traffic announcements, NO TRAF
displays.
If TRAF displays, press the
TRAF button to turn off the traffic
announcements.
The radio plays the traffic
announcement if the volume is
low. The radio interrupts the play
of a CD if the last tuned station
broadcasts traffic announcements.

Black plate (10,1)Chevrolet Colorado Owner Manual - 2012
7-10 Infotainment System
Finding a Program Type (PTY)
Station
To select and find a PTY station:
1. Turn the P-TYPE knob. TYPEand a PTY displays.
2. Turn the P-TYPE knob again, to select a PTY.
3. Once the desired PTY displays, press the SEEK / TYPE button
to select PTY's first station.
4. To go to another station within that PTY, press the SEEK /
TYPE button twice to display the
PTY and then go to another
station.
To cancel the seek, press the
SEEK / TYPE button. This also exits
the program type seek mode and
returns to the last tuned station.
If both PTY and TRAF (traffic) are
on, the radio searches for stations
with the selected PTY and traffic
announcements. If the radio cannot find the desired
program type, NONE displays and
the radio returns to the last tuned
station.
SCAN:
To scan PTYs, press and
hold the SEEK / SCAN until a beep
sounds. The radio goes to a station,
plays for a few seconds, then goes
to the next station.
BAND (Alternate Frequency):
Alternate frequency lets the radio
switch to a stronger station with
the same program type. To turn
alternate frequency on, press and
hold BAND for two seconds. AF ON
displays. The radio could switch to
stations with a stronger frequency.
To turn alternate frequency off,
press and hold BAND again for
2 seconds. AF OFF displays. The
radio does not switch to other
stations.
DISPL (Display): Press to change
what information displays while
using RDS. The display options
are station name, RDS station frequency, PTY (program type),
and the name of the program
(if available).
Setting Preset PTYs Only
The six pushbuttons have factory
PTY presets. Up to 12 PTYs
(six FM1 and six FM2), can be
programmed on the numbered
pushbuttons. To program PTYs:
1. Press BAND to select FM1
or FM2.
2. Turn the P‐TYPE knob to activate program type select
mode. TYPE and the last
selected PTY displays.
3. Turn the P‐TYPE knob to select a PTY.
4. Press and hold one of the six numbered pushbuttons
until a beep sounds. When
that numbered pushbutton is
pressed, the PTY that was set,
returns.
5. Repeat the steps for each pushbutton.

Black plate (11,1)Chevrolet Colorado Owner Manual - 2012
Infotainment System 7-11
Setting Preset Stations
If the radio does not have XM, up to
18 stations (six FM1, six FM2, and
six AM) can be programmed on the
six numbered pushbuttons.
If the radio has XM, up to
30 stations (six FM1, six FM2,
six AM, six XM1, and six XM2)
can be programmed on the six
numbered pushbuttons.
To program either radio:
1. Tune in the desired station.
2. Press and hold one of thesix numbered pushbuttons until
the radio beeps once. When
that numbered pushbutton is
pressed again, the station that
was stored, returns.
3. Repeat the steps for each pushbutton.
Satellite Radio
XM™ Satellite Radio Service
XM is a satellite radio service that
is based in the 48 contiguous
United States and 10 Canadian
provinces. XM Satellite Radio
has a wide variety of programming
and commercial-free music,
coast-to-coast, and in digital-quality
sound. A service fee is required
to receive the XM service. If XM
Service needs to be reactivated, the
radio will display "No Subscription
Please Renew" on channel XM1.
For more information, contact XM
at www.xmradio.com or call
1-800-929-2100 in the U.S.
and www.xmradio.ca or call
1-877-438-9677 in Canada.
Finding a Program Type (PTY)
Channel
To select and find a PTY:
1. Turn the P-TYPE knob. TYPE
and a PTY displays.
2. Turn the P-TYPE knob again, to select a PTY.
3. Once the desired PTY displays, press the SEEK / TYPE button
to select PTY's first station.
4. To go to another station within that PTY, pess the SEEK / TYPE
button twice to display the PTY
and then go to another station.
To cancel the seek, press the
SEEK / TYPE button. This also exits
the program type seek mode and
returns to the last tuned station.
If the radio cannot find the desired
program type, NONE displays and
the radio returns to the last tuned
station.

Black plate (12,1)Chevrolet Colorado Owner Manual - 2012
7-12 Infotainment System
Finding an XM Channel
BAND:Press to switch between
FM1, FM2, AM, or XM1 or XM2
(if equipped). The selection
displays.
DISPL (Display): Press to
retrieve four different categories of
information related to the current
song or channel: Artist, Song Title,
Category or PTY, Channel Number/
Channel Name.
qTUNEr: Turn to select XM
Channels.
qSEEKr: Press to go to the
previous or next channel and stay
there.
qSCANr: Press and hold for
more than two seconds, SCAN
displays and the radio beeps once.
The radio goes to a channel, plays
for a few seconds, then goes to the
next channel. Press
qorragain,
to stop scanning presets. To scan preset channels, press
and hold
qorrfor more than
four seconds, PSCN displays and
the radio beeps once. The radio
goes to a preset channel, plays for a
few seconds, then goes to the next
preset channel. Press
qorragain,
to stop scanning presets.
Setting Preset Channels
If the radio has XM, up to
30 stations (6 FM1, 6 FM2, 6 AM,
6 XM1, and 6 XM2) can be
programmed on the six numbered
pushbuttons.
To program either radio:
1. Tune in the desired channel.
2. Press and hold one of the six numbered pushbuttons
until the radio beeps once.
When that numbered pushbutton
is pressed again, the channel
that was stored, returns.
3. Repeat the steps for each pushbutton.
XM Radio Messages
XL (Explicit Language
Channels): These channels, or
any others, can be blocked at a
customer's request, by calling
1-800-929-2100 in the U.S. and
1-877-438-9677 in Canada.
Updating: The encryption code in
the receiver is being updated, and
no action is required. This process
should take no longer than
30 seconds.
No Signl: The system is
functioning correctly, but the
vehicle is in a location that is
blocking the XM signal. When
the vehicle is moved into an open
area, the signal should return.
Loading: The radio system is
acquiring and processing audio and
text data. No action is needed. This
message should disappear shortly.
Off Air: This channel is not
currently in service. Tune to
another channel.

Black plate (13,1)Chevrolet Colorado Owner Manual - 2012
Infotainment System 7-13
CH Unavl:This previously
assigned channel is no longer
assigned. Tune to another station.
If this station was one of the
presets, choose another station for
that preset button.
Unauth: This channel is blocked or
cannot be received with your XM
Subscription package.
No Info: No artist, song title,
category, or text information is
available at this time on this
channel. The system is working
properly.
No Subscription Please Renew:
XM subscription needs to be
reactivated. Contact XM at
www.xmradio.com or call
1-800-929-2100 in the U.S.
and www.xmradio.ca or call
1-877-438-9677 in Canada.
NotFound: No artist, song title,
category, or text information is
available at this time on this
channel. The system is working
properly. XM Lock:
The XM receiver in your
vehicle could have previously been
in another vehicle. For security
purposes, XM receivers cannot be
swapped between vehicles. If this
message is received after having
your vehicle serviced, check with
your dealer.
Radio ID: If this message is
received when tuned to channel 0,
there could be a receiver fault.
Consult with your dealer.
Unknown: If this message is
received when tuned to channel 0,
there could be a receiver fault.
Consult with your dealer.
Check XM: If this message does
not clear within a short period of
time, the receiver could have a fault.
Consult with your dealer.Radio Reception
Frequency interference and
static can occur during normal
radio reception if items such
as cell phone chargers, vehicle
convenience accessories, and
external electronic devices are
plugged into the accessory power
outlet. If there is interference or
static, unplug the item from the
accessory power outlet.
AM
The range for most AM stations is
greater than for FM, especially at
night. The longer range can cause
station frequencies to interfere
with each other. For better radio
reception, most AM radio stations
boost the power levels during the
day, and then reduce these levels
during the night. Static can also
occur when things like storms and
power lines interfere with radio
reception. When this happens, try
reducing the treble on the radio.

Black plate (14,1)Chevrolet Colorado Owner Manual - 2012
7-14 Infotainment System
FM Stereo
FM signals only reach about
16 to 65 km (10 to 40 miles).
Although the radio has a built-in
electronic circuit that automatically
works to reduce interference, some
static can occur, especially around
tall buildings or hills, causing the
sound to fade in and out.
XM™Satellite Radio Service
XM Satellite Radio Service gives
digital radio reception from
coast-to-coast in the 48 contiguous
United States, and in Canada. Just
as with FM, tall buildings or hills
can interfere with satellite radio
signals, causing the sound to fade
in and out. In addition, traveling
or standing under heavy foliage,
bridges, garages, or tunnels may
cause loss of the XM signal for a
period of time.
Cellular Phone Usage
Cellular phone usage may cause
interference with the vehicle's radio.
This interference may occur when
making or receiving phone calls,
charging the phone's battery,
or simply having the phone on. This
interference causes an increased
level of static while listening to the
radio. If static is received while
listening to the radio, unplug the
cellular phone and turn it off.
Fixed Mast Antenna
The fixed mast antenna can
withstand most car washes without
being damaged as long as it is
securely attached to the base.
If the mast becomes slightly bent,
straighten it out by hand. If the mast
is badly bent, replace it. Occasionally check to make sure
the antenna is tightened to its base.
If tightening is required, tighten
by hand until fully seated plus
one quarter turn.
Satellite Radio Antenna
The XM Satellite Radio antenna
is located on the roof of the
vehicle. Keep the antenna clear
of obstructions for clear radio
reception.

Black plate (15,1)Chevrolet Colorado Owner Manual - 2012
Infotainment System 7-15

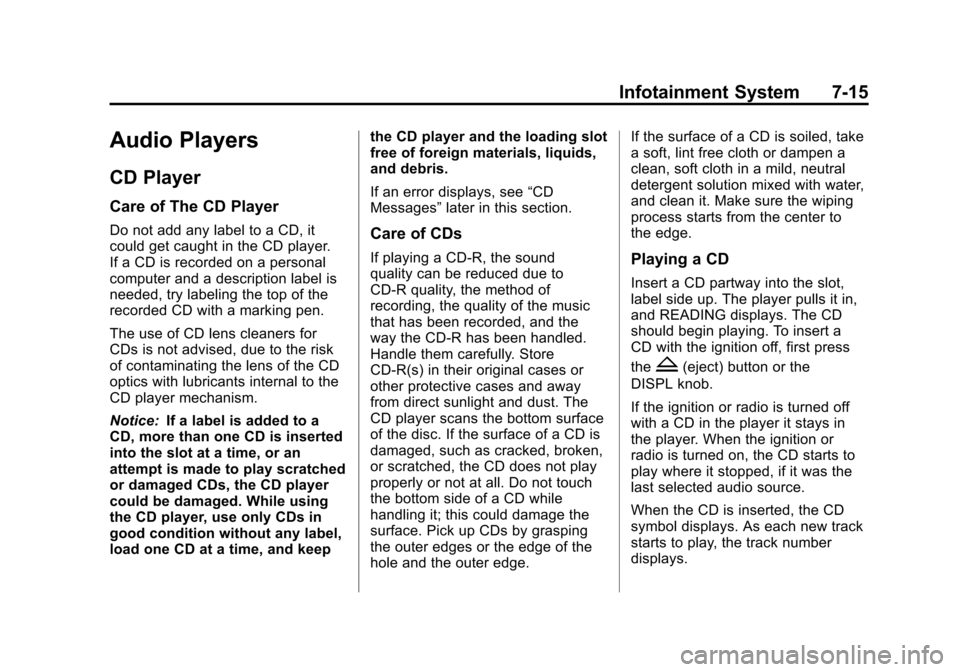

Audio Players
CD Player
Care of The CD Player
Do not add any label to a CD, it
could get caught in the CD player.
If a CD is recorded on a personal
computer and a description label is
needed, try labeling the top of the
recorded CD with a marking pen.
The use of CD lens cleaners for
CDs is not advised, due to the risk
of contaminating the lens of the CD
optics with lubricants internal to the
CD player mechanism.
Notice:If a label is added to a
CD, more than one CD is inserted
into the slot at a time, or an
attempt is made to play scratched
or damaged CDs, the CD player
could be damaged. While using
the CD player, use only CDs in
good condition without any label,
load one CD at a time, and keep the CD player and the loading slot
free of foreign materials, liquids,
and debris.
If an error displays, see
“CD
Messages” later in this section.Care of CDs
If playing a CD-R, the sound
quality can be reduced due to
CD-R quality, the method of
recording, the quality of the music
that has been recorded, and the
way the CD-R has been handled.
Handle them carefully. Store
CD-R(s) in their original cases or
other protective cases and away
from direct sunlight and dust. The
CD player scans the bottom surface
of the disc. If the surface of a CD is
damaged, such as cracked, broken,
or scratched, the CD does not play
properly or not at all. Do not touch
the bottom side of a CD while
handling it; this could damage the
surface. Pick up CDs by grasping
the outer edges or the edge of the
hole and the outer edge. If the surface of a CD is soiled, take
a soft, lint free cloth or dampen a
clean, soft cloth in a mild, neutral
detergent solution mixed with water,
and clean it. Make sure the wiping
process starts from the center to
the edge.Playing a CD
Insert a CD partway into the slot,
label side up. The player pulls it in,
and READING displays. The CD
should begin playing. To insert a
CD with the ignition off, first press
the
Z(eject) button or the
DISPL knob.
If the ignition or radio is turned off
with a CD in the player it stays in
the player. When the ignition or
radio is turned on, the CD starts to
play where it stopped, if it was the
last selected audio source.
When the CD is inserted, the CD
symbol displays. As each new track
starts to play, the track number
displays.

Black plate (16,1)Chevrolet Colorado Owner Manual - 2012
7-16 Infotainment System
The CD player can play the smaller
8 cm (3 in) single CDs with an
adapter ring. Full-size CDs and the
smaller CDs are loaded in the same
manner.
3 REV (Fast Reverse):Press and
hold to reverse quickly within a
track. Press and hold for less than
two seconds to reverse at 10 times
the normal playing speed. Press
and hold for more than two seconds
to reverse at 20 times the normal
playing speed. Release to play the
track.
4 FWD (Fast Forward): Press and
hold to advance quickly within a
track. Press and hold for less than
two seconds to advance at six times
the normal playing speed. Press
and hold for more than two seconds
to advance at 17 times the normal
playing speed. Release to play the
track. 6 RDM (Random):
Press to hear
the tracks in random, rather than
sequential, order. RDM ON displays.
RDM and the track number displays
when each track starts to play.
Press again to turn off random play.
RDM OFF displays.
qSEEKr: Press the left arrow to
go to the start of the current or the
previous track. Press the right arrow
to go to the start of the next track.
Pressing either arrow for more than
two seconds scans the next tracks,
playing the first eight seconds of
each track until all of the tracks
have been previewed. Press either
arrow again to stop scanning and to
play the track.
qTUNEr: Turn to go to the
previous or next track.
DISPL (Display): Press to see
how long the current track has been
playing. ET and the elapsed time of
the track displays. To change the default on the display (track or
elapsed time), press until you see
the desired display, then press and
hold for two seconds. The radio
beeps once. The selected display is
now the default.
BAND:
Press to listen to the radio
when a CD is playing. The inactive
CD remains inside the radio for
future listening.
CD AUX (Auxiliary): Press to play
a CD when listening to the radio.
The CD symbol displays when a CD
is loaded.
Z(Eject): Press to eject a CD.
Eject can be activated with either
the ignition or radio off. CDs can be
loaded with the ignition and radio off
if this button is pressed first.

Black plate (17,1)Chevrolet Colorado Owner Manual - 2012
Infotainment System 7-17
Playing an MP3/WMA Disc
MP3/WMA CD-R Disc Format
If you burn your own MP3/WMA
disc on a personal computer:
.Make sure the MP3/WMA files
are recorded on a CD-R disc.
.Make sure playlists have a .m3u
or .wpl extension, other file
extensions might not work.
.Files can be recorded with a
variety of fixed or variable bit
rates. Song title, artist name,
and album are displayed by
the radio when recorded using
ID3 tags version 1 and 2.
.Create a folder structure that
makes it easy to find songs
while driving. Organize songs by
albums using one folder for each
album. Each folder or album
should contain 18 songs or less.
.Make sure to finalize the disc
when burning an MP3/WMA
disc, using multiple sessions.
It is usually better to burn the
disc all at once.
The player is able to read and
play a maximum of 253 folders,
50 playlists, 20 sessions, and
949 files. Long file names, folder
names, or playlist names may use
more disc memory space than
necessary. To conserve space on
the disc, minimize the length of
the file, folder, or playlist names. An
MP3/WMA CD-R that was recorded
using no file folders can also be
used. The system can support up
to 11 folders in depth, though,
keep the depth of the folders to a
minimum in order to keep down the
complexity and confusion in trying
to locate a particular folder during
playback. If a CD contains more
than the maximum of 253 folders,
50 playlists, 20 sessions, and
949 files, the player lets you access and navigate up to the maximum,
but all items over the maximum are
played.
Root Directory
The root directory is treated as a
folder. If the root directory has
compressed audio files, the
directory displays as F1 ROOT. All
files contained directly under the
root directory are accessed prior to
any root directory folders. However,
playlists (Px) are always accessed
before root folders or files.
Empty Directory or Folder
If a root directory or a folder exists
somewhere in the file structure that
contains only folders/subfolders
and no compressed files directly
beneath them, the player advances
to the next folder in the file structure
that contains compressed audio
files. The empty folder does not
display.

Black plate (18,1)Chevrolet Colorado Owner Manual - 2012
7-18 Infotainment System
No Folder
When the CD contains only
compressed files, the files are
located under the root folder. The
next and previous folder functions
have no function on a CD that was
recorded without folders or playlists.
When displaying the name of the
folder the radio displays ROOT.
When the CD contains only playlists
and compressed audio files, but no
folders, all files are located under
the root folder. The folder down
and the folder up buttons search
playlists (Px) first and then go to the
root folder. When the radio displays
the name of the folder, the radio
displays ROOT.Order of Play
Tracks are played in the following
order:
.Play begins from the first track in
the first playlist and continues
sequentially through all tracks
in each playlist. When the last
track of the last playlist has
played, play continues from the
first track of the first playlist.
.If the CD does not contain any
playlists, then play begins from
the first track under the root
directory. When all tracks from
the root directory have played,
play continues from files
according to their numerical
listing. After playing the last
track from the last folder, play
begins again at the first track of
the first folder or root directory.When play enters a new folder, the
display does not automatically show
the new folder name unless you
have chosen the folder mode as the
default display. See DISPL (display)
later in this section for more
information. The new track name
displays.
File System and Naming
The song name that displays is the
song name that is contained in the
ID3 tag. If the song name is not
present in the ID3 tag, then the
radio displays the file name without
the extension (such as .mp3) as the
track name.
Track names longer than
32 characters or four pages are
shortened. Parts of words on the
last page of text and the extension
of the filename does not display.
