remote control CHEVROLET COLORADO 2020 Owner's Manual

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13566640) - 2020 - CRC - 9/30/19
4 Introduction
+:Fuses
_:High Voltage
j:ISOFIX/LATCH System Child
Restraints
Q: Keep Fuse Block Covers
Properly Installed
|: Lane Change Alert
@:Lane Departure Warning
A:Lane Keep Assist
*: Malfunction Indicator Lamp
::Oil Pressure
X:Park Assist
~:Pedestrian Ahead Indicator
O:Power
7:Rear Cross Traffic Alert
I:Registered Technician
/:Remote Vehicle Start
>:Seat Belt Reminders
I: Side Blind Zone Alert
7:Tire Pressure Monitor
d:Traction Control/StabiliTrak/
Electronic Stability Control (ESC)
a: Under Pressure
V:Vehicle Ahead Indicator

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13566640) - 2020 - CRC - 9/30/19
Keys, Doors, and Windows 9
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . 12
Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . . 12
Remote Vehicle Start . . . . . . . . . . 15
Door Locks . . . . . . . . . . . . . . . . . . . . 16
Power Door Locks . . . . . . . . . . . . . 17
Delayed Locking . . . . . . . . . . . . . . . 17
Automatic Door Locks . . . . . . . . . 17
Lockout Protection . . . . . . . . . . . . . 18
Safety Locks . . . . . . . . . . . . . . . . . . . 18
Doors
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . 18
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . 19
Vehicle Alarm System . . . . . . . . . 19
Immobilizer . . . . . . . . . . . . . . . . . . . . 20
Immobilizer Operation . . . . . . . . . 20
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . 21
Manual Mirrors . . . . . . . . . . . . . . . . . 21 Power Mirrors . . . . . . . . . . . . . . . . . . 21
Folding Mirrors . . . . . . . . . . . . . . . . . 22
Heated Mirrors . . . . . . . . . . . . . . . . . 22
Blind Spot Mirrors . . . . . . . . . . . . . . 22
Interior Mirrors
Interior Rearview Mirrors . . . . . . . 23
Manual Rearview Mirror . . . . . . . . 23
Automatic Dimming Rearview
Mirror . . . . . . . . . . . . . . . . . . . . . . . . . 24
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . 24
Power Windows . . . . . . . . . . . . . . . 24
Rear Windows . . . . . . . . . . . . . . . . . 26
Sun Visors . . . . . . . . . . . . . . . . . . . . . 26
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with
the ignition key is dangerous and
children or others could be
seriously injured or killed. They
could operate the power windows
or other controls or make the
vehicle move. The windows will
function with the keys in the
ignition, and children or others
could be caught in the path of a
closing window. Do not leave
children in a vehicle with the
ignition key.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13566640) - 2020 - CRC - 9/30/19
Keys, Doors, and Windows 15
Remote Vehicle Start
If equipped, the engine can be
started from outside of the vehicle.
The climate controls and rear
window defogger may also
come on.
If the vehicle has heated seats and
the feature is turned on in vehicle
personalization, the heated seats
will turn on during colder outside
temperatures and will shut off when
the ignition is turned on. See
Heated Front Seats032.
Laws in some communities may
restrict the use of remote starters.
Check local regulations for any
requirements on remote starting of
vehicles.
If your vehicle is low on fuel, do not
use the remote start feature. The
vehicle may run out of fuel.
The vehicle cannot be remote
started if:
. The key is in the ignition.
. The hood is not closed. .
There is an emission control
system malfunction and the
malfunction indicator lamp is on.
. The hazard warning flashers
are on.
. Two remote vehicle starts, or a
single remote start with an
extension, have already
been used.
. The vehicle is not in P (Park).
The engine will turn off during a
remote vehicle start if:
. The coolant temperature gets
too high.
. The oil pressure gets low.
The RKE transmitter range may be
less while the vehicle is running.
Other conditions can affect the
performance of the transmitter. See
Remote Keyless Entry (RKE)
System 012 or
Vehicle Personalization 0120.
Starting the Engine Using Remote
Start
1. Press and release
Q. 2. Immediately press and hold
/
until the turn signal lamps flash
or for at least four seconds.
When the vehicle starts, the
parking lamps will turn on. The
doors will be locked and the
climate control system may
come on.
The engine will continue to run for
15 minutes. Repeat the steps for
one 15-minute time extension. Turn
the ignition on to operate the
vehicle.
Extending Engine Run Time
The engine run time can be
extended by 15 minutes, for a total
of 30 minutes, if during the first
15 minutes Steps 1 and 2 are
repeated while the engine is still
running. An extension can be
requested 30 seconds after starting.
A maximum of two remote starts,
or a single start with an extension,
is allowed between ignition cycles.
The ignition must be turned on and
then back off to use remote start
again.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13566640) - 2020 - CRC - 9/30/19
Keys, Doors, and Windows 21
It is possible for the immobilizer
system to learn new or replacement
keys. Up to eight keys can be
programmed for the vehicle. To
program additional transmitters, see
Remote Keyless Entry (RKE)
System Operation012.
Do not leave the transmitter or
device that disarms or deactivates
the vehicle theft-deterent system in
the vehicle.
See your dealer to get a new key
blank cut exactly as the ignition key
that operates the system.Exterior Mirrors
Convex Mirrors
{Warning
A convex mirror can make things,
like other vehicles, look farther
away than they really are. If you
cut too sharply into the right lane,
you could hit a vehicle on the
right. Check the inside mirror or
glance over your shoulder before
changing lanes.
The passenger side mirror is convex
shaped. A convex mirror's surface is
curved so more can be seen from
the driver seat.
Manual Mirrors
If equipped, adjust manual mirrors
by moving the mirror up and down
or left to right to see a little of the
side of the vehicle and to have a
clear view behind the vehicle. Using hood-mounted air deflectors
and add-on convex mirror
attachments could decrease mirror
performance.
Power Mirrors
If equipped, adjust the power
mirrors:
1. Move the selector switch to L (Left) or R (Right) to choose
driver or passenger mirror.
2. Press the arrows on the control pad to move each mirror in the
desired direction.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13566640) - 2020 - CRC - 9/30/19
Instruments and Controls 121
Rear Seat Reminder
This allows for a chime and a
message when the rear door has
been opened before or during
operation of the vehicle.
Touch Off or On.
Climate and Air Quality
Touch and the following may
display:
.Auto Fan Speed
. Auto Defog
. Auto Rear Defog
Auto Fan Speed
This setting specifies the amount of
airflow when the climate control fan
setting is Auto Fan.
Touch Low, Medium, or High.
Auto Defog
This setting automatically turns the
front defogger on when the engine
is started.
Touch Off or On. Auto Rear Defog
This setting automatically turns the
rear defogger on when the engine is
started.
Touch Off or On.
Collision/Detection Systems
Touch and the following may
display:
.
Park Assist
. Rear Camera Park Assist
Symbols
Park Assist
This allows the feature to be turned
on or off. See Assistance Systems
for Parking or Backing 0192.
Select Off, On, or On with Towbar.
Rear Camera Park Assist Symbols
This setting enables the Rear
Camera Park Assist Symbols. See
Assistance Systems for Parking or
Backing 0192.
Touch Off or On.
Comfort and Convenience
Touch and the following may
display:
. Chime Volume
Chime Volume
This determines the chime volume
level.
Touch the controls on the
infotainment display to adjust the
volume.
Lighting
Touch and the following may
display:
. Vehicle Locator Lights
. Exit Lighting
Vehicle Locator Lights
This setting flashes the vehicle’ s
headlamps when
Kis pressed on
the Remote Keyless Entry (RKE)
transmitter.
Touch Off or On.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13566640) - 2020 - CRC - 9/30/19
122 Instruments and Controls
Exit Lighting
This setting specifies how long the
headlamps stay on after the vehicle
is turned off and exited.
Touch Off, 30 Seconds, 60 Seconds,
or 120 Seconds.
Power Door Locks
Touch and the following may
display:
.Open Door Anti-Lockout
. Auto Door Unlock
. Delayed Door Lock
Open Door Anti Lock Out
This setting prevents the driver door
from locking when the door is open.
If this setting is on, the Delayed
Door Lock menu will not be
available.
Touch Off or On.
Auto Door Unlock
This allows selection of which of the
doors will automatically unlock when
the vehicle is shifted into P (Park).
Touch Off, All Doors, or Driver Door. Delayed Door Lock
When on, this feature will delay the
locking of the doors. To override the
delay, press the power door lock
switch on the door.
Touch Off or On.
Remote Lock, Unlock, Start
Touch and the following may
display:
.
Remote Unlock Light Feedback
. Remote Lock Feedback
. Remote Door Unlock
. Remote Start Auto Heat Seats
Remote Unlock Light Feedback
When on, the exterior lamps will
flash when unlocking the vehicle
with the RKE transmitter.
Touch Off or Flash Lights.
Remote Lock Feedback
This allows selection of what type of
feedback is given when locking the
vehicle with the RKE transmitter.
Touch Off, Lights and Horn, Lights
Only, or Horn Only. Remote Door Unlock
This allows selection of which doors
will unlock when pressing
Kon the
RKE transmitter.
Touch All Doors or Driver Door.
Remote Start Auto Heat Seats
If equipped and turned on, this
feature will turn on the heated seats
when using remote start on
cold days. See Heated Front Seats
0 32 and
Remote Vehicle Start 015.
Touch Off or On.
Teen Driver
See “Teen Driver” under“Settings”
in the infotainment manual.
Valet Mode
This will lock the infotainment
system and steering wheel controls.
It may also limit access to vehicle
storage locations, if equipped.
To enable valet mode:
1. Enter a four-digit code on the keypad.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13566640) - 2020 - CRC - 9/30/19

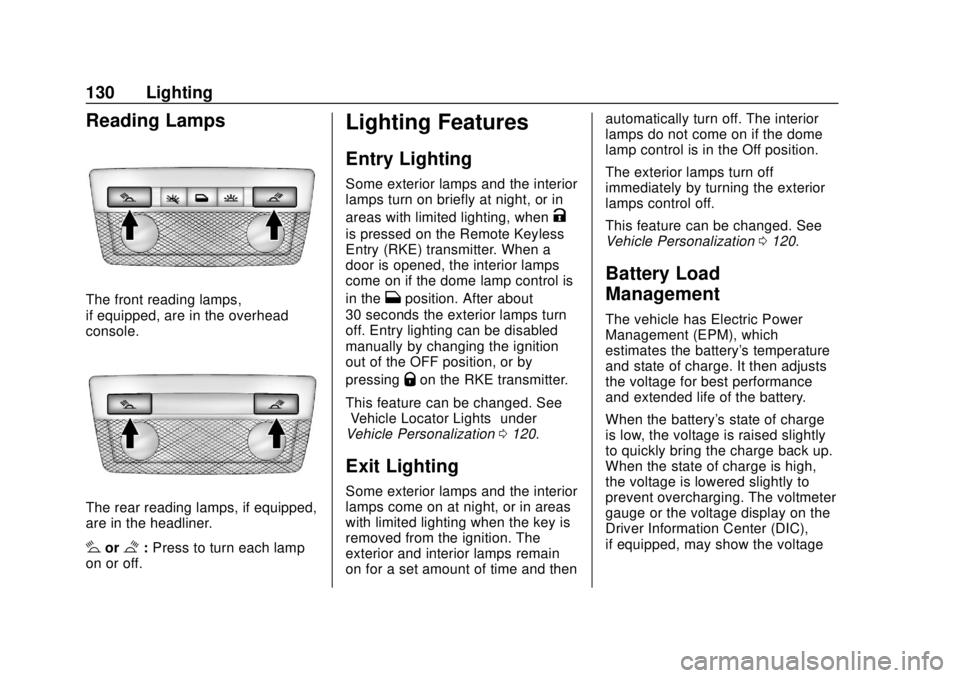

130 Lighting
Reading Lamps
The front reading lamps,
if equipped, are in the overhead
console.
The rear reading lamps, if equipped,
are in the headliner.
#or$:Press to turn each lamp
on or off.
Lighting Features
Entry Lighting
Some exterior lamps and the interior
lamps turn on briefly at night, or in
areas with limited lighting, when
K
is pressed on the Remote Keyless
Entry (RKE) transmitter. When a
door is opened, the interior lamps
come on if the dome lamp control is
in the
Hposition. After about
30 seconds the exterior lamps turn
off. Entry lighting can be disabled
manually by changing the ignition
out of the OFF position, or by
pressing
Qon the RKE transmitter.
This feature can be changed. See
“Vehicle Locator Lights” under
Vehicle Personalization 0120.
Exit Lighting
Some exterior lamps and the interior
lamps come on at night, or in areas
with limited lighting when the key is
removed from the ignition. The
exterior and interior lamps remain
on for a set amount of time and then automatically turn off. The interior
lamps do not come on if the dome
lamp control is in the Off position.
The exterior lamps turn off
immediately by turning the exterior
lamps control off.
This feature can be changed. See
Vehicle Personalization
0120.
Battery Load
Management
The vehicle has Electric Power
Management (EPM), which
estimates the battery's temperature
and state of charge. It then adjusts
the voltage for best performance
and extended life of the battery.
When the battery's state of charge
is low, the voltage is raised slightly
to quickly bring the charge back up.
When the state of charge is high,
the voltage is lowered slightly to
prevent overcharging. The voltmeter
gauge or the voltage display on the
Driver Information Center (DIC),
if equipped, may show the voltage

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13566640) - 2020 - CRC - 9/30/19
Index 361
Instrument Panel Overview . . . . . . . 5
Interior Rearview Mirrors . . . . . . . . . 23
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - NorthAmerica . . . . . . . . . . . . . . . . . . . . . . . 295
K
Keyless Entry
Remote (RKE) System . . . . . . . . . 12
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
L
Labeling, Tire Sidewall . . . . . . . . . . 263
Lamps Daytime Running (DRL) . . . . . . 126
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 129
Exterior Cargo . . . . . . . . . . . . . . . . 128
Exterior Controls . . . . . . . . . . . . . . 124
Exterior Lamps OffReminder . . . . . . . . . . . . . . . . . . . 125
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . 131
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 106
On Reminder . . . . . . . . . . . . . . . . . .113 Lamps (cont'd)
Reading . . . . . . . . . . . . . . . . . . . . . . 130
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 197
Lane Departure Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Lap-Shoulder Belt . . . . . . . . . . . . . . . 39
LATCH System
Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . 78
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 63
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 130
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Illumination Control . . . . . . . . . . . 129
Lights Airbag Readiness . . . . . . . . . . . . . 104
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 108
Brake System Warning . . . . . . . 108
Charging System . . . . . . . . . . . . . 105
Check Engine (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 106
Cruise Control . . . . . . . . . . . . . . . . .113
Door Ajar . . . . . . . . . . . . . . . . . . . . . .113
Engine Oil Pressure . . . . . . . . . . . 111
Flash-to-Pass . . . . . . . . . . . . . . . . . 125 Lights (cont'd)
Front Fog Lamp . . . . . . . . . . . . . . .113
High-Beam On . . . . . . . . . . . . . . . . .112
High/Low Beam Changer . . . . . 125
Hill Descent Control . . . . . . . . . . 109
Lane Departure Warning . . . . . . 109
Low Fuel Warning . . . . . . . . . . . . .112
Seat Belt Reminders . . . . . . . . . . 103
Security . . . . . . . . . . . . . . . . . . . . . . .112
StabiliTrak OFF . . . . . . . . . . . . . . . .110
Tire Pressure . . . . . . . . . . . . . . . . . . 111
Tow/Haul Mode . . . . . . . . . . . . . . . 109
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . .110
Traction Off . . . . . . . . . . . . . . . . . . . 109
Limited-Slip Differential . . . . . . . . . 186
Locking Front Axle . . . . . . . . . . . . . . 187
Locking Rear Axle . . . . . . . . . . . . . . 186
Locks
Automatic Door . . . . . . . . . . . . . . . . . 17
Delayed Locking . . . . . . . . . . . . . . . . 17
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Lockout Protection . . . . . . . . . . . . . . 18
Power Door . . . . . . . . . . . . . . . . . . . . . 17
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Loss of Control . . . . . . . . . . . . . . . . . 144
Low Fuel Warning Light . . . . . . . . . 112

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13566640) - 2020 - CRC - 9/30/19
Index 363
Passenger Sensing System . . . . . 50
Perchlorate MaterialsRequirements, California . . . . . . 224
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 120
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 17
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . 93
Protection, Battery . . . . . . . . . . . . 131
Retained Accessory (RAP) . . . 164
Seat Adjustment . . . . . . . . . . . . . . . . 30
Windows . . . . . . . . . . . . . . . . . . . . . . . 24
Pregnancy, Using Seat Belts . . . . 42
Privacy Vehicle Data Recording . . . . . . . 345
Program Courtesy Transportation . . . . . . 339
Prohibited Fuels . . . . . . . . . . . . . . . . 199
Proposition 65 Warning,
California . . . . . . . . . . . .223, 243, 295,
Back Cover
Publication Ordering Information . . . . . . . . . . . . . . . . . . . . 342R
Radio Frequency Statement . . . . 343
Reading Lamps . . . . . . . . . . . . . . . . . 130
Rear Axle . . . . . . . . . . . . . . . . . . . . . . . 245Locking . . . . . . . . . . . . . . . . . . . . . . . 186
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 33
Rear Vision Camera (RVC) . . . . . 192
Rear Windows . . . . . . . . . . . . . . . . . . . 26
Rearview Mirrors . . . . . . . . . . . . . . . . 23 Automatic Dimming . . . . . . . . . . . . . 24
Reclining Seatbacks . . . . . . . . . . . . . 31
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . 325
Records Maintenance . . . . . . . . . . . . . . . . . . 328
Recreational Vehicle Towing . . . . 299
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . 337
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . 12
Remote Vehicle Start . . . . . . . . . . . . 15
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 56
Maintenance . . . . . . . . . . . . . . . . . . 326
Replacing Airbag System . . . . . . . . 56 Replacing LATCH System
Parts after a Crash . . . . . . . . . . . . . 78
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . 43
Reporting Safety Defects Canadian Government . . . . . . . . 344
General Motors . . . . . . . . . . . . . . . 344
U.S. Government . . . . . . . . . . . . . 343
Restraints Where to Put . . . . . . . . . . . . . . . . . . . 62
Retained Accessory
Power (RAP) . . . . . . . . . . . . . . . . . . 164
Ride Control Systems Enhanced TractionSystem (ETS) . . . . . . . . . . . . . . . 186
Roads
Driving, Wet . . . . . . . . . . . . . . . . . . 149
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . 337
Rotation, Tires . . . . . . . . . . . . . . . . . . 275
Routing, Engine Drive Belt . . . . . . 332
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . . 167
S
Safety Defects ReportingCanadian Government . . . . . . . . 344
General Motors . . . . . . . . . . . . . . . 344

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13566640) - 2020 - CRC - 9/30/19
364 Index
Safety Defects Reporting (cont'd)U.S. Government . . . . . . . . . . . . . 343
Safety Locks . . . . . . . . . . . . . . . . . . . . . 18
Safety System Check . . . . . . . . . . . . 42
Scheduling Appointments . . . . . . . 339
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . 35 Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Extender . . . . . . . . . . . . . . . . . . . . . . . . 42
How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . 37
Lap-Shoulder Belt . . . . . . . . . . . . . . 39
Reminders . . . . . . . . . . . . . . . . . . . . 103
Replacing after a Crash . . . . . . . . 43
Use During Pregnancy . . . . . . . . . . 42
Seats Adjustment, Front . . . . . . . . . . . . . . . 29
Head Restraints . . . . . . . . . . . . . . . . 28
Heated Front . . . . . . . . . . . . . . . . . . . 32
Lumbar Adjustment, Front . . . . . . 30
Power Adjustment, Front . . . . . . . 30
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Reclining Seatbacks . . . . . . . . . . . . 31
Underseat Storage . . . . . . . . . . . . . 89
Securing Child Restraints . . . . 79, 84
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . .112
OnStar . . . . . . . . . . . . . . . . . . . . . . . 349
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 19 Security (cont'd)
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 19
Service . . . . . . . . . . . . . . . . . . . . . . . . . 139 Accessories andModifications . . . . . . . . . . . . . . . . 224
Climate Control System . . . . . . . 133
Doing Your Own Work . . . . . . . . 224
Maintenance Records . . . . . . . . 328
Maintenance, General Information . . . . . . . . . . . . . . . . . . 313
Parts Identification . . . . . . . . . . . . 329
Scheduling Appointments . . . . . 339
Services Special Application . . . . . . . . . . . 321
Servicing the Airbag . . . . . . . . . . . . . 54
Shift Lock Control Function Check, Automatic
Transmission . . . . . . . . . . . . . . . . . . 246
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 164
Out of Park . . . . . . . . . . . . . . . . . . . 166
Signals, Turn and Lane-Change . . . . . . . . . . . . . . . . . 127
Spare Tire Compact . . . . . . . . . . . . . . . . . . . . . . 293
Special Application Services . . . . 321
Specifications and
Capacities . . . . . . . . . . . . . . . . . . . . . 330 Speedometer . . . . . . . . . . . . . . . . . . . 101
StabiliTrak
OFF Light . . . . . . . . . . . . . . . . . . . . . .110
Start Assist, Hill . . . . . . . . . . . . . . . . . 181
Start Vehicle, Remote . . . . . . . . . . . 15
Starter Switch Check . . . . . . . . . . . 245
Starting the Engine . . . . . . . . . . . . . 162
Steering . . . . . . . . . . . . . . . . . . . . . . . . 143 Heated Wheel . . . . . . . . . . . . . . . . . . 91
Wheel Adjustment . . . . . . . . . . . . . . 91
Wheel Controls . . . . . . . . . . . . . . . . . 91
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . 250
Storage Areas Center Console . . . . . . . . . . . . . . . . . 89
Glove Box . . . . . . . . . . . . . . . . . . . . . . 88
Sunglasses . . . . . . . . . . . . . . . . . . . . . 89
Underseat . . . . . . . . . . . . . . . . . . . . . . 89
Storage Compartments . . . . . . . . . . 88
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 152
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 26
Sunglass Storage . . . . . . . . . . . . . . . . 89
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward CollisionAlert (FCA) . . . . . . . . . . . . . . . . . . 195
