CHEVROLET CORVETTE 1993 4.G Owners Manual

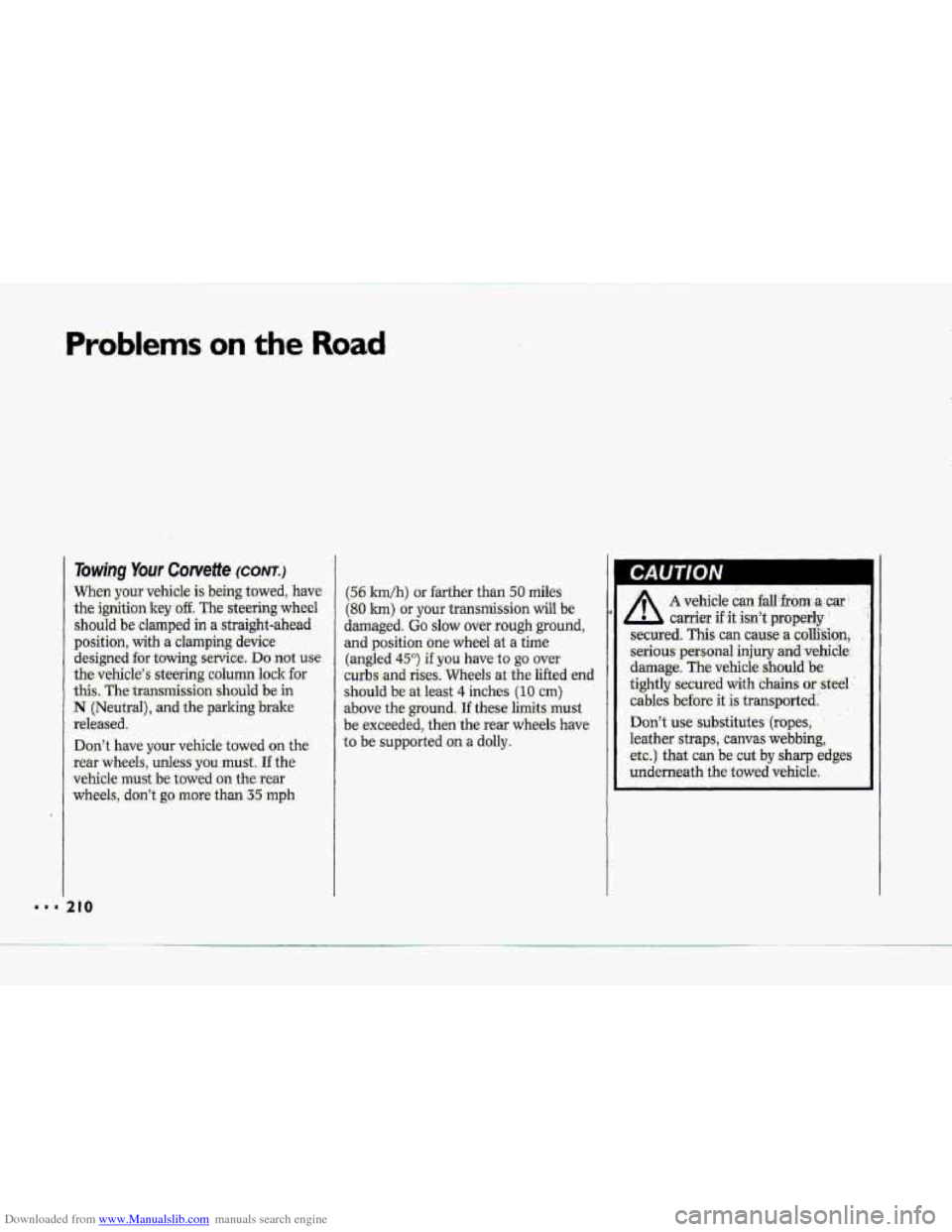

Downloaded from www.Manualslib.com manuals search engine Towhg Your Corvette (CONT.)
When your vehicle is being towed, have
the ignition key
off. The steering wheel
should-be.
clamp,ed in a straight-ahead
position, with a clamping device
designed fur towing s-ervice. DO not use
the vehicle's stewing column iock for
this. The transmission shoLild be in
N [Neutral), and the.parlepg brake
released.
Don't have your vehicle tqwed on the
rear wheels,. unless you must. If the
vehicle
must. be t0we.d on the rear
wheels, dan't go more than 3mph
I
(56 km/h) or farther than 50 miles
(80.h) or your transmission will be
-damaged. Go slow over rough ground,
and position one wheel at a time
(angled 450j if you have- to go over
eurbs.and
rises. .Wheels &the lifted end
should be-
at. least 4 inches (10 cm)
above the ground. If these limits must
be
exceeded, then the rear wheels have
to be supported .on-a dolly.
I
.,
A
A vehicle can faH~~~m~a:c~
carrier if ,it isn't propgilp '
secured., This can cause a.colii$ion,
serious. pelrsonal injury .and:.vehicle.
damage.
The vehicle..shou[d be
t-ightly secured with chains or--sted -'
cables before it is transported-'
Don't use substitutes '(ropes,
leather straps, canvas webbing,
etc:.) that- can be cut by sharp edges
underneath the t.owed vehicle,

Downloaded from www.Manualslib.com manuals search engine Y5047
21 I

Downloaded from www.Manualslib.com manuals search engine Pro-blems on the Road
I

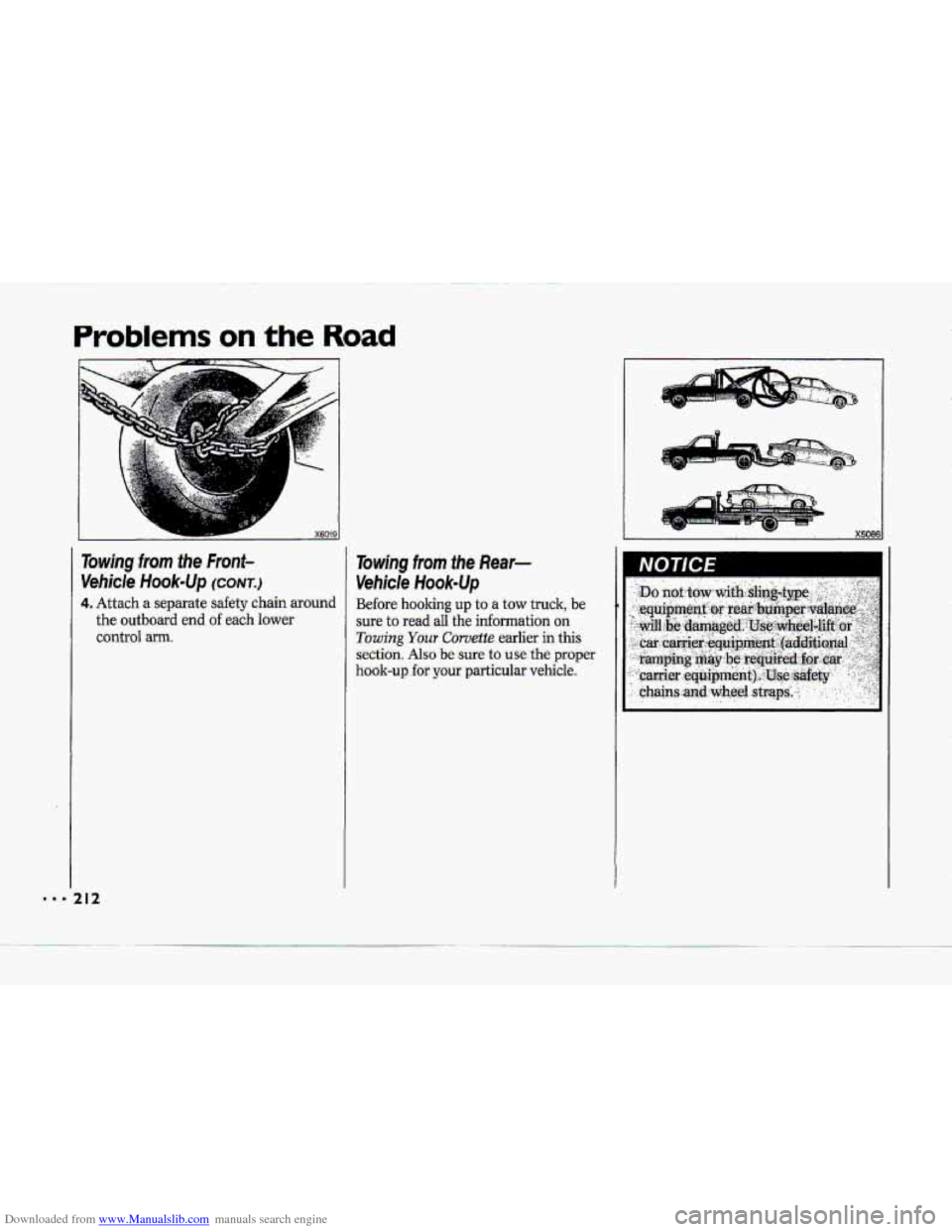

Towing from the Front-
Vehicle Hook-Up (corvr.)
4. Attach a separate safety chain around
the outboard end. of each lower
control arm.
Towing fro-m fhe Rear-
Vehicle Hook-Up
.Before hooking up to a tow truck, be
sure to read all the information on
Towing Your Corvette earlier in this
sectim. Also be sure to use the proper
hook-up for your particular vehicle.

Downloaded from www.Manualslib.com manuals search engine F"
!
L
r
i

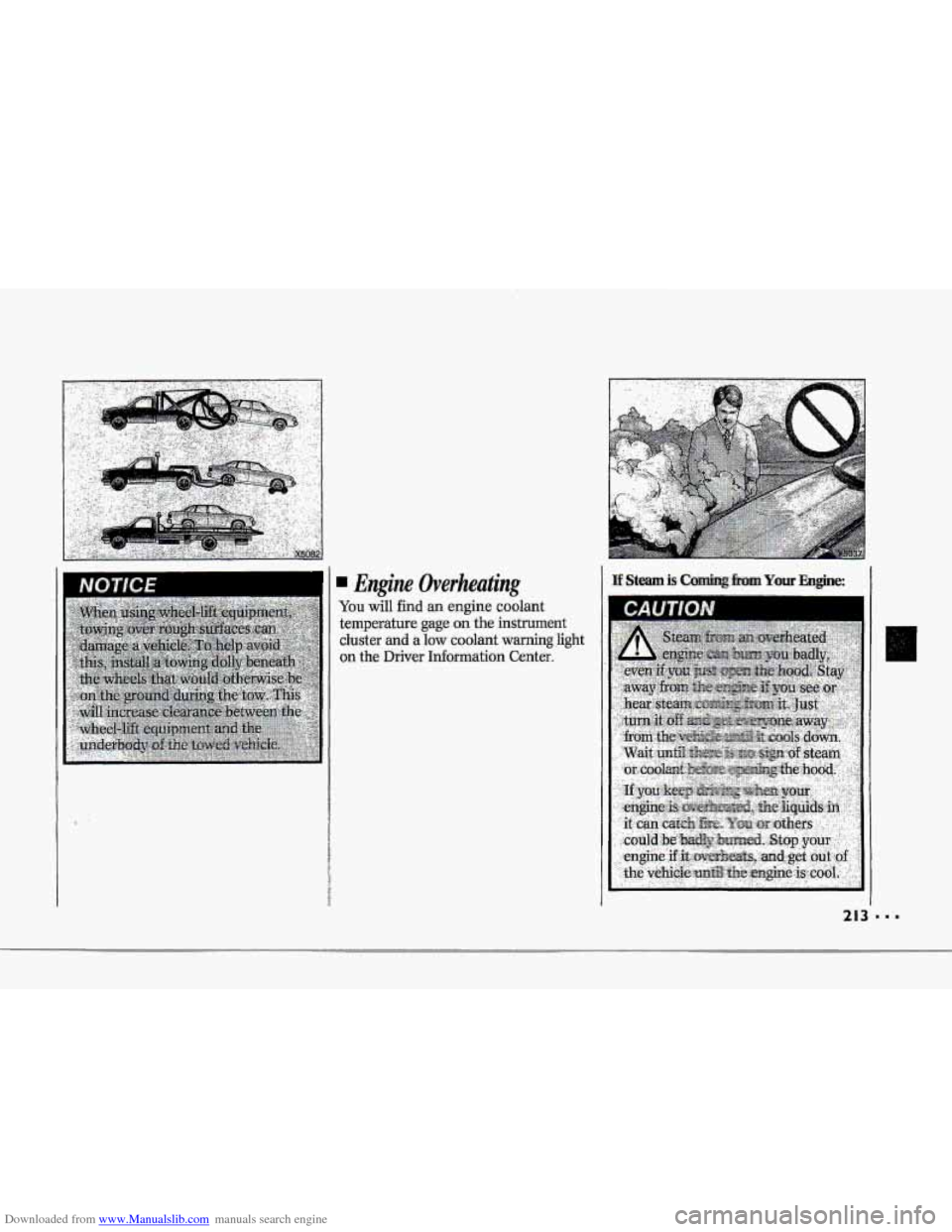

Engine Overheating
Y0.u will find an engine coolant
temperature gage. on. the instrument
cluster and a low coolant warning light
on the Drives In€orrnation Centkr.
Ifsteamis

Downloaded from www.Manualslib.com manuals search engine Problems on the Road

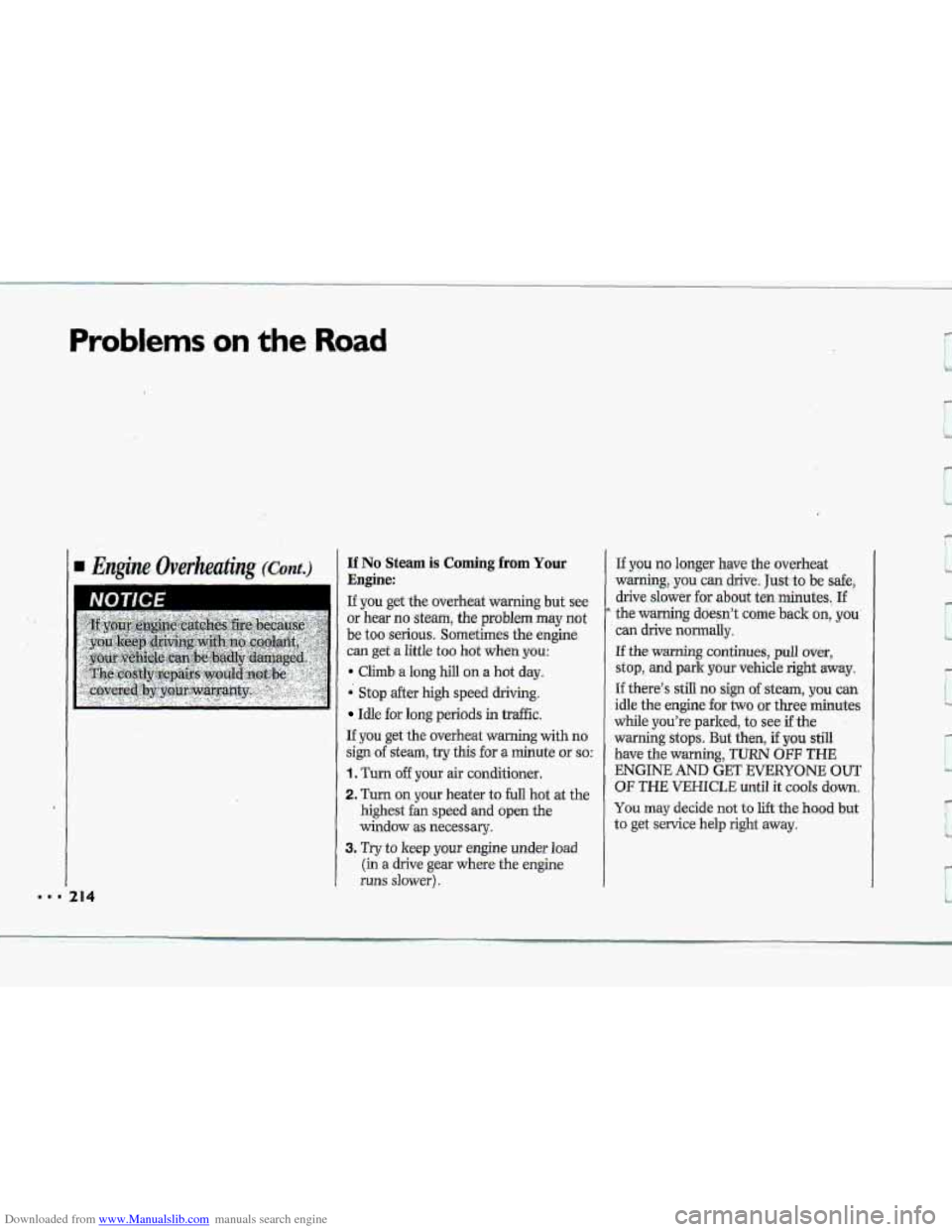

If No Steam is Coming from Your
Engine:
If you get the overheat warning but see
or hear no steam, the problem may not
be too serious. Sometimes the engine
can get .a Me too hot when you:
9 Climb a long hill on a hot day.
4 Stop after high speed driving.
Idle for long periods in traffic.
If you get the overheat warning with no
sign of steam, try this for a minute or so:
1 I Turn off your air conditioner.
2. Turn on your heater to €ull hot at the
highest
fan speed and open the
window as necessary.
3. Try to keep your engine under load
(in
a -drive gear where the engine
runs slower).
If you no longer have the overheat
warning,.you
cm drive. Just to be safe,
drive slower for about ten minutes., If
the warning doesn't co~e back on, you'
can drive normally.
I€ the warning continues, pull over,
stop, and park your vehicle right away.
If there's still no sign of steam, you can
idle the engine for two or three minutes
while you're parked, to see jfthe
warning
stops. But then, if you still
have
the warning, TURN OFF THE
ENGINE AND GET EVERYONE OUT
OF THE VEHICLE until it cools down.
You- may decide not to l.23 the ho0.d but
to get service help right away.
r
e

Downloaded from www.Manualslib.com manuals search engine F“
i 1
I
;I”
i

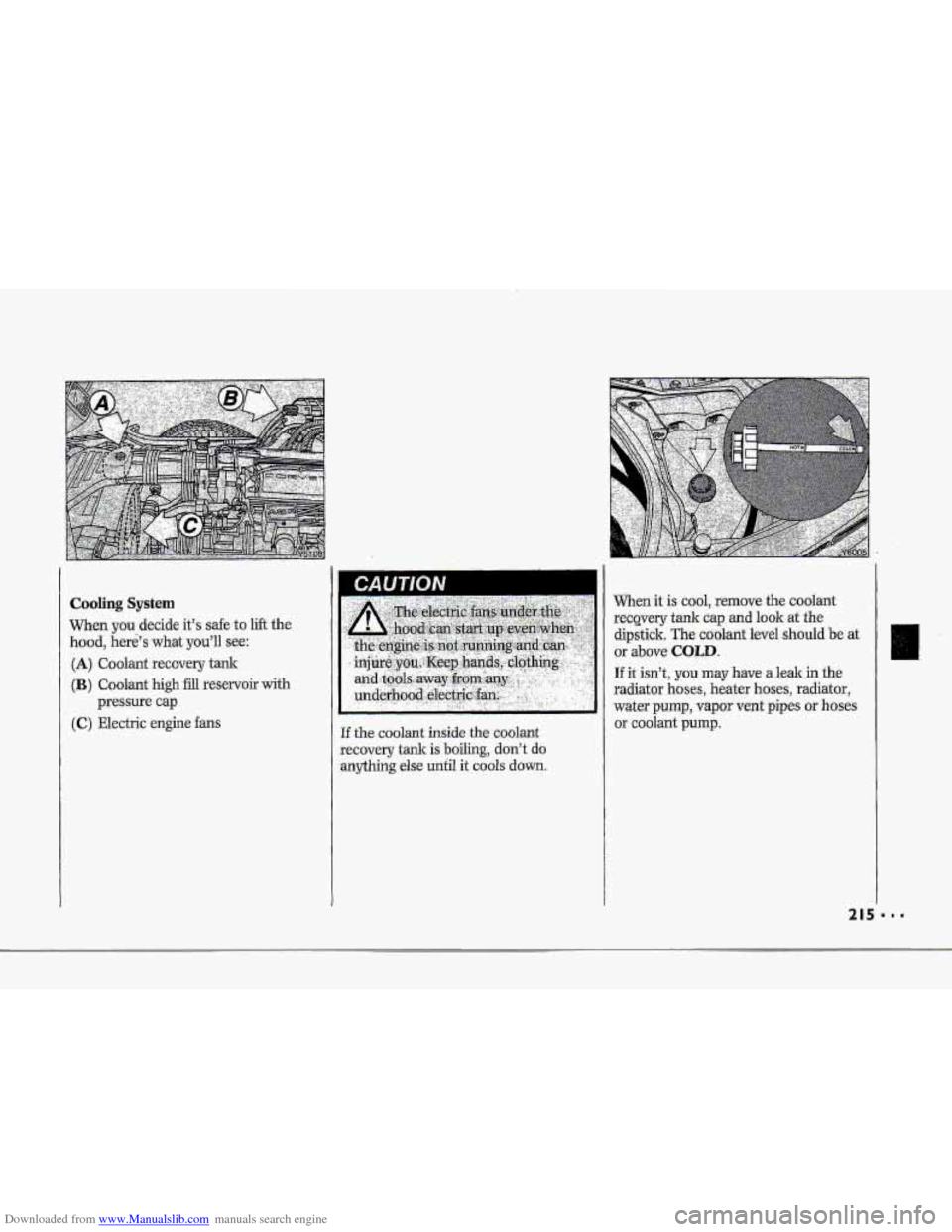

Cooling System
When you decide it% safe to lift the
hood, heri’s.what you’ll see-:
(A) Coolant.recovery tank
(B) Coolant-high fillreservoir with
(C) Electric engine fans
pressure c~p
If the caulant inside the csolaht
recovery tank is boiling, don’t do;
anything else until it cuols dam.
When it is cwl, rtmove- the .coolant
reqvery tank cap and I-ook at - the
dipstick. The
Coolant level should be at
or above-COLD.
If it isn”t, you may have a leak in the
radiator hoses, heater hoses, radiator,
water pmp, vapor vent pipes or hoses
or coolant pump.

Downloaded from www.Manualslib.com manuals search engine rroblems on the Koad

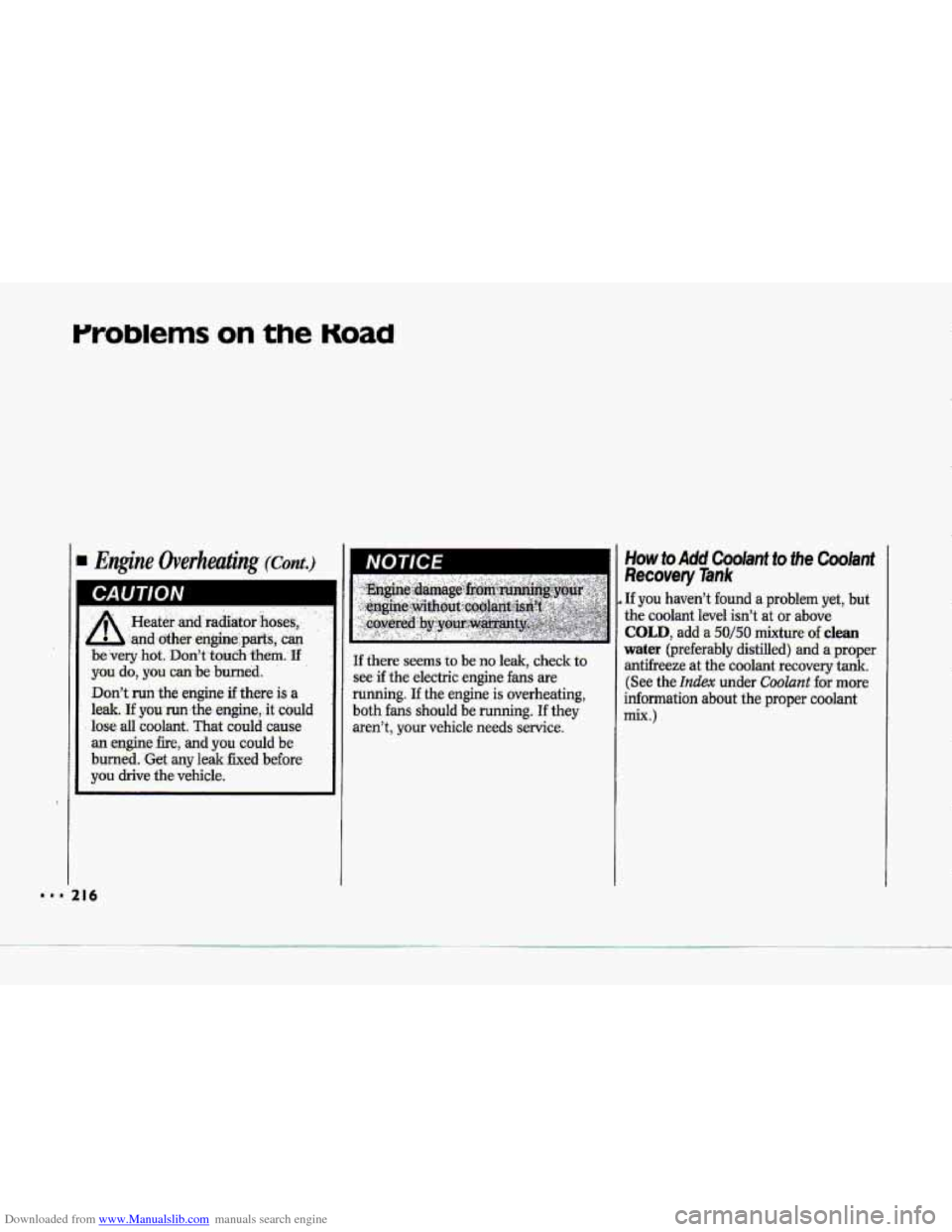

Engine Overheating (COW.)
A Heater adradiator hoses, ’.-
.and oiher enginelparts, can
.be.very-hot. Don’t touch them ...If
you do, you canbe burned.
Don’t run the engine
if there is a
leak. If
you run the engine,.it could
lose all coolant. That could cause
an engine fire, and you could be
burned. Get any leak fixed before
you drive the vehicle.
216
If there seems to be no leak, check to
see
if the electric engine fans are
running.
If the engine is overheating,
both fans
should be running. If they
aren’t, your vehicle needs service.
How to Add Coolant to the Coolant
Recovery Tank
If you haven’t found a problem yet, but
the coolant level isn’t at
or above
COLD,
add a 50/50 mixture of clean
water (preferably distilled) and a proper
antifreeze at the coolant recovery tank.
(See the
Index under Coolant for more
information about the proper coolant
mix. )

Downloaded from www.Manualslib.com manuals search engine .-

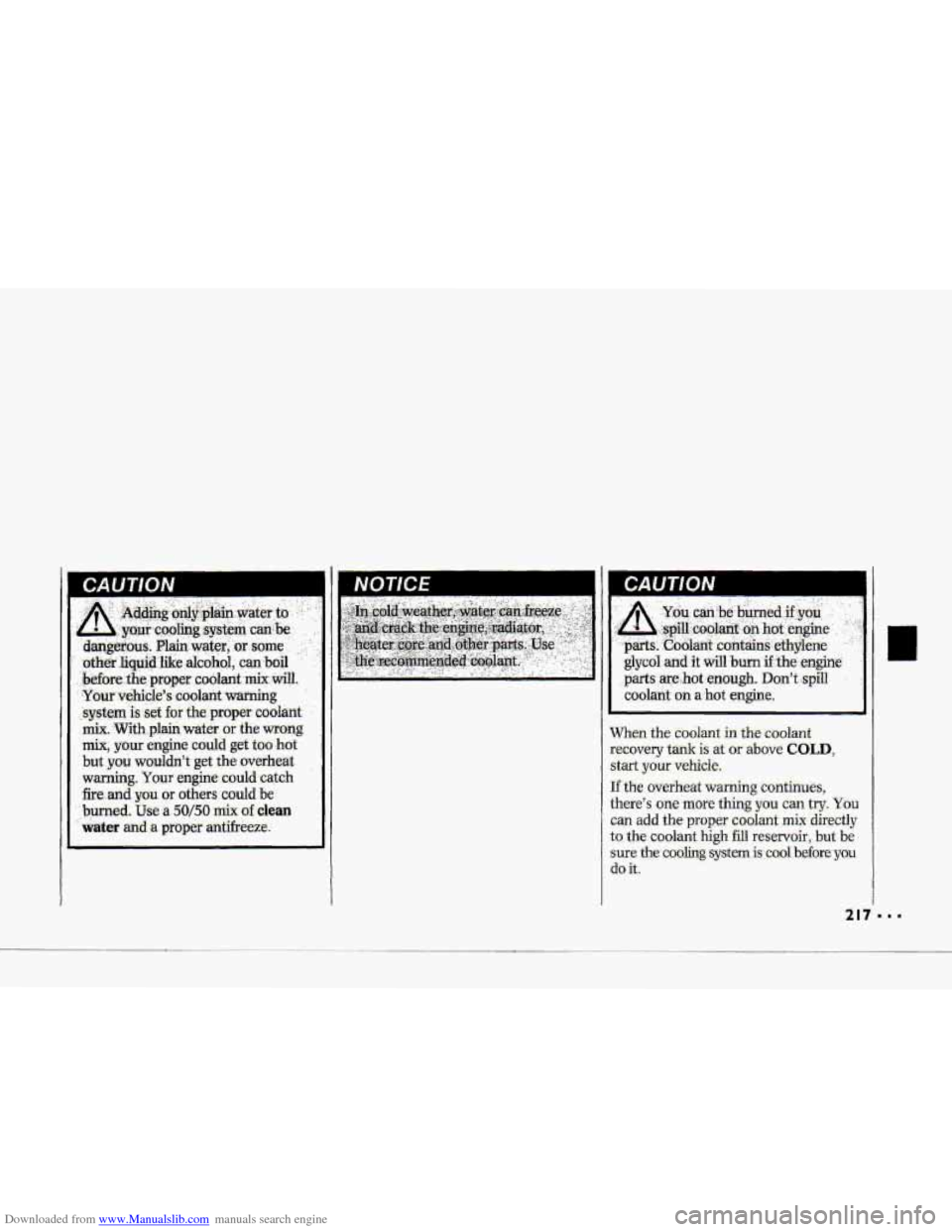

Adding only plain:water.to
yam cooling system can be
dangerous. Plain water, or some
other .liquid like alcohol, can boil
before the proper coolant mix will.
Your vehicle's coolant warning
system is set for the proper coolant
mix. With plain water or the wrong
mix, your engine could get too hot
but
you wouldn't get the overheat
warning. Your engine could catch
fire and you or others could be
burned. Use a 50/50 mix of clean
water and a proper antifreeze.
You can'bebumed if you
. -spiU"CoolaZit hot engine '
parts. Coolant contains'ethylene
glycol and it will burn .if the engine
parts are hot enough. Don't spill
coolant on a hot engine.
When the coolant in the coolant
recovery
tank is at or above COLD,
start your vehicle.
If the overheat warning continues,
there's one more thing you can try. You
can add the proper coolant mix directly
to the coolant high fill reservoir, but be
sure the cooling system is cool before you
do it.
3

Downloaded from www.Manualslib.com manuals search engine Problems on the Road

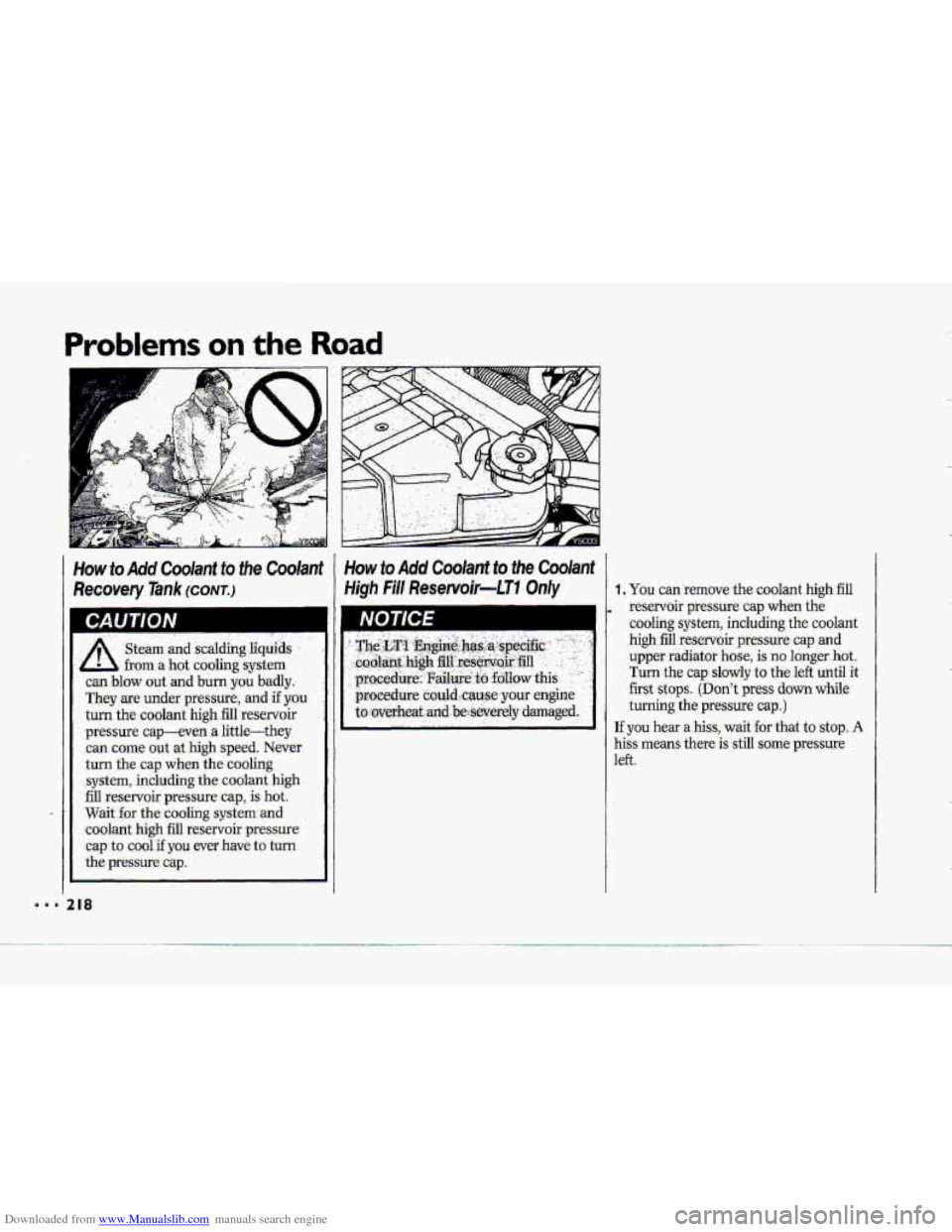

How to Add Coo/ant to the Coolant
Recovery Tank (CONT.)
CAUTlON
Steam and scalding liquids
from a hot cooling system
can blow out and
burn you badly.
They are under pressure, and if you
turn the.coolant high fill reservoir
pressure cap-even a little-they
can come out at high speed. Never
turn the cap when the cooling
system, including the coolant
high
fill reservoir pressure cap, is hot.
Wait for the cooling system and
coolant high fill reservoir pressure
cap to cool if you ever have to turn
the pressure cap.
How fa Add Coolant to the Coolant
High FM Reservoir-LT1 On/y 1. You can remove the coolant high fill
reservoir pressure cap when the
cooling system, including the coolant
high fill reservoir pressure cap and
upper radiator hose,
is no longer hot.
Turn the cap slowly to the left until it
first
stops. (Don't press down while
turning the pressure cap.)
If you hear a hiss, wait for that to stop. A
hiss means there is still some pressure
left.
.n
- ,.

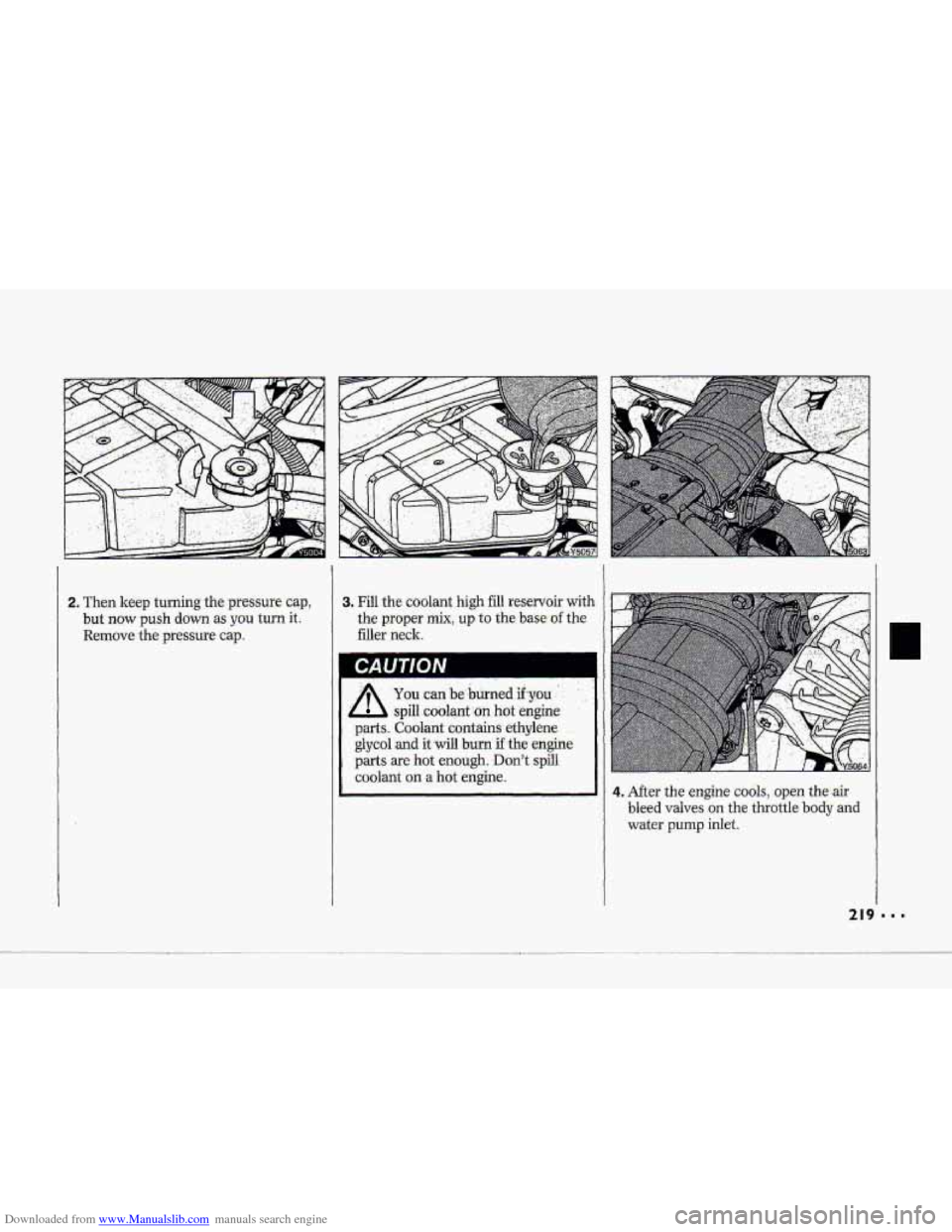

Downloaded from www.Manualslib.com manuals search engine 2. Then keep turning the prissure cap,
but ~QW push down as you turn it.
Remove the pressure cap
3. Fill the coolant high fill reservoir witk
the proper mix, up-to the base of the
filler neck.
I
A You cm be'burned if-you ." : ' ,
spill.. coolent :on hol engine
p.arts. Co&mt contains ethylene
glycol and it -will burn if-the engine
parts are hot enough. Don't spill
coolant on a hot engine.
4. After the engine, codls, open the ak
bleed valves on the throttle body and
water pump inlet..
