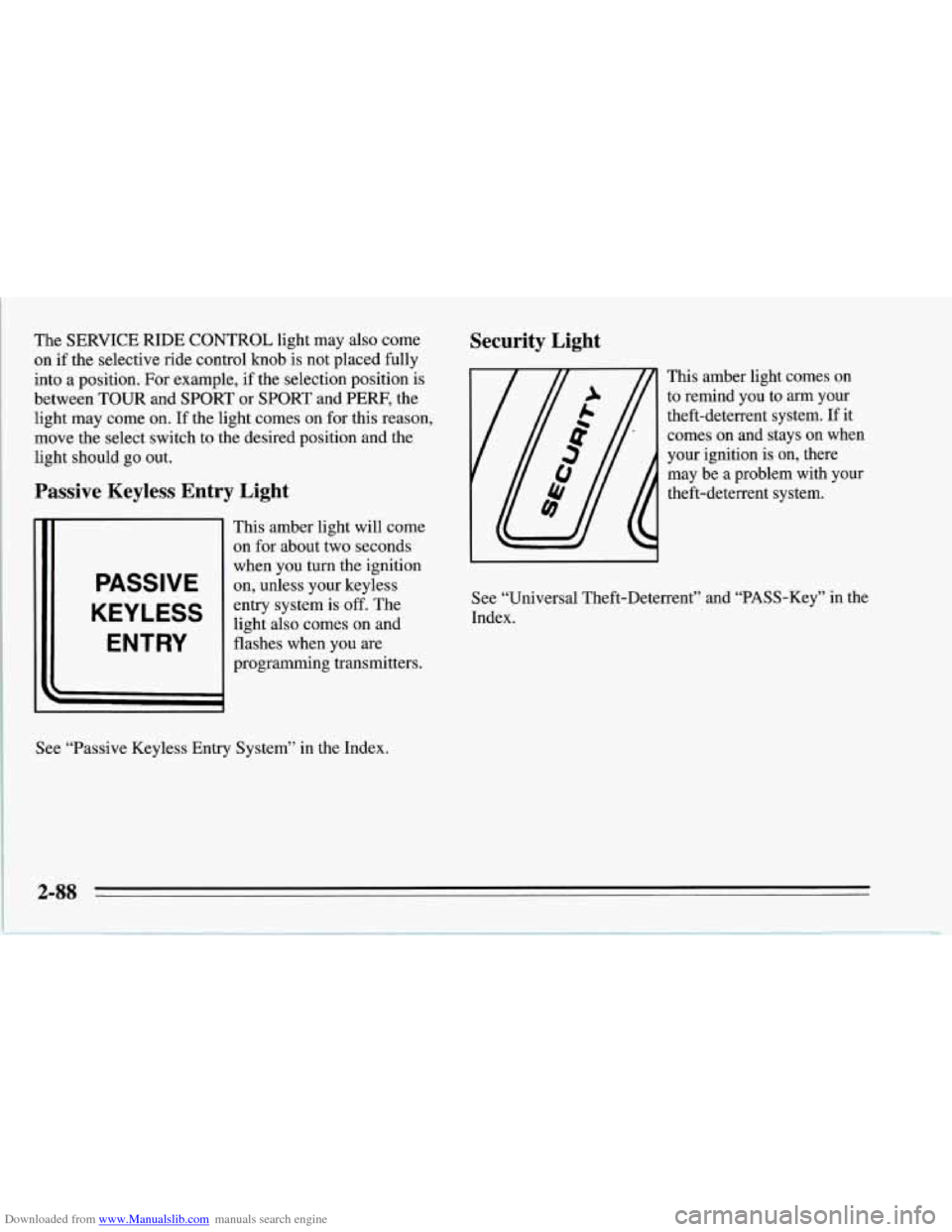

Downloaded from www.Manualslib.com manuals search engine The SERVICE RIDE CONTROL light may also come
on if the selective ride control knob is not placed fully
into a position. For example, if the selection position is
between
TOUR and SPORT or SPORT and PERF, the
light may come on. If the light comes on for this reason,
move the select switch to the desired position and the
light should go out.
Passive Keyless Entry Light
1
PASSIVE
KEYLESS
ENTRY
This amber light will come
on for about two seconds
when you
turn the ignition
on, unless your keyless
entry system is
off. The
light also comes on and
flashes when you
are
programming transmitters.
See “Passive Keyless Entry System” in the Index.
Security Light
This amber light comes on
to remind you to arm your
theft-deterrent system. If it
comes on and stays on when
your ignition is on, there
may be a problem with your
theft-deterrent system.
See “Universal Theft-Deterrent” and “PASS-Key” in the
Index.
2-88

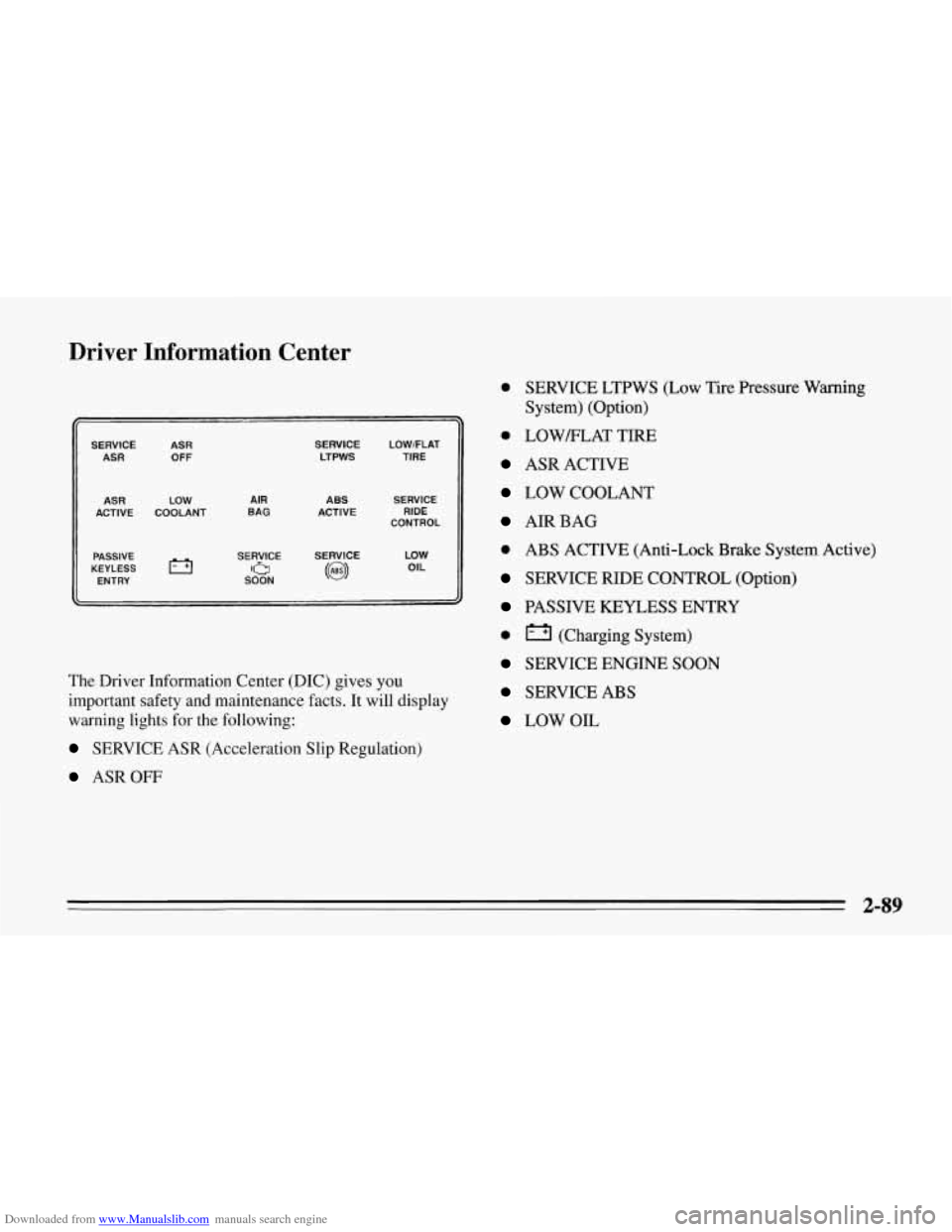

Downloaded from www.Manualslib.com manuals search engine Driver Information Center
SERVICE ASR ASR OFF
ASR LOW
ACTIVE COOLANT
PASSIVE
KEYLESS
ENTRY AIR
BAG
SERVICE
115- SOON
SERVICE LTPWS ABS
ACTIVE
SERVICE
(@I
LOWlFLAT TIRE
SERVICE RIDE
CONTROL
LOW OIL
The Driver Information Center (DIC) gives you
important safety and maintenance facts.
It will display
warning lights for the following:
SERVICE ASR (Acceleration Slip Regulation)
ASROFF
0 SERVICE LTPWS (Low Tire Pressure Warning
System) (Option)
0 LOWELAT TIRE
ASR ACTIVE
LOW COOLANT
AIRBAG
0 ABS ACTIVE (Anti-Lock Brake System Active)
SERVICE RIDE CONTROL (Option)
PASSIVE KEYLESS ENTRY
0 (Charging System)
SERVICE ENGINE SOON
SERVICE ABS
LOW OIL
2-89

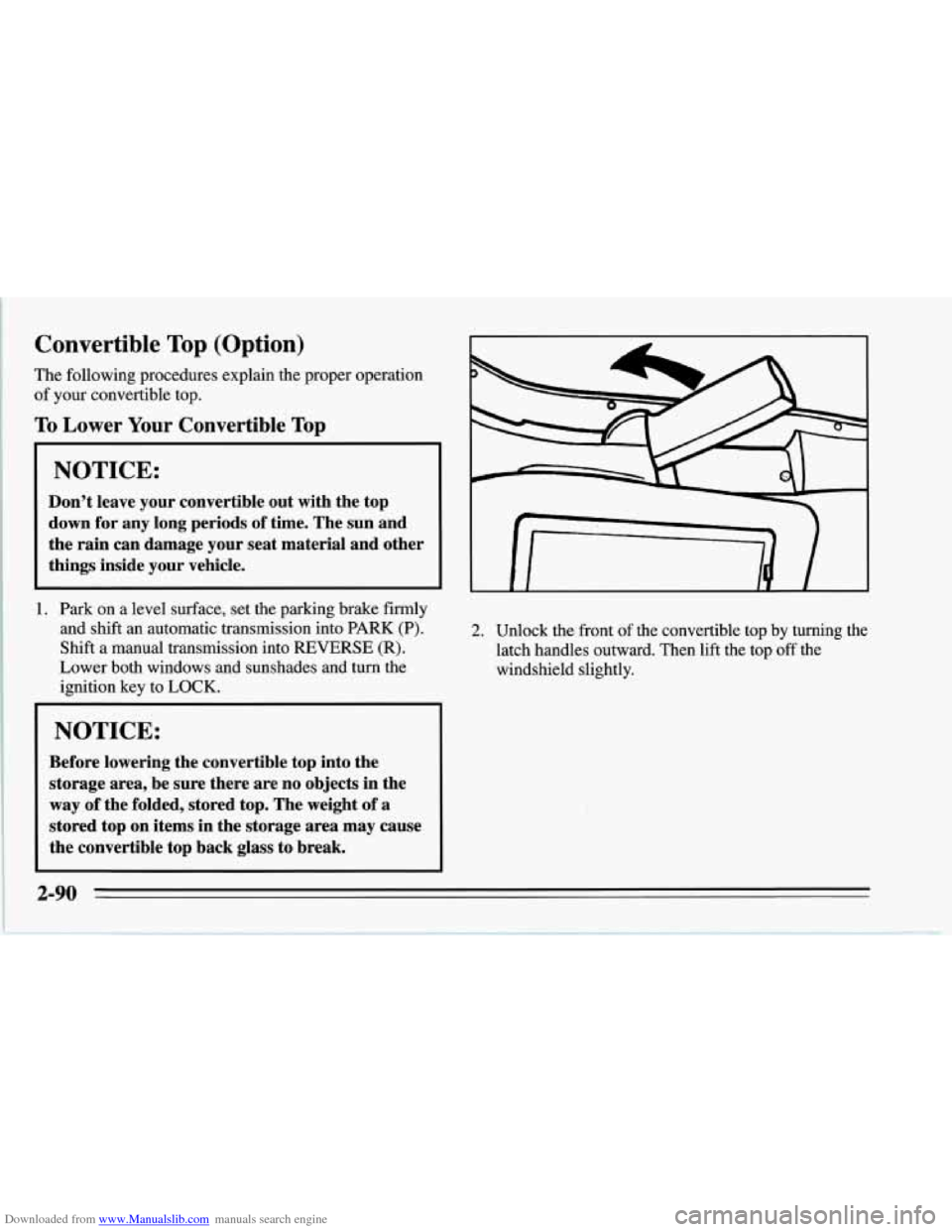

Downloaded from www.Manualslib.com manuals search engine Convertible Top (Option)
The following procedures explain the proper operation
of your convertible top.
To Lower Your Convertible Top
NOTICE:
Don’t leave your convertible out with the top
down for any long periods of time. The sun and
the rain can damage your seat material and other
things inside your vehicle.
1. Park on a level surface, set the parking brake firmly
and shift an automatic transmission into
PARK (P).
Shift a manual transmission into
REVERSE (R).
Lower both windows and sunshades and turn the
ignition key
to LOCK.
NOTICE:
Before lowering the convertible top into the
storage area, be sure there are no objects in the
way of the folded, stored top. The weight
of a
stored top on items in the storage area may cause
the convertible top back glass to break.
2. Unlock the front of the convertible top by turning the
latch handles outward. Then lift the top
off the
windshield slightly.
2-90

Downloaded from www.Manualslib.com manuals search engine I
n

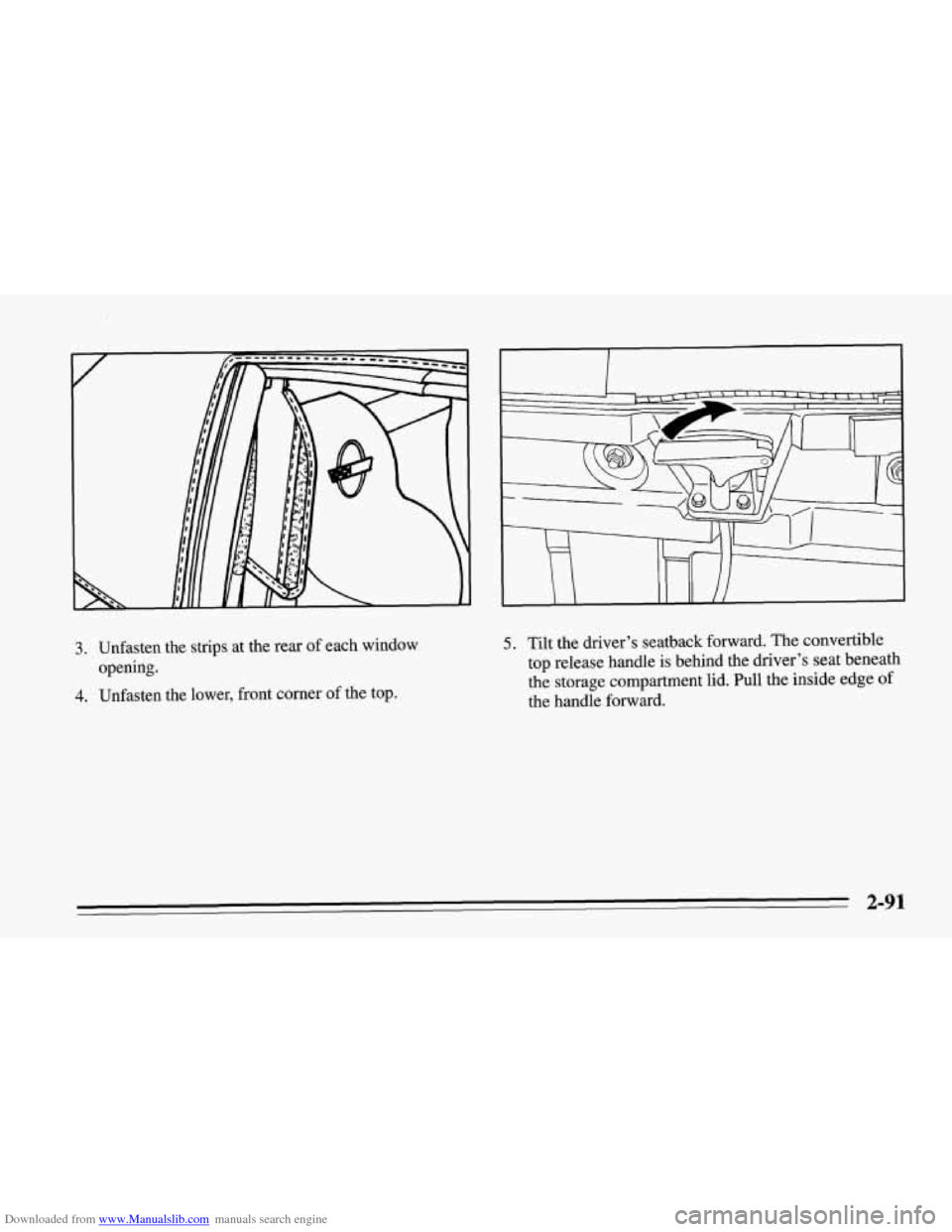

3. Unfasten the strips at the rear of each window
4. Unfasten the lower, front corner of the top.
opening.
5. Tilt the driver's
seatback forward. The convertible
top release handle is behind the driver's seat beneath
the storage compartment lid. Pull the inside edge
of
the handle forward.
2-91

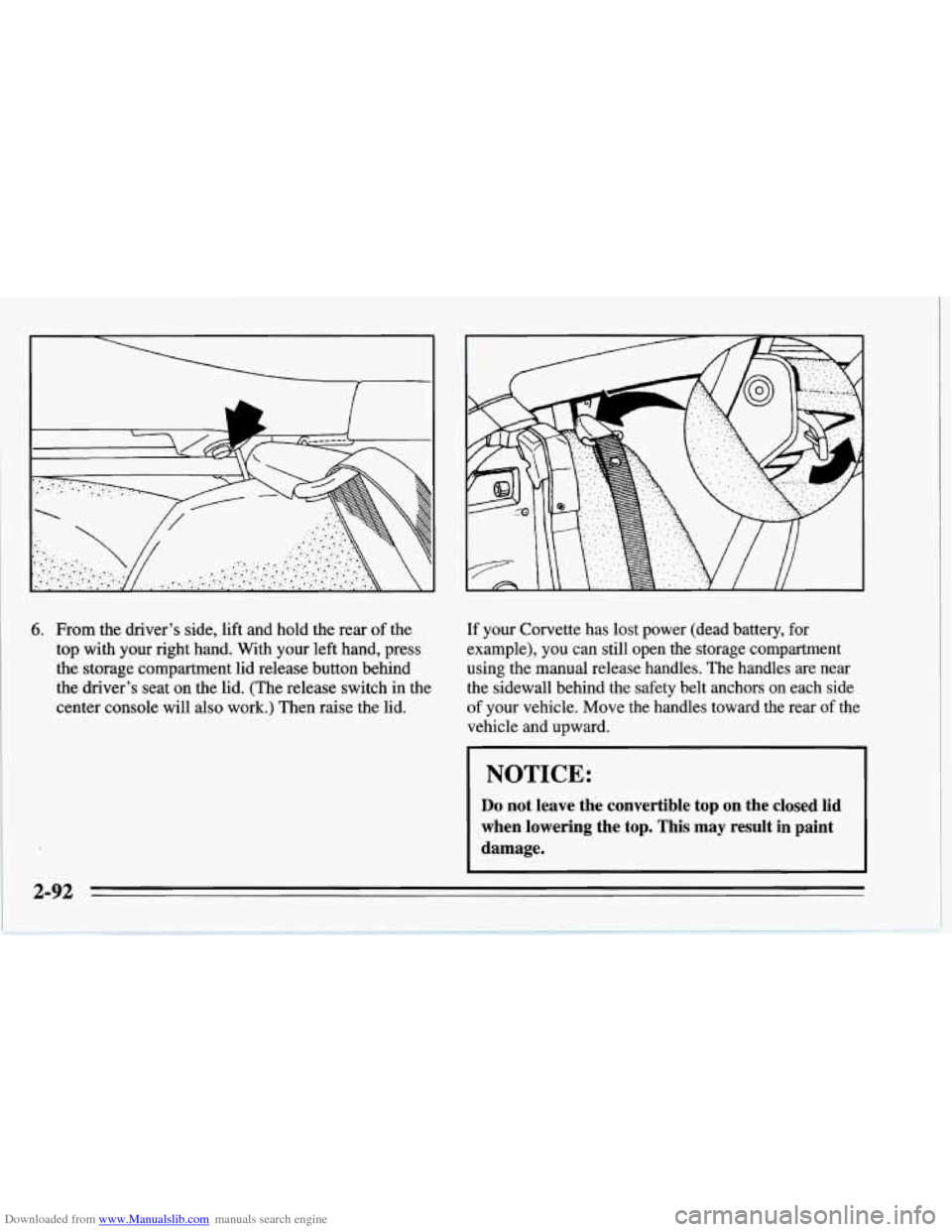

Downloaded from www.Manualslib.com manuals search engine 6. From the driver’s side, lift and hold the rear of the
top with your right hand. With your left hand, press
the storage compartment lid release button behind
the driver’s seat on the lid. (The release switch in the
center console will also work.) Then raise the lid. If
your Corvette has lost power (dead battery, for
example),
you can still open the storage compartment
using the manual release handles. The handles are near
the sidewall behind the safety belt anchors
on each side
of your vehicle. Move the handles toward the rear of the
vehicle and upward.
NOTICE:
Do not leave the convertible top on the closed lid
when lowering the top. This may result in paint
damage.
2-92

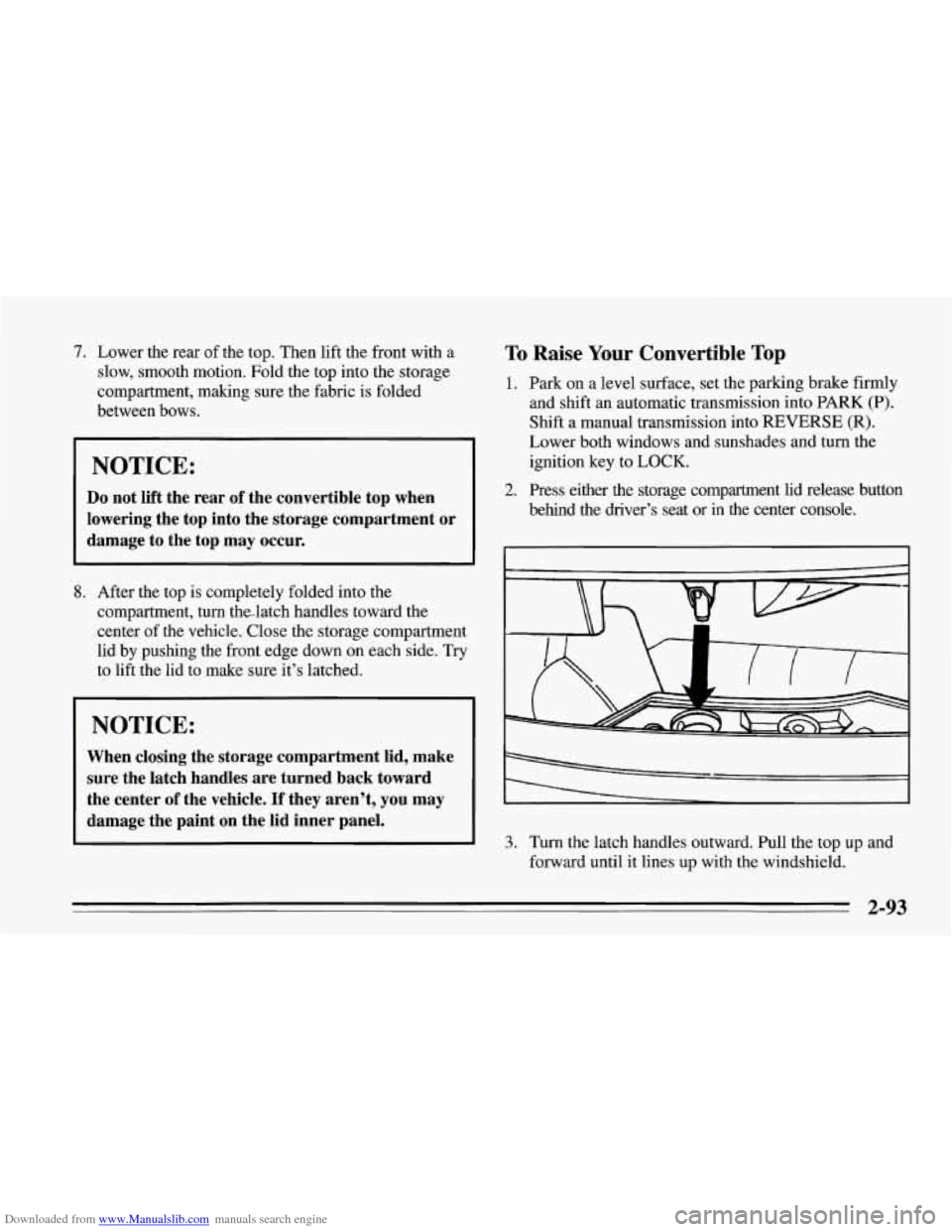

Downloaded from www.Manualslib.com manuals search engine 7. Lower the rear of the top. Then lift the front with a
slow, smooth motion. Fold the top into the storage
compartment, making sure the fabric is folded
between bows.
NOTICE:
Do not lift the rear of the convertible top when
lowering the top into the storage compartment or damage to the top may occur.
8. After the top is completely folded into the
compartment, turn the-latch handles toward the
center of the vehicle. Close the storage compartment
lid by pushing the front edge down on each side.
Try
to lift the lid to make sure it’s latched.
When closing the storage compartment lid, make
sure the latch handles are turned back toward
the center
of the vehicle. If they aren’t, you may
damage the paint on the lid inner panel.
To Raise Your Convertible Top
1. Park on a level surface, set the parking brake firmly
and shift an automatic transmission into
PARK (P).
Shift a manual transmission into REVERSE (R).
Lower both windows and sunshades and turn the
ignition key to
LOCK.
behind the driver’s seat or in the center console.
2. Press either the storage compartment lid release button
- II b-
3. Turn the latch handles outward. Pull the top up and
forward until it lines up with the windshield.
2-93

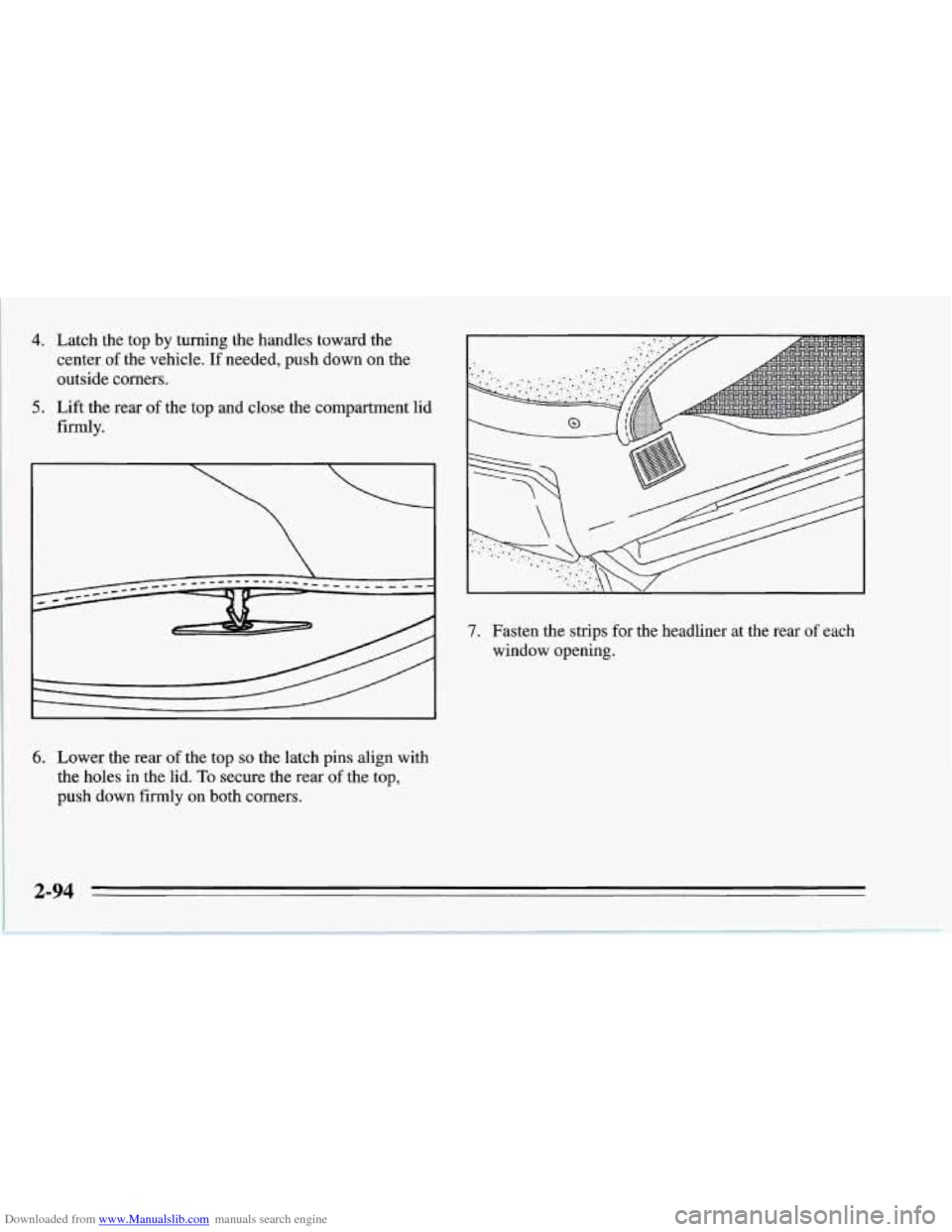

Downloaded from www.Manualslib.com manuals search engine 4.
5.
Latch the top by turning the handles toward the
center of the vehicle.
If needed, push down on the
outside corners.
Lift the rear of the top and close the compartment lid
firmly.
6. Lower the rear of the top so the latch pins align with
the holes in the lid.
To secure the rear of the top,
push down firmly on both corners.

7. Fasten the strips for the headliner at the rear of each
window opening.
2-94

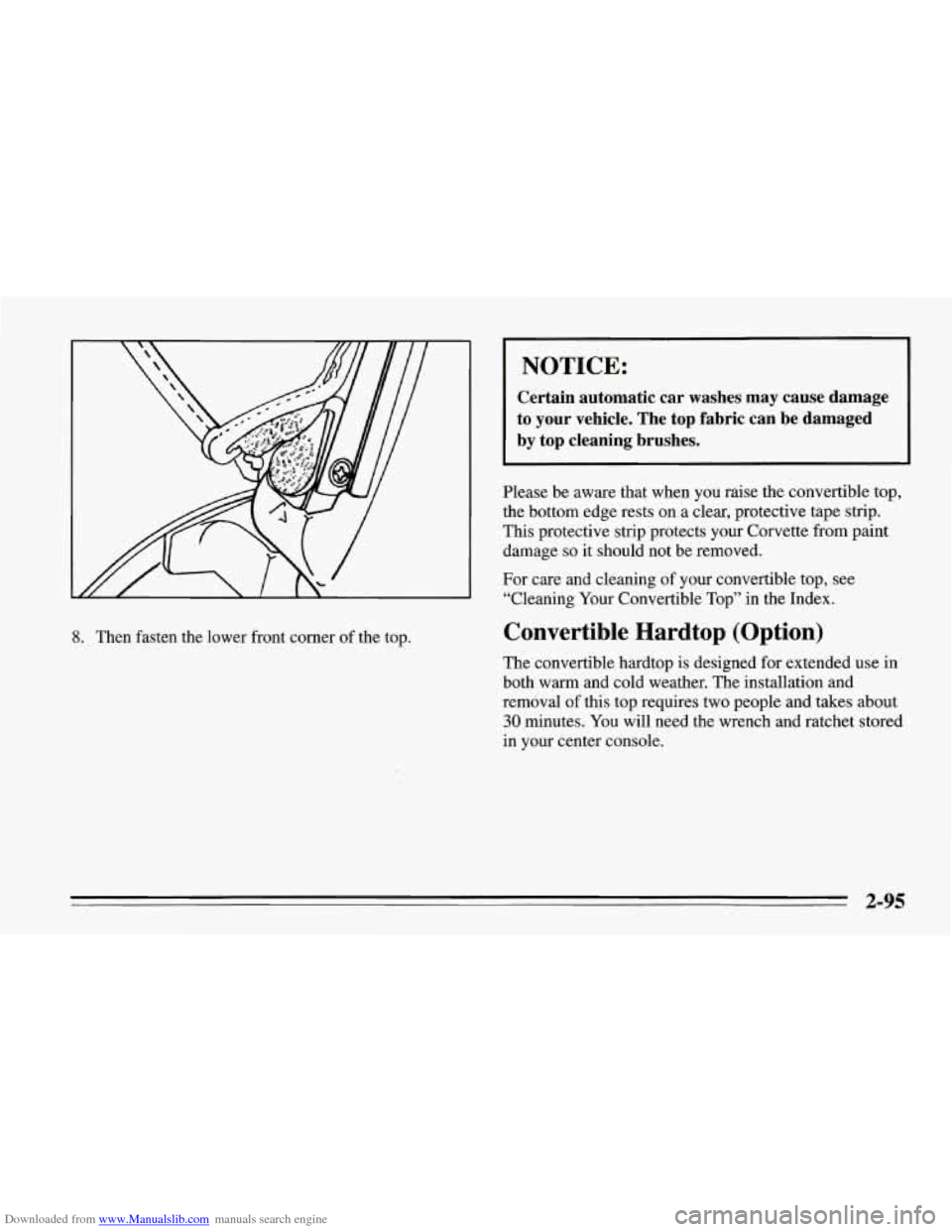

Downloaded from www.Manualslib.com manuals search engine 8. Then fasten the lower front corner of the top.
NOTICE:
Certain automatic car washes may cause damage
to your vehicle. The top fabric can be damaged
by
top cleaning brushes.
Please be aware that when you raise the convertible top,
the bottom edge rests on a clear, protective tape strip.
This protective strip protects your Corvette from paint
damage
so it should not be removed.
For care and cleaning of your convertible top, see
“Cleaning Your Convertible Top” in the Index.
Convertible Hardtop (Option)
The convertible hardtop is designed for extended use in
both warm and cold weather, The installation and
removal of this top requires two people and takes about
30 minutes. You will need the wrench and ratchet stored
in your center console.
2-95

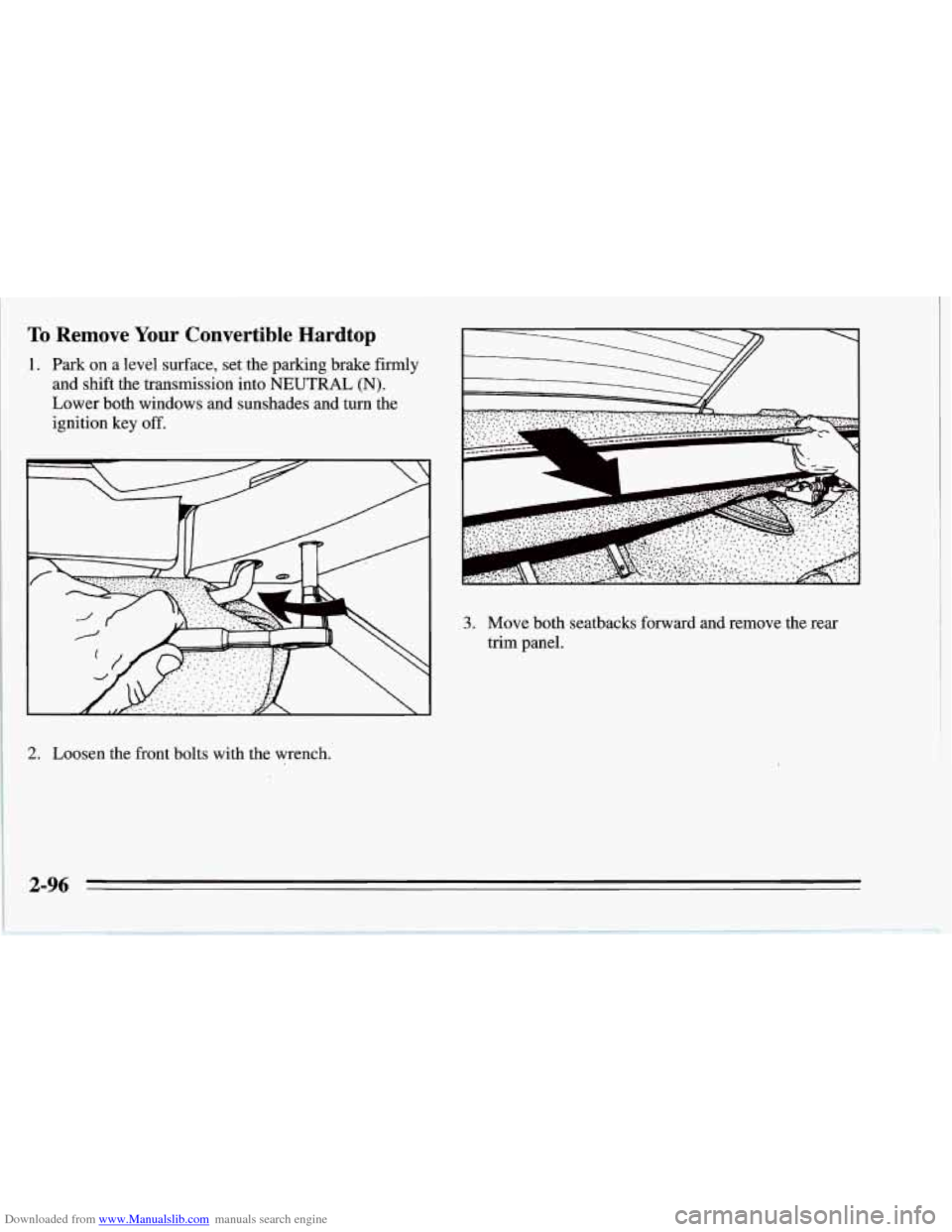

Downloaded from www.Manualslib.com manuals search engine To Remove Your Convertible Hardtop
1. Park on a level surface, set the parking brake firmly
and shift the transmission into
NEUTRAL (N).
Lower both windows and sunshades and turn the
ignition key
off.
2. Loosen the front bolts with the wrench.
a k
3. Move both seatbacks forward and remove the rear
trim panel.
2-96

Downloaded from www.Manualslib.com manuals search engine 4. Loosen the rear comer bracket bolts with the ratchet. 5. Using the wrench, remove the two lower bolts (A)
from the lock pillar bracket on each side.
6. Remove the bolt (B) from the bottom flange of each
lock pillar bracket.
7. Then remove the two upper bolts (C) from the
receiver bracket on each side.
2-97
