child seat CHEVROLET CORVETTE 1995 4.G Owners Manual

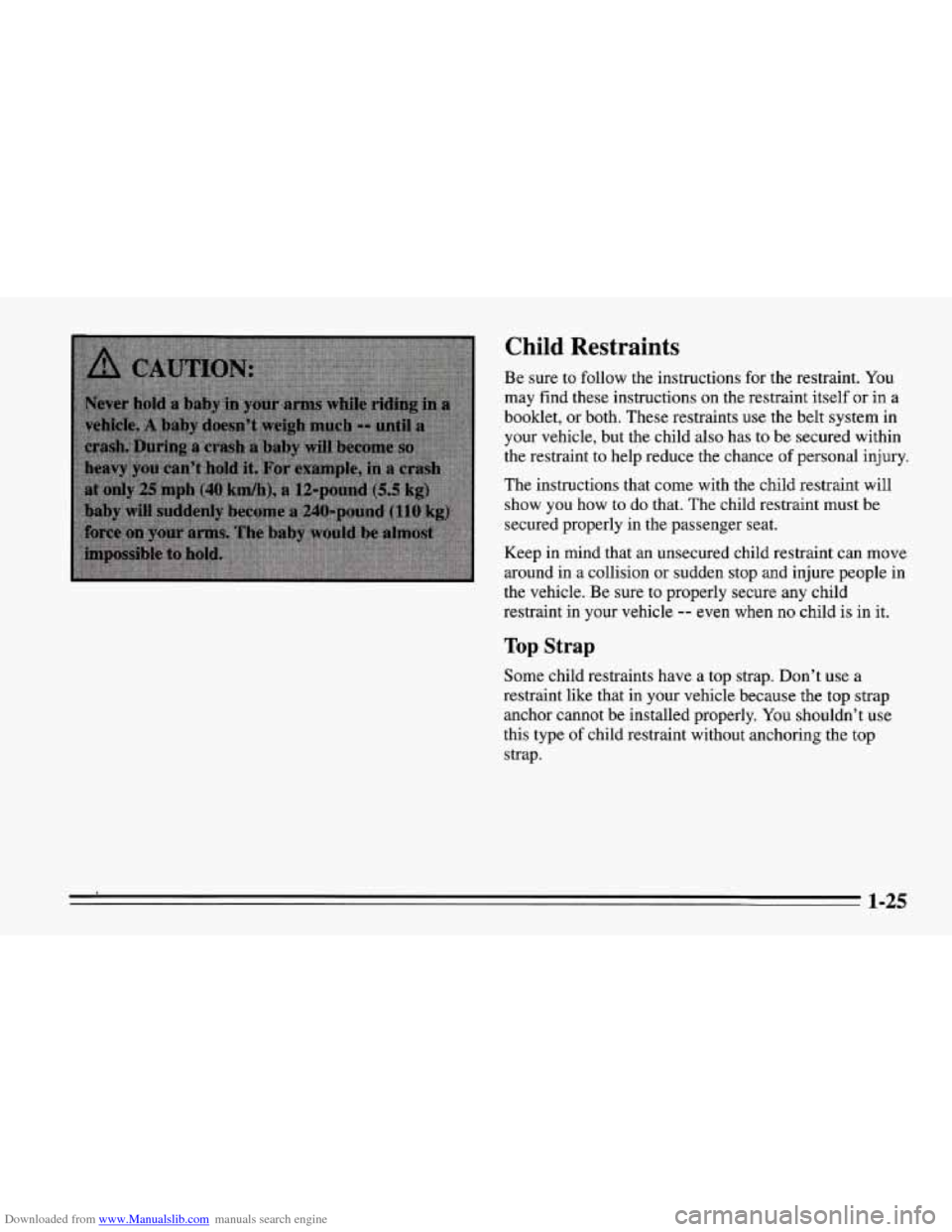

Downloaded from www.Manualslib.com manuals search engine Child Restraints
Be sure to follow the instructions for the restraint. You
may find these instructions on the restraint itself or in a
booklet, or both. These restraints use the belt system
in
your vehicle, but the child also has to be secured within
the restraint to help reduce the chance
of personal injury.
The instructions that come with the child restraint will
show you how to do that. The child restraint must be
secured properly in the passenger seat.
Keep in mind that an unsecured child restraint can move
around in a collision or sudden stop and injure people in
the vehicle. Be sure to properly secure any child
restraint in your vehicle
-- even when no child is in it.
Top Strap
Some child restraints have a top strap. Don’t use a
restraint like that in your vehicle because the top strap
anchor cannot be installed properly.
You shouldn’t use
this type of child restraint without anchoring the top
strap.
1-25

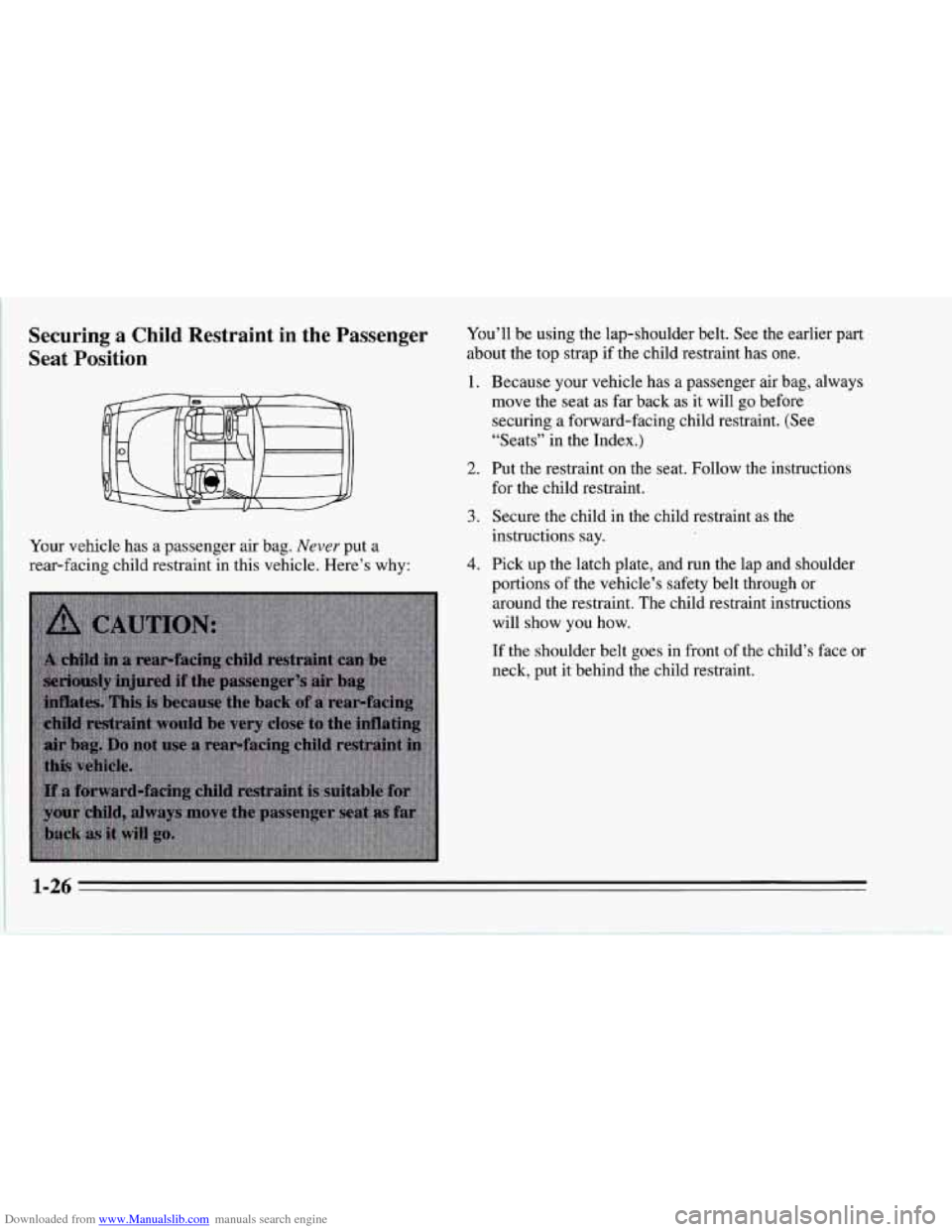

Downloaded from www.Manualslib.com manuals search engine Securing a Child Restraint in the Passenger
Seat Position
Your vehicle has a passenger air bag. Never put a
rear-facing child restraint in this vehicle. Here’s why: You’ll
be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one.
1.
2.
3.
4.
Because your vehicle has a passenger air bag, always
move the seat as far back as it will go before
securing a forward-facing child restraint. (See
“Seats” in the Index.)
Put the restraint on the seat. Follow the instructions
for the child restraint.
Secure the child in the child restraint as the
instructions say.
Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
If the shoulder belt goes in front of the child’s face or
neck, put it-behind the child restraint.

Downloaded from www.Manualslib.com manuals search engine Check Gauges Light ............................. 2-85
Checking Your Restraint Systems
.................. 1-30
Checking Automatic Transmission Fluid
.................. 6-21
BrakeFluid
................................. 6-33
Engine Coolant
.............................. 6-28
Manual Transmission Fluid
.................... 6-23
Power Steering Fluid
......................... 6-30
Restraint Systems
............................ 1-30
Things Under the
Hood ........................ 6-8
Checking and Adding Hydraulic Clutch Fluid
........ 6-25
Chemical Paint Spotting
.......................... 6-64
Child Restraints
................................ 1-25
Securing in the Passenger Seat Position
........... 1-26
TopStrap
................................... 1-25
WheretoPut
................................ 1-25
Cigarette Lighter
............................... 2-6 1
Cinch Feature. Lap Belt
.......................... 1- 12
Cleaner. Air
................................... 6-17
Cleaning Aluminum Wheels
........................... 6-63
Dulso-Coated Moldings ....................... 6-58
Engine
..................................... 6-63
Fabric
..................................... 6-56
Glass
...................................... 6-59
Leather
.................................... 6-58
Outside
of the Windshield and Wiper Blades ....... 6-60
Removable Roof Panel
........................ 6-60
Soft-Touch Surfaces
.......................... 6-58
Speakercovers
.............................. 6-59
Special Problems
............................ 6-57
EngineOil
.................................. 6-13
Stains
...................................... 6-57
The Inside
of Your Corvette .................... 6-56
The Outside of Your Corvette
................... 6-61
Tires
...................................... 6-63
Top
of the Instrument Panel .................... 6-59
Your Convertible Top
......................... 6-62
Cleaning and Storage. Hardtop
.................... 6-63
Climate Control. Automatic Electronic
............... 3-4
Clock. Setting the
............................... 3-10
Clutch. Hydraulic
............................... 6-24
Comfort Controls
................................ 3-1
Compact Discs. Care of Your
...................... 3-19
Compact Spare Tire
............................. 5-40
Compartment. Door Storage ...................... 2-59
Console. Center
................................ 2-57
Control
of a Vehicle .............................. 4-5
Control. Loss of ................................ 4-14
Convertible Hardtop
............................. 2-95
Convertible Hardtop.
To Install .................... 2-99
Convertible Hardtop. To Remove
.................. 2-96
ConvertibleTop
................................ 2-90
ToLower
................................... 2-90
ToRaise
................................... 2-93
Convex Outside Mirror
.......................... 2-50
Coolant ....................................... 6-27
Coolant Heater. Engine
..................... 2-23. 6- 16
Coolant High Fill Reservoir
(LT1 Engine) ........... 5-23
Coolant. How to Add to the High Fill Reservoir
Vinyl
...................................... 6-58
Compartment.
Rear Storage ....................... 2-58
Coolant Recovery Tank
.......................... 5-17
(LTl Engine)
................................. 5-23

Downloaded from www.Manualslib.com manuals search engine Fog ....................................... 2-48
FrontMap
.................................. 2-49
Interior
.................................... 2-49
Lamps On Reminder
............................ 2-46
Lane Change Indicator
........................... 2-40
Lap Belt Cinch Feature
.......................... 1 - 12
Larger Children. Safety Belt Use
................... 1-28
Latches. Seatback
................................ 1-3
Leaving Your Vehicle
............................. 2-4
Air Bag Readiness
........................... 2-69
Leaving Your Vehicle With the Engine Running
....... 2-34
Lights
Anti-Lock Brake System Active
................ 2-72
Anti-Lock Brake System Warning
........... 2-72. 4-6
ASR (Acceleration Slip Regulation)
System Active
............................ 2-74
System Off
............................... 2-73
System Warning
....................... 2-73. 4-8
Brake System Warning ........................ 2-70
Charging System
............................. 2-70
CheckGauges
............................... 2-85
DoorAjar
.................................. 2-78
LowCoolant
................................ 2-75
LowOil
.................................... 2-86
Low Tire Pressure Warning System
.............. 2-76
Parking Brake Indicator
....................... 2-71
Passive Keyless Entry
......................... 2-88
Safety Belt Reminder
..................... 1-6. 2-69
Security
.................................... 2-88
Service Engine Soon
.......................... 2-80
ServiceLTPWS
.............................. 2-78
Service Ride Control
.......................... 2-87
Lighter. Cigarette
............................... 2-61 Limited-Slip
Rear Axle
.......................... 2-31
Loading Your Vehicle
........................... 4-28
Locks
Door ....................................... 2-3
PowerDoor
.................................. 2-4
Steering Column
............................. 7-43
Long Trip, Before Leaving on a
.................... 4-21
Loss
of Control ................................ 4-14
Low Coolant Light
.............................. 2-75
LowOilLight
................................. 2-86
Low Tire Pressure Warning System Light
............ 2-76
Lubrication, Body
.............................. 7-42
Lumbar Controls, Power Seat
.................... 1-2
Maintenance Record
........................... 7-48
Maintenance Schedule
............................ 7-1
Owner Checks and Services
.................... 7-41
Periodic Maintenance Inspections
............... 7-44
Recommended Fluids and Lubricants
............ 7-45
Schedule1
................................... 7-6
Schedule
I Definition .......................... 7-4
Schedule11
................................. 7-29
Schedule I1 Definition
.......................... 7-5
Scheduled Maintenance Services
................. 7-2
Maintenance, Normal Replacement Parts
............ 6-77
Maintenance, Underbody Flushing
................. 7-43
Malfunction Indicator Lamp
(Service Engine Soon Light)
..................... 2-80
Manual Air Conditioning Controls
.................. 3-1
ManualBi-Level
................................ 3-7
ManualCooling
................................. 3-7
Manual Front Seat
............................... 1-1
9-7

Downloaded from www.Manualslib.com manuals search engine Parking Your Vehicle. Manual Transmission .......... 2-35
PASS-Key@
................................... 2- 14
Passenger Position
.............................. 1-23
Passing
....................................... 4-12
Passive Keyless Entry System
...................... 2-4
Battery Replacement
........................... 2-8
Matching Transmitters
......................... 2-7
Operation
................................... 2-5
Periodic Maintenance Inspections
.................. 7-44
Power Antenna Mast Care
........................ 3- 19
Power Door Locks
............................... 2-4
Power Remote Control Mirrors
.................... 2-50
PowerSeat
..................................... 1-2
Adjusting
.................................... 1-2
Lumbar Controls .............................. 1-2
Side Bolster
.................................. 1-2
Power Steering
................................. 4- 10
Power Steering Fluid ............................ 6-30
Checking
................................... 6-30
Power Switch, Engine (ZR- 1) ..................... 2-21
Power Windows
................................ 2-37
Power Windows and Other Power Options
........... 6-68
Pregnancy, Use of Safety Belts
.................... 1-23
Problems on the Road
............................ 5- 1
Publications, Service and Owner .................. 8-8
Racing or Other Competitive Driving
.............. 2-22
Radio Reception, Understanding
................... 3- 18
Light
...................................... 2-88
Settings
..................................... 2-6
Adding
.................................... 6-31 Radio
AMFM Stereo with Cassette Tape Player
.........
Cassette Tape Player ......................
Bulb Replacement ............................. 6-44
Rear Cargo Compartment Lamp (Coupe).
Bulb Replacement
............................. 6-44
Rear Storage Compartment
....................... 2-58
Rear Towing Hook-Ups
.......................... 5-11
Rear Turn Signal and Taillamp Bulb Replacement ..... 6-40
Rear Window Defogger
........................... 3-9
Rearview Mirror. Inside Day/Night
................. 2-49
Reclining Front Seatbacks
......................... 1-4
Recommended Fluids and Lubricants
............... 7-45
Recovery Tank. Adding Coolant
................... 6-29
Remote Hatch Release
............................ 2-9
Removing the Roof Panel
.................. . . 2-52
Replacement Bulbs
............................. 6-74
Replacement Parts
.............................. 6-77
Replacement. Wheel
............................ 6-54
Replacing Safety Belts
........................... 1-31
Replacing Seat and Restraint System Parts
After
a Crash ................................. 1-31
Restraints. Checking
Your ........................ 1-30
Restraints. Child ................................ 1-25
Restraints. Replacing Parts After a Crash ............ 1-31
Reverse (R) Position. Automatic Transmission ........ 2-25
Reverse (R) Position. Manual Transmission
.......... 2-28
9-9

Downloaded from www.Manualslib.com manuals search engine Ride Control. Selective .......................... 2-31
Roadside Assistance
.............................. 8-5
Roadside Assistance. Canadian
..................... 8-8
Rocking Your Vehicle
........................... 5-42
Installing
................................... 2-56
Storing
..................................... 2-54
Rotation, Tire
.................................. 6-51
RoofPanel(Coupe)
............................. 2-52
Removing
.................................. 2-52
Safety Belt Extender
............................ 1-30
Safety Belt Reminder Light
................... 1.6. 2.69
Safety Belts
.................................... 1-5
Adults
..................................... 1-10
Careof
.................................... 6-59
Driver Position
.............................. 1 - 1 1
Extender
................................... 1-30
How to Wear Properly ........................ 1 - 10
Incorrect Usage
......................... 1-13, 1-28
Questions People Ask
......................... 1 - 10
Replacing After a Crash
....................... 1-3 1
Use by Children ............................. 1-23
Use by Larger Children
........................ 1-28
Use by Smaller Children and Babies
............. 1-24
Use During Pregnancy
........................ 1-23
Reporting to General Motors
.................... 8-5
Reporting to the Canadian Government
............ 8-5
Reporting to the United States Government ......... 8-4 ...
Lap-Shoulder ............................... 1-11
WhyTheyWork
.............................. 1-6
Safety Defects
Safety Warnings and Symbols
...................... VIII
Scheduled Maintenance Services .................... 7-2
Seatback Latches
................................ 1-3
Seats
.......................................... 1-1
Controls ..................................... 1-1
ManualFront ................................ 1-1
Power
...................................... 1-2
Reclining Front
............................... 1-4
Securing a Child Restraint
..................... 1-26
Seats and Restraint Systems
........................ 1-1
Seats and Seat Controls
........................... 1-1
Second (2) Position. Automatic Transmission
......... 2-27
Second (2) Position. Manual Transmission
........... 2-28
Security Light
.................................. 2-88
Security Shade (Coupe)
.......................... 2-59
Security System (PASS-Key)
...................... 2-14
Selective Ride Control
........................... 2-31
Service and Appearance Care
...................... 6-1
Service and Owner Publications
.................... 8-8
Service Bulletins, Ordering
........................ 8-8
Service Engine Soon Light
....................... 2-80
Service LTPWS Light
........................... 2-78
Service Manuals. Ordering
........................ 8-8
Service Parts Identification Label .................. 6-66
Service Publications
.............................. 8-8
Service Ride Control Light
....................... 2-87
Service Work, Doing Your Own
.................... 6-1
Servicing Your Air Bag-Equipped Corvette
.......... 1-22
Shade, Security (Coupe)
......................... 2-59
Shift Speeds, Manual Transmission
................. 2-29
Shifting Into Park
(P) ............................ 2-33
Shifting Out of Park (P)
.......................... 2-34
Side Bolster. Power Seat
.......................... 1-2
Service ........................................ 6-1
9-10
