CHEVROLET CORVETTE 1996 4.G Owners Manual

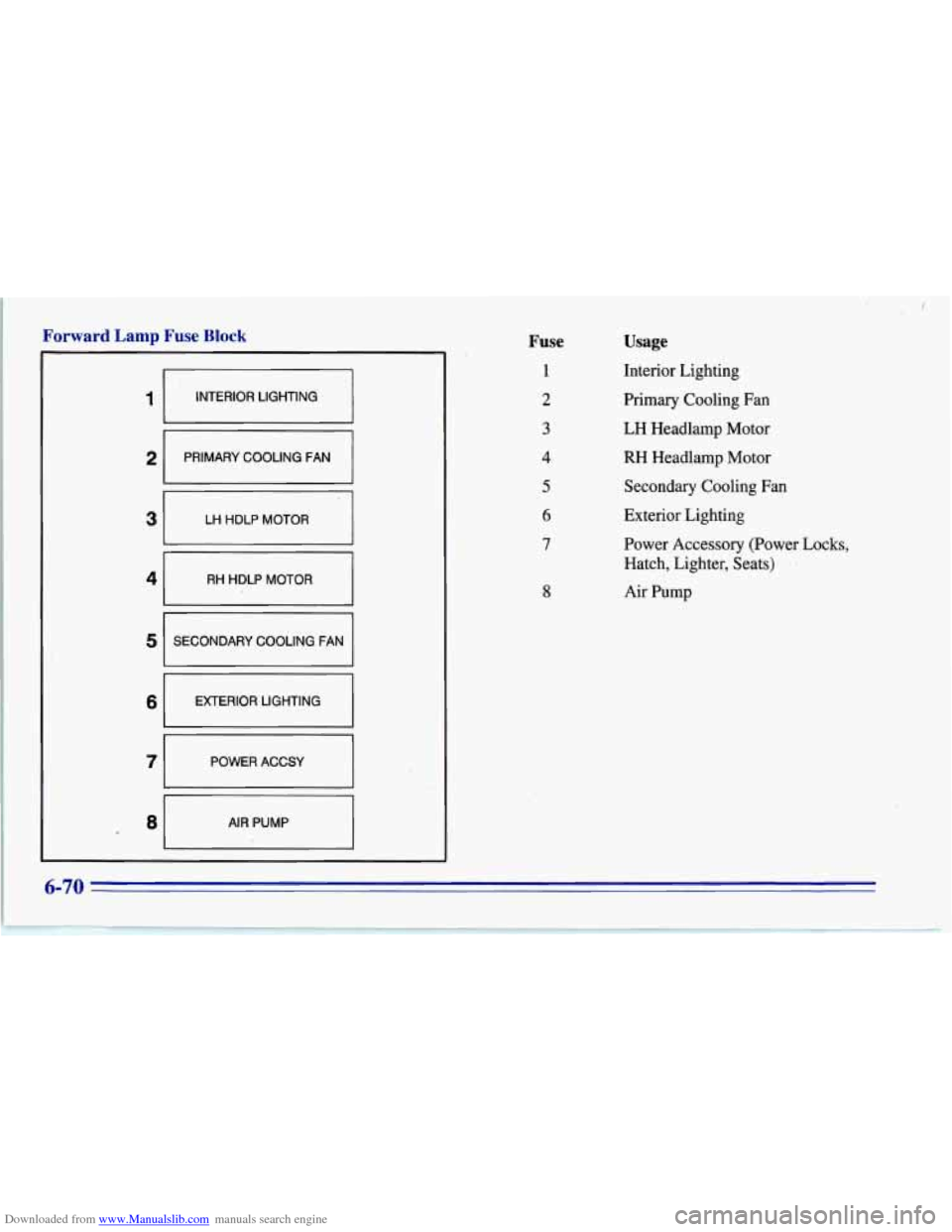

Downloaded from www.Manualslib.com manuals search engine Forward Lamp Fuse Block
INTERIOR LIGHTING
PRIMARY COOLING FAN
LH HDLP MOTOR RH HDLP
MOTOR
EXTERIOR LIGHTING
POWER ACCSY
AIR
PUMP
Fuse
1
2
3
4
5
6
7
8
Usage
Interior Lighting
Primary Cooling Fan LH Headlamp Motor
RH Headlamp Motor
Secondary Cooling Fan
Exterior Lighting
Power Accessory (Power Locks,
Hatch, Lighter, Seats)
Air Pump
'-70

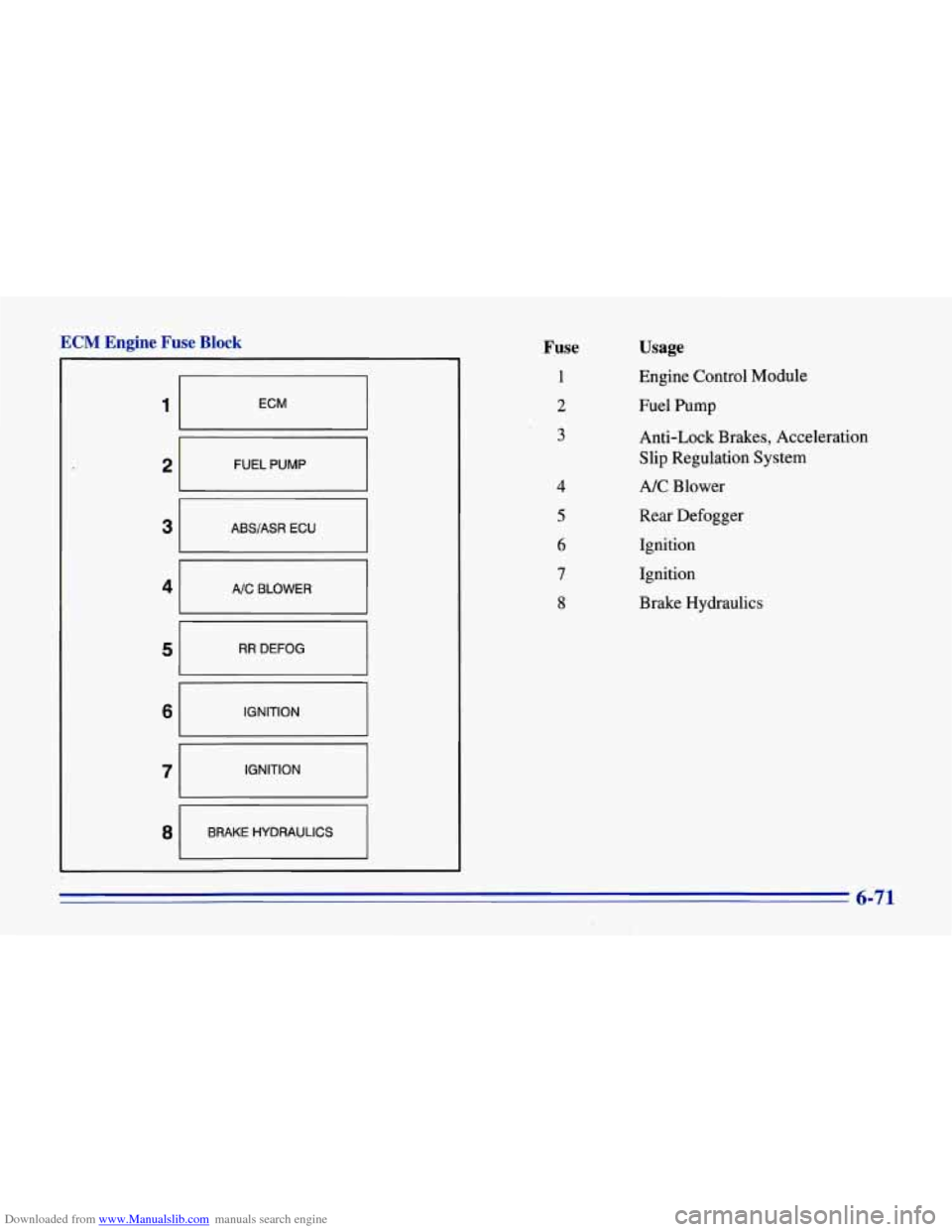

Downloaded from www.Manualslib.com manuals search engine ECM Engine Fuse Block
1
FUEL PUMP
ABS/ASR ECU
A/C BLOWER
RR DEFOG
IGNITION IGNITION
BRAKE HYDRAULICS
Fuse
1
2
3
Usage
Engine Control Module
Fuel Pump
Anti-Lock Brakes, Acceleration
Slip Regulation System
A/C Blower
Rear Defogger
Ignition
Ignition
Brake Hydraulics
6-71

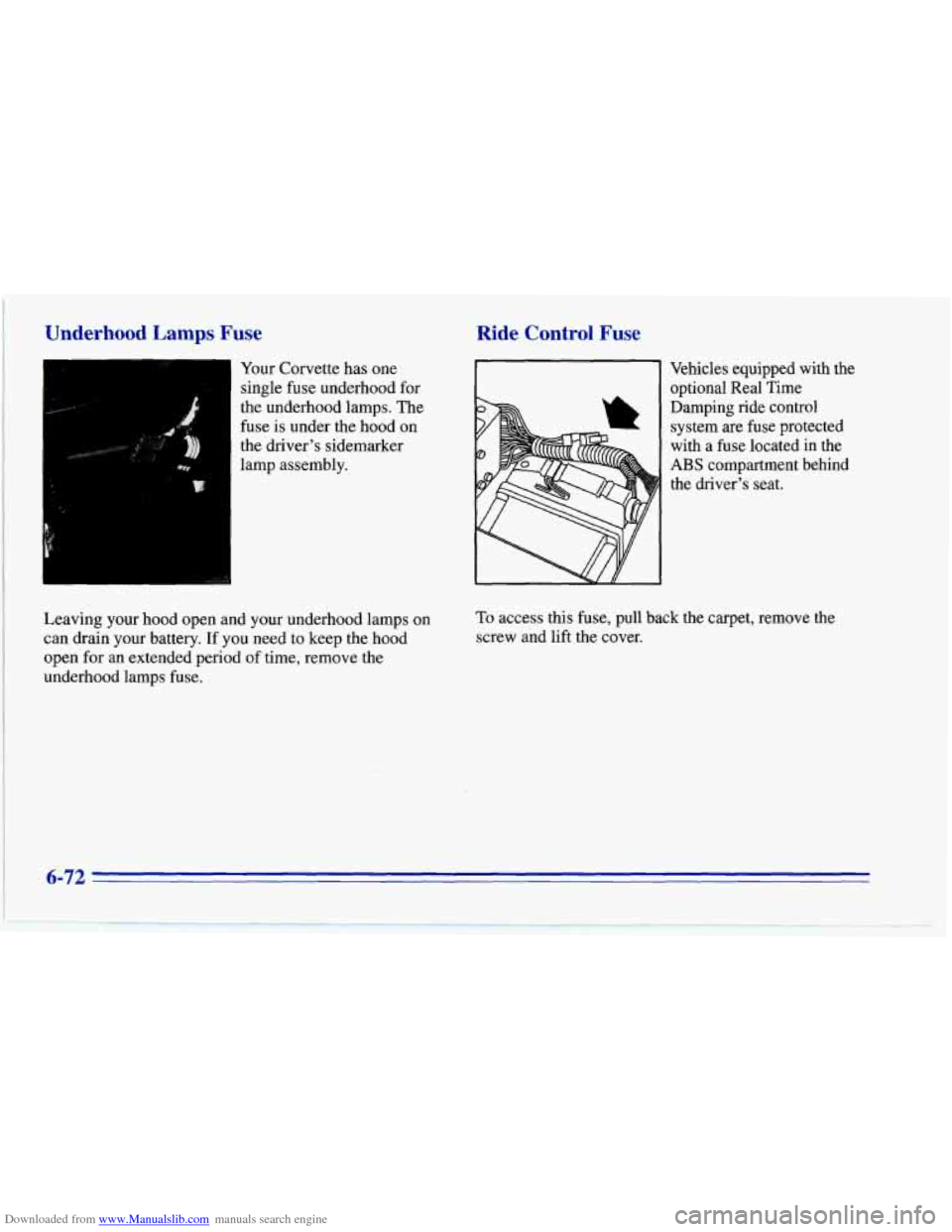

Downloaded from www.Manualslib.com manuals search engine Underhood Lamps Fuse
Your Corvette has one
I single fuse underhood for
the underhood lamps.
The
fuse is under the hood on
the driver’s sidemarker
lamp assembly.
Leaving your
hood open and your underhood lamps on
can
drain your battery. If you need to keep the hood
open for an extended period of time, remove the
underhood lamps fuse.
Ride Control Fuse
Vehicles equipped with the
optional Real Time
Damping ride control
system are fuse protected
with a fuse located in the
ABS compartment behind
the driver’s seat.
To access this fuse, pull back the carpet, remove the
screw and lift the cover.
6-72

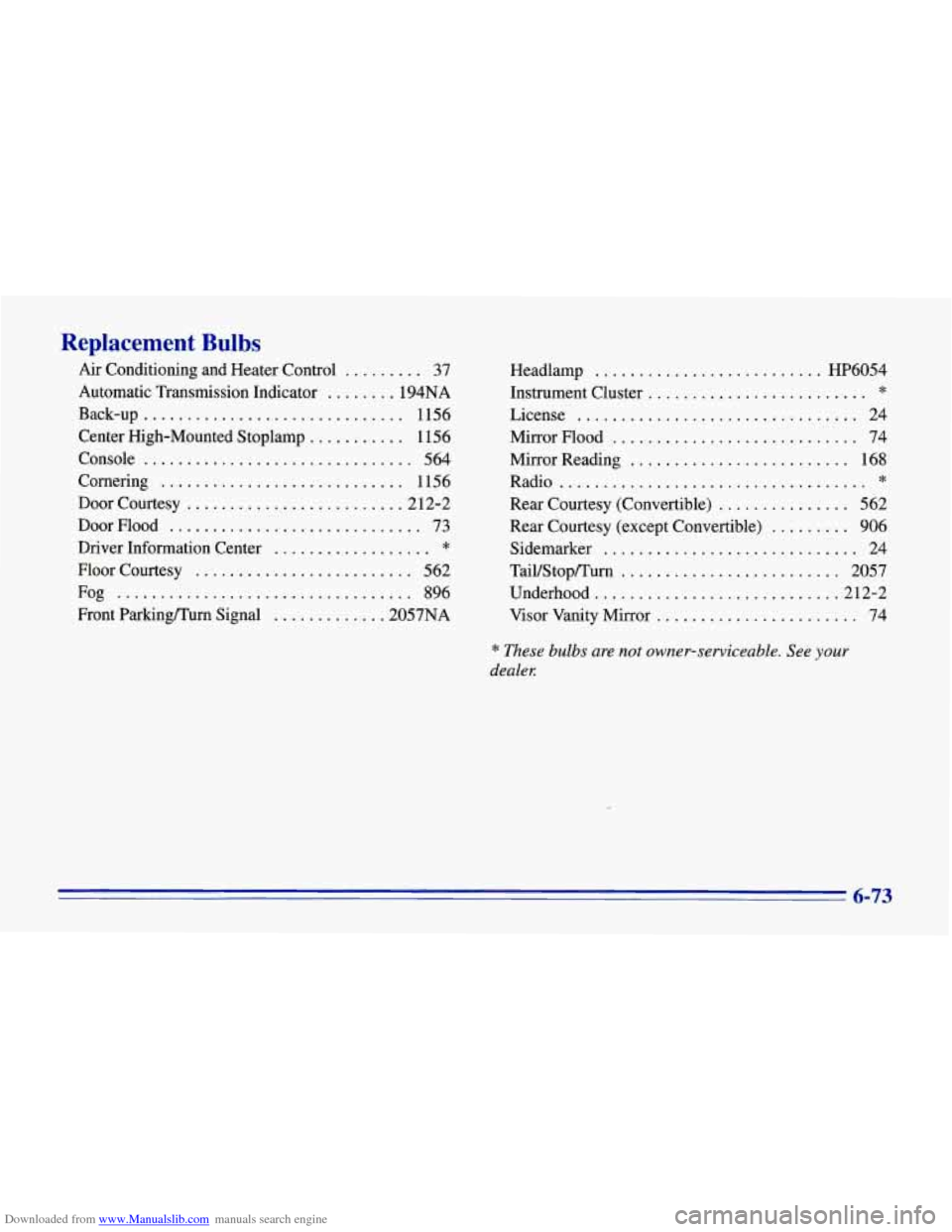

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Air Conditioning and Heater Control ......... 37
Automatic Transmission Indicator
........ 194NA
Center High-Mounted Stoplamp
........... 1156
Console
............................... 564
Door Courtesy
......................... 2 12-2
DoorFlood
............................. 73
Driver Information Center
.................. *
Back-up .............................. 1156
Cornering
............................ 1156
Floor Courtesy
......................... 562
Fog .................................. 896
Front ParkingDurn Signal
............. 2057NA Headlamp
.......................... HP6054
Instrument Cluster
License
................................ 24
Mirror Flood
............................ 74
Radio
* .........................
Mirror Reading ......................... 168
Rear Courtesy (Convertible)
............... 562
Rear Courtesy (except Convertible)
......... 906
Sidemarker
............................. 24
Tail/Stop/Turn
......................... 2057
Underhood
............................ 2 12-2
Visor Vanity Mirror
....................... 74
* ...................................
* These bulbs are not owner.serviceab1e . See your
dealel:
6-73

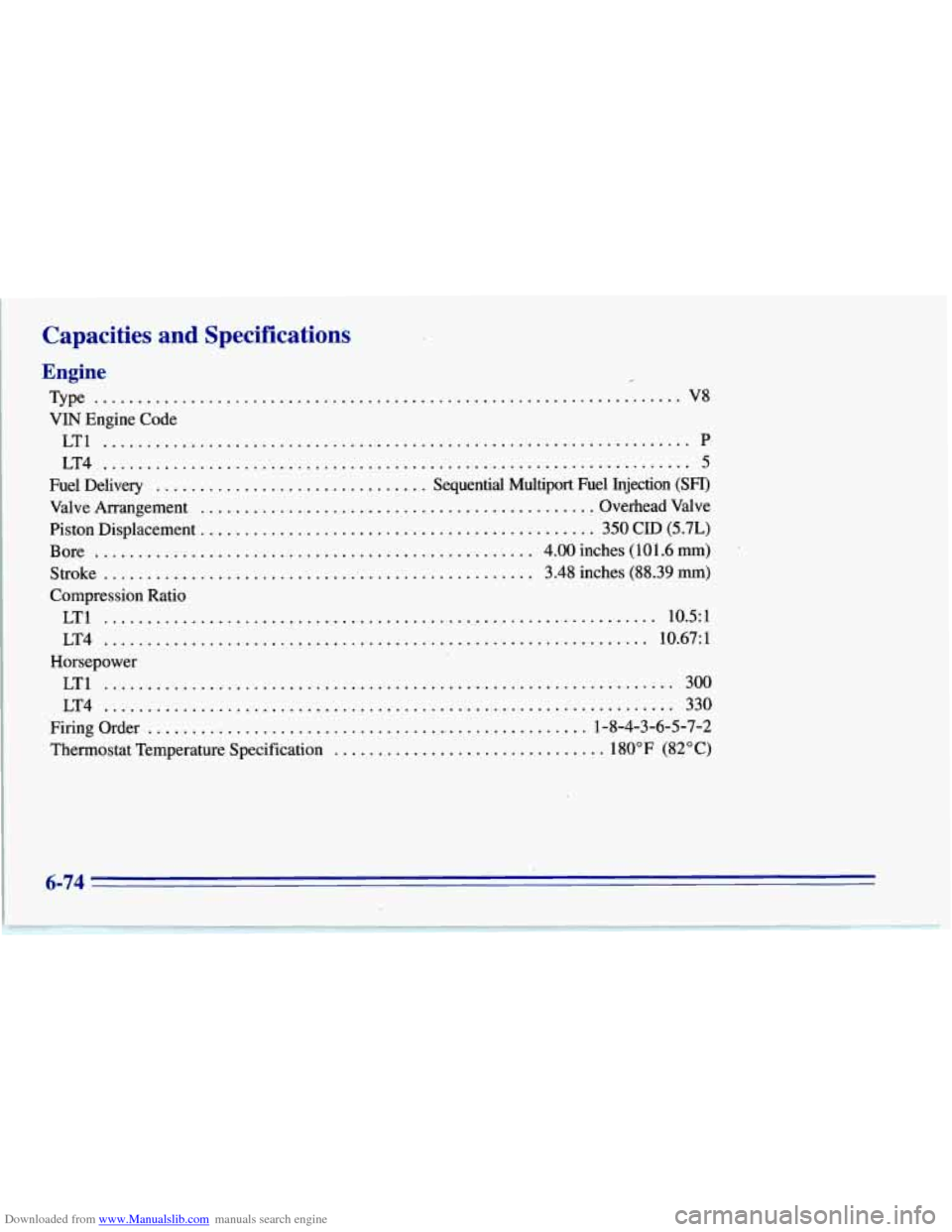

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications
Type ................................................................... V8
VIN Engine Code
LT1
................................................................... P
LT4 .................................................................... 5
Fuel Delivery ............................... Sequential Multiport Fuel Injection (SFI)
Valve Arrangement ............................................. Overhead Valve
Piston Displacement. ............................................ 350 CID (5.7L)
Bore
.................................................. 4.00 inches (101.6 mm)
Stroke .................................................. 3.48 inches (88.39 mm)
Compression Ratio LTl
............................................................. 10.5: 1
LT4 ................................................ .......... 10.67: 1
LT1, ................................................................. 300
LT4
................................................................. 330
Firing Order
................................................... 1-8-4-3-6-5-7-2
Thermostat Temperature Specification
............................... 180°F (82°C)
Horsepower
6-74

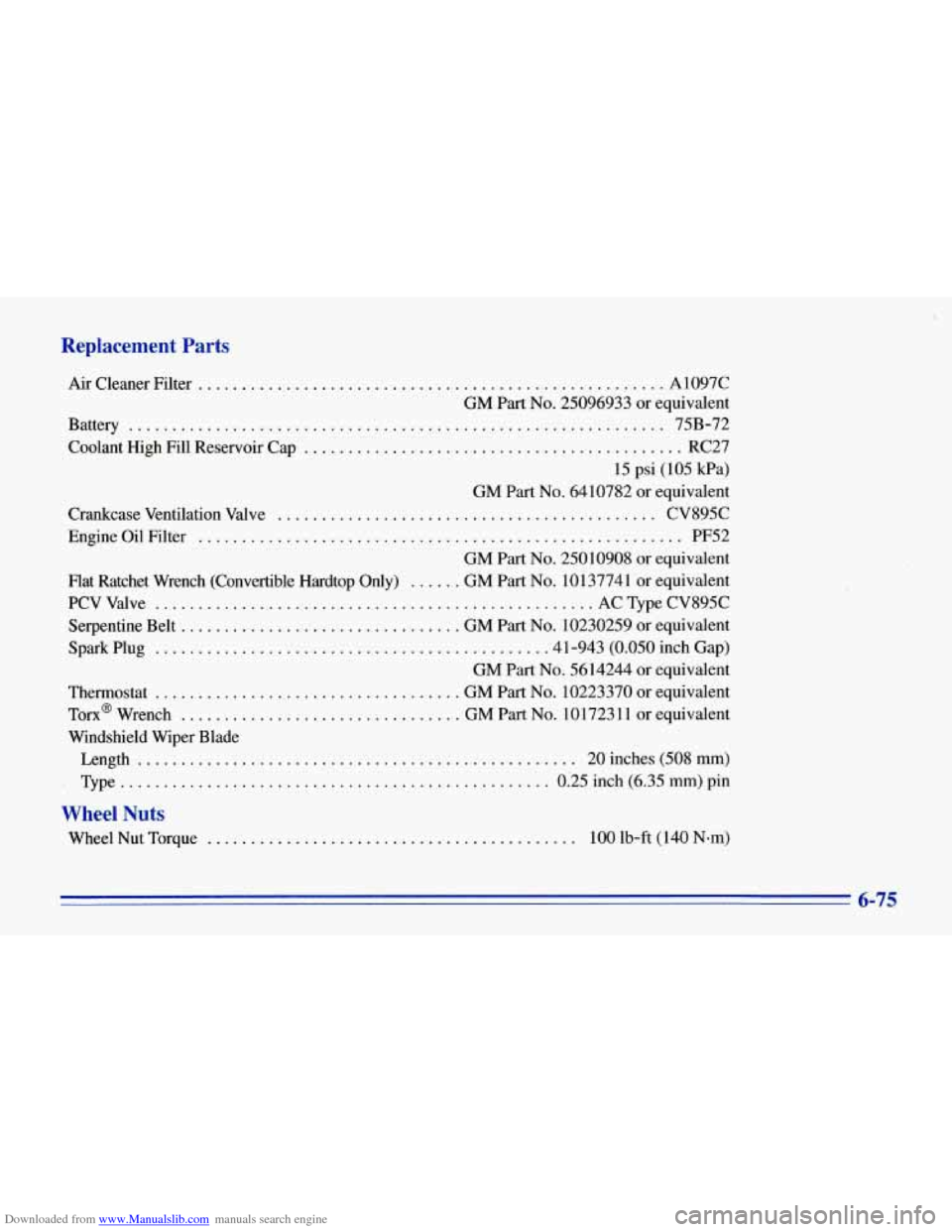

Downloaded from www.Manualslib.com manuals search engine Replacement Parts
Air Cleaner Filter ..................................................... A 1097C
GM Part
No. 25096933 or equivalent
Battery
.............................................................. 75B-72
Coolant High Fill Reservoir Cap
........................................... RC27
15 psi (105 kPa)
GM Part
No. 6410782 or equivalent
Crankcase Ventilation Valve
........................................... CV895C
Engine Oil Filter
....................................................... PF52
GM Part
No. 25010908 or equivalent
Flat Ratchet Wrench (Convertible Hardtop
Only) ...... GM Part No. 101 37741 or equivalent
PCV Valve
.................................................. AC Type CV895C
Serpentine Belt
................................ GM Part No. 10230259 or equivalent
Spark Plug
............................................ .4 1-943 (0.050 inch Gap)
GM Part
No. 5614244 or equivalent
Thermostat
................................... GM Part No. 10223370 or equivalent
Tom@ Wrench
................................ GM Part No. 1017231 1 or equivalent
Windshield Wiper Blade Length
...................... .......................... 20 inches (508 mm)
Type ................................................. 0.'25 inch (6.35 mm) pin
Wheel Nuts
Wheel Nut Torque .......... ......... ................... 100 lb-ft (140 N-m)
6-75

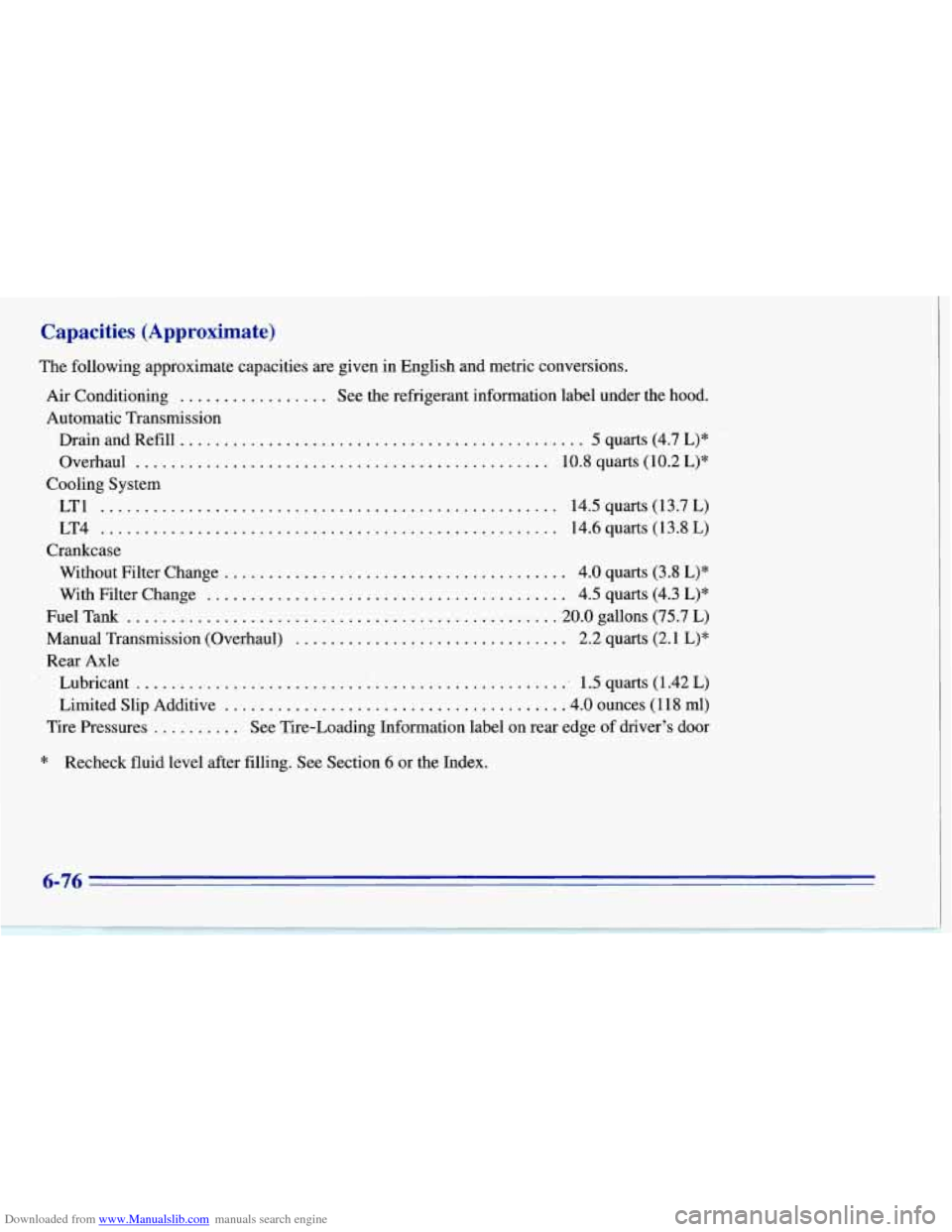

Downloaded from www.Manualslib.com manuals search engine Capacities (Approximate)
The following approximate capacities are given in English and metric conversions.
Air Conditioning ................. See the refrigerant information label under the hood.
Automatic Transmission
Drain and Refill
.............................................. 5 quarts (4.7 L)*
Overhaul
............................................. 10.8 quarts (10.2 L)*
LT1 ........... ................................... 14.5 quarts (13.7 L)
LT4
.................................................... 14.6quarts(13.8L)
Without Filter Change
....................................... 4.0 quarts (3.8 L)*
With Filter Change ......................................... 4.5 quarts (4.3 L)*
FuelTank ................................ ............. 20.0 gallons (75.7 L)
Manual Transmission (Overhaul)
............................. 2.2 quarts (2.1 L)*
Rear Axle
Lubricant
.................................................. 1.5 quarts (1.42 L)
Limited Slip Additive
...................................... .4.0 ounces (1 18 ml)
Tire Pressures
.......... See Tire-Loading Information label on rear edge of driver’s door
Cooling System
Crankcase
* Recheck fluid level after filling. See Section 6 or the Index.
6-76

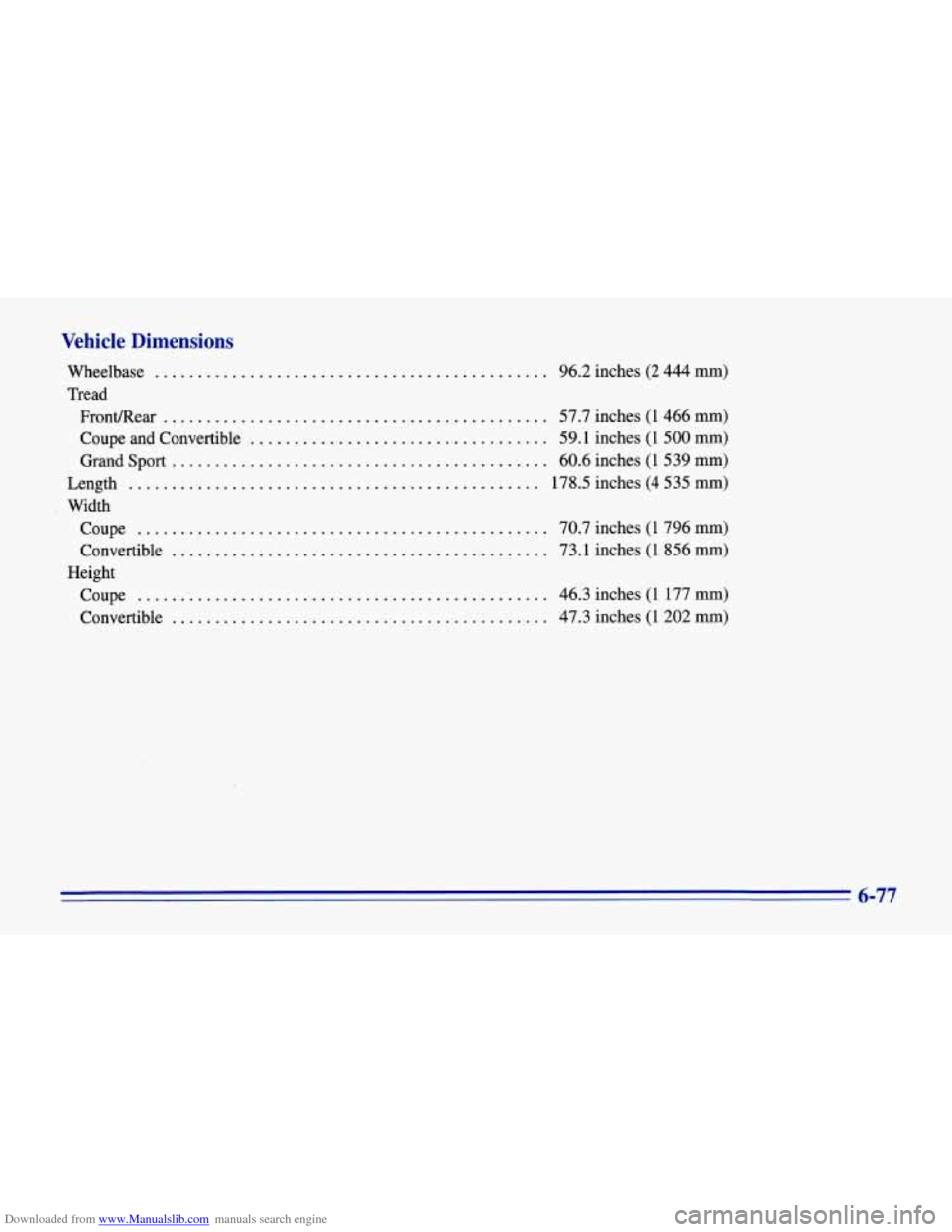

Downloaded from www.Manualslib.com manuals search engine Vehicle Dimensions
Wheelbase ........................................
Tread Front/Re
..............................................
Coupe and Convertible ..................................
GrandSpo .............................................
96.2 inches (2 444 mm)
57.7 inches (1 466 mm)
59.1 inches (1 500 mm)
60.6 inches (1 539 mm)
Length ............................................... 178.5 inches (4 535 mm)
Coupe ............................................... 70.7 inches (1 796 mm)
Convertible ........................................... 73.1 inches (1 856 mm)
Coupe ............................................... 46.3 inches (1 177 mm)
Convertible ........................................... 47.3 inches (1 202 mm)
Width
Height

Downloaded from www.Manualslib.com manuals search engine Power Curves -- LTl Engine Power Curves -9 LT4 Engine
Power Curves
LT1 Engine 350 500 r
450 c 4 315
ENGINE SPEED-RPM
Power Curves
500 ,- LT4 Engine 1 350
2 250
200
150
TORQUE
HORSEPOWER
looL 50 /
- 315
- 280
-245 9 2 -no !#
w
- 175 8 - 140 $
-105 m ti?
- 70
-35
ENGINE SPEED- RPM

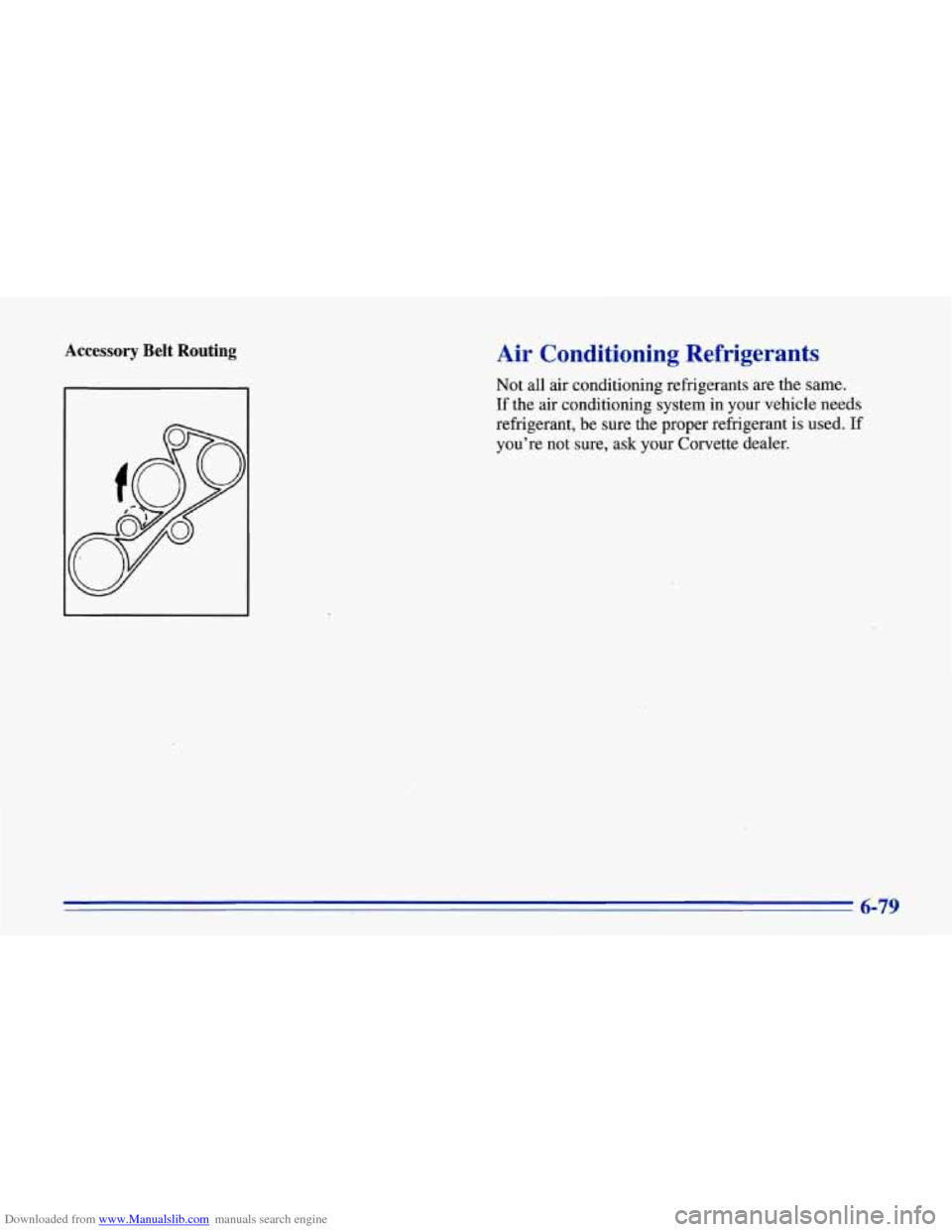

Downloaded from www.Manualslib.com manuals search engine Accessory Belt Routing Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If
you’re not sure, ask your Corvette dealer.
6-79
