CHEVROLET CORVETTE 1997 5.G Owners Manual

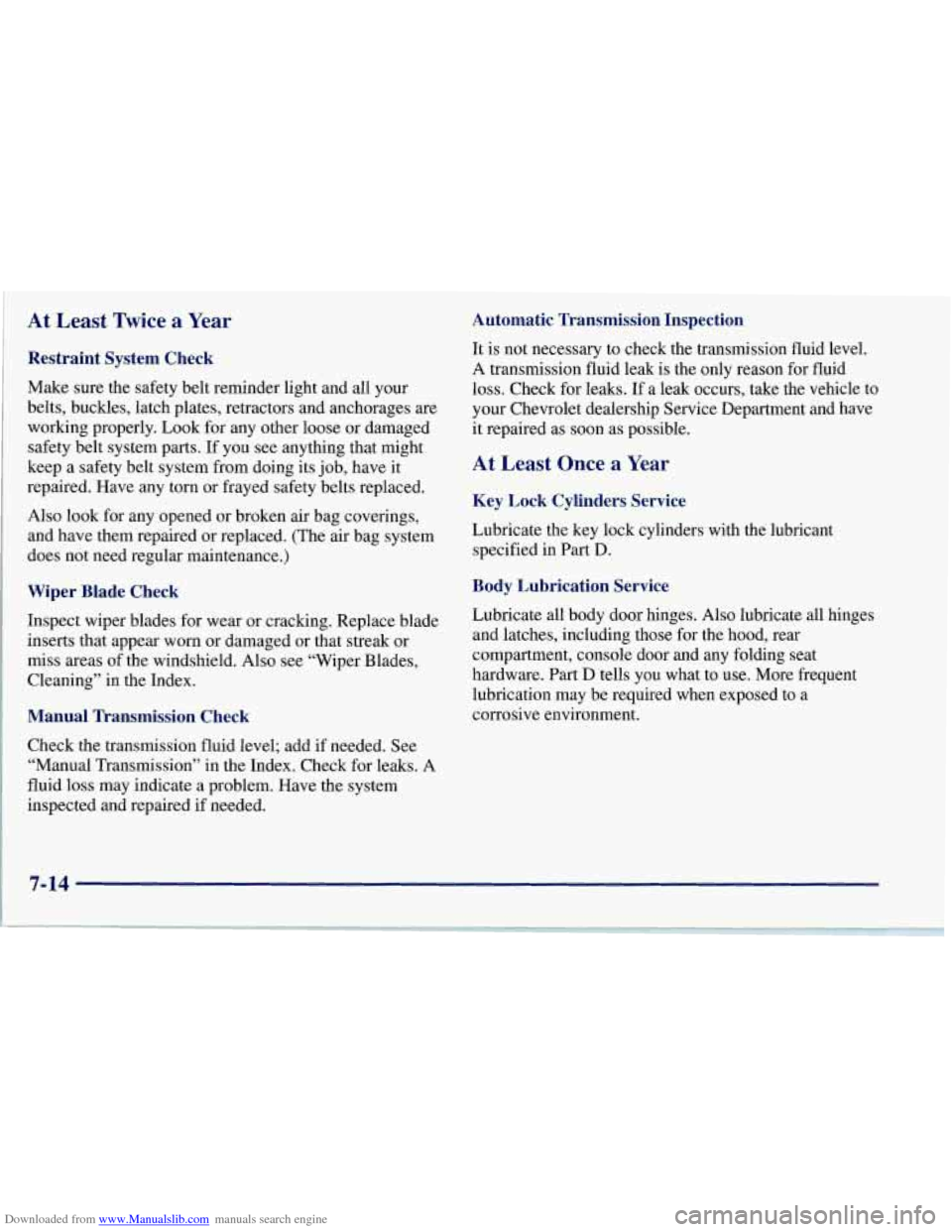

Downloaded from www.Manualslib.com manuals search engine At Least *ice a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas of the windshield. Also see “Wiper Blades,
Cleaning’’
in the Index.
Manual Transmission Check
Check the transmission fluid level; add if needed. See
“Manual Transmission” in the Index. Check for leaks. A
fluid
loss may indicate a problem. Have the system
inspected and repaired if needed.
Automatic Transmission Inspection
It is not necessary to check the transmission fluid level.
A transmission fluid leak is the only reason for fluid
loss. Check for leaks. If a leak occurs, take the vehicle to
your Chevrolet dealership Service Department and have
it repaired as soon as possible.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part D.
Body Lubrication Service
Lubricate all body door hinges. Also lubricate all hinges
and latches, including those for the hood, rear
compartment, console door and any folding seat
hardware. Part
D tells you what to use. More frequent
lubrication may be required when exposed to a
corrosive environment.

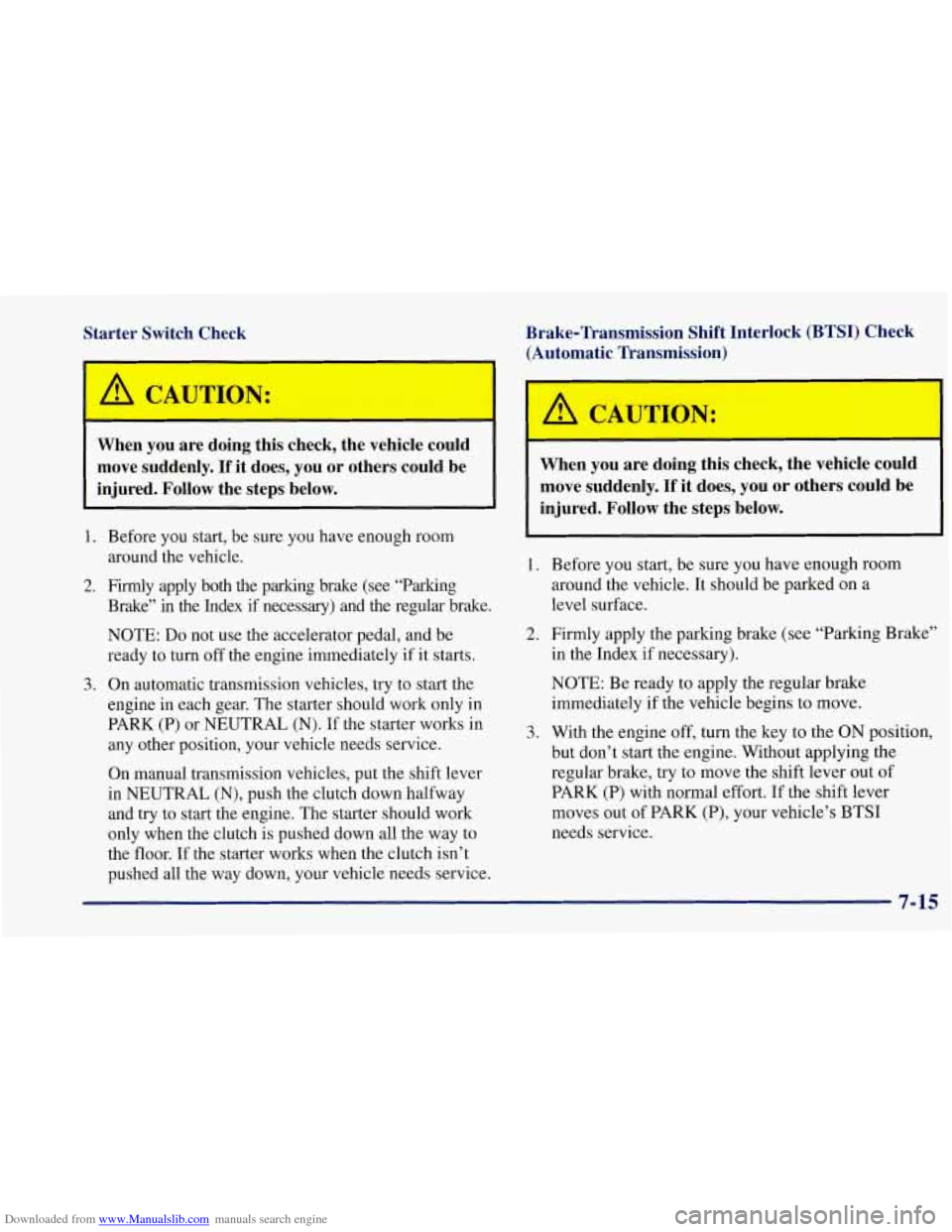

Downloaded from www.Manualslib.com manuals search engine Starter Switch Check
m
Brake-Transmission Shift Interlock (BTSI) Check (Automatic Transmission)
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake” in the Index if necessary) and the regular brake.
NOTE:
Do not use the accelerator pedal, and be
ready to turn off the engine immediately if it starts.
3. On automatic transmission vehicles, try to start the
engine in each gear. The starter should work only in
PARK (P) or NEUTRAL
(N). If the starter works in
any other position, your vehicle needs service.
On manual transmission vehicles, put the shift lever
in NEUTRAL (N), push the clutch down halfway
and try to start the engine. The starter should work
only when the clutch is pushed down all the way to
the floor. If the starter works when the clutch isn’t
pushed all the way down, your vehicle needs service.
A CAUTION:
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle. It should be parked on a
level surface.
Firmly apply the parking brake
(see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately
if the vehicle begins to move.
With the engine off, turn the key to the
ON position,
but don’t start the engine. Without applying the
regular brake, try to move the shift lever out
of
PARK (P) with normal effort. If the shift lever
moves out of PARK (P), your vehicle’s
BTSI
needs service.
7-15

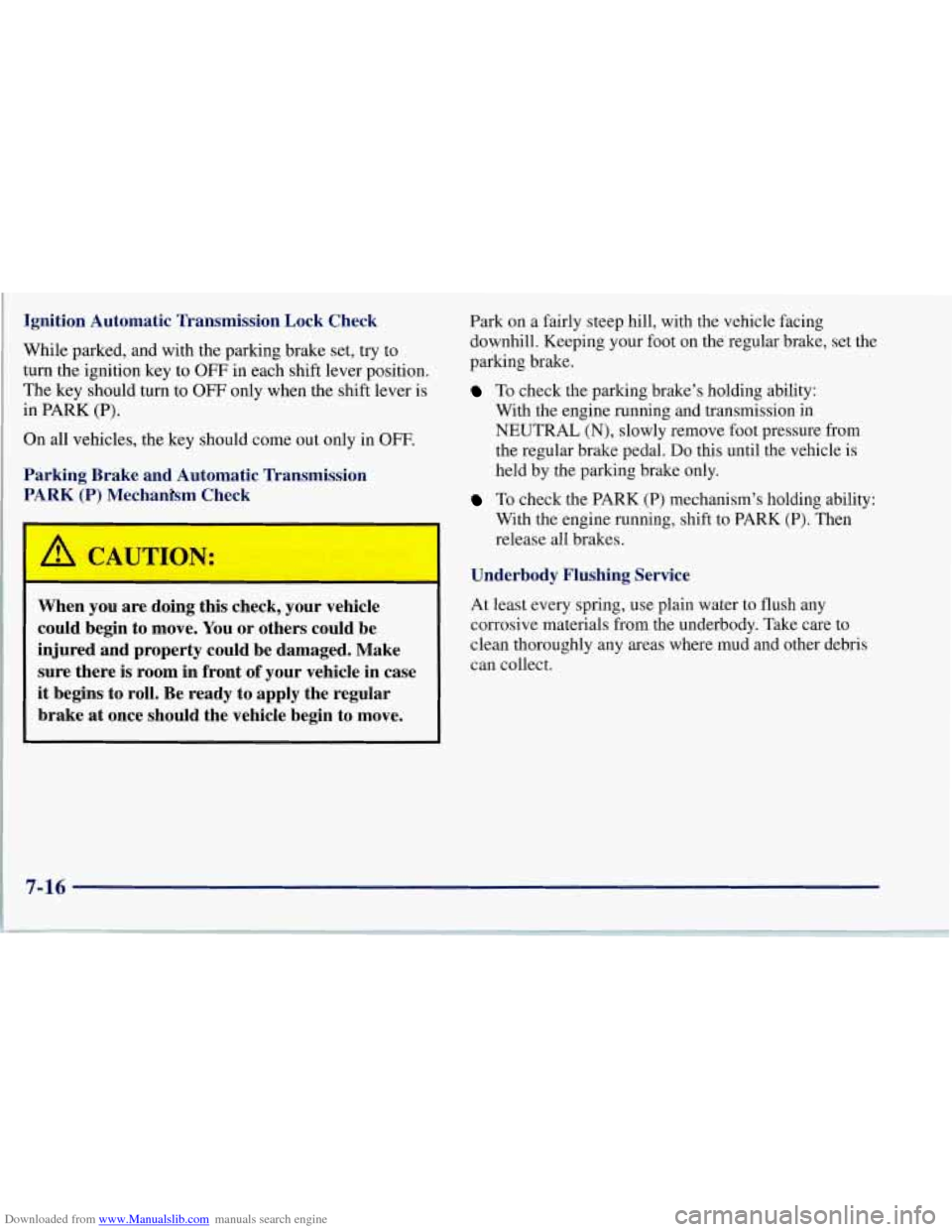

Downloaded from www.Manualslib.com manuals search engine Ignition Automatic Transmission Lock Check
While parked, and with the parking brake set, try to
turn the ignition key
to OFF in each shift lever position.
The key should turn to
OFF only when the shift lever is
in PARK (P).
On all vehicles, the key should come out only in
OFF.
Parking Brake and Automatic Transmission
PP-K(P)” .mCt k
A CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there
is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake’s holding ability:
With the engine running and transmission in
NEUTRAL
(N), slowly remove foot pressure from
the regular brake pedal.
Do this until the vehicle is
held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK (P). Then
release all brakes.
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.

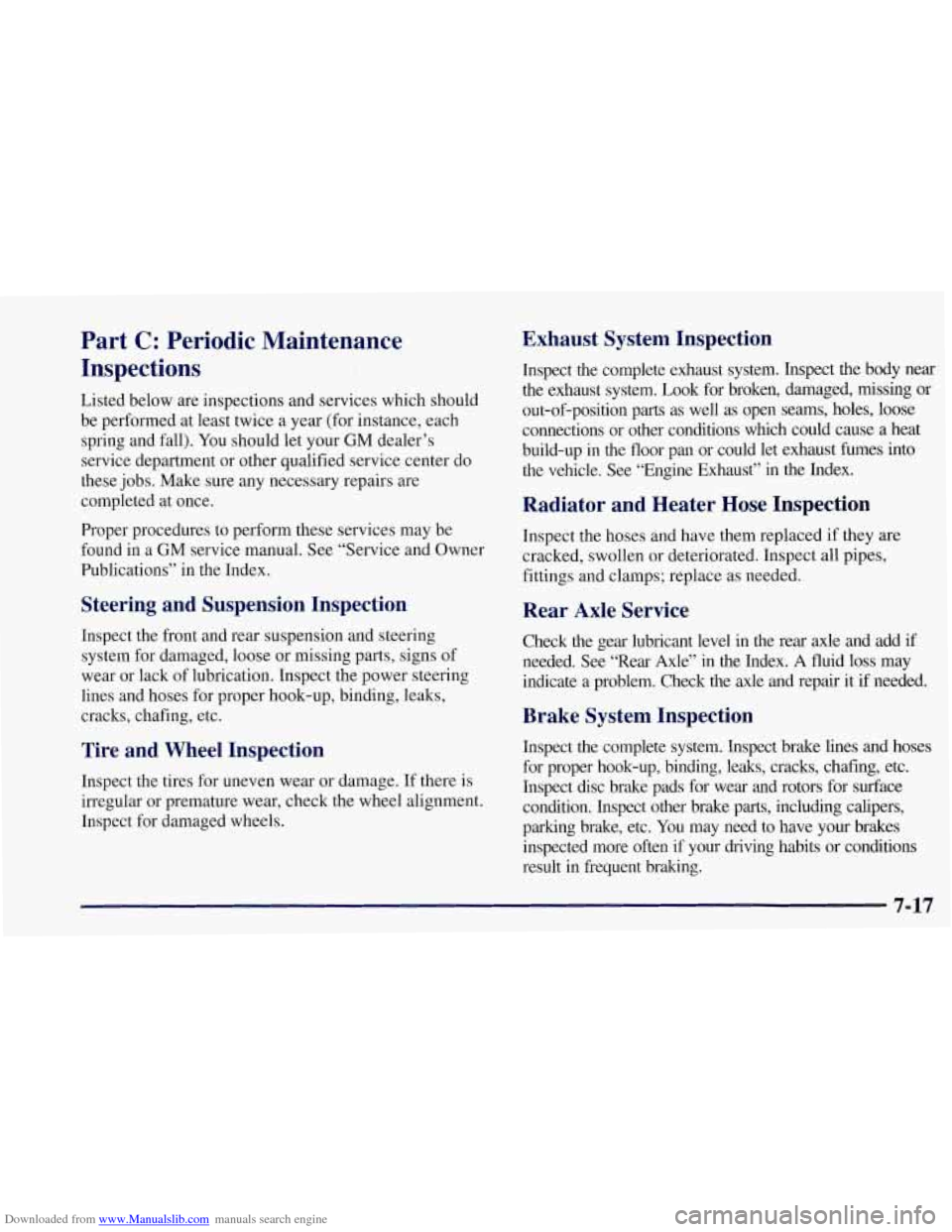

Downloaded from www.Manualslib.com manuals search engine Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall). You should let your
GM dealer’s
service department or other qualified service center do
these jobs. Make sure any necessary repairs are
completed at once.
Proper procedures to perform these services may be
found
in a GM service manual. See “Service and Owner
Publications’’ in the Index.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc.
Tire and Wheel Inspection
Inspect the tires for uneven wear or damage. If there is
irregular or premature wear, check the wheel alignment.
Inspect for damaged wheels.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body near
the exhaust system. Look for broken, damaged, missing or
out-of-position parts as well as open seams, holes, loose
connections or other conditions which could cause a heat
build-up in the floor pan or could let exhaust fumes into
the vehicle. See “Engine Exhaust” in the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed.
Rear Axle Service
Check the gear lubricant level in the rear axle and add if
needed. See “Rear Axle” in the Index.
A fluid loss may
indicate a problem. Check the axle and repair it if needed.
Brake System Inspection
Inspect the complete system. Inspect brake lines and hoses
for proper hook-up, binding, leaks, cracks, chafing, etc.
Inspect disc brake pads for wear and rotors for surface
condition. Inspect other brake parts, including calipers,
parking brake, etc. You may need to have your brakes
inspected more often if your driving habits
or conditions
result in frequent braking.

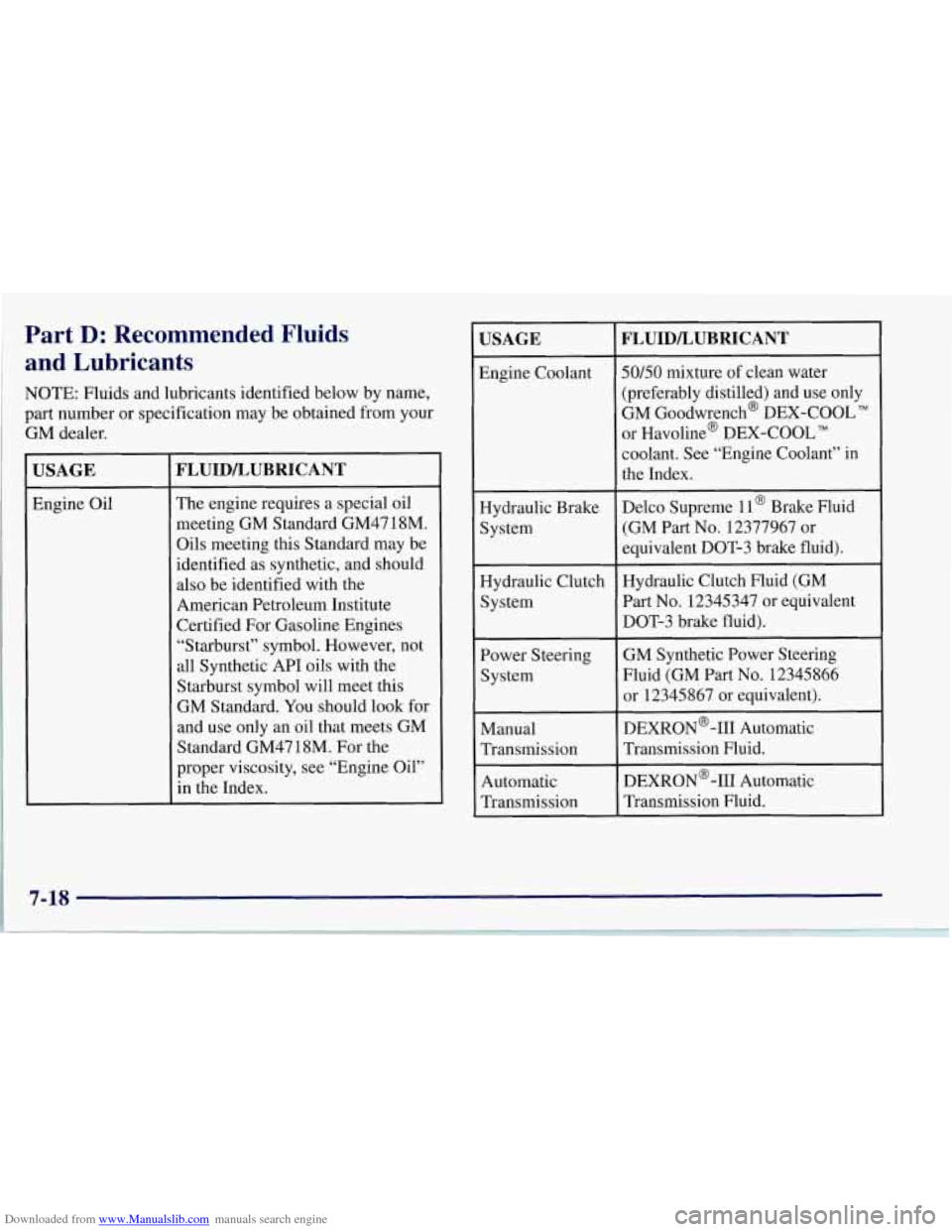

Downloaded from www.Manualslib.com manuals search engine Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
I
FLUIDLUBRICANT
The engine requires a special oil
meeting GM Standard GM47 18M.
Oils meeting this Standard may be
identified as synthetic, and should also be identified with the
American Petroleum Institute
Certified For Gasoline Engines
“Starburst” symbol. However, not
all Synthetic API oils with the
Starburst symbol will meet this
GM Standard. You should look for
and use only an oil that meets GM
Standard GM4718M. For the
proper viscosity, see “Engine Oil”
in the Index.
USAGE
Engine Coolant
Hydraulic Brake System
Hydraulic Clutch System
Power Steering
System
Manual
Transmission
Automatic
Transmission
FLUID/LUBRICANT
50/50 mixture of clean water
(preferably distilled) and use only
GM Goodwrench@ DEX-COOL
TM
or Havoline@ DEX-COOL
coolant. See “Engine Coolant” in
the Index.
Delco Supreme 11
@ Brake Fluid
(GM Part
No. 12377967 or
equivalent DOT-3 brake fluid).
Hydraulic Clutch Fluid (GM
Part
No. 12345347 or equivalent
DOT-3 brake fluid).
GM Synthetic Power Steering
Fluid (GM Part No. 12345866
or 12345867 or equivalent).
DEXRON@-I11 Automatic
Transmission Fluid.
DEXRON@-I11 Automatic Transmission Fluid.

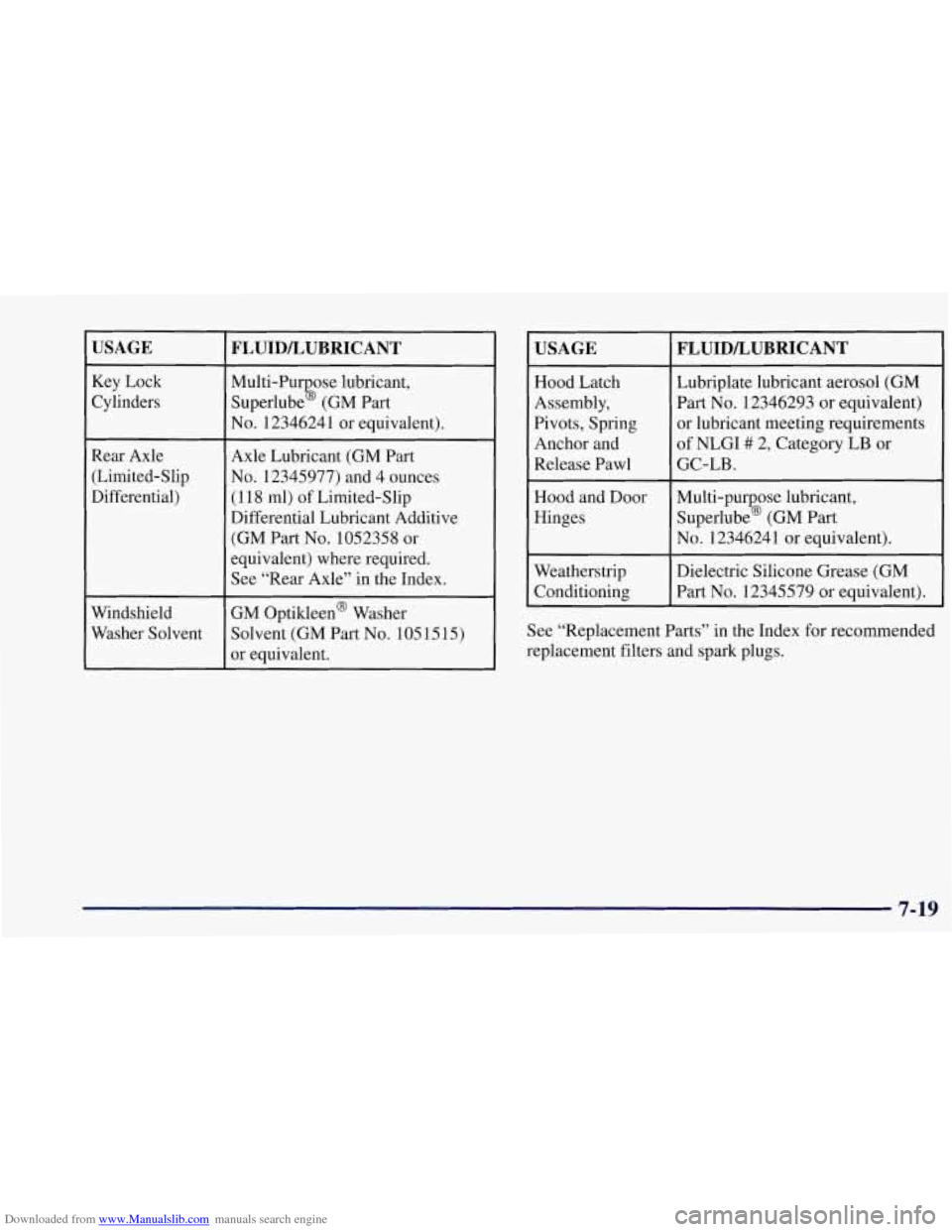

Downloaded from www.Manualslib.com manuals search engine USAGE
Key Lock
Cylinders
Rear Axle
(Limited-Slip
Differential)
Windshield Washer Solvent
FLUIDLUBRICANT
Multi-Pur ose lubricant,
Superlube (GM Part
No. 12346241 or equivalent).
Axle Lubricant (GM Part
No. 12345977) and
4 ounces
(1 18 ml) of Limited-Slip
Differential Lubricant Additive (GM Part No. 1052358 or
equivalent) where required. See “Rear Axle” in the Index.
GM Optikleen@ Washer
Solvent (GM Part No. 105
15 15)
or equivalent.
I USAGE
Hood Latch
Assembly,
Pivots, Spring Anchor and
Release Pawl
Hood and Door Hinges
Weatherstrip Conditioning
FLUIDLUBRICANT
Lubriplate lubricant aerosol (GM
Part No. 12346293 or equivalent)
or lubricant meeting requirements
of NLGI
## 2, Category LB or
GC-LB.
Multi-purpose lubricant,
Superlube@ (GM Part
No. 12346241 or equivalent).
Dielectric Silicone Grease (GM
Part
No. 12345579 or equivalent).
See “Replacement Parts” in the Index for recommended
replacement filters and spark plugs.
7-19

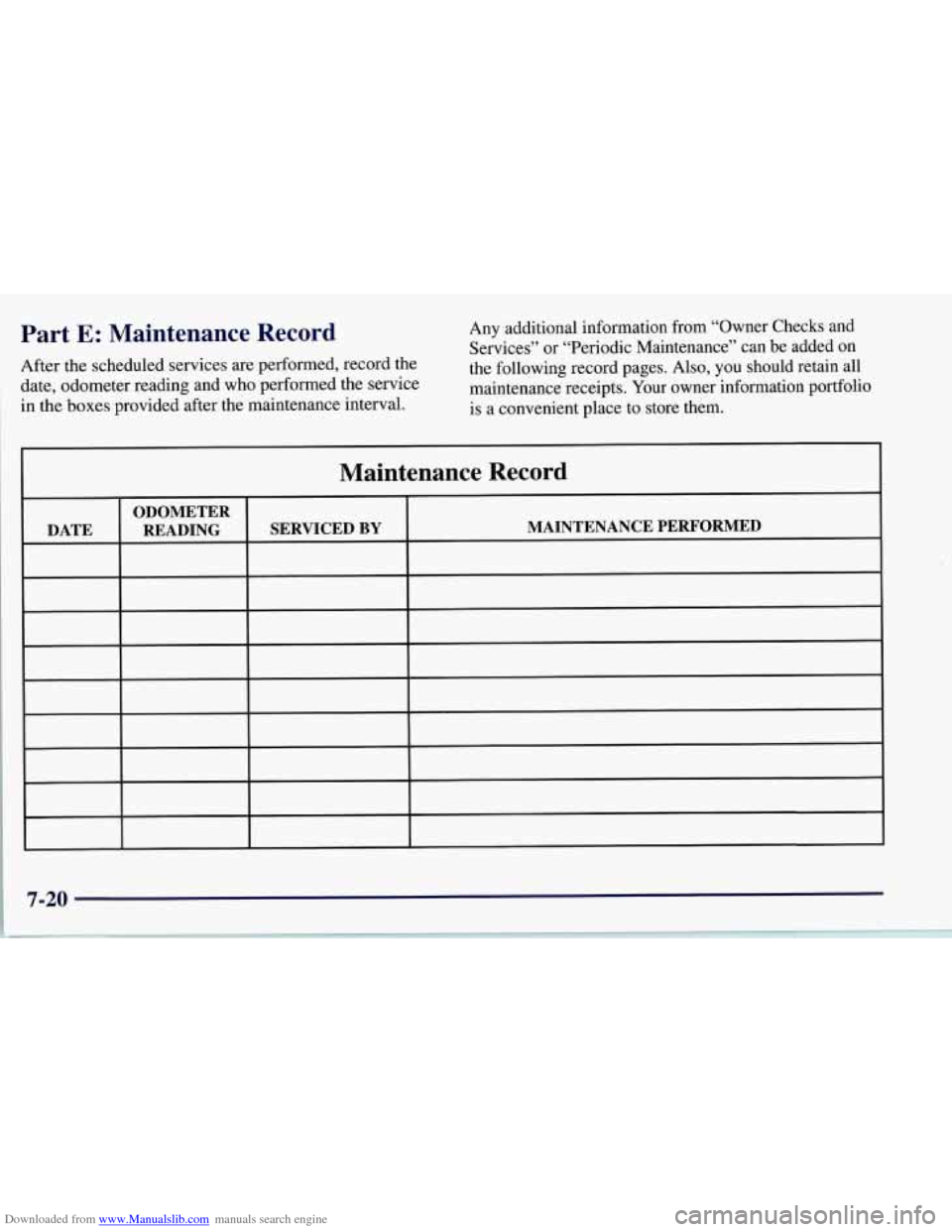

Downloaded from www.Manualslib.com manuals search engine Part E: Maintenance Record
After the scheduled services are performed, record the
I date, odometer reading and who performed the service
i in the boxes provided after the maintenance interval. Any
additional information from “Owner Checks and
Services” or “Periodic Maintenance” can be added on
the following record pages.
Also, you should retain all
maintenance receipts.
Your owner information portfolio
is
a convenient place to store them.

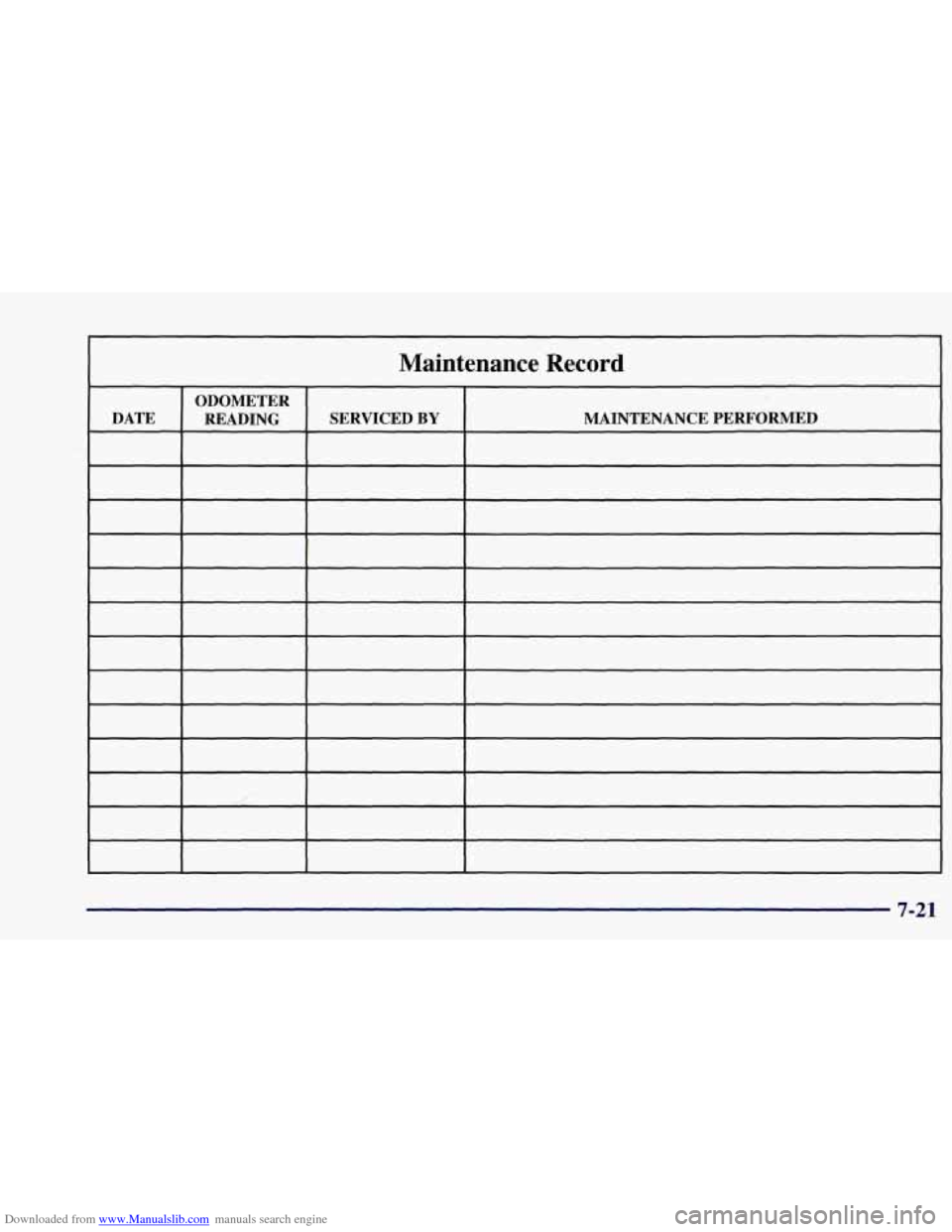

Maintenance Record

Downloaded from www.Manualslib.com manuals search engine Maintenance Record
ODOMETER
DATE MAINTENANCE PERFORMED SERVICED
BY READING

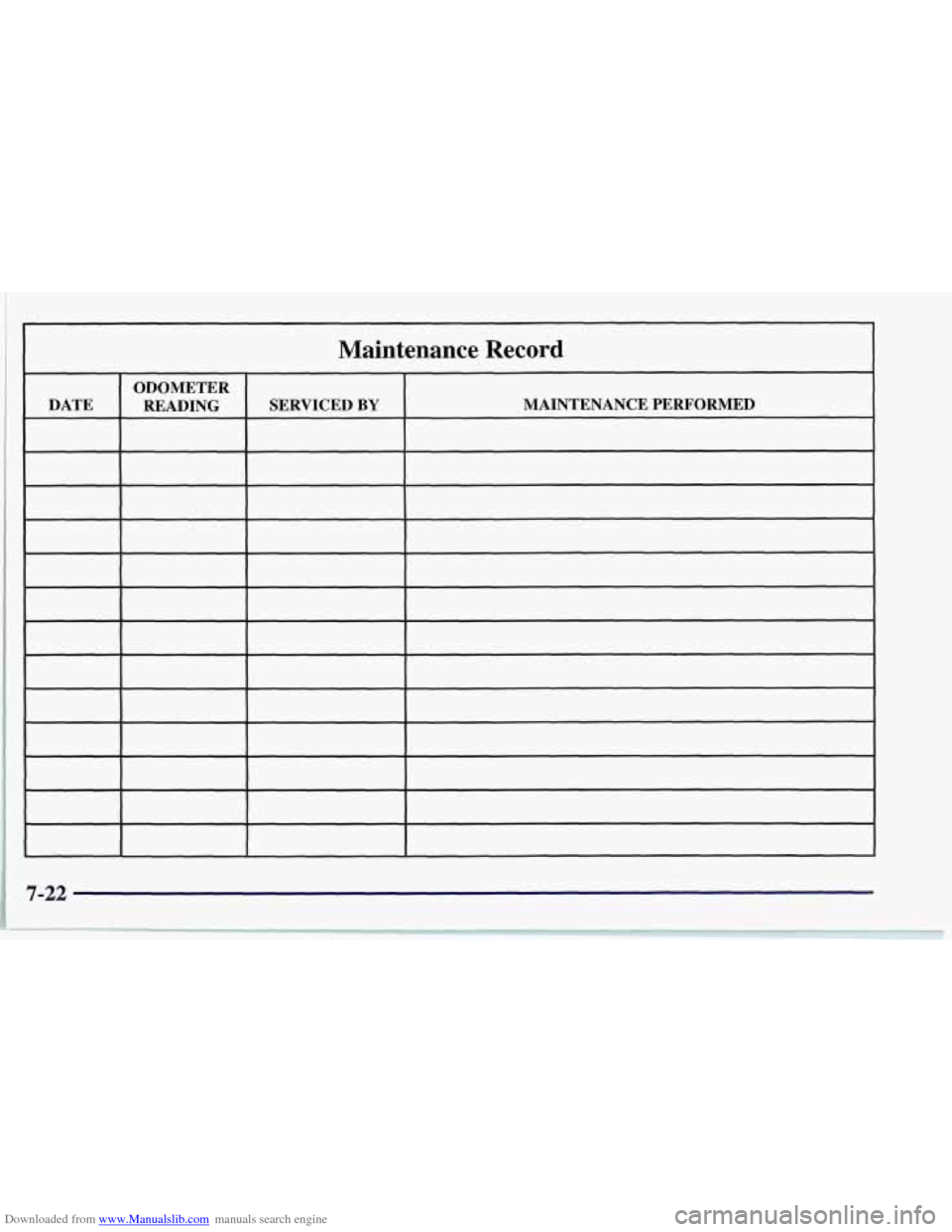

Downloaded from www.Manualslib.com manuals search engine Maintenance Record
ODOMETER
DATE READING SERVICED
BY MAINTENANCE PERFORMED
7-22

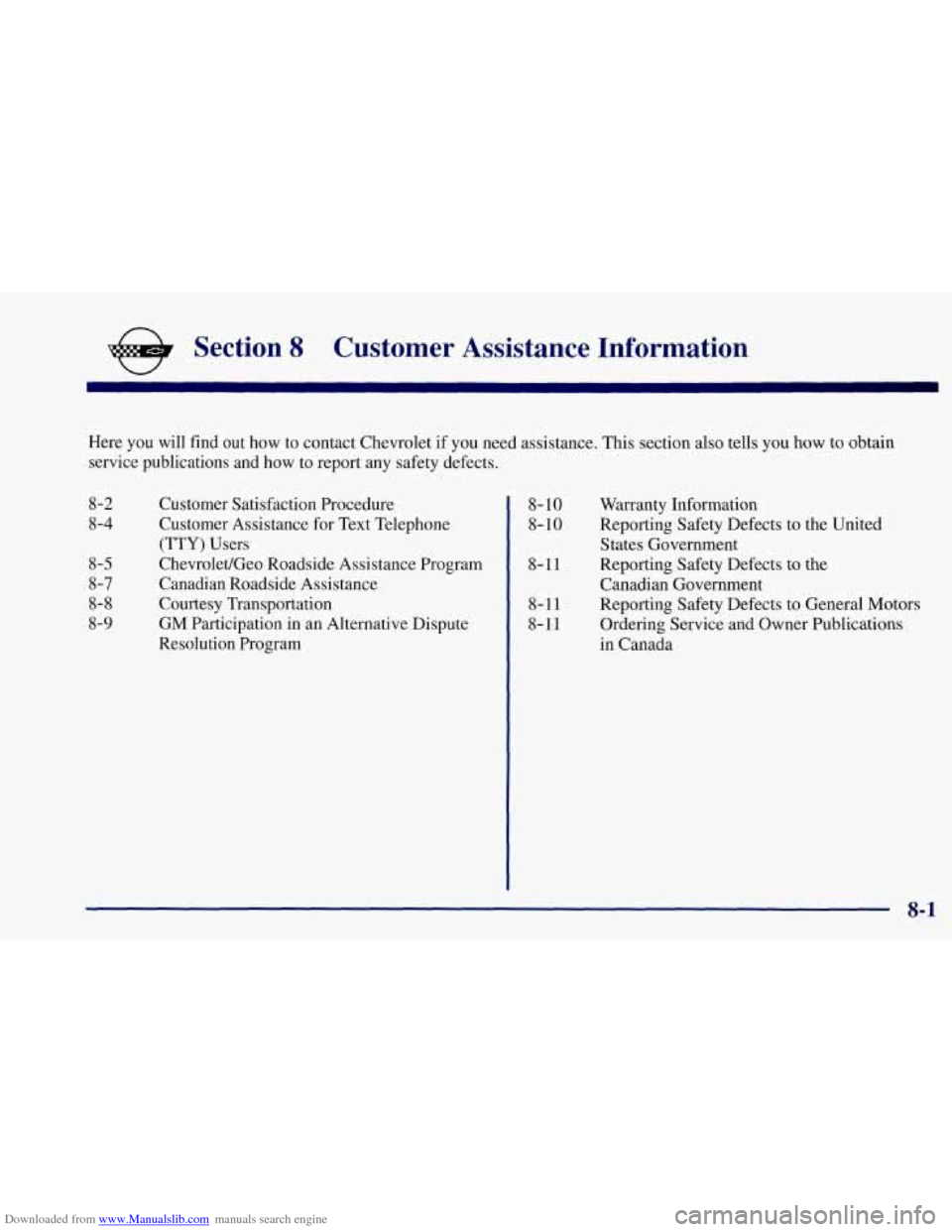

Downloaded from www.Manualslib.com manuals search engine && Section 8 Customer Assistance Information
Here you will find out how to contact Chevrolet if you need assistance. This section also tells you how to obtain
service publications and how to report any safety defects.
8-2
8-4
8-5
8-7
8-8
8-9 Customer Satisfaction Procedure
Customer Assistance for Text Telephone
(TTY) Users
Chevrolet/Geo Roadside Assistance Program
Canadian Roadside Assistance
Courtesy Transportation GM Participation in an Alternative Dispute
Resolution Program 8-
10
8-
10
8-11
8-11
8-11 Warranty Information
Reporting Safety Defects to the United
States Government
Reporting Safety Defects to the
Canadian Government
Reporting Safety Defects to General Motors
Ordering Service and Owner Publications
in Canada
8-1
