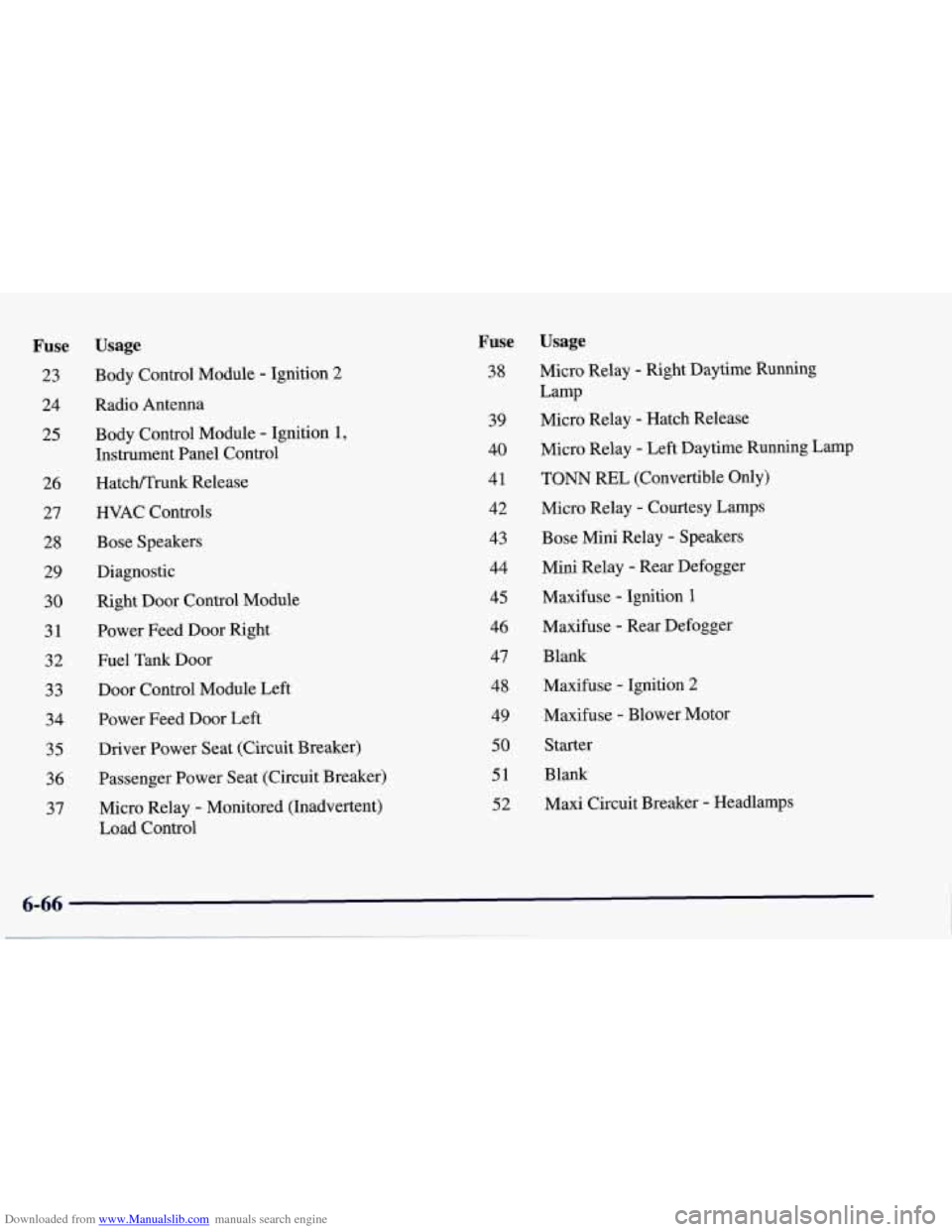

Downloaded from www.Manualslib.com manuals search engine Fuse
23
24
25
26 27 28 29 30 31 32
33
34
35
36 37
Usage
Body Control Module - Ignition 2
Radio Antenna
Body Control Module
- Ignition 1,
Instrument Panel Control
Hatcmrurik Release
HVAC Controls
Bose Speakers
Diagnostic
Right Door Control Module
Power Feed Door Right
Fuel Tank Door
Door Control Module Left Power Feed Door Left
Driver Power Seat (Circuit Breaker)
Passenger Power Seat (Circuit Breaker)
Micro Relay
- Monitored (Inadvertent)
Load Control
Fuse
38
39
40
41
42
43
44
45 46 47 48
49
50
51
52
Usage
Micro Relay - Right Daytime Running
Lamp
Micro Relay
- Hatch Release
Micro Relay
- Left Daytime Running Lamp
TONN REL (Convertible Only)
Micro Relay
- Courtesy Lamps
Bose Mini Relay
- Speakers
Mini Relay
- Rear Defogger
Maxifuse
- Ignition 1
Maxifuse - Rear Defogger
Blank Maxifuse
- Ignition 2
Maxifuse
- Blower Motor
Starter
Blank
Maxi Circuit Breaker
- Headlamps
Page 312 of 378

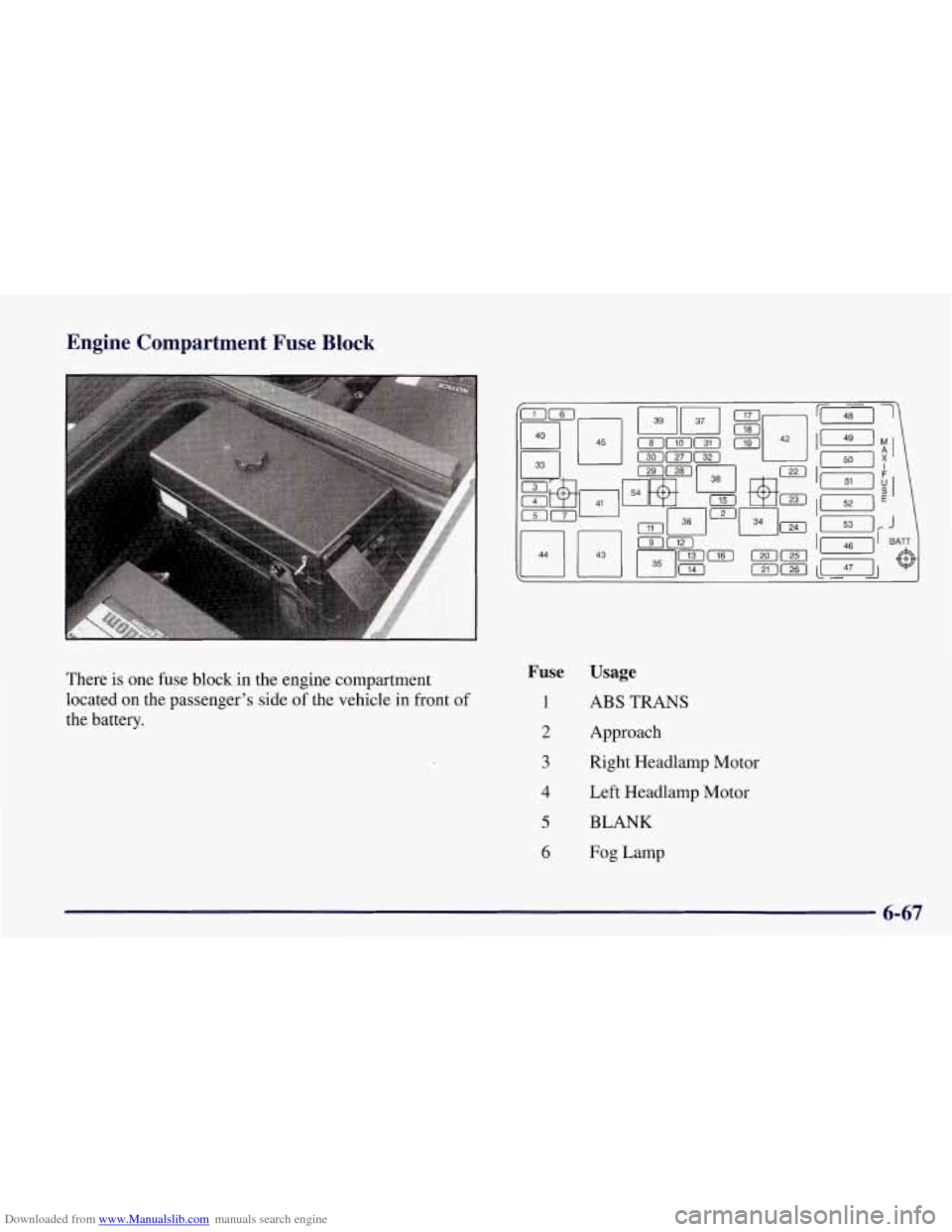

Downloaded from www.Manualslib.com manuals search engine Engine Compartment Fuse Block
There is one fuse block in the engine compartment
located
on the passenger’s side of the vehicle in front of
the battery.
Fuse Usage
1 ABS TRANS
2 Approach
3 Right Headlamp Motor
4 Left Headlamp Motor
5 BLANK
6 Fog Lamp
6-67
Page 313 of 378

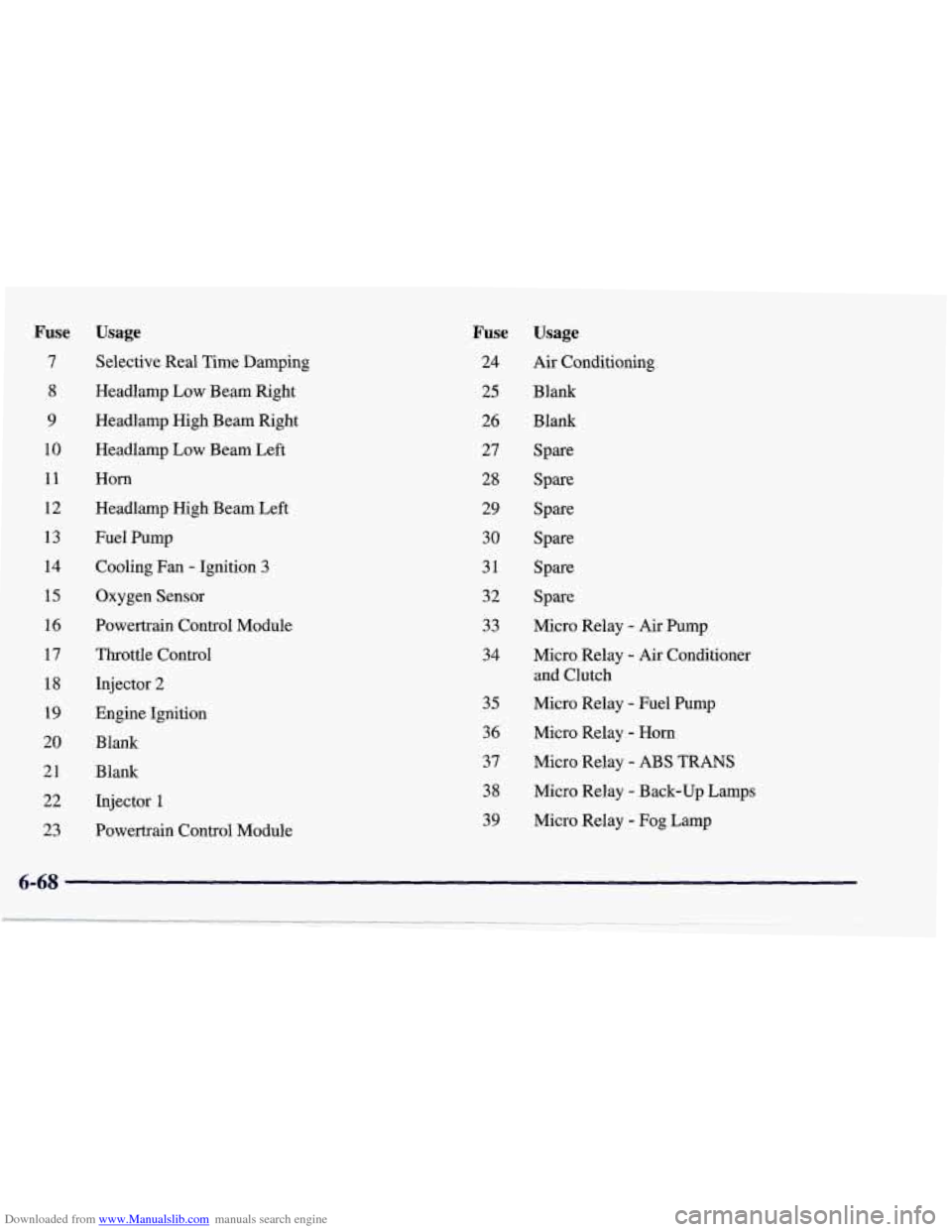

Downloaded from www.Manualslib.com manuals search engine Fuse
7
8
9
10
11
12 13
14
15
16
17
18 19
20 21
22
23
Usage
Selective Real Time Damping
Headlamp Low Beam Right
Headlamp High Beam Right
Headlamp Low Beam Left
Horn
Headlamp High Beam Left
Fuel Pump Cooling Fan
- Ignition 3
Oxygen Sensor
Powertrain Control Module
Throttle Control
Injector
2
Engine Ignition
Blank
Blank
Injector
1
Powertrain Control Module
Fuse
24
25
26
27
28
29
30
31
32 33
34
35
36
37
38
39
Usage
Air Conditioning
Blank B 1,ank
Spare
Spare
Spare Spare
Spare Spare
Micro Relay
- Air Pump
Micro Relay
- Air Conditioner
and Clutch
Micro Relay
- Fuel Pump
Micro Relay
- Horn
Micro Relay - ABS TRANS
Micro Relay - Back-up Lamps
Micro Relay
- Fog Lamp
6-68
Page 314 of 378

Downloaded from www.Manualslib.com manuals search engine 42
43
44
45
46
47
48
49
50 51
52
53

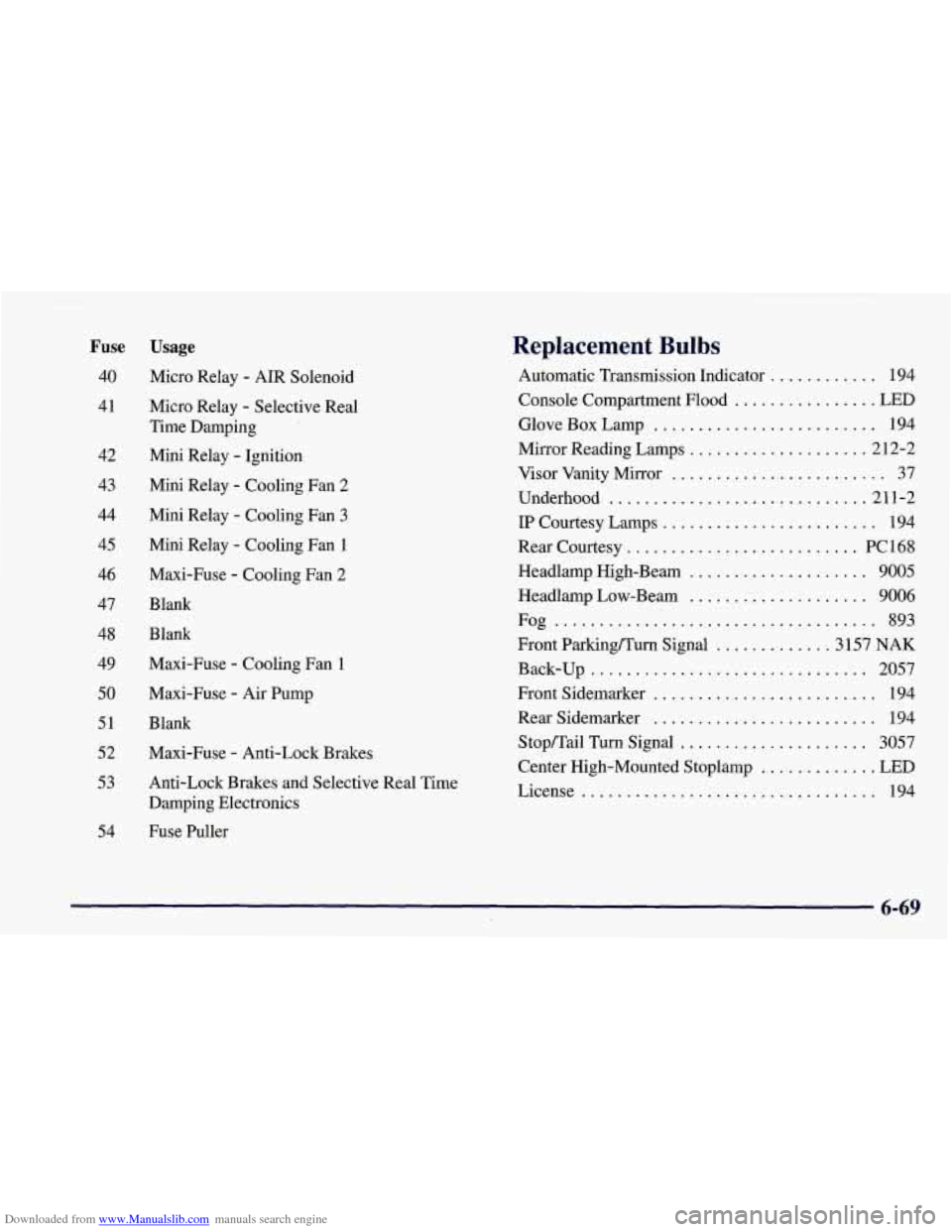

Fuse Usage
40 Micro Relay . AIR Solenoid
41 Micro Relay
. Selective Real
Time Damping
Mini Relay
. Ignition
Mini Relay
. Cooling Fan 2
Mini Relay . Cooling Fan 3
Mini Relay . Cooling Fan 1
Maxi-Fuse
. Cooling Fan 2
Blank
Blank
Maxi-Fuse
. Cooling Fan 1
Maxi-Fuse
. Air Pump
Blank
54 Maxi-Fuse
. Anti-Lock
Brakes
Anti-Lock Brakes and Selective Real
Time
Damping Electronics
Fuse Puller
Replacement Bulbs
Console Compartment Flood ................ LED
Glove Box Lamp
......................... 194
Mirror Reading Lamps
.................... 212-2
Visor Vanity Mirror
........................ 37
Automatic
Transmission Indicator
............ 194
Underhood
............................... 1-2
IP Courtesy Lamps ........................ 194
Rear Courtesy
.......................... PC168
Headlamp High-Beam .................... 9005
Headlamp Low-Beam
.................... 9006
Front ParkingKurn Signal
............. 3 157 NAK
Back-up ............................... 2057
Fog
.................................... 893
Front Sidemarker
......................... 194
Rear Sidemarker
......................... 194
Stopmail Turn Signal
..................... 3057
License
................................. 194
Center High-Mounted Stoplamp
............. LED
6-69
Page 315 of 378

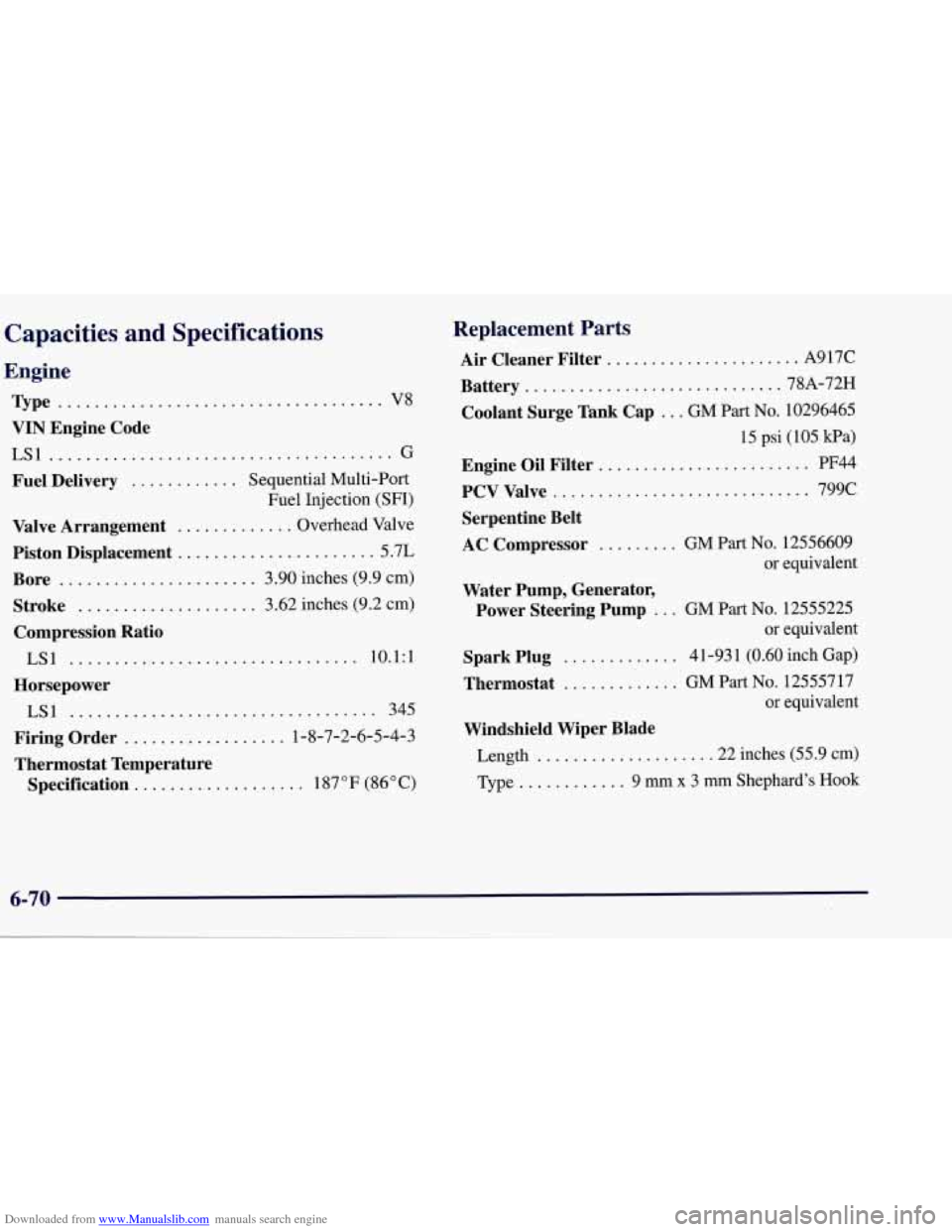

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications
Engine
vpe .................................... V8
VIN Engine Code
LSl ...................................... G
Fuel Delivery ............ Sequential Multi-Port
Fuel Injection (SFI)
Valve Arrangement ............. Overhead Valve
Piston Displacement ...................... 5.7L
Bore ...................... 3.90 inches (9.9 cm)
Stroke .................... 3.62 inches (9.2 cm)
Compression Ratio
LSl ................................ 10.1:l
Horsepower
LS1 .................................. 345
Firing Order .................. 1-8-7-2-6-5-4-3
Thermostat Temperature
Specification
................... 187°F (86°C)
Replacement Parts
Air Cleaner Filter ...................... A917C
Battery ............................. 78A-72H
Coolant Surge Tank Cap ... GM Part No. 10296465
15 psi (105 kPa)
Engine Oil Filter ........................ PF44
PCV Valve ............................. 799C
Serpentine Belt
AC Compressor
......... GM Part No. 12556609
or equivalent
Water Pump, Generator, Power Steering Pump
... GM Part No. 12555225
Spark Plug ............. 41-93 1 (0.60 inch Gap) or equivalent
Thermostat ............. GM Part No. 12555717
or equivalent
Windshield Wiper Blade
Length ................... .22 inches (55.9 cm)
Type
............ 9 mm x 3 mm Shephard’s Hook
6-70
Page 316 of 378

Downloaded from www.Manualslib.com manuals search engine Wheel Nuts
Wheel Nut Torque .......... 100 lb-ft (140 N-m)
Capacities (Approximate)
The following approximate capacities are given in
United States and metric conversions.
Air Conditioning ... See the refrigerant information
label under the hood.
Automatic Transmission
Drain and Refill ................ 5 quarts (4.7 L)
Overhaul
................. 10.8 quarts (10.2 L)
Coolant System
LS 1 (with M30
automatic transmission)
...... 12.6 quarts (1 1.9 L)
LS 1 (with "6
manual transmission)
....... 12.9 quarts ( 12.2 L)
Crankcase
With Filter Change ........... 6.5 quarts (6.1 L)
Fuel Tank ................. 19.1 gallons (72.3 L)
Manual Transmission
Rear Axle (Overhaul)
................ 4.1
quarts (3.8 1 L)
Lubricant
.................. 1.5 quarts (1 -42 L)
Limited Slip Additive ......... 4 ounces (1 18 ml)
Tire Pressures ...... See Tire-Loading Information
label on rear edge of driver's door.
NOTE: All capacities are approximate. When adding,
be sure to fill to the appropriate level, as recommended
in this manual. Recheck fluid level after filling.
Vehicle Dimensions
Wheelbase .............. 104.5 inches (265.4 cm)
Tread
Front .................. 62.1 inches (157.7 cm)
Rear
.................... .62 inches (157.4 cm)
Length ................. 179.7 inches (456.4 cm)
Width ................... 73.6 inches (1 86.9 cm)
Height .................. 47.7 inches (1 21.1 cm)
6-71
Page 317 of 378

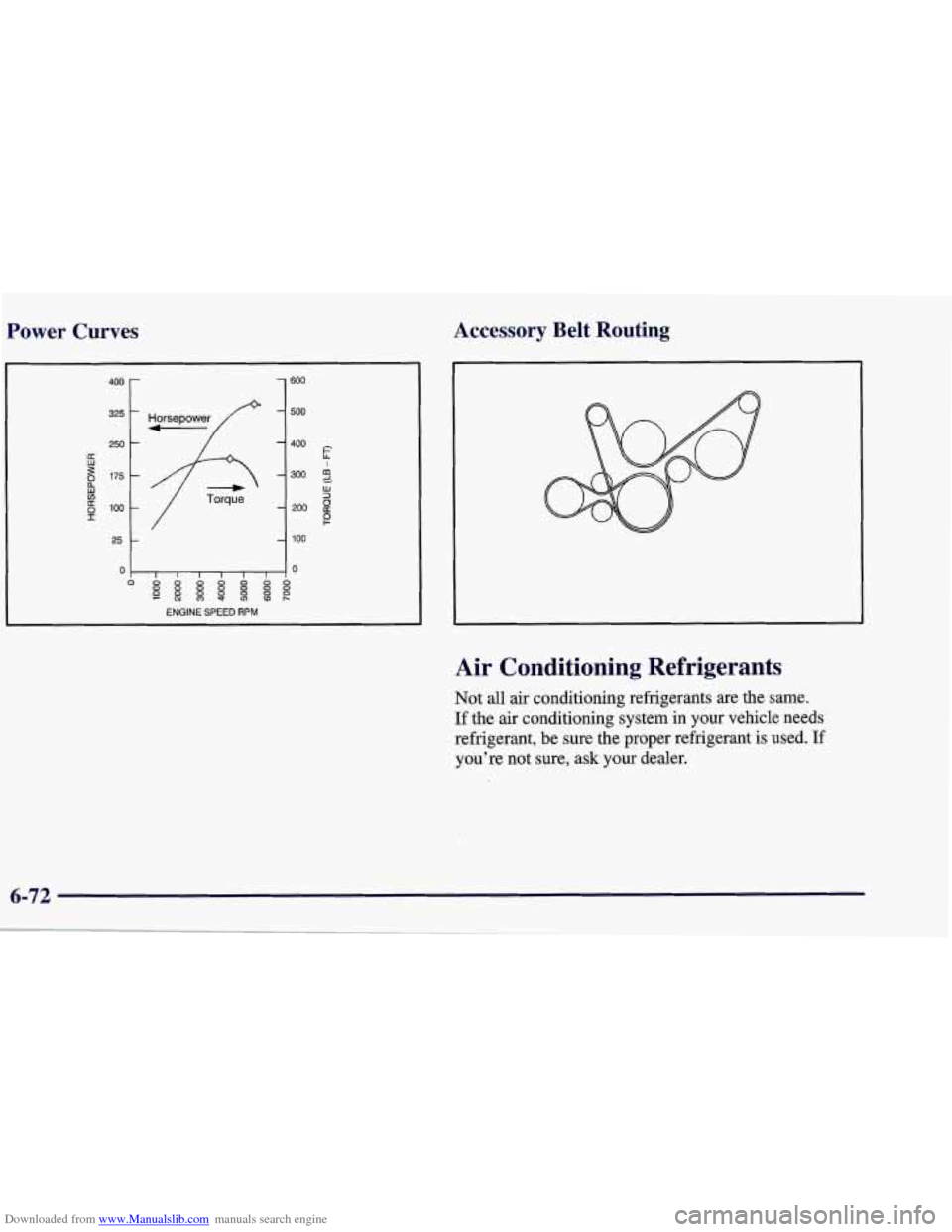

Downloaded from www.Manualslib.com manuals search engine Power Curves
400 r 1 6oo
500
LT 400 E
300 3 I
(I) W w 3 200 E
P
25 t 1
loo
Accessory Belt Routing
ENGINE SPEED RPM
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If
you're not sure, ask your dealer.
6-72
Page 318 of 378

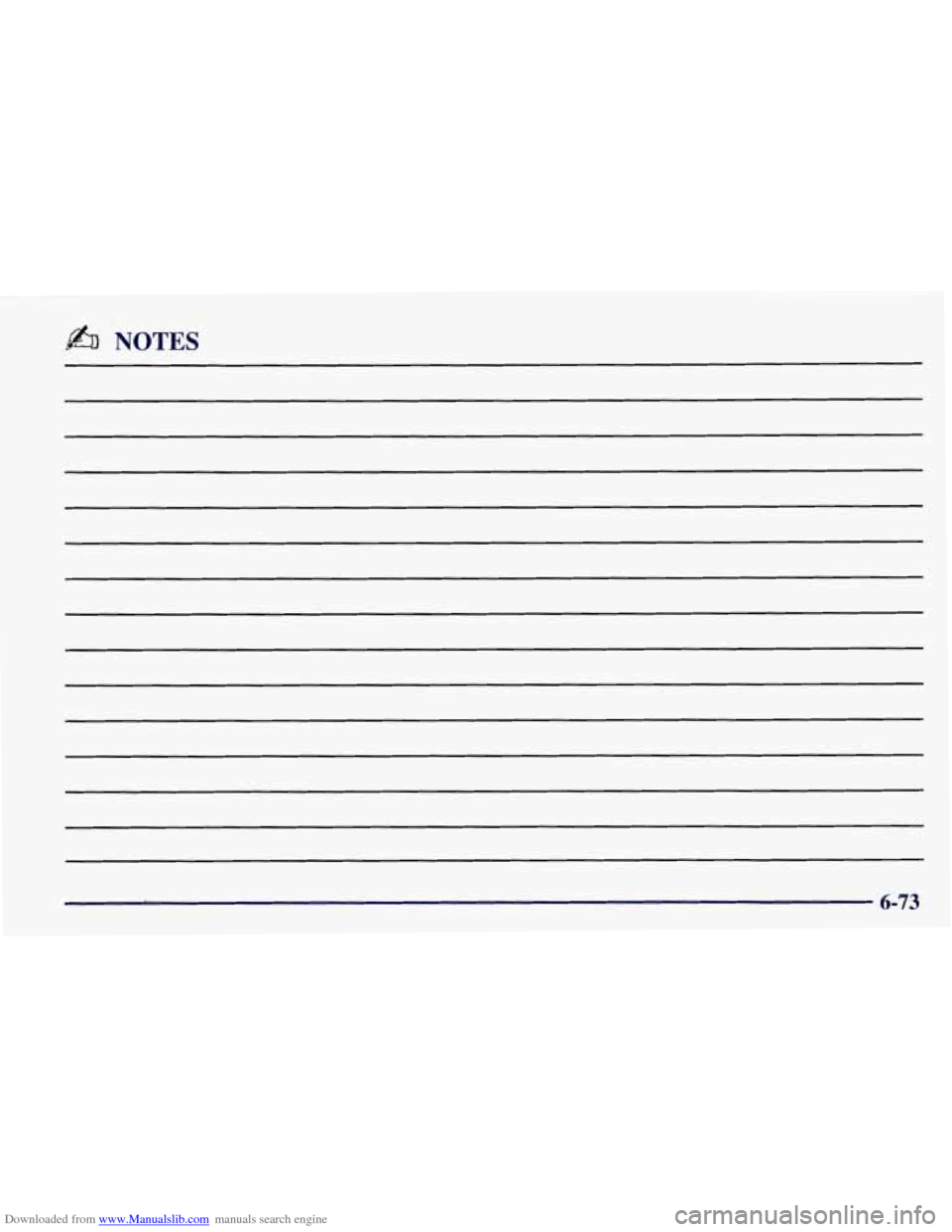

Downloaded from www.Manualslib.com manuals search engine k% NOTES
6-73
Page 319 of 378

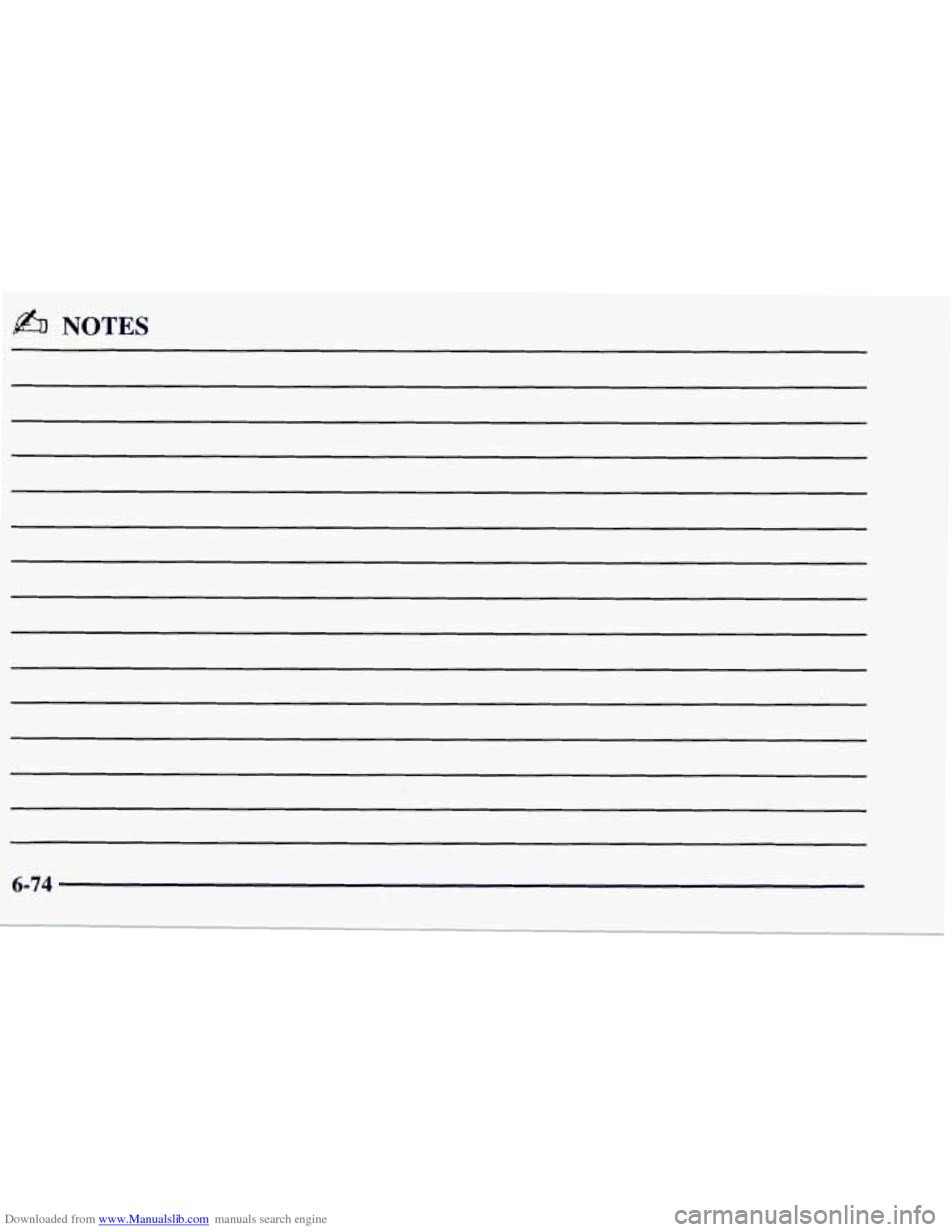

Downloaded from www.Manualslib.com manuals search engine @% NOTES
Page 320 of 378

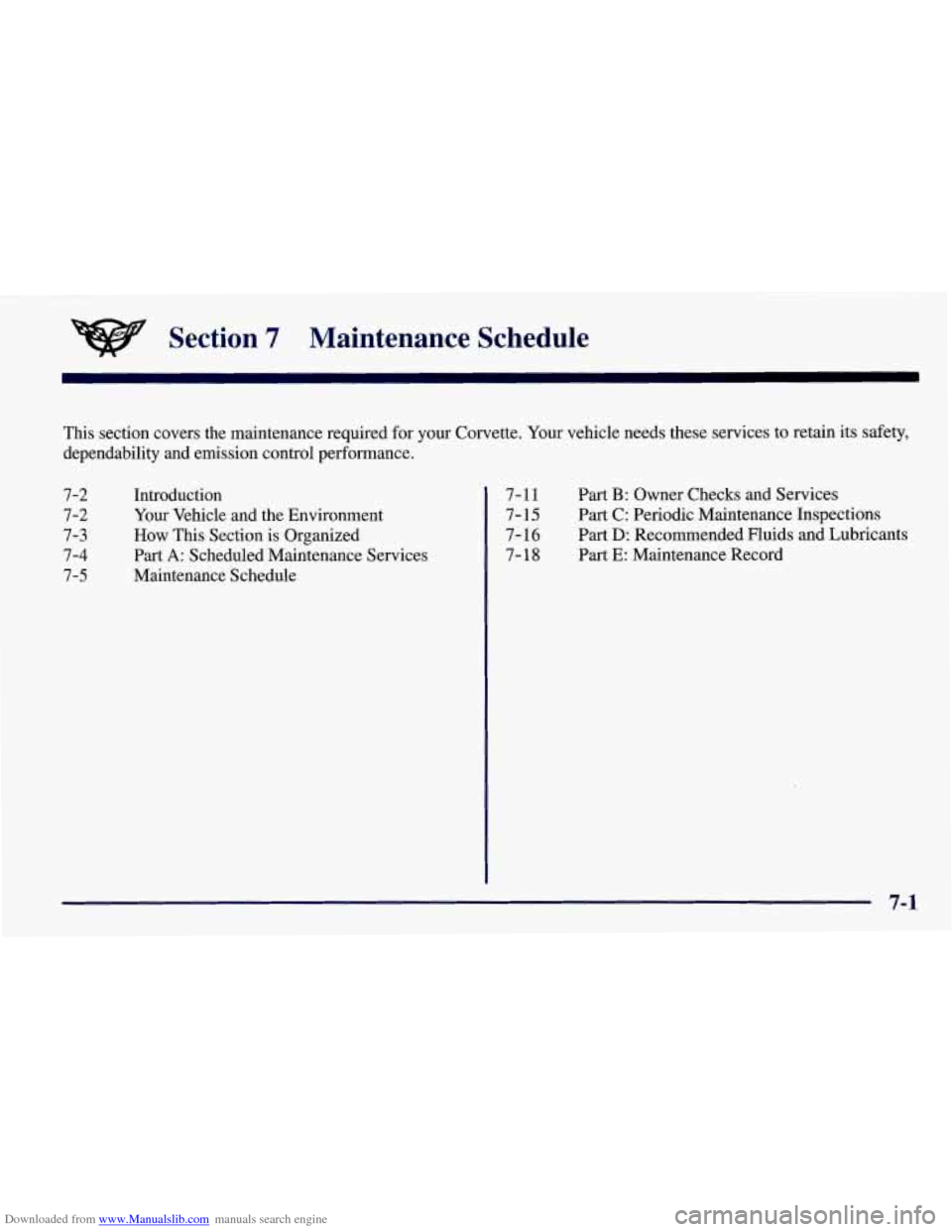

Downloaded from www.Manualslib.com manuals search engine Section 7 Maintenance Schedule
This section covers the maintenance required for your Corvette. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7-2
7-2
7-3
7-4
7-5 Introduction
Your Vehicle
and the Environment
How This Section is Organized
Part
A: Scheduled Maintenance Services
Maintenance Schedule 7-11
7-15
7- 16 7-18
Part B: Owner Checks and Services
Part C: Periodic Maintenance Inspections
Part
D: Recommended Fluids and Lubricants
Part
E: Maintenance Record
7-1
