Engine Compartment Fuse Block

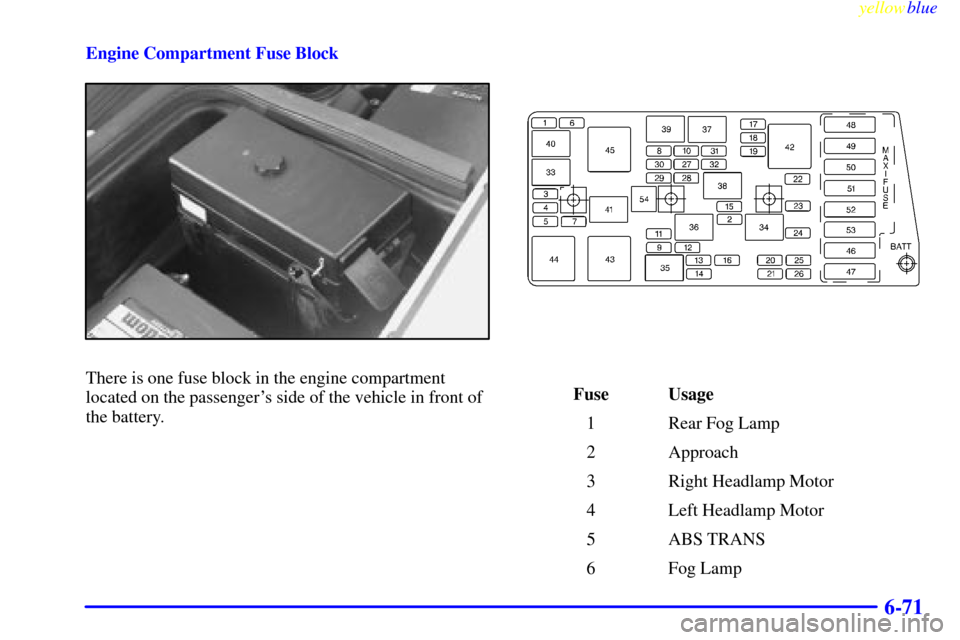

There is one fuse block in the engine compartment
located on the passenger's side of the vehicle in front of
the battery.Fuse Usage
1 Rear Fog Lamp
2 Approach
3 Right Headlamp Motor
4 Left Headlamp Motor
5 ABS TRANS
6 Fog Lamp

yellowblue
6-72
Fuse Usage
7 Selective Real Time Damping
8 Headlamp Low Beam Right
9 Headlamp High Beam Right
10 Headlamp Low Beam Left
11 Horn
12 Headlamp High Beam Left
13 Fuel Pump
14 Cooling Fan
- Ignition 3
15 Oxygen Sensor
16 Powertrain Control Module
17 Throttle Control
18 Injector 2
19 Engine Ignition
20 BlankFuse Usage
21 Blank
22 Injector 1
23 Powertrain Control Module
24 Air Conditioning
25 Blank
26 Blank
27 Spare
28 Spare
29 Spare
30 Spare
31 Spare
32 Spare
33 Micro Relay
- Air Pump
34 Micro Relay
- Air Conditioner and
Clutch

yellowblue
6-73
Fuse Usage
35 Micro Relay
- Fuel Pump
36 Micro Relay
- Horn
37 Micro Relay
- Rear Fog Lamp
38 Micro Relay
- Back-Up Lamps
39 Micro Relay
- Fog Lamp
40 Micro Relay
- AIR Solenoid
41 Micro Relay
- Selective Real Time
Damping
42 Mini Relay
- Ignition
43 Mini Relay
- Cooling Fan 2
44 Mini Relay
- Cooling Fan 3Fuse Usage
45 Mini Relay
- Cooling Fan 1
46 Maxi
-Fuse - Cooling Fan 2
47 Blank
48 Blank
49 Maxi
-Fuse - Cooling Fan 1
50 Maxi
-Fuse - Air Pump
51 Maxi
-Fuse - Selective Real Time
Damping Electronics
52 Maxi
-Fuse - Anti-Lock Brakes
53 Anti
-Lock Brakes
54 Fuse Puller

yellowblue
6-74
Replacement Bulbs
High-Beam Headlamp 9005. . . . . . . . . . . . . . . . . . . .
Low
-Beam Headlamp 9006. . . . . . . . . . . . . . . . . . . .
Front Parking/Turn Signal 3157 NAK. . . . . . . . . . . . .
Back
-Up 2057. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Sidemarker 194. . . . . . . . . . . . . . . . . . . . . . . . .
Rear Sidemarker 194. . . . . . . . . . . . . . . . . . . . . . . . .
Rear Stop/Tail and Turn Signal 3057. . . . . . . . . . . . .
For any bulb replacements or procedures not listed here,
please consult your dealer.
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions.
Please refer to ªRecommended Fluids and Lubricantsº
in the Index for more information.
Air ConditioningSee the refrigerant . . . . . . . . . . . .
information label under the hood.
Automatic Transmission
Drain and Refill 5.0 quarts (4.7 L). . . . . . . . . . . . . .
Overhaul 10.8 quarts (10.2 L). . . . . . . . . . . . . . . . .
Coolant System
With M30 Automatic
Transmission 12.6 quarts (11.9 L). . . . . . . . . . . .
With MM6 Manual
Transmission 12.9 quarts (12.2 L). . . . . . . . . . .

yellowblue
6-75
Crankcase
With Filter Change 6.5 quarts (6.1 L). . . . . . . . . . .
Fuel Tank19.3 gallons (73.1 L) . . . . . . . . . . . . . . . . .
Manual Transmission
(Overhaul) 4.1 quarts (3.8 L). . . . . . . . . . . . . . . . .
Rear Axle
Lubricant 1.69 quarts (1.6 L). . . . . . . . . . . . . . . . . .
Limited Slip Additive 4 ounces (118 ml). . . . . . . . .
Tire PressuresSee Tire
-Loading Information . . . . . .
label on rear edge of driver's door.
Wheel Nut Torque100 lb
-ft (140 N´m) . . . . . . . . . .
NOTE: All capacities are approximate. When adding, be
sure to fill to the appropriate level, as recommended in
this manual. Recheck fluid level after filling.
Engine Specifications
Type5.7L V8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VIN Engine CodeG . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement350 cubic inches (5662 cc) . . . . . . . . .
Fuel DeliverySequential . . . . . . . . . . . . . . . . . . . . .
Multi
-Port Fuel Injection (SFI)
Valve ArrangementOverhead Valve . . . . . . . . . . . . .
Piston Displacement5.7L . . . . . . . . . . . . . . . . . . . . . .
Bore3.90 inches (9.9 cm) . . . . . . . . . . . . . . . . . . . . . .
Stroke3.62 inches (9.2 cm) . . . . . . . . . . . . . . . . . . . .
Compression Ratio10.1:1 . . . . . . . . . . . . . . . . . . . . .
Horsepower345 @ 5600 . . . . . . . . . . . . . . . . . . . . . . .
Torque350 @ 4400 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Firing Order1
-8-7-2-6-5-4-3 . . . . . . . . . . . . . . . . . .
Thermostat Starts to Open187
F (86
C) . . . . . . . .

yellowblue
6-76
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If the air
conditioning system in your vehicle needs refrigerant, be
sure the proper refrigerant is used. If you're not sure, ask
your dealer.
Normal Maintenance
Replacement Parts
Air Cleaner FilterA917C . . . . . . . . . . . . . . . . . . . . . .
Battery78A
-72H . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coolant Surge Tank CapGM Part No. 10296465 . . .
15 psi (105 kPa)
Engine Oil FilterPF44 . . . . . . . . . . . . . . . . . . . . . . . .
PCV Valve799C . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0.060 inch (1.524 mm)
Spark Plug41
-931 (0.60 inch Gap) . . . . . . . . . . . . .
ThermostatGM Part No. 12555717 . . . . . . . . . . . . .
or equivalent
Windshield Wiper Blade
Length 22 inches (55.9 cm). . . . . . . . . . . . . . . . . . . .
Type 9 mm x 3 mm Shepherd's Hook. . . . . . . . . . . .
Vehicle Dimensions
Wheelbase104.5 inches (265.4 cm) . . . . . . . . . . . . . .
Tread
Front 62.1 inches (157.7 cm). . . . . . . . . . . . . . . . . .
Rear 62.0 inches (157.4 cm). . . . . . . . . . . . . . . . . . .
Length179.7 inches (456.4 cm) . . . . . . . . . . . . . . . . .
Width73.6 inches (186.9 cm) . . . . . . . . . . . . . . . . . . .
Height47.7 inches (121.1 cm) . . . . . . . . . . . . . . . . . .

yellowblue
6-77 Engine Power Curves
Engine Accessory Drive Belt Routing
