CHEVROLET CORVETTE 2002 5.G Owners Manual
Manufacturer: CHEVROLET, Model Year: 2002, Model line: CORVETTE, Model: CHEVROLET CORVETTE 2002 5.GPages: 384, PDF Size: 2.49 MB
Page 1 of 384
Page 2 of 384
i
2002 Chevrolet Corvette
Owner's Manual
Litho in U.S.A.Copyright General Motors Corporation 06/22/01
Part Number 10444233 A First Edition All Rights Reserved
Page 3 of 384
ii
GENERAL MOTORS, GM, the GM Emblem,
CHEVROLET, the CHEVROLET Emblem, the
name CORVETTE and the CORVETTE Emblem are
registered trademarks of General Motors Corporation.
This manual includes the latest information at the time
it was printed. We reserve the right to make changes
after that time without further notice. For vehicles first
sold in Canada, substitute the name ªGeneral Motors
of Canada Limitedº for Chevrolet Motor Division
whenever it appears in this manual.
Please keep this manual in your vehicle, so it will
be there if you ever need it when you're on the road.
If you sell the vehicle, please leave this manual in it
so the new owner can use it.
We support voluntary
technician certification.
For Canadian Owners Who Prefer a
French Language Manual:
Aux propri‡taires canadiens: Vous pouvez vous
procurer un exemplaire de ce guide en fran†ais chez
votre concessionaire ou au:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Page 4 of 384
iii
Corvette: The American
Dream Machine
In the early '50s, it was only a designer's dream.
Today the Corvette stands alone as America's dream
car
-- a testament to its unmistakable charisma and
the excitement it inspires. Unique styling, powerful
performance and an undeniable panache have made
Corvette one of the most celebrated sports cars in
the world.
In 1953, Corvette produced 300 new lightweight
fiberglass roadsters. A handful went to project engineers,
General Motors managers, and a select group of movie
stars and celebrities. With a two
-speed Powerglide
automatic transmission, Blue Flame six
-cylinder engine,
and gleaming Polo White exterior, the Corvette began its
drive into the heart of America.
Designers freshened up the 'Vette in 1956 by adding a
removable hardtop and the famous Corvette ªcoves.º
The sculptured body enhanced its sporty look, and a
standard 210
-horsepower Chevy V8 engine solidified
Corvette's reputation as a production race car.
Page 5 of 384
iv

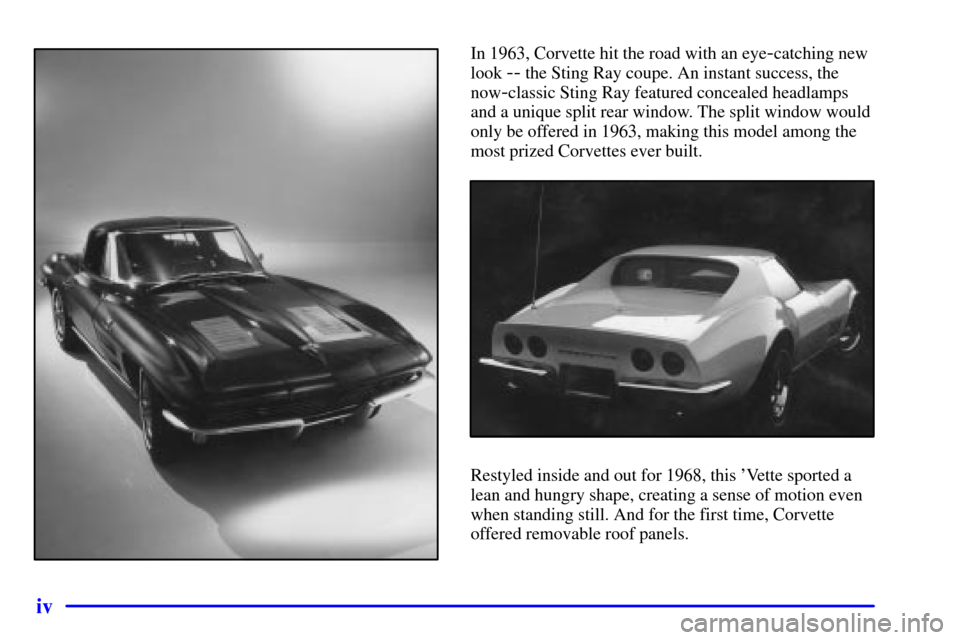

In 1963, Corvette hit the road with an eye-catching new
look
-- the Sting Ray coupe. An instant success, the
now
-classic Sting Ray featured concealed headlamps
and a unique split rear window. The split window would
only be offered in 1963, making this model among the
most prized Corvettes ever built.
Restyled inside and out for 1968, this 'Vette sported a
lean and hungry shape, creating a sense of motion even
when standing still. And for the first time, Corvette
offered removable roof panels.
Page 6 of 384
v

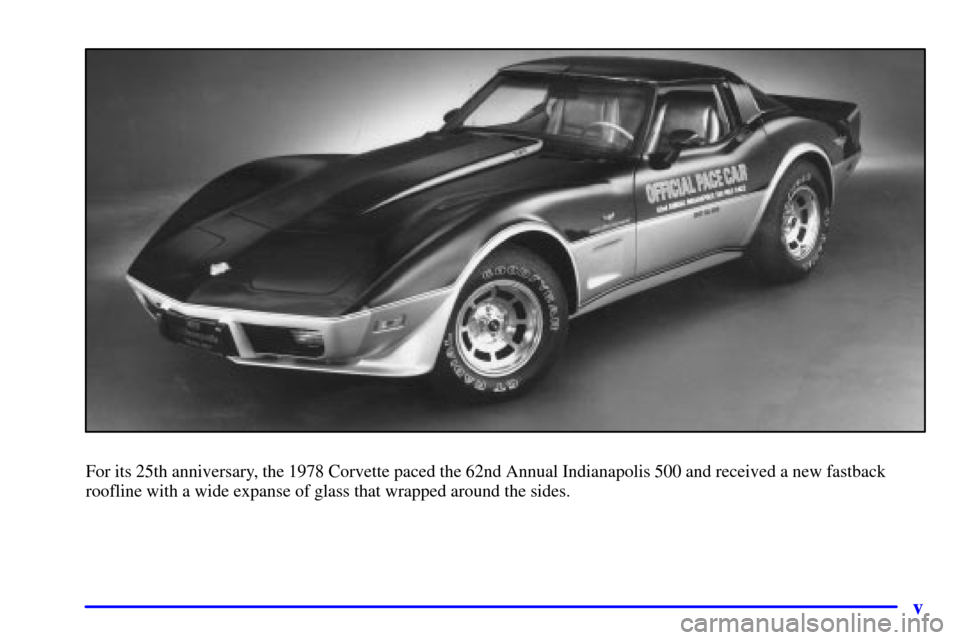

For its 25th anniversary, the 1978 Corvette paced the 62nd Annual Indianapolis 500 and received a new fastback
roofline with a wide expanse of glass that wrapped around the sides.
Page 7 of 384
vi
In 1984, the fourth generation of America's favorite
sports car anticipated the future with a sleek look and
advanced technology that provided superior handling
and performance. Windshield angle was the sheerest of
any domestic vehicle, cornering ability the tightest of
any production car. In short, the 1984 redesign enhanced
the Corvette's reputation as a leader in the world sports
car market.
After 44 years of production, Corvette only got better.
The fifth
-generation Corvette arrived in 1997, featuring
a completely restyled body and a new, all
-aluminum,
5.7 Liter, 345
-horsepower LS1 V8 engine.The structure of the fifth
-generation redesign is
the stiffest ever developed in 44 years of Corvette
production, resulting in unparalleled ride quality and
outstanding handling. Also unique to the new Corvette
is a rear
-mounted transmission.
Available as a Coupe for 1997, the new Corvette
offered such standard features as extended
-mobility
tires, a Bose audio system, and a new, latch-operated
roof designed for easy removal.
With many design cues inspired by the classic models
of the 1960s, the new fifth-generation Corvette is
an impressive combination of sleek styling and
world
-class sports car performance. For 1998, in
addition to the Coupe, a convertible was reintroduced.
The fifth-generation Corvette rollout was completed in
1999 with the introduction of the hardtop model.
For 2001, all hardtop models became the higher
performance Z06. The Z06 model featured the
performance enhanced LS6 engine, specific suspension
components and exterior/interior differentiation.
Page 8 of 384
vii
Corvette Assembly Plant
The Corvette Assembly Plant in Bowling Green,
Kentucky is one of the most sophisticated and
computerized automobile assembly facilities in
the world. To build your 2002 Corvette, over
1,025 employes teamed up with the 58 high
-tech
robots that assist in a variety of processes,
from welding to painting.
The Bowling Green facility is Corvette's third
home since 1953. Since beginning production in
June of 1981, it has become one of Kentucky's
most popular tourist attractions.
Corvette Assembly Plant tours are available.
For dates and times, call (270) 745-8228.
Reservations are required for groups of 10 or more.
The new National Corvette Museum, located near
the assembly plant, opened its doors in September
of 1994. It is also attracting tourists to the area.
For more information, call 1-800-53-VETTE (83883)
or (270) 781
-7973.
Page 9 of 384
viii
CAUTION:
These mean there is something that could hurt
In the caution area, we tell you what the hazard is.
Y ou will also find a circle
Page 10 of 384
ix
Vehicle Damage Warnings
Also, in this book you will find these notices:
NOTICE:
These mean there is something that could damage
your vehicle.
In the notice area, we tell you about something that
can damage your vehicle. Many times, this damage
would not be covered by your warranty, and it could
be costly. But the notice will tell you what to do to help
avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different
colors or in different words.
You'll also see warning labels on your vehicle.
They use the same words, CAUTION or NOTICE.
Vehicle Symbols
Your vehicle may be equipped with components and
labels that use symbols instead of text. Symbols,
used on your vehicle, are shown along with the text
describing the operation or information relating to a
specific component, control, message, gage or indicator.
If you need help figuring out a specific name of a
component, gage or indicator reference the following
topics in the Index:
ªEngine Compartment Overviewº
ªInstrument Panelº
ªComfort Controlsº
ªAudio Systemsº
Also see ªWarning Lights and Gagesº in the Index.
