CHEVROLET CORVETTE 2002 5.G Repair Manual

2-3 Power Windows
With power windows, switches on the door control each
window when the ignition is on or when RAP is present.
See ªRetained Accessory Power (RAP)º in the Index.
Express
-Down Windows
Both the driver's and passenger's window switches have
the express
-down feature. Tap AUTO and immediately
release. The window will lower completely. To stop
the express
-down feature from lowering the window
completely, simply tap the switch again.
You can also open the window any amount by
pressing and releasing the switch.
To close the window, press and hold the up arrow.

2-4
Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
Don't leave the keys in a vehicle with children.

2-5
One key is used for the
ignition, the driver's
door and all other locks.
When a new vehicle is delivered, the dealer gives the
first owner a key and a bar coded tag. Both the key
and the tag are attached to a key ring.The paper tag has a code on it that tells your dealer or a
qualified locksmith how to make an extra key. Keep the
bar
-coded tag in a safe place. If you lose your key,
you'll be able to have a new one made easily using this
tag. If your key doesn't have a tag and you need a new
ignition key, go to your dealer for the correct key code.
NOTICE:
Your vehicle has a number of features that can
help prevent theft. But you can have a lot of
trouble getting into your vehicle if you ever lock
your key inside. You may even have to damage
your vehicle to get in. So be sure you have an
extra key.
If you ever do get locked out of your vehicle,
call Chevrolet Roadside Assistance. See ªRoadside
Assistanceº in the Index for more information.

2-6

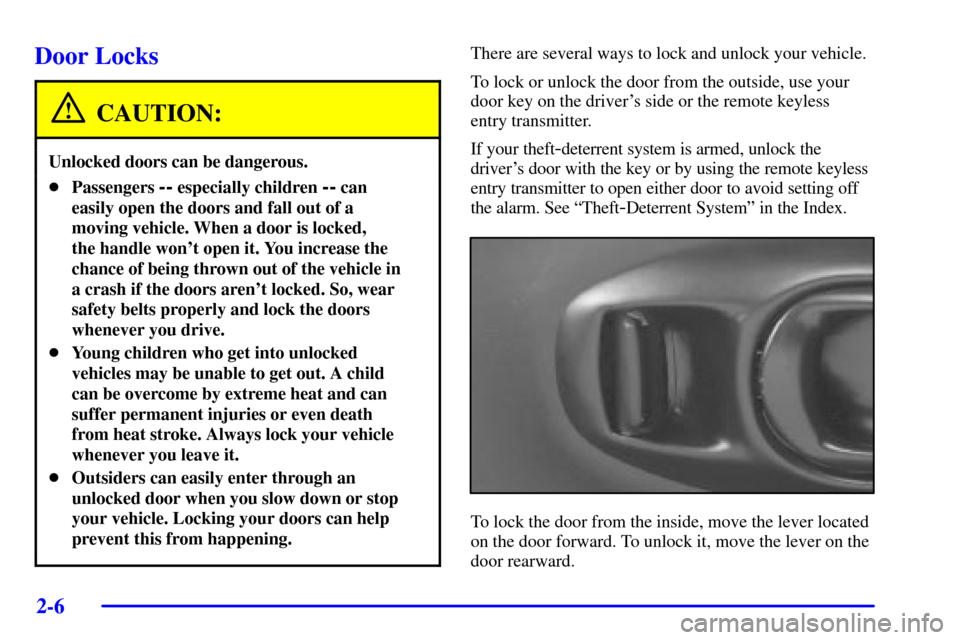

Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
To lock or unlock the door from the outside, use your
door key on the driver's side or the remote keyless
entry transmitter.
If your theft
-deterrent system is armed, unlock the
driver's door with the key or by using the remote keyless
entry transmitter to open either door to avoid setting off
the alarm. See ªTheft
-Deterrent Systemº in the Index.
To lock the door from the inside, move the lever located
on the door forward. To unlock it, move the lever on the
door rearward.

2-7 Power Door Locks
Press the power door switch on either door to unlock or
lock both doors at once.
Inadvertent Lockout Protection
If you press the power door lock switch when a door
is open and a key is in the ignition, a chime will sound.
If the power door lock switch is pressed again within
five seconds, the doors will lock.
Leaving Your Vehicle
If you are leaving the vehicle, take your key, open
your door and set the locks from inside or with the
remote keyless entry transmitter. Then get out and
close the door.

2-8
Memory (Option)
MEMORY can store and recall the settings for the
driver's seat position, the outside rearview mirror
positions, telescopic steering column (if equipped),
radio presets, tone, volume, playback mode (AM/FM,
tape or CD), last displayed station, compact disc position
and tape direction and the last climate control setting.The MEMORY buttons are located on the driver's
door, above the power mirror controls. The MEMORY
buttons can store and recall settings for up to three
drivers. Use button 1 to store the settings for the first
driver, button 2 for a second driver or press buttons
1 and 2 at the same time for a third driver. To store
your memory settings:
1. Adjust your settings for the driver's seat position,
outside rearview mirror positions, and telescopic
steering wheel (if equipped).
2. Press and hold a MEMORY button. The light
above the MEMORY button will glow steady for
one second and then flash once when the settings
are complete. Then the light will go off.
3. Set the climate control temperature, fan speed and
mode settings, radio presets, tone, volume, playback
mode (AM/FM, tape or CD), tape direction and
compact disc position.
Your memory settings are now programmed.
Any changes that are made to the audio system and
climate controls while driving will be automatically
stored when the ignition key is turned off.

2-9
When first entering your vehicle, after pressing the
unlock button on your remote keyless entry transmitter
or a MEMORY button, a recall of your settings will
occur when the door is closed and the ignition key is in
the ignition switch. As the memory settings are recalled,
the light above the button will flash until the correct
settings are achieved, then glow for five seconds
when complete.
A memory recall can be stopped by pressing any
memory seat, mirror or steering column position button.
Drivers 1, 2 and 3 correspond to the order in which your
remote keyless entry transmitters were programmed.
See ªFob Trainingº in the Index for more information.
Memory recall will not work if the vehicle is moving.
Memory recall will be temporarily interrupted during
engine crank.Remote Keyless Entry (RKE) System
Your vehicle has a Remote Keyless Entry (RKE) system
that allows you to lock and unlock your doors, unlock
your hatch/trunk lid, turn the panic alarm on and off and
disarm or arm your theft
-deterrent system. The range
distance is as much as 100 feet (30 m) away.
Your vehicle comes
standard with two
transmitters, and up to
three can be matched
to your vehicle.
See ªMatching Transmitter(s) to Your Vehicleº later in
this section.

2-10
Your RKE system operates on a radio frequency subject
to Federal Communications Commission (FCC) Rules
and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.If you ever notice a decrease in the remote keyless entry
transmitter range, try doing one of the following:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

Check to make sure that an electronic device
such as a cellular phone or lap top computer is
not causing interference.

If you're still having trouble, see your dealer or
a qualified technician for service.

2-11 Operation
The driver's door will unlock when the unlock button on
the remote keyless entry transmitter is pressed, or press
the unlock button again within 10 seconds to unlock
both doors. Also, by pressing the unlock button,
it may automatically disarm your theft
-deterrent
system, depending on how the theft
-deterrent system
is programmed. If it's dark enough outside, your interior
lamps will come on.
Your memory settings will also be recalled when you press
the unlock button on the remote keyless entry transmitter.
See ªMemoryº in the Index for more information.
The hatch/trunk lid will unlock when the button with the
trunk symbol is pressed, as long as the ignition is turned
to OFF.
The system has a feature that makes it difficult for you
to lock your keys in your vehicle. If you leave your keys
in the ignition and attempt to lock the doors, the vehicle
will not lock and a chime will sound to remind you that
the keys are in the ignition. If the door lock is pressed
again, within five seconds, the doors will lock and the
keys can be locked in the vehicle. This system can't
guarantee that you will never be locked out of your
vehicle. Always remember to take your keys with you.Panic Alarm Button
When you press the horn button on the remote keyless
entry transmitter, the horn will sound. This panic alarm
button will allow you to attract attention, if needed.
If the horn alarm sounds, there are three ways to
turn it off:

Press the panic alarm button again on the remote
keyless entry transmitter.

Wait 90 seconds, and the horn will turn off by itself.

Turn the key to any position in the ignition,
except OFF.
RKE Settings
You can adjust the settings on the system through
the Driver Information Center (DIC). You can change
the type of alarm used by the theft
-deterrent system.
See ªDriver Information Center Controls and Displaysº
in the Index for more information.

2-12
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have a maximum of three
transmitters matched to it.
To match transmitters to your vehicle:
1. Turn the ignition key to ON.
2. Clear any warning messages on the Driver
Information Center (DIC) by pressing the
RESET button.
3. Press the OPTIONS button on the DIC several
times until the blank page is displayed, then press
and hold the RESET button for two seconds.4. When the message FOB TRAINING is displayed,
press the RESET button once. The message HOLD
LK + UNLK 1ST FOB in the DIC will be displayed.
5. Press and hold the lock and unlock buttons on the
first transmitter simultaneously for five seconds.
6. When a transmitter is learned (matched), the DIC
will display FOB LEARNED and then prompt you
to learn the second transmitter.
7. Repeat Steps 5 and 6 for the third transmitter.
8. Remove the key from the ignition.
The programming mode will shut off if any of following
has occurred:

You don't program any transmitters for two minutes.

You take the key out of the ignition.

You have programmed three transmitters.
