Page 51 of 426
Whether your frontal airbags will or should deploy is not
based on how fast your vehicle is traveling. It depends
largely on what you hit, the direction of the impact and
how quickly your vehicle slows down.
In addition, your vehicle has “dual-stage” frontal airbags,
which adjust the restraint according to crash severity.
Your vehicle is equipped with electronic frontal sensors
which help the sensing system distinguish between a
moderate frontal impact and a more severe frontal
impact. For moderate frontal impacts, these airbags
in ate at a level less than full deployment. For more
severe frontal impacts, full deployment occurs. If the
front of your vehicle goes straight into a wall
that does not move or deform, the threshold level for
the reduced deployment is about 10 to 12 mph
(16 to 19.3 km/h), and the threshold level for a full
deployment is about 18 to 21 mph (28.9 to 33.8 km/h).
The threshold level can vary, however, with speci c
vehicle design, so that it can be somewhat above or
below this range.
Frontal airbags may in ate at different crash speeds.
For example:
If the vehicle hits a stationary object, the airbags
could in ate at a different crash speed than if the
vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could in ate at a different crash speed than
if the vehicle hits an object that does not deform.
If the vehicle hits a narrow object (like a pole) the
airbags could in ate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle the
airbags could in ate at a different crash speed
than if the vehicle goes straight into the object.
The frontal airbags (driver and passenger) are not
intended to in ate during vehicle rollovers, rear impacts,
or in many side impacts.
Your vehicle may or may not have side impact airbags.
SeeAirbag System on page 1-40for more information.
Side impact airbags are intended to in ate in moderate to
severe side crashes. A side impact airbag will in ate if the
crash severity is above the system’s designed “threshold
level.” The threshold level can vary with speci c vehicle
design. Side impact airbags are not intended to in ate in
frontal or near-frontal impacts, rollovers or rear impacts. A
side impact airbag is intended to deploy on the side of the
vehicle that is struck.
In any particular crash, no one can say whether an airbag
should have in ated simply because of the damage to a
vehicle or because of what the repair costs were. For
frontal airbags, in ation is determined by what the vehicle
hits, the angle of the impact, and how quickly the vehicle
slows down in frontal and near-frontal impacts. For side
impact airbags, in ation is determined by the location and
severity of the impact.
1-45
Page 52 of 426

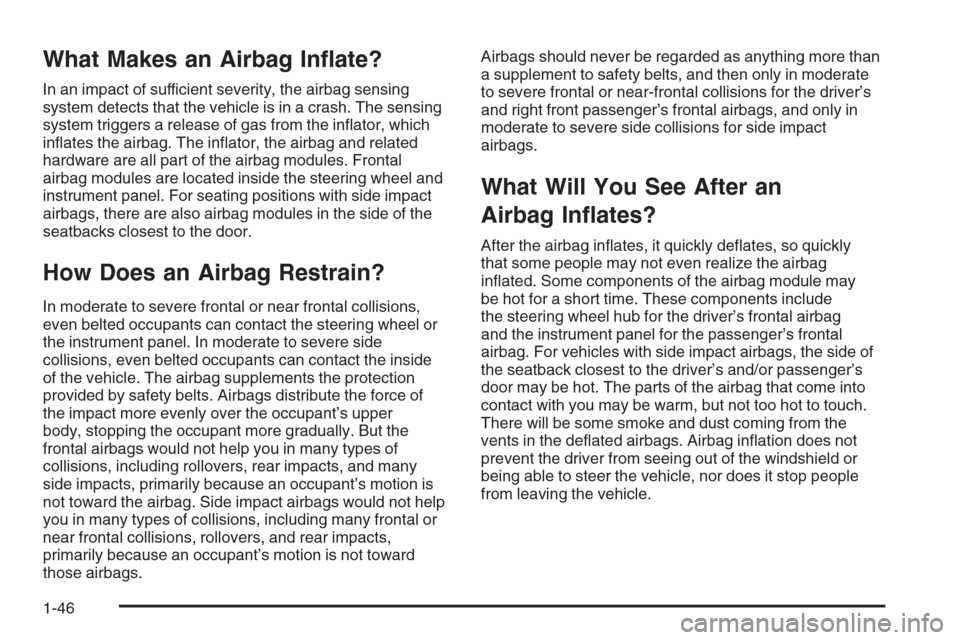

What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. The sensing
system triggers a release of gas from the in ator, which
in ates the airbag. The in ator, the airbag and related
hardware are all part of the airbag modules. Frontal
airbag modules are located inside the steering wheel and
instrument panel. For seating positions with side impact
airbags, there are also airbag modules in the side of the
seatbacks closest to the door.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal airbags would not help you in many types of
collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion is
not toward the airbag. Side impact airbags would not help
you in many types of collisions, including many frontal or
near frontal collisions, rollovers, and rear impacts,
primarily because an occupant’s motion is not toward
those airbags.Airbags should never be regarded as anything more than
a supplement to safety belts, and then only in moderate
to severe frontal or near-frontal collisions for the driver’s
and right front passenger’s frontal airbags, and only in
moderate to severe side collisions for side impact
airbags.
What Will You See After an
Airbag In ates?
After the airbag in ates, it quickly de ates, so quickly
that some people may not even realize the airbag
in ated. Some components of the airbag module may
be hot for a short time. These components include
the steering wheel hub for the driver’s frontal airbag
and the instrument panel for the passenger’s frontal
airbag. For vehicles with side impact airbags, the side of
the seatback closest to the driver’s and/or passenger’s
door may be hot. The parts of the airbag that come into
contact with you may be warm, but not too hot to touch.
There will be some smoke and dust coming from the
vents in the de ated airbags. Airbag in ation does not
prevent the driver from seeing out of the windshield or
being able to steer the vehicle, nor does it stop people
from leaving the vehicle.
1-46
Page 53 of 426

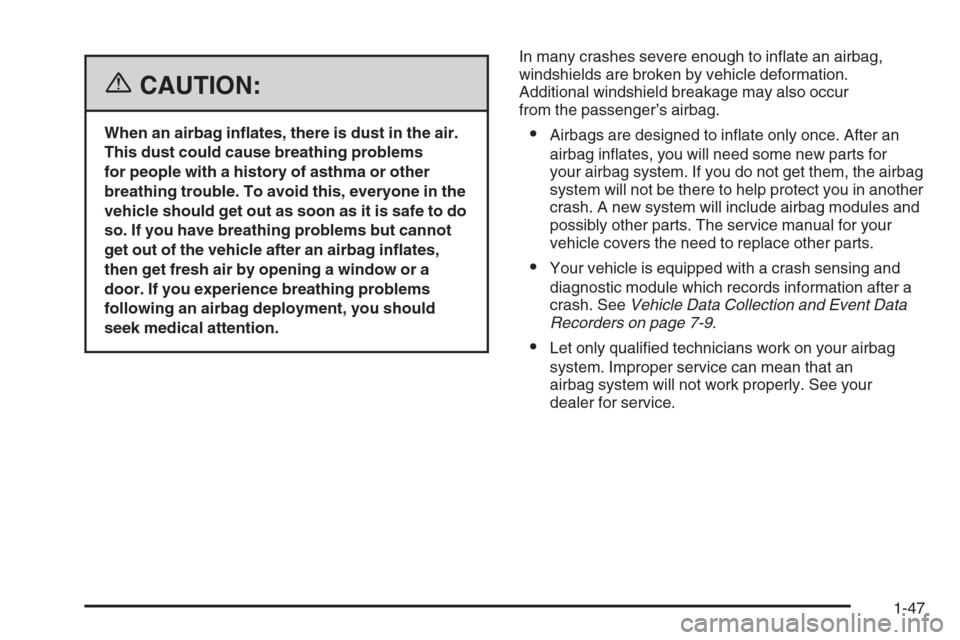

{CAUTION:
When an airbag in ates, there is dust in the air.
This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in the
vehicle should get out as soon as it is safe to do
so. If you have breathing problems but cannot
get out of the vehicle after an airbag in ates,
then get fresh air by opening a window or a
door. If you experience breathing problems
following an airbag deployment, you should
seek medical attention.In many crashes severe enough to in ate an airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur
from the passenger’s airbag.Airbags are designed to in ate only once. After an
airbag in ates, you will need some new parts for
your airbag system. If you do not get them, the airbag
system will not be there to help protect you in another
crash. A new system will include airbag modules and
possibly other parts. The service manual for your
vehicle covers the need to replace other parts.
Your vehicle is equipped with a crash sensing and
diagnostic module which records information after a
crash. SeeVehicle Data Collection and Event Data
Recorders on page 7-9.
Let only quali ed technicians work on your airbag
system. Improper service can mean that an
airbag system will not work properly. See your
dealer for service.
1-47
Page 54 of 426
Passenger Sensing System
Your vehicle has a passenger sensing system. The
passenger airbag status indicator in the rearview mirror
will be visible when you start the vehicle. The words
ON and OFF or the symbol for on and off, will be visible
during the system check. When the system check is
complete, either the word ON or the word OFF, or the
symbol for on or the symbol for off will be visible. See
Passenger Airbag Status Indicator on page 3-35.The passenger sensing system will turn off the
passenger’s frontal airbag and side impact airbag
(if equipped) under certain conditions. The driver’s
airbags are not part of the passenger sensing system.
The passenger sensing system works with sensors
that are part of the passenger’s seat and safety belt.
The sensors are designed to detect the presence
of a properly seated occupant and determine if the
passenger’s frontal airbag and side impact airbag
(if equipped) should be enabled (may in ate) or not.
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat.
We recommend that child restraints be secured in a
rear seat, including an infant riding in a rear-facing infant
seat, a child riding in a forward-facing child seat and an
older child riding in a booster seat.
You may have a label on your sun visor that says,
“Never put a rear-facing child seat in the front.” This
is because the risk to the rear-facing child is so great
if the airbag deploys. Passenger Airbag Status Indicator – United States
Passenger Airbag Status Indicator−Canada
1-48
Page 55 of 426

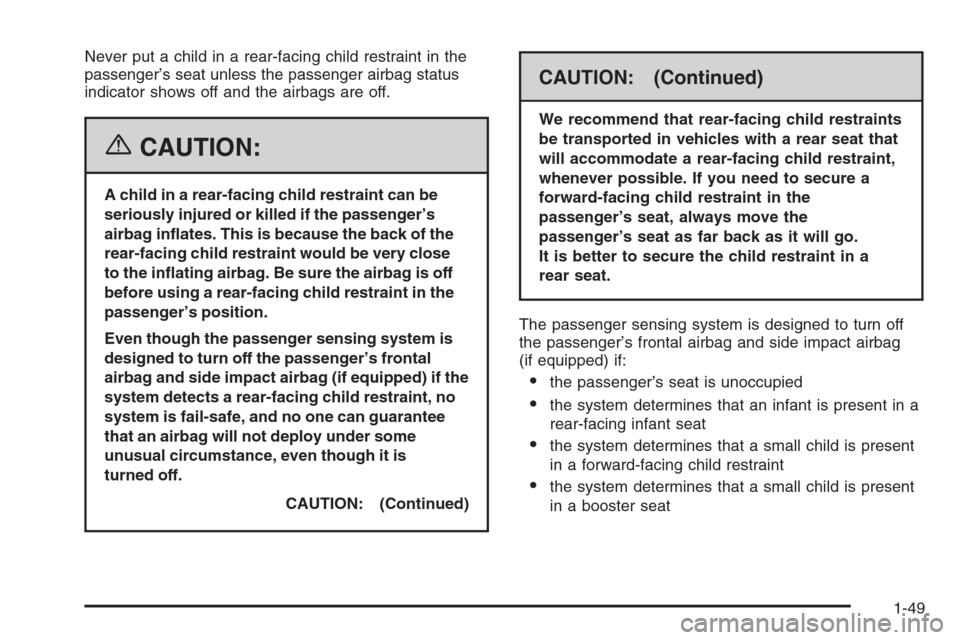

Never put a child in a rear-facing child restraint in the
passenger’s seat unless the passenger airbag status
indicator shows off and the airbags are off.
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the passenger’s
airbag in ates. This is because the back of the
rear-facing child restraint would be very close
to the in ating airbag. Be sure the airbag is off
before using a rear-facing child restraint in the
passenger’s position.
Even though the passenger sensing system is
designed to turn off the passenger’s frontal
airbag and side impact airbag (if equipped) if the
system detects a rear-facing child restraint, no
system is fail-safe, and no one can guarantee
that an airbag will not deploy under some
unusual circumstance, even though it is
turned off.
CAUTION: (Continued)
CAUTION: (Continued)
We recommend that rear-facing child restraints
be transported in vehicles with a rear seat that
will accommodate a rear-facing child restraint,
whenever possible. If you need to secure a
forward-facing child restraint in the
passenger’s seat, always move the
passenger’s seat as far back as it will go.
It is better to secure the child restraint in a
rear seat.
The passenger sensing system is designed to turn off
the passenger’s frontal airbag and side impact airbag
(if equipped) if:
the passenger’s seat is unoccupied
the system determines that an infant is present in a
rear-facing infant seat
the system determines that a small child is present
in a forward-facing child restraint
the system determines that a small child is present
in a booster seat
1-49
Page 56 of 426

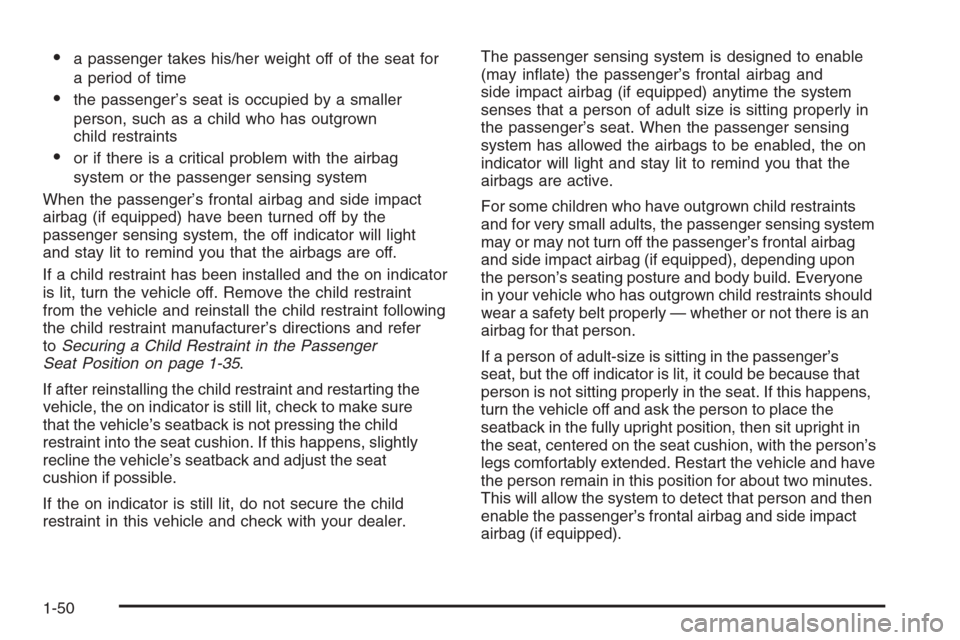

a passenger takes his/her weight off of the seat for
a period of time
the passenger’s seat is occupied by a smaller
person, such as a child who has outgrown
child restraints
or if there is a critical problem with the airbag
system or the passenger sensing system
When the passenger’s frontal airbag and side impact
airbag (if equipped) have been turned off by the
passenger sensing system, the off indicator will light
and stay lit to remind you that the airbags are off.
If a child restraint has been installed and the on indicator
is lit, turn the vehicle off. Remove the child restraint
from the vehicle and reinstall the child restraint following
the child restraint manufacturer’s directions and refer
toSecuring a Child Restraint in the Passenger
Seat Position on page 1-35.
If after reinstalling the child restraint and restarting the
vehicle, the on indicator is still lit, check to make sure
that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible.
If the on indicator is still lit, do not secure the child
restraint in this vehicle and check with your dealer.The passenger sensing system is designed to enable
(may in ate) the passenger’s frontal airbag and
side impact airbag (if equipped) anytime the system
senses that a person of adult size is sitting properly in
the passenger’s seat. When the passenger sensing
system has allowed the airbags to be enabled, the on
indicator will light and stay lit to remind you that the
airbags are active.
For some children who have outgrown child restraints
and for very small adults, the passenger sensing system
may or may not turn off the passenger’s frontal airbag
and side impact airbag (if equipped), depending upon
the person’s seating posture and body build. Everyone
in your vehicle who has outgrown child restraints should
wear a safety belt properly — whether or not there is an
airbag for that person.
If a person of adult-size is sitting in the passenger’s
seat, but the off indicator is lit, it could be because that
person is not sitting properly in the seat. If this happens,
turn the vehicle off and ask the person to place the
seatback in the fully upright position, then sit upright in
the seat, centered on the seat cushion, with the person’s
legs comfortably extended. Restart the vehicle and have
the person remain in this position for about two minutes.
This will allow the system to detect that person and then
enable the passenger’s frontal airbag and side impact
airbag (if equipped).
1-50
Page 57 of 426

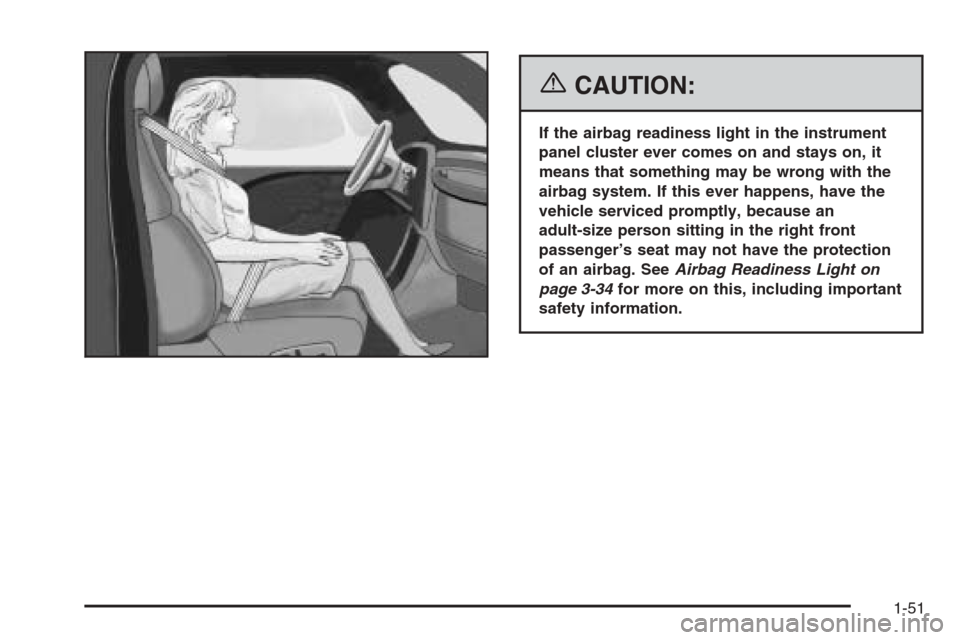

{CAUTION:
If the airbag readiness light in the instrument
panel cluster ever comes on and stays on, it
means that something may be wrong with the
airbag system. If this ever happens, have the
vehicle serviced promptly, because an
adult-size person sitting in the right front
passenger’s seat may not have the protection
of an airbag. SeeAirbag Readiness Light on
page 3-34for more on this, including important
safety information.
1-51
Page 58 of 426

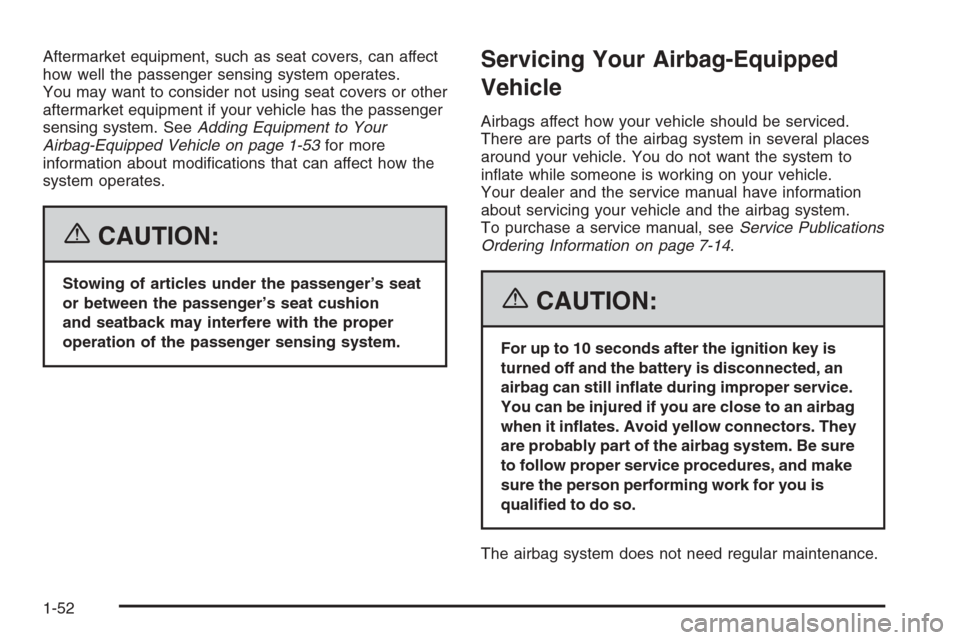

Aftermarket equipment, such as seat covers, can affect
how well the passenger sensing system operates.
You may want to consider not using seat covers or other
aftermarket equipment if your vehicle has the passenger
sensing system. SeeAdding Equipment to Your
Airbag-Equipped Vehicle on page 1-53for more
information about modi cations that can affect how the
system operates.
{CAUTION:
Stowing of articles under the passenger’s seat
or between the passenger’s seat cushion
and seatback may interfere with the proper
operation of the passenger sensing system.
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be serviced.
There are parts of the airbag system in several places
around your vehicle. You do not want the system to
in ate while someone is working on your vehicle.
Your dealer and the service manual have information
about servicing your vehicle and the airbag system.
To purchase a service manual, seeService Publications
Ordering Information on page 7-14.
{CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected, an
airbag can still in ate during improper service.
You can be injured if you are close to an airbag
when it in ates. Avoid yellow connectors. They
are probably part of the airbag system. Be sure
to follow proper service procedures, and make
sure the person performing work for you is
quali ed to do so.
The airbag system does not need regular maintenance.
1-52
Page 59 of 426
Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front or
sides of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your vehicle’s
frame, bumper system, height, front end or side
sheet metal, they may keep the airbag system
from working properly. Also, the airbag system may
not work properly if you relocate any of the airbag
sensors. If you have any questions about this,
you should contact Customer Assistance before
you modify your vehicle. The phone numbers
and addresses for Customer Assistance are in
Step Two of the Customer Satisfaction Procedure
in this manual. SeeCustomer Satisfaction
Procedure on page 7-2.
Q:Because I have a disability, I have to get my
vehicle modi ed. How can I nd out whether
this will affect my advanced airbag system?
A:Changing or moving any parts of the front seats,
safety belts, the airbag sensing and diagnostic
module, steering wheel, instrument panel, the inside
review mirror, or airbag wiring can affect the
operation of the airbag system. If you have
questions, call Customer Assistance. The phone
numbers and addresses for Customer Assistance
are in Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer Satisfaction
Procedure on page 7-2.
1-53
Page 60 of 426

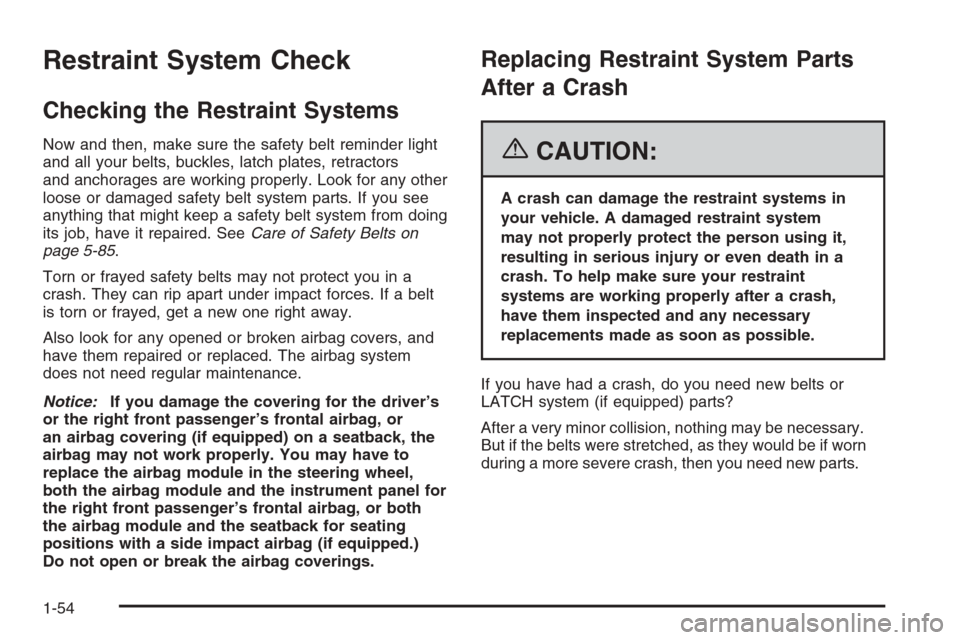

Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors
and anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from doing
its job, have it repaired. SeeCare of Safety Belts on
page 5-85.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt
is torn or frayed, get a new one right away.
Also look for any opened or broken airbag covers, and
have them repaired or replaced. The airbag system
does not need regular maintenance.
Notice:If you damage the covering for the driver’s
or the right front passenger’s frontal airbag, or
an airbag covering (if equipped) on a seatback, the
airbag may not work properly. You may have to
replace the airbag module in the steering wheel,
both the airbag module and the instrument panel for
the right front passenger’s frontal airbag, or both
the airbag module and the seatback for seating
positions with a side impact airbag (if equipped.)
Do not open or break the airbag coverings.
Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems in
your vehicle. A damaged restraint system
may not properly protect the person using it,
resulting in serious injury or even death in a
crash. To help make sure your restraint
systems are working properly after a crash,
have them inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts or
LATCH system (if equipped) parts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during a more severe crash, then you need new parts.
1-54
