Battery Replacement
Under normal use, the battery in your keyless access
transmitter should last about three years.
You can tell the battery is weak if the transmitter will not
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it is probably time to change the battery.
A weak battery may also cause the DIC to display NO
FOBS DETECTED when you try to start the vehicle.
If this happens, place the transmitter in the glove
box transmitter pocket with the buttons facing towards
the passenger’s side. Then, with the vehicle in PARK (P)
for an automatic transmission press the brake pedal
and the START button, or if your vehicle has a manual
transmission, press the clutch and the START button.
Although this will start the vehicle, it is recommended
that you replace the transmitter battery as soon as
possible. The DIC may display FOB BATTERY LOW.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.1. Insert a coin or similar object into the slot on the
back of the transmitter and gently pry apart the
front and back.
2. Gently pull the battery out of the transmitter.
3. Put the new battery in the transmitter, positive (+)
side down. Use a battery, type CR2032, or
equivalent.
4. Reassemble the transmitter. Make sure to put it
together so water will not get in.
5. Test the transmitter.
2-9

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked it
will not open. You increase the chance of
being thrown out of the vehicle in a crash
if the doors are not locked. So, wear safety
belts properly and lock the doors
whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.There are several ways to lock and unlock your vehicle.
From the outside, press the lock or unlock button on
the keyless access transmitter.
When you have the transmitter with you, you may also
unlock and open the door by squeezing the door
handle sensor (A). You do not have to press the unlock
button on the transmitter. You will be able to open
the door when you press the door handle sensor and
the vehicle recognizes your keyless access transmitter.
When the passenger door is opened rst, the driver’s
door will also unlock.Door Open to Show Location of Door Handle Sensor
2-10

From the inside, use the power door lock switch located
at the top of the door panel near both windows. See
Power Door Locks on page 2-12.
To open a door from the inside, press the button (B) in
front of the door handle and push the door open.
You will hear a tone when the button is pressed.
If power to the vehicle or the keyless access transmitter
is lost, there are two ways to open the door.
From inside the vehicle, use the door release handle
located on the oor next to each seat. Pull the handle up
to unlock and unlatch the door.From outside the vehicle, use the door release tab
located on the carpet inside the trunk on the driver’s side
of the vehicle. Pull the tab to unlock and unlatch the
driver’s door. SeeHatch/Trunk on page 2-14for
information on opening the trunk during a loss of power.
2-11

Power Door Locks
The power door lock
switches are located on
the door panels.
K(Unlock):Press this part of the switch to unlock
the doors.
Q(Lock):Press this part of the switch to lock
the doors.
There is an indicator light on the rear of the door near
the window.When lock is pressed, a beep will sound. If the door is
closed when lock is pressed, the light will come on
for a few seconds, then turn off. If the door is open when
lock is pressed, the light will stay on.
When unlock is pressed, a beep will sound. If the door
is closed when unlock is pressed, the light will ash
two times. If the door is open when unlock is pressed,
the light will ash.
Automatic Door Lock
Your vehicle is programmed so that, when the doors are
closed, the ignition is on and the shift lever is moved out
of PARK (P) for automatic transmissions, or when vehicle
speed becomes faster than 8 mph (13 km/h) for manual
transmissions, both doors will lock.
If someone needs to get out while the vehicle is running
or not in PARK (P), have the person use the power
door unlock switch. When the door is closed again, the
doors will lock either when your foot is removed
from the brake or the vehicle speed becomes faster
than 8 mph (13 km/h).
2-12

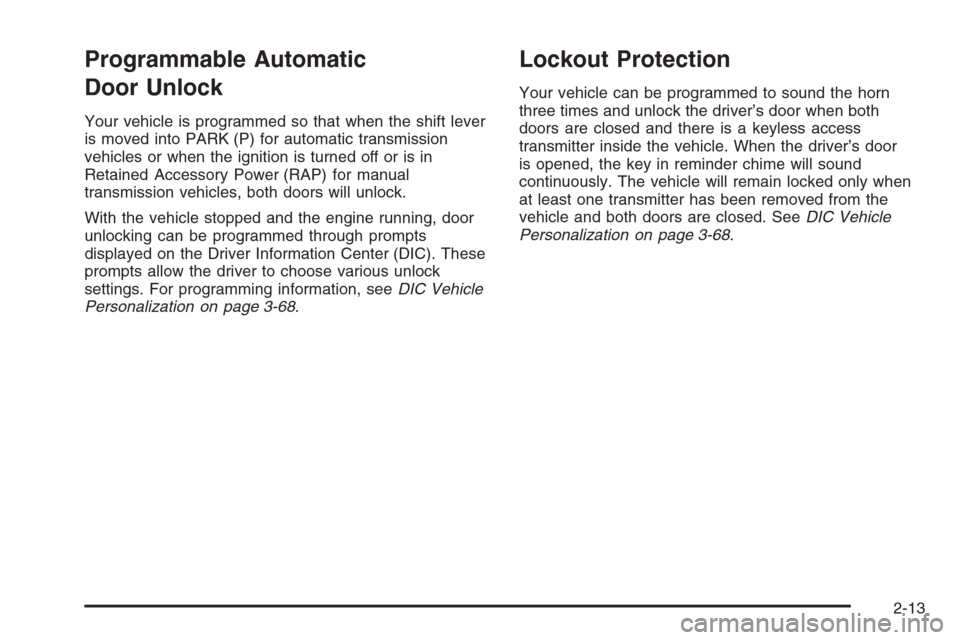

Programmable Automatic
Door Unlock
Your vehicle is programmed so that when the shift lever
is moved into PARK (P) for automatic transmission
vehicles or when the ignition is turned off or is in
Retained Accessory Power (RAP) for manual
transmission vehicles, both doors will unlock.
With the vehicle stopped and the engine running, door
unlocking can be programmed through prompts
displayed on the Driver Information Center (DIC). These
prompts allow the driver to choose various unlock
settings. For programming information, seeDIC Vehicle
Personalization on page 3-68.
Lockout Protection
Your vehicle can be programmed to sound the horn
three times and unlock the driver’s door when both
doors are closed and there is a keyless access
transmitter inside the vehicle. When the driver’s door
is opened, the key in reminder chime will sound
continuously. The vehicle will remain locked only when
at least one transmitter has been removed from the
vehicle and both doors are closed. SeeDIC Vehicle
Personalization on page 3-68.
2-13

Hatch/Trunk
{CAUTION:
It can be dangerous to drive with the
hatch/trunk lid open because carbon
monoxide (CO) gas can come into your
vehicle. You can not see or smell CO. It can
cause unconsciousness and even death. If you
must drive with the hatch/trunk lid open or if
electrical wiring or other cable connections
must pass through the seal between the body
and the hatch/trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. SeeDual Automatic
Climate Control System on page 3-25.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-36.Notice:Closing the hatch/trunk lid forcefully or
from the sides can cause damage to the glass, the
defogger or the weather stripping. Be sure objects
will t in the hatch/trunk area before closing the
hatch/trunk lid. When closing the hatch/trunk
lid, gently pull down from the center.
Notice:Do not store heavy or sharp objects in
the rear storage compartments located in the
hatch/trunk area. If you do, the objects could
damage the underbody.
Hatch/Trunk Lid Release
There are several ways to release the hatch/trunk lid.
If your vehicle has an automatic transmission, the
shift lever must be in PARK (P). For manual
transmission vehicles, the parking brake must be set
when the ignition is started for the hatch/trunk release to
operate. The parking brake does not need to be set
when the ignition is off for the hatch/trunk release
to operate. SeeParking Brake on page 2-33.
V(Hatch/Trunk):Press the hatch/trunk lid
release button located on the instrument panel
to the left of the steering wheel. The theft-deterrent
alarm system must not be armed.
}(Hatch/Trunk):Press the hatch/trunk lid
release button on the keyless access transmitter.
SeeKeyless Access System on page 2-4.
2-14

Press the hatch/trunk release button located on the
rear of the hatch/trunk lid above the license plate,
as long as you have your transmitter with you.
If your vehicle has lost battery power, open the
hatch/trunk using the vehicle key. The key lock cylinder
is located on the rear of the hatch/trunk lid above the
license plate. Turn the vehicle key clockwise in the lock.If your vehicle has a convertible top and has lost battery
power, you can also use the emergency trunk release
handle to open the trunk. See “Emergency Trunk
Release Handle” following.
Closing the Rear Compartment (Coupe)
To assist in closing the rear compartment lid of
your coupe, use the pocket on the underside of the lid
on the passenger’s side of the vehicle. When closing the
lid, lower it until the power pull down latch feature
activates and it will close the rest of the way and latch
automatically.
2-15

Emergency Trunk Release Handle
(Convertible Only)
Notice:Do not use the emergency trunk release
handle as a tie-down or anchor point when securing
items in the trunk as it could damage the handle.
The emergency trunk release handle is only
intended to aid a person trapped in a latched trunk,
enabling them to open the trunk from the inside.
There is a glow-in-the-dark emergency trunk release
handle located on the rear wall of the trunk below
the latch. This handle will glow following exposure to
light. Pull the release handle down to open the
trunk from the inside.
Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm or
hot weather.
2-16

Power Windows
The power window
switches are located on
each door.
Pull up on the front of the switch to raise the window.
Press down on the front of the switch to lower the
window.
Your vehicle has Retained Accessory Power (RAP) that
allows you to use the power windows when the
ignition is off. For more information, seeRetained
Accessory Power (RAP) on page 2-23.
2-17

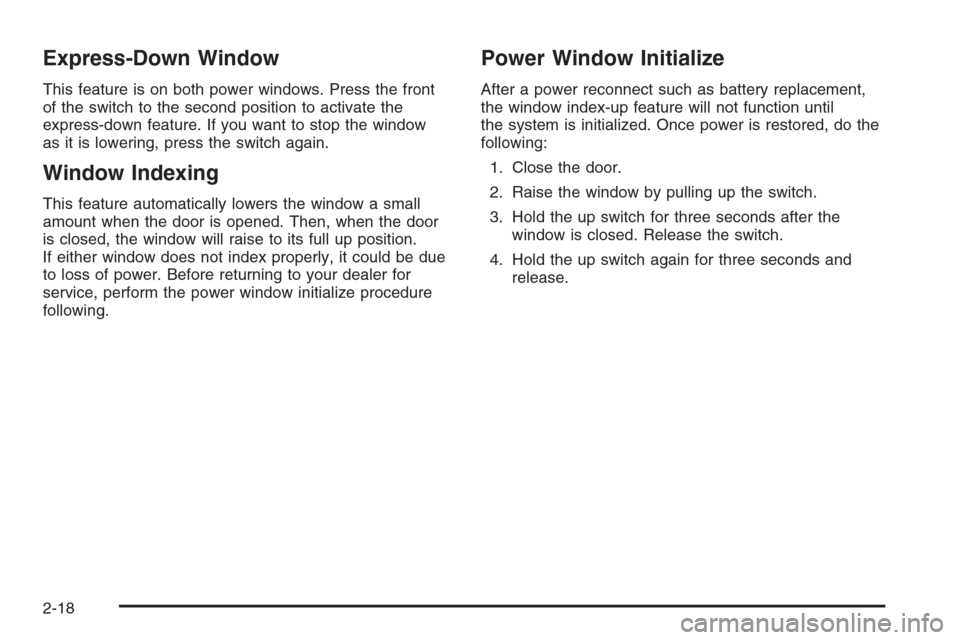

Express-Down Window
This feature is on both power windows. Press the front
of the switch to the second position to activate the
express-down feature. If you want to stop the window
as it is lowering, press the switch again.
Window Indexing
This feature automatically lowers the window a small
amount when the door is opened. Then, when the door
is closed, the window will raise to its full up position.
If either window does not index properly, it could be due
to loss of power. Before returning to your dealer for
service, perform the power window initialize procedure
following.
Power Window Initialize
After a power reconnect such as battery replacement,
the window index-up feature will not function until
the system is initialized. Once power is restored, do the
following:
1. Close the door.
2. Raise the window by pulling up the switch.
3. Hold the up switch for three seconds after the
window is closed. Release the switch.
4. Hold the up switch again for three seconds and
release.
2-18
