Express-Down Window
Press the front of the switch to the
second position to activate the
express-down feature. To stop the
window as it is lowering, press the
switch again.
Window Indexing
This feature automatically lowers
the window a small amount when
the door is opened. When the door
is closed, the window will raise to its
full up position. If either window
does not index properly, it could be
due to loss of power. Before
returning to the dealer for service,
perform the power window initialize
procedure.
Power Window Initialize
After a power reconnect such as
battery replacement, the window
indexing feature and the power
convertible top (if equipped) will
not function until the system is
initialized.
Once power is restored:
1. Close the doors.
2. Raise the window and hold theswitch up for three seconds after
the window is closed.
3. Release the switch, then hold the switch up again for
three seconds and release.
Sun Visors
Pull the visor toward you, or move it
to the side to help reduce glare.
To use the lighted mirror, lift the
cover.

Black plate (20,1)Chevrolet Corvette Owner Manual - 2012
2-20 Keys, Doors, and Windows
Roof
Roof Panel
On vehicles with a removable roof
panel, follow the procedures when
removing or installing it.
Removing the Roof Panel
{WARNING
Do not try to remove a roof panel
while the vehicle is moving.
Trying to remove the roof panel
while the vehicle is moving could
cause an accident. The panel
could fall into the vehicle and
cause you to lose control, or it
could fly off and strike another
vehicle. You or others could be
injured. Remove the roof panel
only when the vehicle is parked.
Until you are sure you can remove
the panel alone, have someone
help you. Notice:
If you drop or rest a roof
panel on its edges, the roof panel,
paint and/or weatherstripping
may be damaged. Always place
the roof panel in the stowage
receivers after removing it from
the vehicle.
1. Park on a level surface and set the parking brake. Shift an
automatic transmission into
P (Park). Shift a manual
transmission into N (Neutral).
2. Make sure the ignition is off.
3. Lower both sun visors.
4. Open the rear hatch and remove any items that may interfere with
proper storage of the roof panel.
5. Lower the windows. There are two release latches on
the front of the roof panel and
one rear release latch on the
back of the roof panel.6. To unlock the release latches onthe front of the roof panel, grasp
each handle and pull it outward.

Black plate (21,1)Chevrolet Corvette Owner Manual - 2012
Keys, Doors, and Windows 2-21
The driver side handle moves
toward the driver door. The
passenger side handle moves
toward the passenger door.7. To unlock the rear of the roofpanel's rear release latch,
press the back of the release
handle (B). Then press the
button on the front of the
release handle (A).
Pull down the latch lever. 8. Stand on one side of the vehicle,
and if necessary, have someone
stand on the other side.
Together, carefully lift the front
edge of the roof panel up and
forward.
9. When the roof panel is loosened from the vehicle, one person
should grasp the roof panel as
close to the center as possible
and lift it away from the vehicle.

Black plate (22,1)Chevrolet Corvette Owner Manual - 2012
2-22 Keys, Doors, and Windows

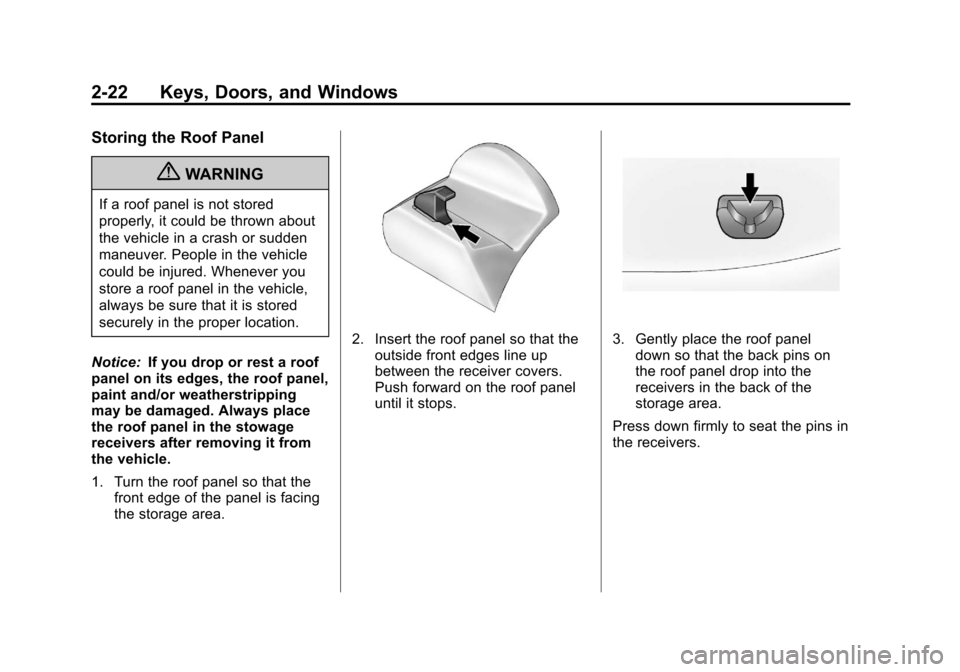

Storing the Roof Panel
{WARNING
If a roof panel is not stored
properly, it could be thrown about
the vehicle in a crash or sudden
maneuver. People in the vehicle
could be injured. Whenever you
store a roof panel in the vehicle,
always be sure that it is stored
securely in the proper location.
Notice: If you drop or rest a roof
panel on its edges, the roof panel,
paint and/or weatherstripping
may be damaged. Always place
the roof panel in the stowage
receivers after removing it from
the vehicle.
1. Turn the roof panel so that the front edge of the panel is facing
the storage area.
2. Insert the roof panel so that the
outside front edges line up
between the receiver covers.
Push forward on the roof panel
until it stops.3. Gently place the roof paneldown so that the back pins on
the roof panel drop into the
receivers in the back of the
storage area.
Press down firmly to seat the pins in
the receivers.

Black plate (23,1)Chevrolet Corvette Owner Manual - 2012
Keys, Doors, and Windows 2-23

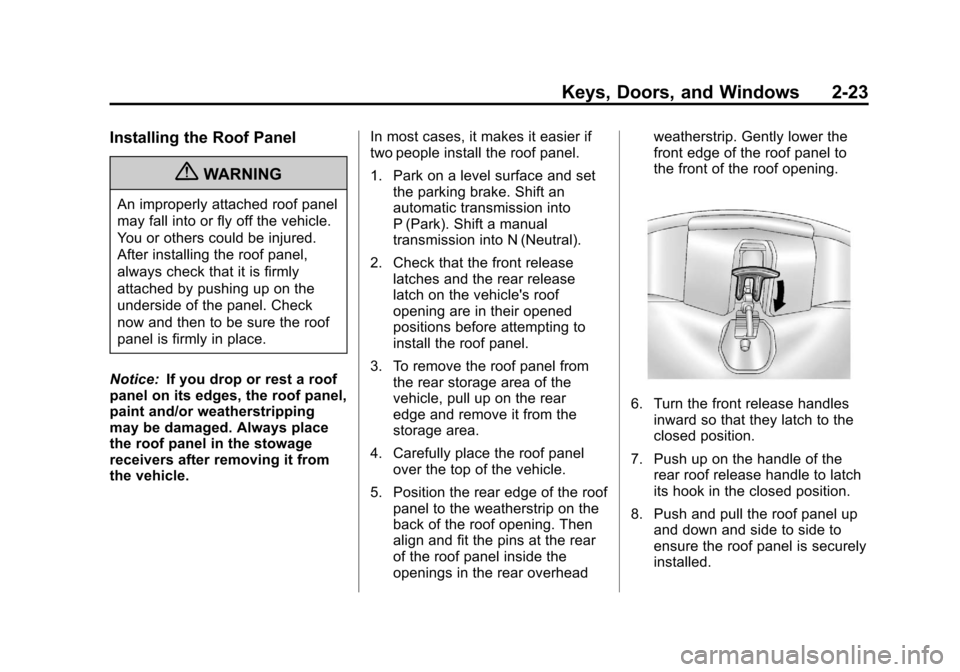

Installing the Roof Panel
{WARNING
An improperly attached roof panel
may fall into or fly off the vehicle.
You or others could be injured.
After installing the roof panel,
always check that it is firmly
attached by pushing up on the
underside of the panel. Check
now and then to be sure the roof
panel is firmly in place.
Notice: If you drop or rest a roof
panel on its edges, the roof panel,
paint and/or weatherstripping
may be damaged. Always place
the roof panel in the stowage
receivers after removing it from
the vehicle. In most cases, it makes it easier if
two people install the roof panel.
1. Park on a level surface and set
the parking brake. Shift an
automatic transmission into
P (Park). Shift a manual
transmission into N (Neutral).
2. Check that the front release latches and the rear release
latch on the vehicle's roof
opening are in their opened
positions before attempting to
install the roof panel.
3. To remove the roof panel from the rear storage area of the
vehicle, pull up on the rear
edge and remove it from the
storage area.
4. Carefully place the roof panel over the top of the vehicle.
5. Position the rear edge of the roof panel to the weatherstrip on the
back of the roof opening. Then
align and fit the pins at the rear
of the roof panel inside the
openings in the rear overhead weatherstrip. Gently lower the
front edge of the roof panel to
the front of the roof opening.
6. Turn the front release handles
inward so that they latch to the
closed position.
7. Push up on the handle of the rear roof release handle to latch
its hook in the closed position.
8. Push and pull the roof panel up and down and side to side to
ensure the roof panel is securely
installed.

Black plate (24,1)Chevrolet Corvette Owner Manual - 2012
2-24 Keys, Doors, and Windows

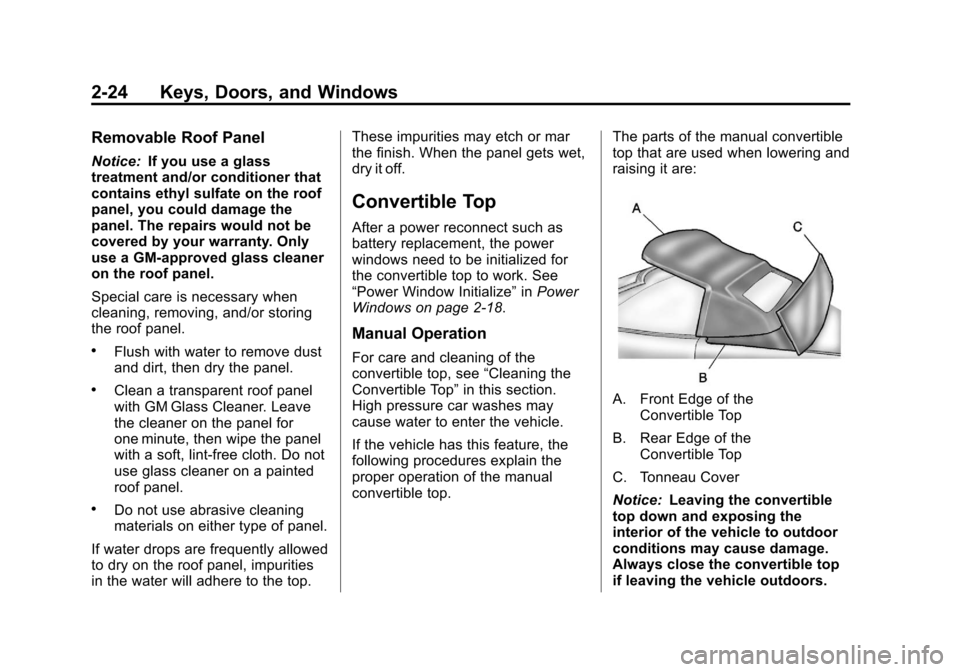

Removable Roof Panel
Notice:If you use a glass
treatment and/or conditioner that
contains ethyl sulfate on the roof
panel, you could damage the
panel. The repairs would not be
covered by your warranty. Only
use a GM-approved glass cleaner
on the roof panel.
Special care is necessary when
cleaning, removing, and/or storing
the roof panel.
.Flush with water to remove dust
and dirt, then dry the panel.
.Clean a transparent roof panel
with GM Glass Cleaner. Leave
the cleaner on the panel for
one minute, then wipe the panel
with a soft, lint-free cloth. Do not
use glass cleaner on a painted
roof panel.
.Do not use abrasive cleaning
materials on either type of panel.
If water drops are frequently allowed
to dry on the roof panel, impurities
in the water will adhere to the top. These impurities may etch or mar
the finish. When the panel gets wet,
dry it off.
Convertible Top
After a power reconnect such as
battery replacement, the power
windows need to be initialized for
the convertible top to work. See
“Power Window Initialize”
inPower
Windows on page 2‑18.
Manual Operation
For care and cleaning of the
convertible top, see “Cleaning the
Convertible Top” in this section.
High pressure car washes may
cause water to enter the vehicle.
If the vehicle has this feature, the
following procedures explain the
proper operation of the manual
convertible top. The parts of the manual convertible
top that are used when lowering and
raising it are:
A. Front Edge of the
Convertible Top
B. Rear Edge of the Convertible Top
C. Tonneau Cover
Notice: Leaving the convertible
top down and exposing the
interior of the vehicle to outdoor
conditions may cause damage.
Always close the convertible top
if leaving the vehicle outdoors.

Black plate (25,1)Chevrolet Corvette Owner Manual - 2012
Keys, Doors, and Windows 2-25
Notice:Lowering the convertible
top when there are objects in the
storage area could damage it or
break the glass rear window.
Always verify that no objects are
in the storage area before
lowering the convertible top.
Notice: Lowering the convertible
top if it is damp, wet, or dirty can
cause stains, mildew, and
damage to the inside of the
vehicle. Dry off the convertible
top before lowering it.
Notice: If you lower the
convertible top on the vehicle
in cold weather (0°C (32°F) or
lower), you may damage
convertible top components. Do
not lower the top in cold weather.
Notice: If you raise or lower the
convertible top while the vehicle
is in motion, you could damage
the top or the top mechanism.
The repairs would not be covered
by the warranty. Always put an
automatic transmission in P (Park) or a manual transmission
in Neutral before raising or
lowering the convertible top.
Lowering the Manual
Convertible Top

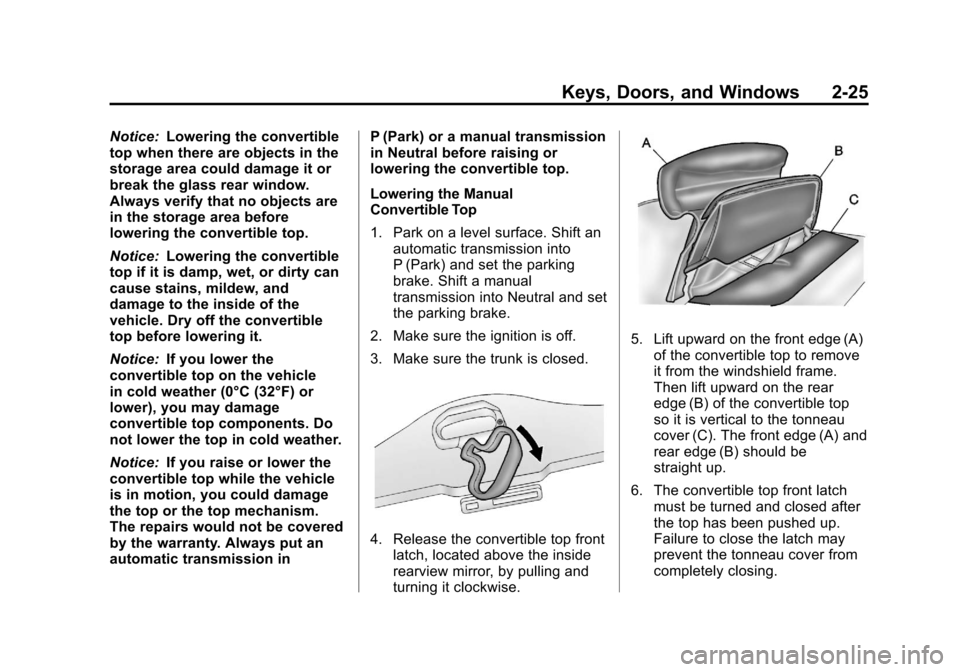

1. Park on a level surface. Shift an
automatic transmission into
P (Park) and set the parking
brake. Shift a manual
transmission into Neutral and set
the parking brake.
2. Make sure the ignition is off.
3. Make sure the trunk is closed.
4. Release the convertible top front latch, located above the inside
rearview mirror, by pulling and
turning it clockwise.

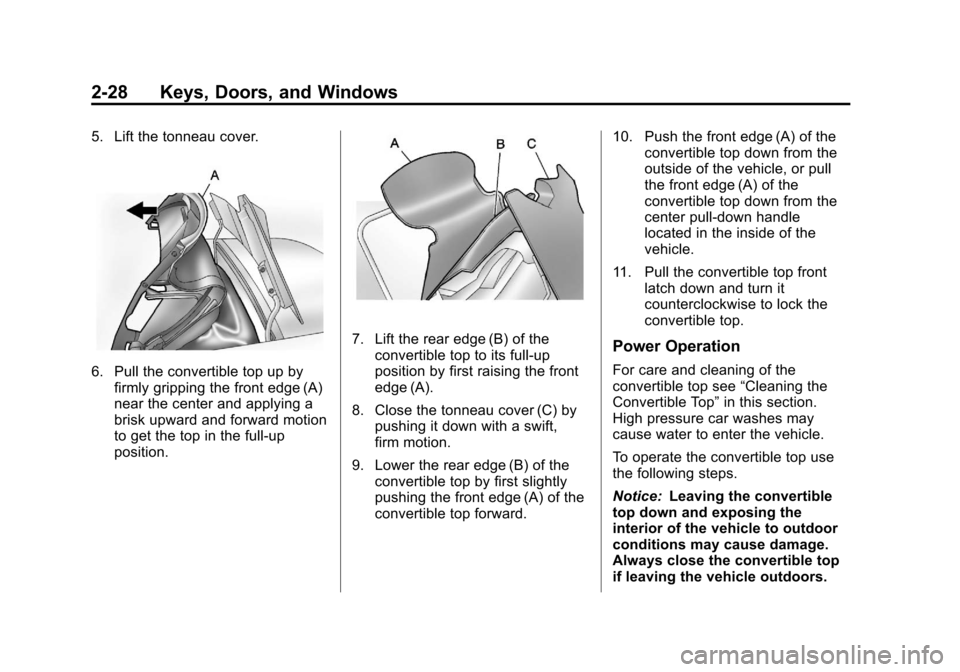

5. Lift upward on the front edge (A)of the convertible top to remove
it from the windshield frame.
Then lift upward on the rear
edge (B) of the convertible top
so it is vertical to the tonneau
cover (C). The front edge (A) and
rear edge (B) should be
straight up.
6. The convertible top front latch must be turned and closed after
the top has been pushed up.
Failure to close the latch may
prevent the tonneau cover from
completely closing.

Black plate (26,1)Chevrolet Corvette Owner Manual - 2012
2-26 Keys, Doors, and Windows

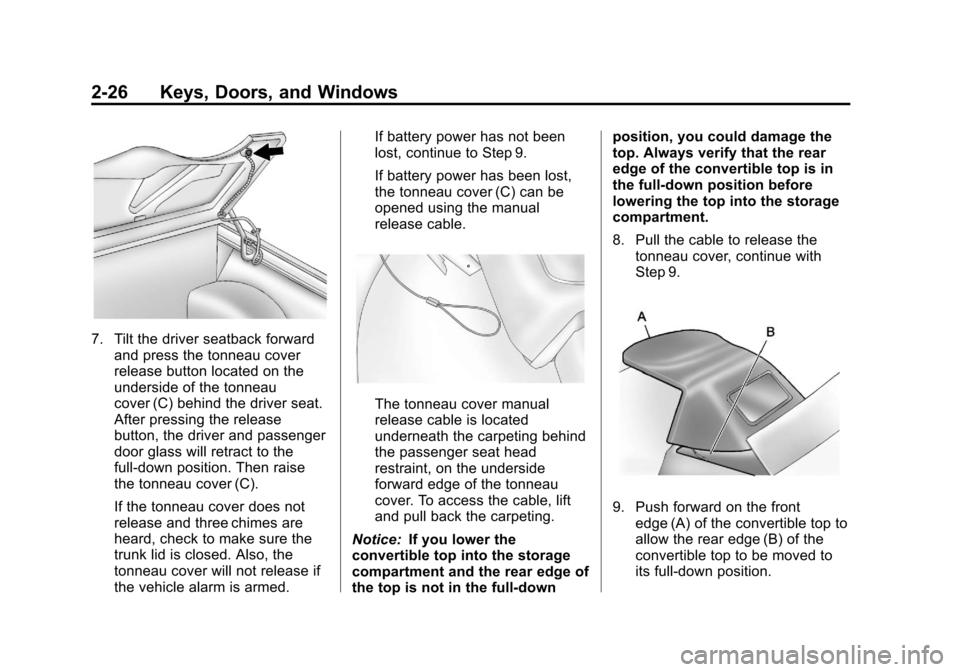

7. Tilt the driver seatback forwardand press the tonneau cover
release button located on the
underside of the tonneau
cover (C) behind the driver seat.
After pressing the release
button, the driver and passenger
door glass will retract to the
full-down position. Then raise
the tonneau cover (C).
If the tonneau cover does not
release and three chimes are
heard, check to make sure the
trunk lid is closed. Also, the
tonneau cover will not release if
the vehicle alarm is armed. If battery power has not been
lost, continue to Step 9.
If battery power has been lost,
the tonneau cover (C) can be
opened using the manual
release cable.
The tonneau cover manual
release cable is located
underneath the carpeting behind
the passenger seat head
restraint, on the underside
forward edge of the tonneau
cover. To access the cable, lift
and pull back the carpeting.
Notice: If you lower the
convertible top into the storage
compartment and the rear edge of
the top is not in the full-down position, you could damage the
top. Always verify that the rear
edge of the convertible top is in
the full-down position before
lowering the top into the storage
compartment.
8. Pull the cable to release the
tonneau cover, continue with
Step 9.
9. Push forward on the frontedge (A) of the convertible top to
allow the rear edge (B) of the
convertible top to be moved to
its full-down position.

Black plate (27,1)Chevrolet Corvette Owner Manual - 2012
Keys, Doors, and Windows 2-27

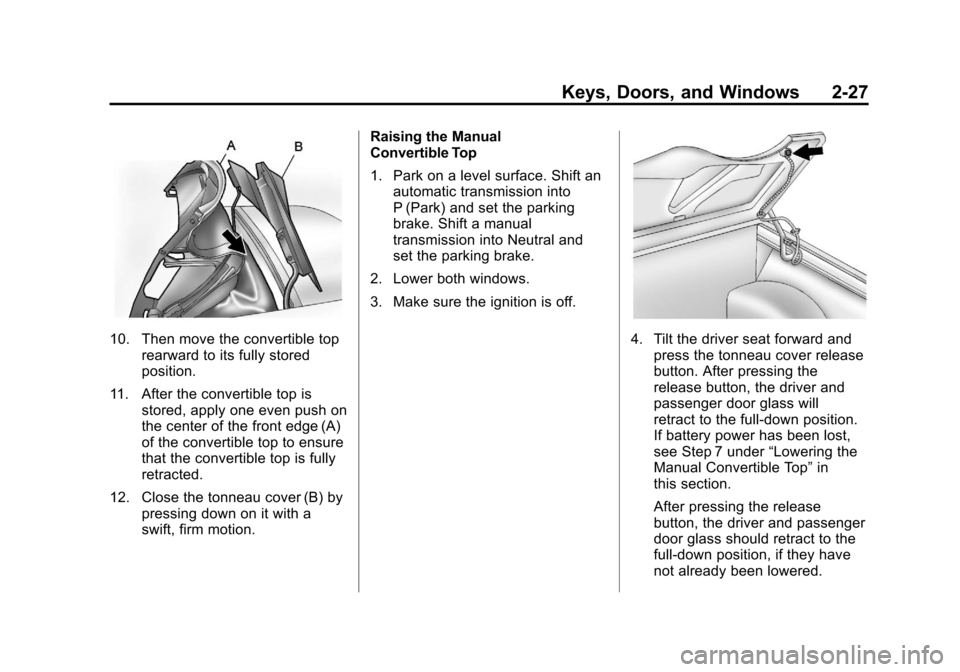

10. Then move the convertible toprearward to its fully stored
position.
11. After the convertible top is stored, apply one even push on
the center of the front edge (A)
of the convertible top to ensure
that the convertible top is fully
retracted.
12. Close the tonneau cover (B) by pressing down on it with a
swift, firm motion. Raising the Manual
Convertible Top
1. Park on a level surface. Shift an
automatic transmission into
P (Park) and set the parking
brake. Shift a manual
transmission into Neutral and
set the parking brake.
2. Lower both windows.
3. Make sure the ignition is off.4. Tilt the driver seat forward and press the tonneau cover release
button. After pressing the
release button, the driver and
passenger door glass will
retract to the full-down position.
If battery power has been lost,
see Step 7 under “Lowering the
Manual Convertible Top” in
this section.
After pressing the release
button, the driver and passenger
door glass should retract to the
full-down position, if they have
not already been lowered.

Black plate (28,1)Chevrolet Corvette Owner Manual - 2012
2-28 Keys, Doors, and Windows
5. Lift the tonneau cover.
6. Pull the convertible top up byfirmly gripping the front edge (A)
near the center and applying a
brisk upward and forward motion
to get the top in the full-up
position.
7. Lift the rear edge (B) of theconvertible top to its full-up
position by first raising the front
edge (A).
8. Close the tonneau cover (C) by pushing it down with a swift,
firm motion.
9. Lower the rear edge (B) of the convertible top by first slightly
pushing the front edge (A) of the
convertible top forward. 10. Push the front edge (A) of the
convertible top down from the
outside of the vehicle, or pull
the front edge (A) of the
convertible top down from the
center pull-down handle
located in the inside of the
vehicle.
11. Pull the convertible top front latch down and turn it
counterclockwise to lock the
convertible top.Power Operation
For care and cleaning of the
convertible top see “Cleaning the
Convertible Top” in this section.
High pressure car washes may
cause water to enter the vehicle.
To operate the convertible top use
the following steps.
Notice: Leaving the convertible
top down and exposing the
interior of the vehicle to outdoor
conditions may cause damage.
Always close the convertible top
if leaving the vehicle outdoors.
