CHEVROLET CORVETTE 2020 Owner's Manual

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
220 Vehicle Care
Changing the Engine Oil and
Filter
The vehicle requires a special
procedure when changing the
engine oil and filter. Follow this
procedure closely.
1. Engine Oil Drain Plug
2. O-ring Seal
3. Engine Oil Filter
To change the engine oil and filter:1. Run the engine at idle for about 20 seconds to return all of the
oil back into the dry sump
oil tank. 2. Turn the engine off prior to
draining the oil.
3. Remove the engine oil drain plug from the bottom of the
engine oil pan. Drain plug
removal will let the oil drain
from the external oil tank and
residual oil from the crankcase
sump. Allow the oil to drain.
4. Remove the engine oil filter and allow the oil to drain.
5. Inspect the drain plug O-ring seal and replace if it is
damaged. Reinstall the drain
plug into the oil pan and tighten
it to 25 N.m (18 lb ft).
6. Replace the oil filter and tighten it three-quarters to one
turn after the gasket makes
contact. See Maintenance
Replacement Parts 0296 for
the correct filter.
7. Remove the oil fill cap from the external engine oil tank.
Add oil to the oil tank through
the opening in the fill tube. See
Capacities and Specifications
0299. 8. Install the oil fill cap and insert
the dipstick, if removed.
{Warning
To help avoid personal injury and/
or engine damage, always install
the engine oil dipstick and oil fill
cap until fully seated to a stop.
If not fully seated, oil could
escape on to hot exhaust parts
and cause a fire.
9. Start the engine and check the oil level as described under
"Checking the Engine Oil."
previously in this section.
Selecting the Right Engine Oil
Selecting the right engine oil
depends on both the proper oil
specification and the viscosity
grade. See Recommended Fluids
and Lubricants 0295.
Specification
Use engine oils that meet the
dexos2 specification.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

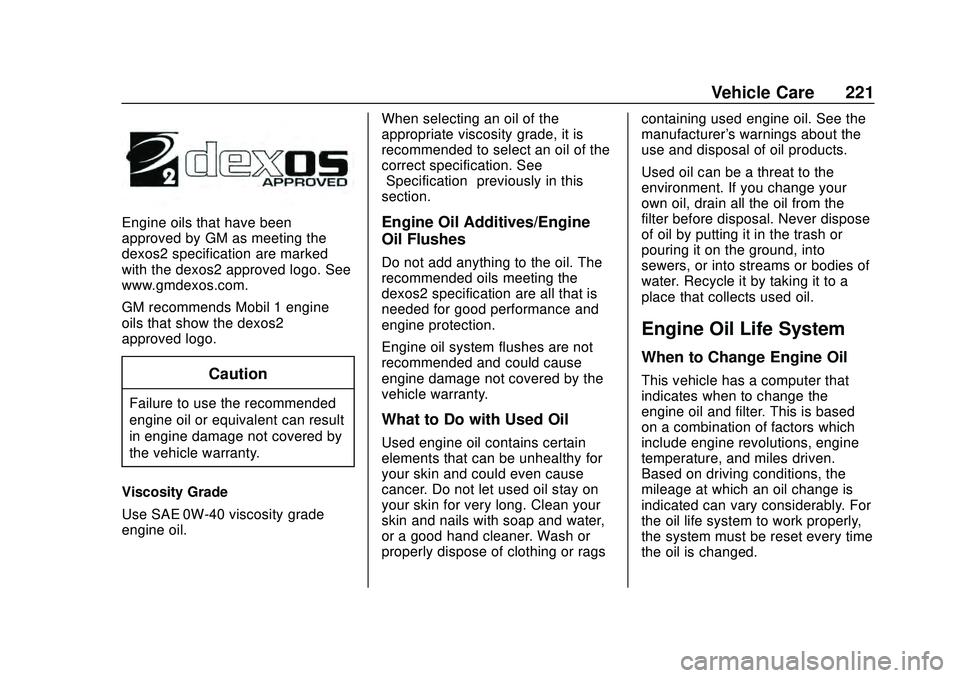

Vehicle Care 221
Engine oils that have been
approved by GM as meeting the
dexos2 specification are marked
with the dexos2 approved logo. See
www.gmdexos.com.
GM recommends Mobil 1 engine
oils that show the dexos2
approved logo.
Caution
Failure to use the recommended
engine oil or equivalent can result
in engine damage not covered by
the vehicle warranty.
Viscosity Grade
Use SAE 0W-40 viscosity grade
engine oil. When selecting an oil of the
appropriate viscosity grade, it is
recommended to select an oil of the
correct specification. See
“Specification”
previously in this
section.
Engine Oil Additives/Engine
Oil Flushes
Do not add anything to the oil. The
recommended oils meeting the
dexos2 specification are all that is
needed for good performance and
engine protection.
Engine oil system flushes are not
recommended and could cause
engine damage not covered by the
vehicle warranty.
What to Do with Used Oil
Used engine oil contains certain
elements that can be unhealthy for
your skin and could even cause
cancer. Do not let used oil stay on
your skin for very long. Clean your
skin and nails with soap and water,
or a good hand cleaner. Wash or
properly dispose of clothing or rags containing used engine oil. See the
manufacturer's warnings about the
use and disposal of oil products.
Used oil can be a threat to the
environment. If you change your
own oil, drain all the oil from the
filter before disposal. Never dispose
of oil by putting it in the trash or
pouring it on the ground, into
sewers, or into streams or bodies of
water. Recycle it by taking it to a
place that collects used oil.
Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer that
indicates when to change the
engine oil and filter. This is based
on a combination of factors which
include engine revolutions, engine
temperature, and miles driven.
Based on driving conditions, the
mileage at which an oil change is
indicated can vary considerably. For
the oil life system to work properly,
the system must be reset every time
the oil is changed.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
222 Vehicle Care
This vehicle has a racetrack-ready
dry sump engine lubrication system.
This high performance system
operates differently than a standard
engine lubrication system and
requires a special procedure when
changing the engine oil and filter.
SeeEngine Oil 0218.
When the system has calculated
that oil life has been diminished, it
indicates that an oil change is
necessary. A CHANGE ENGINE
OIL SOON message comes on.
Change the oil as soon as possible
within the next 1 000 km (600 mi).
It is possible that, if driving under
the best conditions, the oil life
system may not indicate that an oil
change is necessary for up to a
year. The engine oil and filter must
be changed at least once a year
and, at this time, the system must
be reset. Your dealer has trained
service people who will perform this
work and reset the system. It is also
important to check the oil regularly
over the course of an oil drain
interval and keep it at the proper
level. If the system is ever reset
accidentally, the oil must be
changed at 5 000 km (3,000 mi)
since the last oil change.
Remember to reset the oil life
system whenever the oil is changed.
How to Reset the Engine Oil
Life System
Reset the system whenever the
engine oil is changed so that the
system can calculate the next
engine oil change. To reset the
system:
1. Scroll through the DIC Info Pages menu until the
REMAINING OIL LIFE
percentage is displayed. See
Driver Information Center (DIC)
0108.
2. Press and hold SEL on the DIC while the Oil Life display is
active. The oil life will change
to 100%.
If the CHANGE ENGINE OIL SOON
message comes back on when the
vehicle is started, the engine oil life
system has not reset. Repeat the
procedure.
Dual Clutch Transmission
Fluid
How to Check Dual Clutch
Transmission Fluid
It is not necessary to check the
transmission fluid level.
A transmission fluid leak is the only
reason for fluid loss. If a leak
occurs, take the vehicle to the
dealer and have it repaired as soon
as possible.
The vehicle is not equipped with a
transmission fluid level dipstick.
There is a special procedure for
checking and changing the
transmission fluid. Because this
procedure is difficult, this should be
done at the dealer. Contact the
dealer for additional information or
the procedure can be found in the
service manual. To purchase a
service manual, see Publication
Ordering Information 0311.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

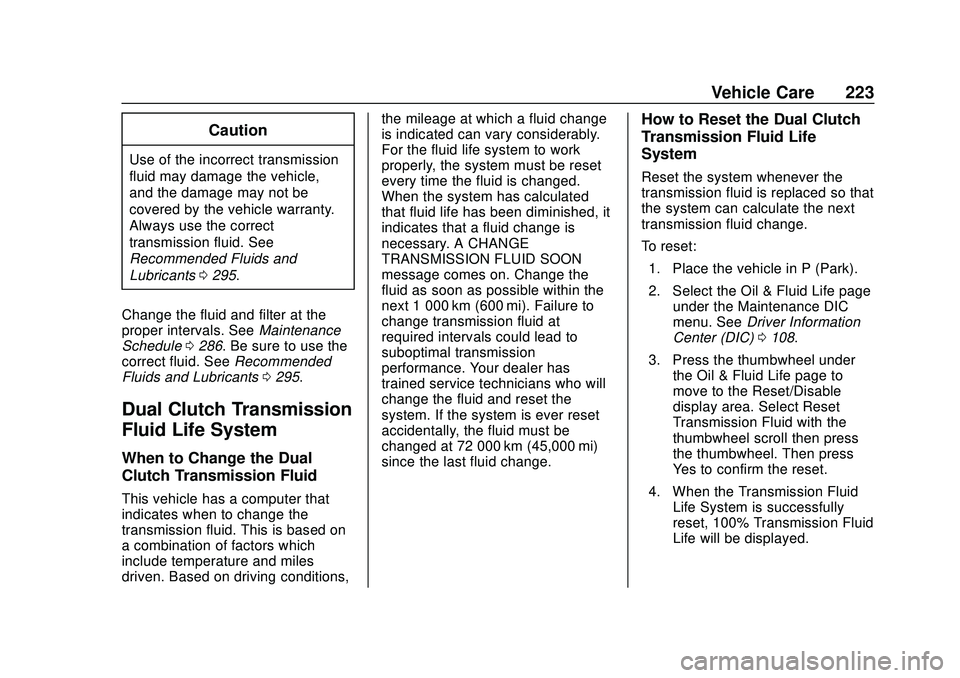

Vehicle Care 223
Caution
Use of the incorrect transmission
fluid may damage the vehicle,
and the damage may not be
covered by the vehicle warranty.
Always use the correct
transmission fluid. See
Recommended Fluids and
Lubricants0295.
Change the fluid and filter at the
proper intervals. See Maintenance
Schedule 0286. Be sure to use the
correct fluid. See Recommended
Fluids and Lubricants 0295.
Dual Clutch Transmission
Fluid Life System
When to Change the Dual
Clutch Transmission Fluid
This vehicle has a computer that
indicates when to change the
transmission fluid. This is based on
a combination of factors which
include temperature and miles
driven. Based on driving conditions, the mileage at which a fluid change
is indicated can vary considerably.
For the fluid life system to work
properly, the system must be reset
every time the fluid is changed.
When the system has calculated
that fluid life has been diminished, it
indicates that a fluid change is
necessary. A CHANGE
TRANSMISSION FLUID SOON
message comes on. Change the
fluid as soon as possible within the
next 1 000 km (600 mi). Failure to
change transmission fluid at
required intervals could lead to
suboptimal transmission
performance. Your dealer has
trained service technicians who will
change the fluid and reset the
system. If the system is ever reset
accidentally, the fluid must be
changed at 72 000 km (45,000 mi)
since the last fluid change.
How to Reset the Dual Clutch
Transmission Fluid Life
System
Reset the system whenever the
transmission fluid is replaced so that
the system can calculate the next
transmission fluid change.
To reset:
1. Place the vehicle in P (Park).
2. Select the Oil & Fluid Life page under the Maintenance DIC
menu. See Driver Information
Center (DIC) 0108.
3. Press the thumbwheel under the Oil & Fluid Life page to
move to the Reset/Disable
display area. Select Reset
Transmission Fluid with the
thumbwheel scroll then press
the thumbwheel. Then press
Yes to confirm the reset.
4. When the Transmission Fluid Life System is successfully
reset, 100% Transmission Fluid
Life will be displayed.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

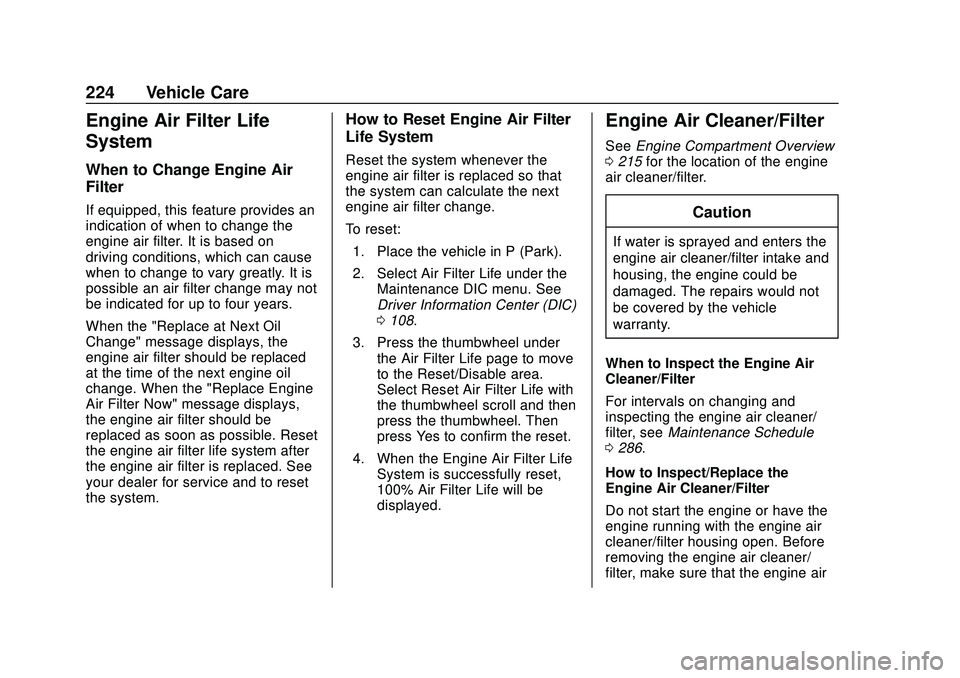

224 Vehicle Care
Engine Air Filter Life
System
When to Change Engine Air
Filter
If equipped, this feature provides an
indication of when to change the
engine air filter. It is based on
driving conditions, which can cause
when to change to vary greatly. It is
possible an air filter change may not
be indicated for up to four years.
When the "Replace at Next Oil
Change" message displays, the
engine air filter should be replaced
at the time of the next engine oil
change. When the "Replace Engine
Air Filter Now" message displays,
the engine air filter should be
replaced as soon as possible. Reset
the engine air filter life system after
the engine air filter is replaced. See
your dealer for service and to reset
the system.
How to Reset Engine Air Filter
Life System
Reset the system whenever the
engine air filter is replaced so that
the system can calculate the next
engine air filter change.
To reset:1. Place the vehicle in P (Park).
2. Select Air Filter Life under the Maintenance DIC menu. See
Driver Information Center (DIC)
0108.
3. Press the thumbwheel under the Air Filter Life page to move
to the Reset/Disable area.
Select Reset Air Filter Life with
the thumbwheel scroll and then
press the thumbwheel. Then
press Yes to confirm the reset.
4. When the Engine Air Filter Life System is successfully reset,
100% Air Filter Life will be
displayed.
Engine Air Cleaner/Filter
See Engine Compartment Overview
0 215 for the location of the engine
air cleaner/filter.
Caution
If water is sprayed and enters the
engine air cleaner/filter intake and
housing, the engine could be
damaged. The repairs would not
be covered by the vehicle
warranty.
When to Inspect the Engine Air
Cleaner/Filter
For intervals on changing and
inspecting the engine air cleaner/
filter, see Maintenance Schedule
0 286.
How to Inspect/Replace the
Engine Air Cleaner/Filter
Do not start the engine or have the
engine running with the engine air
cleaner/filter housing open. Before
removing the engine air cleaner/
filter, make sure that the engine air

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Vehicle Care 225
cleaner/filter housing and nearby
components are free of dirt and
debris. Do not clean the engine air
cleaner/filter or components with
water or compressed air.
To inspect or replace the air cleaner/
filter:1. Remove the convenience net, if equipped.
2. Remove the four lift off bracketbolts (2) to remove the
brackets (1).
3. Remove the convenience nethooks (2) and plastic
retainers (1).
4. Remove the carpet.5. Remove the rear compartment access panel screws (2) and
panel (1).

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
226 Vehicle Care
6. Remove the air cleaner coverscrews (2) and cover (1).
7. Remove the air cleaner/filter.
8. Inspect or replace the aircleaner/filter.
9. Reverse Steps 2–7 to replace the air cleaner/filter.
{Warning
Operating the engine with the air
cleaner/filter off can cause you or
others to be burned. Use caution
when working on the engine. Do
(Continued)
Warning (Continued)
not start the engine or drive the
vehicle with the air cleaner/filter
off, as flames may be present if
the engine backfires.
Caution
If the air cleaner/filter is off, dirt
can easily get into the engine,
which could damage it. Always
have the air cleaner/filter in place
when driving.
Cooling System
The cooling system allows the
engine to maintain the correct
working temperature.
Convertible
1. Engine Cooling Fans (Outof View)
2. Coolant Surge Tank with Pressure Cap

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Vehicle Care 227
Coupe
1. Engine Cooling Fans (Outof View)
2. Coolant Surge Tank with Pressure Cap
{Warning
An underhood electric fan can
start up even when the engine is
not running and can cause injury.
Keep hands, clothing, and tools
away from any underhood
electric fan.
{Warning
Do not touch heater or radiator
hoses, or other engine parts.
They can be very hot and can
burn you. Do not run the engine if
there is a leak; all coolant could
leak out. That could cause an
engine fire and can burn you. Fix
any leak before driving the
vehicle.
Engine Coolant
The cooling system in the vehicle is
filled with DEX-COOL engine
coolant. See Recommended Fluids
and Lubricants 0295. The fluid
requires changing at certain
intervals. See Maintenance
Schedule 0286.
The following explains the cooling
system and how to check and add
coolant when it is low. If there is a
problem with engine overheating,
see Engine Overheating 0230.
What to Use
{Warning
Plain water, or other liquids such
as alcohol, can boil before the
proper coolant mixture will. With
plain water or the wrong mixture,
the engine could get too hot but
there would not be an overheat
warning. The engine could catch
fire and you or others could be
burned.
Use a mixture of 40% DEX-COOL
coolant and 60% clean, drinkable
water. If using this mixture, nothing
else needs to be added. This
mixture:
. Gives freezing protection down
to−28 °C (−18 °F), outside
temperature.
. Gives boiling protection up to
129 °C (265 °F), engine
temperature.
. Protects against rust and
corrosion.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
228 Vehicle Care
.Will not damage aluminum parts.
. Helps keep the proper engine
temperature.
Caution
Do not use anything other than a
mix of DEX-COOL coolant that
meets GM Standard
GMW3420 and clean, drinkable
water. Anything else can cause
damage to the engine cooling
system and the vehicle, which
would not be covered by the
vehicle warranty.
Never dispose of engine coolant by
putting it in the trash, pouring it on
the ground, or into sewers, streams,
or bodies of water. Have the coolant
changed by an authorized service
center, familiar with legal
requirements regarding used
coolant disposal. This will help
protect the environment and your
health. If ambient temperatures are
anticipated below
−28 °C (−18 °F),
make sure a proper mixture ratio of
50% DEX-COOL coolant and 50%
clean, drinkable water is used.Checking Coolant
Be sure the cooling system is cool
and that the vehicle is on a level
surface.
Check to see if coolant is visible in
the coolant surge tank. If the coolant
inside the coolant surge tank is
boiling, do not do anything else until
it cools down. If coolant is visible
but the coolant level is not at or
above the cold fill line, add a
mixture of 40% DEX-COOL coolant
and 60% clean, drinkable water at
the coolant recovery tank, but be
sure the cooling system is cool
before this is done. See Engine
Overheating 0230.
The surge tank is in the engine
compartment. See Engine
Compartment Overview 0215.
When the engine is cold, the coolant
level should be at the COLD FILL
indicator in the coolant surge tank.
When the engine is hot, the level
could be higher than the COLD FILL
indicator. If the coolant is below the
COLD FILL indicator when the
engine is hot, there could be a leak
in the cooling system.
If the coolant is low, add the coolant
or take the vehicle to your dealer for
service.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Vehicle Care 229

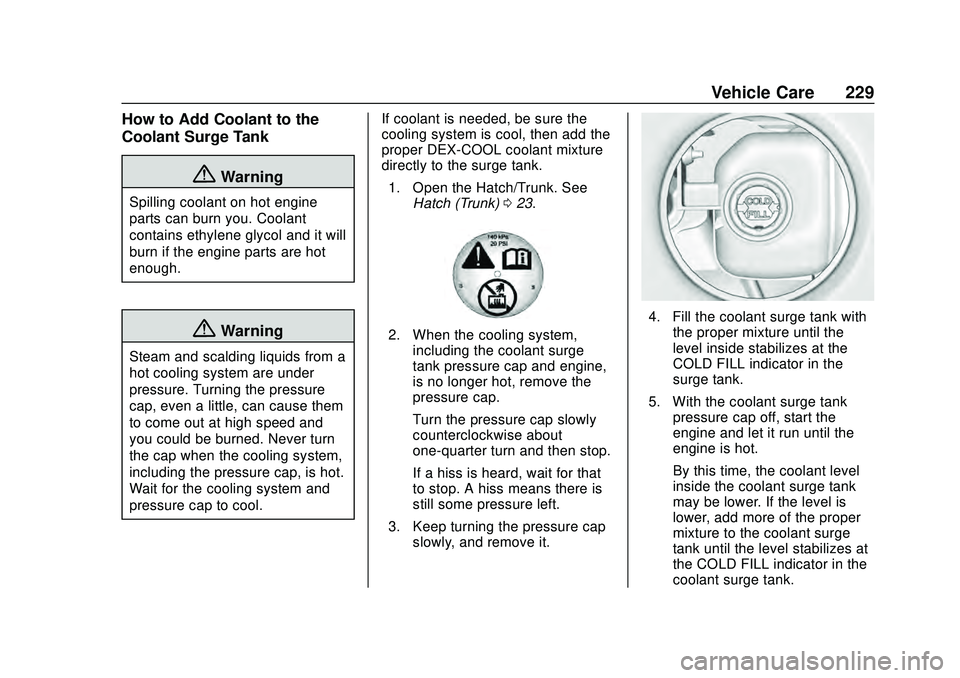

How to Add Coolant to the
Coolant Surge Tank
{Warning
Spilling coolant on hot engine
parts can burn you. Coolant
contains ethylene glycol and it will
burn if the engine parts are hot
enough.
{Warning
Steam and scalding liquids from a
hot cooling system are under
pressure. Turning the pressure
cap, even a little, can cause them
to come out at high speed and
you could be burned. Never turn
the cap when the cooling system,
including the pressure cap, is hot.
Wait for the cooling system and
pressure cap to cool.If coolant is needed, be sure the
cooling system is cool, then add the
proper DEX-COOL coolant mixture
directly to the surge tank.
1. Open the Hatch/Trunk. See Hatch (Trunk) 023.
2. When the cooling system,
including the coolant surge
tank pressure cap and engine,
is no longer hot, remove the
pressure cap.
Turn the pressure cap slowly
counterclockwise about
one-quarter turn and then stop.
If a hiss is heard, wait for that
to stop. A hiss means there is
still some pressure left.
3. Keep turning the pressure cap slowly, and remove it.
4. Fill the coolant surge tank withthe proper mixture until the
level inside stabilizes at the
COLD FILL indicator in the
surge tank.
5. With the coolant surge tank pressure cap off, start the
engine and let it run until the
engine is hot.
By this time, the coolant level
inside the coolant surge tank
may be lower. If the level is
lower, add more of the proper
mixture to the coolant surge
tank until the level stabilizes at
the COLD FILL indicator in the
coolant surge tank.
