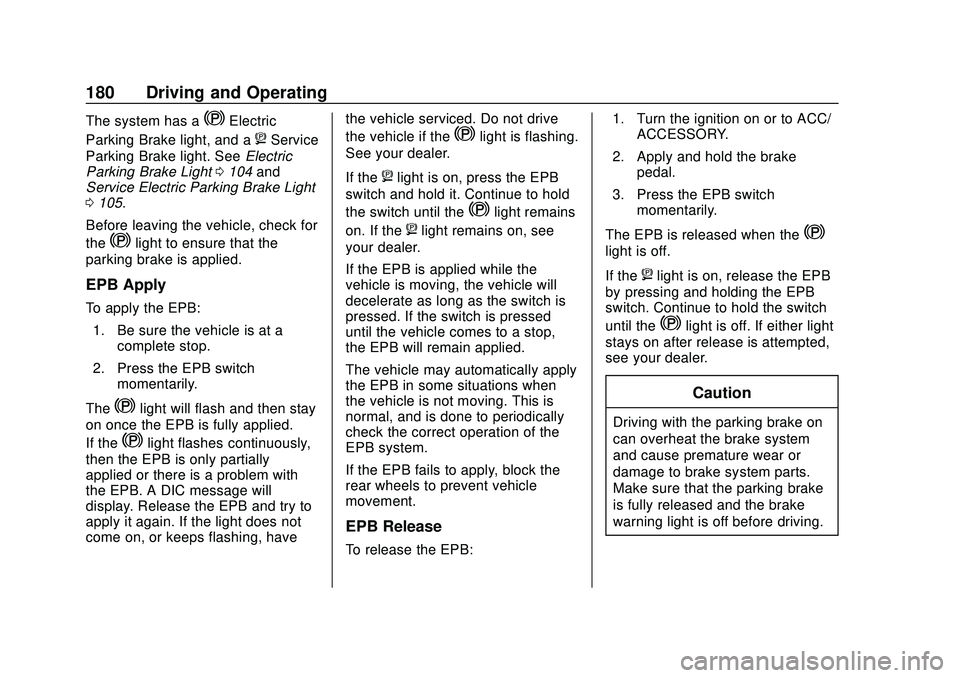

180 Driving and Operating
The system has aYElectric
Parking Brake light, and a
8Service
Parking Brake light. See Electric
Parking Brake Light 0104 and
Service Electric Parking Brake Light
0 105.
Before leaving the vehicle, check for
the
Ylight to ensure that the
parking brake is applied.
EPB Apply
To apply the EPB:
1. Be sure the vehicle is at a complete stop.
2. Press the EPB switch momentarily.
The
Ylight will flash and then stay
on once the EPB is fully applied.
If the
Ylight flashes continuously,
then the EPB is only partially
applied or there is a problem with
the EPB. A DIC message will
display. Release the EPB and try to
apply it again. If the light does not
come on, or keeps flashing, have the vehicle serviced. Do not drive
the vehicle if the
Ylight is flashing.
See your dealer.
If the
8light is on, press the EPB
switch and hold it. Continue to hold
the switch until the
Ylight remains
on. If the
8light remains on, see
your dealer.
If the EPB is applied while the
vehicle is moving, the vehicle will
decelerate as long as the switch is
pressed. If the switch is pressed
until the vehicle comes to a stop,
the EPB will remain applied.
The vehicle may automatically apply
the EPB in some situations when
the vehicle is not moving. This is
normal, and is done to periodically
check the correct operation of the
EPB system.
If the EPB fails to apply, block the
rear wheels to prevent vehicle
movement.
EPB Release
To release the EPB: 1. Turn the ignition on or to ACC/
ACCESSORY.
2. Apply and hold the brake pedal.
3. Press the EPB switch momentarily.
The EPB is released when the
Y
light is off.
If the
8light is on, release the EPB
by pressing and holding the EPB
switch. Continue to hold the switch
until the
Ylight is off. If either light
stays on after release is attempted,
see your dealer.
Caution
Driving with the parking brake on
can overheat the brake system
and cause premature wear or
damage to brake system parts.
Make sure that the parking brake
is fully released and the brake
warning light is off before driving.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

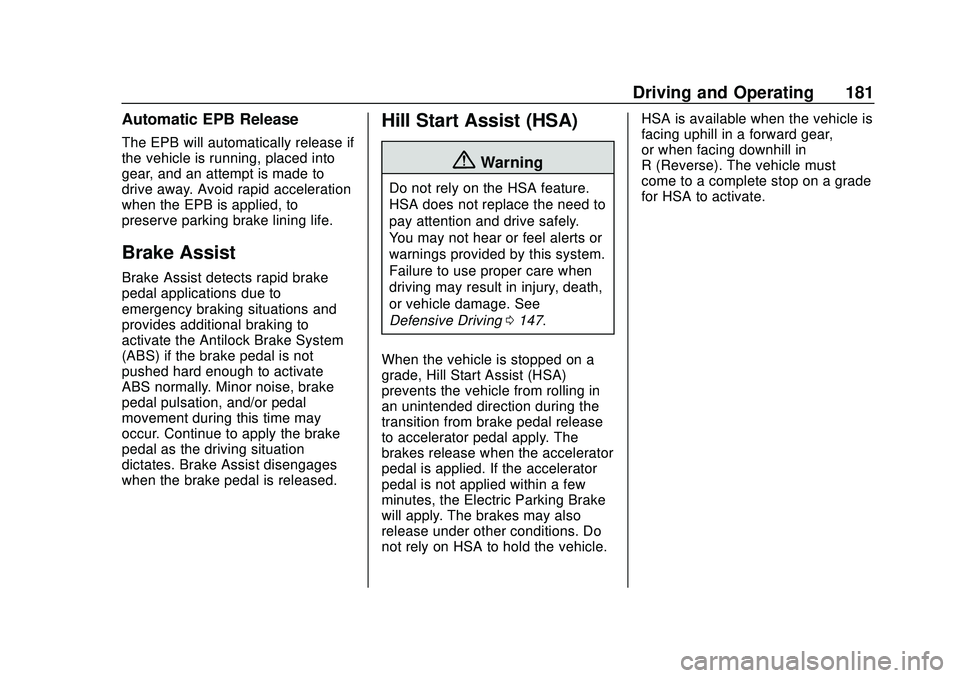

Driving and Operating 181
Automatic EPB Release
The EPB will automatically release if
the vehicle is running, placed into
gear, and an attempt is made to
drive away. Avoid rapid acceleration
when the EPB is applied, to
preserve parking brake lining life.
Brake Assist
Brake Assist detects rapid brake
pedal applications due to
emergency braking situations and
provides additional braking to
activate the Antilock Brake System
(ABS) if the brake pedal is not
pushed hard enough to activate
ABS normally. Minor noise, brake
pedal pulsation, and/or pedal
movement during this time may
occur. Continue to apply the brake
pedal as the driving situation
dictates. Brake Assist disengages
when the brake pedal is released.
Hill Start Assist (HSA)
{Warning
Do not rely on the HSA feature.
HSA does not replace the need to
pay attention and drive safely.
You may not hear or feel alerts or
warnings provided by this system.
Failure to use proper care when
driving may result in injury, death,
or vehicle damage. See
Defensive Driving0147.
When the vehicle is stopped on a
grade, Hill Start Assist (HSA)
prevents the vehicle from rolling in
an unintended direction during the
transition from brake pedal release
to accelerator pedal apply. The
brakes release when the accelerator
pedal is applied. If the accelerator
pedal is not applied within a few
minutes, the Electric Parking Brake
will apply. The brakes may also
release under other conditions. Do
not rely on HSA to hold the vehicle. HSA is available when the vehicle is
facing uphill in a forward gear,
or when facing downhill in
R (Reverse). The vehicle must
come to a complete stop on a grade
for HSA to activate.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
182 Driving and Operating
Ride Control Systems
Traction Control/
Electronic Stability
Control
The vehicle has a Traction Control
System (TCS) and a StabiliTrak/
Electronic Stability Control (ESC)
system. These systems help limit
wheel spin and assist the driver in
maintaining control, especially on
slippery road conditions.
TCS activates if it senses that the
rear wheels are spinning too much
or are beginning to lose traction.
When this happens, TCS applies
the brakes to the spinning wheel
and reduces engine power (by
closing the throttle and managing
engine spark) to limit wheel spin.
StabiliTrak/ESC activates when the
vehicle senses a difference between
the intended path and the direction
the vehicle is actually traveling.
StabiliTrak/ESC selectively applies
braking pressure to any one of thevehicle wheel brakes to assist the
driver in keeping the vehicle on the
intended path.
If cruise control is being used when
TCS begins to limit wheel spin, the
cruise control will automatically
disengage. Cruise control may be
reengaged when road conditions
allow. See
Cruise Control 0196.
If the driver disables TCS, cruise
control will disengage. Cruise
control will also be disabled if
Performance Traction Management
(PTM) is selected, or if StabiliTrak is
turned off.
Both systems come on
automatically when the vehicle is
started and begins to move. The
systems may be heard or felt while
they are operating or while
performing diagnostic checks. This
is normal and does not mean there
is a problem with the vehicle.
It is recommended to leave both
systems on for normal driving
conditions, but it may be necessary
to turn TCS off if the vehicle gets
stuck in sand, mud, ice, or snow. See
If the Vehicle Is Stuck 0159
and “Turning the Systems Off and
On” later in this section.
The indicator light for both systems
is in the instrument cluster. This
light will:
.
Flash when TCS is limiting
wheel spin
. Flash when StabiliTrak/ESC is
activated
. Flash when ABS is active
. Turn on and stay on when either
system is not working
If either system fails to turn on or to
activate, a message displays in the
Driver Information Center (DIC), and
dcomes on and stays on to
indicate that the system is inactive
and is not assisting the driver in

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

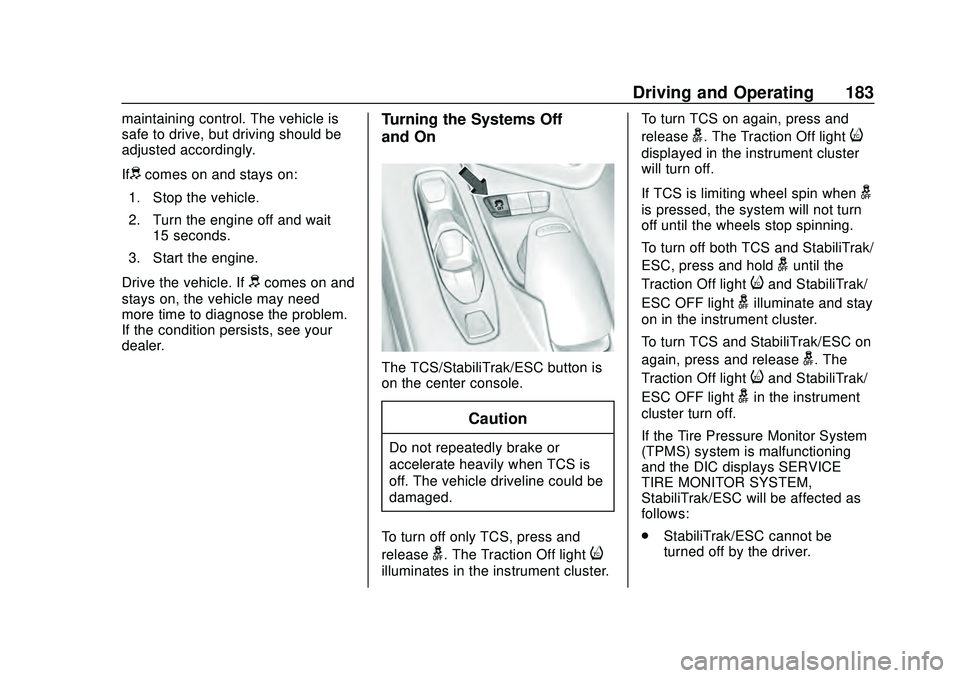

Driving and Operating 183
maintaining control. The vehicle is
safe to drive, but driving should be
adjusted accordingly.
If
dcomes on and stays on:
1. Stop the vehicle.
2. Turn the engine off and wait 15 seconds.
3. Start the engine.
Drive the vehicle. If
dcomes on and
stays on, the vehicle may need
more time to diagnose the problem.
If the condition persists, see your
dealer.
Turning the Systems Off
and On
The TCS/StabiliTrak/ESC button is
on the center console.
Caution
Do not repeatedly brake or
accelerate heavily when TCS is
off. The vehicle driveline could be
damaged.
To turn off only TCS, press and
release
g. The Traction Off lighti
illuminates in the instrument cluster. To turn TCS on again, press and
release
g. The Traction Off lighti
displayed in the instrument cluster
will turn off.
If TCS is limiting wheel spin when
g
is pressed, the system will not turn
off until the wheels stop spinning.
To turn off both TCS and StabiliTrak/
ESC, press and hold
guntil the
Traction Off light
iand StabiliTrak/
ESC OFF light
gilluminate and stay
on in the instrument cluster.
To turn TCS and StabiliTrak/ESC on
again, press and release
g. The
Traction Off light
iand StabiliTrak/
ESC OFF light
gin the instrument
cluster turn off.
If the Tire Pressure Monitor System
(TPMS) system is malfunctioning
and the DIC displays SERVICE
TIRE MONITOR SYSTEM,
StabiliTrak/ESC will be affected as
follows:
. StabiliTrak/ESC cannot be
turned off by the driver.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

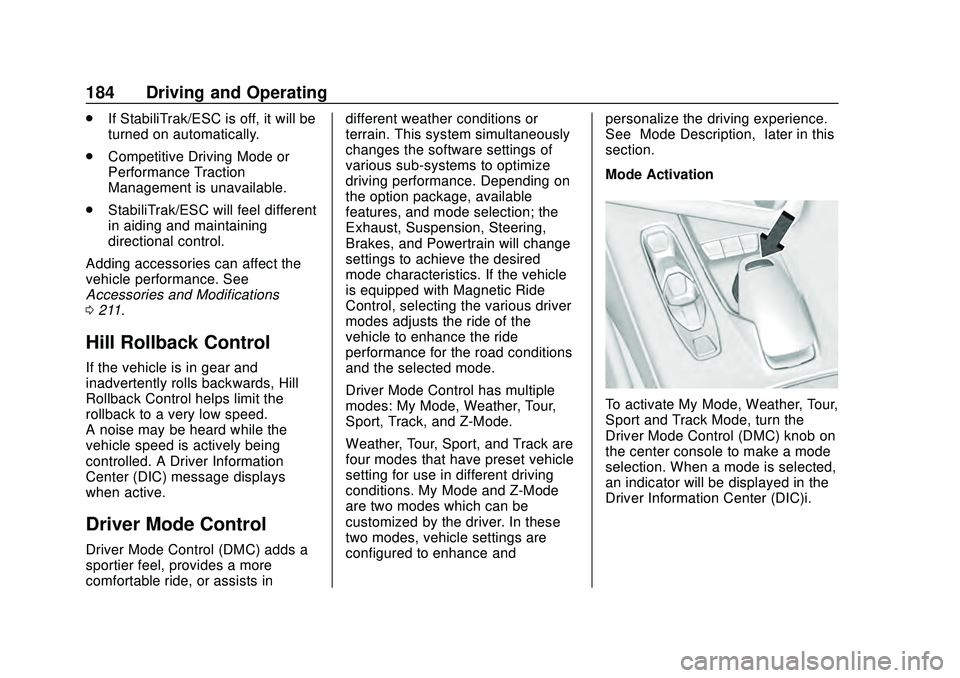

184 Driving and Operating
.If StabiliTrak/ESC is off, it will be
turned on automatically.
. Competitive Driving Mode or
Performance Traction
Management is unavailable.
. StabiliTrak/ESC will feel different
in aiding and maintaining
directional control.
Adding accessories can affect the
vehicle performance. See
Accessories and Modifications
0 211.
Hill Rollback Control
If the vehicle is in gear and
inadvertently rolls backwards, Hill
Rollback Control helps limit the
rollback to a very low speed.
A noise may be heard while the
vehicle speed is actively being
controlled. A Driver Information
Center (DIC) message displays
when active.
Driver Mode Control
Driver Mode Control (DMC) adds a
sportier feel, provides a more
comfortable ride, or assists in different weather conditions or
terrain. This system simultaneously
changes the software settings of
various sub-systems to optimize
driving performance. Depending on
the option package, available
features, and mode selection; the
Exhaust, Suspension, Steering,
Brakes, and Powertrain will change
settings to achieve the desired
mode characteristics. If the vehicle
is equipped with Magnetic Ride
Control, selecting the various driver
modes adjusts the ride of the
vehicle to enhance the ride
performance for the road conditions
and the selected mode.
Driver Mode Control has multiple
modes: My Mode, Weather, Tour,
Sport, Track, and Z-Mode.
Weather, Tour, Sport, and Track are
four modes that have preset vehicle
setting for use in different driving
conditions. My Mode and Z-Mode
are two modes which can be
customized by the driver. In these
two modes, vehicle settings are
configured to enhance and
personalize the driving experience.
See
“Mode Description,” later in this
section.
Mode Activation
To activate My Mode, Weather, Tour,
Sport and Track Mode, turn the
Driver Mode Control (DMC) knob on
the center console to make a mode
selection. When a mode is selected,
an indicator will be displayed in the
Driver Information Center (DIC)i.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

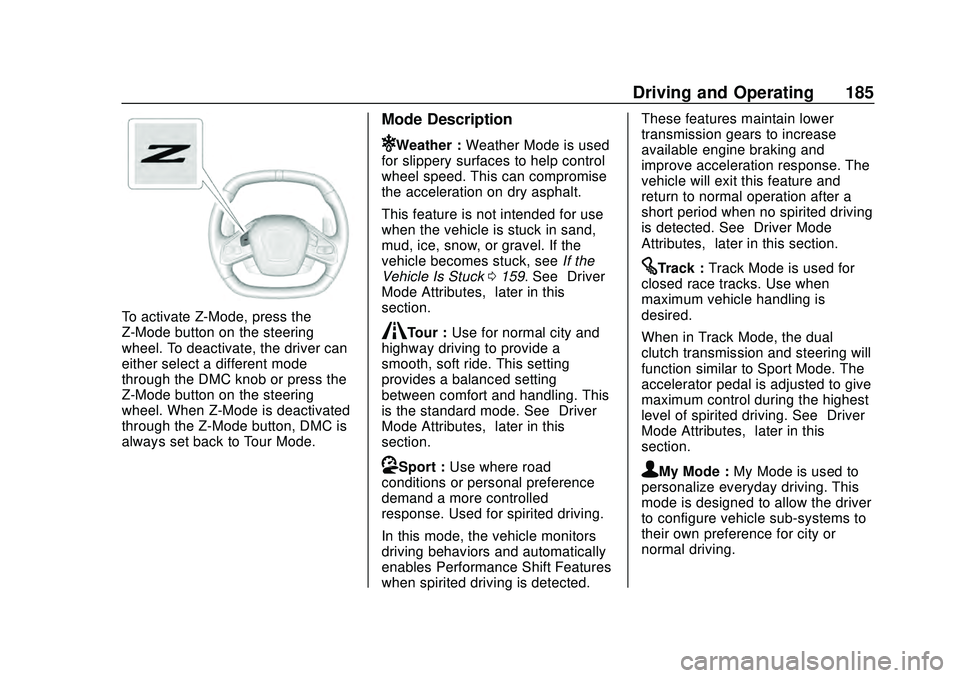

Driving and Operating 185
To activate Z-Mode, press the
Z-Mode button on the steering
wheel. To deactivate, the driver can
either select a different mode
through the DMC knob or press the
Z-Mode button on the steering
wheel. When Z-Mode is deactivated
through the Z-Mode button, DMC is
always set back to Tour Mode.
Mode Description
uWeather :Weather Mode is used
for slippery surfaces to help control
wheel speed. This can compromise
the acceleration on dry asphalt.
This feature is not intended for use
when the vehicle is stuck in sand,
mud, ice, snow, or gravel. If the
vehicle becomes stuck, see If the
Vehicle Is Stuck 0159. See “Driver
Mode Attributes,” later in this
section.
sTour : Use for normal city and
highway driving to provide a
smooth, soft ride. This setting
provides a balanced setting
between comfort and handling. This
is the standard mode. See “Driver
Mode Attributes,” later in this
section.
rSport : Use where road
conditions or personal preference
demand a more controlled
response. Used for spirited driving.
In this mode, the vehicle monitors
driving behaviors and automatically
enables Performance Shift Features
when spirited driving is detected. These features maintain lower
transmission gears to increase
available engine braking and
improve acceleration response. The
vehicle will exit this feature and
return to normal operation after a
short period when no spirited driving
is detected. See
“Driver Mode
Attributes,” later in this section.
tTrack :Track Mode is used for
closed race tracks. Use when
maximum vehicle handling is
desired.
When in Track Mode, the dual
clutch transmission and steering will
function similar to Sport Mode. The
accelerator pedal is adjusted to give
maximum control during the highest
level of spirited driving. See “Driver
Mode Attributes,” later in this
section.
qMy Mode : My Mode is used to
personalize everyday driving. This
mode is designed to allow the driver
to configure vehicle sub-systems to
their own preference for city or
normal driving.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
186 Driving and Operating
Through the center display, the
following vehicle sub-systems may
be available for customization in
this mode.
Through the center display, the
following vehicle sub-systems may
be available for customization in
this mode:
Engine Sound:(some choices,
if equipped) Stealth, Tour, Sport,
Track
Steering: Tour, Sport, Track
Suspension: If equipped, Tour,
Sport, Track Brake Response:
Tour, Sport,
Track
See “Driver Mode Attributes,” later
in this section.
See “Driver Mode Customization,”
later in this section. Cluster/HUD
can be set in the cluster.
vZ-Mode : Z-Mode is used to
personalize dynamic driving. This
mode is designed to allow the driver
to configure vehicle sub-systems to
their own preference for maximum
handling. Z-Mode further enhances
the driver experience by adding a
powertrain customization.
Through the center display, the
following vehicle sub-systems may
be available for customization in
this mode. Engine Sound:
(some choices,
if equipped) Stealth, Tour, Sport,
Track
Steering: Tour, Sport, Track
Suspension: If equipped, Tour,
Sport, Track
Powertrain: Normal, Sport, Track,
Weather
Brake Response: Tour, Sport,
Track
See “Driver Mode Attributes,” later
in this section.
See “Driver Mode Customization,”
later in this section.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Driving and Operating 187
Driver Mode Attributes
Modes:MY MODE WEATHER TOUR
DefaultSPORT TRACK Z-MODE
Cluster Display Tour
(Default), Sport,
Track,
Weather
(with any info tileset up) Weather Tour Sport Track Tour, Sport,
Track,
Weather (with
any info tile set up)
Layout Display (Theme) Tour
(Default), Sport,
Track,
Weather
(with any info tileset up) Tour Tour Sport Track Tour, Sport,
Track,
Weather (with any info tile set up)
Informational Titles (preset) Tour (Default),Sport,
Track,
Weather
(with any info tileset up) Weather Tour Sport Track Tour, Sport,
Track,
Weather (with any info tile set up)

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

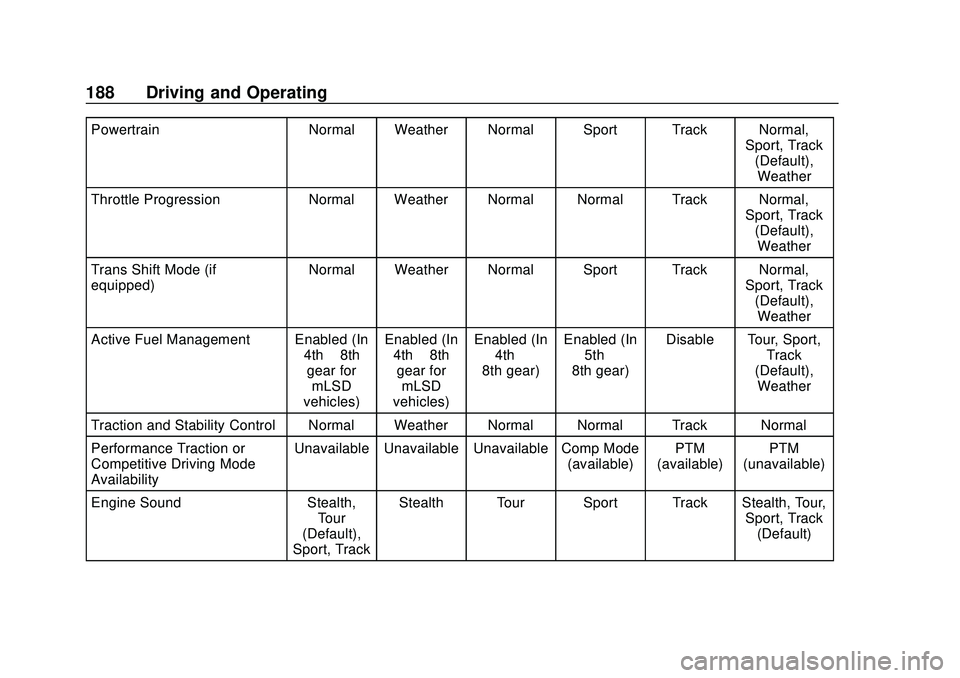

188 Driving and Operating
PowertrainNormal Weather Normal Sport Track Normal,
Sport, Track(Default),Weather
Throttle Progression Normal Weather Normal Normal Track Normal,
Sport, Track(Default),Weather
Trans Shift Mode (if
equipped) Normal Weather Normal Sport Track Normal,
Sport, Track(Default),Weather
Active Fuel Management Enabled (In 4th–8th
gear for mLSD
vehicles) Enabled (In
4th –8th
gear for mLSD
vehicles) Enabled (In
4th –
8th gear) Enabled (In
5th –
8th gear) Disable Tour, Sport,
Track
(Default), Weather
Traction and Stability Control Normal Weather Normal Normal Track Normal
Performance Traction or
Competitive Driving Mode
Availability Unavailable Unavailable Unavailable Comp Mode
(available)PTM
(available) PTM
(unavailable)
Engine Sound Stealth,
Tour
(Default),
Sport, Track Stealth Tour Sport Track Stealth, Tour,
Sport, Track(Default)

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

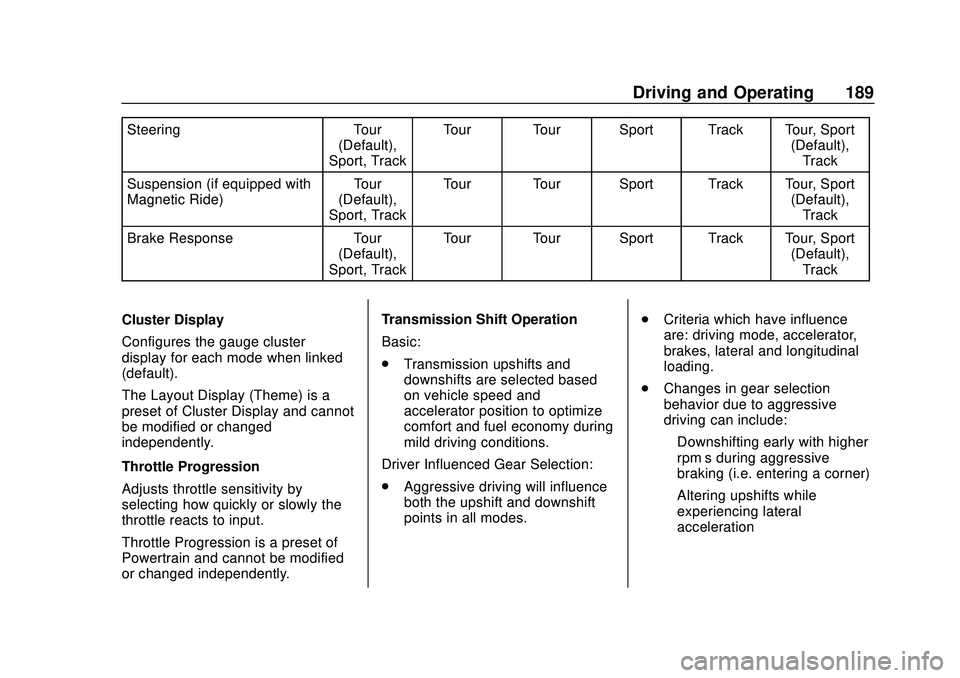

Driving and Operating 189
SteeringTour
(Default),
Sport, Track Tour Tour Sport Track Tour, Sport
(Default),Track
Suspension (if equipped with
Magnetic Ride) Tour
(Default),
Sport, Track Tour Tour Sport Track Tour, Sport
(Default),Track
Brake Response Tour
(Default),
Sport, Track Tour Tour Sport Track Tour, Sport
(Default),Track
Cluster Display
Configures the gauge cluster
display for each mode when linked
(default).
The Layout Display (Theme) is a
preset of Cluster Display and cannot
be modified or changed
independently.
Throttle Progression
Adjusts throttle sensitivity by
selecting how quickly or slowly the
throttle reacts to input.
Throttle Progression is a preset of
Powertrain and cannot be modified
or changed independently. Transmission Shift Operation
Basic:
.
Transmission upshifts and
downshifts are selected based
on vehicle speed and
accelerator position to optimize
comfort and fuel economy during
mild driving conditions.
Driver Influenced Gear Selection:
. Aggressive driving will influence
both the upshift and downshift
points in all modes. .
Criteria which have influence
are: driving mode, accelerator,
brakes, lateral and longitudinal
loading.
. Changes in gear selection
behavior due to aggressive
driving can include:
‐Downshifting early with higher
rpm’s during aggressive
braking (i.e. entering a corner)
‐ Altering upshifts while
experiencing lateral
acceleration
