10 Keys, Doors, and Windows
If equipped with remote window
operation, press
Iand hold for
three seconds to remotely open the
windows, if enabled. See Vehicle
Personalization 0116.
See Folding Mirrors 030.
S:Press twice to start the engine
from outside the vehicle using the
remote key. See Remote Vehicle
Start 015. The vehicle can not be
driven during a remote start. To
drive the vehicle, press the brake
pedal, then press ENGINE START/
STOP, with the remote key in the
vehicle.
7: Press and release to initiate
vehicle locator. The exterior lamps
flash and the horn chirps three
times. Press
7and hold for
approximately three seconds to
sound the panic alarm. The horn
sounds and the turn signal lamps
flash for 30 seconds, or until
7is
pressed again or the vehicle is
started.
D: Press twice to release the
hatch/trunk. The vehicle must be in
P (Park).
E: Press twice to release the
hood. The vehicle must be in
P (Park).
M: If equipped, press and release
K, then immediately press and hold
Mcontinuously to open the
convertible top all the way. The
vehicle must be off to operate the
convertible top. Release the button
to stop movement. This button will
only open the convertible top.
If equipped, press and release
Q
then immediately press and hold
Mto open the engine
compartment.
Convertible Top
. Do not try to start the vehicle
while using the remote key to
open the convertible top.
Release both the remote key
button and ENGINE START/
STOP and wait a few seconds
before starting the vehicle
normally.
Keyless Access Operation
This Keyless Access system allows
you to unlock and unlatch the doors
and hatch/trunk without removing
the remote key from your pocket,
purse, briefcase, etc. The remote
key must be within 1 m (3 ft) of the
trunk or door being opened.
A touchpad is located on the door
handle.
The Keyless Access system can be
programmed to unlock both doors
on the first door handle touchpad
press from the driver door. Keyless
Access can also be turned Off. See
Vehicle Personalization 0116.
If equipped with memory seats,
remote keys 1 and 2 are linked to
seating positions of memory 1 or 2.
See Memory Seats 050.
Keyless Unlocking
Press the door handle touchpad to
unlock and open the doors if the
remote key is within 1 m (3 ft). See
Door Locks 017 and “Passive Door
Unlock” underVehicle
Personalization 0116.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Keys, Doors, and Windows 11

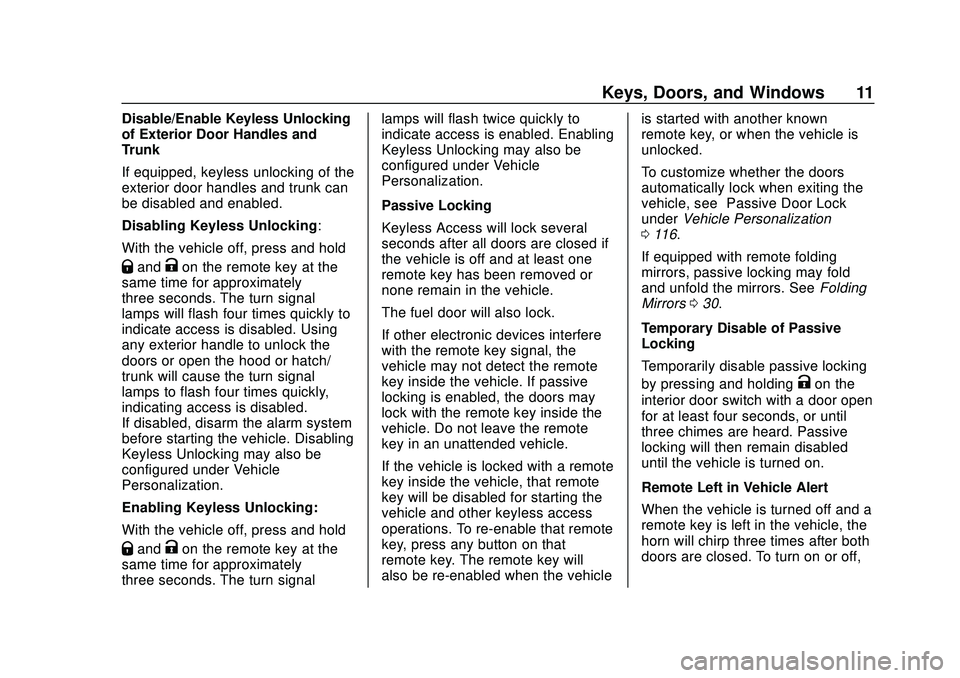

Disable/Enable Keyless Unlocking
of Exterior Door Handles and
Trunk
If equipped, keyless unlocking of the
exterior door handles and trunk can
be disabled and enabled.
Disabling Keyless Unlocking:
With the vehicle off, press and hold
QandKon the remote key at the
same time for approximately
three seconds. The turn signal
lamps will flash four times quickly to
indicate access is disabled. Using
any exterior handle to unlock the
doors or open the hood or hatch/
trunk will cause the turn signal
lamps to flash four times quickly,
indicating access is disabled.
If disabled, disarm the alarm system
before starting the vehicle. Disabling
Keyless Unlocking may also be
configured under Vehicle
Personalization.
Enabling Keyless Unlocking:
With the vehicle off, press and hold
QandKon the remote key at the
same time for approximately
three seconds. The turn signal lamps will flash twice quickly to
indicate access is enabled. Enabling
Keyless Unlocking may also be
configured under Vehicle
Personalization.
Passive Locking
Keyless Access will lock several
seconds after all doors are closed if
the vehicle is off and at least one
remote key has been removed or
none remain in the vehicle.
The fuel door will also lock.
If other electronic devices interfere
with the remote key signal, the
vehicle may not detect the remote
key inside the vehicle. If passive
locking is enabled, the doors may
lock with the remote key inside the
vehicle. Do not leave the remote
key in an unattended vehicle.
If the vehicle is locked with a remote
key inside the vehicle, that remote
key will be disabled for starting the
vehicle and other keyless access
operations. To re-enable that remote
key, press any button on that
remote key. The remote key will
also be re-enabled when the vehicle
is started with another known
remote key, or when the vehicle is
unlocked.
To customize whether the doors
automatically lock when exiting the
vehicle, see
“Passive Door Lock”
under Vehicle Personalization
0 116.
If equipped with remote folding
mirrors, passive locking may fold
and unfold the mirrors. See Folding
Mirrors 030.
Temporary Disable of Passive
Locking
Temporarily disable passive locking
by pressing and holding
Kon the
interior door switch with a door open
for at least four seconds, or until
three chimes are heard. Passive
locking will then remain disabled
until the vehicle is turned on.
Remote Left in Vehicle Alert
When the vehicle is turned off and a
remote key is left in the vehicle, the
horn will chirp three times after both
doors are closed. To turn on or off,

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
18 Keys, Doors, and Windows

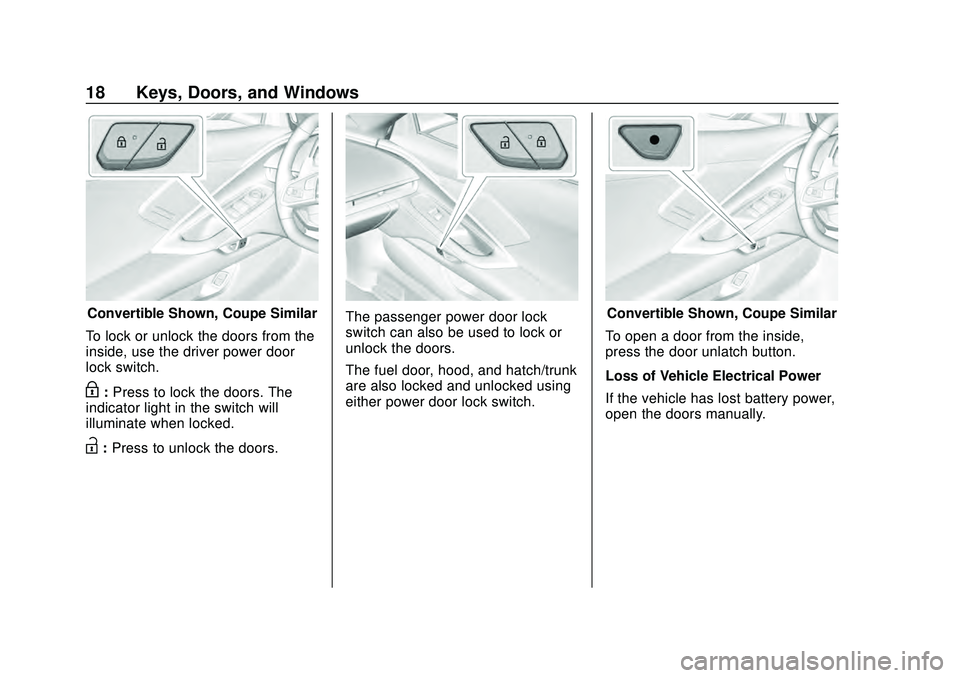

Convertible Shown, Coupe Similar
To lock or unlock the doors from the
inside, use the driver power door
lock switch.
H: Press to lock the doors. The
indicator light in the switch will
illuminate when locked.
I: Press to unlock the doors.
The passenger power door lock
switch can also be used to lock or
unlock the doors.
The fuel door, hood, and hatch/trunk
are also locked and unlocked using
either power door lock switch.Convertible Shown, Coupe Similar
To open a door from the inside,
press the door unlatch button.
Loss of Vehicle Electrical Power
If the vehicle has lost battery power,
open the doors manually.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Keys, Doors, and Windows 21
Doors
Hood
Hood Release
{Warning
Do not drive the vehicle if the
hood is not latched completely.
The hood could open fully, block
your vision, and cause a crash.
You or others could be injured.
Always close the hood completely
before driving.
The hood compartment can be
accessed in several ways.
Ensure the hood is clear of any
objects before opening.
{Warning
Turn the vehicle off before
opening the hood. If the engine is
running with the hood open, you
or others could be injured. Driver Door Hood Latch Release
Button
1. With the transmission in
P (Park), press
Eon the
bottom of the driver door to
release the hood.
2. From the front of the vehicle, lift the hood slightly until the
gas strut system automatically
raises and holds it in the fully
open position.
3. The hood light and Open Hood message will display in the
Driver Information Center (DIC)
when the hood is open. Using the Remote Key
1. Press
Etwice on the
remote key to release
the hood.
2. From the front of the vehicle, lift the hood slightly until the
gas strut system automatically
raises and holds it in the fully
open position.
3. The hood light and Open Hood message will display in the
Driver Information Center (DIC)
when the hood is open.
Front Fascia TouchPad

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
22 Keys, Doors, and Windows
1. Locate the touchpad in the grillopening near the driver side
headlamp.
2. Press the touchpad once to release the hood. The remote
key must be within 1 m (3 ft) of
the hood.
3. From the front of the vehicle, lift the hood slightly until the
gas strut system automatically
raises and holds it in the fully
open position.
4. The hood light and Open Hood message will display in the
Driver Information Center (DIC)
when the hood is open.
Opening The Hood When There Is
No Electrical Power
The manual release cable should
only be used for service and/or
emergency use, such as a loss of
vehicle electrical power.
To enter the vehicle in the event
electrical power has been lost, see
“Loss of Vehicle Electrical Power”
under Door Locks 017.
1. Locate the manual release
cable loop to the left of the
brake pedal.
2. Pull the manual release cable twice to release the hood.
3. From the front of the vehicle, lift the hood slightly until the
gas strut system automatically
raises and holds it in the fully
open position. Emergency Hood Release Button
The underhood compartment is
equipped with a glow-in-the-dark
emergency hood release button.
This button will glow following
exposure to light. Press the button
to open the hood from inside the
underhood compartment.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Keys, Doors, and Windows 23
Closing the Hood
{Warning
Do not drive the vehicle if the
hood is not latched completely.
The hood could open fully, block
your vision, and cause a crash.
You or others could be injured.
Always close the hood completely
before driving.
The hood is not heavy enough to
latch under its own weight. The
hood will remain open until the
striker is pushed into the latch.
Ensure the hood is fully latched
before taking the vehicle out of
P (Park). 1. Before closing the hood, be sure all filler caps are on
properly, and all tools are
removed.
2. Ensure that all cargo is placed away from the emergency hood
release button.
3. Pull the hood down and set the striker gently into the latch. 4. Firmly press down on the front
edge of the hood until the latch
clicks twice.
5. Check that the hood is flush to the fascia to ensure the hood is
fully closed.
Storing Your Vehicle
{Warning
The emergency hood release
button inside the underhood
compartment will not function
when the battery is disconnected
or depleted. To avoid personal
injury or death, always keep the
hood fully closed and latched
when storing the vehicle. If the
hood is not latched, a person
could climb into the underhood
compartment and inadvertently
close the hood. People should
never climb inside the underhood
compartment. Never shut the
hood when a person is inside. See
“Opening The Hood When
There Is No Electrical Power,”
earlier in this section.
Hatch (Trunk)
{Warning
Components under the hatch,
hatch vents, and glass can get
hot from running the engine. To
help avoid the risk of burning
unprotected skin, never touch
these components until they have
cooled, and always use a glove or
towel to avoid direct skin contact.
Hatch/Trunk Release
The vehicle must be in P (Park).
{Warning
When opening or closing the
hatch/trunk, keep hands away
from the closure area. You or
others could be injured.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Keys, Doors, and Windows 27
On Solid :Vehicle is secured
during the delay to arm the system.
Fast Flash : Vehicle is unsecured.
A door, the hood, or the hatch/trunk
is open.
Slow Flash : Alarm system is
armed.
Arming the Alarm System
1. Turn off the vehicle.
2. Lock the vehicle in one of three ways:
.Use the remote key.
. Use the Keyless Access
system.
. With a door open, press
Q
on the interior of the door.
3. After 30 seconds the alarm system will arm, and the
indicator light will begin to
slowly flash indicating the
alarm system is operating.
Pressing
Qon the remote key
a second time will bypass the
30-second delay and
immediately arm the alarm
system. The vehicle alarm system will not
arm if the doors are locked with the
mechanical key.
If the driver door is opened without
first unlocking with the remote key,
the horn will chirp and the lights will
flash to indicate pre-alarm. If the
vehicle is not started, or the door is
not unlocked by pressing
Kon the
remote key during the 10-second
pre-alarm, the alarm will be
activated.
The alarm will also be activated if
the passenger door, the hatch/trunk,
or the hood is opened without first
disarming the system. When the
alarm is activated, the turn signals
flash and the horn sounds for about
30 seconds. The alarm system will
then re-arm to monitor for the next
unauthorized event.
Disarming the Alarm System
To disarm the alarm system or turn
off the alarm if it has been activated,
do one of the following:
. Press
Kon the remote key. .
Unlock the vehicle using the
Keyless Access system.
. Start the vehicle.
To avoid setting off the alarm by
accident:
. Lock the vehicle after all
occupants have left the vehicle
and both doors are closed.
. Always unlock a door with the
remote key or use the Keyless
Access system.
Unlocking the driver door with the
key will not disarm the system or
turn off the alarm.
How to Detect a Tamper
Condition
IfKis pressed on the remote key
and the horn chirps and the lights
flash three times, a previous alarm
occurred while the system was
armed.
If the alarm has been activated, a
message will appear on the DIC.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

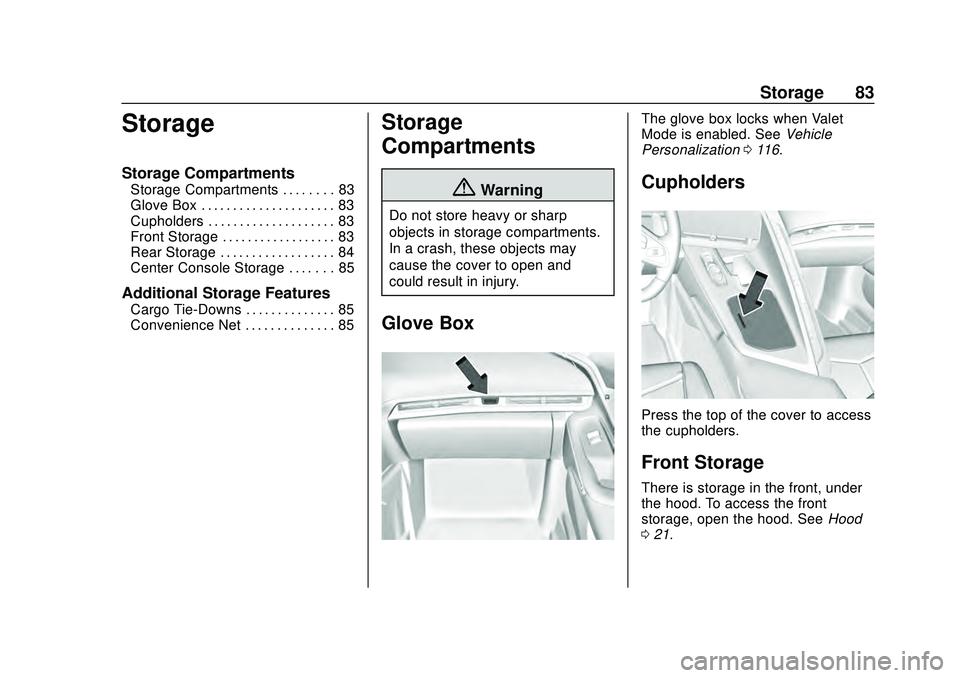

Storage 83
Storage
Storage Compartments
Storage Compartments . . . . . . . . 83
Glove Box . . . . . . . . . . . . . . . . . . . . . 83
Cupholders . . . . . . . . . . . . . . . . . . . . 83
Front Storage . . . . . . . . . . . . . . . . . . 83
Rear Storage . . . . . . . . . . . . . . . . . . 84
Center Console Storage . . . . . . . 85
Additional Storage Features
Cargo Tie-Downs . . . . . . . . . . . . . . 85
Convenience Net . . . . . . . . . . . . . . 85
Storage
Compartments
{Warning
Do not store heavy or sharp
objects in storage compartments.
In a crash, these objects may
cause the cover to open and
could result in injury.
Glove Box
The glove box locks when Valet
Mode is enabled. SeeVehicle
Personalization 0116.
Cupholders
Press the top of the cover to access
the cupholders.
Front Storage
There is storage in the front, under
the hood. To access the front
storage, open the hood. See Hood
0 21.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
88 Instruments and Controls
INT :Move the lever up to INT for
intermittent wipes, then turn the
N
band up for more frequent wipes or
down for less frequent wipes.
OFF : Use to turn the wipers off.
1X : For a single wipe, briefly move
the wiper lever down. For several
wipes, hold the wiper lever down.
f: Pull the windshield wiper
lever toward you to spray washer
fluid and activate the wipers. The
wipers will continue until the lever is
released or the maximum wash time
is reached. When the lever is
released, additional wipes may
occur depending on how long the
windshield washer had been
activated. See Washer Fluid0231
for information on filling the
windshield washer fluid reservoir. Clear snow and ice from the wiper
blades and windshield before using
them. If frozen to the windshield,
carefully loosen or thaw them.
Damaged blades should be
replaced. See
Wiper Blade
Replacement 0236.
Heavy snow or ice can overload the
wiper motor.
{Warning
In freezing weather, do not use
the washer until the windshield is
warmed. Otherwise the washer
fluid can form ice on the
windshield, blocking your vision.
{Warning
Before driving the vehicle, always
clear snow and ice from the hood,
windshield, roof, and rear of the
vehicle, including all lamps and
windows. Reduced visibility from
snow and ice buildup could lead
to a crash. Wiper Parking
If the ignition is turned off while the
wipers are on LO, HI, or INT, they
will immediately stop.
If the windshield wiper lever is then
moved to OFF before the driver
door is opened or within 10 minutes,
the wipers will restart and move to
the base of the windshield.
If the ignition is turned off while the
wipers are performing wipes due to
windshield washing, the wipers
continue to run until they reach the
base of the windshield.
Compass
The vehicle may have a compass
display on the center stack. The
compass receives its heading and
other information from the Global
Positioning System (GPS) antenna,
Electronic Stability Control, and
vehicle speed information.
The compass system is designed to
operate for a certain number of
miles or degrees of turn before
needing a signal from the GPS
satellites. When the compass

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Instruments and Controls 89
display shows CAL, drive the
vehicle for a short distance in an
open area where it can receive a
GPS signal. The compass system
will automatically determine when a
GPS signal is restored and provide
a heading again.
Clock
The time and date for the clock can
be set using the infotainment
system. See“Time/Date”in
“System” under“Settings” in the
infotainment manual.
Power Outlets
There are two accessory power
outlets:
Interior Power OutletUnderhood Power Outlet
The outlet under the glove box can
be used to plug in electrical
equipment, such as a cell phone.
Lift the cover to access and replace
when not in use.
The power outlet under the glove
box is powered when the ignition is
on or in ACC/ACCESSORY, or until
the driver door is opened within
10 minutes of turning off the vehicle.
See Retained Accessory Power
(RAP) 0168.
The underhood outlet is powered at
all times. The vehicle battery may
run down if the power outlet is used
