CHEVROLET CRUZE 2011 1.G User Guide
Manufacturer: CHEVROLET, Model Year: 2011, Model line: CRUZE, Model: CHEVROLET CRUZE 2011 1.GPages: 394, PDF Size: 6.89 MB
Page 11 of 394
Black plate (5,1)Chevrolet Cruze Owner Manual - 2011
In Brief 1-5
Press and holdVbriefly to open
the trunk.
Press and hold
7briefly to locate
the vehicle.
Press and hold
7for at least
two seconds to sound the panic
alarm.
Press
7again to cancel the panic
alarm.
See Keys on page 2‑2 andRemote
Keyless Entry (RKE) System
Operation on page 2‑3.
Remote Vehicle Start
For vehicles with this feature, the
engine can be started from outside
of the vehicle.
Starting the Vehicle
1. Aim the Remote Keyless Entry transmitter at the vehicle.
2. Press
Q. 3. Immediately after completing
Step 2, press and hold
/until
the turn signal lamps flash, or for
about 2 seconds if the vehicle is
not in view.
When the vehicle starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on.
The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start:
.Aim the RKE transmitter at the
vehicle and press and hold
/
until the parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
See Remote Vehicle Start on
page 2‑5.
Door Locks
To lock or unlock a door from
outside the vehicle, use the Remote
Keyless Entry (RKE) transmitter.
From inside the vehicle, use the
power door lock switch.
See Door Locks on page 2‑6.
Power Door Locks
The power door lock switches are
located on the instrument panel.
K:Press to unlock the doors.
Q:Press to lock the doors.
See Power Door Locks on page 2‑7.
Safety Locks
Safety locks will lock the rear
windows and not allow the rear
doors to be opened from the inside.
Page 12 of 394
Black plate (6,1)Chevrolet Cruze Owner Manual - 2011
1-6 In Brief
Pressvto activate the safety locks
on the rear doors. The LED will
illuminate.
This switch also disables the power
window controls on the rear doors.
Press
vagain to deactivate the
safety locks on the rear doors. The
LED will turn off.
If the LED flashes, the feature may
not be working properly.
See Safety Locks on page 2‑7.
Seat Adjustment
Manual Front Seats
To adjust a manual seat:
1. Pull the handle at the front of
the seat.
2. Slide the seat to the desired position and release the handle.
3. Try to move the seat back and forth to be sure it is locked in
place. Seat Height Adjuster
If available, move the lever up or
down to manually raise or lower
the seat.
Page 13 of 394
Black plate (7,1)Chevrolet Cruze Owner Manual - 2011
In Brief 1-7
Seat Cushion Tilt Feature
If available, move the lever up or
down to raise or lower the front of
the seat cushion.
SeeSeat Adjustment on page 3‑3. Reclining SeatbacksTo recline the seatback:
1. Lift the lever.
2. Move the seatback to the
desired position, then release
the lever to lock the seatback in
place.
3. Push and pull on the seatback to make sure it is locked. To return the seatback to an upright
position:
1. Lift the lever fully without
applying pressure to the
seatback, and the seatback
returns to the upright position.
2. Push and pull on the seatback to make sure it is locked.
See Reclining Seatbacks on
page 3‑5.
Page 14 of 394
Black plate (8,1)Chevrolet Cruze Owner Manual - 2011
1-8 In Brief
Power Driver Seat
To adjust a power driver seat,
if equipped:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the entire seat by
moving the rear of the control up
or down.See
Power Seat Adjustment on
page 3‑4.
Rear Seats
The rear seatbacks can be folded.
For detailed instructions, see Rear
Seats on page 3‑8.
Heated Seats
On vehicles with heated front seats,
the controls are on the center
console. The engine must be
running to operate the heated seats. Press
LorMto heat the driver or
passenger seat cushion and
seatback.
Press the control once for the
highest setting. With each press of
the control, the heated seat will
change to the next lower setting,
and then the off setting. Three lights
indicate the highest setting and one
light the lowest.
See Heated Front Seats on
page 3‑7 for more information.
Page 15 of 394
Black plate (9,1)Chevrolet Cruze Owner Manual - 2011
In Brief 1-9

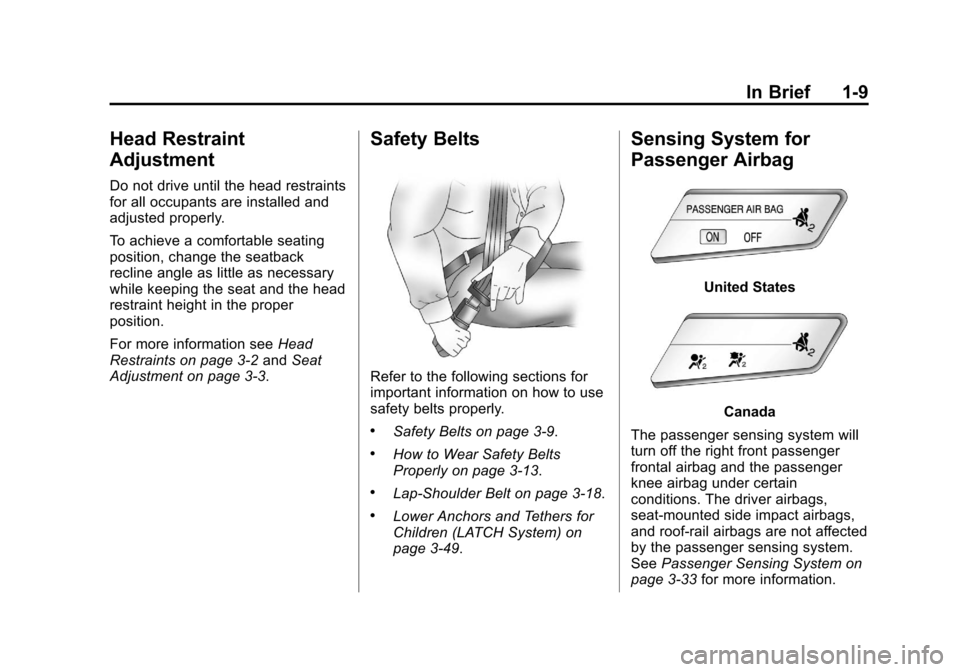

Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
For more information seeHead
Restraints on page 3‑2 andSeat
Adjustment on page 3‑3.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly.
.Safety Belts on page 3‑9.
.How to Wear Safety Belts
Properly on page 3‑13.
.Lap-Shoulder Belt on page 3‑18.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑49.
Sensing System for
Passenger Airbag
United States
Canada
The passenger sensing system will
turn off the right front passenger
frontal airbag and the passenger
knee airbag under certain
conditions. The driver airbags,
seat‐mounted side impact airbags,
and roof‐rail airbags are not affected
by the passenger sensing system.
See Passenger Sensing System on
page 3‑33 for more information.
Page 16 of 394
Black plate (10,1)Chevrolet Cruze Owner Manual - 2011
1-10 In Brief
The passenger airbag status
indicator will be visible on the
instrument panel when the vehicle is
started. SeePassenger Airbag
Status Indicator on page 5‑12.
Mirror Adjustment
Exterior
Controls for the outside power
mirrors are on the driver door.
1. Turn the selector switch to L (left) or R (right) to choose the
driver or passenger mirror. 2. Move the control to adjust the
mirror.
3. Turn the selector switch to the O position to deselect the mirror.
See Power Mirrors on page 2‑12.
If the vehicle has heated mirrors,
see Heated Mirrors on page 2‑12.Vehicles with a manual mirror
adjustment have controls next to
each mirror.
See Manual Mirrors on page 2‑11.
Interior
Adjust the inside rearview mirror by
moving it up and down or side to
side. Adjust the mirror to avoid glare
from the headlamps behind you.
Push the tab forward for daytime
use and pull it for nighttime use.
SeeManual Rearview Mirror on
page 2‑12.
The vehicle may have an automatic
dimming inside rearview mirror.
Automatic dimming reduces the
glare of lights from behind the
vehicle. The dimming feature and
indicator light come on each time
the vehicle is started.
See Automatic Dimming Rearview
Mirror on page 2‑13.
Page 17 of 394
Black plate (11,1)Chevrolet Cruze Owner Manual - 2011
In Brief 1-11
Steering Wheel
Adjustment
To adjust the steering wheel:
1. Pull the lever (A) down.
2. Move the steering wheel upor down.
3. Pull or push the steering wheel closer or away from you.
4. Push the lever (A) up to lock the steering wheel in place.
Do not adjust the steering wheel
while driving.
Interior Lighting
Dome Lamps
The dome lamp controls are located
in the overhead console.
(: Press to turn the lamps off,
even when a door is open.
H: Press to turn the lamps on
automatically when a door is
opened.
': Press to turn on the dome
lamps. Reading Lamps
The reading lamps are located in
the overhead console.
#/$:
Press the button near
each lamp to turn it on or off.
Page 18 of 394
Black plate (12,1)Chevrolet Cruze Owner Manual - 2011
1-12 In Brief
Instrument Panel Illumination
Control
This feature controls the brightness
of the instrument panel controls and
infotainment display screen. The
thumbwheel is located to the left of
the steering column on the
instrument panel.
D(Instrument Panel
Brightness): Turn the thumbwheel
up or down and hold, to brighten or
dim the instrument panel controls
and infotainment display screen.
Exterior Lighting
The exterior lamps control is located
on the instrument panel to the
outboard side of the steering
column.
O: Briefly turn to this position to
turn the automatic light control off or
on again.
AUTO: Turns the headlamps on
automatically at normal brightness,
together with the parking lamps,
taillamps, license plate lamps, side
marker lamps, and instrument panel
lights.
;: Turns on the parking lamps,
taillamps, license plate lamps, side
marker lamps, and instrument panel
lights.
5: Turns on the headlamps,
parking lamps, taillamps, license
plate lamps, side marker lamps, and
instrument panel lights. A warning
chime sounds if the driver door is
opened when the ignition switch is
off and the headlamps are on.
#: For vehicles with fog lamps,
press to turn the lamps on or off.
For more information, see:
.Exterior Lamp Controls on
page 6‑1.
.Daytime Running Lamps (DRL)
on page 6‑2.
.Front Fog Lamps on page 6‑4.
Page 19 of 394
Black plate (13,1)Chevrolet Cruze Owner Manual - 2011
In Brief 1-13
Windshield Wiper/Washer
With the ignition in ACC/
ACCESSORY or ON/RUN, move
the windshield wiper lever to select
the wiper speed.
2:Fast wipes.
1: Slow wipes.
&:Turn the band up for more
frequent wipes or down for less
frequent wipes.
9: Turns the windshield
wipers off.
3: Single wipe, briefly move the
wiper lever down. Several wipes,
hold the wiper lever down.
Windshield Washer
Pull the windshield wiper lever
toward you to spray windshield
washer fluid and activate the wipers.
The wipers will continue until the
lever is released or the maximum
wash time is reached.
See Windshield Wiper/Washer on
page 5‑3.
Page 20 of 394
Black plate (14,1)Chevrolet Cruze Owner Manual - 2011
1-14 In Brief
Climate Controls
The heating, cooling, defrosting, and
ventilation for the vehicle can be
controlled with these systems.
Vehicles Without Air Conditioning
A. Temperature Control
B. Bi-level Air Mode
C. Floor Air Mode
D. Vent Air Mode
E. Fan Control
F. Driver and Passenger HeatedSeats (If Equipped) G. Rear Window Defogger
H. Defog
I. Defrost
Vehicles With Air ConditioningA. Temperature Control
B. Bi-level Air Mode
C. Floor Air Mode
D. Vent Air Mode
E. Fan Control
F. Driver and Passenger Heated
Seats (If Equipped) G. Rear Window Defogger
H. Recirculation
I. Defog
J. Air Conditioning
K. Defrost
Automatic Climate Control System
A. Temperature Control
B. Rear Window Defogger
C. AUTO
D. Defrost
E. Fan Control
