CHEVROLET EQUINOX 2007 1.G Owners Manual

Service Vehicle Soon Light
This light will come on
if a condition exists
that may require
the vehicle to be taken
in for service.
If the light comes on, see your dealer for service
as soon as possible.
Fuel Gage
When the ignition
is on, the fuel gage
tells you about
how much fuel you
have left in your tank.When the indicator nears empty, the low fuel light
will come on. You still have a little fuel left, but
you should get more soon. SeeLow Fuel Warning
Light on page 192for more information.
Here are four things that some owners ask about.
None of these show a problem with your fuel gage:
At the service station, the fuel pump shuts off
before the gage reads full.
It takes a little more or less fuel to ll up than
the gage indicated. For example, the gage may
have indicated the tank was half full, but it
actually took a little more or less than half the
tank’s capacity to ll the tank.
The gage moves a little when you turn a corner
or speed up.
The gage takes a few seconds to stabilize after
the ignition is turned on, and will go back to
empty when you turn the ignition off.
For your fuel tank capacity, seeCapacities and
Specications on page 434.
191

Low Fuel Warning Light
The light below the fuel
gage will come on
briey when you are
starting the engine.
This light also comes on when the fuel tank is low
on fuel. When you add fuel the light should go
off. If it does not, have your vehicle serviced.
Driver Information Center (DIC)
Your vehicle has a Driver Information Center (DIC).
All messages will appear in the DIC display
located in the center of the instrument panel
cluster. The DIC buttons are located on the
center of the instrument panel.
The DIC comes on when the ignition is on. After
a short delay, the DIC will display the information
that was last displayed before the engine was
turned off.The DIC displays trip, fuel, and vehicle system
information, and warning messages if a system
problem is detected. The top of the DIC display
shows the shift lever position indicator. See
Automatic Transaxle Operation on page 119for
more information.
If your vehicle has this feature, the DIC also
displays the outside air temperature when viewing
the trip and fuel information. If there is a problem
with the system that controls the temperature
display, the numbers will be replaced with dashes.
If this occurs, have the vehicle serviced by your
dealer. If an abnormal temperature reading is
displayed for an extended period of time, consult
your dealer. Under certain circumstances,
especially when the engine is idling, a delay
updating the temperature display is normal.
The DIC also allows some features to be
personalized. SeeDIC Vehicle Personalization
on page 207for more information.
192

DIC Operation and Displays
The DIC has different displays which can be
accessed by pressing the DIC buttons located
on the center of the instrument panel.
DIC Buttons
The buttons are the trip/fuel, vehicle information,
and set/reset buttons. The button functions
are detailed in the following pages.
3(Trip/Fuel):Press this button to scroll
through the trip and fuel displays. See “Trip/Fuel
Menu Items” following for more information
on these displays.
T(Vehicle Information):Press this button to
scroll through the vehicle information displays
and to personalize the feature settings on
your vehicle. See “Vehicle Information Menu
Items” following andDIC Vehicle Personalization
on page 207for more information on these
displays.
V(Set/Reset):Press this button to set or reset
certain functions and to turn off or acknowledge
messages on the DIC.
Trip/Fuel Menu Items
3
(Trip/Fuel):Press this button to scroll
through the following displays:
ODOMETER
Press the trip/fuel button until ODOMETER
displays. This display shows the distance the
vehicle has been driven in either miles (mi)
or kilometers (km). This display will also show
the outside air temperature in either degrees
Fahrenheit (°F) or degrees Celsius (°C).
To change the DIC display to English or metric
units, see “UNITS” later in this section.
193

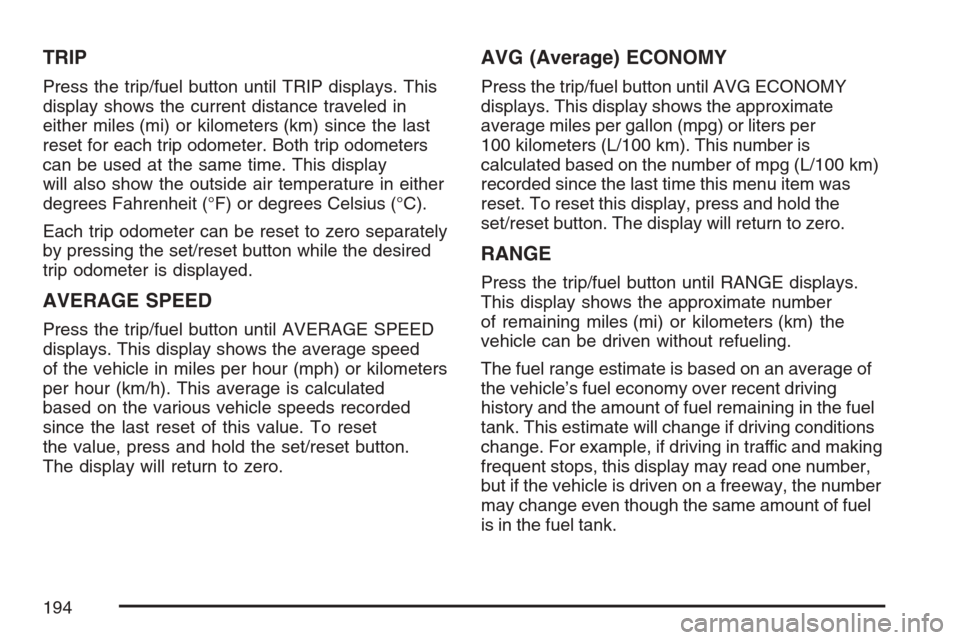

TRIP
Press the trip/fuel button until TRIP displays. This
display shows the current distance traveled in
either miles (mi) or kilometers (km) since the last
reset for each trip odometer. Both trip odometers
can be used at the same time. This display
will also show the outside air temperature in either
degrees Fahrenheit (°F) or degrees Celsius (°C).
Each trip odometer can be reset to zero separately
by pressing the set/reset button while the desired
trip odometer is displayed.
AVERAGE SPEED
Press the trip/fuel button until AVERAGE SPEED
displays. This display shows the average speed
of the vehicle in miles per hour (mph) or kilometers
per hour (km/h). This average is calculated
based on the various vehicle speeds recorded
since the last reset of this value. To reset
the value, press and hold the set/reset button.
The display will return to zero.
AVG (Average) ECONOMY
Press the trip/fuel button until AVG ECONOMY
displays. This display shows the approximate
average miles per gallon (mpg) or liters per
100 kilometers (L/100 km). This number is
calculated based on the number of mpg (L/100 km)
recorded since the last time this menu item was
reset. To reset this display, press and hold the
set/reset button. The display will return to zero.
RANGE
Press the trip/fuel button until RANGE displays.
This display shows the approximate number
of remaining miles (mi) or kilometers (km) the
vehicle can be driven without refueling.
The fuel range estimate is based on an average of
the vehicle’s fuel economy over recent driving
history and the amount of fuel remaining in the fuel
tank. This estimate will change if driving conditions
change. For example, if driving in traffic and making
frequent stops, this display may read one number,
but if the vehicle is driven on a freeway, the number
may change even though the same amount of fuel
is in the fuel tank.
194

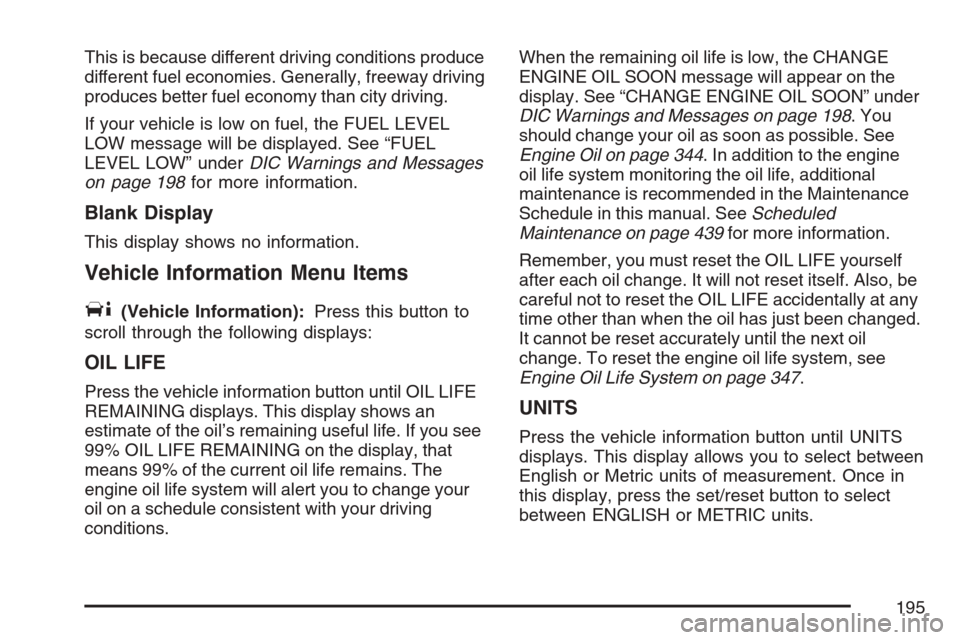

This is because different driving conditions produce
different fuel economies. Generally, freeway driving
produces better fuel economy than city driving.
If your vehicle is low on fuel, the FUEL LEVEL
LOW message will be displayed. See “FUEL
LEVEL LOW” underDIC Warnings and Messages
on page 198for more information.
Blank Display
This display shows no information.
Vehicle Information Menu Items
T
(Vehicle Information):Press this button to
scroll through the following displays:
OIL LIFE
Press the vehicle information button until OIL LIFE
REMAINING displays. This display shows an
estimate of the oil’s remaining useful life. If you see
99% OIL LIFE REMAINING on the display, that
means 99% of the current oil life remains. The
engine oil life system will alert you to change your
oil on a schedule consistent with your driving
conditions.When the remaining oil life is low, the CHANGE
ENGINE OIL SOON message will appear on the
display. See “CHANGE ENGINE OIL SOON” under
DIC Warnings and Messages on page 198. You
should change your oil as soon as possible. See
Engine Oil on page 344. In addition to the engine
oil life system monitoring the oil life, additional
maintenance is recommended in the Maintenance
Schedule in this manual. SeeScheduled
Maintenance on page 439for more information.
Remember, you must reset the OIL LIFE yourself
after each oil change. It will not reset itself. Also, be
careful not to reset the OIL LIFE accidentally at any
time other than when the oil has just been changed.
It cannot be reset accurately until the next oil
change. To reset the engine oil life system, see
Engine Oil Life System on page 347.UNITS
Press the vehicle information button until UNITS
displays. This display allows you to select between
English or Metric units of measurement. Once in
this display, press the set/reset button to select
between ENGLISH or METRIC units.
195

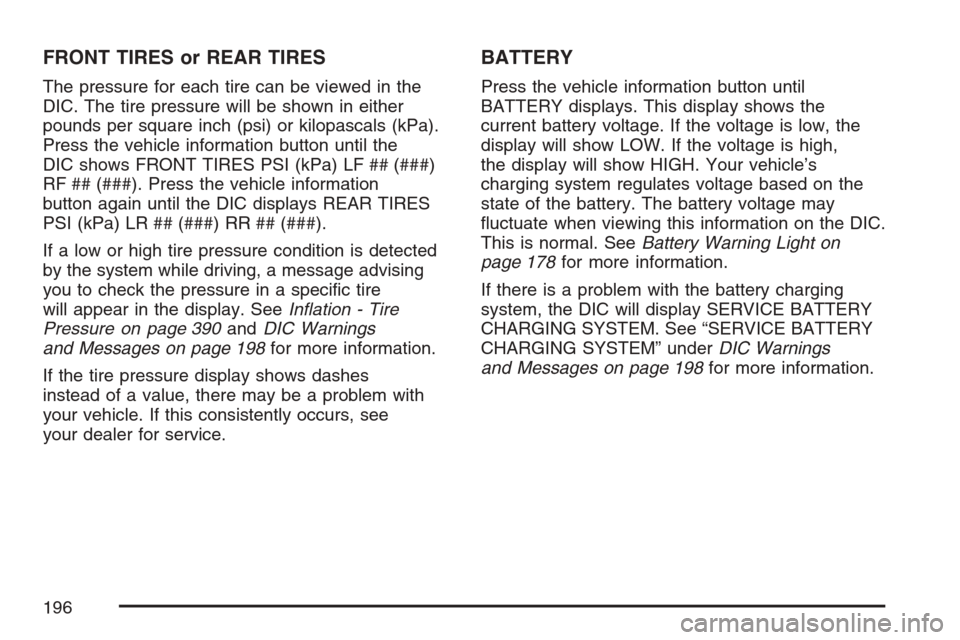

FRONT TIRES or REAR TIRES
The pressure for each tire can be viewed in the
DIC. The tire pressure will be shown in either
pounds per square inch (psi) or kilopascals (kPa).
Press the vehicle information button until the
DIC shows FRONT TIRES PSI (kPa) LF ## (###)
RF ## (###). Press the vehicle information
button again until the DIC displays REAR TIRES
PSI (kPa) LR ## (###) RR ## (###).
If a low or high tire pressure condition is detected
by the system while driving, a message advising
you to check the pressure in a specic tire
will appear in the display. SeeInation - Tire
Pressure on page 390andDIC Warnings
and Messages on page 198for more information.
If the tire pressure display shows dashes
instead of a value, there may be a problem with
your vehicle. If this consistently occurs, see
your dealer for service.
BATTERY
Press the vehicle information button until
BATTERY displays. This display shows the
current battery voltage. If the voltage is low, the
display will show LOW. If the voltage is high,
the display will show HIGH. Your vehicle’s
charging system regulates voltage based on the
state of the battery. The battery voltage may
uctuate when viewing this information on the DIC.
This is normal. SeeBattery Warning Light on
page 178for more information.
If there is a problem with the battery charging
system, the DIC will display SERVICE BATTERY
CHARGING SYSTEM. See “SERVICE BATTERY
CHARGING SYSTEM” underDIC Warnings
and Messages on page 198for more information.
196

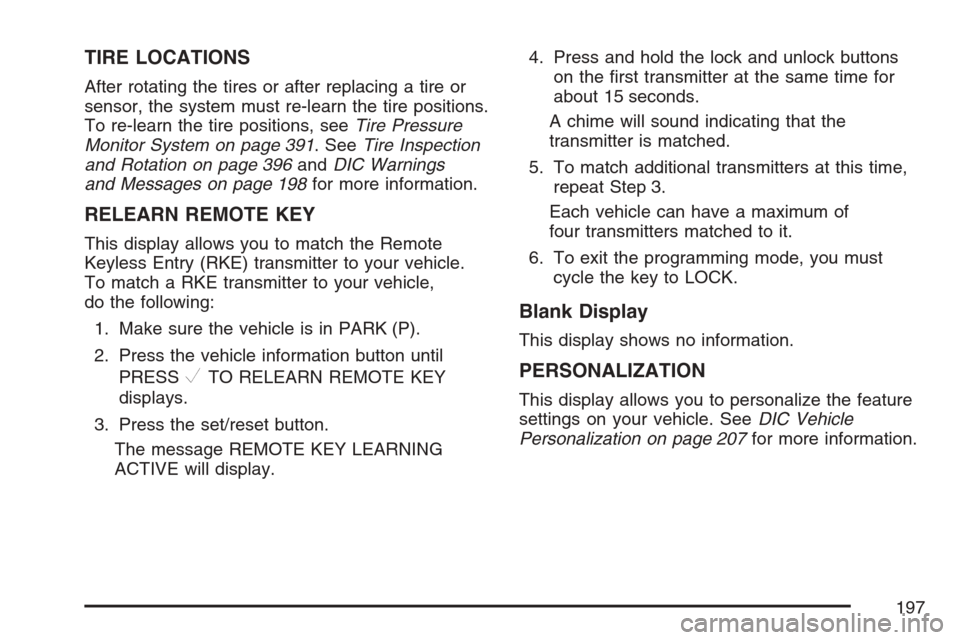

TIRE LOCATIONS
After rotating the tires or after replacing a tire or
sensor, the system must re-learn the tire positions.
To re-learn the tire positions, seeTire Pressure
Monitor System on page 391. SeeTire Inspection
and Rotation on page 396andDIC Warnings
and Messages on page 198for more information.
RELEARN REMOTE KEY
This display allows you to match the Remote
Keyless Entry (RKE) transmitter to your vehicle.
To match a RKE transmitter to your vehicle,
do the following:
1. Make sure the vehicle is in PARK (P).
2. Press the vehicle information button until
PRESS
VTO RELEARN REMOTE KEY
displays.
3. Press the set/reset button.
The message REMOTE KEY LEARNING
ACTIVE will display.4. Press and hold the lock and unlock buttons
on the rst transmitter at the same time for
about 15 seconds.
A chime will sound indicating that the
transmitter is matched.
5. To match additional transmitters at this time,
repeat Step 3.
Each vehicle can have a maximum of
four transmitters matched to it.
6. To exit the programming mode, you must
cycle the key to LOCK.
Blank Display
This display shows no information.
PERSONALIZATION
This display allows you to personalize the feature
settings on your vehicle. SeeDIC Vehicle
Personalization on page 207for more information.
197

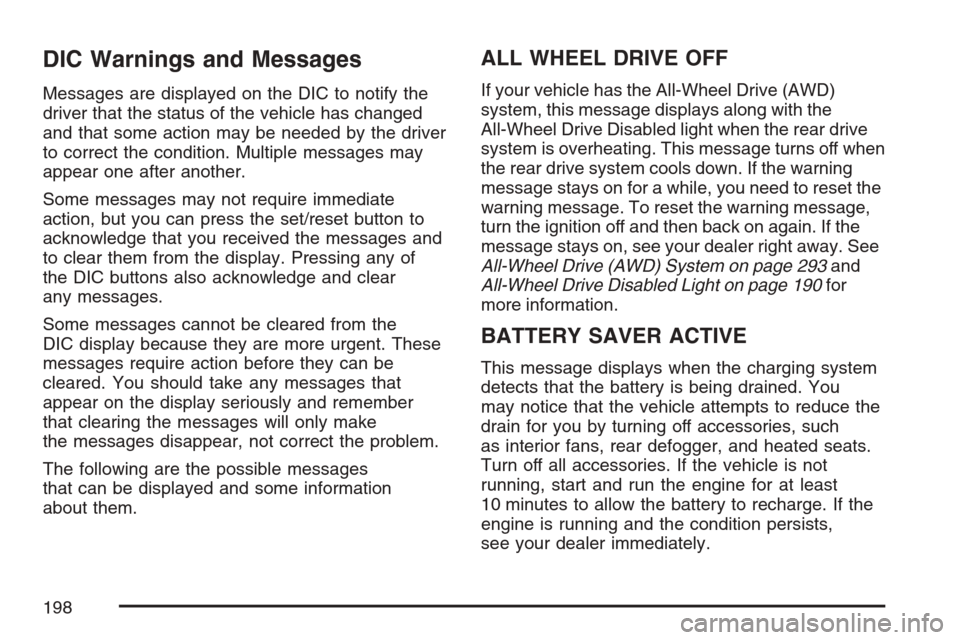

DIC Warnings and Messages
Messages are displayed on the DIC to notify the
driver that the status of the vehicle has changed
and that some action may be needed by the driver
to correct the condition. Multiple messages may
appear one after another.
Some messages may not require immediate
action, but you can press the set/reset button to
acknowledge that you received the messages and
to clear them from the display. Pressing any of
the DIC buttons also acknowledge and clear
any messages.
Some messages cannot be cleared from the
DIC display because they are more urgent. These
messages require action before they can be
cleared. You should take any messages that
appear on the display seriously and remember
that clearing the messages will only make
the messages disappear, not correct the problem.
The following are the possible messages
that can be displayed and some information
about them.
ALL WHEEL DRIVE OFF
If your vehicle has the All-Wheel Drive (AWD)
system, this message displays along with the
All-Wheel Drive Disabled light when the rear drive
system is overheating. This message turns off when
the rear drive system cools down. If the warning
message stays on for a while, you need to reset the
warning message. To reset the warning message,
turn the ignition off and then back on again. If the
message stays on, see your dealer right away. See
All-Wheel Drive (AWD) System on page 293and
All-Wheel Drive Disabled Light on page 190for
more information.
BATTERY SAVER ACTIVE
This message displays when the charging system
detects that the battery is being drained. You
may notice that the vehicle attempts to reduce the
drain for you by turning off accessories, such
as interior fans, rear defogger, and heated seats.
Turn off all accessories. If the vehicle is not
running, start and run the engine for at least
10 minutes to allow the battery to recharge. If the
engine is running and the condition persists,
see your dealer immediately.
198

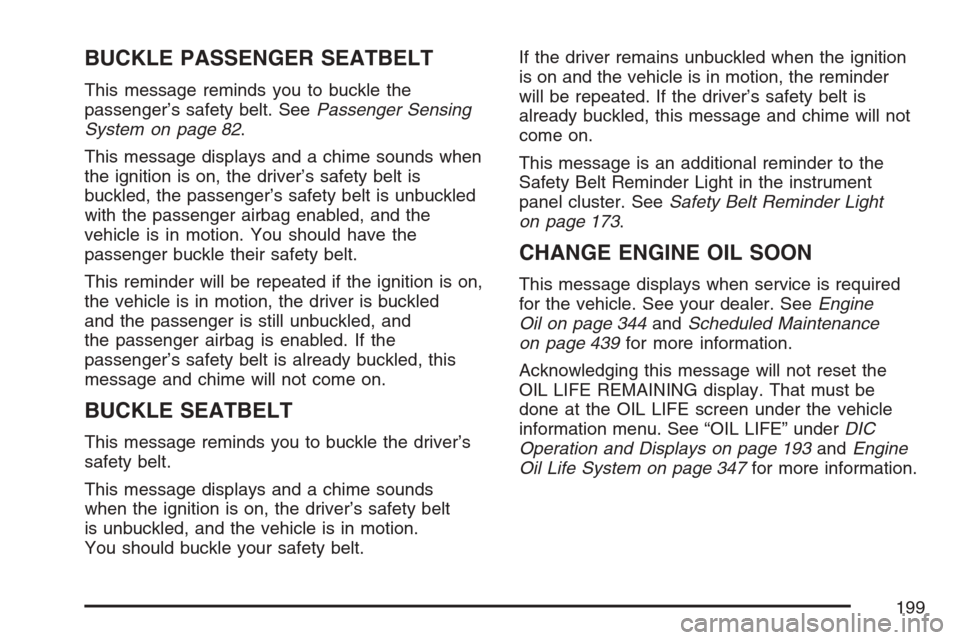

BUCKLE PASSENGER SEATBELT
This message reminds you to buckle the
passenger’s safety belt. SeePassenger Sensing
System on page 82.
This message displays and a chime sounds when
the ignition is on, the driver’s safety belt is
buckled, the passenger’s safety belt is unbuckled
with the passenger airbag enabled, and the
vehicle is in motion. You should have the
passenger buckle their safety belt.
This reminder will be repeated if the ignition is on,
the vehicle is in motion, the driver is buckled
and the passenger is still unbuckled, and
the passenger airbag is enabled. If the
passenger’s safety belt is already buckled, this
message and chime will not come on.
BUCKLE SEATBELT
This message reminds you to buckle the driver’s
safety belt.
This message displays and a chime sounds
when the ignition is on, the driver’s safety belt
is unbuckled, and the vehicle is in motion.
You should buckle your safety belt.If the driver remains unbuckled when the ignition
is on and the vehicle is in motion, the reminder
will be repeated. If the driver’s safety belt is
already buckled, this message and chime will not
come on.
This message is an additional reminder to the
Safety Belt Reminder Light in the instrument
panel cluster. SeeSafety Belt Reminder Light
on page 173.
CHANGE ENGINE OIL SOON
This message displays when service is required
for the vehicle. See your dealer. SeeEngine
Oil on page 344andScheduled Maintenance
on page 439for more information.
Acknowledging this message will not reset the
OIL LIFE REMAINING display. That must be
done at the OIL LIFE screen under the vehicle
information menu. See “OIL LIFE” underDIC
Operation and Displays on page 193andEngine
Oil Life System on page 347for more information.
199

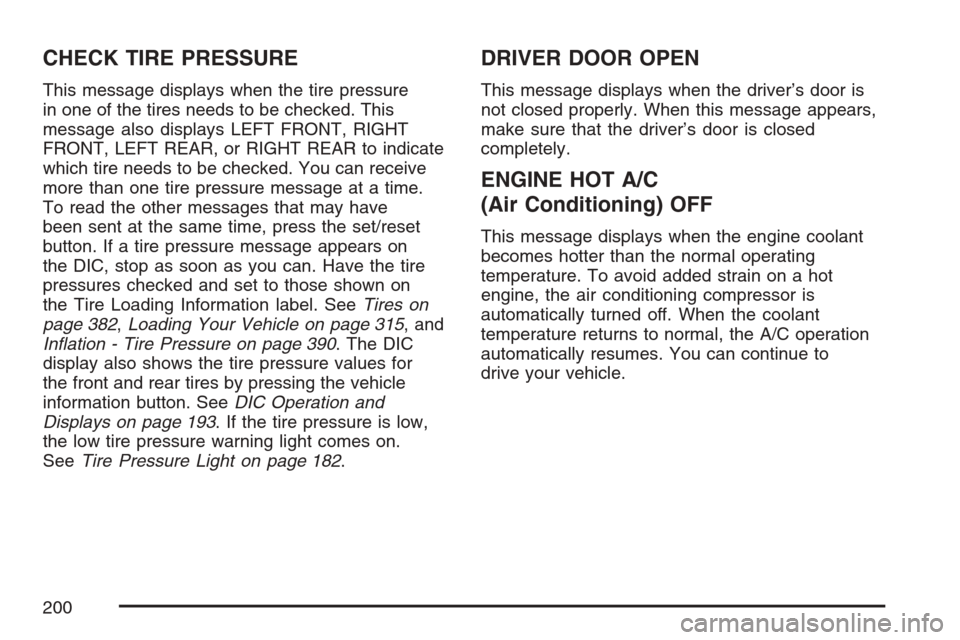

CHECK TIRE PRESSURE
This message displays when the tire pressure
in one of the tires needs to be checked. This
message also displays LEFT FRONT, RIGHT
FRONT, LEFT REAR, or RIGHT REAR to indicate
which tire needs to be checked. You can receive
more than one tire pressure message at a time.
To read the other messages that may have
been sent at the same time, press the set/reset
button. If a tire pressure message appears on
the DIC, stop as soon as you can. Have the tire
pressures checked and set to those shown on
the Tire Loading Information label. SeeTires on
page 382,Loading Your Vehicle on page 315, and
Ination - Tire Pressure on page 390. The DIC
display also shows the tire pressure values for
the front and rear tires by pressing the vehicle
information button. SeeDIC Operation and
Displays on page 193. If the tire pressure is low,
the low tire pressure warning light comes on.
SeeTire Pressure Light on page 182.
DRIVER DOOR OPEN
This message displays when the driver’s door is
not closed properly. When this message appears,
make sure that the driver’s door is closed
completely.
ENGINE HOT A/C
(Air Conditioning) OFF
This message displays when the engine coolant
becomes hotter than the normal operating
temperature. To avoid added strain on a hot
engine, the air conditioning compressor is
automatically turned off. When the coolant
temperature returns to normal, the A/C operation
automatically resumes. You can continue to
drive your vehicle.
200
