CHEVROLET EXPRESS 1996 1.G Owners Manual

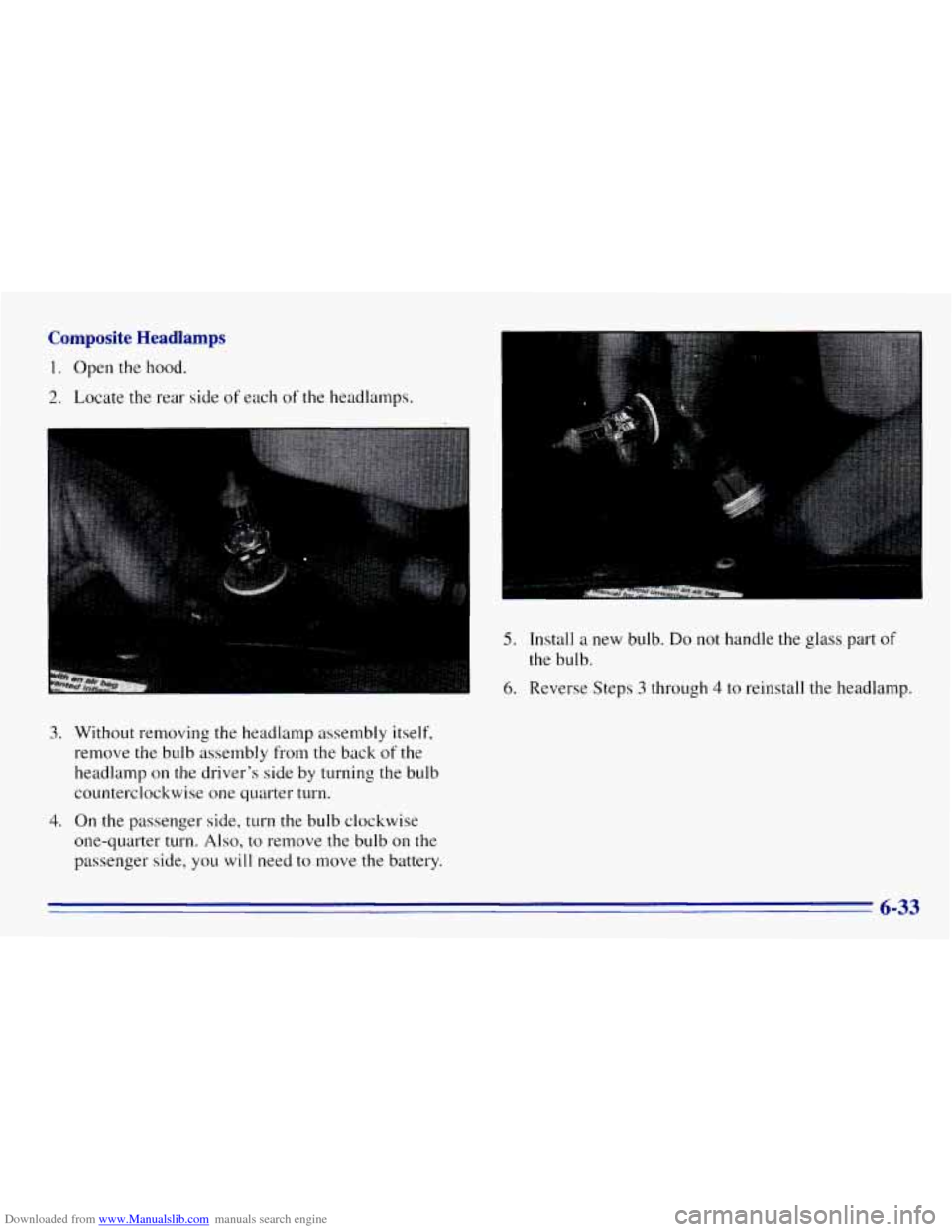

Downloaded from www.Manualslib.com manuals search engine Composite Headlamps
1. Open the hood.
2. Locate the rear side of each of the headlamps.
3. Without removing the headlamp assembly itself,
remove the bulb assembly from the back of the
headlamp on the driver's side by turning the bulb
counterclockwise one quarter turn.
4. On the passenger side, turn the bulb clockwise
one-quarter turn. Also, to remove the bulb on the
passenger side,
you will need to move the battery.
5. Install a new bulb. Do not handle the glass part of
the bulb.
6. Reverse Steps 3 through 4 to reinstall the headlamp.
6-33

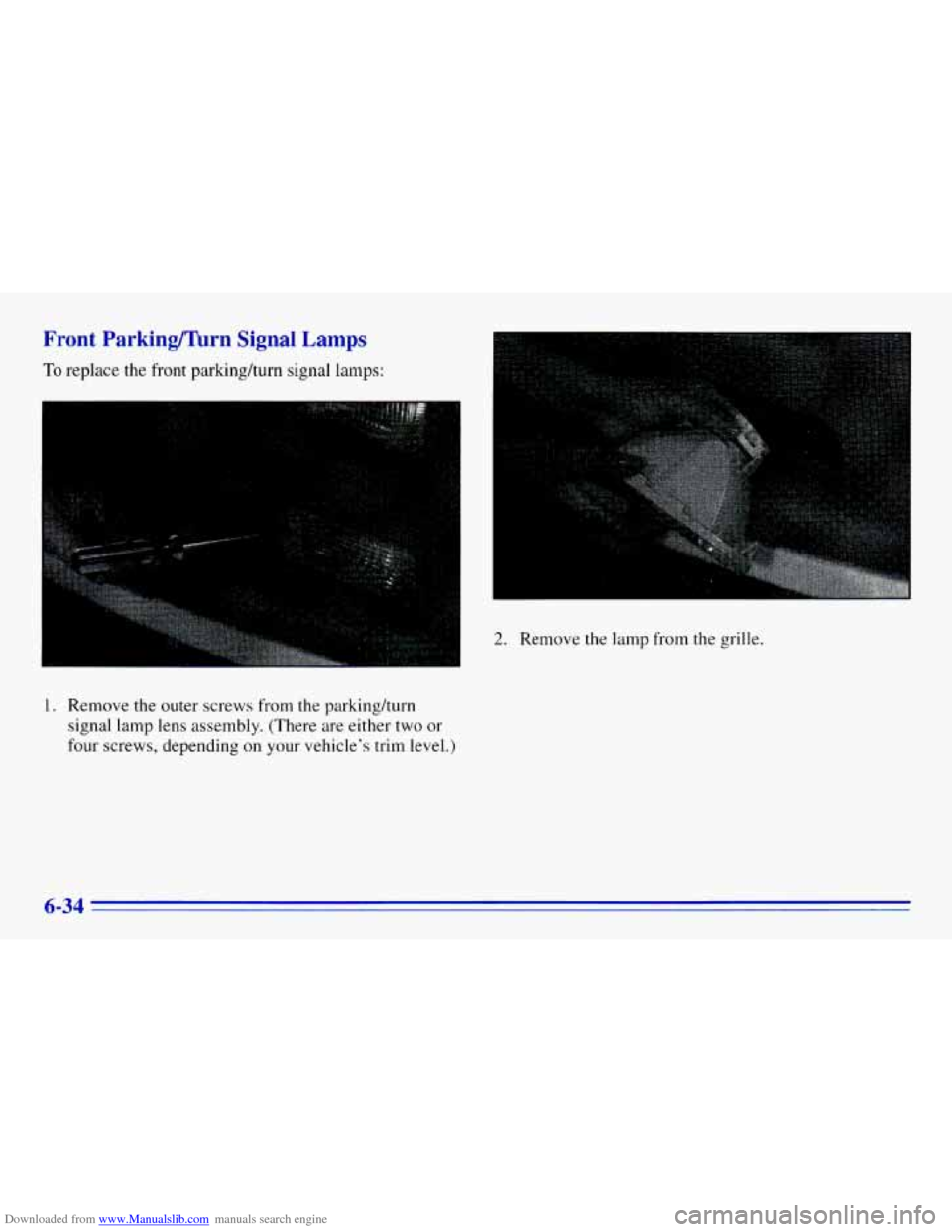

Downloaded from www.Manualslib.com manuals search engine Front Parking/Turn Signal Lamps
To replace the front parkingkurn signal lamps:
1. Remove the outer screws from the parkinghrn
signal lamp lens assembly. (There are either two
or
four screws, depending on your vehicle’s trim level.)
L
2. Remove the lamp from the grille.
6-34

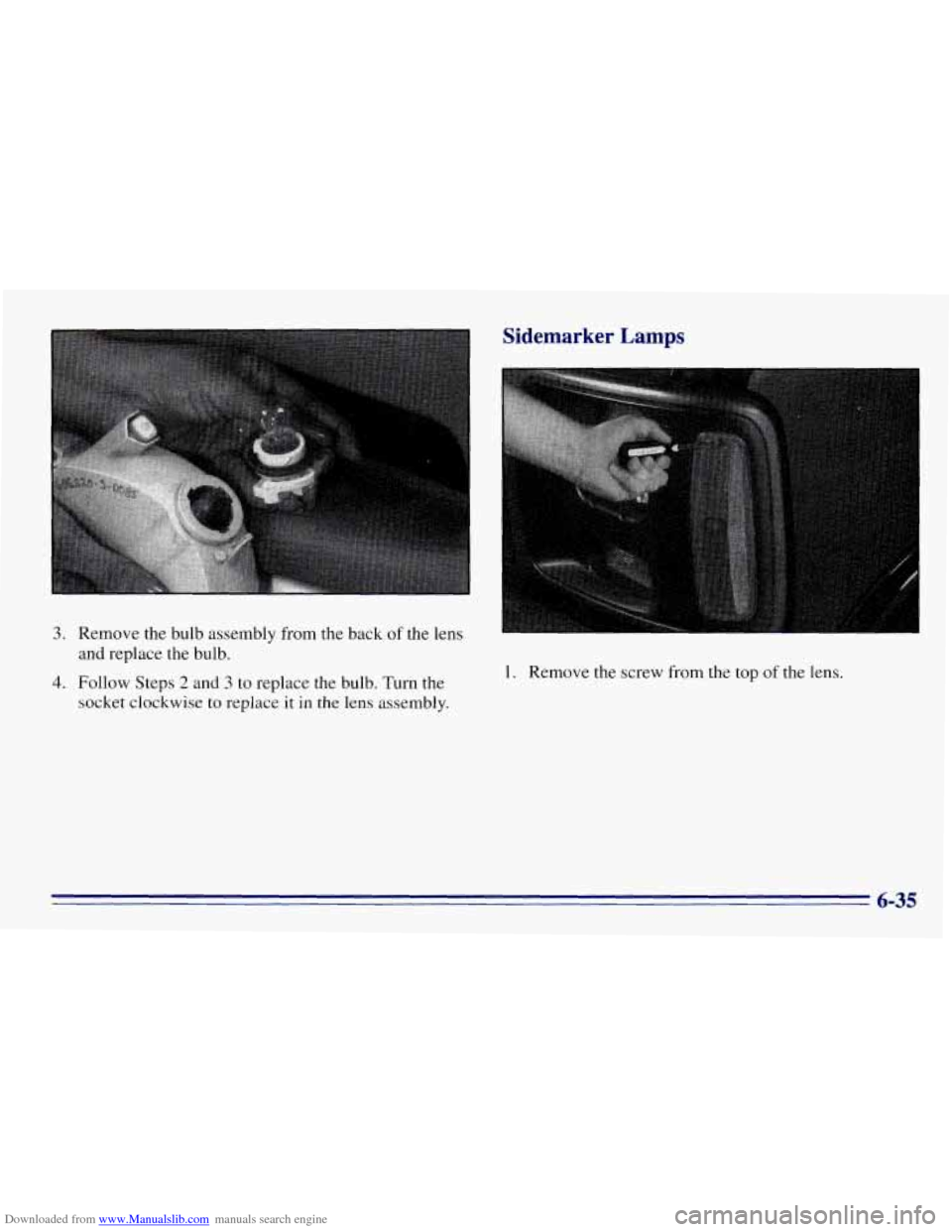

Downloaded from www.Manualslib.com manuals search engine Sidemarker Lamps
3. Remove the bulb assembly from the back of the lens
and replace the bulb.
4. Follow Steps 2 and 3 to replace the bulb. Turn the
socket clockwise to replace it in the lens assembly.
1. Remove the screw from the top of the lens.
6-35

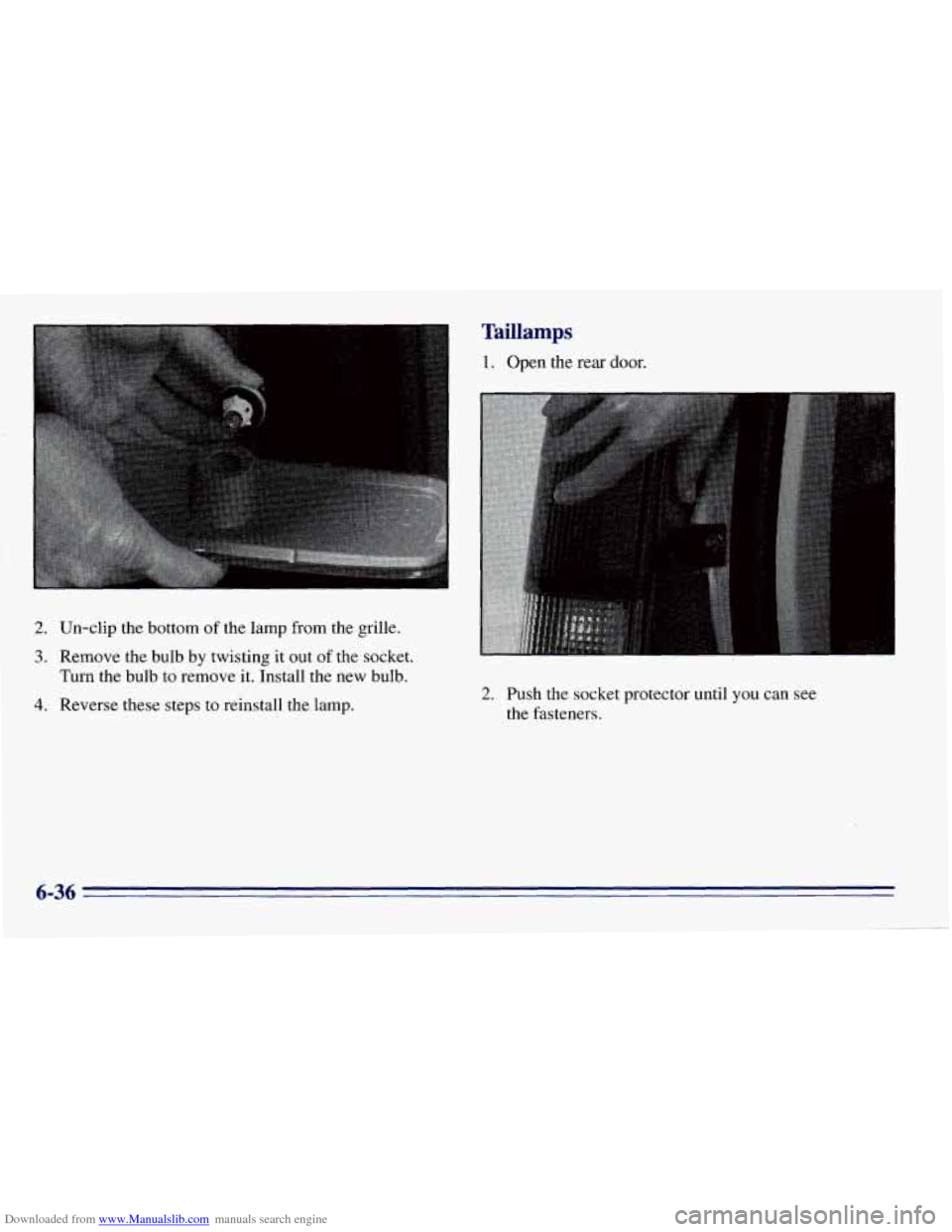

Downloaded from www.Manualslib.com manuals search engine Taillamps
1. Open the rear door.
2. Un-clip the bottom of the lamp from the grille.
3. Remove the bulb by twisting it out of the socket.
Turn the bulb to remove
it. Install the new bulb.
4. Reverse these steps to reinstall the lamp. 2. Push the socket protector until you can see
the fasteners.
6-36

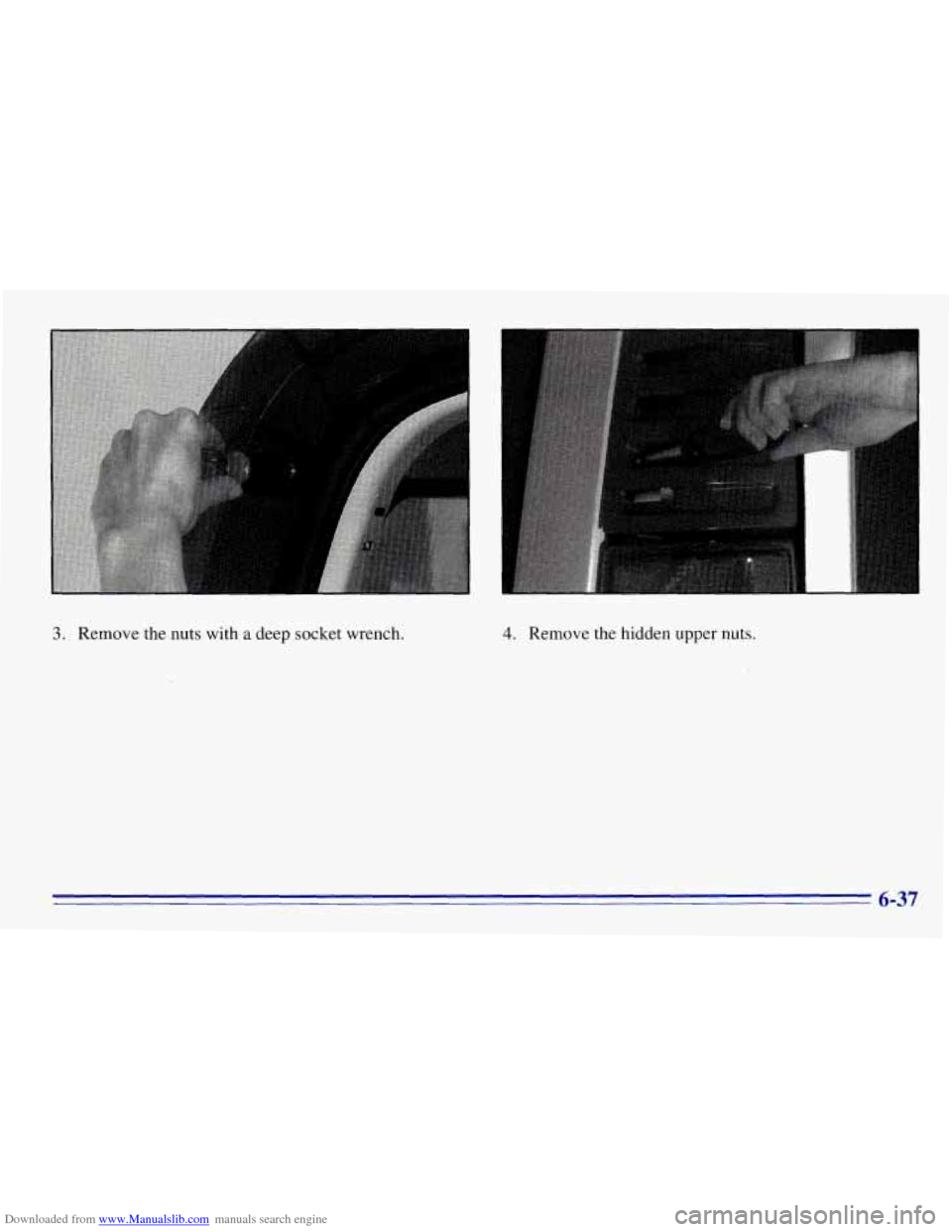

Downloaded from www.Manualslib.com manuals search engine 3. Remove the nuts with a deep socket wrench. 4. Remove the hidden upper nuts.
6-37

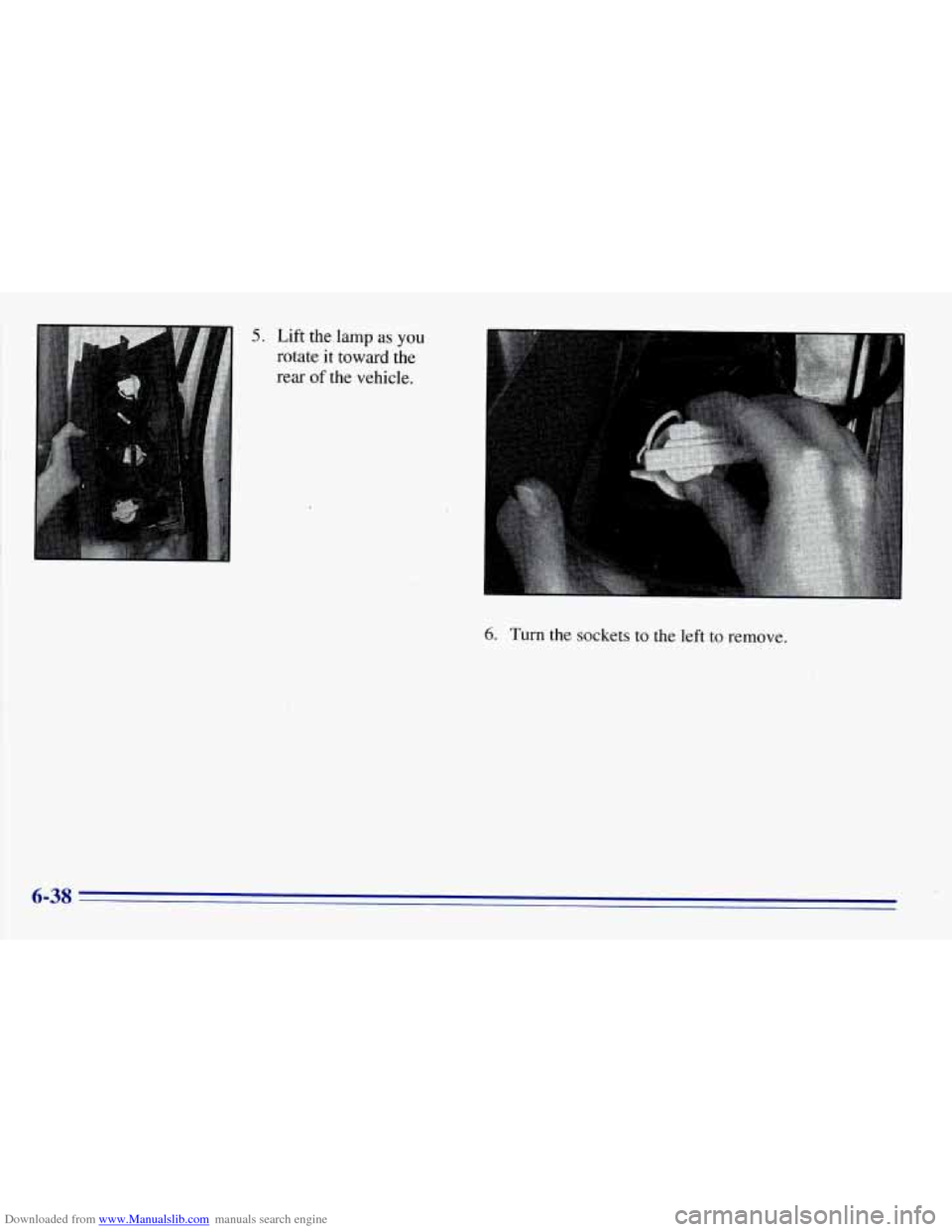

Downloaded from www.Manualslib.com manuals search engine 5. Lift the lamp as you
rotate it toward the
rear
of the vehicle.
6. Turn the sockets to the left to remove.
6-38

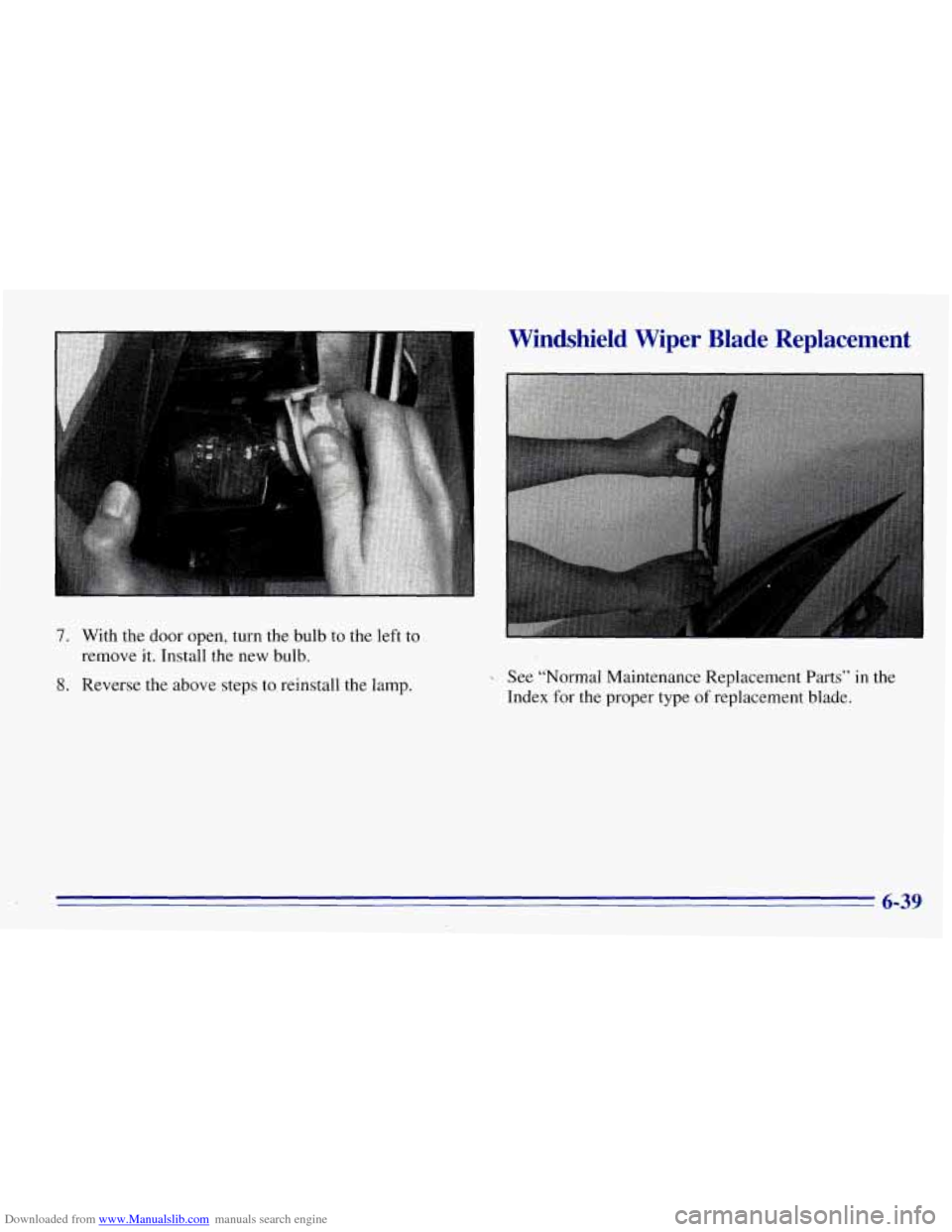

Downloaded from www.Manualslib.com manuals search engine 7. With the door open, turn the bulb to the left to
remove
it. Install the new bulb.
5. Reverse the above steps to reinstall the lamp.
Windshield Wiper Blade Replacement
See “Normal Maintenance Replacement Parts” in the
Index for the proper type
of replacement blade.
6-39

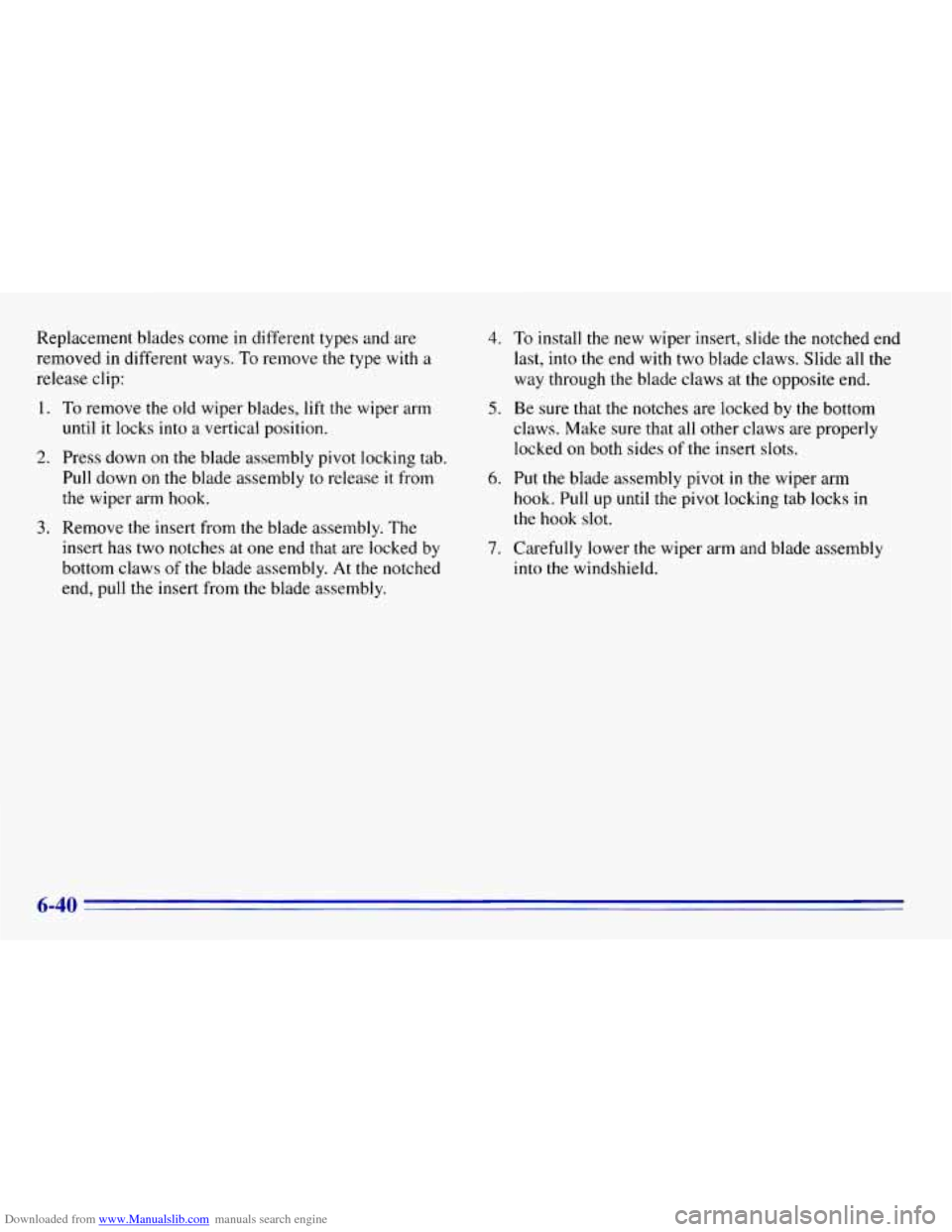

Downloaded from www.Manualslib.com manuals search engine Replacement blades come in different types and are
removed in different ways.
To remove the type with a
release clip:
1.
2.
3.
To remove the old wiper blades, lift the wiper arm
until it locks into
a vertical position.
Press down on the blade assembly pivot locking tab.
Pull down on the blade assembly
to release it from
the wiper arm hook.
Remove the insert from the blade assembly. The
insert has two notches at one end that are locked by
bottom claws
of the blade assembly. At the notched
end, pull the insert from the blade assembly.
4. To install the new wiper insert, slide the notched end
last, into the end with two blade claws. Slide
all the
way through the blade claws
at the opposite end.
5. Be sure that the notches are locked by the bottom
claws. Make sure that all other claws are properly
locked
on both sides of the insert slots.
6. Put the blade assembly pivot in the wiper arm
hook. Pull up until
the pivot locking tab locks in
the hook slot.
7. Carefully lower the wiper arm and blade assembly
into
the windshield.
6-40

Downloaded from www.Manualslib.com manuals search engine Tires
We don’t make tires. Your new vehicle comes with
high-quality tires made
by a leading tire manufacturer. If
you ever have questions about your tire warranty and
where
to obtain service, see your GM Warranty booklet
for details.
Poorly maintained and improperly used tires
are dangerous.
Overloading your tires can cause
overheating as a result of too much friction.
You could have an air-out and a serious
accident. See “Loading Your Vehicle” in
the Index.
CAUTION: (Continued)
0 Underinflated tires pose the same danger as
overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
cut, punctured or broken by a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.
0 Worn, old tires can cause accidents. If your
tread is badly worn, or if your tires have
been damaged, replace them.
0 Overinflated tires are more likely to be
6-41

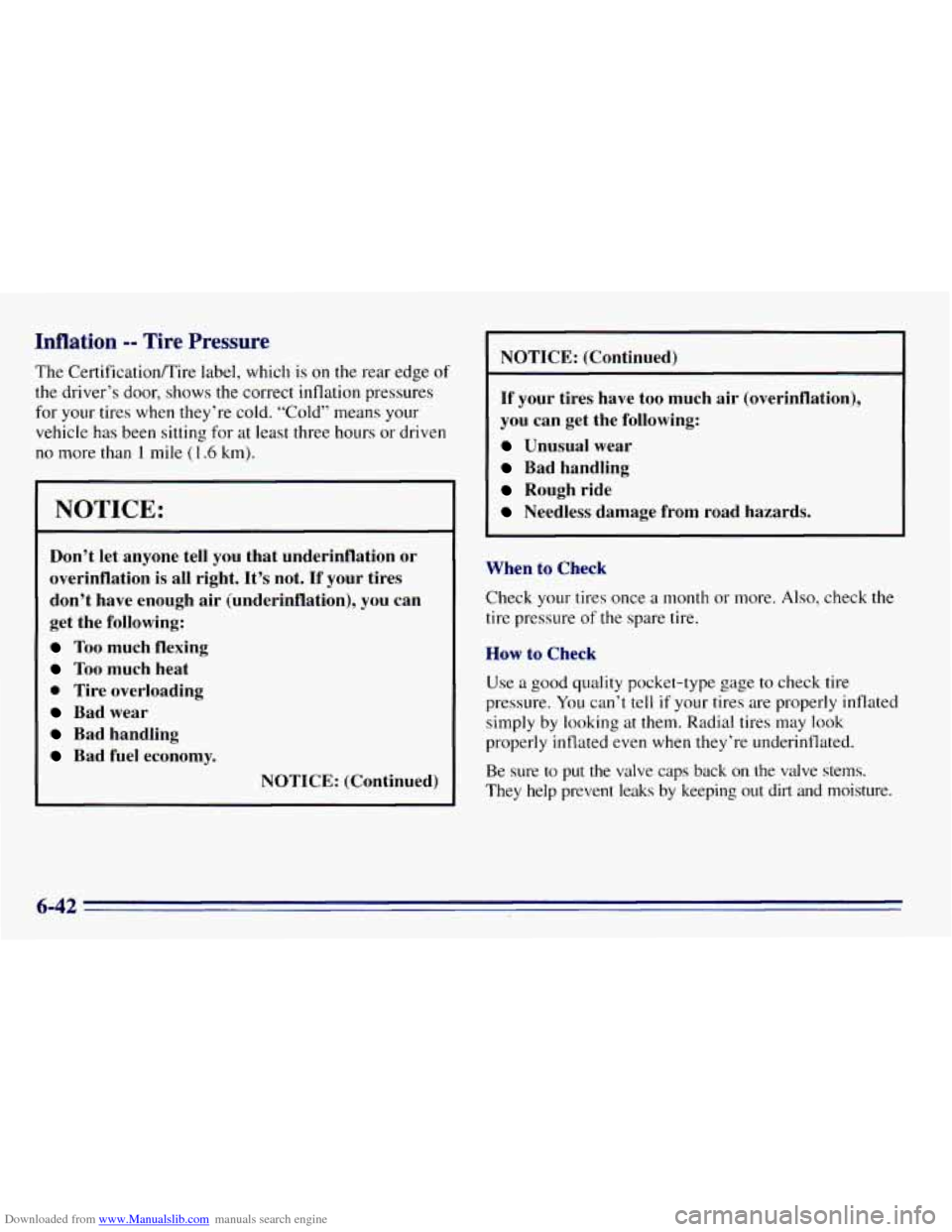

Downloaded from www.Manualslib.com manuals search engine Inflation -- Tire Pressure
The Certificationflire label, which is on the rear edge of
the driver’s door, shows the correct inflation pressures
for your tires when they’re cold. “Cold” means your
vehicle has been sitting for at least three hours or driven
no more than 1 mile (1.6 km).
I NOTICE:
Don’t let anyone tell you that .underinflation or
overinflation is
all right. It’s not. If your tires
don’t have enough air junderinflation), you can
get the following:
Too much flexing
Too much heat
0 Tire overloading
Bad wear
Bad handling
Bad fuel economy.
NOTICE: (Continued)
I NOTICE: (Continued) I
If your tires have too much air (overinflation),
you can get the following:
Unusual wear
Bad handling
Rough ride
Needless damage from road hazards.
When to Check
Check your tires once a month or more. Also, check the
tire pressure of the spare tire.
How to Check
Use a good quality pocket-type gage to check tire
pressure. You can’t tell
if your tires are properly inflated
simply by looking at them. Radial tires may look
properly inflated even when they’re underinflated.
Be sure
to put the valve caps back on the valve stems.
They help prevent leaks by keeping out dirt and moisture.
6-42
