CHEVROLET EXPRESS 1998 1.G User Guide

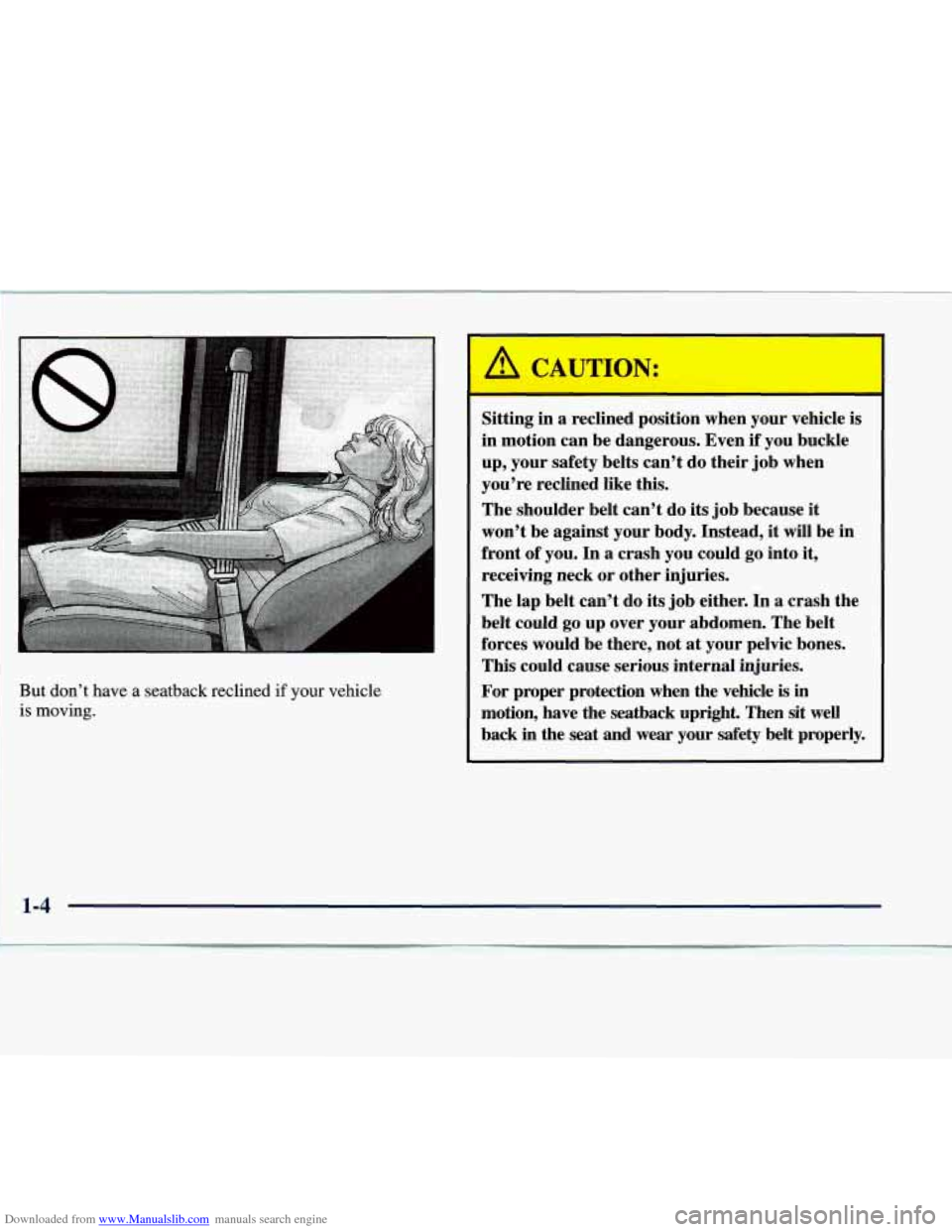

Downloaded from www.Manualslib.com manuals search engine But don’t have a seatback reclined if your vehicle
is moving.
I
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t do its job because it
won’t be against your body. Instead, it
will be in
front of you.
In a crash you could go into it,
receiving neck or other injuries.
The lap belt can’t
do its job either. In a crash the
belt could
go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is
in
motion, have the seatback upright. Then sit well
back
in the seat and wear your safety belt properly.

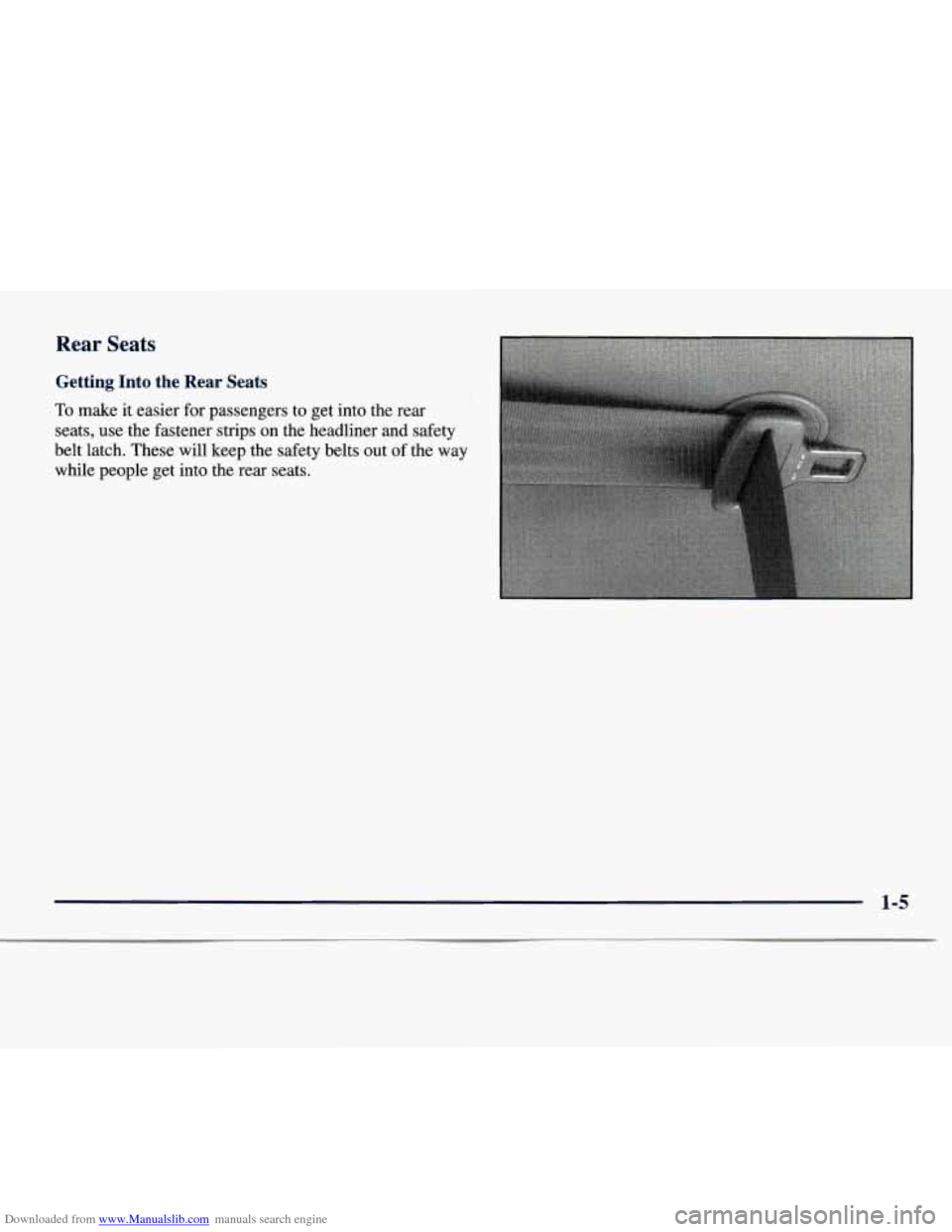

Downloaded from www.Manualslib.com manuals search engine Rear Seats
Getting Into the Rear Seats
To make it easier for passengers to get into the rear
seats, use the fastener strips on the headliner and safety
belt latch. These will keep the safety belts out of the way
while people get into the rear seats.
1-5

Downloaded from www.Manualslib.com manuals search engine Removing the Rear Seat
2. Lift the carpedmat flap at the inboard side of the seat
base in the rear.
1. Disconnect the quick release latch plates for the lap
shoulder belts on the bench seat to be removed.
To
do this, press the tip of a key into the release hole
of the safety belt buckle while pulling up on the
safety belt.
1-6

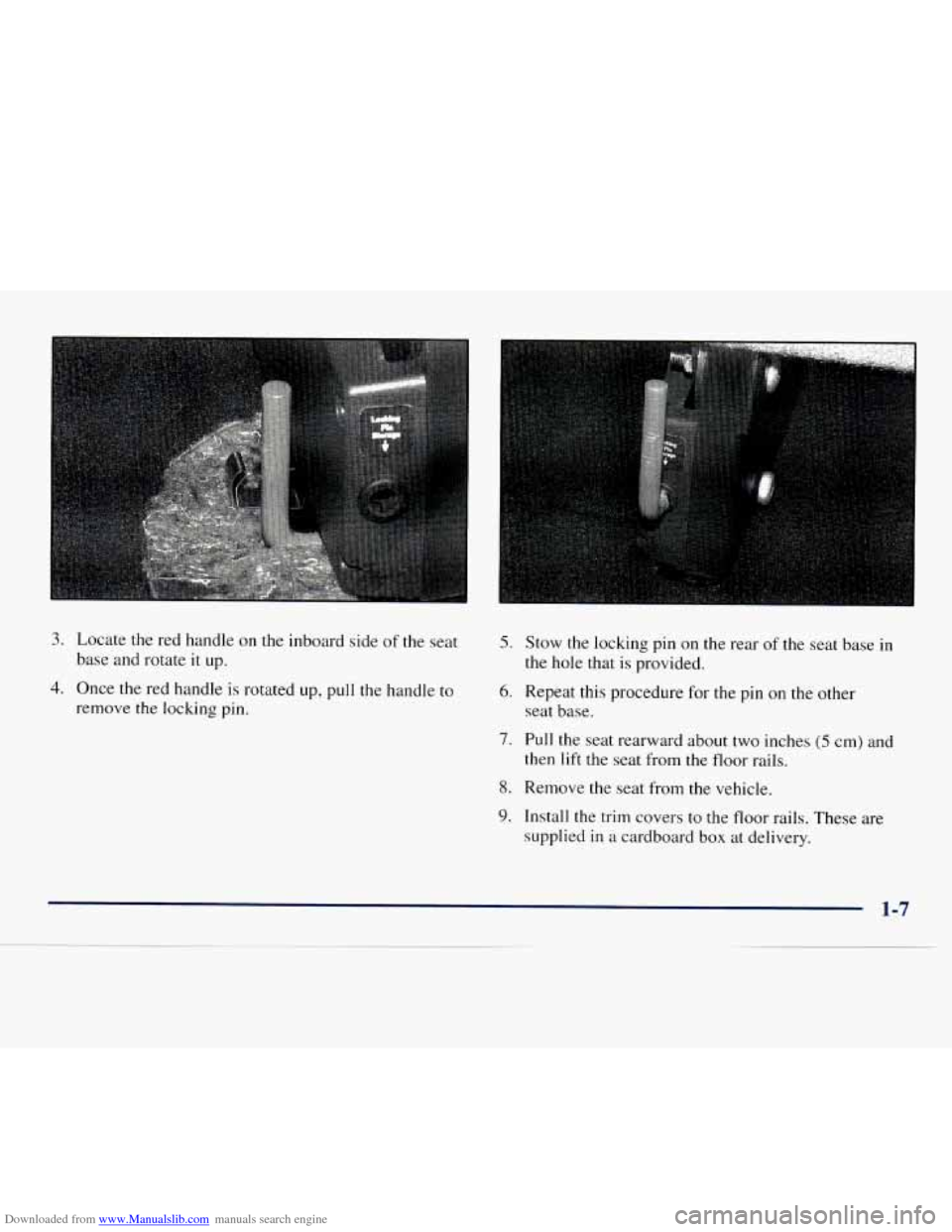

Downloaded from www.Manualslib.com manuals search engine 3. Locate the red handle on the inboard side of the seat
base and rotate it up.
4. Once the red handle is rotated up, pull the handle to
remove the locking pin.
5. Stow the locking pin on the rear of the seat base in
6. Repeat this procedure for the pin on the other
the
hole that is provided.
seat base.
7. Pull the seat rearward about two inches (5 cm) and
then
lift the seat from the floor rails.
8. Remove the seat from the vehicle.
9. Install the trim covers to the floor rails. These are
supplied in a cardboard box at delivery.

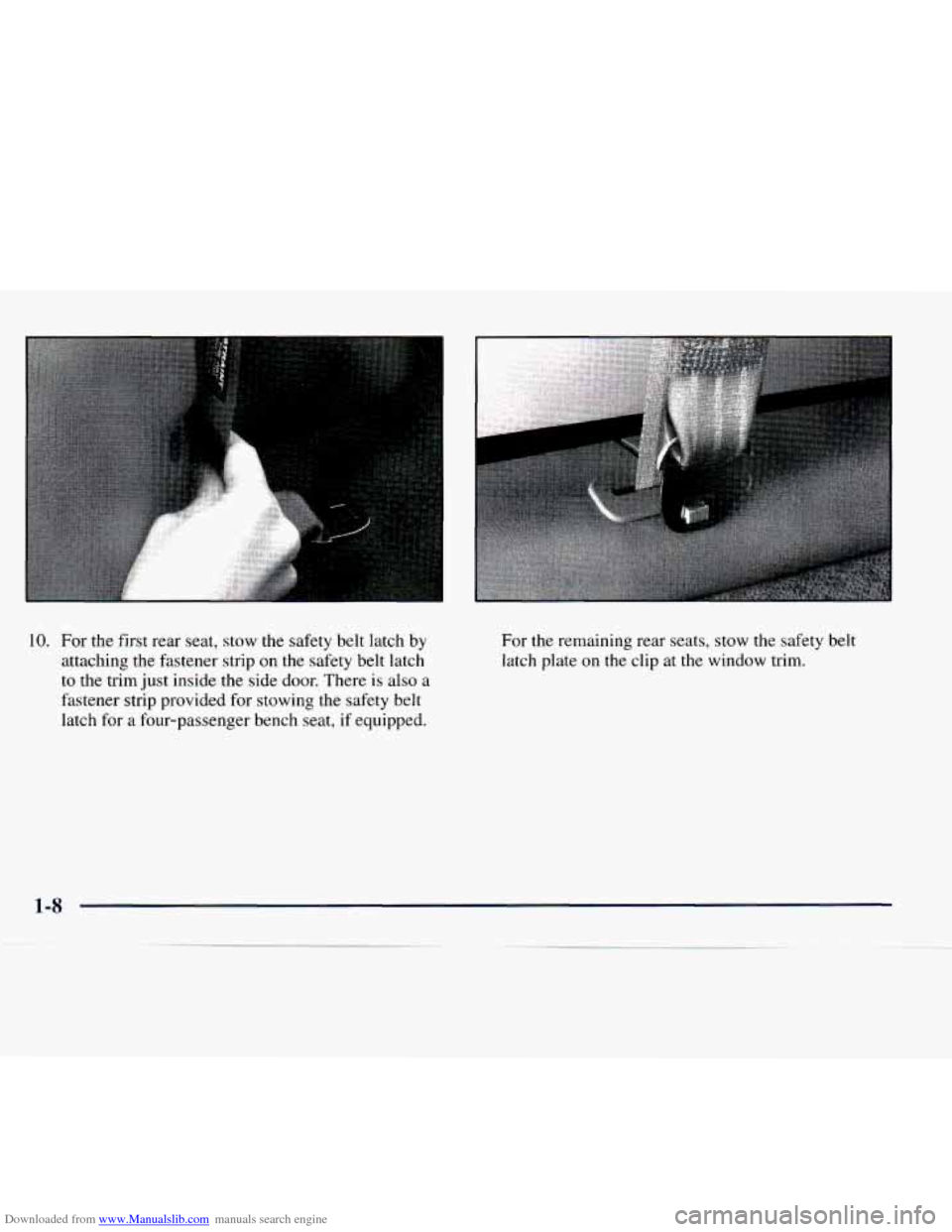

Downloaded from www.Manualslib.com manuals search engine 10. For the first rear seat, stow the safety belt latch by
attaching the fastener strip on the safety belt latch
to the trim just inside the side door. There is also
a
fastener strip provided for stowing the safety belt
latch for a four-passenger bench seat, if equipped. For the remaining rear
seats, stow the safety belt
latch plate
on the clip at the window trim.
1-8

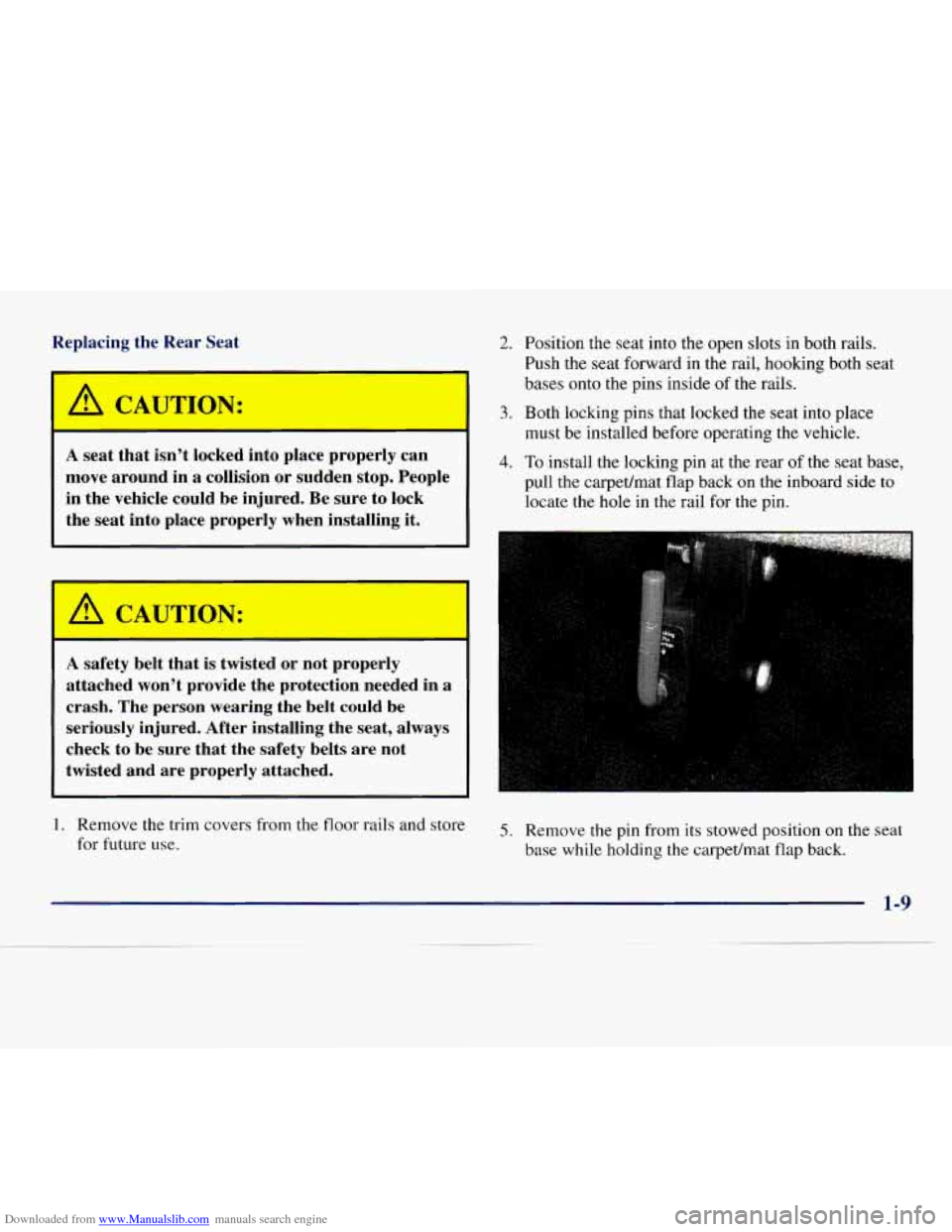

Downloaded from www.Manualslib.com manuals search engine Replacing the Rear Seat
A CAUTION:
A seat that isn’t locked into place properly can
move around in a collision
or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
-
1 A CAUTION:
- -
A safety belt that is twisted or not properly
attached won’t provide the protection needed in a
crash. The person wearing the belt could be seriously injured. After installing the seat, always
check to be sure that the safety belts are not
twisted and are properly attached.
1. Remove the trim covers from the floor rails and store
for future use.
2.
3.
4.
Position the seat into the open slots in both rails.
Push the seat forward
in the rail, hooking both seat
bases onto the pins inside
of the rails.
Both locking pins that locked the seat into place
must be installed before operating the vehicle.
To install the locking pin at the rear of the seat base,
pull the carpet/mat flap back on the inboard side
to
locate the hole in the rail for the pin.
5. Remove the pin from its stowed position on the seat
base while
holding the carpedmat flap back.

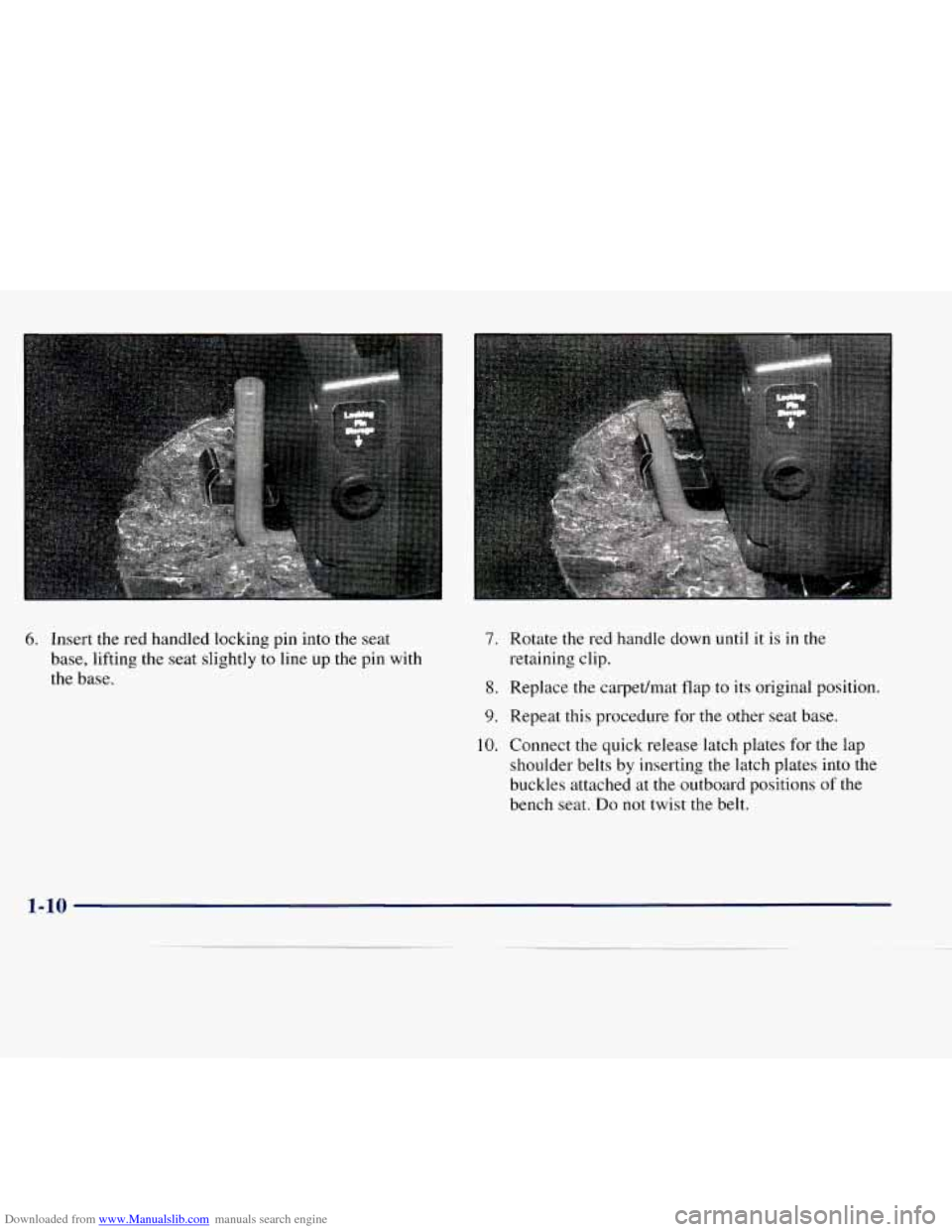

Downloaded from www.Manualslib.com manuals search engine 6. Insert the red handled locking pin into the seat
base, lifting the seat slightly to line up the pin with
the base. 7.
8.
9.
10. Rotate
the red handle down until it
is in the
retaining clip.
Replace the carpet/mat flap to its original position.
Repeat this procedure
for the other seat base.
Connect the quick release latch plates for the lap
shoulder belts by inserting the latch plates into the
buckles attached at the outboard positions of the
bench seat. Do not twist the belt.

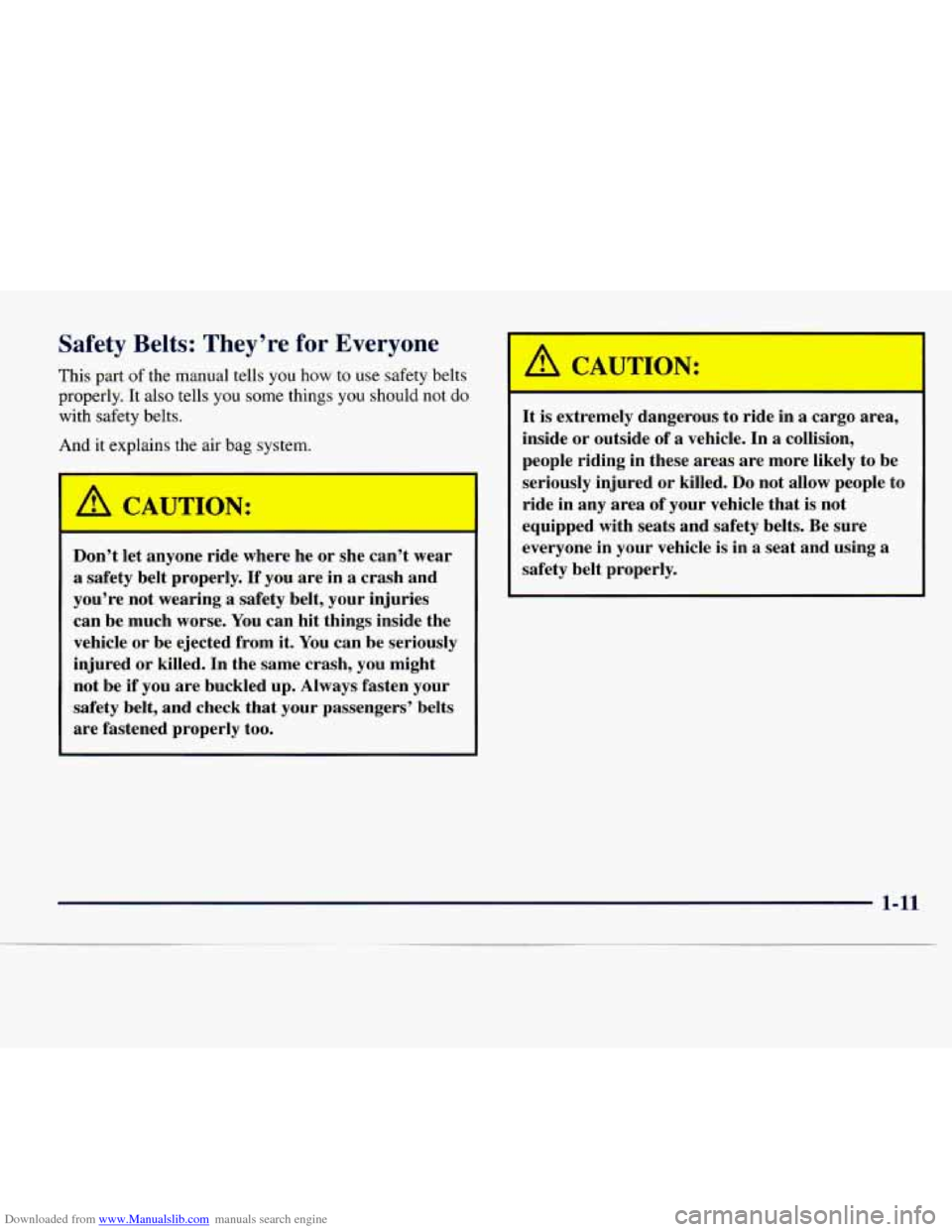

Downloaded from www.Manualslib.com manuals search engine Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you
some things you should not do
with safety belts.
And it explains the air bag system.
Don’t let anyone ride where he or she can’t wear
a safety belt properly. If you are in a crash and
you’re not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it.
You can be seriously
injured or killed. In the same crash, you might
not be
if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly too.
A CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of
a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed.
Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in
a seat and using a
safety belt properly.
1-11

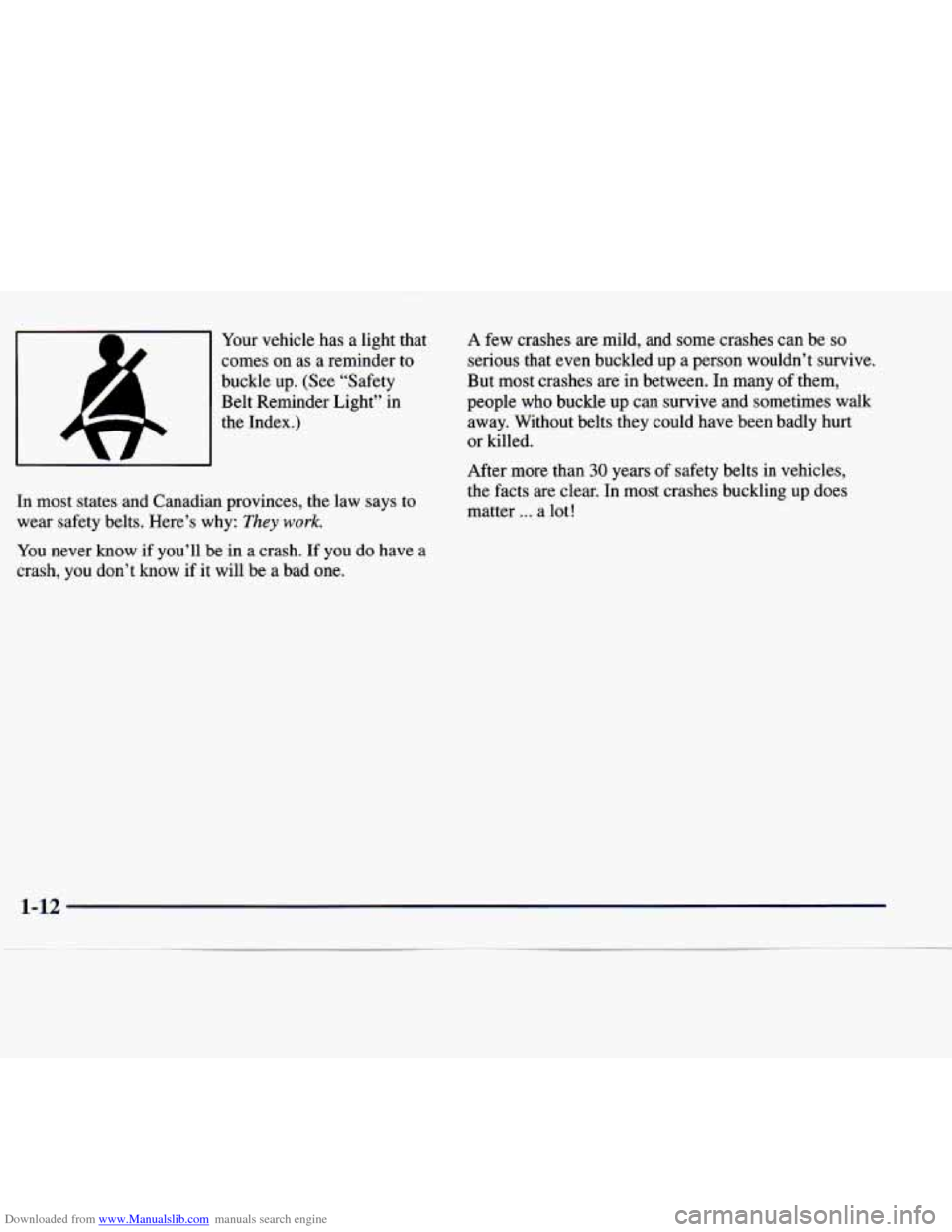

Downloaded from www.Manualslib.com manuals search engine Your vehicle has a light that
comes on as a reminder to
buckle up. (See “Safety
Belt Reminder Light” in
the Index.)
In most states and Canadian provinces, the law says to
wear safety belts. Here’s why:
They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one. A
few crashes are mild, and some crashes can be
so
serious that even buckled up a person wouldn’t survive.
But most crashes are in between.
In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than
30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter
... a lot!
1-12

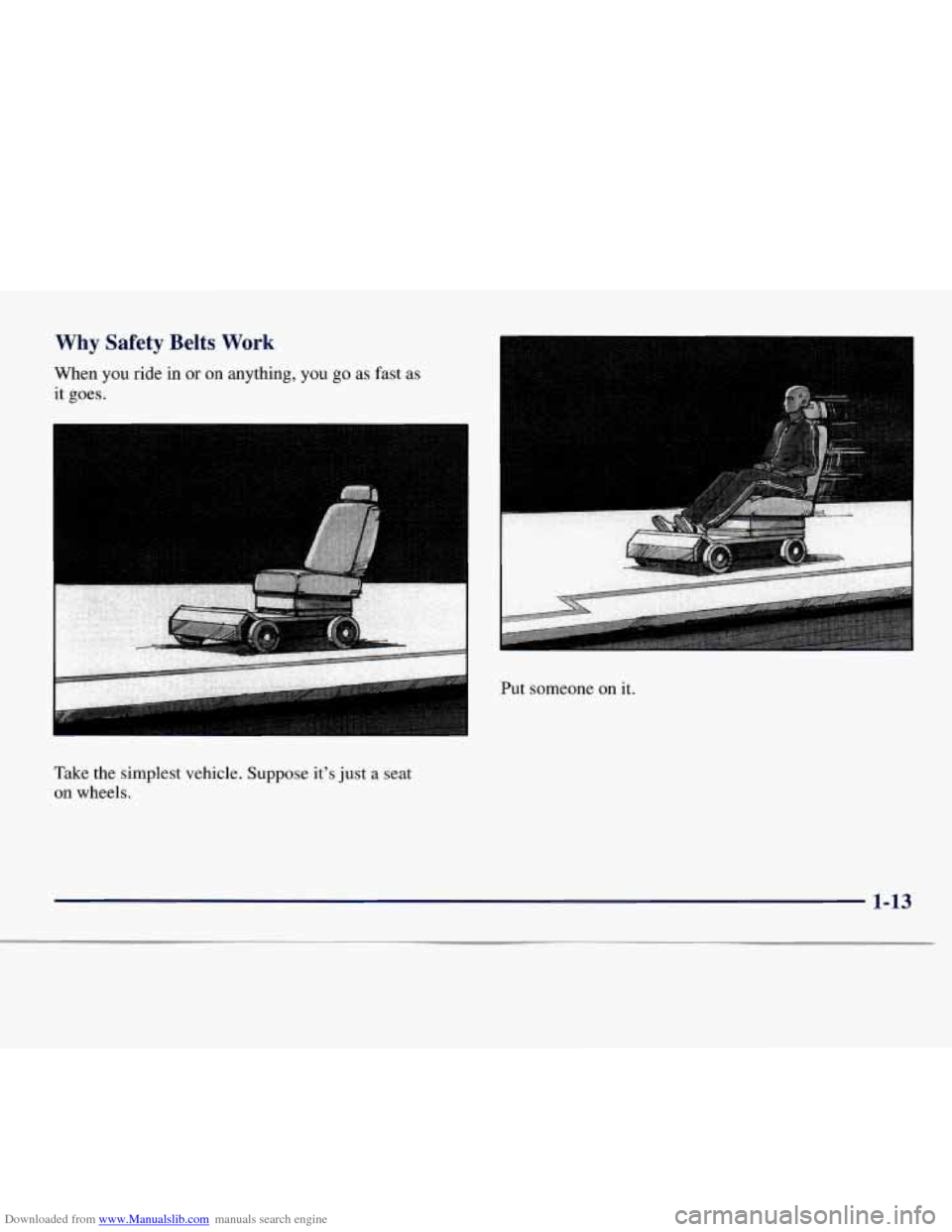

Downloaded from www.Manualslib.com manuals search engine Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it's just a seat
on wheels.
I
Put someone on it.
1-13
