check engine CHEVROLET EXPRESS 2022 Service Manual

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15555951) - 2022 - CRC - 1/27/22

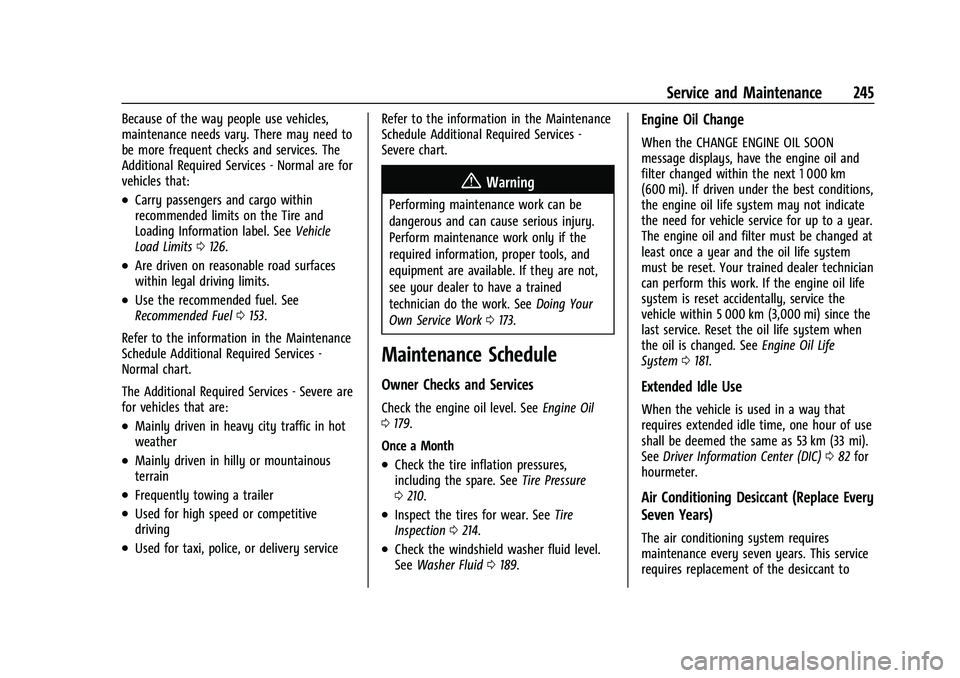

Service and Maintenance 245
Because of the way people use vehicles,
maintenance needs vary. There may need to
be more frequent checks and services. The
Additional Required Services - Normal are for
vehicles that:
.Carry passengers and cargo within
recommended limits on the Tire and
Loading Information label. SeeVehicle
Load Limits 0126.
.Are driven on reasonable road surfaces
within legal driving limits.
.Use the recommended fuel. See
Recommended Fuel 0153.
Refer to the information in the Maintenance
Schedule Additional Required Services -
Normal chart.
The Additional Required Services - Severe are
for vehicles that are:
.Mainly driven in heavy city traffic in hot
weather
.Mainly driven in hilly or mountainous
terrain
.Frequently towing a trailer
.Used for high speed or competitive
driving
.Used for taxi, police, or delivery service Refer to the information in the Maintenance
Schedule Additional Required Services -
Severe chart.
{Warning
Performing maintenance work can be
dangerous and can cause serious injury.
Perform maintenance work only if the
required information, proper tools, and
equipment are available. If they are not,
see your dealer to have a trained
technician do the work. See
Doing Your
Own Service Work 0173.
Maintenance Schedule
Owner Checks and Services
Check the engine oil level. See Engine Oil
0 179.
Once a Month
.Check the tire inflation pressures,
including the spare. See Tire Pressure
0 210.
.Inspect the tires for wear. See Tire
Inspection 0214.
.Check the windshield washer fluid level.
See Washer Fluid 0189.
Engine Oil Change
When the CHANGE ENGINE OIL SOON
message displays, have the engine oil and
filter changed within the next 1 000 km
(600 mi). If driven under the best conditions,
the engine oil life system may not indicate
the need for vehicle service for up to a year.
The engine oil and filter must be changed at
least once a year and the oil life system
must be reset. Your trained dealer technician
can perform this work. If the engine oil life
system is reset accidentally, service the
vehicle within 5 000 km (3,000 mi) since the
last service. Reset the oil life system when
the oil is changed. See Engine Oil Life
System 0181.
Extended Idle Use
When the vehicle is used in a way that
requires extended idle time, one hour of use
shall be deemed the same as 53 km (33 mi).
See Driver Information Center (DIC) 082 for
hourmeter.
Air Conditioning Desiccant (Replace Every
Seven Years)
The air conditioning system requires
maintenance every seven years. This service
requires replacement of the desiccant to

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15555951) - 2022 - CRC - 1/27/22

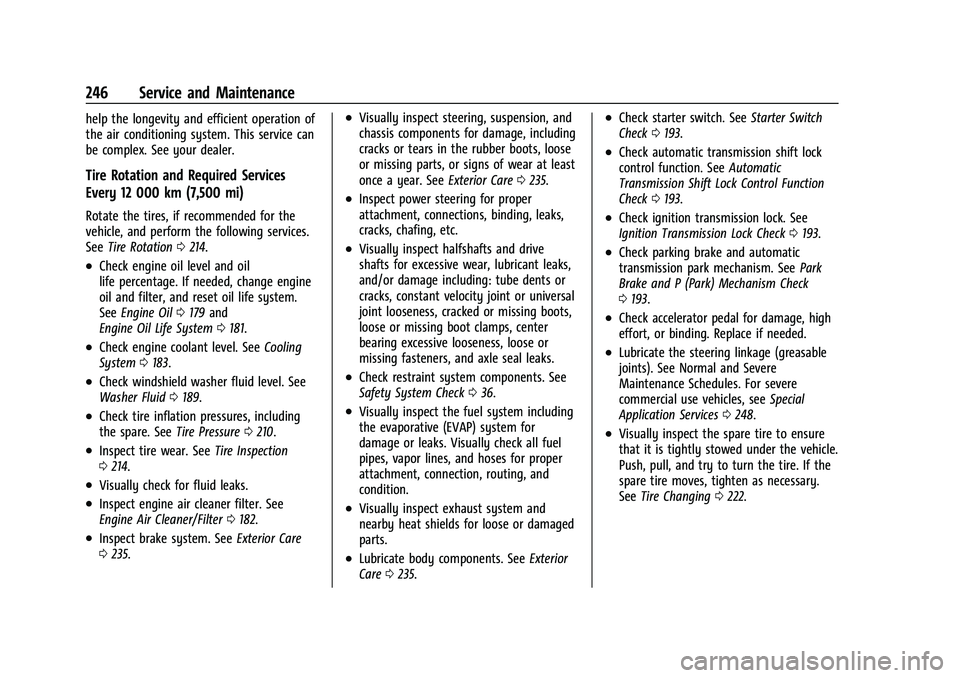

246 Service and Maintenance
help the longevity and efficient operation of
the air conditioning system. This service can
be complex. See your dealer.
Tire Rotation and Required Services
Every 12 000 km (7,500 mi)
Rotate the tires, if recommended for the
vehicle, and perform the following services.
SeeTire Rotation 0214.
.Check engine oil level and oil
life percentage. If needed, change engine
oil and filter, and reset oil life system.
See Engine Oil 0179 and
Engine Oil Life System 0181.
.Check engine coolant level. See Cooling
System 0183.
.Check windshield washer fluid level. See
Washer Fluid 0189.
.Check tire inflation pressures, including
the spare. See Tire Pressure0210.
.Inspect tire wear. See Tire Inspection
0 214.
.Visually check for fluid leaks.
.Inspect engine air cleaner filter. See
Engine Air Cleaner/Filter 0182.
.Inspect brake system. See Exterior Care
0 235.
.Visually inspect steering, suspension, and
chassis components for damage, including
cracks or tears in the rubber boots, loose
or missing parts, or signs of wear at least
once a year. See Exterior Care0235.
.Inspect power steering for proper
attachment, connections, binding, leaks,
cracks, chafing, etc.
.Visually inspect halfshafts and drive
shafts for excessive wear, lubricant leaks,
and/or damage including: tube dents or
cracks, constant velocity joint or universal
joint looseness, cracked or missing boots,
loose or missing boot clamps, center
bearing excessive looseness, loose or
missing fasteners, and axle seal leaks.
.Check restraint system components. See
Safety System Check 036.
.Visually inspect the fuel system including
the evaporative (EVAP) system for
damage or leaks. Visually check all fuel
pipes, vapor lines, and hoses for proper
attachment, connection, routing, and
condition.
.Visually inspect exhaust system and
nearby heat shields for loose or damaged
parts.
.Lubricate body components. See Exterior
Care 0235.
.Check starter switch. See Starter Switch
Check 0193.
.Check automatic transmission shift lock
control function. See Automatic
Transmission Shift Lock Control Function
Check 0193.
.Check ignition transmission lock. See
Ignition Transmission Lock Check 0193.
.Check parking brake and automatic
transmission park mechanism. See Park
Brake and P (Park) Mechanism Check
0 193.
.Check accelerator pedal for damage, high
effort, or binding. Replace if needed.
.Lubricate the steering linkage (greasable
joints). See Normal and Severe
Maintenance Schedules. For severe
commercial use vehicles, see Special
Application Services 0248.
.Visually inspect the spare tire to ensure
that it is tightly stowed under the vehicle.
Push, pull, and try to turn the tire. If the
spare tire moves, tighten as necessary.
See Tire Changing 0222.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15555951) - 2022 - CRC - 1/27/22

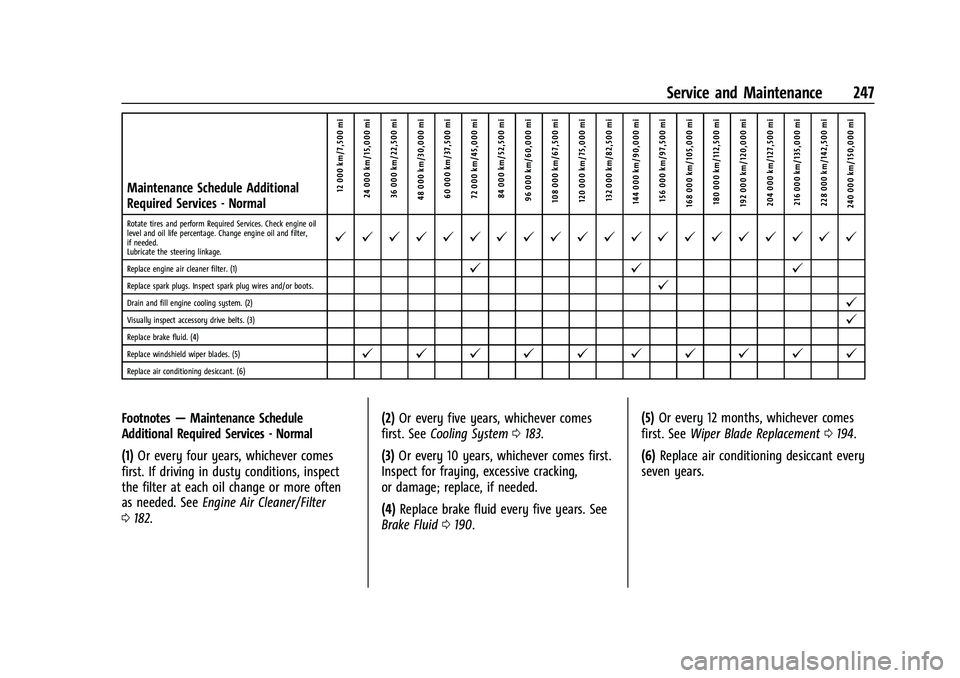

Service and Maintenance 247
Maintenance Schedule Additional
Required Services - Normal12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi 60 000 km/37,500 mi
72 000 km/45,000 mi84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi 120 000 km/75,000 mi 132 000 km/82,500 mi
144 000 km/90,000 mi 156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi 204 000 km/127,500 mi 216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services. Check engine oil
level and oil life percentage. Change engine oil and filter,
if needed.
Lubricate the steering linkage.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace engine air cleaner filter. (1)@ @@
Replace spark plugs. Inspect spark plug wires and/or boots.@
Drain and fill engine cooling system. (2)@
Visually inspect accessory drive belts. (3)@
Replace brake fluid. (4)
Replace windshield wiper blades. (5)
@ @ @ @ @ @ @ @ @ @
Replace air conditioning desiccant. (6)
Footnotes—Maintenance Schedule
Additional Required Services - Normal
(1) Or every four years, whichever comes
first. If driving in dusty conditions, inspect
the filter at each oil change or more often
as needed. See Engine Air Cleaner/Filter
0 182. (2)
Or every five years, whichever comes
first. See Cooling System 0183.
(3) Or every 10 years, whichever comes first.
Inspect for fraying, excessive cracking,
or damage; replace, if needed.
(4) Replace brake fluid every five years. See
Brake Fluid 0190. (5)
Or every 12 months, whichever comes
first. See Wiper Blade Replacement 0194.
(6) Replace air conditioning desiccant every
seven years.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15555951) - 2022 - CRC - 1/27/22

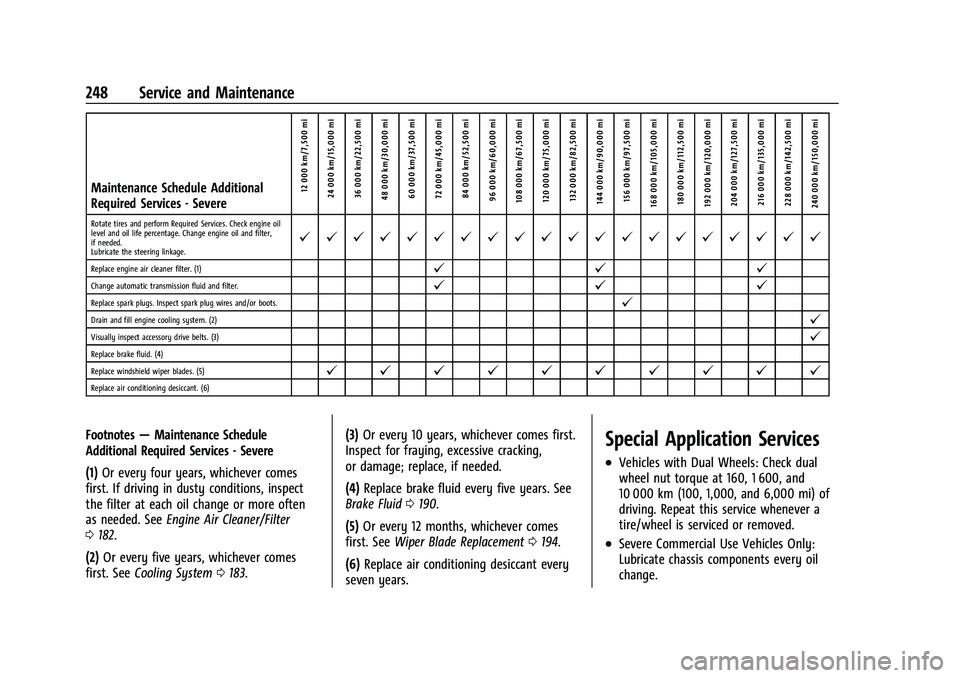

248 Service and Maintenance
Maintenance Schedule Additional
Required Services - Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi 60 000 km/37,500 mi
72 000 km/45,000 mi84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi 120 000 km/75,000 mi 132 000 km/82,500 mi
144 000 km/90,000 mi 156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi 204 000 km/127,500 mi 216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services. Check engine oil
level and oil life percentage. Change engine oil and filter,
if needed.
Lubricate the steering linkage.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace engine air cleaner filter. (1)@ @@
Change automatic transmission fluid and filter.@@@
Replace spark plugs. Inspect spark plug wires and/or boots.@
Drain and fill engine cooling system. (2)@
Visually inspect accessory drive belts. (3)@
Replace brake fluid. (4)
Replace windshield wiper blades. (5)
@ @ @ @ @ @ @ @ @ @
Replace air conditioning desiccant. (6)
Footnotes—Maintenance Schedule
Additional Required Services - Severe
(1) Or every four years, whichever comes
first. If driving in dusty conditions, inspect
the filter at each oil change or more often
as needed. See Engine Air Cleaner/Filter
0 182.
(2) Or every five years, whichever comes
first. See Cooling System 0183. (3)
Or every 10 years, whichever comes first.
Inspect for fraying, excessive cracking,
or damage; replace, if needed.
(4) Replace brake fluid every five years. See
Brake Fluid 0190.
(5) Or every 12 months, whichever comes
first. See Wiper Blade Replacement 0194.
(6) Replace air conditioning desiccant every
seven years.Special Application Services
.Vehicles with Dual Wheels: Check dual
wheel nut torque at 160, 1 600, and
10 000 km (100, 1,000, and 6,000 mi) of
driving. Repeat this service whenever a
tire/wheel is serviced or removed.
.Severe Commercial Use Vehicles Only:
Lubricate chassis components every oil
change.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15555951) - 2022 - CRC - 1/27/22

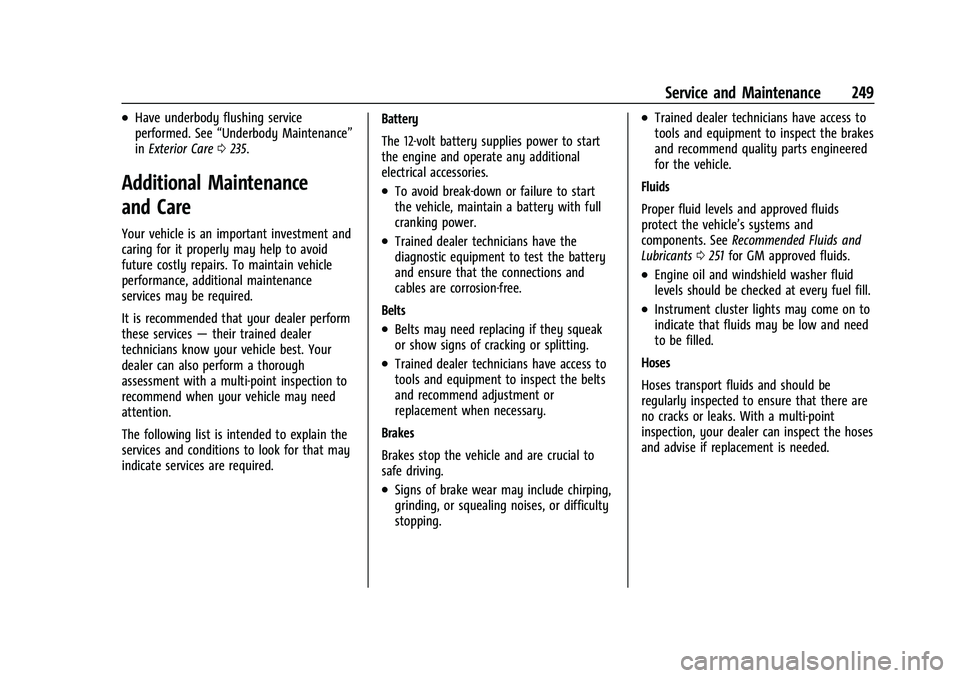

Service and Maintenance 249
.Have underbody flushing service
performed. See“Underbody Maintenance”
in Exterior Care 0235.
Additional Maintenance
and Care
Your vehicle is an important investment and
caring for it properly may help to avoid
future costly repairs. To maintain vehicle
performance, additional maintenance
services may be required.
It is recommended that your dealer perform
these services —their trained dealer
technicians know your vehicle best. Your
dealer can also perform a thorough
assessment with a multi-point inspection to
recommend when your vehicle may need
attention.
The following list is intended to explain the
services and conditions to look for that may
indicate services are required. Battery
The 12-volt battery supplies power to start
the engine and operate any additional
electrical accessories.
.To avoid break-down or failure to start
the vehicle, maintain a battery with full
cranking power.
.Trained dealer technicians have the
diagnostic equipment to test the battery
and ensure that the connections and
cables are corrosion-free.
Belts
.Belts may need replacing if they squeak
or show signs of cracking or splitting.
.Trained dealer technicians have access to
tools and equipment to inspect the belts
and recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are crucial to
safe driving.
.Signs of brake wear may include chirping,
grinding, or squealing noises, or difficulty
stopping.
.Trained dealer technicians have access to
tools and equipment to inspect the brakes
and recommend quality parts engineered
for the vehicle.
Fluids
Proper fluid levels and approved fluids
protect the vehicle’s systems and
components. See Recommended Fluids and
Lubricants 0251 for GM approved fluids.
.Engine oil and windshield washer fluid
levels should be checked at every fuel fill.
.Instrument cluster lights may come on to
indicate that fluids may be low and need
to be filled.
Hoses
Hoses transport fluids and should be
regularly inspected to ensure that there are
no cracks or leaks. With a multi-point
inspection, your dealer can inspect the hoses
and advise if replacement is needed.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15555951) - 2022 - CRC - 1/27/22

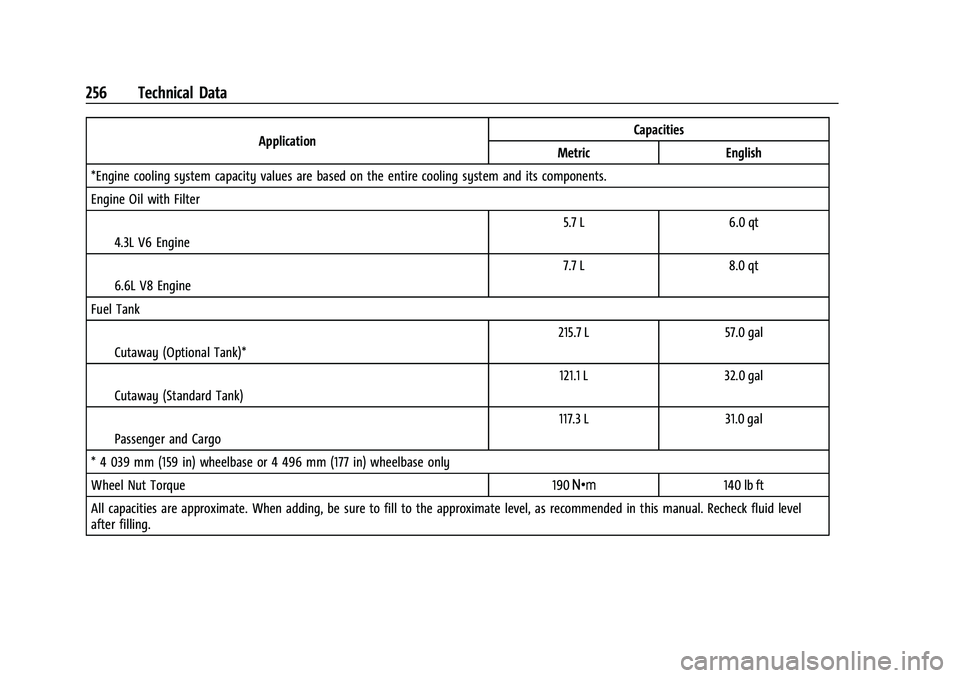

256 Technical Data
ApplicationCapacities
Metric English
*Engine cooling system capacity values are based on the entire cooling system and its components.
Engine Oil with Filter
I4.3L V6 Engine 5.7 L 6.0 qt
I6.6L V8 Engine 7.7 L 8.0 qt
Fuel Tank ICutaway (Optional Tank)* 215.7 L 57.0 gal
ICutaway (Standard Tank) 121.1 L 32.0 gal
IPassenger and Cargo 117.3 L
31.0 gal
* 4 039 mm (159 in) wheelbase or 4 496 mm (177 in) wheelbase only
Wheel Nut Torque 190Y 140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual. Recheck fluid level
after filling.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15555951) - 2022 - CRC - 1/27/22
266 Customer Information
.Owner name, address, and telephone
number
.Vehicle license plate number
.Vehicle make, model, and model year
.Vehicle Identification Number (VIN)
.Insurance company and policy number
.General description of the damage to the
other vehicle
Choose a reputable repair facility that uses
quality replacement parts. See “Collision
Parts” earlier in this section.
If the airbag has inflated, see What Will You
See after an Airbag Inflates? 041.
Managing the Vehicle Damage Repair
Process
In the event that the vehicle requires
damage repairs, GM recommends that you
take an active role in its repair. If you have
a pre-determined repair facility of choice,
take the vehicle there, or have it towed
there. Specify to the facility that any
required replacement collision parts be
original equipment parts, either new
Genuine GM parts or recycled original GM
parts. Remember, recycled parts will not be
covered by the GM vehicle warranty. Insurance pays the bill for the repair, but
you must live with the repair. Depending on
your policy limits, your insurance company
may initially value the repair using
aftermarket parts. Discuss this with the
repair professional, and insist on Genuine
GM parts. Remember, if the vehicle is
leased, you may be obligated to have the
vehicle repaired with Genuine GM parts,
even if your insurance coverage does not
pay the full cost.
If another party's insurance company is
paying for the repairs, you are not obligated
to accept a repair valuation based on that
insurance company's collision policy repair
limits, as you have no contractual limits
with that company. In such cases, you can
have control of the repair and parts choices
as long as the cost stays within reasonable
limits.
Publication Ordering Information
Service Manuals
Service manuals have the diagnosis and
repair information on the engine,
transmission, axle, suspension, brakes,
electrical system, steering system, body, etc.
Customer Literature
Owner’s manuals are written specifically for
owners and are intended to provide basic
operational information about the vehicle.
The owner’s manual includes the
Maintenance Schedule for all models.
Customer literature publications available for
purchase include owner’s manuals, warranty
manuals, and portfolios. Portfolios include an
owner’s manual, warranty manual,
if applicable, and zip lock bag or pouch.
Current and Past Models
Service manuals and customer literature are
available for many current and past model
year GM vehicles.
To order, call 1-800-551-4123 Monday–Friday,
8:00 a.m.–6:00 p.m. eastern time
For credit card orders only (VISA,
MasterCard, or Discover), see Helm, Inc. at:
www.helminc.com.
To order by mail, write to:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
Make checks payable in U.S. funds.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15555951) - 2022 - CRC - 1/27/22

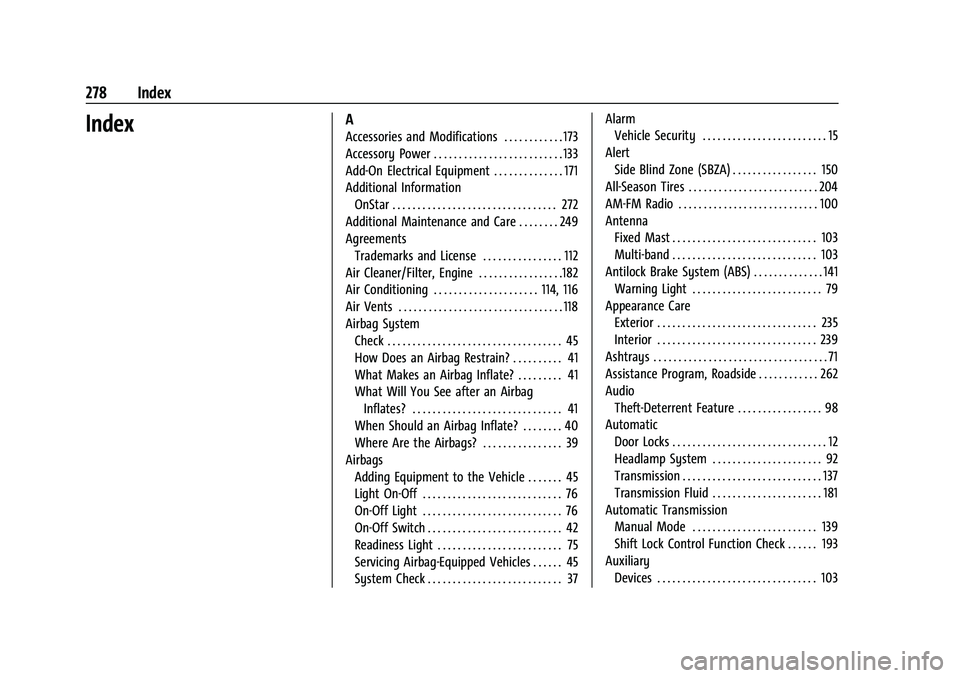

278 Index
IndexA
Accessories and Modifications . . . . . . . . . . . . 173
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Add-On Electrical Equipment . . . . . . . . . . . . . . 171
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Additional Maintenance and Care . . . . . . . . 249
Agreements Trademarks and License . . . . . . . . . . . . . . . . 112
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . .182
Air Conditioning . . . . . . . . . . . . . . . . . . . . . 114, 116
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
How Does an Airbag Restrain? . . . . . . . . . . 41
What Makes an Airbag Inflate? . . . . . . . . . 41
What Will You See after an Airbag
Inflates? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
When Should an Airbag Inflate? . . . . . . . . 40
Where Are the Airbags? . . . . . . . . . . . . . . . . 39
Airbags Adding Equipment to the Vehicle . . . . . . . 45
Light On-Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
On-Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
On-Off Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . 75
Servicing Airbag-Equipped Vehicles . . . . . . 45
System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Alarm
Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . . 15
Alert Side Blind Zone (SBZA) . . . . . . . . . . . . . . . . . 150
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 204
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Antenna Fixed Mast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Multi-band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Antilock Brake System (ABS) . . . . . . . . . . . . . . 141 Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Ashtrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Assistance Program, Roadside . . . . . . . . . . . . 262
Audio Theft-Deterrent Feature . . . . . . . . . . . . . . . . . 98
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Headlamp System . . . . . . . . . . . . . . . . . . . . . . 92
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . 181
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . 139
Shift Lock Control Function Check . . . . . . 193
Auxiliary Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15555951) - 2022 - CRC - 1/27/22
Index 279
Avoiding Untrusted Media Devices . . . . . . . 103
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
B
BatteryExterior Lighting Battery Saver . . . . . . . . . 96
Load Management . . . . . . . . . . . . . . . . . . . . . . 95
Power Protection . . . . . . . . . . . . . . . . . . . . . . . 96
Battery - North America . . . . . . . . . . . . . 191, 230
Blade Replacement, Wiper . . . . . . . . . . . . . . . 194
Bluetooth Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Brake System Warning Light . . . . . . . . . . . . . . . . . . 78
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . 129
Bulb Replacement Center High-Mounted Stoplamp(CHMSL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Front Turn Signal, Sidemarker, and Parking Lamps . . . . . . . . . . . . . . . . . . . . . . . 195
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 195
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . 194 Bulb Replacement (cont'd)
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
License Plate Lamps . . . . . . . . . . . . . . . . . . . 197
Taillamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . . 217
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
California Perchlorate Materials Requirements . . . . 173
California Proposition 65 Warning . . . . . . . . . . . . . . . . . . . . . . . .191, 230,
Back Cover
Camera Rear Vision (RVC) . . . . . . . . . . . . . . . . . . . . . . 147
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . . 1
Capacities and Specifications . . . . . . . . . . . . . 255
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 136
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . 125
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Cargo Door Relocking . . . . . . . . . . . . . . . . . . . . . . 12
Caution, Danger, and Warning . . . . . . . . . . . . . .2
Center High-Mounted Stoplamp (CHMSL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Charging System Light . . . . . . . . . . . . . . . . . . . . .77 Check
Engine Light (Malfunction Indicator) . . . . 77
Ignition Transmission Lock . . . . . . . . . . . . . 193
Child Restraints Infants and Young Children . . . . . . . . . . . . . 47
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59, 61
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Cigarette Lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Climate Control Systems . . . . . . . . . . . . . . . . . . 114
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . 114
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Rear Heating System . . . . . . . . . . . . . . . . . . . 116
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Cluster, Instrument . . . . . . . . . . . . . . . . . . . . . . . .72
Collision Damage Repair . . . . . . . . . . . . . . . . . 264
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 275

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15555951) - 2022 - CRC - 1/27/22

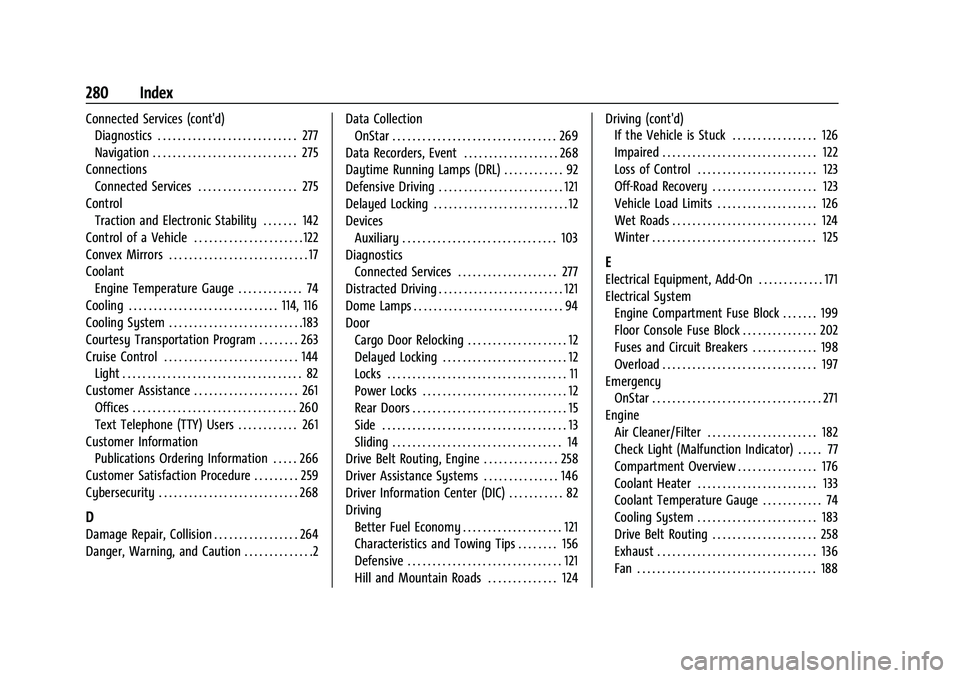

280 Index
Connected Services (cont'd)Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Connections Connected Services . . . . . . . . . . . . . . . . . . . . 275
Control Traction and Electronic Stability . . . . . . . 142
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . . 122
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Coolant Engine Temperature Gauge . . . . . . . . . . . . . 74
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114, 116
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . .183
Courtesy Transportation Program . . . . . . . . 263
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Customer Assistance . . . . . . . . . . . . . . . . . . . . . 261 Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Text Telephone (TTY) Users . . . . . . . . . . . . 261
Customer Information Publications Ordering Information . . . . . 266
Customer Satisfaction Procedure . . . . . . . . . 259
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
D
Damage Repair, Collision . . . . . . . . . . . . . . . . . 264
Danger, Warning, and Caution . . . . . . . . . . . . . .2 Data Collection
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Data Recorders, Event . . . . . . . . . . . . . . . . . . . 268
Daytime Running Lamps (DRL) . . . . . . . . . . . . 92
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . . 121
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Devices Auxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Diagnostics Connected Services . . . . . . . . . . . . . . . . . . . . 277
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . . 121
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Door
Cargo Door Relocking . . . . . . . . . . . . . . . . . . . . 12
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 12
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Rear Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Sliding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Drive Belt Routing, Engine . . . . . . . . . . . . . . . 258
Driver Assistance Systems . . . . . . . . . . . . . . . 146
Driver Information Center (DIC) . . . . . . . . . . . 82
Driving Better Fuel Economy . . . . . . . . . . . . . . . . . . . . 121
Characteristics and Towing Tips . . . . . . . . 156
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Hill and Mountain Roads . . . . . . . . . . . . . . 124 Driving (cont'd)
If the Vehicle is Stuck . . . . . . . . . . . . . . . . . 126
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . 123
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 123
Vehicle Load Limits . . . . . . . . . . . . . . . . . . . . 126
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
E
Electrical Equipment, Add-On . . . . . . . . . . . . . 171
Electrical System
Engine Compartment Fuse Block . . . . . . . 199
Floor Console Fuse Block . . . . . . . . . . . . . . . 202
Fuses and Circuit Breakers . . . . . . . . . . . . . 198
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Emergency
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . 182
Check Light (Malfunction Indicator) . . . . . 77
Compartment Overview . . . . . . . . . . . . . . . . 176
Coolant Heater . . . . . . . . . . . . . . . . . . . . . . . . 133
Coolant Temperature Gauge . . . . . . . . . . . . 74
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 183
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 258
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
