Page 331 of 406

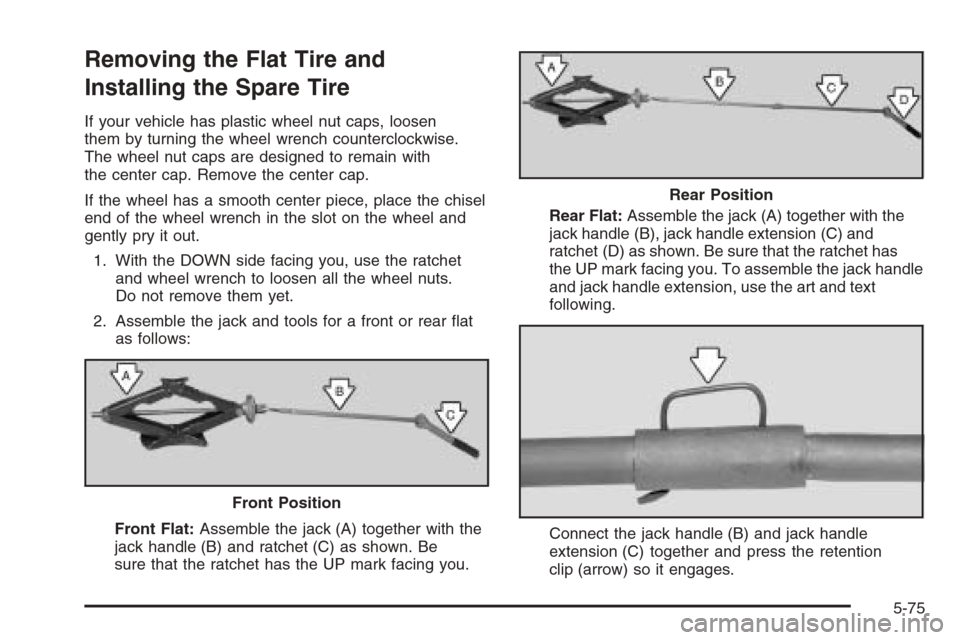

CHEVROLET EXPRESS PASSANGER 2006 1.G Owners Manual Removing the Flat Tire and
Installing the Spare Tire
If your vehicle has plastic wheel nut caps, loosen
them by turning the wheel wrench counterclockwise.
The wheel nut caps are designed to remain wit

Page 332 of 406

CHEVROLET EXPRESS PASSANGER 2006 1.G Owners Manual 3. Position the jack under
the vehicle as shown.
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack you
could be badly injured or killed. Never get

Page 333 of 406

CHEVROLET EXPRESS PASSANGER 2006 1.G Owners Manual 4. Raise the vehicle by turning the ratchet clockwise.
Make sure the UP mark faces you. Raise the
vehicle far enough off the ground so there is enough
room for the spare tire to fit.5. Remove all the

Page 334 of 406

CHEVROLET EXPRESS PASSANGER 2006 1.G Owners Manual {CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could
come off and cause an accident. When you
change a wheel

Page 335 of 406

CHEVROLET EXPRESS PASSANGER 2006 1.G Owners Manual {CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to come loose
and even come off. This could lead to an
accident. Be sure to use the correct wheel
nuts. If you hav

Page 336 of 406

CHEVROLET EXPRESS PASSANGER 2006 1.G Owners Manual Secondary Latch System
Your vehicle has an underbody-mounted tire hoist
assembly equipped with a secondary latch system. It is
designed to stop the spare tire from suddenly falling
off the vehicle if

Page 337 of 406

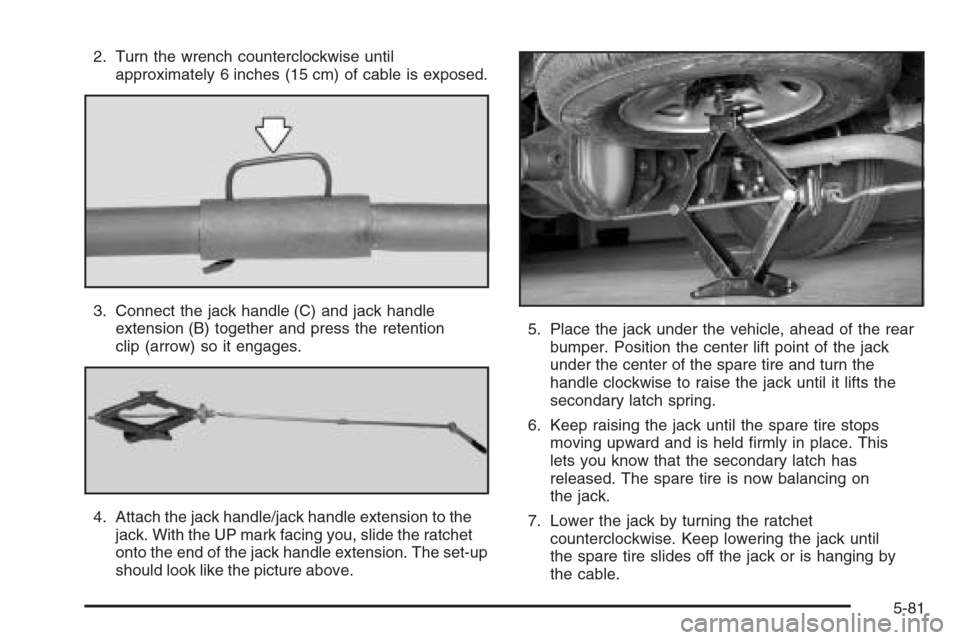

CHEVROLET EXPRESS PASSANGER 2006 1.G Owners Manual 2. Turn the wrench counterclockwise until
approximately 6 inches (15 cm) of cable is exposed.
3. Connect the jack handle (C) and jack handle
extension (B) together and press the retention
clip (arrow)

Page 338 of 406

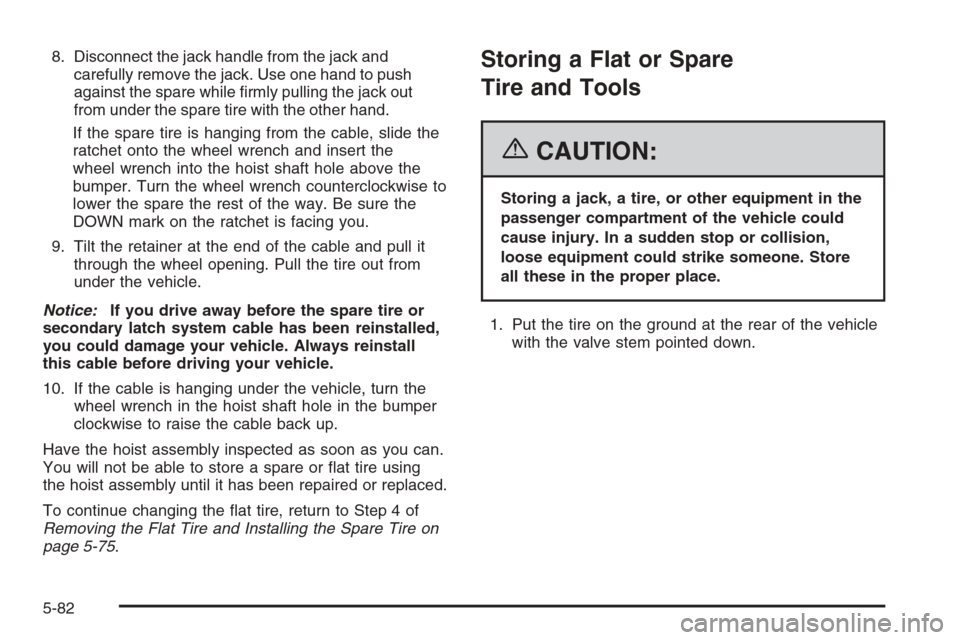

CHEVROLET EXPRESS PASSANGER 2006 1.G Owners Manual 8. Disconnect the jack handle from the jack and
carefully remove the jack. Use one hand to push
against the spare while firmly pulling the jack out
from under the spare tire with the other hand.
If t

Page 339 of 406

CHEVROLET EXPRESS PASSANGER 2006 1.G Owners Manual 2. Pull the retaining bar through the center of the
wheel, making sure it is properly attached.
3. Pull the wheel toward the rear of the vehicle,
keeping the cable tight.
4. With the UP side facing yo

Page 340 of 406

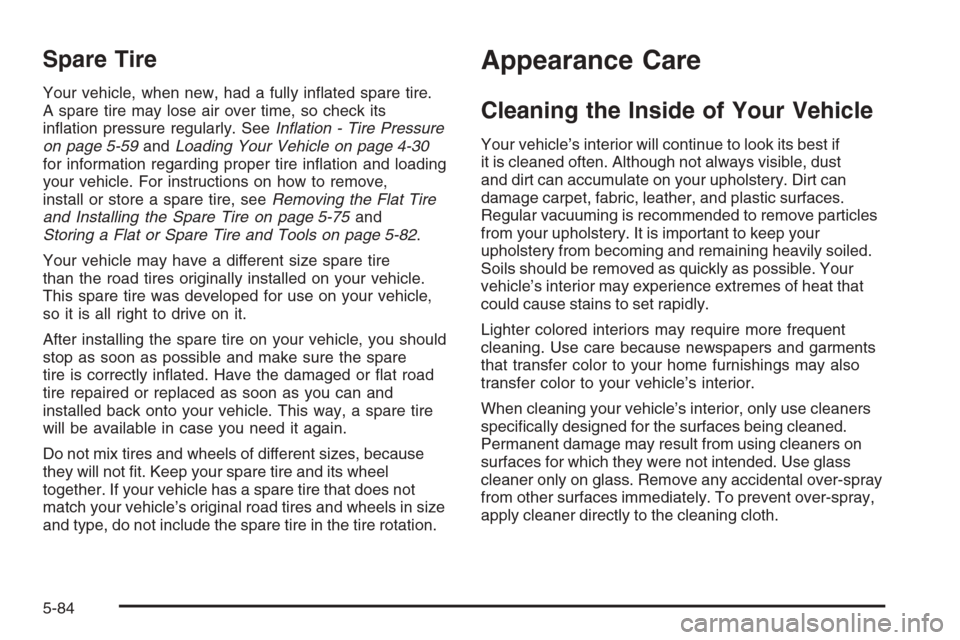

CHEVROLET EXPRESS PASSANGER 2006 1.G Owners Manual Spare Tire
Your vehicle, when new, had a fully inflated spare tire.
A spare tire may lose air over time, so check its
inflation pressure regularly. SeeIn�ation - Tire Pressure
on page 5-59andLoading
