4. Lift the inboard side of the headlamp to
release the inboard tab from the radiator
support.
5. Lift the outboard side of the headlamp to
release the outboard tab from the radiator
support.
6. Lower the headlamp to allow the vertical
adjustor to clear the tie bar.
7. Turn the headlamp forward and upward to
remove it from the grille.
8. Turn the bulb connector counterclockwise
and pull it out of the housing.
9. Without removing the headlamp assembly
itself, remove the bulb socket from the back
of the headlamp on the driver’s side.
10. Turn the bulb counterclockwise one quarter
turn to remove it from the socket.
11. On the passenger’s side, turn the bulb
clockwise one turn.12. Install the new bulb into the socket then
reinstall it into the headlamp assembly.
13. Reverse the steps to reinstall the headlamp
assembly.
341
Page 342 of 458

Front Turn Signal, Sidemarker and
Parking Lamps
To replace the front turn signal, sidemarker and/or
parking lamp bulb(s):
1. Use a small tool to unlatch the outboard clip
on the lamp.
2. Pull the lamp forward to completely unlatch
the clip. Move the lamp outboard to loosen
the tabs.3. Remove the lamp from the grille.
4. Squeeze the tab on the side of the bulb
socket while turning it counterclockwise.
5. Remove the bulb socket from the back of
the lamp assembly.
6. Replace the bulb.
7. Turn the bulb socket clockwise to reinstall it
in the lamp assembly.
Center High-Mounted
Stoplamp (CHMSL)
The center high-mounted stoplamp (CHMSL)
is located above the rear doors at the center
of the vehicle.
342
Page 343 of 458

To replace a bulb:
1. Remove the two screws from the CHMSL
assembly.
2. Remove the assembly.
3. Turn the bulb counterclockwise one quarter
turn to remove it from the socket.
4. Install a new bulb.
5. Reverse the steps to reinstall the assembly.
If items are loaded on the roof of the vehicle,
as in a luggage carrier, care should be taken
not to block or damage the center high-mounted
stoplamp unit.Taillamps
To replace one of these bulbs:
1. Remove the
two inboard nuts
from the inside
of the taillamp
assembly.
2. Pull the taillamp assembly rearward to clear
the studs.
3. Slide the taillamp assembly slightly upward
to release the lower clip.
4. Remove the three nuts on the taillamp
assembly.
5. Remove the taillamp assembly from the
vehicle.
343
Page 344 of 458

6. Remove the bulb socket by squeezing the
tab on the side of the socket while turning
it counterclockwise.
7. Turn the bulb counterclockwise to remove it.
8. Install a new bulb.
9. Reverse the steps to reinstall the taillamp
assembly.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-up, Rear Parking, Stoplamp,
and Turn Signal Lamp3157
Center High Mounted Stop
Lamp (CHMSL)912
Front Parking and Turn
Signal Lamp3157KX
Front Sidemarker Lamp 194
Headlamps
Composite High-Beam
Headlamp9005
Composite Low-Beam
Headlamp9006GS
Sealed Beam Headlamp H6054
For replacement bulbs not listed here, contact
your dealer/retailer.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear and cracking. SeeScheduled Maintenance
(Gasoline Engine) on page 405for more
information on wiper blade inspection.
344
Page 345 of 458

Replacement blades come in different types
and are removed in different ways. To remove
the type with a release clip, do the following:
1. Lift the wiper arm until it locks into a
vertical position.
2. Press down on the blade assembly pivot
locking tab. Pull down on the blade
assembly to release it from the wiper
arm hook.3. The insert has two notches at one end that
are locked by bottom claws of the blade
assembly. At the notched end, pull the insert
from the blade assembly.
4. To install the new wiper insert, slide the
notched end last, into the end with two blade
claws. Then slide the insert all the way through
the blade claws at the opposite end.
5. Make sure that the notches are locked by the
bottom claws. Make sure that all other claws
are properly locked on both sides of the
insert slot.
6. Put the blade assembly pivot in the wiper arm
hook. Pull it up until the pivot locking tab locks
in the hook slot.
7. Carefully lower the wiper arm and blade
assembly into the windshield.
345
Page 346 of 458

Tires

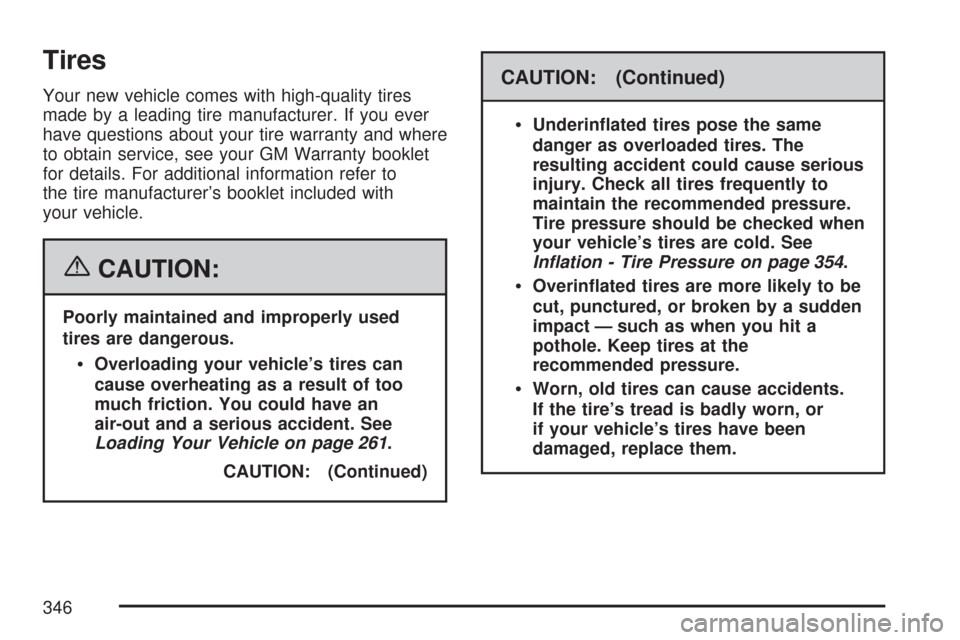

Your new vehicle comes with high-quality tires
made by a leading tire manufacturer. If you ever
have questions about your tire warranty and where
to obtain service, see your GM Warranty booklet
for details. For additional information refer to
the tire manufacturer’s booklet included with
your vehicle.
{CAUTION:
Poorly maintained and improperly used
tires are dangerous.
Overloading your vehicle’s tires can
cause overheating as a result of too
much friction. You could have an
air-out and a serious accident. See
Loading Your Vehicle on page 261.
CAUTION: (Continued)
CAUTION: (Continued)
Underin ated tires pose the same
danger as overloaded tires. The
resulting accident could cause serious
injury. Check all tires frequently to
maintain the recommended pressure.
Tire pressure should be checked when
your vehicle’s tires are cold. See
Inflation - Tire Pressure on page 354.
Overin ated tires are more likely to be
cut, punctured, or broken by a sudden
impact — such as when you hit a
pothole. Keep tires at the
recommended pressure.
Worn, old tires can cause accidents.
If the tire’s tread is badly worn, or
if your vehicle’s tires have been
damaged, replace them.
346
Page 347 of 458

Tire Sidewall Labeling
Useful information about a tire is molded into the
sidewall. The following illustrations are examples
of a typical P-Metric and a LT-Metric tire sidewall.(A) Tire Size:The tire size code is a combination
of letters and numbers used to define a particular
tire’s width, height, aspect ratio, construction
type, and service description. See the “Tire Size”
illustration later in this section for more detail.
(B) TPC Spec (Tire Performance Criteria
Speci cation):Original equipment tires designed
to GM’s specific tire performance criteria have
a TPC specification code molded onto the sidewall.
GM’s TPC specifications meet or exceed all
federal safety guidelines.
(C) DOT (Department of Transportation):
The Department of Transportation (DOT) code
indicates that the tire is in compliance with the
U.S. Department of Transportation Motor Vehicle
Safety Standards.
(D) Tire Identi cation Number (TIN):The letters
and numbers following DOT code are the Tire
Identification Number (TIN). The TIN shows
the manufacturer and plant code, tire size, and
date the tire was manufactured. The TIN is
molded onto both sides of the tire, although only
one side may have the date of manufacture.
Passenger (P-Metric) Tire
347
Page 348 of 458

(E) Tire Ply Material:The type of cord and
number of plies in the sidewall and under
the tread.
(F) Uniform Tire Quality Grading (UTQG):
Tire manufacturers are required to grade
tires based on three performance factors:
treadwear, traction, and temperature resistance.
For more information, seeUniform Tire Quality
Grading on page 361.
(G) Maximum Cold In ation Load Limit:
Maximum load that can be carried and the
maximum pressure needed to support that load.
For information on recommended tire pressure
seeIn ation - Tire Pressure on page 354
andLoading Your Vehicle on page 261.
(A) Tire Size:The tire size code is a combination
of letters and numbers used to define a particular
tire’s width, height, aspect ratio, construction
type, and service description. See the “Tire Size”
illustration later in this section for more detail.
Light Truck (LT-Metric) Tire
348
