5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may find it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be
able to pull more of the belt from the retractor
once the lock has been set.
71

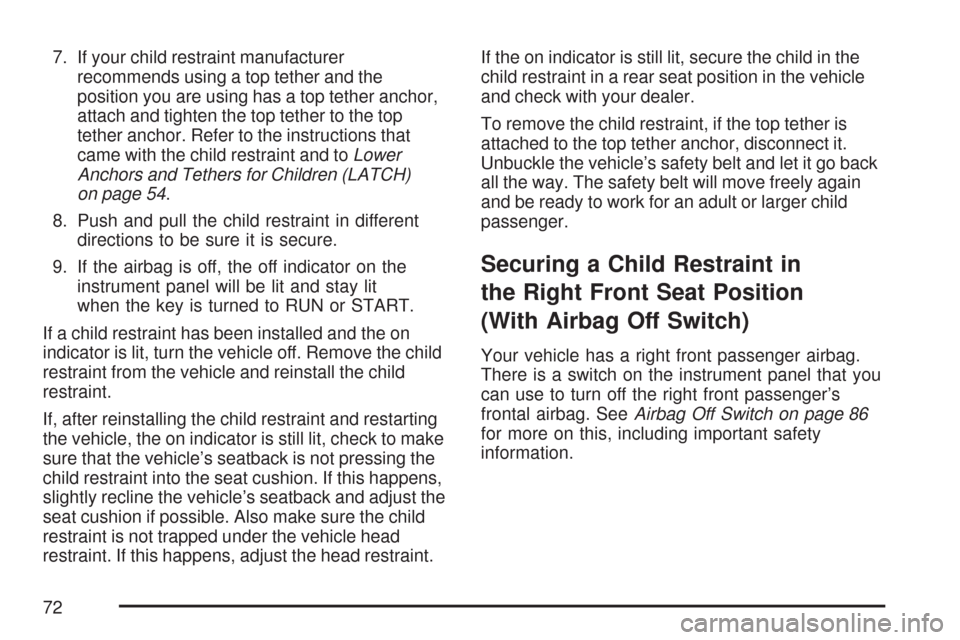

7. If your child restraint manufacturer
recommends using a top tether and the
position you are using has a top tether anchor,
attach and tighten the top tether to the top
tether anchor. Refer to the instructions that
came with the child restraint and toLower
Anchors and Tethers for Children (LATCH)
on page 54.
8. Push and pull the child restraint in different
directions to be sure it is secure.
9. If the airbag is off, the off indicator on the
instrument panel will be lit and stay lit
when the key is turned to RUN or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child
restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the
child restraint into the seat cushion. If this happens,
slightly recline the vehicle’s seatback and adjust the
seat cushion if possible. Also make sure the child
restraint is not trapped under the vehicle head
restraint. If this happens, adjust the head restraint.If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the vehicle
and check with your dealer.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect it.
Unbuckle the vehicle’s safety belt and let it go back
all the way. The safety belt will move freely again
and be ready to work for an adult or larger child
passenger.
Securing a Child Restraint in
the Right Front Seat Position
(With Airbag Off Switch)
Your vehicle has a right front passenger airbag.
There is a switch on the instrument panel that you
can use to turn off the right front passenger’s
frontal airbag. SeeAirbag Off Switch on page 86
for more on this, including important safety
information.
72

{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the passenger’s
airbag inates. This is because the back of
the rear-facing child restraint would be very
close to the inating airbag. Do not use a
rear-facing child restraint in this vehicle
unless the passenger’s airbag has been
turned off.
Even though the airbag off switch is
designed to turn off the passenger’s frontal
airbag, no system is fail-safe, and no one
can guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend that
rear-facing child restraints be transported
in vehicles with a rear seat that will
accommodate a rear-facing child restraint,
whenever possible.
CAUTION: (Continued)
CAUTION: (Continued)
If you need to secure a forward-facing child
restraint in the passenger seat, always
move the passenger seat as far back as it
will go.
United StatesCanada
73

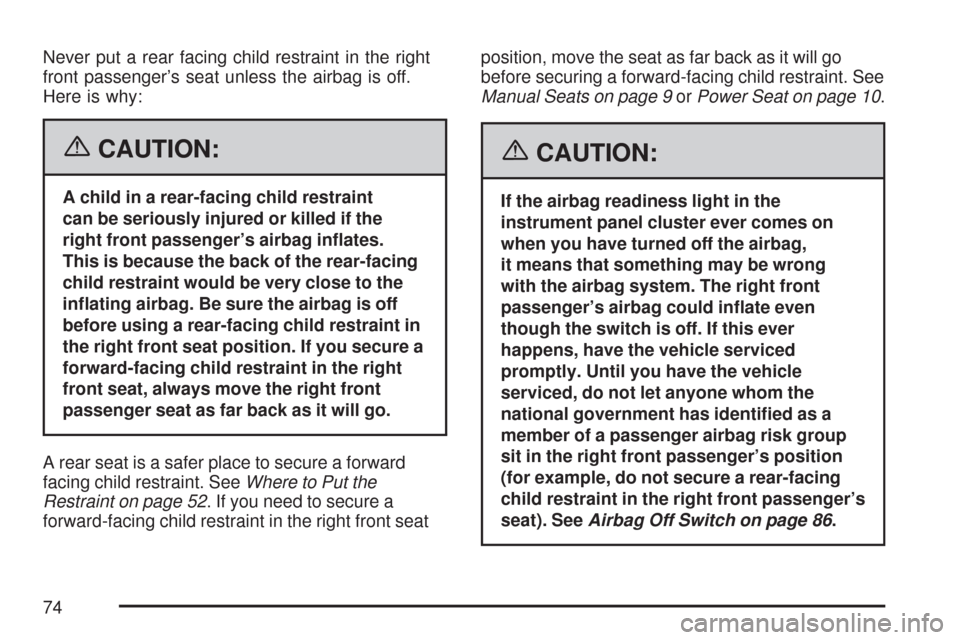

Never put a rear facing child restraint in the right
front passenger’s seat unless the airbag is off.
Here is why:
{CAUTION:
A child in a rear-facing child restraint
can be seriously injured or killed if the
right front passenger’s airbag inates.
This is because the back of the rear-facing
child restraint would be very close to the
inating airbag. Be sure the airbag is off
before using a rear-facing child restraint in
the right front seat position. If you secure a
forward-facing child restraint in the right
front seat, always move the right front
passenger seat as far back as it will go.
A rear seat is a safer place to secure a forward
facing child restraint. SeeWhere to Put the
Restraint on page 52. If you need to secure a
forward-facing child restraint in the right front seatposition, move the seat as far back as it will go
before securing a forward-facing child restraint. See
Manual Seats on page 9orPower Seat on page 10.
{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
when you have turned off the airbag,
it means that something may be wrong
with the airbag system. The right front
passenger’s airbag could inate even
though the switch is off. If this ever
happens, have the vehicle serviced
promptly. Until you have the vehicle
serviced, do not let anyone whom the
national government has identied as a
member of a passenger airbag risk group
sit in the right front passenger’s position
(for example, do not secure a rear-facing
child restraint in the right front passenger’s
seat). SeeAirbag Off Switch on page 86.
74

If your child restraint has the LATCH system,
seeLower Anchors and Tethers for Children
(LATCH) on page 54.
You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and
as the instructions say.
1. Your vehicle has a right front passenger’s
frontal airbag. SeeAirbag Off Switch
on page 86. If your child restraint is
forward-facing, move the seat as far back
as it will go before securing the restraint
in this seat. SeeManual Seats on page 9or
Power Seat on page 10. If you need to
use a rear-facing child restraint in this seat,
make sure the airbag is off once the child
restraint has been installed.
When the airbag off switch has turned off
the right front passenger’s frontal airbag,
the off indicator in the airbag off light should
light and stay lit when you turn the ignition
to RUN or START. SeeAirbag Off Light
on page 170.2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
75

5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.6. To tighten the belt, push down on the child
restraint, pull the shoulder belt to tighten the lap
belt portion and feed the shoulder belt back into
the retractor. If you are using a forward-facing
child restraint, you may find it helpful to use
your knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt out of the retractor once
the lock has been set.
76

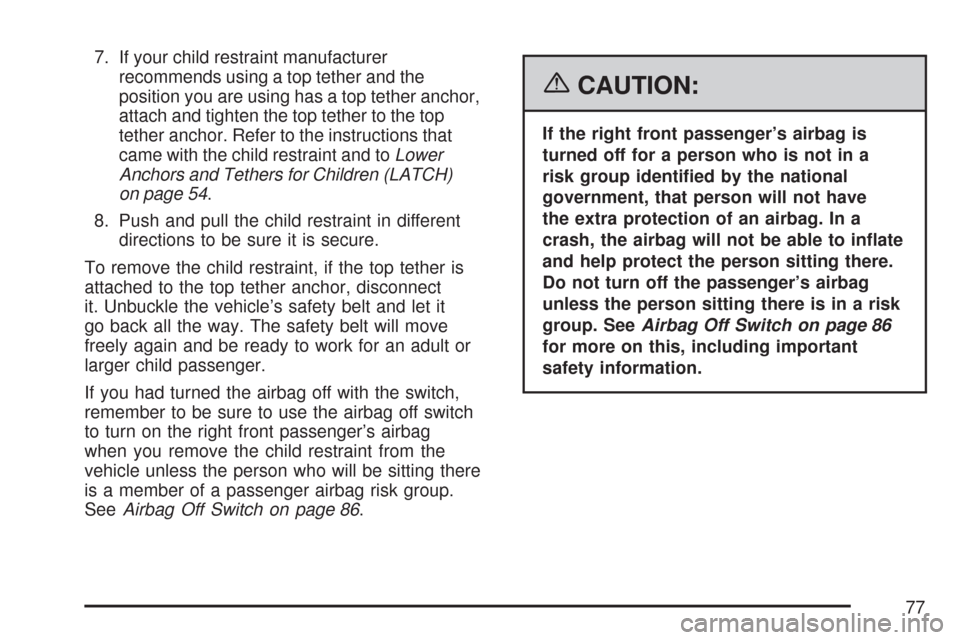

7. If your child restraint manufacturer
recommends using a top tether and the
position you are using has a top tether anchor,
attach and tighten the top tether to the top
tether anchor. Refer to the instructions that
came with the child restraint and toLower
Anchors and Tethers for Children (LATCH)
on page 54.
8. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect
it. Unbuckle the vehicle’s safety belt and let it
go back all the way. The safety belt will move
freely again and be ready to work for an adult or
larger child passenger.
If you had turned the airbag off with the switch,
remember to be sure to use the airbag off switch
to turn on the right front passenger’s airbag
when you remove the child restraint from the
vehicle unless the person who will be sitting there
is a member of a passenger airbag risk group.
SeeAirbag Off Switch on page 86.
{CAUTION:
If the right front passenger’s airbag is
turned off for a person who is not in a
risk group identied by the national
government, that person will not have
the extra protection of an airbag. In a
crash, the airbag will not be able to inate
and help protect the person sitting there.
Do not turn off the passenger’s airbag
unless the person sitting there is in a risk
group. SeeAirbag Off Switch on page 86
for more on this, including important
safety information.
77

Airbag System
Your vehicle has an airbag for the driver in the
middle of the steering wheel. If it says AIR BAG
on the instrument panel in front of the right
front passenger’s seat, your vehicle has an
airbag for the right front passenger.
If there is not a right front passenger’s seat,
your vehicle has an airbag for the driver only.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s
airbags are also designed to help reduce the risk
of injury from the force of an inflating bag, all
airbags must inflate very quickly to do their job.
Here are the most important things to know
about the airbag system:
{CAUTION:
You can be severely injured or killed in a
crash if you are not wearing your safety
belt — even if you have airbags. Wearing
your safety belt during a crash helps
CAUTION: (Continued)
CAUTION: (Continued)
reduce your chance of hitting things inside
the vehicle or being ejected from it. Airbags
are “supplemental restraints” to the safety
belts. All airbags are designed to work
with safety belts, but do not replace them.
{CAUTION:
Airbags are designed to deploy in
moderate to severe frontal and near frontal
crashes. They are not designed to inate
in rollover, rear crashes, or in many side
crashes. And, for some unrestrained
occupants, airbags may provide less
protection in frontal crashes than more
forceful airbags have provided in the past.
Everyone in your vehicle should wear a
safety belt properly — whether or not there
is an airbag for that person.
78

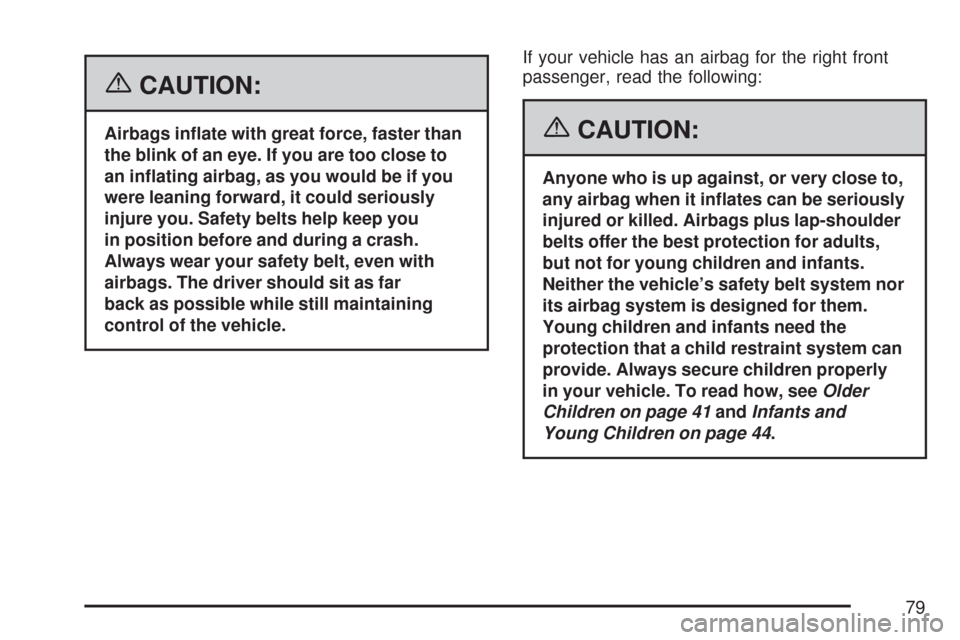

{CAUTION:
Airbags inate with great force, faster than
the blink of an eye. If you are too close to
an inating airbag, as you would be if you
were leaning forward, it could seriously
injure you. Safety belts help keep you
in position before and during a crash.
Always wear your safety belt, even with
airbags. The driver should sit as far
back as possible while still maintaining
control of the vehicle.If your vehicle has an airbag for the right front
passenger, read the following:{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults,
but not for young children and infants.
Neither the vehicle’s safety belt system nor
its airbag system is designed for them.
Young children and infants need the
protection that a child restraint system can
provide. Always secure children properly
in your vehicle. To read how, seeOlder
Children on page 41andInfants and
Young Children on page 44.
79

There is an airbag
readiness light on
the instrument panel,
which shows the
airbag symbol.
The system checks the airbag electrical system
for malfunctions. The light tells you if there is
an electrical problem. SeeAirbag Readiness
Light on page 169for more information.Where Are the Airbags?
The driver’s airbag is in the middle of the
steering wheel.
80
