Page 31 of 458
To unlatch the belt, push the button on the buckle.
The belt should go back out of the way.
Before you close the door, be sure the belt is out
of the way. If you slam the door on it, you can
damage both the belt and your vehicle.
Shoulder Belt Height Adjustment
Before you begin to drive, move the shoulder belt
height adjuster to the height that is right for you.
Adjust the height so that the shoulder portion of the
belt is centered on your shoulder. The belt should
be away from your face and neck, but not falling
off your shoulder. Improper shoulder belt height
adjustment could reduce the effectiveness of the
safety belt in a crash.
To move it down,
pull on the center
adjuster control
labeled PULL.
You can move the
height adjuster up
just by pushing
up on the shoulder
belt guide.
After you move the height adjuster to where you
want it, try to move it down without pushing in
to make sure it has locked into position.
31
Page 32 of 458
Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to
be seriously injured if they do not wear safety belts.
A pregnant woman should wear a lap-shoulder
belt, and the lap portion should be worn as low
as possible, below the rounding, throughout
the pregnancy.The best way to protect the fetus is to protect
the mother. When a safety belt is worn properly,
it is more likely that the fetus will not be hurt
in a crash. For pregnant women, as for anyone,
the key to making safety belts effective is wearing
them properly.
Right Front Passenger Position
To learn how to wear the right front passenger’s
safety belt properly, seeDriver Position on
page 23.
The right front passenger’s safety belt works the
same way as the driver’s safety belt — except
for the following.
If you ever pull the shoulder portion of the belt
out all the way, you will engage the child restraint
locking feature. If this happens, just let the belt
go back all the way and start again.
When the safety belt is not in use, slide the latch
plate up the safety belt webbing. The latch plate
should rest on the stitching on the safety belt,
near the guide loop.
32
Page 33 of 458
Center Passenger Position
(3rd, 4th and 5th Row)
Lap Belt
If your vehicle has third, fourth or fifth row bench
seats, someone can sit in the center positions.
When you sit in a center seating position in the
third, fourth or fifth row, you have a lap safety belt,
which has no retractor. To make the belt longer,
tilt the latch plate and pull it along the belt.To make the belt shorter, pull its free end as
shown until the belt is snug.
Buckle, position and release it the same way
as the lap part of a lap-shoulder belt. If the belt
isn’t long enough, seeSafety Belt Extender
on page 40.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
33
Page 34 of 458
Center Passenger Position
(2nd Row)
If your vehicle has a second row bench seat,
someone can sit in the center position. When
you sit in the center position in the second
row bench seat, you have a lap-shoulder belt
which works the same way as the rear seat
outside passengers’ belts.
To learn how to wear a lap-shoulder belt
see, “Lap-Shoulder Belt” underRear Outside
Passenger Positions on page 34.
Rear Outside Passenger Positions
It is very important for rear seat passengers
to buckle up! Accident statistics show that unbelted
people in the rear seat are hurt more often in
crashes than those who are wearing safety belts.
Rear passengers who are not safety belted
can be thrown out of the vehicle in a crash.
And they can strike others in the vehicle who
are wearing safety belts.
Lap-Shoulder Belt
The positions next to the windows have
lap-shoulder belts. Here is how to wear a
lap-shoulder belt properly.
1. Pick up the latch plate and pull the belt
across you. Do not let it get twisted.
The shoulder belt may lock if you pull the
belt across you very quickly. If this happens,
let the belt go back slightly to unlock it.
Then pull the belt across you more slowly.
34
Page 35 of 458
2. Push the latch plate into the buckle until
it clicks.
Pull up on the latch plate to make sure
it is secure.
When the shoulder belt is pulled out all the
way, it will lock. If it does, let the belt go
back all the way and start again.
If the belt is not long enough, seeSafety Belt
Extender on page 40.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
3. To make the lap part tight, pull up on the
shoulder part.
35
Page 36 of 458
The lap part of the belt should be worn low and
snug on the hips, just touching the thighs. In a
crash, this applies force to the strong pelvic bones.
And you would be less likely to slide under the lap
belt. If you slid under it, the belt would apply force at
your abdomen. This could cause serious or even
fatal injuries. The shoulder belt should go over the
shoulder and across the chest. These parts of the
body are best able to take belt restraining forces.
The safety belt locks if there is a sudden stop or
a crash.
{CAUTION:
You can be seriously hurt if your shoulder
belt is too loose. In a crash, you would
move forward too much, which could
increase injury. The shoulder belt should
t against your body.
36
Page 37 of 458
To unlatch the belt, push the button on the buckle.
For outboard seating positions, when the safety
belt is not in use, slide the latch plate up the safety
belt webbing. The latch plate should rest on the
stitching on the safety belt, near the guide loop
on the side wall.
Rear Safety Belt Comfort Guides
Rear shoulder belt comfort guides may provide
added safety belt comfort for older children
who have outgrown booster seats and for some
adults. When installed on a shoulder belt, the
comfort guide positions the belt away from
the neck and head.
There is one guide for each outside passenger
position in the rear seats. Here is how to install
a comfort guide to the safety belt:
1. Locate the guide in a pocket on the side of
the seatback.
37
Page 38 of 458
2. Slide the guide under and past the belt. The
elastic cord must be under the belt. Then, place
the guide over the belt and insert the two edges
of the belt into the slots of the guide.3. Be sure that the belt is not twisted and it lies
flat. The elastic cord must be under the belt
and the guide on top.
38
Page 39 of 458
{CAUTION:
A safety belt that is not properly worn
may not provide the protection needed
in a crash. The person wearing the belt
could be seriously injured. The shoulder
belt should go over the shoulder and
across the chest. These parts of the body
are best able to take belt restraining
forces.
4. Buckle, position, and release the safety belt
as described inRear Outside Passenger
Positions on page 34. Make sure that
the shoulder belt crosses the shoulder.
To remove and store the comfort guide, squeeze
the belt edges together so that you can take
them out of the guide. Slide the guide into
its storage pocket on the side of the seatback.
39
Page 40 of 458

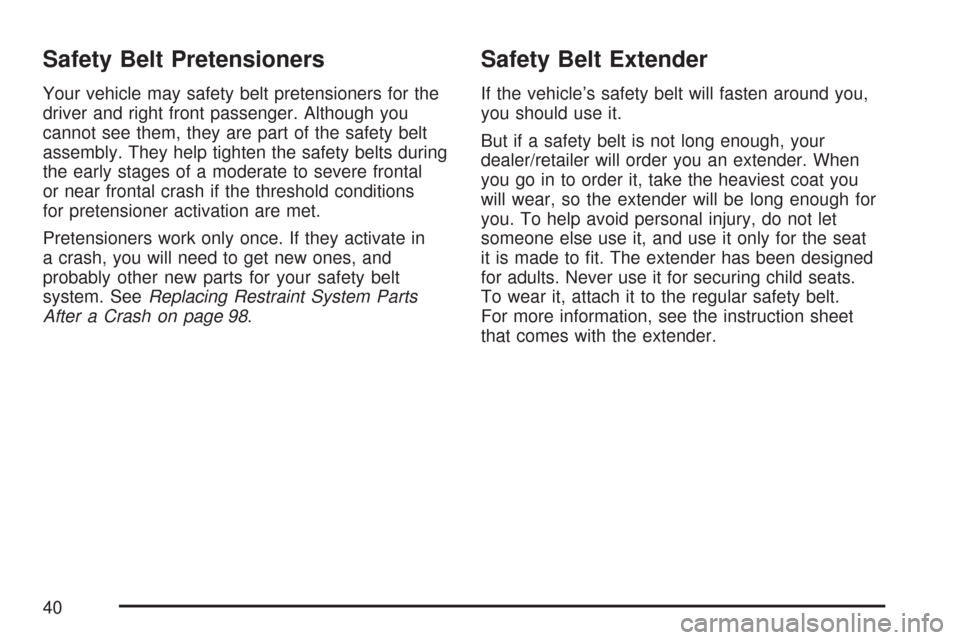

Safety Belt Pretensioners
Your vehicle may safety belt pretensioners for the
driver and right front passenger. Although you
cannot see them, they are part of the safety belt
assembly. They help tighten the safety belts during
the early stages of a moderate to severe frontal
or near frontal crash if the threshold conditions
for pretensioner activation are met.
Pretensioners work only once. If they activate in
a crash, you will need to get new ones, and
probably other new parts for your safety belt
system. SeeReplacing Restraint System Parts
After a Crash on page 98.
Safety Belt Extender
If the vehicle’s safety belt will fasten around you,
you should use it.
But if a safety belt is not long enough, your
dealer/retailer will order you an extender. When
you go in to order it, take the heaviest coat you
will wear, so the extender will be long enough for
you. To help avoid personal injury, do not let
someone else use it, and use it only for the seat
it is made to fit. The extender has been designed
for adults. Never use it for securing child seats.
To wear it, attach it to the regular safety belt.
For more information, see the instruction sheet
that comes with the extender.
40
