instrument cluster CHEVROLET IMPALA 2002 8.G Owners Manual

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-9 Remote Keyless Entry (If Equipped)
2
-13 Trunk
2
-18 Theft
2
-19 Content Theft-Deterrent (Option)
2
-20 Vehicle Customization Settings
2
-30 Passlock

2-30 New Vehicle ªBreak-Inº
2
-31 Ignition Positions
2
-32 Starting Your Engine
2
-34 Engine Coolant Heater (Option)
2
-36 Automatic Transaxle Operation
2
-40 Parking Brake
2
-41 Shifting Into PARK (P)
2
-44 Shifting Out of PARK (P)
2
-45 Parking Over Things That Burn2
-45 Engine Exhaust
2
-46 Running Your Engine While You're Parked
2
-47 Tilt Wheel
2
-47 Turn Signal/Multifunction Lever
2
-54 Exterior Lamps
2
-57 Interior Lamps
2
-59 Mirrors
2
-66 Accessory Power Outlet
2
-68 Auxiliary Power Connection (Power Drop)
2
-69 OnStar
System (If Equipped)
2
-73 Power Sunroof (Option)
2
-74 HomeLink
Transmitter (Option)
2
-78 The Instrument Panel -- Your
Information System
2
-80 Instrument Panel Cluster
2
-83 Warning Lights, Gages and Indicators
2
-94 Message Center
2
-103 Driver Information Center (DIC) (Option)

2-15
NOTICE:
The trunk assist handle was not designed to be
used to tie down the trunk lid or as an anchor
point when securing items in the trunk. Improper
use of the trunk assist handle could damage it.
Pull down on the handle to lower the trunk lid. Then
close the trunk with your other hand. If the trunk is not
properly closed, the TRUNK OPEN message will
appear in the message center of your instrument panel
cluster. See ªTrunk Open Messageº in the Index for
more information.
Trunk Release Handle
There is a glow-in-the-dark trunk release handle located
inside the trunk on the latch. This handle will glow
following exposure to light. Pull the release handle
down to open the trunk from the inside.
Trap-Resistant Trunk Kit
To help prevent a child from becoming trapped in your
trunk, you can order a trap
-resistant trunk kit from your
dealer. This kit includes:

a modified trunk latch,

a lighted release handle, and

seatback tethers (for vehicles with folding
rear seatbacks).
See your dealer for additional information.

2-21

Horn Chirp On Timer (Available with Remote
Keyless Entry)

Remote Keyless Entry Transmitter Programming
(Available with Remote Keyless Entry)

Return to Original Factory Settings (Available for All)

Exit Vehicle Customization Mode
Entering Programming Mode: To reset or customize
the features, you must first enter the vehicle
customization main menu. To enter the main menu,
do the following:
1. Turn the ignition to ACC or ON. The radio must
be off.
2. Press and hold the DISP button on the radio for at
least five seconds until SETTINGS is displayed.
3. Press the SEEK up or down arrows to scroll through
each available feature on your main menu.
4. Press the PREV or NEXT buttons to scroll through
the lower menu. An asterisk (*) will appear next to
the item that is the current setting.
The following information shows how to reset or
customize features after entering the main menu:SETTINGS -- Display Current Settings
OIL LIFE
-- Oil Life Reset: This feature allows you to
reset the GM Oil Life System Monitor after an oil
change, see ªEngine Oilº in the Index. Be careful not to
reset the OIL LIFE accidentally at any time other than
when the oil has been changed. It can't be reset
accurately until the next oil change. To clear the
CHANGE ENGINE OIL light from the instrument panel
cluster and reset the oil life monitor:
1. Scroll, using the SEEK up or down arrows, until OIL
LIFE appears on the display.
2. Press the PREV or NEXT button to enter the
submenu. RESET will then be displayed.
3. Press the DISP button to reset. A chime will be heard
to verify the new setting and DONE will be
displayed for one second.
The CHANGE ENGINE OIL light is now reset. You can
either exit the programming mode by following the
instructions later in this section or program the next
feature available on your vehicle.

2-22
TIRE MON (Tire Inflation Monitor Reset): This feature
allows you to reset the tire pressure monitor after checking all
tire pressures, see ªTiresº in the Index. To clear the LOW
TIRE PRESSURE light from the instrument panel cluster
and reset the low tire pressure monitor:
1. Scroll, using the SEEK up or down arrows, until
TIRE MON appears on the display.
2. Press the PREV or NEXT button to enter the
submenu. RESET will be displayed.
3. Press the DISP button to reset. A chime will be heard
to verify the new setting and DONE will be
displayed for one second.
The low tire pressure monitor is now reset. You can
either exit the programming mode by following the
instructions later in this section or program the next
feature available on your vehicle.
LT DELAY (Delayed Headlamp Illumination): This
feature allows the headlamps and parking lamps to stay
on for a fixed amount of time after you exit the vehicle.
Programmable Modes
Mode 1: OFF
-- Turns feature off.
Mode 2: 30 SEC
-- 30 seconds.
Mode 3: 60 SEC
-- 60 seconds.Before your vehicle was shipped from the factory, it was
programmed to Mode 2. The mode to which your
vehicle was programmed may have been changed since
it left the factory. To determine the mode to which your
vehicle is programmed or to program your vehicle to a
different mode, do the following:
1. Scroll, using the SEEK up or down arrows, until LT
DELAY appears on the display.
2. Press the PREV or NEXT button to enter the submenu.
The current selection will have an asterisk (*) next to
it. If you do not wish to change the current mode, you
can either exit the programming mode by following the
directions later in this section or program the next
feature available on your vehicle.
3. Scroll, using the PREV or NEXT buttons, through
the modes to change the current mode.
4. With your preference displayed, press the DISP
button to select. A chime will be heard to verify the
new setting. The new selection will be displayed
with an asterisk (*) for one second.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.

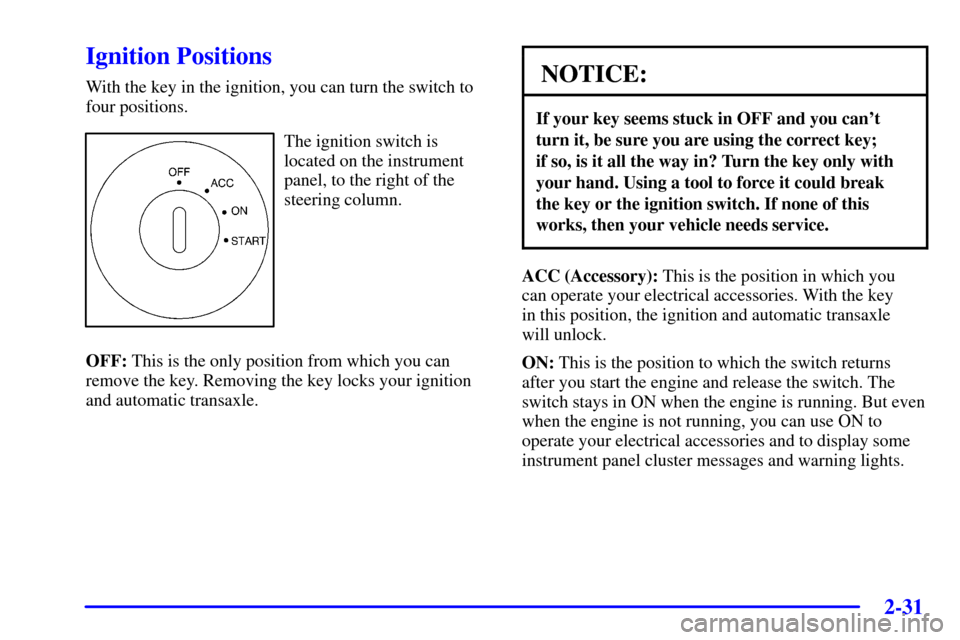

2-31
Ignition Positions
With the key in the ignition, you can turn the switch to
four positions.
The ignition switch is
located on the instrument
panel, to the right of the
steering column.
OFF: This is the only position from which you can
remove the key. Removing the key locks your ignition
and automatic transaxle.
NOTICE:
If your key seems stuck in OFF and you can't
turn it, be sure you are using the correct key;
if so, is it all the way in? Turn the key only with
your hand. Using a tool to force it could break
the key or the ignition switch. If none of this
works, then your vehicle needs service.
ACC (Accessory): This is the position in which you
can operate your electrical accessories. With the key
in this position, the ignition and automatic transaxle
will unlock.
ON: This is the position to which the switch returns
after you start the engine and release the switch. The
switch stays in ON when the engine is running. But even
when the engine is not running, you can use ON to
operate your electrical accessories and to display some
instrument panel cluster messages and warning lights.

2-36

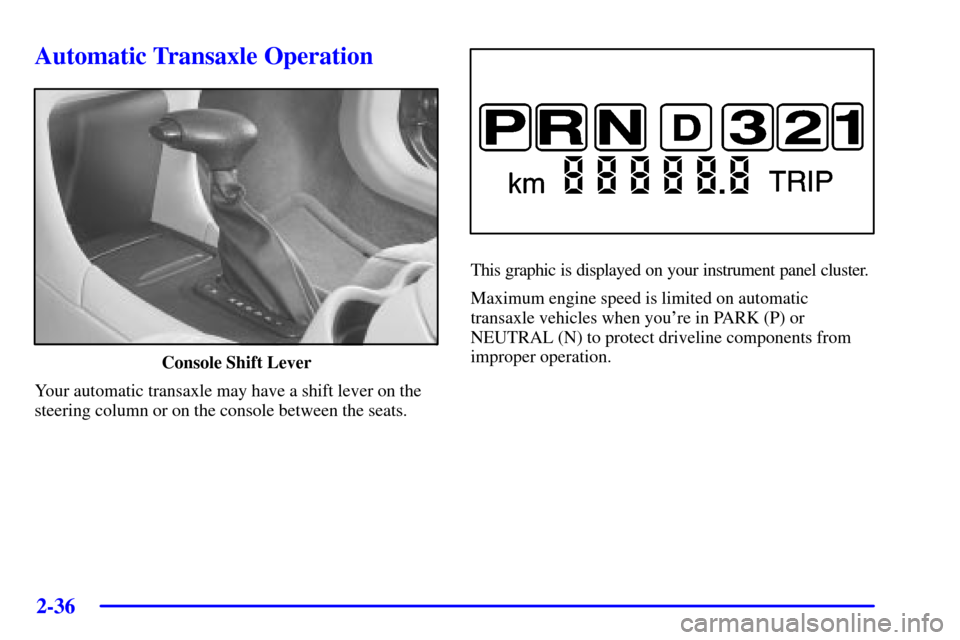

Automatic Transaxle Operation
Console Shift Lever
Your automatic transaxle may have a shift lever on the
steering column or on the console between the seats.
This graphic is displayed on your instrument panel cluster.
Maximum engine speed is limited on automatic
transaxle vehicles when you're in PARK (P) or
NEUTRAL (N) to protect driveline components from
improper operation.

2-48 Turn Signal and Lane-Change Indicator
The turn signal has two upward (for right) and
two downward (for left) positions. These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn is finished, the lever will return automatically.
An arrow on the instrument
panel cluster will flash in
the direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
If the arrow flashes faster than normal as you signal a
turn or a lane change, a signal bulb may be burned out
and other drivers won't see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check for burned
-out bulbs and then check
the fuse (see ªFuses and Circuit Breakersº in the Index).Turn Signal On Chime
If you leave either one of your turn signals on and drive
more than 3/4 mile (1.2 km), a chime will sound to
alert you.
Headlamp High/Low-Beam Changer
To change your headlamps from low beams to high
beams, or high to low, pull the multifunction lever all
the way toward you. Then release it.
When the high beams are
on, this light on the
instrument panel cluster
also will be on.
This light works only when the ignition key is in the ON
position, and your fog lamps (if equipped) will not be
illuminated when your high beams are on.

2-52

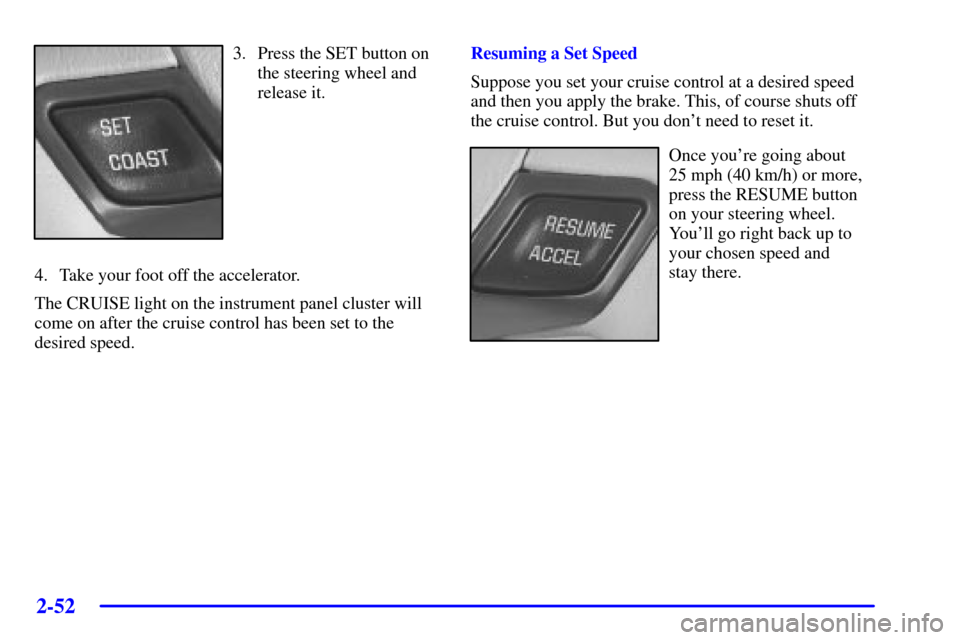

3. Press the SET button on
the steering wheel and
release it.
4. Take your foot off the accelerator.
The CRUISE light on the instrument panel cluster will
come on after the cruise control has been set to the
desired speed.Resuming a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake. This, of course shuts off
the cruise control. But you don't need to reset it.
Once you're going about
25 mph (40 km/h) or more,
press the RESUME button
on your steering wheel.
You'll go right back up to
your chosen speed and
stay there.

2-55
The exterior lamps control has three positions:
OFF:Pushing the control all the way in turns off the
exterior lamps.
Parking Lamps:Pulling the control out halfway will
turn on the parking lamps together with the following:

Taillamps

LIcense Plate Lamps

Instrument Panel Lights
Headlamps: Pulling the control all the way out turns on
the headlamps together with the previously listed lamps
and lights. See ªInterior Lampsº later in this section for
information on the instrument panel brightness control
and on the dome lamps. A warning chime will sound if
you open the driver's door when the ignition switch is
off and the headlamps are on.
Daytime Running Lamps / Automatic
Headlamp Control
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset. Fully
functional daytime running lamps are required on all
vehicles first sold in Canada.A light sensor on top of the instrument panel makes the
DRL work, so be sure it isn't covered.
The DRL system's automatic headlamp control will
make your high
-beam headlamps come on at a reduced
brightness when the following conditions are met:

The ignition is on,

the exterior lamps control is off and

the gearshift is not in PARK (P).
When the DRL are on, only your high
-beam
headlamps, at a reduced level of brightness, will be on.
The headlamps, taillamps, sidemarker and other lamps
won't be on. Your instrument panel and cluster won't be
lit up either.
When it's dark enough outside, your high
-beam
headlamps will turn off and the headlamps and parking
lamps will turn on. The other lamps that come on with
your headlamps will also come on.
When it's bright enough outside, your headlamps will go
off and your DRL will come on.
As with any vehicle, you should turn on the regular
headlamp system when you need it.

2-80
Instrument Panel Cluster
Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You'll know
how fast you're going, about how much fuel is in your tank and many other things you need to drive safely
and economically.
3400 V6 Engine Cluster: United States version shown, Canada similar
