Wheel Replacement
Replace any wheel that is bent, cracked, or badly
rusted or corroded. If wheel nuts keep coming
loose, the wheel, wheel bolts, and wheel
nuts should be replaced. If the wheel leaks air,
replace it (except some aluminum wheels,
which can sometimes be repaired). See your
dealer/retailer if any of these conditions exist.
Your dealer/retailer will know the kind of wheel
you need.
Each new wheel should have the same
load-carrying capacity, diameter, width, offset and
be mounted the same way as the one it replaces.
If you need to replace any of your wheels, wheel
bolts, or wheel nuts, replace them only with
new GM original equipment parts. This way,
you will be sure to have the right wheel, wheel
bolts, and wheel nuts for your vehicle.{CAUTION:
Using the wrong replacement wheels,
wheel bolts, or wheel nuts on your vehicle
can be dangerous. It could affect the
braking and handling of your vehicle,
make your tires lose air and make you
lose control. You could have a collision
in which you or others could be injured.
Always use the correct wheel, wheel bolts,
and wheel nuts for replacement.
Notice:The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle ground
clearance, and tire or tire chain clearance
to the body and chassis.
SeeChanging a Flat Tire on page 374for more
information.
371

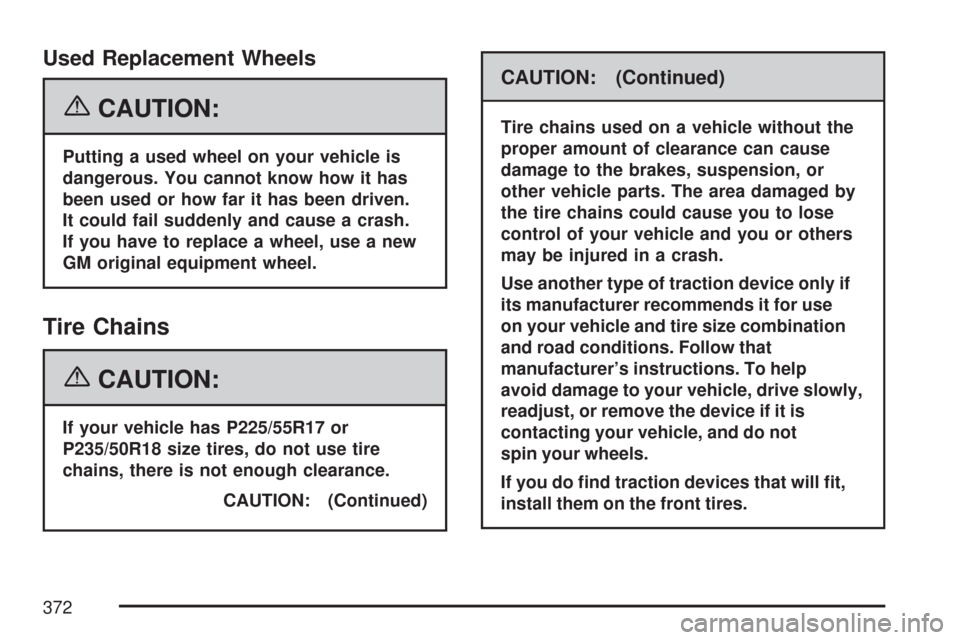

Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You cannot know how it has
been used or how far it has been driven.
It could fail suddenly and cause a crash.
If you have to replace a wheel, use a new
GM original equipment wheel.
Tire Chains
{CAUTION:
If your vehicle has P225/55R17 or
P235/50R18 size tires, do not use tire
chains, there is not enough clearance.
CAUTION: (Continued)
CAUTION: (Continued)
Tire chains used on a vehicle without the
proper amount of clearance can cause
damage to the brakes, suspension, or
other vehicle parts. The area damaged by
the tire chains could cause you to lose
control of your vehicle and you or others
may be injured in a crash.
Use another type of traction device only if
its manufacturer recommends it for use
on your vehicle and tire size combination
and road conditions. Follow that
manufacturer’s instructions. To help
avoid damage to your vehicle, drive slowly,
readjust, or remove the device if it is
contacting your vehicle, and do not
spin your wheels.
If you do nd traction devices that will t,
install them on the front tires.
372

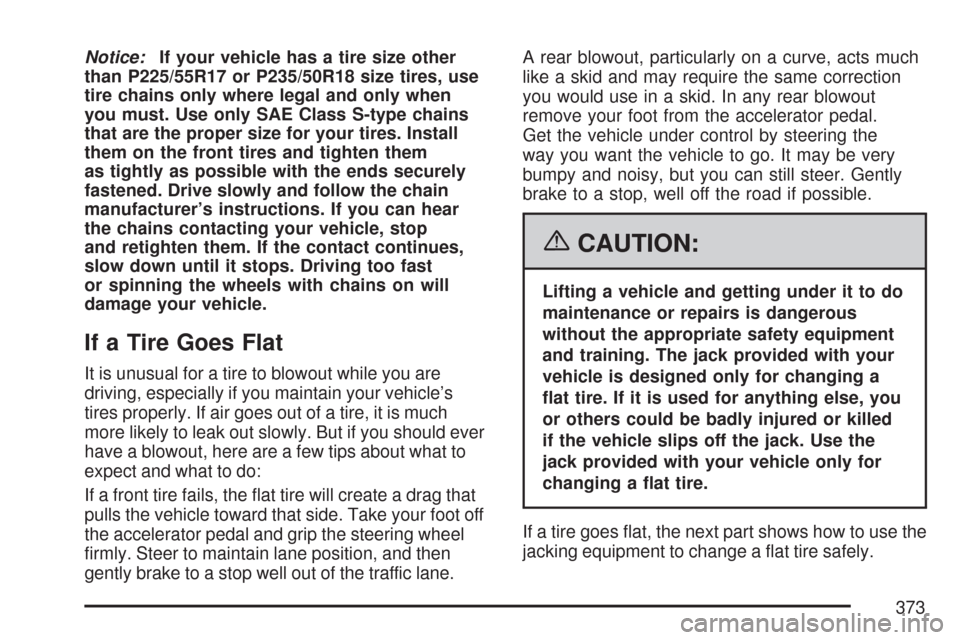

Notice:If your vehicle has a tire size other
than P225/55R17 or P235/50R18 size tires, use
tire chains only where legal and only when
you must. Use only SAE Class S-type chains
that are the proper size for your tires. Install
them on the front tires and tighten them
as tightly as possible with the ends securely
fastened. Drive slowly and follow the chain
manufacturer’s instructions. If you can hear
the chains contacting your vehicle, stop
and retighten them. If the contact continues,
slow down until it stops. Driving too fast
or spinning the wheels with chains on will
damage your vehicle.
If a Tire Goes Flat
It is unusual for a tire to blowout while you are
driving, especially if you maintain your vehicle’s
tires properly. If air goes out of a tire, it is much
more likely to leak out slowly. But if you should ever
have a blowout, here are a few tips about what to
expect and what to do:
If a front tire fails, the at tire will create a drag that
pulls the vehicle toward that side. Take your foot off
the accelerator pedal and grip the steering wheel
rmly. Steer to maintain lane position, and then
gently brake to a stop well out of the traffic lane.A rear blowout, particularly on a curve, acts much
like a skid and may require the same correction
you would use in a skid. In any rear blowout
remove your foot from the accelerator pedal.
Get the vehicle under control by steering the
way you want the vehicle to go. It may be very
bumpy and noisy, but you can still steer. Gently
brake to a stop, well off the road if possible.
{CAUTION:
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous
without the appropriate safety equipment
and training. The jack provided with your
vehicle is designed only for changing a
at tire. If it is used for anything else, you
or others could be badly injured or killed
if the vehicle slips off the jack. Use the
jack provided with your vehicle only for
changing a at tire.
If a tire goes at, the next part shows how to use the
jacking equipment to change a at tire safely.
373

Changing a Flat Tire
If a tire goes at, avoid further tire and wheel
damage by driving slowly to a level place. Turn on
your vehicle’s hazard warning ashers. SeeHazard
Warning Flashers on page 152for more information.
{CAUTION:
Changing a tire can be dangerous. The
vehicle can slip off the jack and roll over
or fall on you or other people. You and
they could be badly injured or even killed.
Find a level place to change your tire. To
help prevent the vehicle from moving:
1. Set the parking brake rmly.
2. Put the shift lever in PARK (P).
3. Turn off the engine and do not restart
while the vehicle is raised.
4. Do not allow passengers to remain in
the vehicle.
To be even more certain the vehicle will
not move, you should put blocks at the
CAUTION: (Continued)
CAUTION: (Continued)
front and rear of the tire farthest away
from the one being changed. That would
be the tire, on the other side, at the
opposite end of the vehicle.
When your vehicle has a at tire, use the following
example as a guide to assist you in the placement
of wheel blocks.
The following information will tell you next how to
use the jack and change a tire.
374

Removing the Spare Tire and Tools
The equipment you will need is located in
the trunk.
1. Open the trunk. SeeTrunk on page 102for
more information.
2. Remove the convenience net if the vehicle
has one.
3. Lift the handle on the spare tire cover. The
handle may hook on the front edge of the
trunk’s weatherstrip to hold the cover out of
the way.4. Turn the wing nut counterclockwise and
remove it.
5. Remove the compact spare tire.
375

6. Turn the nut holding the jack counterclockwise
and remove it. Then remove the jack and
wrench.The tools you will need to change a tire include
the jack (A), extension and protection guide (B),
and wheel wrench (C).
376

Removing the Flat Tire and
Installing the Spare Tire
Your vehicle may have aluminum wheels with
exposed wheel nuts. Use the wheel wrench to
loosen all the wheel nuts. Do not remove them yet.
Or, your vehicle may have steel wheel covers.
To remove the steel wheel covers and wheel nut
caps, loosen the plastic nut caps with the wheel
wrench in a counterclockwise direction. If needed,
you can nish loosening them with your ngers.
The plastic nut caps will not come off.Use the at end of the wheel wrench and pry
along the edge of the cover until it comes off.
The edge of the wheel cover could be sharp,
so do not try to remove it with your bare hands.
Do not drop the cover or lay it face down, as
it could become scratched or damaged. Store the
wheel cover in the trunk until you have the at
tire repaired or replaced.
Once you have removed the wheel cover, use the
following procedure to remove the at tire and
install the spare tire.
1. It is recommended that you do a safety check
before preceding. SeeChanging a Flat Tire
on page 374for more information.
2. Turn the wheel
wrench once on
each wheel nut to
loosen them. Do not
remove them yet.
377

3. For all wheel types, nd the jacking
location using the diagram above and the
corresponding hoisting notches located on
the bottom side of the plastic molding. The
notches in the plastic molding are marked
with a triangle shape to help you nd them.
The front location is about 7.0 inches (17.7 cm)
from the rear edge of the front wheel well. The
rear location is about 4.5 inches (11.4 cm) from
the rear edge of the wheel well.
4. Put the compact spare tire near you.
{CAUTION:
Getting under a vehicle when it is jacked
up is dangerous. If the vehicle slips off
the jack you could be badly injured or
killed. Never get under a vehicle when it is
supported only by a jack.
{CAUTION:
Raising your vehicle with the jack
improperly positioned can damage the
vehicle and even make the vehicle fall.
To help avoid personal injury and vehicle
damage, be sure to t the jack lift head
into the proper location before raising
the vehicle.
378

{CAUTION:
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous
without the appropriate safety equipment
and training. The jack provided with your
vehicle is designed only for changing a
at tire. If it is used for anything else, you
or others could be badly injured or killed
if the vehicle slips off the jack. Use the
jack provided with your vehicle only for
changing a at tire.
5. Raise the vehicle by turning the jack handle
clockwise. Raise the vehicle far enough off
the ground to install the compact spare tire.
6. Remove all wheel nuts and take off the at tire.
379

{CAUTION:
Rust or dirt on the wheel, or on the parts
to which it is fastened, can make the
wheel nuts become loose after time.
The wheel could come off and cause an
accident. When changing a wheel, remove
any rust or dirt from the places where the
wheel attaches to the vehicle. In an
emergency, a cloth or a paper towel can
be used to do this; but be sure to use a
scraper or wire brush later, if needed, to
get all the rust or dirt off.7. Remove any rust or
dirt from the wheel
bolts, mounting
surfaces and
spare wheel.
8. Install the compact spare tire.
