headlamp CHEVROLET KODIAK 2004 User Guide

Automatic Ether Injection System....................5-66
Front Wheel Bearings with Oil-Filled Hubs........5-67
Air Conditioning System.................................5-67
Tires..............................................................5-68
Inflation - Tire Pressure.................................5-68
Rims and Wheels.........................................5-69
Dual Tire Operation.......................................5-69
When It Is Time for New Tires.......................5-70
Wheel Alignment and Tire Balance..................5-70
Tightening the Wheel Nuts.............................5-71
Wheel Replacement......................................5-74
If a Tire Goes Flat........................................5-75
Changing a Flat Tire.....................................5-76
Appearance Care............................................5-76
Cleaning the Inside of Your Vehicle.................5-77
Care of Safety Belts......................................5-79
Weatherstrips...............................................5-79
Cleaning the Outside of Your Vehicle..............5-80
Sheet Metal Damage.....................................5-82Finish Damage.............................................5-83
Underbody Maintenance................................5-83
Chemical Paint Spotting.................................5-83
Vehicle Care/Appearance Materials..................5-84
Vehicle Identication......................................5-85
Vehicle Identification Number (VIN).................5-85
Service Statement.........................................5-85
Service Parts Identification Label.....................5-86
Electrical System............................................5-86
Add-On Electrical Equipment..........................5-86
Headlamp Wiring..........................................5-86
Windshield Wiper Fuses................................5-87
Fusible Links................................................5-87
Power Windows and Other Power Options.......5-87
Fuses and Circuit Breakers............................5-87
Capacities and Specications..........................5-93
Normal Maintenance Replacement Parts.........5-100
Engine Drive Belt Routing............................5-103
Section 5 Service and Appearance Care
5-2

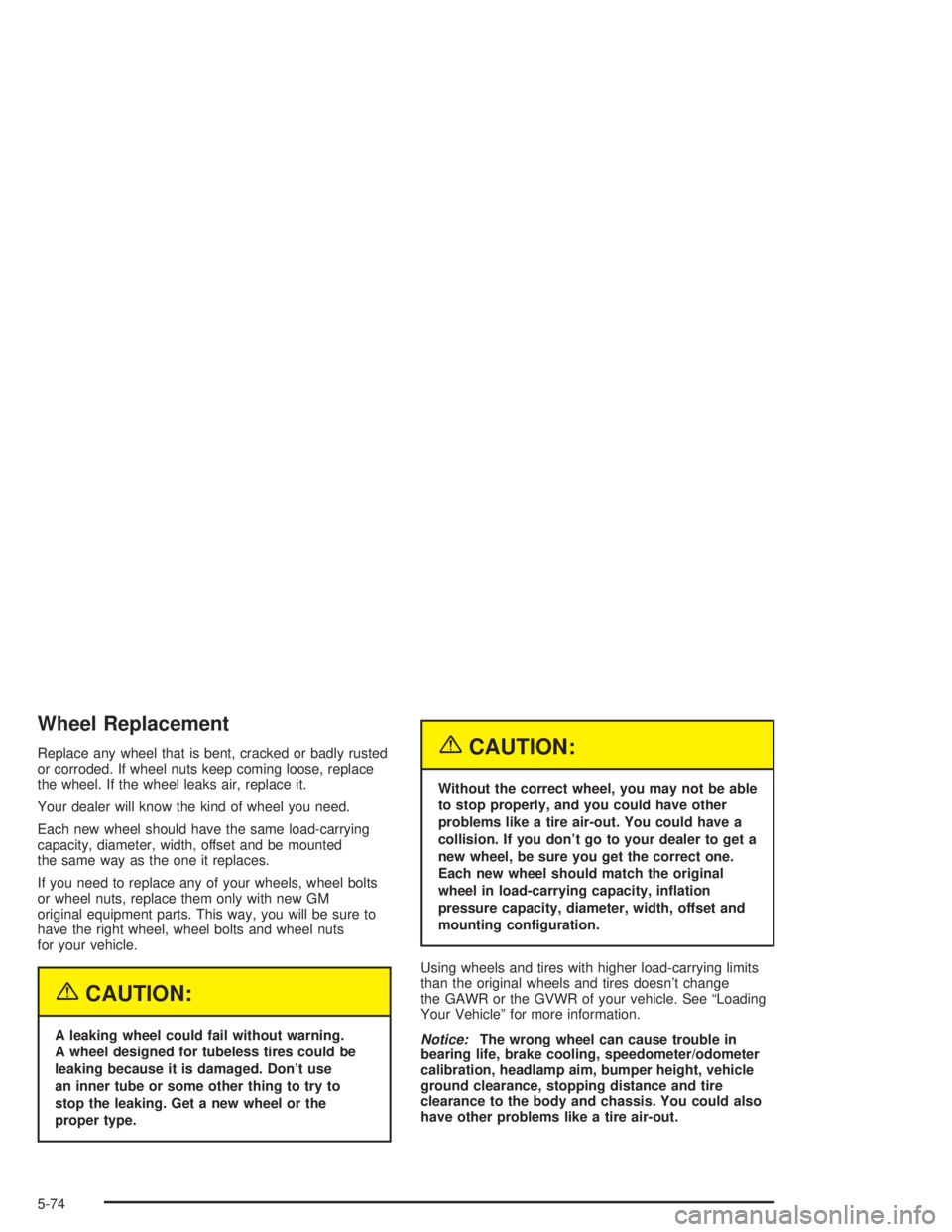

Wheel Replacement
Replace any wheel that is bent, cracked or badly rusted
or corroded. If wheel nuts keep coming loose, replace
the wheel. If the wheel leaks air, replace it.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM
original equipment parts. This way, you will be sure to
have the right wheel, wheel bolts and wheel nuts
for your vehicle.
{CAUTION:
A leaking wheel could fail without warning.
A wheel designed for tubeless tires could be
leaking because it is damaged. Don’t use
an inner tube or some other thing to try to
stop the leaking. Get a new wheel or the
proper type.
{CAUTION:
Without the correct wheel, you may not be able
to stop properly, and you could have other
problems like a tire air-out. You could have a
collision. If you don’t go to your dealer to get a
new wheel, be sure you get the correct one.
Each new wheel should match the original
wheel in load-carrying capacity, ination
pressure capacity, diameter, width, offset and
mounting conguration.
Using wheels and tires with higher load-carrying limits
than the original wheels and tires doesn’t change
the GAWR or the GVWR of your vehicle. See “Loading
Your Vehicle” for more information.
Notice:The wrong wheel can cause trouble in
bearing life, brake cooling, speedometer/odometer
calibration, headlamp aim, bumper height, vehicle
ground clearance, stopping distance and tire
clearance to the body and chassis. You could also
have other problems like a tire air-out.
5-74

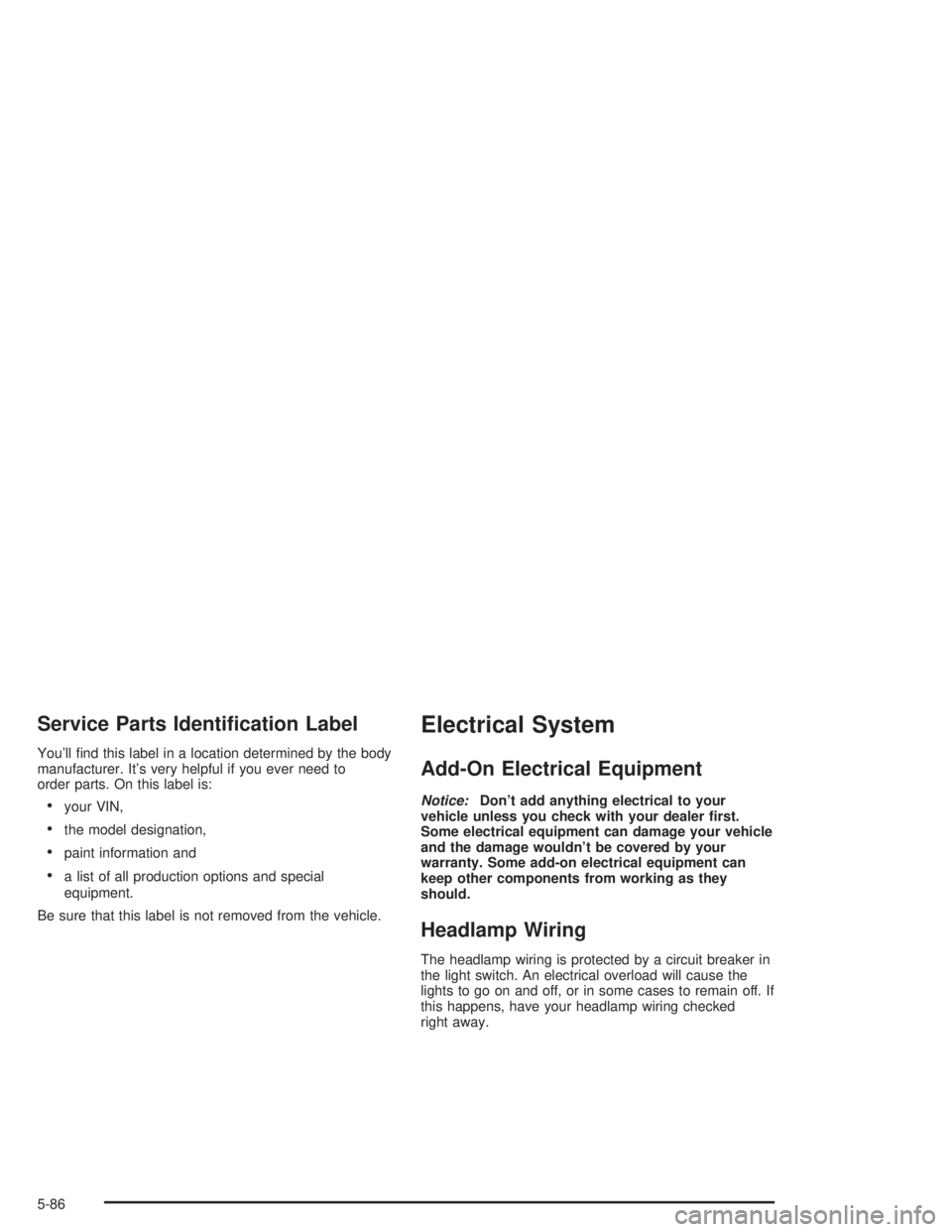

Service Parts Identication Label
You’ll find this label in a location determined by the body
manufacturer. It’s very helpful if you ever need to
order parts. On this label is:
•your VIN,
•the model designation,
•paint information and
•a list of all production options and special
equipment.
Be sure that this label is not removed from the vehicle.
Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your
vehicle unless you check with your dealer rst.
Some electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can
keep other components from working as they
should.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the light switch. An electrical overload will cause the
lights to go on and off, or in some cases to remain off. If
this happens, have your headlamp wiring checked
right away.
5-86

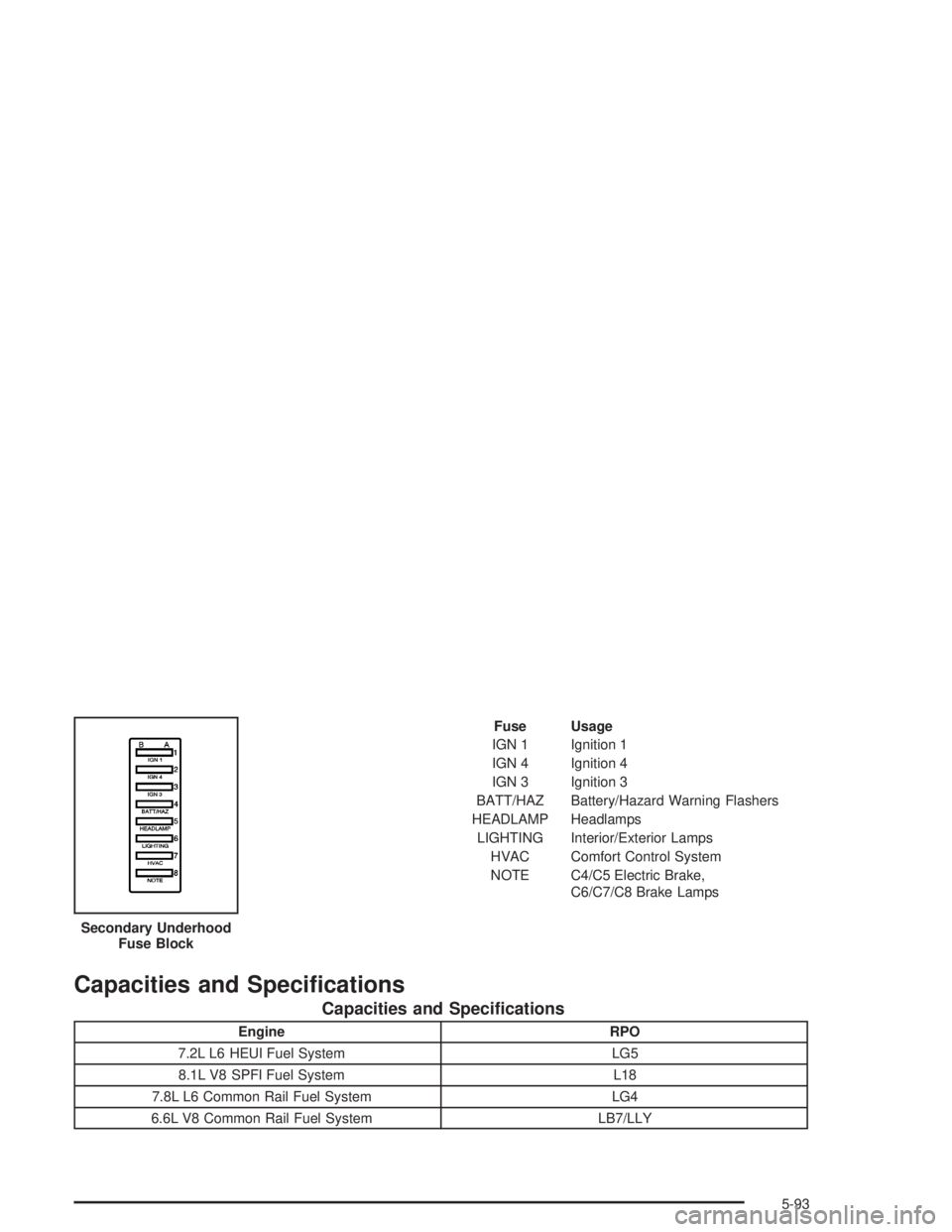

Fuse Usage
IGN 1 Ignition 1
IGN 4 Ignition 4
IGN 3 Ignition 3
BATT/HAZ Battery/Hazard Warning Flashers
HEADLAMP Headlamps
LIGHTING Interior/Exterior Lamps
HVAC Comfort Control System
NOTE C4/C5 Electric Brake,
C6/C7/C8 Brake Lamps
Capacities and Specications
Capacities and Specications
Engine RPO
7.2L L6 HEUI Fuel System LG5
8.1L V8 SPFI Fuel System L18
7.8L L6 Common Rail Fuel System LG4
6.6L V8 Common Rail Fuel System LB7/LLY Secondary Underhood
Fuse Block
5-93

Exhaust System Check
Be alert for any changes in the sound of the exhaust
system or any smell of fumes. These are signs the
system may be leaking. Have it checked and/or repaired
at once. Refer toEngine Exhaust on page 2-37and
Running Your Engine While You Are Parked on
page 2-38.
Windshield Wipers and Washers Check
Check operation and condition of the wiper blades.
Check the flow of the washer spray.
Defroster Check
Move the control to the defrost symbol and the fan to HI
or the high symbol. Then check the airflow from the
ducts at the inside base of the windshield.
Mirrors and Sun Visors Check
Check that friction joints hold mirrors and sun visors in
place.
Seat Adjuster Check
When adjusting a manual seat, be sure seat adjusters
latch by attempting to move the seat after latching.
Lamps Check
Check panel lighting, warning lights, indicator lights and
interior lamps. On the outside, check: license plate
lamps, sidemarker lamps, reflectors or lights on outside
mirrors, headlamps, parking lamps, identification and
clearance lamps, taillamps, brake lamps, turn signals,
backup lamps and hazard warning flashers. Have
headlamp aim checked at once if beams seem
improperly aimed.
Glass, Mirrors, Lamps and/or
Reectors Condition Check
Look for broken, scratched, dirty or damaged glass,
mirrors, lamps or reflectors that could reduce the view
or visibility or cause injury. Replace, clean or repair
promptly.
Door Latches Check
Check that doors close, latch and lock tightly. Check for
broken, damaged or missing parts that might prevent
tight latching.
6-27

Driving on Snow or Ice....................................4-26
Driving Through Deep Standing Water...............4-20
Driving Through Flowing Water.........................4-20
Dual Tire Operation.........................................5-69
E
Eaton®Fuller®Five and Six-Speed
Transmissions and TTC Spicer Seven-Speed
Transmissions.............................................2-30
Eaton
®Fuller®Nine and Ten-Speed
Non-Synchronized Manual Transmissions........2-32
Electric Air Compressor...................................5-51
Electrical Connections......................................4-36
Electrical System
Add-On Equipment......................................5-86
Fuses and Circuit Breakers...........................5-87
Fusible Links..............................................5-87
Headlamp Wiring.........................................5-86
Power Windows and Other Power Options......5-87
Windshield Wiper Fuses...............................5-87
Elevated Idle/Exhaust Restrictor........................2-21
Engine
Air Cleaner/Filter.........................................5-30
Battery.......................................................5-55
Change Engine Oil Light...............................3-39
Check and Service Engine Soon Light............3-37Engine (cont.)
Checks Before Operating..............................2-22
Coolant..............................................5-32, 5-35
Coolant Heater............................................2-23
Coolant Temperature Gage...........................3-35
Diesel Engine Exhaust Brake........................2-25
Drive Belt Routing......................................5-103
Exhaust.....................................................2-37
Fan Noise..................................................5-43
Oil .....................................................5-20, 5-25
Overheating................................................5-36
Overspeed Warning Light..............................3-39
Reduced Power Light...................................3-41
Shutdown Warning Light...............................3-39
Starting Your Diesel.....................................2-14
Starting Your DURAMAX™ Diesel..................2-19
Starting Your Gasoline..................................2-12
Engine Alarm and Automatic Shutdown..............2-16
Engine Coolant Level Check.............................6-24
Engine Cooling System Service........................6-26
Engine Cover Check.......................................6-28
Engine Oil Additives................................5-23, 5-29
Engine Oil Level Check...................................6-24
Engine Road Speed Governor..........................3-25
Engine Speed Limiting.....................................3-25
Engine Starter Over-Crank Protection.................2-12
Event Data Records (EDR)................................ 7-5
Exhaust Brake Indicator Light...........................3-40
5

G
Gage
Air Pressure...............................................3-44
Check Gages Warning Light..........................3-42
Engine Coolant Temperature.........................3-35
Filter Minder...............................................3-44
Fuel..........................................................3-42
Hourmeter..................................................3-45
Oil Pressure...............................................3-37
Speedometer..............................................3-25
Tachometer.................................................3-26
Transmission Temperature.............................3-40
Voltmeter Gage...........................................3-30
Gasoline
Octane........................................................ 5-6
Specifications............................................... 5-6
Gasoline Engine, Starting.................................2-12
Gasoline Engine Warm-Up...............................2-14
Glass, Mirrors, Lamps and/or Reflectors
Condition Check..........................................6-27
H
Hazard Warning Flashers................................... 3-5
Headlamp High/Low-Beam Changer.................... 3-8
Headlamp Wiring............................................5-86Headlamps On Reminder.................................3-13
Heavy-Duty Trailer Wiring Package....................4-35
Height Adjustment............................................. 1-6
High Idle System (Caterpillar
®Diesel and
Gasoline Engines).......................................2-16
Highway Hypnosis...........................................4-23
Hill and Mountain Roads..................................4-23
Hood
Checking Things Under................................5-18
Latches......................................................5-19
Hood Latches Check.......................................6-28
Horn............................................................... 3-6
Hourmeter Gage.............................................3-45
How to Add Coolant to the Coolant
Surge Tank.................................................5-39
How to Add Fluid............................................5-32
How to Check................................................5-69
How to Check and What to Use...............5-31, 5-32
How to Check Fluid........................................5-61
How to Check Lubricant...................................5-61
How To Check Power Steering Fluid..................5-43
How to Inspect the Engine Air Cleaner/Filter.......5-30
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-13
Hydraulic Brake System
Warning Lights............................................3-32
Hydraulic Brake Systems................................... 4-6
Hydraulic Brakes.............................................2-33
Hydroplaning..................................................4-20
7
