8(Mist):For a single wiping cycle, turn the band to
this symbol. Hold it there until the wipers start, then
let go. The wipers will stop after one cycle. If you want
more cycles, hold the band on mist longer.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain
or snow. Turn the band to one of the four delay settings
to choose the delay time. The further the band is
turned upward, the longer the delay will be. The further
the band is turned downward, the shorter the delay
will be.
6(Low Speed):For steady wiping at low speed,
turn the band toward you to the first solid band
below the delay settings.
1(High Speed):For high-speed wiping, turn the
band further, to the second solid band below the delay
settings. To stop the wipers, move the band to off.
Be sure to clear ice and snow from the wiper blades
before using them. If they are frozen to the windshield,
carefully loosen or thaw them. If your blades do
become worn or damaged, get new blades or blade
inserts. For more information, seeWindshield Wiper
Blade Replacement on page 5-63.Heavy snow or ice can overload your wipers. The
windshield wiper motor is protected from overload by a
circuit breaker and a fuse. If the motor overheats
due to heavy snow or ice the wiper will stop until the
motor cools. Although the circuit is protected from
electrical overload, overload due to heavy snow or ice
may cause wiper linkage damage. Always clear ice and
heavy snow from the windshield before using your
windshield wipers.
Windshield Washer
L
(Washer Fluid):There is a paddle marked with the
windshield washer symbol at the top of the multifunction
lever. To spray washer fluid on the windshield, press
the paddle. The wipers will clear the window and
then either stop or return to your preset speed.
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer uid can form ice on the windshield,
blocking your vision.
3-9

Low Washer Fluid Warning Light
This light will come on
when your vehicle is low
on windshield washer fluid.
For more information, seeWindshield Washer Fluid on
page 5-44.
Check Gages Warning Light
This light will come on as
you’re starting the engine,
just as a check.
If this light comes on and stays on while you are driving.
it means that either your engine coolant temperature
gage or your engine oil pressure gage may be showing
a reading in the warning zone.When the check gages light comes on, you will also
hear a warning tone. The tone and the light will
stay activated until the problem is corrected.
This light may also come on if your vehicle is equipped
with the optional automatic engine shutdown system
and engine shutdown has begun. SeeEngine Alarm and
Automatic ShutdownunderStarting Your Diesel
Engine on page 2-14.
Fuel Gage
Your fuel gage is located
on the right side of your
instrument panel cluster.
When the ignition is on, your fuel gage lets you know
about how much fuel you have left. When the gage first
shows empty, you’ll still have a little fuel left, but you
should get more fuel soon.
3-42

Service............................................................5-3
Doing Your Own Service Work.........................5-4
Two Safety Cautions about Engine Fan
Breakage...................................................5-5
Fuel................................................................5-6
Gasoline Octane............................................5-6
Gasoline Specifications....................................5-6
Additives.......................................................5-7
Diesel Engine Fuel.........................................5-8
What Fuel to Use...........................................5-8
Very Cold Weather Operation.........................5-10
Water in Fuel...............................................5-10
Running Out of Fuel.....................................5-15
Fuel Filter Replacement.................................5-15
Fuels in Foreign Countries.............................5-16
Filling Your Tank..........................................5-17
Filling a Portable Fuel Container.....................5-18
Checking Things Under the Hood....................5-18
Hood Latches...............................................5-19
Engine Oil (Caterpillar
®Diesel Engine).............5-20
Engine Oil (Gasoline Engine)..........................5-20
Engine Oil (DURAMAX™ Diesel).....................5-25
Engine Air Cleaner/Filter................................5-30
Automatic Transmission Fluid.........................5-31
Manual Transmission Fluid.............................5-32Engine Coolant (Gas and
DURAMAX™ engines)................................5-32
Engine Coolant (Caterpillar
®Diesel Engines).....5-35
Coolant Surge Tank Pressure Cap..................5-35
Engine Overheating.......................................5-36
Cooling System............................................5-38
Engine Fan Noise.........................................5-43
Power Steering Fluid.....................................5-43
Windshield Washer Fluid................................5-44
Brakes........................................................5-46
Battery........................................................5-55
Jump Starting...............................................5-56
Rear Axle.......................................................5-61
Rear Axle Shift Motor....................................5-61
Noise Control System.....................................5-62
Tampering with Noise Control System
Prohibited.................................................5-62
Bulb Replacement..........................................5-63
Replacement Bulbs.......................................5-63
Windshield Wiper Blade Replacement..............5-63
Other Service Items........................................5-64
Fuel Filter....................................................5-64
Primary Fuel Filter and Water Separator..........5-65
Secondary Fuel Filter and Water
Separator/Heater.......................................5-66
Section 5 Service and Appearance Care
5-1

If your power steering fluid level is low, this can cause
the brake or service brake soon warning lights to
come on. In addition, the steering effort and emergency
brake distance could increase.
If either light remains on after you have added power
steering fluid to the proper level, then shut off the engine
for 10 seconds. This should reset the brake warning
lights. If one or both lights stay on though, see
“Hydraulic Brake System Warning Lights” underBrake
System Warning Light on page 3-31for more
information.
What to Use
To determine what kind of fluid to use, seePart C:
Recommended Fluids and Lubricants on page 6-29.
Notice:When adding power steering uid or
making a complete uid change, always use the
proper uid. Failure to use the proper uid can
cause leaks and damage hoses and seals.

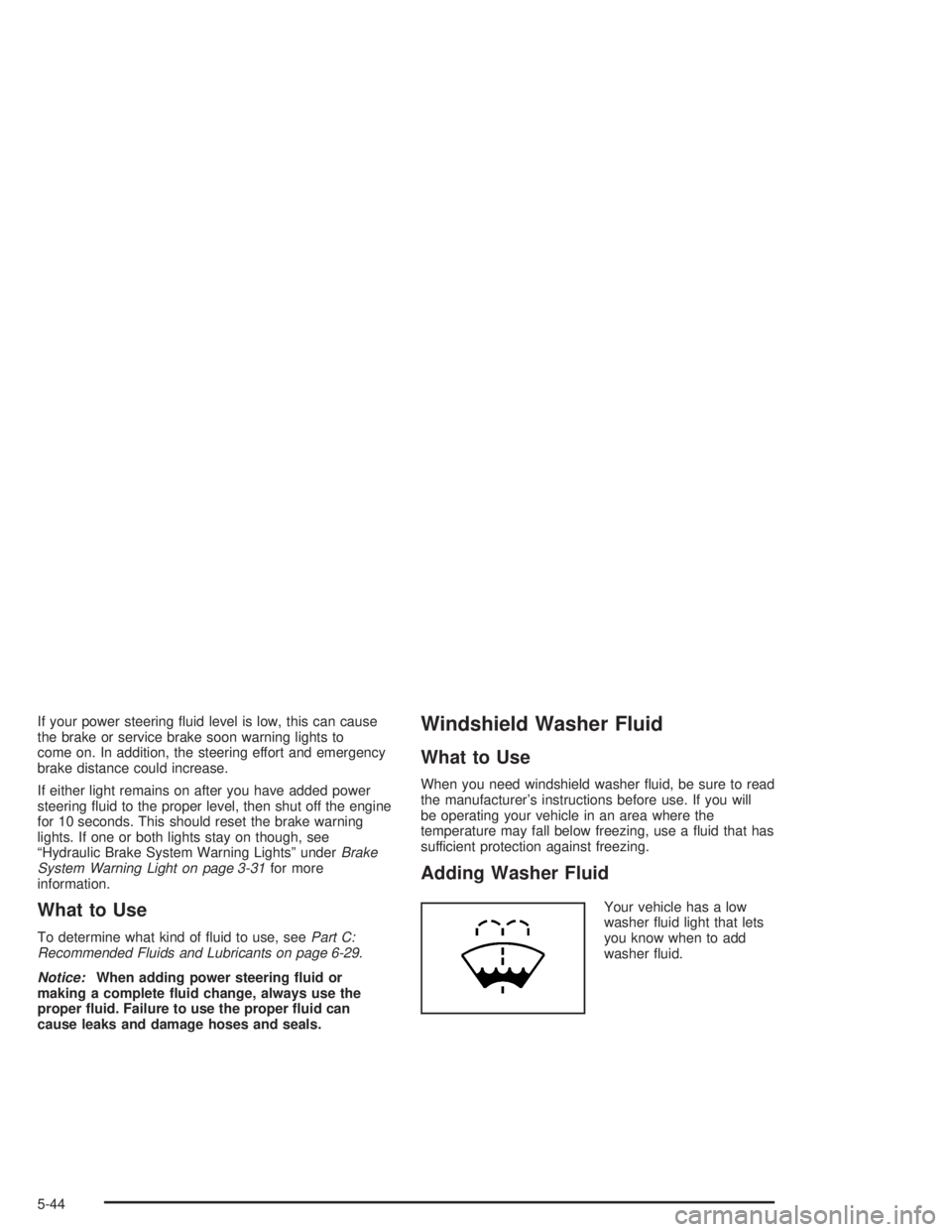

Windshield Washer Fluid
What to Use
When you need windshield washer fluid, be sure to read
the manufacturer’s instructions before use. If you will
be operating your vehicle in an area where the
temperature may fall below freezing, use a fluid that has
sufficient protection against freezing.
Adding Washer Fluid
Your vehicle has a low
washer fluid light that lets
you know when to add
washer fluid.
5-44

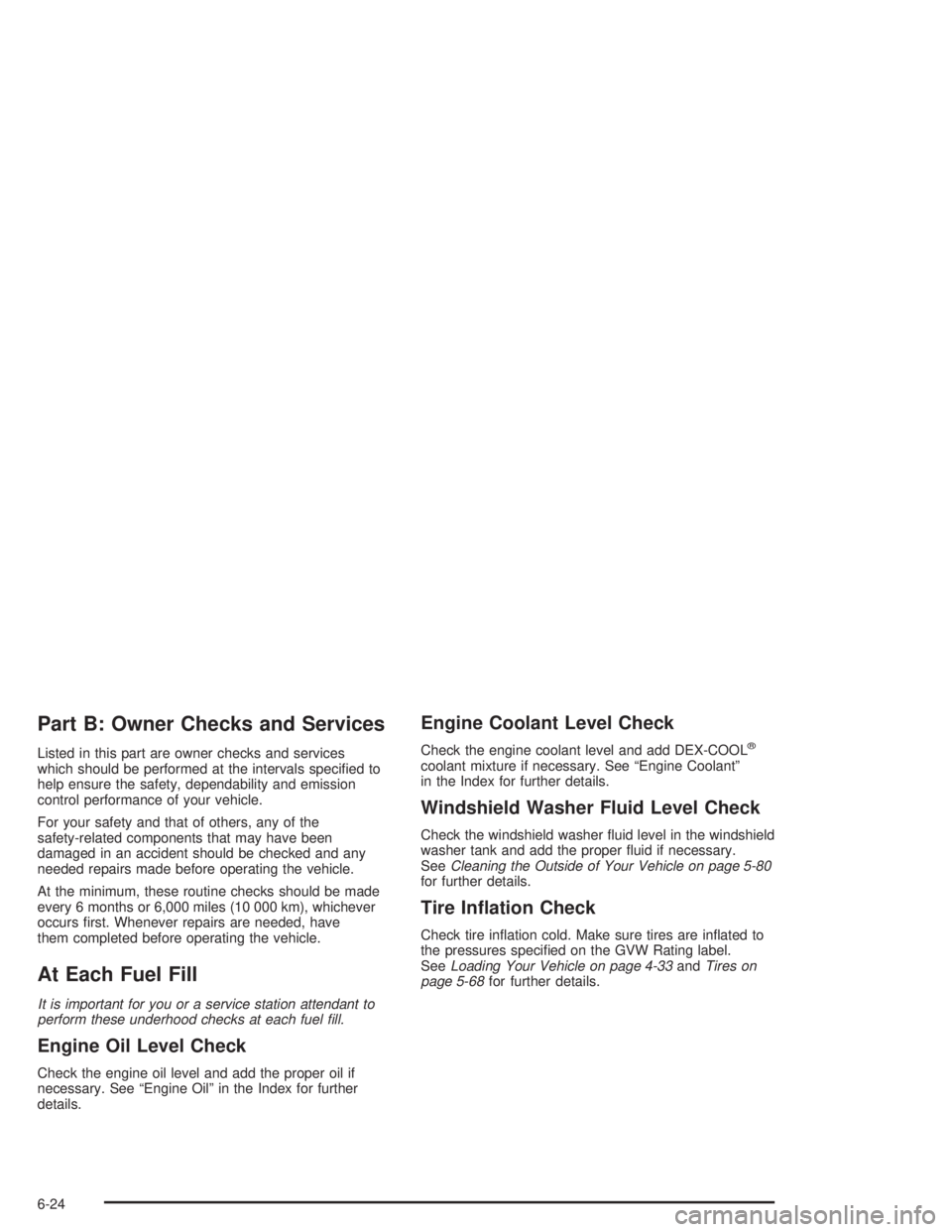

Part B: Owner Checks and Services
Listed in this part are owner checks and services
which should be performed at the intervals specified to
help ensure the safety, dependability and emission
control performance of your vehicle.
For your safety and that of others, any of the
safety-related components that may have been
damaged in an accident should be checked and any
needed repairs made before operating the vehicle.
At the minimum, these routine checks should be made
every 6 months or 6,000 miles (10 000 km), whichever
occurs first. Whenever repairs are needed, have
them completed before operating the vehicle.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for further
details.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL®
coolant mixture if necessary. See “Engine Coolant”
in the Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the windshield
washer tank and add the proper fluid if necessary.
SeeCleaning the Outside of Your Vehicle on page 5-80
for further details.
Tire Ination Check
Check tire inflation cold. Make sure tires are inflated to
the pressures specified on the GVW Rating label.
SeeLoading Your Vehicle on page 4-33andTires on
page 5-68for further details.
6-24

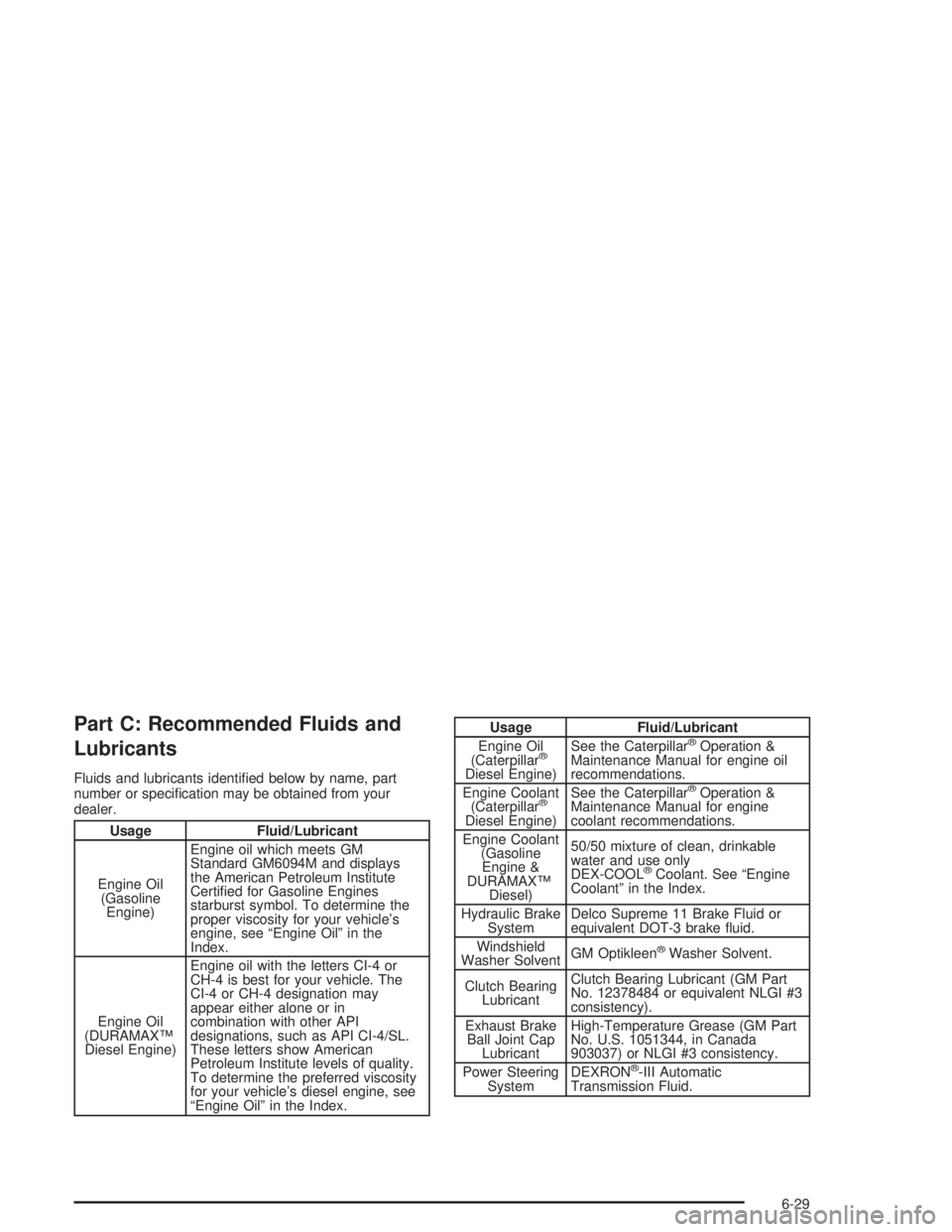

Part C: Recommended Fluids and
Lubricants
Fluids and lubricants identified below by name, part
number or specification may be obtained from your
dealer.
Usage Fluid/Lubricant
Engine Oil
(Gasoline
Engine)Engine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certified for Gasoline Engines
starburst symbol. To determine the
proper viscosity for your vehicle’s
engine, see “Engine Oil” in the
Index.
Engine Oil
(DURAMAX™
Diesel Engine)Engine oil with the letters CI-4 or
CH-4 is best for your vehicle. The
CI-4 or CH-4 designation may
appear either alone or in
combination with other API
designations, such as API CI-4/SL.
These letters show American
Petroleum Institute levels of quality.
To determine the preferred viscosity
for your vehicle’s diesel engine, see
“Engine Oil” in the Index.
Usage Fluid/Lubricant
Engine Oil
(Caterpillar
®
Diesel Engine)See the Caterpillar
®Operation &
Maintenance Manual for engine oil
recommendations.
Engine Coolant
(Caterpillar
®
Diesel Engine)See the Caterpillar
®Operation &
Maintenance Manual for engine
coolant recommendations.
Engine Coolant
(Gasoline
Engine &
DURAMAX™
Diesel)50/50 mixture of clean, drinkable
water and use only
DEX-COOL
®Coolant. See “Engine
Coolant” in the Index.
Hydraulic Brake
SystemDelco Supreme 11 Brake Fluid or
equivalent DOT-3 brake fluid.
Windshield
Washer SolventGM Optikleen
®Washer Solvent.
Clutch Bearing
LubricantClutch Bearing Lubricant (GM Part
No. 12378484 or equivalent NLGI #3
consistency).
Exhaust Brake
Ball Joint Cap
LubricantHigh-Temperature Grease (GM Part
No. U.S. 1051344, in Canada
903037) or NLGI #3 consistency.
Power Steering
SystemDEXRON
®-III Automatic
Transmission Fluid.
6-29

A
Accessory Power Outlets.................................3-17
Adding Equipment to Your Air Bag-Equipped
Vehicle.......................................................1-61
Adding Washer Fluid.......................................5-44
Additives, Fuel................................................. 5-7
Add-On Electrical Equipment............................5-86
Adjusting the Speakers
(Balance/Fade)............................3-47, 3-50, 3-54
Air Bag
Off Light.....................................................3-28
Readiness Light..........................................3-27
Air Bag System..............................................1-48
Adding Equipment to Your Air Bag-Equipped
Vehicle...................................................1-61
Air Bag Off Switch.......................................1-55
How Does an Air Bag Restrain?....................1-53
Servicing Your Air Bag-Equipped Vehicle.........1-60
What Makes an Air Bag Inflate?....................1-53
What Will You See After an Air Bag Inflates? . . 1-54
When Should an Air Bag Inflate?...................1-53
Where Are the Air Bags?..............................1-52
Air Brake.......................................................2-35
Air Brake System Warning Light........................3-33
Air Brake Systems..........................................5-50
Air Cleaner/Filter, Engine.................................5-30
Air Conditioning System...................................5-67Air Connections..............................................4-36
Air Dryer.......................................................5-50
Air Pressure Gage..........................................3-44
Air Shift Control (Automatic Transmission)..........2-27
Air Suspension...............................................2-27
Air Suspension Seats........................................ 1-6
Airbag Sensing and Diagnostic Module (SDM)...... 7-5
All Overseas Locations...................................... 7-4
Allison Transmission
®External Filters...............5-100
Aluminum or Chrome-Plated Wheels..................5-82
AM ...............................................................3-57
AM-FM Radio.................................................3-46
Antenna, Fixed Mast.......................................3-59
Anti-lock Brake System (ABS)............................ 4-7
Anti-Lock Brake, System Warning Light..............3-34
Anti-Lock Brakes, Trailer System
Warning Light.............................................3-35
Appearance Care............................................5-76
Care of Safety Belts....................................5-79
Chemical Paint Spotting...............................5-83
Cleaning the Inside of Your Vehicle................5-77
Cleaning the Outside of Your Vehicle..............5-80
Finish Damage............................................5-83
Sheet Metal Damage...................................5-82
Underbody Maintenance...............................5-83
Vehicle Care/Appearance Materials................5-84
Weatherstrips..............................................5-79
Ashtrays........................................................3-18
1

Exhaust Restrictor (Diesel Engines)...................2-18
Exhaust System Check....................................6-27
Express-Down Feature.....................................2-10
Extender, Safety Belt.......................................1-26
Exterior Lamps...............................................3-13
F
Filter
Engine Air Cleaner......................................5-30
Filter Minder Gage..........................................3-44
Finding a Station............................3-46, 3-49, 3-53
Finish Care....................................................5-80
Finish Damage...............................................5-83
Fixed Mast Antenna........................................3-59
Flat Tire........................................................5-75
Flat Tire, Changing.........................................5-76
Fluid
Automatic Transmission................................5-31
Manual Transmission....................................5-32
Power Steering...........................................5-43
Windshield Washer......................................5-44
Fluid Leaks Check..........................................6-28
FM ...............................................................3-57
Folding the Rear Seat (Crew Cab).................... 1-7
Footnotes......................................................6-19
Fore-and-Aft Adjustment.................................... 1-4Four-Wheel and Six-Wheel Drum Brakes
(Air Only)...................................................5-49
Four-Wheel Disc Brakes
(Hydraulic Only)..........................................5-49
Front Wheel Bearings with Oil-Filled Hubs..........5-67
Fuel............................................................... 5-6
Additives...................................................... 5-7
Diesel Engine Fuel........................................ 5-8
Filling a Portable Fuel Container....................5-18
Filling Your Tank..........................................5-17
Filter..........................................................5-64
Filter Replacement.......................................5-15
Fuels in Foreign Countries............................5-16
Gage.........................................................3-42
Gasoline Octane........................................... 5-6
Gasoline Specifications.................................. 5-6
Primary Filter and Water Separator................5-65
Running Out of Fuel....................................5-15
Secondary Filter and Water Separator/Heater....5-66
Very Cold Weather Operation........................5-10
Water in Fuel..............................................5-10
Water in Warning Light.................................3-43
What Fuel to Use.......................................... 5-8
Fuel Filter (Diesel Engines)..............................5-65
Fuel Filter (Gasoline Engines)...........................5-64
Fuel Priming..................................................5-13
Fuses
Fuses and Circuit Breakers...........................5-87
Windshield Wiper.........................................5-87
6

Light (cont.)
Differential Lock Indicator..............................3-40
Engine Overspeed Warning...........................3-39
Engine Shutdown Warning............................3-39
Exhaust Brake Indicator................................3-40
Low Coolant Warning...................................3-36
Low Oil Level.............................................3-38
Low Washer Fluid Warning...........................3-42
Malfunction Indicator....................................3-37
Parking Brake Warning.................................3-34
Range Inhibit Warning Indicator.....................3-31
Reduced Engine Power................................3-41
Safety Belt Reminder...................................3-26
Safety Belt Reminder Tone...........................3-26
Service Transmission Warning.......................3-31
Trailer Anti-Lock Brake System Warning..........3-35
Wait to Start Indicator..................................3-36
Water in Fuel Warning.................................3-43
Loading Your Vehicle.......................................4-33
Lockout Feature..............................................2-10
Locks
Door........................................................... 2-6
Power Door.................................................. 2-7
Loss of Control...............................................4-16
Low Coolant Warning Light..............................3-36
Low Washer Fluid Warning Light.......................3-42
Lumbar Adjustments.......................................... 1-3M
Maintenance, Normal Replacement Parts..........5-100
Maintenance Schedule
At Each Fuel Fill.........................................6-24
At Least Once a Year..................................6-28
At Least Twice a Year..................................6-25
How This Section is Organized....................... 6-3
Introduction.................................................. 6-2
Maintenance Requirements............................. 6-2
Part A - Scheduled Maintenance Services......... 6-4
Part B - Owner Checks and Services.............6-24
Part C - Recommended Fluids and
Lubricants...............................................6-29
Part D - Maintenance Record........................6-31
Scheduled Maintenance................................. 6-5
Scheduled Maintenance Supplements............... 6-4
Using Your................................................... 6-4
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-37
Manual Seats................................................... 1-2
Manual Transmission.......................2-13, 2-19, 2-26
Fluid..........................................................5-32
Operation...................................................2-30
Manual Windows.............................................. 2-8
Marker Lamp Defeat Switch.............................3-14
9
