radio CHEVROLET KODIAK 2007 Owners Manual

Your vehicle has
one double-sided key
for the ignition and
all door locks.
If you ever lose your key, your dealer will be able
to assist you with obtaining a new one.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.
If you ever do get locked out of your vehicle, call
GM Roadside Assistance Center. SeeRoadside
Assistance Program on page 408.Remote Keyless Entry (RKE)
System
If the vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modifications to this system by other
than an authorized service facility could void
authorization to use this equipment.
87

Ignition Positions
With your key in the ignition switch, you can turn it
to five different positions.
A (ACCESSORY):This position allows you to use
things like the radio, power windows and the
windshield wipers when the engine is off. To get
into ACCESSORY, push in the key and turn it
toward you. Your steering wheel will remain
locked, just as it was before you inserted the key.B (LOCK):This position locks your ignition,
steering wheel and transmission. It is a
theft-deterrent feature. You will only be able to
remove your key when the ignition is turned
to LOCK.
C (OFF):This position lets you turn off the engine
but still turn the steering wheel. It does not lock
the steering wheel like LOCK. Use OFF if
you must have your vehicle in motion while the
engine is off.
D (RUN):This is the position for driving.
The battery could be drained if you leave the key
in the ACCESSORY or RUN position with the
engine off. You may not be able to start your
vehicle if the battery is allowed to drain for
an extended period of time.
E (START):This position starts your engine.
96

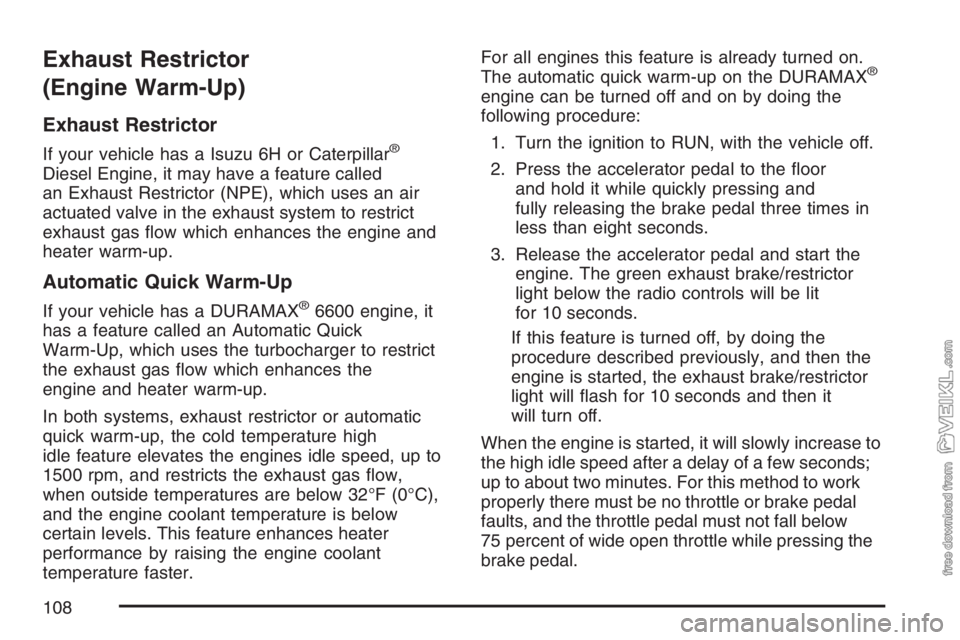

Exhaust Restrictor
(Engine Warm-Up)
Exhaust Restrictor
If your vehicle has a Isuzu 6H or Caterpillar®
Diesel Engine, it may have a feature called
an Exhaust Restrictor (NPE), which uses an air
actuated valve in the exhaust system to restrict
exhaust gas flow which enhances the engine and
heater warm-up.
Automatic Quick Warm-Up
If your vehicle has a DURAMAX®6600 engine, it
has a feature called an Automatic Quick
Warm-Up, which uses the turbocharger to restrict
the exhaust gas flow which enhances the
engine and heater warm-up.
In both systems, exhaust restrictor or automatic
quick warm-up, the cold temperature high
idle feature elevates the engines idle speed, up to
1500 rpm, and restricts the exhaust gas flow,
when outside temperatures are below 32°F (0°C),
and the engine coolant temperature is below
certain levels. This feature enhances heater
performance by raising the engine coolant
temperature faster.For all engines this feature is already turned on.
The automatic quick warm-up on the DURAMAX
®
engine can be turned off and on by doing the
following procedure:
1. Turn the ignition to RUN, with the vehicle off.
2. Press the accelerator pedal to the floor
and hold it while quickly pressing and
fully releasing the brake pedal three times in
less than eight seconds.
3. Release the accelerator pedal and start the
engine. The green exhaust brake/restrictor
light below the radio controls will be lit
for 10 seconds.
If this feature is turned off, by doing the
procedure described previously, and then the
engine is started, the exhaust brake/restrictor
light will flash for 10 seconds and then it
will turn off.
When the engine is started, it will slowly increase to
the high idle speed after a delay of a few seconds;
up to about two minutes. For this method to work
properly there must be no throttle or brake pedal
faults, and the throttle pedal must not fall below
75 percent of wide open throttle while pressing the
brake pedal.
108

To set the foot pedal parking brake, hold the
regular brake pedal down with your right foot. Push
down the parking brake pedal with your left foot.
To set the hand lever parking brake, hold the
regular brake pedal down with your right foot. Pull
up on the handle with your right hand, until it stops.
If the ignition is on when the parking brake is set,
the brake system warning light will come on.
To release the foot pedal parking brake, hold
the regular brake pedal down. Pull the brake
release handle, located just above the parking
brake pedal, to release the parking brake.
To release the hand lever parking brake, hold the
regular brake pedal down and push down on
the handle until it stops.
If the ignition is on when the parking brake is
released, the brake system warning light will
go off.Parking Brake (with Air Brakes)
If your vehicle has
air brakes, you will
have this parking brake.
It is located above
the radio in the
instrument panel.
Pulling it out applies the parking brake. The
parking brake light will come on when the air
parking brake is applied.
126

Engine Coolant Temperature Gage............ 173
Low Coolant Warning Light....................... 173
Wait to Start Indicator............................... 174
Malfunction Indicator Lamp........................ 174
Oil Pressure Gage..................................... 175
Low Oil Level Light................................... 176
Change Engine Oil Light........................... 176
Engine Overspeed Warning Light.............. 177
Engine Shutdown Warning Light................ 177
Transmission Temperature Gage............... 178
Exhaust Brake Indicator Light.................... 178
Differential Lock Indicator Light.................. 178
Reduced Engine Power Light.................... 179
Highbeam On Light................................... 179
Daytime Running Lamps (DRL)
Indicator Light........................................ 179
Low Washer Fluid Warning Light............... 180
Check Gages Warning Light...................... 180
Fuel Gage................................................. 181Water in Fuel Warning Light...................... 182
Air Filter Restriction Indicator..................... 182
Air Pressure Gage..................................... 183
Hourmeter Gage........................................ 183
Audio System(s)......................................... 184
Setting the Time........................................ 185
AM-FM Radio............................................ 186
Radio with Cassette.................................. 189
Radio with CD........................................... 195
Theft-Deterrent Feature
(Non-RDS Radios)................................. 201
Radio Reception........................................ 201
Care of the Cassette Tape Player............. 202
Care of Your CDs..................................... 203
Care of the CD Player.............................. 204
Fixed Mast Antenna.................................. 204
Chime Level Adjustment............................ 204
Section 3 Instrument Panel
138

Marker Lamps
If your vehicle has this feature, you can manually
blink the marker and clearance lamps.
The marker lamp defeat
switch is located in the
instrument panel
switchbank.
Press and hold the bottom of the switch to turn off
the marker and clearance lamps. When you
release the switch, the marker and clearance
lamps will come back on.
Instrument Panel Brightness
This feature controls the brightness of the
instrument panel lights.
The thumbwheel for this feature is located to the
right of the exterior lamp control.
Turn the thumbwheel up to brighten the lights.
When the thumbwheel is moved to the first
position, the radio display and transmission
selection display will go to full intensity. The
instrument panel cluster will also be dimly
lit. Moving the thumbwheel up to the next position
will activate the interior dome lamps.
152

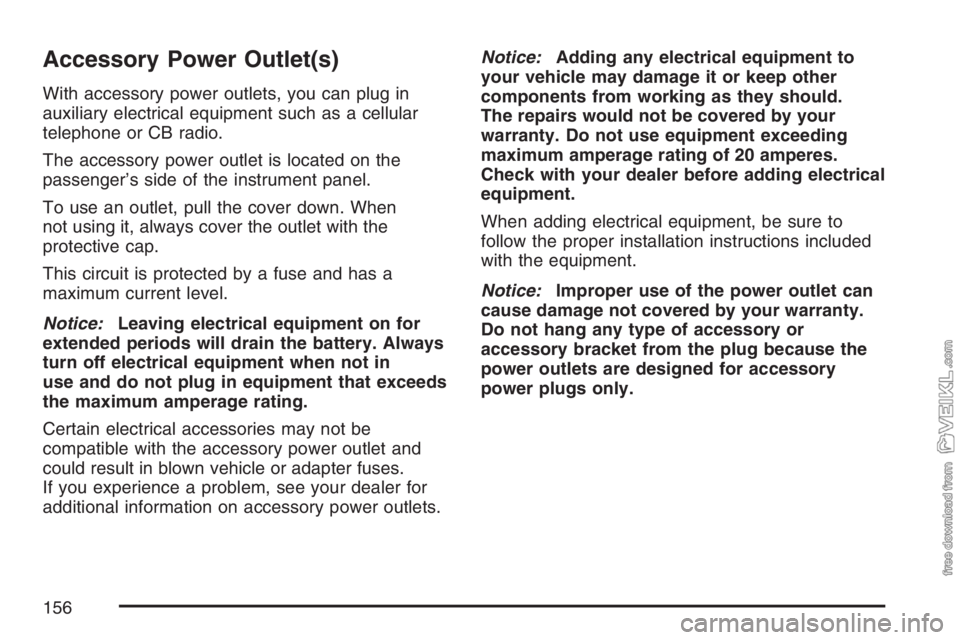

Accessory Power Outlet(s)
With accessory power outlets, you can plug in
auxiliary electrical equipment such as a cellular
telephone or CB radio.
The accessory power outlet is located on the
passenger’s side of the instrument panel.
To use an outlet, pull the cover down. When
not using it, always cover the outlet with the
protective cap.
This circuit is protected by a fuse and has a
maximum current level.
Notice:Leaving electrical equipment on for
extended periods will drain the battery. Always
turn off electrical equipment when not in
use and do not plug in equipment that exceeds
the maximum amperage rating.
Certain electrical accessories may not be
compatible with the accessory power outlet and
could result in blown vehicle or adapter fuses.
If you experience a problem, see your dealer for
additional information on accessory power outlets.Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should.
The repairs would not be covered by your
warranty. Do not use equipment exceeding
maximum amperage rating of 20 amperes.
Check with your dealer before adding electrical
equipment.
When adding electrical equipment, be sure to
follow the proper installation instructions included
with the equipment.
Notice:Improper use of the power outlet can
cause damage not covered by your warranty.
Do not hang any type of accessory or
accessory bracket from the plug because the
power outlets are designed for accessory
power plugs only.
156

{CAUTION:
If the airbag readiness light ever comes
on when you have turned off the airbag, it
means that something may be wrong with
the airbag system. The right front
passenger’s airbag could inate even
though the switch is off. If this ever
happens, do not let anyone whom the
national government has identied as a
member of a passenger airbag risk group
sit in the right front passenger’s position
(for example, do not secure a rear-facing
child restraint in the right front
passenger’s seat) until you have your
vehicle serviced. SeeAirbag Off Switch on
page 76andAirbag Readiness Light on
page 165for more on this, including
important safety information.
Charging System Light
The charging system
light may be located in
the instrument panel
cluster, or with the
auxiliary warning lights
in the center of the
instrument panel.
It should come on briefly when you turn on the
ignition, before the engine is running, as a check to
show that it is working.
If it stays on, or comes on while you are driving,
have your vehicle checked right away. You
could have a loose generator drive belt or some
other problem.
Driving while this light is on will drain your battery.
If you must drive a short distance with the light
on, turn off your radio and other accessories.
Sustained driving with a generator failure could
result in a lack of back-up braking if the engine
quits or the power steering pump should fail.
167

Voltmeter Gage
When your engine is
running, the voltmeter
gage shows the
charging system
voltage.
Readings in either warning zone indicate a
possible problem in the electrical system.
Readings in the low warning zone may occur
when a large number of electrical accessories are
operating in the vehicle and the engine is left at
an idle for an extended period. This condition
is normal since the charging system may not be
able to provide full power at engine idle. As engine
speeds are increased, this condition should
correct itself because higher engine speeds allow
the charging system to create maximum power.You can only drive a short time on the battery.
Be sure to shut off the radio, the fan or any
unnecessary accessories and have the system
serviced.
Service Transmission Warning Light
If your vehicle has an Allison®automatic
transmission, certain transmission malfunctions
will turn this light on.
This light is located with
the auxiliary warning
lights in the center of the
instrument panel.
If this light comes on while you are driving, do not
use the transmission shift control or you may
lose forward gears. The computer for the
transmission senses a problem and chooses a
gear to stay in so that you can drive the vehicle in
that gear. You may not be able to drive as fast
or back up when this light is on.
168

Audio System(s)
If your vehicle came without a radio, the wiring
provisions for a radio and an antenna were
installed at the assembly plant, so that if you want,
a radio can be installed at the dealer.
Determine which radio your vehicle has and then
read the pages following to familiarize yourself
with its features.
Driving without distraction is a necessity for a
safer driving experience. SeeDefensive Driving on
page 206. By taking a few moments to read this
manual and get familiar with your vehicle’s
audio system, you can use it with less effort, as
well as take advantage of its features. While your
vehicle is parked, set up your audio system by
presetting your favorite radio stations, setting the
tone and adjusting the speakers. Then, when
driving conditions permit, you can tune to
your favorite stations using the presets and
steering wheel controls if the vehicle has them.{CAUTION:
This system provides you with a far greater
access to audio stations and song listings.
Giving extended attention to entertainment
tasks while driving can cause a crash and
you or others can be injured or killed.
Always keep your eyes on the road and
your mind on the drive — avoid engaging
in extended searching while driving.
Keeping your mind on the drive is important for
safe driving. For more information, seeDefensive
Driving on page 206.
Here are some ways in which you can help avoid
distraction while driving.
184
